Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

20 part groups · 10 illustrations

Illustrations

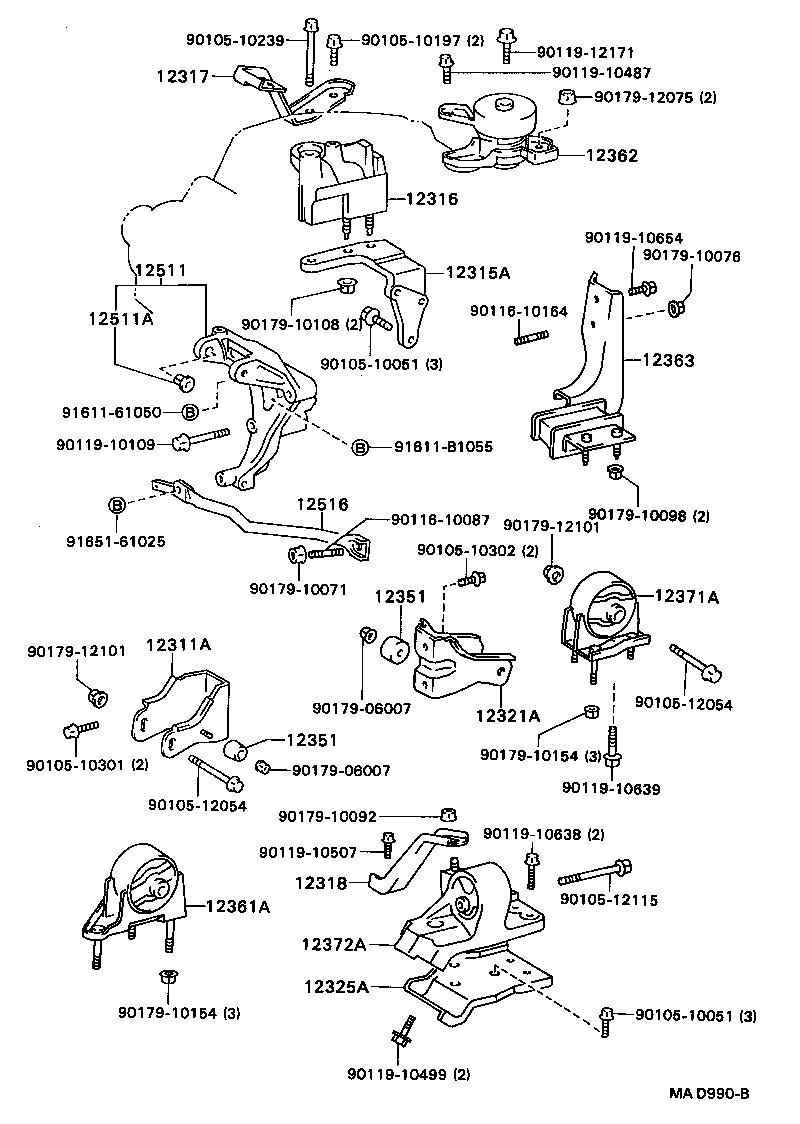

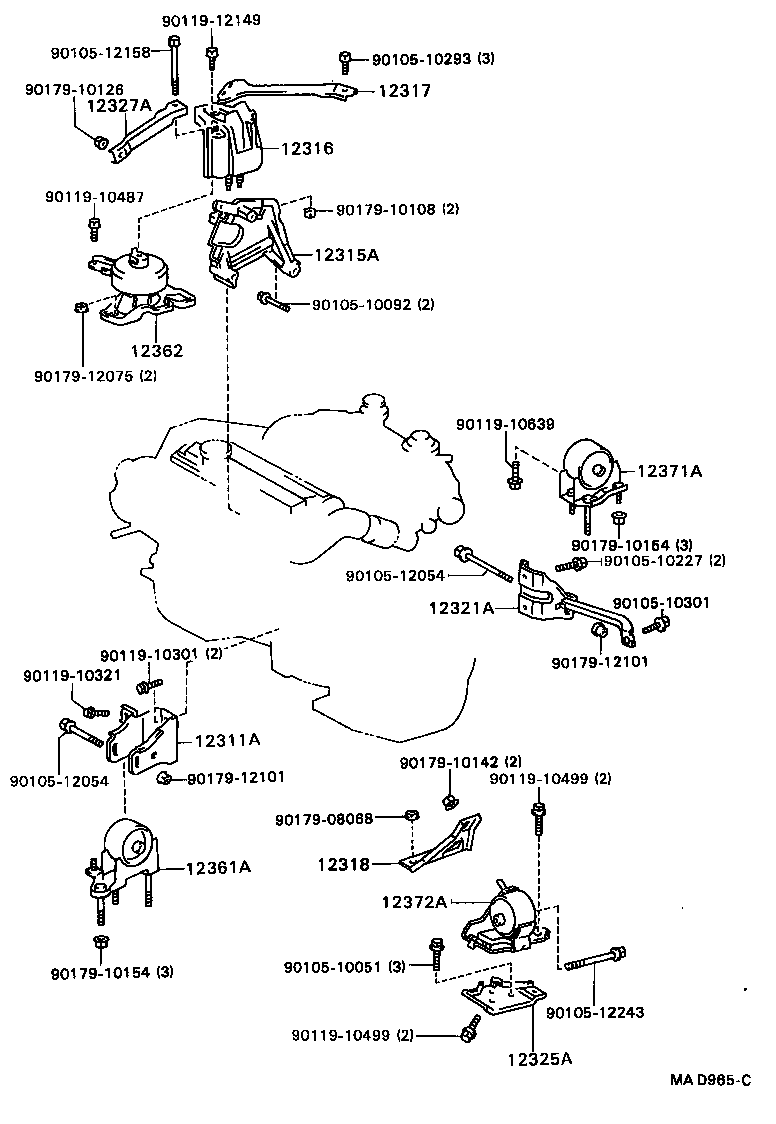

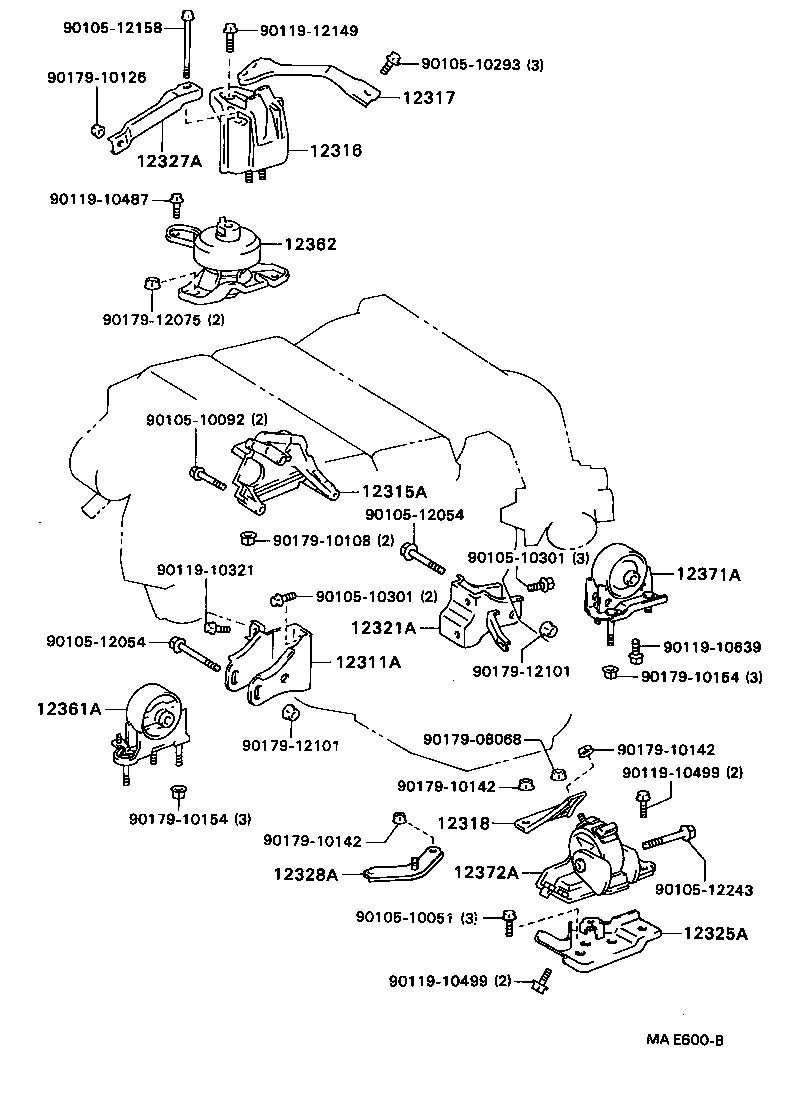

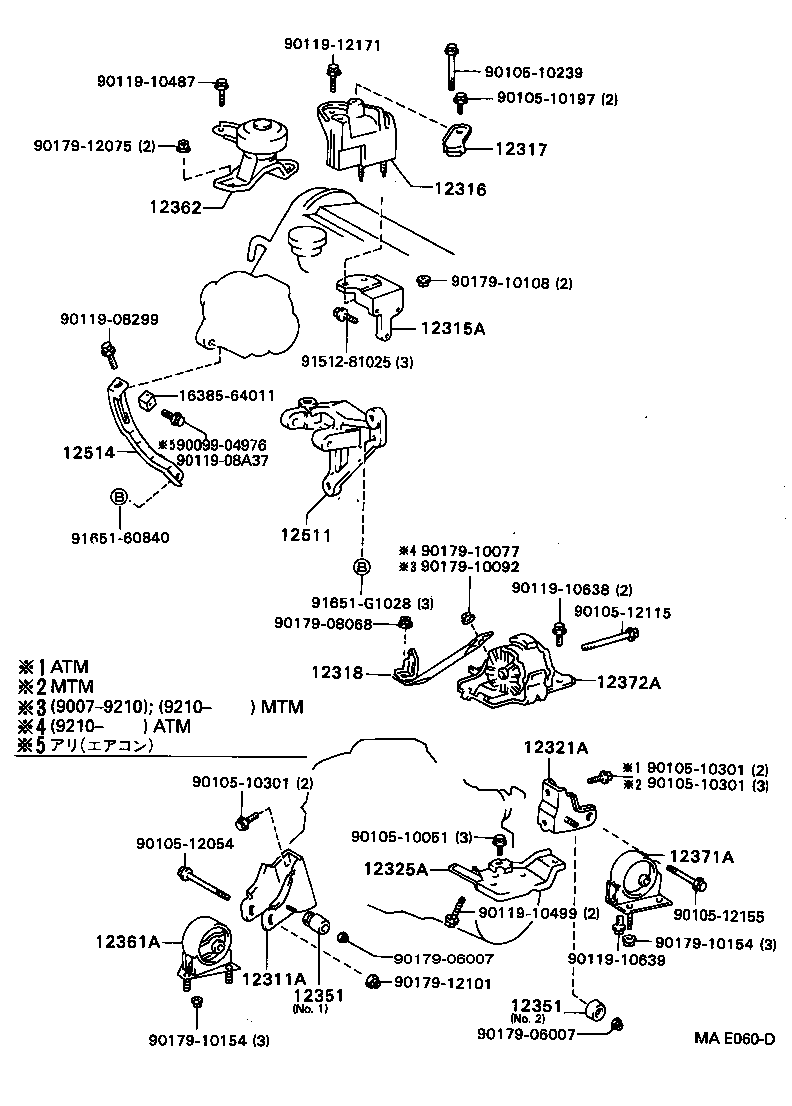

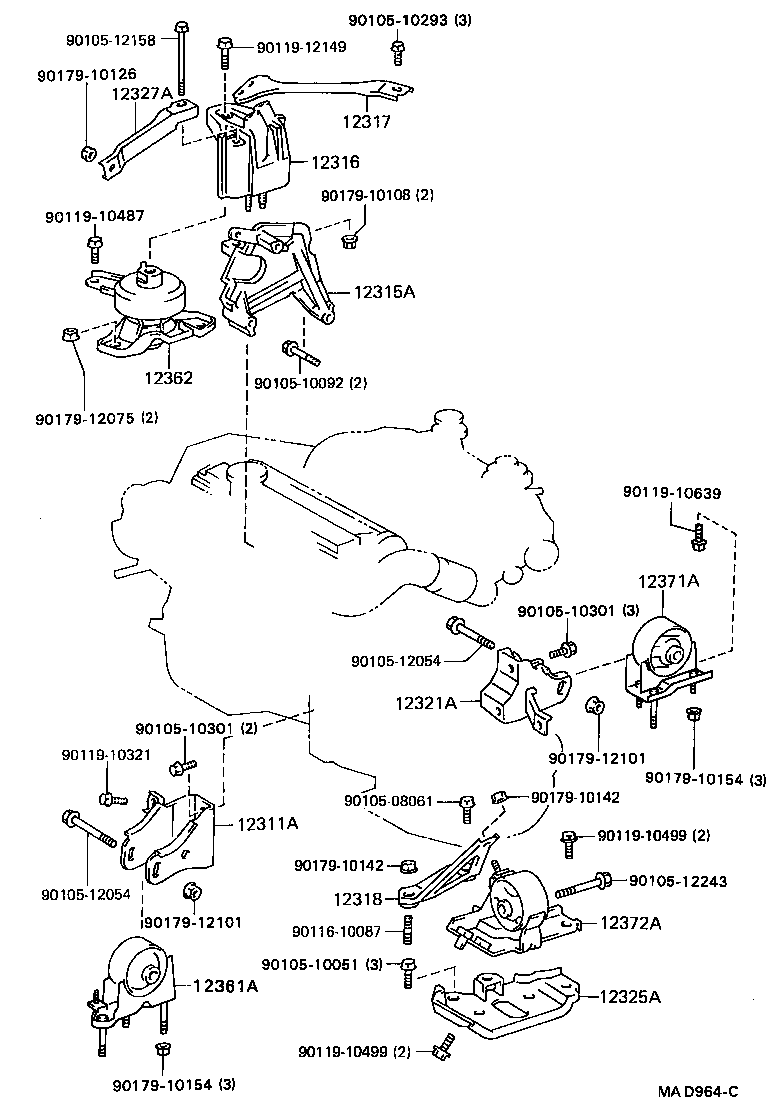

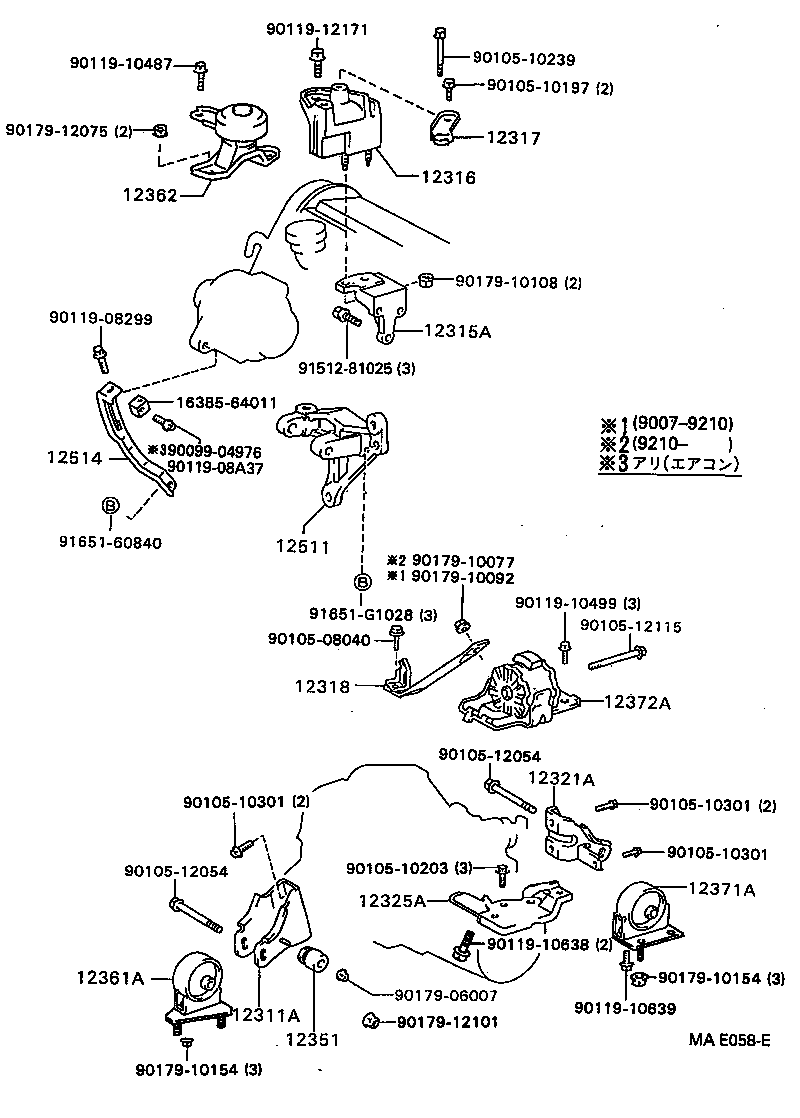

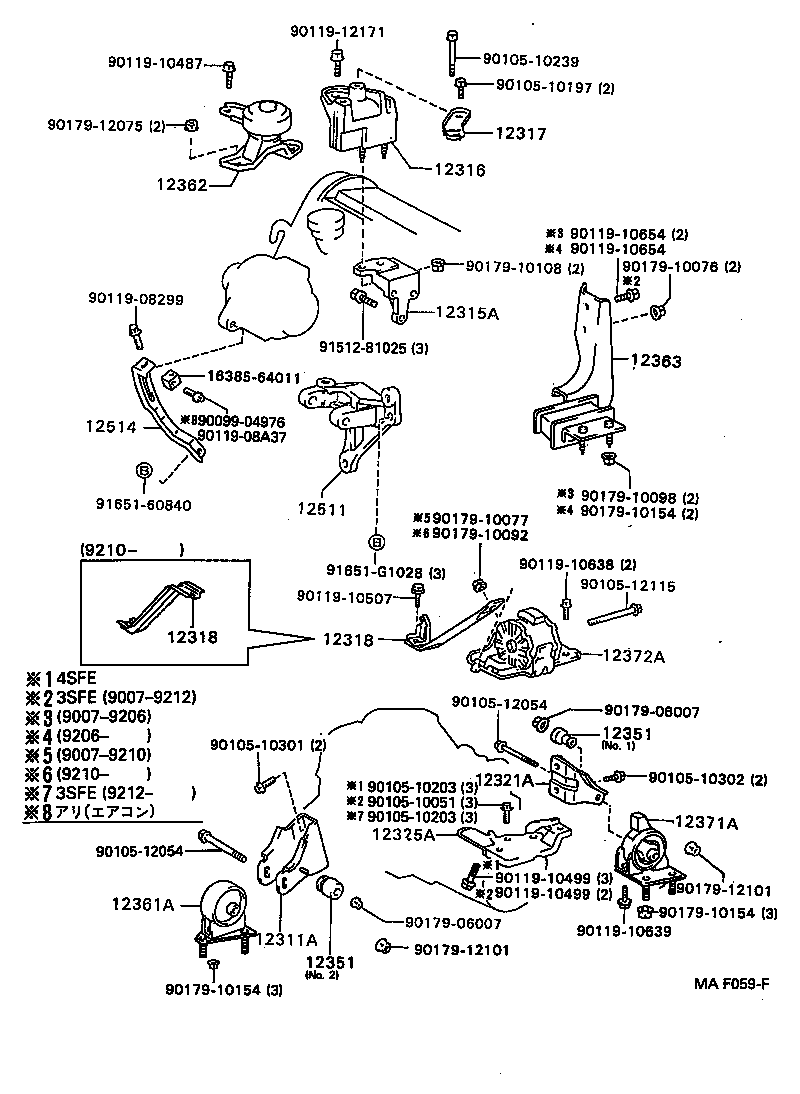

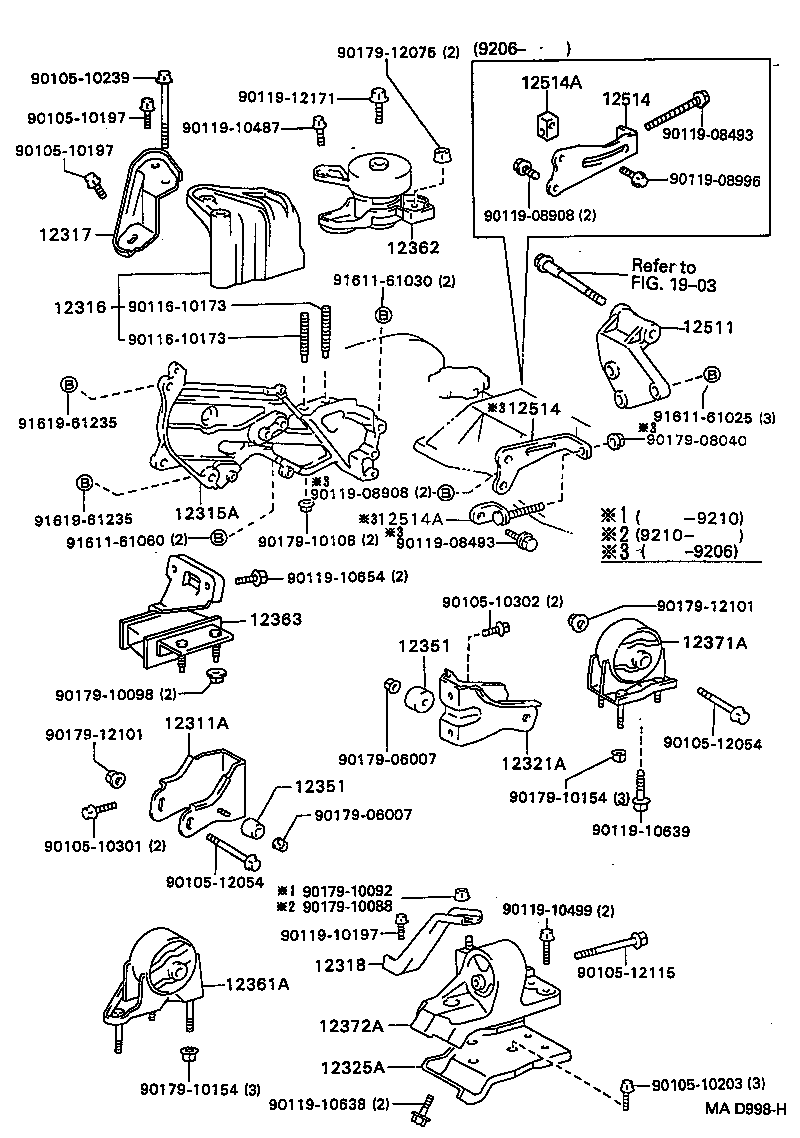

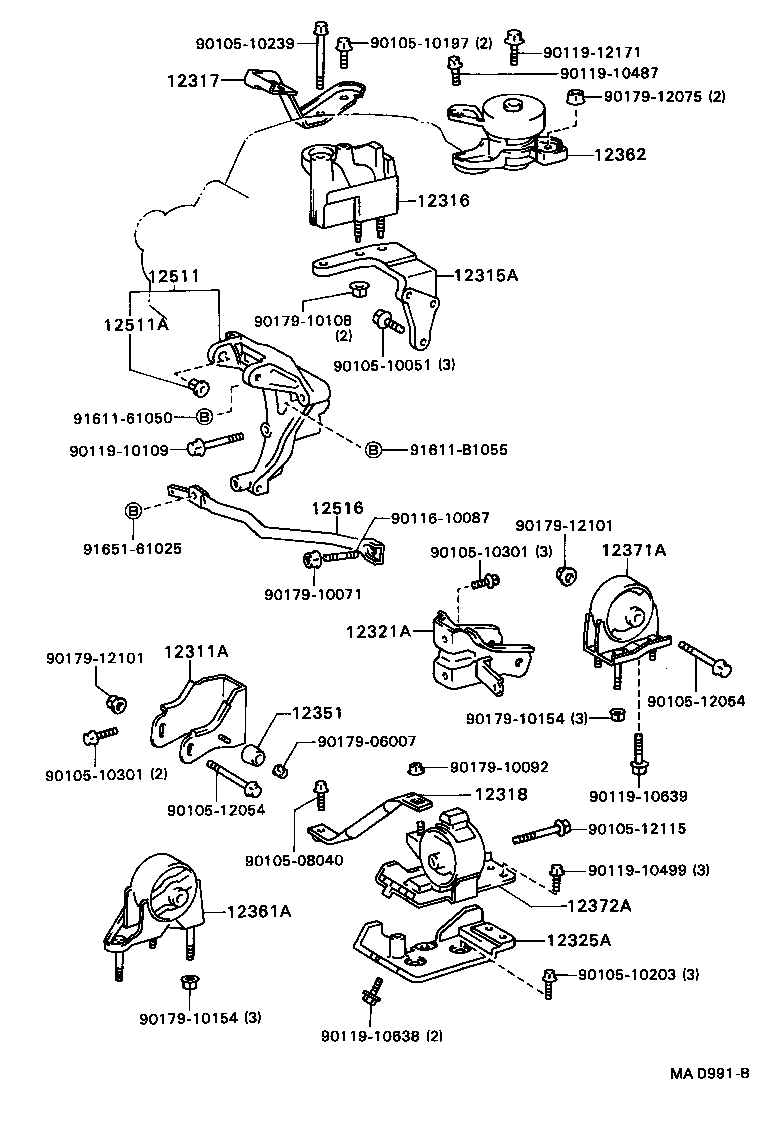

Figure MAD997G MAD997G 1990-07 → — Figure MAD998H MAD998H 1990-07 → — Figure MAE058E MAE058E 1990-07 → — Figure MAE059F MAE059F 1990-07 → — Figure MAE060D MAE060D 1990-07 → — Figure MAD990B MAD990B 1990-07 → 1992-06 Figure MAD991B MAD991B 1990-07 → 1992-06 Figure MAD964C MAD964C 1990-07 → 1992-06 Figure MAD965C MAD965C 1990-07 → 1992-06 Figure MAE600B MAE600B 1991-05 → —

Part groups

PNCDescription
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12316 Bracket, Engine Mounting, NO.2 RH
12317 Stay, Engine Mounting, RH
12318 Stay, Engine Mounting, LH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12327A Stay, Engine Mounting, NO.2 RH
12328A Stay, Engine Mounting, NO.2 LH
12351 Damper, Engine Mounting
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12363 Insulator, Engine Mounting, Center
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
12516 Bracket, Alternator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
