Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

31 part groups · 10 illustrations

Illustrations

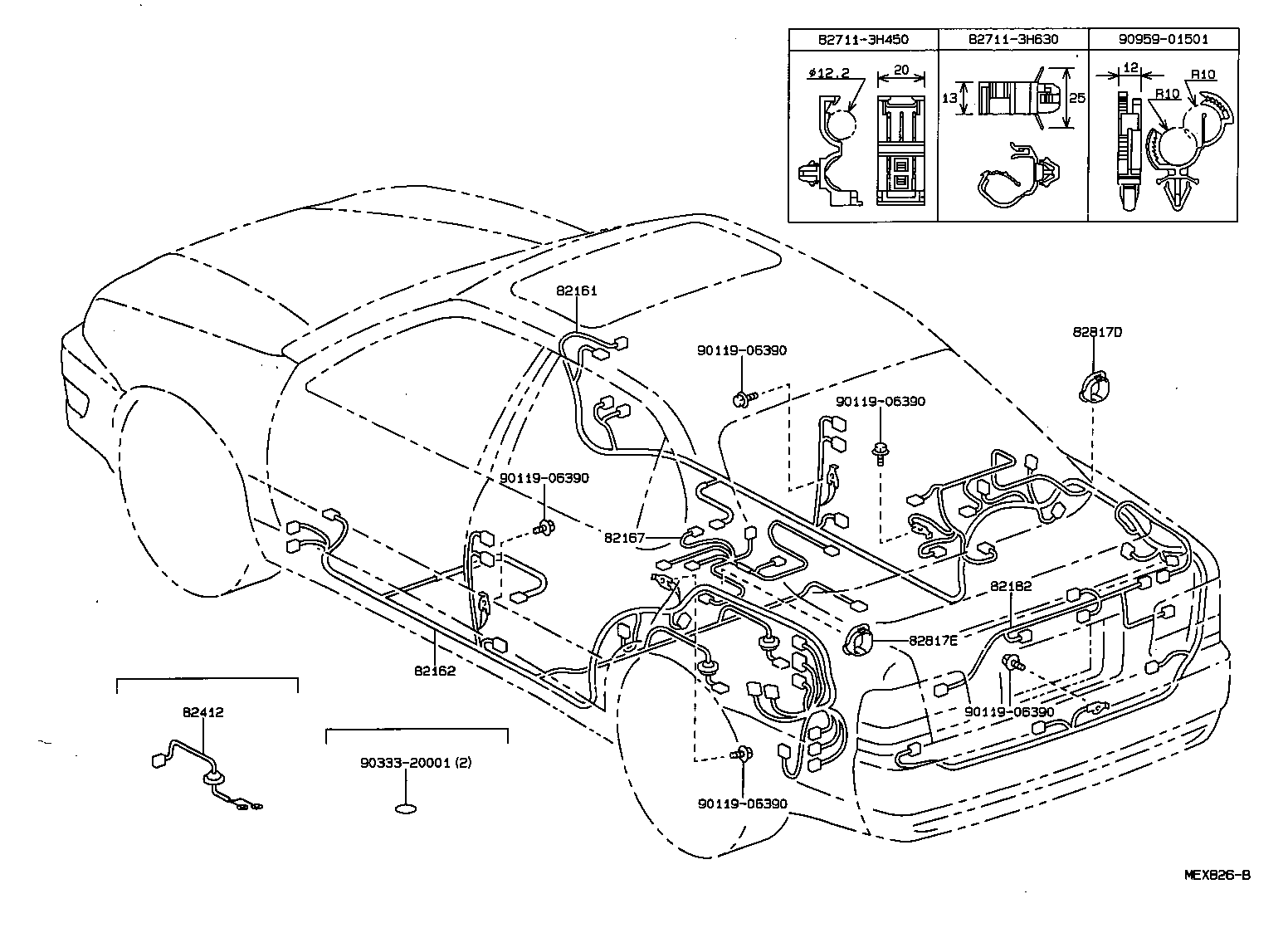

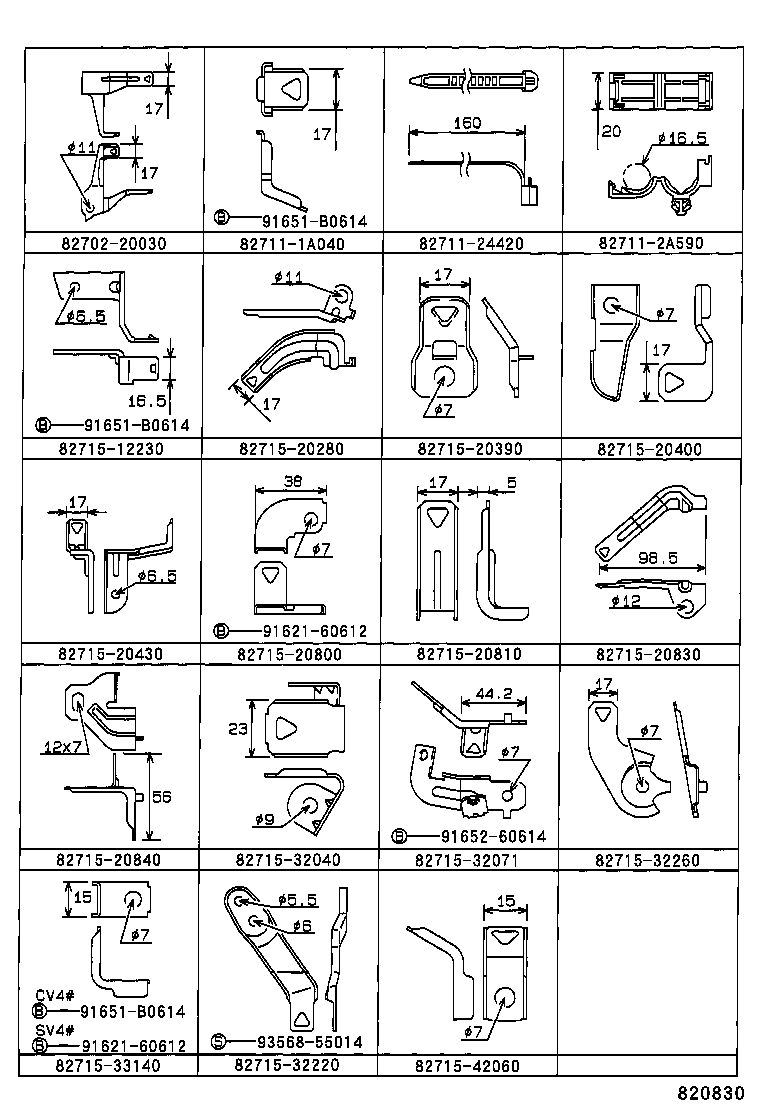

Figure MEX820A MEX820A 1994-06 → — Figure MEX821D MEX821D 1994-06 → — Figure MEX822A MEX822A 1994-06 → — Figure 820829 820829 1994-06 → — Figure MEX824B MEX824B 1994-06 → — Figure MEX825 MEX825 1994-06 → — Figure MEX826B MEX826B 1994-06 → — Figure MEX827A MEX827A 1994-06 → — Figure 820830 820830 1994-06 → — Figure 820831 820831 1994-06 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001D Cable, Bond, NO.3
82001J Cable, Bond, NO.5
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82210B Fusible Link
82217A Wire, Front Window Defogger
82345 Diode
82412 Wire, Fuel Gage
82633 Holder, Front Pillar Block, RH
82634 Holder, Front Pillar Block, LH
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
