Toyota Sai
2009-11 → 2018-02 · chassis AZK10 · catalogue 293110 · Japan
Supported model
Data version 2018-08
Heating & Air Conditioning - Control & Air Duct
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

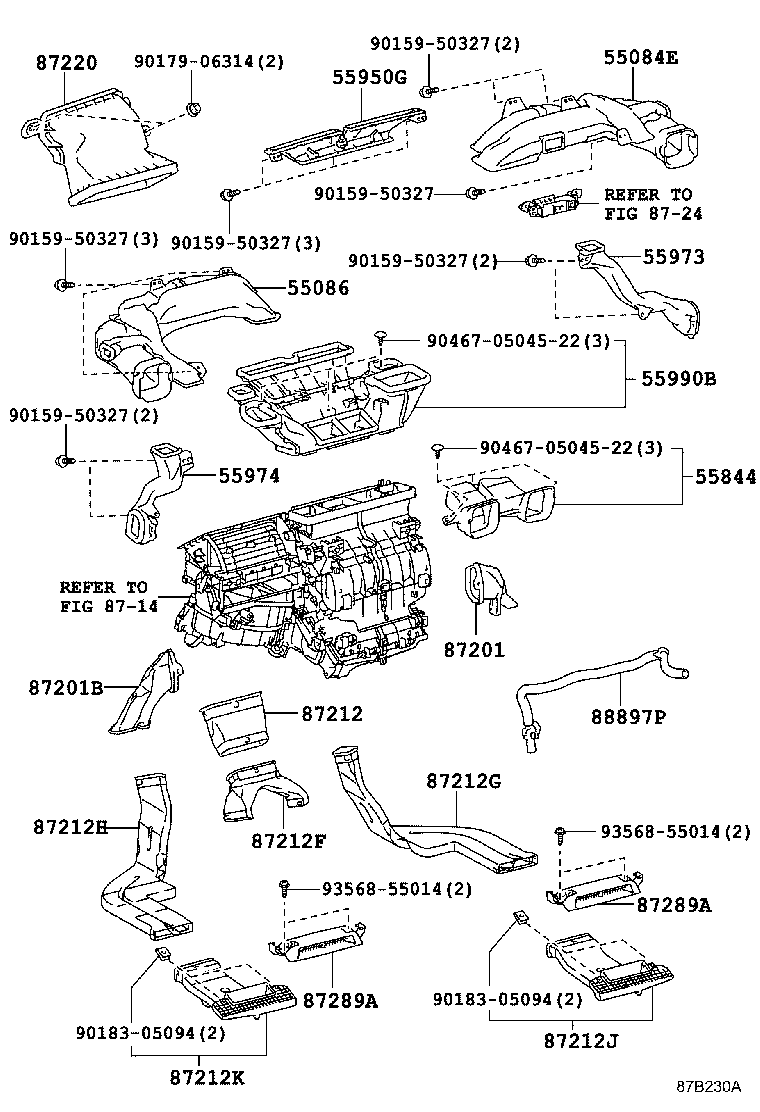

| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55086 | Duct Sub-assy, Heater TO Register, NO.3 |
| 55844 | Duct, Heater TO Register, NO.2 |

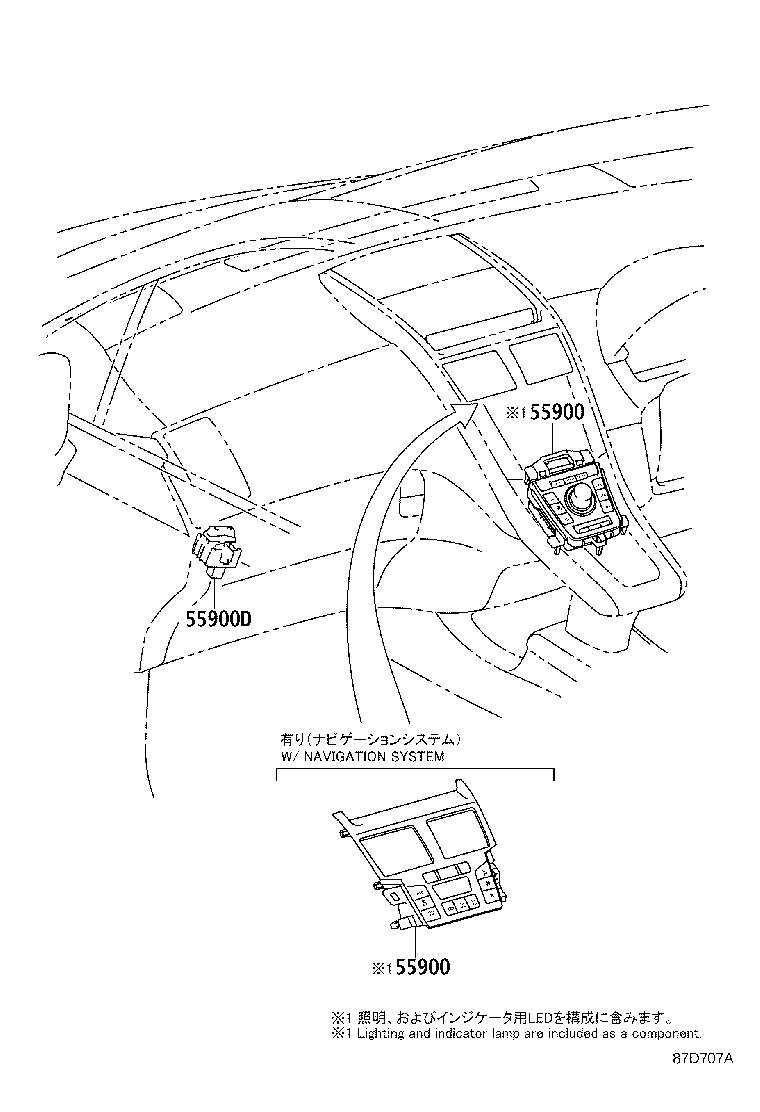

| 55900 | Control Assy, Air Conditioner |
| 55900D | Control Assy, Air Conditioner, NO.2 |
| 55950G | Nozzle Assy, Defroster |
| 55973 | Duct, Side Defroster Nozzle, NO.3 |
| 55974 | Duct, Side Defroster Nozzle, NO.4 |
| 55990B | Nozzle Assy, Defroster, Lower |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87212H | Duct, Air, Rear NO.4 |
| 87212J | Duct, Air, Rear NO.5 |
| 87212K | Duct, Air, Rear NO.6 |
| 87220 | Duct Assy, Air |
| 87289A | Bezel, Rear Heater Register, NO.1 |

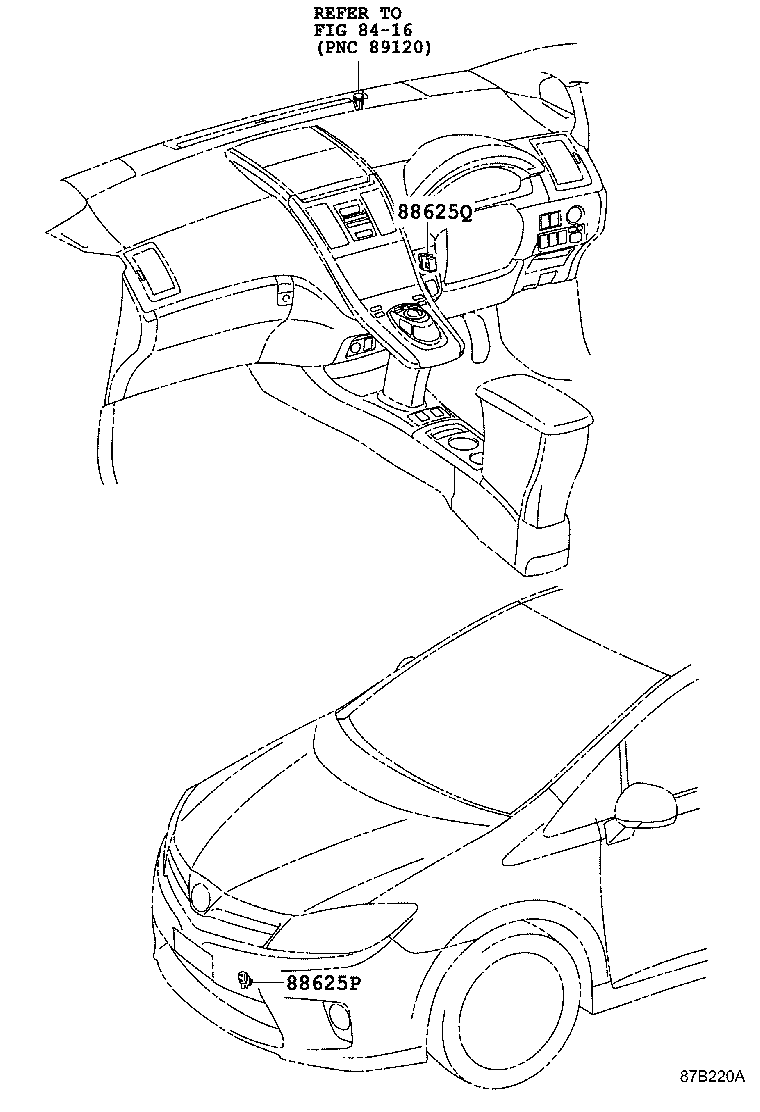

| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88897P | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
