Toyota Mark 2
1980-09 → 1984-07 · chassis GX6#,LX6#,MX6#,RX6#,SX60,TX6# · catalogue 311140 · Japan
Discontinued model
Data version 1985-03

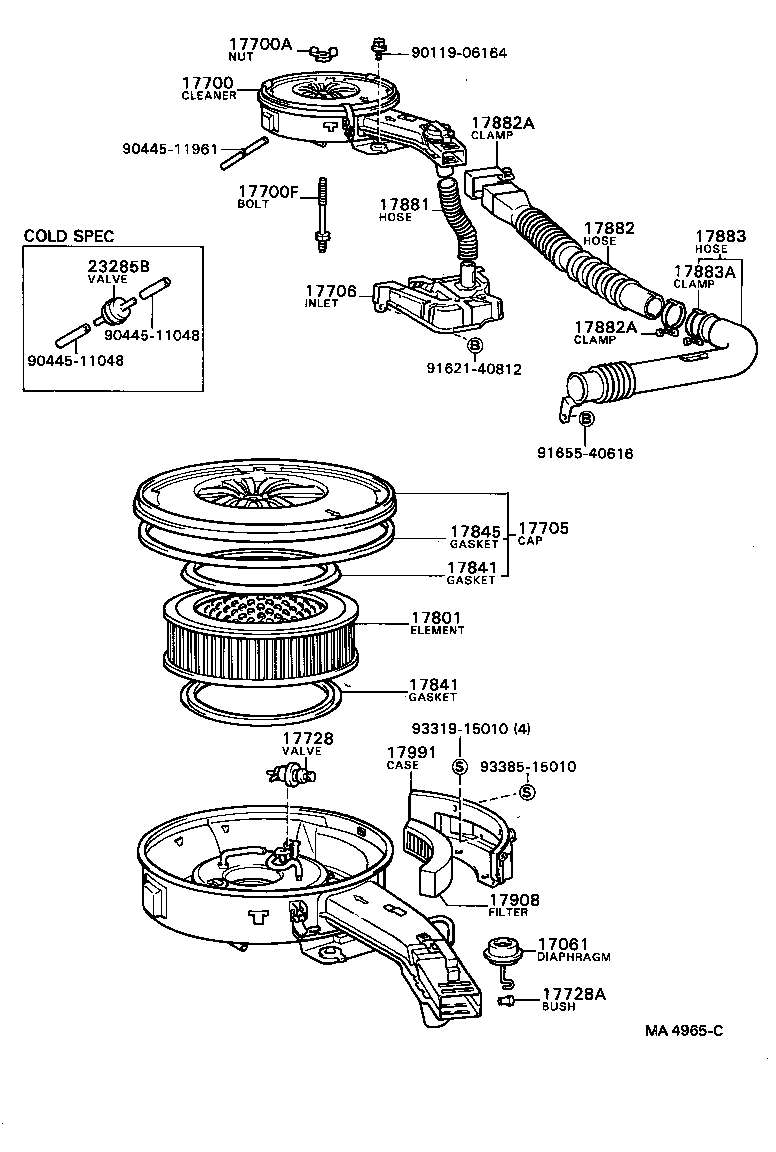

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17061 — Diaphragm Sub-assy | ||||
| 17061-26010 |
Diaphragm Sub-assy
1980-09 → 1984-07
ended
|
13T# TX6# | ¥5,100 | |
| 17061-37010 |
Diaphragm Sub-assy
1980-09 → 1982-08
ended
|
21RU RX60 | ¥4,370 | |
| 17061-63010 |
Diaphragm Sub-assy
1982-08 → 1984-07
ended
|
1SU SX60 | ¥4,420 | |
| 17700 — Cleaner Assy, Air | ||||
| 17700-18021 |
Cleaner Assy, Air
1980-09 → 1982-08
ended
|
13TU TX60 4F | — | |
| 17700-18030 |
Cleaner Assy, Air
1980-11 → 1984-07
ended
|
13TJ TX67 | — | |
| 17700-27122 |
Cleaner Assy, Air
1980-09 → 1982-08
ended
|
13TU TX60 3FC | — | |
| 17700-34650 |
Cleaner Assy, Air
1980-09 → 1982-08
ended
|
18RGEU RX63 | — | |
| 17700-37040 |
Cleaner Assy, Air
1980-09 → 1982-08
ended
|
21RU RX60 | — | |
| 17700-41550 |
Cleaner Assy, Air
1980-11 → 1983-08
ended
|
MU MX60 | — | |
| 17700-41580 |
Cleaner Assy, Air
1981-10 → 1984-07
ended
|
MTEU MX61 | — | |
| 17700-41620 |
Cleaner Assy, Air
1983-08 → 1984-07
ended
|
MU MX60 | ¥18,900 | |
| 17700-54120 |
Cleaner Assy, Air
1980-09 → 1982-08
ended
|
L LX6# | — | |
| 17700-54190 |
Cleaner Assy, Air
1982-08 → 1984-07
ended
|
2LTE LX65 | — | |
| 17700-54200 |
Cleaner Assy, Air
1982-08 → 1984-07
ended
|
L LX60,67 | ¥34,300 | |
| 17700-63010 |
Cleaner Assy, Air
1982-08 → 1984-07
ended
|
1SU SX60 | ¥43,600 | |
| 17700-72010 note |
Cleaner Assy, Air
1983-02 → 1983-07
ended
|
2YPU SX60 | ¥31,500 | |
| 17700-72011 note |
Cleaner Assy, Air
1983-07 → 1983-08
ended
|
2YPU SX60 | — | |
| 17700-72012 note |
Cleaner Assy, Air
1983-08 → 1984-07
ended
|
2YPU SX60 | ¥31,000 | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1980-09 → 1984-07
ended
|
MU MX60 | — | |
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1980-09 → 1984-07
ended
|
13T# TX6# | — | |
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1980-09 → 1984-07
ended
|
21RU RX60 | — | |
| 90175-06009 |
Nut, Wing(FOR AIR CLEANER)
1982-08 → 1984-07
ended
|
1SU SX60 | — | |
| 90175-08008 note |
Nut, Wing(FOR AIR CLEANER)
1983-02 → 1984-07
ended
|
2YPU SX60 | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06020 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1980-09 → 1982-08
ended
|
21RU RX60 | ¥260 | |
| 90116-06021 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1982-08 → 1984-07
ended
|
1SU SX60 | ¥270 | |
| 90116-06222 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1980-09 → 1984-07
ended
|
13T# TX6# | ¥230 | |
| 90116-06309 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1980-11 → 1984-07
ended
|
MU MX60 | ¥250 | |
| 90116-08161 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1983-02 → 1984-07
ended
|
2YPU SX60 | ¥250 | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-25013 |
Cap Sub-assy, Air Cleaner
1980-09 → 1984-05
ended
|
13T# TX6# | — | |
| 17705-26080 |
Cap Sub-assy, Air Cleaner
1984-05 → 1984-07
ended
|
13TJ TX67 | — | |
| 17705-34240 |
Cap Sub-assy, Air Cleaner
1980-09 → 1982-08
ended
|
18RGEU RX63 | — | |
| 17705-37030 |
Cap Sub-assy, Air Cleaner
1980-09 → 1982-08
ended
|
21RU RX60 | — | |
| 17705-41130 |
Cap Sub-assy, Air Cleaner
1980-11 → 1983-08
ended
|
MU MX60 | — | |
| 17705-41170 |
Cap Sub-assy, Air Cleaner
1981-10 → 1984-07
ended
|
MTEU MX61 | — | |
| 17705-41200 |
Cap Sub-assy, Air Cleaner
1983-08 → 1984-07
ended
|
MU MX60 | — | |
| 17705-54050 |
Cap Sub-assy, Air Cleaner
1982-08 → 1984-07
ended
|
2LTE LX65 | — | |
| 17705-54060 |
Cap Sub-assy, Air Cleaner
1982-08 → 1984-07
ended
|
L LX60,67 | — | |
| 17705-63010 |
Cap Sub-assy, Air Cleaner
1982-08 → 1984-07
ended
|
1SU SX60 | — | |
| 17705-70010 |
Cap Sub-assy, Air Cleaner
1981-12 → 1984-07
ended
|
5MEU MX63 | ¥8,600 | |
| 17705-70010 |
Cap Sub-assy, Air Cleaner
1981-12 → 1984-07
ended
|
1G# GX6# | ¥8,600 | |
| 17705-72010 note |
Cap Sub-assy, Air Cleaner
1983-02 → 1983-07
ended
|
2YPU SX60 | — | |
| 17705-72011 note |
Cap Sub-assy, Air Cleaner
1983-07 → 1984-07
ended
|
2YPU SX60 | — | |
| 17735-70010 |
Cap Sub-assy, Air Cleaner
1980-09 → 1981-12
ended
|
1GEU GX6# | — | |
| 17735-70010 |
Cap Sub-assy, Air Cleaner
1980-09 → 1981-12
ended
|
5MEU MX63 | — | |
| 17706 — Inlet Sub-assy, Air Cleaner, NO.2 | ||||
| 17902-27032 |
Inlet Sub-assy, Air Cleaner, NO.2
1980-09 → 1984-07
ended
|
13T# TX6# | ¥6,300 | |
| 17728 — Valve, Thermostatic | ||||
| 17728-24010 |
Valve, Thermostatic
1980-09 → 1982-08
ended
|
21RU RX60 | ¥4,150 | |
| 17728-27010 |
Valve, Thermostatic
1980-09 → 1984-07
ended
|
13T# TX6# | ¥5,200 | |
| 17728-63010 |
Valve, Thermostatic
1982-08 → 1984-07
ended
|
1SU SX60 | ¥8,100 | |
| 17728A — Bush | ||||
| 90386-03001 |
Bush
1980-09 → 1984-07
ended
|
21RU RX60 | ¥250 | |
| 90386-03001 |
Bush
1980-09 → 1984-07
ended
|
13T# TX6# | ¥250 | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-24010 |
Element Sub-assy, Air Cleaner Filter
1980-09 → 1982-08
ended
|
18RGEU RX63 | ¥1,160 | |
| 17801-25010 |
Element Sub-assy, Air Cleaner Filter
1980-09 → 1984-07
ended
|
1SU SX60 | ¥1,370 | |
| 17801-25010 |
Element Sub-assy, Air Cleaner Filter
1980-09 → 1984-07
ended
|
13T# TX6# | ¥1,370 | |
| 17801-41060 |
Element Sub-assy, Air Cleaner Filter
1980-11 → 1984-07
ended
|
MU MX60 | ¥2,100 | |
| 17801-41090 |
Element Sub-assy, Air Cleaner Filter
1980-09 → 1982-08
ended
|
21RU RX60 | ¥2,000 | |
| 17801-44040 note |
Element Sub-assy, Air Cleaner Filter
1983-02 → 1984-07
ended
|
2YPU SX60 | ¥2,000 | |
| 17801-54050 |
Element Sub-assy, Air Cleaner Filter
1980-09 → 1984-07
ended
|
L LX60,67 | ¥3,150 | |
| 17801-54060 |
Element Sub-assy, Air Cleaner Filter
1982-08 → 1984-07
ended
|
2LTE LX65 | ¥3,680 | |
| 17801-70010 |
Element Sub-assy, Air Cleaner Filter
1980-09 → 1984-07
ended
|
5MEU MX63 | ¥2,940 | |
| 17801-70010 |
Element Sub-assy, Air Cleaner Filter
1980-09 → 1984-07
ended
|
1G# GX6# | ¥2,940 | |
| 17801-70010 |
Element Sub-assy, Air Cleaner Filter
1981-10 → 1984-07
ended
|
MTEU MX61 | ¥2,940 | |
| 17841 — Gasket, Filter Element | ||||
| 17841-31020 |
Gasket, Filter Element
1980-09 → 1984-07
ended
|
13T# TX6# | — | |
| 17841-33011 note |
Gasket, Filter Element
1983-02 → 1984-07
ended
|
2YPU SX60 | — | |
| 17841-41050 |
Gasket, Filter Element
1980-09 → 1984-07
ended
|
MU MX60 | — | |
| 17841-41050 |
Gasket, Filter Element
1980-09 → 1984-07
ended
|
21RU RX60 | — | |
| 17841-63010 |
Gasket, Filter Element
1982-08 → 1984-07
ended
|
1SU SX60 | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-25010 |
Gasket, Air Cleaner Cap
1980-09 → 1982-10
ended
|
13T# TX6# | — | |
| 17845-35010 |
Gasket, Air Cleaner Cap
1980-09 → 1982-08
ended
|
21RU RX60 | — | |
| 17845-37020 note |
Gasket, Air Cleaner Cap
1982-10 → 1984-07
ended
|
1SU SX60 | — | |
| 17845-41040 |
Gasket, Air Cleaner Cap
1980-11 → 1982-10
ended
|
MU MX60 | — | |
| 17845-42010 note |
Gasket, Air Cleaner Cap
1982-10 → 1984-07
ended
|
13TJ TX67 | — | |
| 17845-42010 note |
Gasket, Air Cleaner Cap
1983-02 → 1984-07
ended
|
2YPU SX60 | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1982-10 → 1984-07
ended
|
MU MX60 | — | |
| 17845-63010 |
Gasket, Air Cleaner Cap
1982-08 → 1982-10
ended
|
1SU SX60 | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17349-54010 |
Hose, Air Cleaner, NO.1
1982-08 → 1984-07
ended
|
2LTE LX65 | ¥2,060 | |
| 17881-26020 |
Hose, Air Cleaner, NO.1
1980-09 → 1984-07
ended
|
13T# TX6# | — | |
| 17881-34160 |
Hose, Air Cleaner, NO.1
1980-09 → 1982-08
ended
|
18RGEU RX63 | ¥6,500 | |
| 17881-37030 |
Hose, Air Cleaner, NO.1
1980-09 → 1982-08
ended
|
21RU RX60 | — | |
| 17881-41070 |
Hose, Air Cleaner, NO.1
1981-10 → 1984-07
ended
|
MTEU MX61 | ¥1,840 | |
| 17881-43010 |
Hose, Air Cleaner, NO.1
1980-09 → 1982-08
ended
|
5MEU MX63 | ¥4,080 | |
| 17881-54100 |
Hose, Air Cleaner, NO.1
1980-09 → 1984-07
ended
|
L LX60,67 | ¥6,200 | |
| 17881-63010 |
Hose, Air Cleaner, NO.1
1982-08 → 1984-07
ended
|
1SU SX60 | — | |
| 17881-70010 |
Hose, Air Cleaner, NO.1
1980-09 → 1984-07
ended
|
1GEU GX6# | ¥4,490 | |
| 17881-70040 |
Hose, Air Cleaner, NO.1
1982-08 → 1984-07
ended
|
1GGEU GX61 | ¥4,290 | |
| 17882 — Hose, Air Cleaner, NO.2 | ||||
| 17881-54150 |
Hose, Air Cleaner, NO.2
1982-08 → 1984-07
ended
|
2LTE LX65 | ¥5,100 | |
| 17882-22040 note |
Hose, Air Cleaner, NO.2
1983-02 → 1984-07
ended
|
2YPU SX60 | — | |
| 17882-25010 |
Hose, Air Cleaner, NO.2
1980-09 → 1984-07
ended
|
13T# TX6# | — | |
| 17882-34120 |
Hose, Air Cleaner, NO.2
1980-09 → 1982-08
ended
|
21RU RX60 | ¥6,000 | |
| 17882-41130 |
Hose, Air Cleaner, NO.2
1981-10 → 1984-07
ended
|
MTEU MX61 | ¥5,700 | |
| 17882-43010 |
Hose, Air Cleaner, NO.2
1980-09 → 1982-08
ended
|
5MEU MX63 | ¥4,310 | |
| 17882-54060 |
Hose, Air Cleaner, NO.2
1980-09 → 1982-08
ended
|
L LX6# | — | |
| 17882-54080 |
Hose, Air Cleaner, NO.2
1982-08 → 1984-07
ended
|
L LX60,67 | — | |
| 17882-63020 |
Hose, Air Cleaner, NO.2
1982-08 → 1984-07
ended
|
1SU SX60 | — | |
| 17882-70010 |
Hose, Air Cleaner, NO.2
1980-09 → 1984-07
ended
|
1GEU GX6# | ¥3,740 | |
| 17882-70030 |
Hose, Air Cleaner, NO.2
1982-08 → 1984-07
ended
|
1GGEU GX61 | ¥2,650 | |
| 17882A — Clamp(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01003 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-09 → 1984-07
ended
|
13T# TX6# | ¥300 | |
| 90460-01012 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1982-08 → 1984-07
ended
|
1SU SX60 | ¥640 | |
| 90460-01016 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-09 → 1982-08
ended
|
21RU RX60 | ¥370 | |
| 90460-01016 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1982-08 → 1984-07
ended
|
1SU,2YPU SX60 | ¥370 | |
| 90460-65001 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-09 → 1982-08
ended
|
L LX6# | ¥180 | |
| 90460-65001 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-09 → 1982-08
ended
|
21RU RX60 | ¥180 | |
| 90460-65001 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-09 → 1982-08
ended
|
13T# TX6# | ¥180 | |
| 90460-65001 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1982-08 → 1984-07
ended
|
13TJ TX67 | ¥180 | |
| 90460-65001 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1982-08 → 1984-07
ended
|
2YPU SX60 | ¥180 | |
| 90460-80001 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1982-08 → 1984-07
ended
|
1GGEU GX61 | ¥820 | |
| 96111-10690 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-09 → 1982-08
ended
|
L LX6# | ¥160 | |
| 96111-10690 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1982-08 → 1983-08
ended
|
2LTE LX65 | ¥160 | |
| 96111-10710 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1983-08 → 1984-07
ended
|
2LTE LX65 | ¥160 | |
| 96111-10710 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-09 → 1984-07
ended
|
5MEU,MTEU MX61,63 | ¥160 | |
| 96111-10710 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-09 → 1984-07
ended
|
1GEU GX6# | ¥160 | |
| 96111-10730 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1982-08 → 1984-07
ended
|
L LX60,67 | ¥160 | |
| 96111-10800 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-09 → 1984-07
ended
|
1GEU GX6# | ¥160 | |
| 96111-10800 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-09 → 1984-07
ended
|
5MEU,MTEU MX61,63 | ¥160 | |
| 96111-10800 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1982-08 → 1984-07
ended
|
L LX60,67 | ¥160 | |
| 17883 — Hose, Air Cleaner, NO.3 | ||||
| 17882-54100 |
Hose, Air Cleaner, NO.3
1982-08 → 1984-07
ended
|
2LTE LX65 | ¥4,720 | |
| 17883-25010 |
Hose, Air Cleaner, NO.3
1980-09 → 1984-07
ended
|
2YPU SX60 | — | |
| 17883-25010 |
Hose, Air Cleaner, NO.3
1980-09 → 1984-07
ended
|
13T# TX6# | — | |
| 17883-25010 |
Hose, Air Cleaner, NO.3
1980-09 → 1984-07
ended
|
21RU RX60 4FC,5F | — | |
| 17883-41070 |
Hose, Air Cleaner, NO.3
1981-10 → 1984-07
ended
|
MTEU MX61 | — | |
| 17883-54010 |
Hose, Air Cleaner, NO.3
1980-09 → 1980-11
ended
|
L LX60 | — | |
| 17883-54010 |
Hose, Air Cleaner, NO.3
1980-09 → 1980-11
ended
|
21RU RX60 4F | — | |
| 17883-54010 |
Hose, Air Cleaner, NO.3
1980-11 → 1982-08
ended
|
21RU RX60 4F | — | |
| 17883-54020 |
Hose, Air Cleaner, NO.3
1980-11 → 1982-08
ended
|
L LX6# | ¥7,500 | |
| 17883-54030 |
Hose, Air Cleaner, NO.3
1982-08 → 1984-07
ended
|
L LX60,67 | ¥7,900 | |
| 17883-70010 |
Hose, Air Cleaner, NO.3
1980-09 → 1982-08
ended
|
1GEU GX6# | ¥2,900 | |
| 17883-70010 |
Hose, Air Cleaner, NO.3
1980-09 → 1982-08
ended
|
5MEU MX63 | ¥2,900 | |
| 17883-70010 |
Hose, Air Cleaner, NO.3
1982-08 → 1984-07
ended
|
1GGEU GX61 | ¥2,900 | |
| 17883-70010 |
Hose, Air Cleaner, NO.3
1982-08 → 1984-07
ended
|
1SU SX60 | ¥2,900 | |
| 17883-70020 |
Hose, Air Cleaner, NO.3
1982-08 → 1984-07
ended
|
1GEU GX6# | ¥6,800 | |
| 17883A — Clamp(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-01012 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1982-08 → 1984-07
ended
|
1SU SX60 | ¥640 | |
| 90460-01012 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-09 → 1982-08
ended
|
1GEU GX6# | ¥640 | |
| 90460-01012 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-09 → 1982-08
ended
|
5MEU MX63 | ¥640 | |
| 90460-01012 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1982-08 → 1984-07
ended
|
1GGEU GX61 | ¥640 | |
| 90460-01027 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1982-08 → 1984-07
ended
|
1GEU GX6# | ¥590 | |
| 90460-01027 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1981-10 → 1984-07
ended
|
MTEU MX61 | ¥590 | |
| 90460-65001 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-09 → 1980-11
ended
|
13TU TX60 | ¥180 | |
| 90460-65001 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-11 → 1984-07
ended
|
13T# TX6# | ¥180 | |
| 90460-65001 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-11 → 1984-07
ended
|
2YPU SX60 | ¥180 | |
| 90460-65001 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-11 → 1984-07
ended
|
21RU RX60 | ¥180 | |
| 90460-65001 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-09 → 1980-11
ended
|
L LX60 | ¥180 | |
| 90460-65001 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-09 → 1980-11
ended
|
21RU RX60 | ¥180 | |
| 90460-67002 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1980-11 → 1984-07
ended
|
L LX60,67 | ¥240 | |
| 96111-10690 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1982-08 → 1983-08
ended
|
2LTE LX65 | ¥160 | |
| 96111-10710 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
1983-08 → 1984-07
ended
|
2LTE LX65 | ¥160 | |
| 17908 — Filter Sub-assy, Air Suction | ||||
| 17908-27010 |
Filter Sub-assy, Air Suction
1980-09 → 1984-07
ended
|
13T# TX6# | ¥4,100 | |
| 17991 — Case, Air Suction Filter | ||||
| 17804-41020 |
Case, Air Suction Filter
1980-09 → 1983-08
ended
|
MU MX60 | — | |
| 17991-27080 |
Case, Air Suction Filter
1980-09 → 1982-08
ended
|
13TU TX60 | — | |
| 17991-28020 |
Case, Air Suction Filter
1980-11 → 1984-07
ended
|
13TJ TX67 | — | |
| 23285B — Valve, Check, NO.1 | ||||
| 90917-10053 note |
Valve, Check, NO.1
1980-09 → 1984-07
ended
|
13T# TX6# | ¥2,030 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
