Toyota Mark 2
1984-08 → 1988-08 · chassis GX7#,LX7#,MX71,SX70,YX7# · catalogue 311150 · Japan
Discontinued model
Data version 1989-02

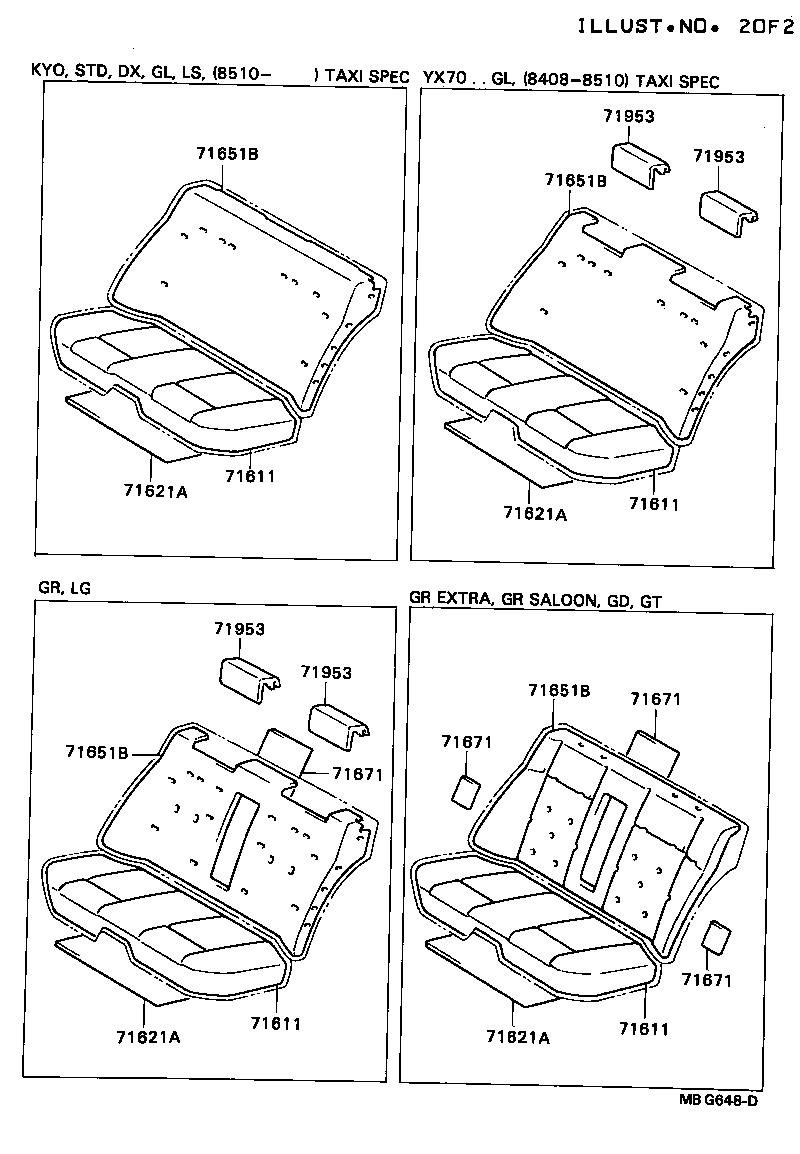

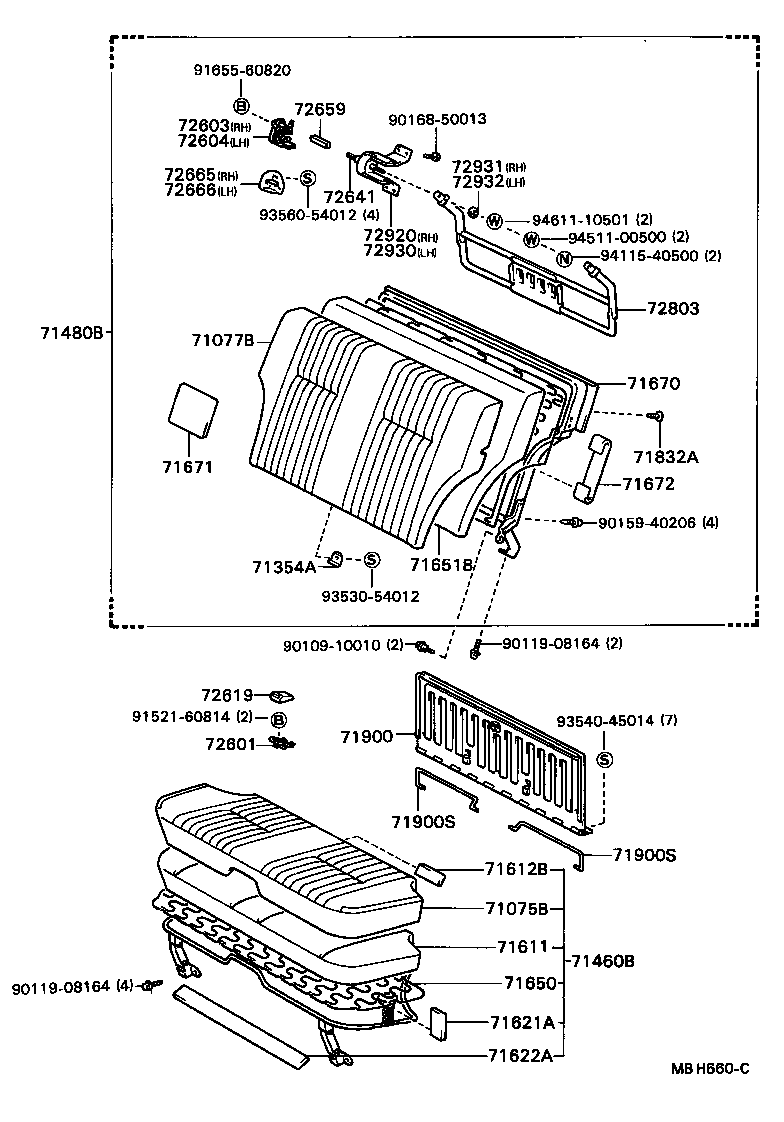

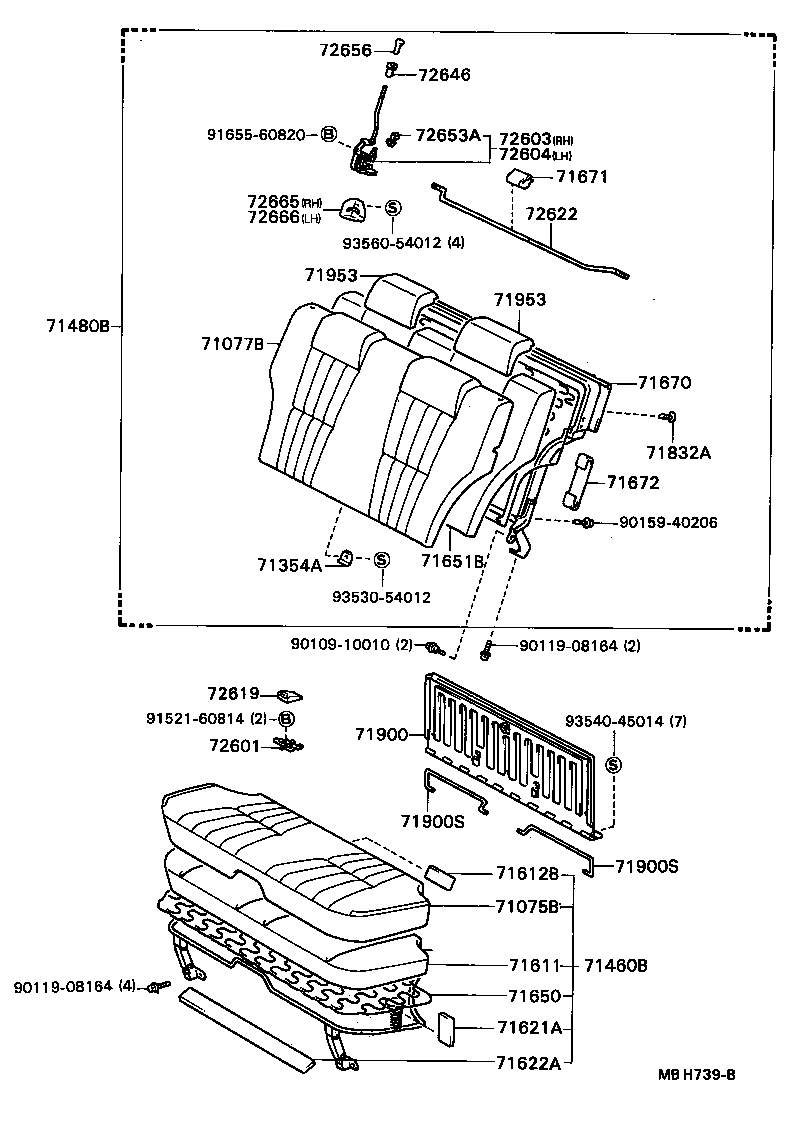

Rear Seat & Seat Track
45 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71354A | Plate, Rear Seatback Set |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |
| 71611 | Pad, Rear Seat Cushion |
| 71612B | Pad, Rear Seat Cushion, B |
| 71621A | Pad, Rear Seat Cushion Silencer, A |
| 71622A | Pad, Rear Seat Cushion Silencer, B |
| 71650 | Spring Assy, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71670 | Spring Assy, Rear Seatback(FOR BENCH SEAT) |
| 71671 | Pad, Rear Seatback Silencer, A |
| 71672 | Pad, Rear Seatback Silencer, B |
| 71731A | Fastener, Seat Cover, A (FOR REAR SEAT) |
| 71733A | Retainer, Seat Cover Fastener, A (FOR REAR SEAT) |
| 71812B | Clip(FOR REAR SEAT CUSHION COVER) |
| 71832A | Clip, Rear Seatback Carpet OR Mat |
| 71893 | Garnish, Rear Seatback Side, Lower RH |
| 71900 | Floor Assy, Rear Seat |
| 71900S | Spring (FOR REAR SEAT FLOOR) |
| 71953 | Pad, Rear Seat Headrest |
| 71956B | Support, Rear Seat Headrest |
| 71970 | Headrest Assy, Rear Seat |
| 72601 | Striker Sub-assy, Rear Seat Lock |
| 72603 | Lock Sub-assy, Rear Seatback, RH |
| 72604 | Lock Sub-assy, Rear Seatback, LH |
| 72619 | Cover, Rear Seatback Lock Striker |
| 72622 | Rod, Rear Seatback Stopper Connecting |
| 72641 | Pin, Rear Seatback Lock |
| 72646 | Grommet, Rear Seatback Stop Button |
| 72653A | Snap, Rear Seatback Lock Rod |
| 72656 | Button, Rear Seatback Stop Release |
| 72659 | Rod, Rear Seatback Lock Connecting |
| 72665 | Cover, Rear Seatback Lock, RH |
| 72666 | Cover, Rear Seatback Lock, LH |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72803 | Pipe Sub-assy, Protector |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72830B | Bush(FOR REAR SEAT CENTER ARMREST) |
| 72830C | Clip, Rear Seat Center Armrest |
| 72920 | Clutch Assy, Rear Seatback Protector, RH |
| 72930 | Clutch Assy, Rear Seatback Protector, LH |
| 72931 | Clutch, Rear Seatback Lock, RH |
| 72932 | Clutch, Rear Seatback Lock, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
