Toyota Mark 2/Mark 2 Blit

2000-10 → 2007-06 · chassis GX11#,JZX11# · catalogue 311190 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

28 part groups · 2 illustrations

Illustrations

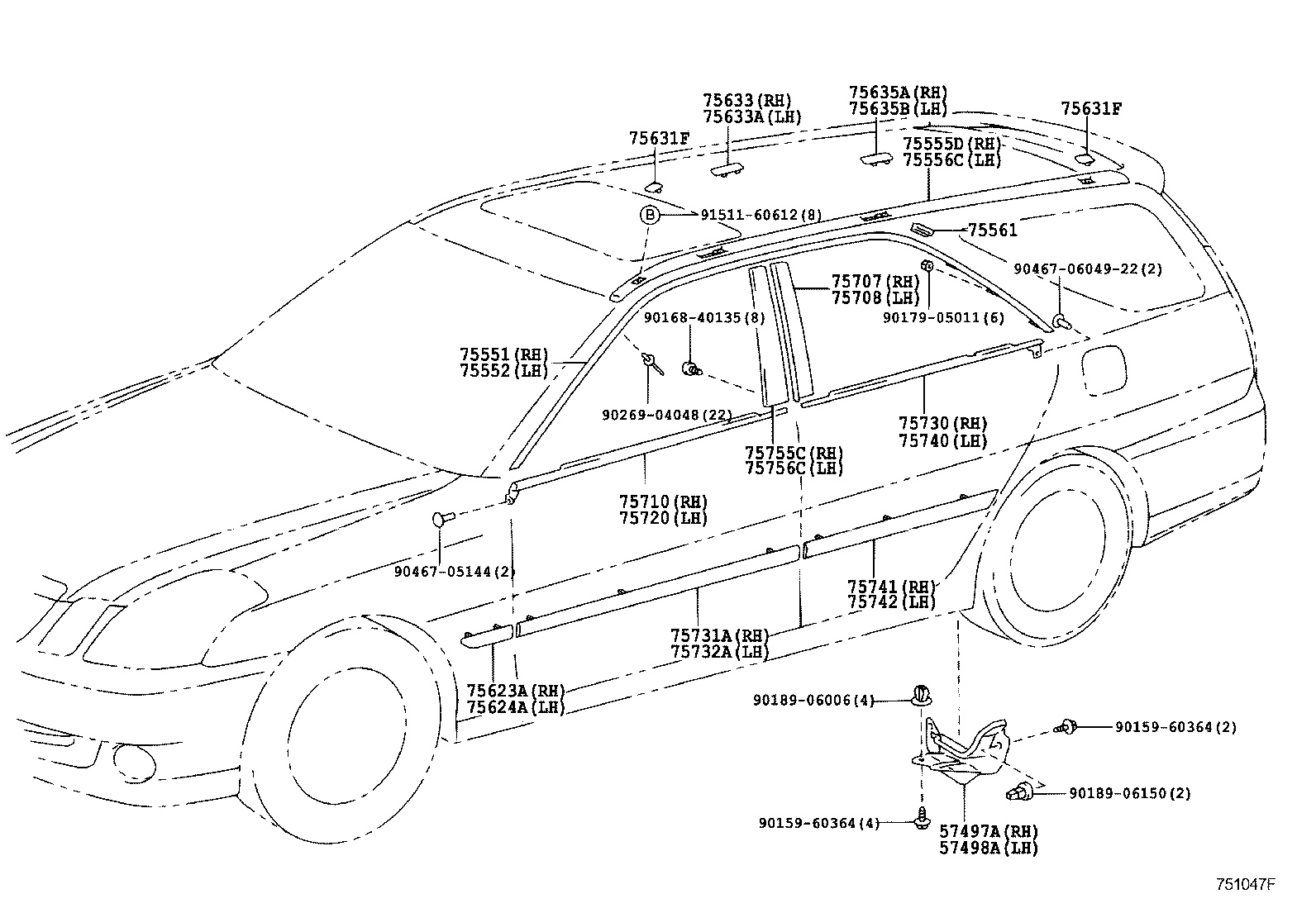

Figure 750828G 750828G 2000-10 → — Figure 751047F 751047F 2002-01 → —

Part groups

PNCDescription
57497A Shield, Rear Floor Housing
57498A Shield, Rear Floor Housing, NO.2
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75563 Retainer, Roof Drip Side Finish Moulding, NO.1
75564 Retainer, Roof Drip Side Finish Moulding, NO.2
75623A Moulding, Front Fender, Outside Rear RH
75624A Moulding, Front Fender, Outside Rear LH
75631F Lid, Roof Side Garnish, NO.1 RH
75633 Lid, Roof Side Garnish, NO.2 RH
75633A Lid, Roof Side Garnish, NO.2 LH
75635A Lid, Roof Side Garnish, NO.3 RH
75635B Lid, Roof Side Garnish, NO.3 LH
75707 Moulding Sub-assy, Rear Door Window Frame, RH
75708 Moulding Sub-assy, Rear Door Window Frame, LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75740 Moulding Assy, Rear Door Belt, LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75755C Moulding, Front Door Window Frame, Rear RH
75756C Moulding, Front Door Window Frame, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
