Toyota Cresta

1984-08 → 1988-08 · chassis GX71,LX70,MX71,SX70 · catalogue 313150 · Japan

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

16 part groups · 9 illustrations

Illustrations

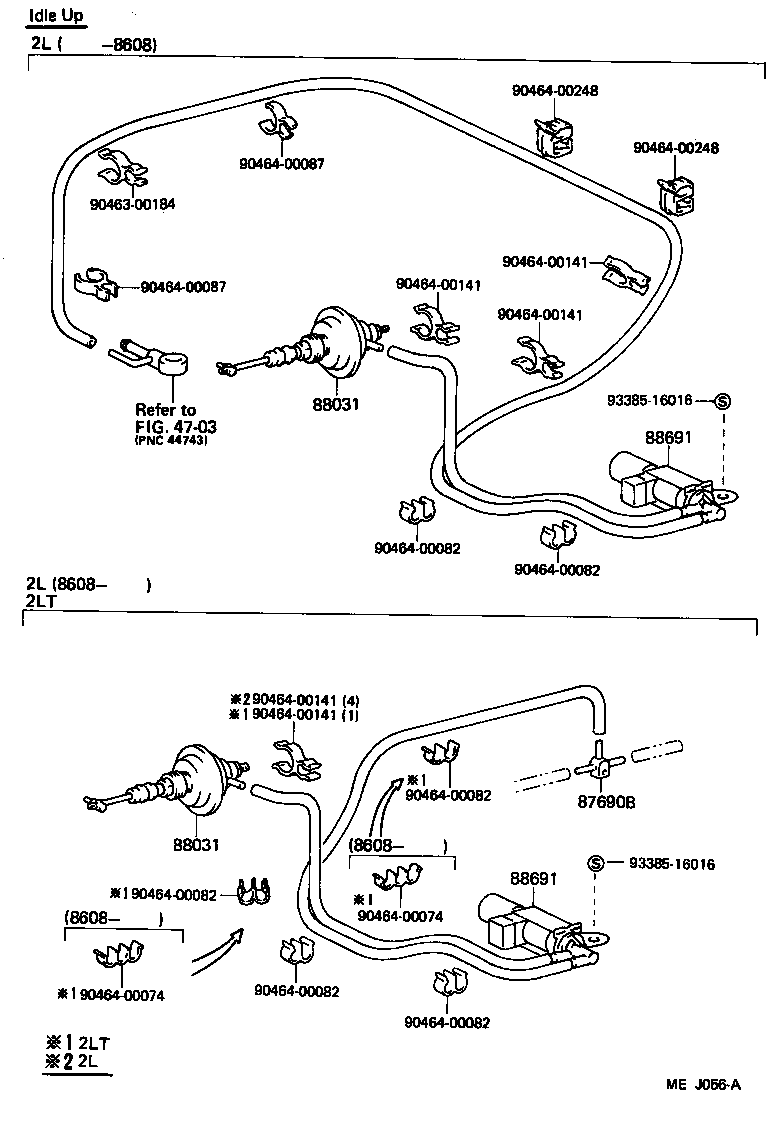

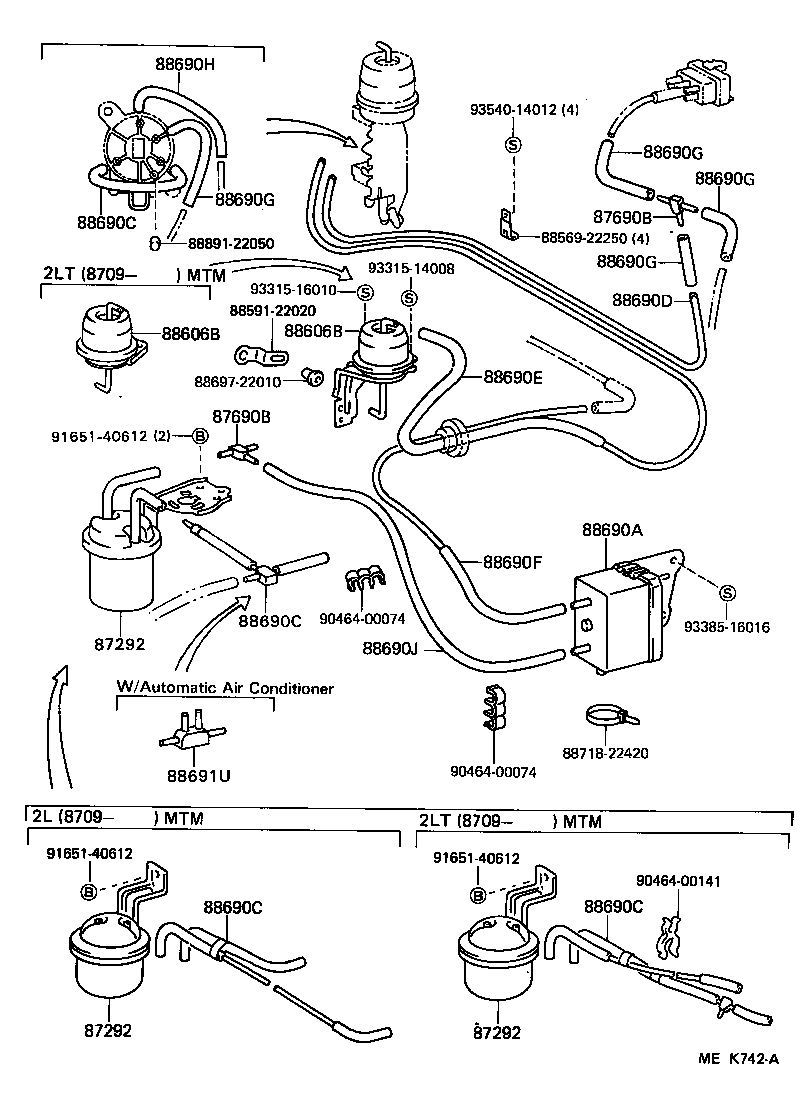

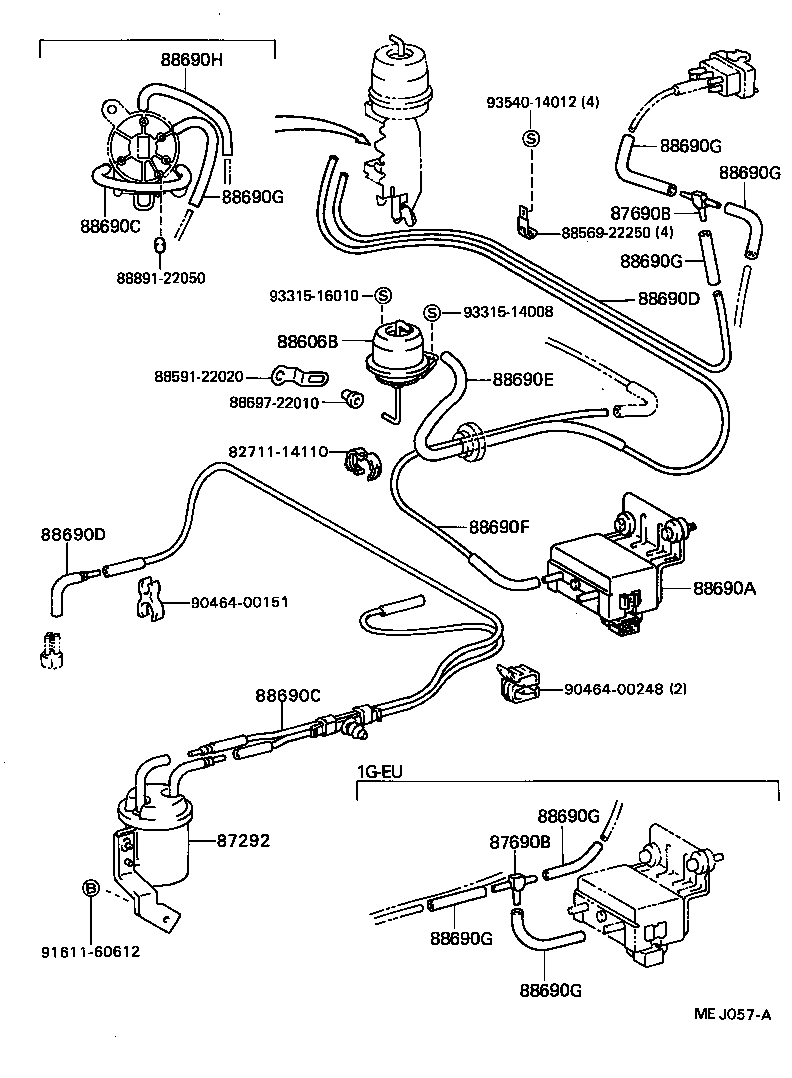

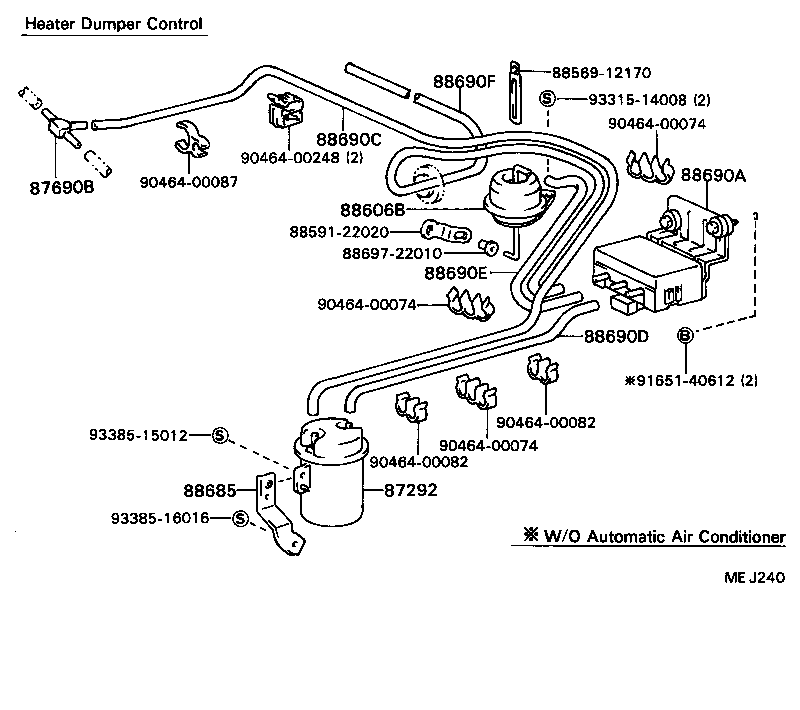

Figure MEE900C MEE900C 1984-08 → — Figure MEJ056A MEJ056A 1984-08 → — Figure MEJ240 MEJ240 1984-08 → 1986-08 Figure MEJ057A MEJ057A 1986-08 → — Figure MEJ241 MEJ241 1984-08 → — Figure MEE903E MEE903E 1984-08 → — Figure MEH636B MEH636B 1985-10 → — Figure MEE902C MEE902C 1984-08 → 1986-08 Figure MEK742A MEK742A 1986-08 → —

Part groups

PNCDescription
87292 Tank, Vacuum
87690B Way, 3
88031 Actuator Set, Idle-up
88605D Wire, Air Conditioner
88606B Diaphragm Sub-assy, Cooler
88685 Bracket, Air Conditioner Control Vacuum Tank
88690A Valve Assy, Combination
88690C Hose, Vacuum, NO.1 (FOR HEATER OR AIR CONDITIONER)
88690D Hose, Vacuum, NO.2 (FOR HEATER OR AIR CONDITIONER)
88690E Hose, Vacuum, NO.3 (FOR HEATER OR AIR CONDITIONER)
88690F Hose, Vacuum, NO.4 (FOR HEATER OR AIR CONDITIONER)
88690G Hose, Vacuum, NO.5 (FOR HEATER OR AIR CONDITIONER)
88690H Hose, Vacuum, NO.6 (FOR HEATER OR AIR CONDITIONER)
88690J Hose, Vacuum, NO.7 (FOR HEATER OR AIR CONDITIONER)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691U Way(FOR VACUUM HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
