Toyota Cresta
1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan
Discontinued model
Data version 1993-06
Radiator & Water Outlet
128 part groups · 19 illustrations

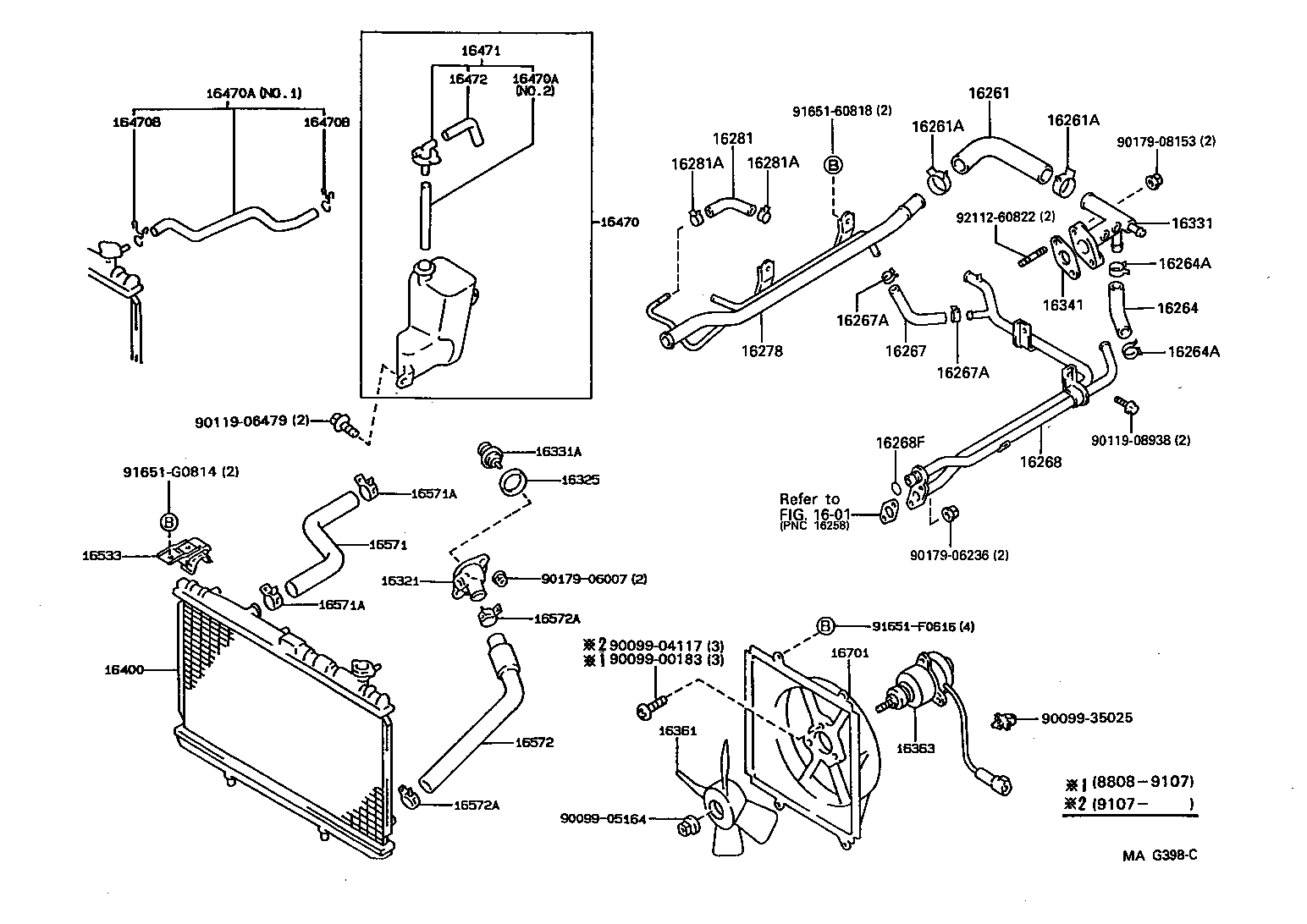

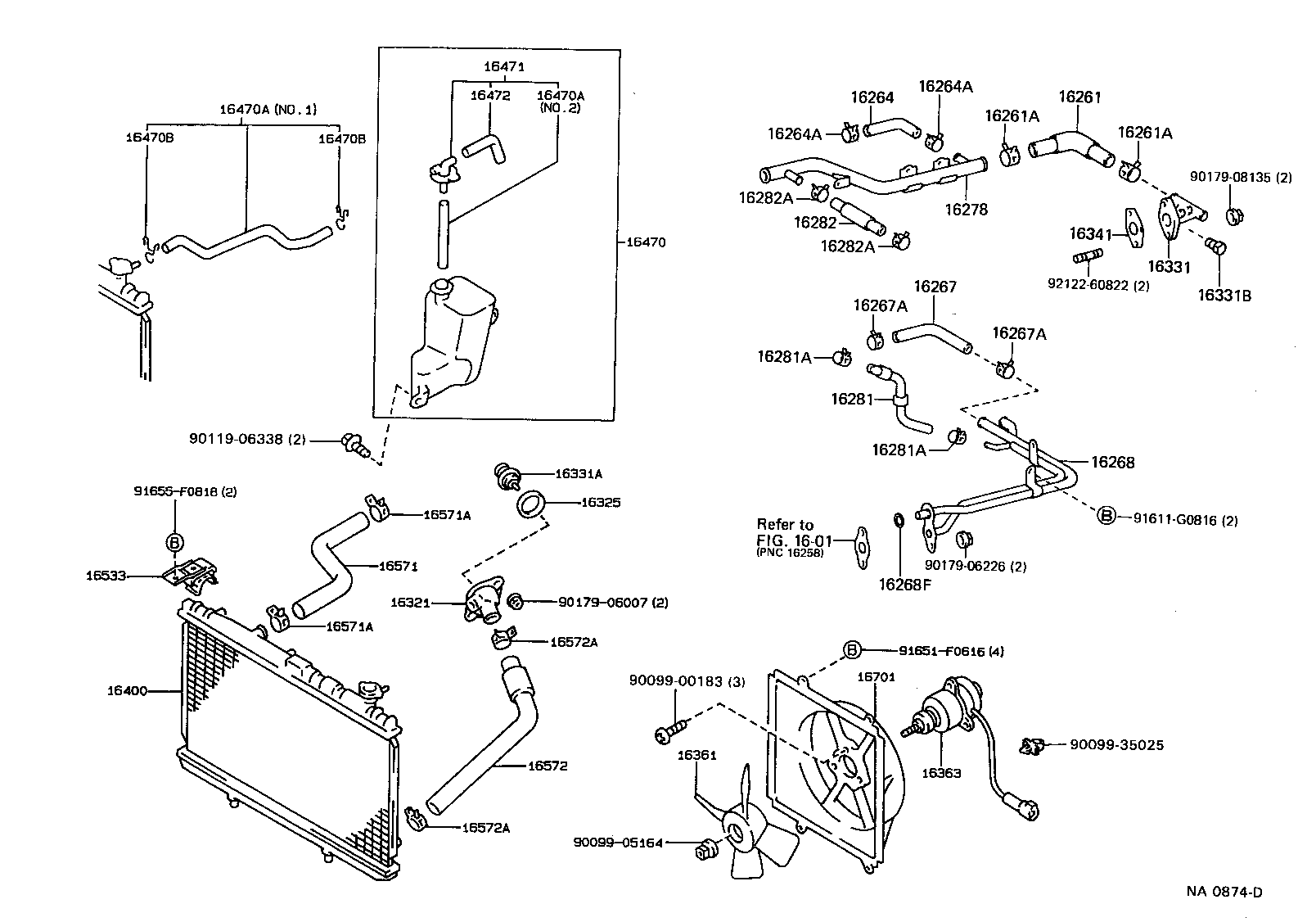

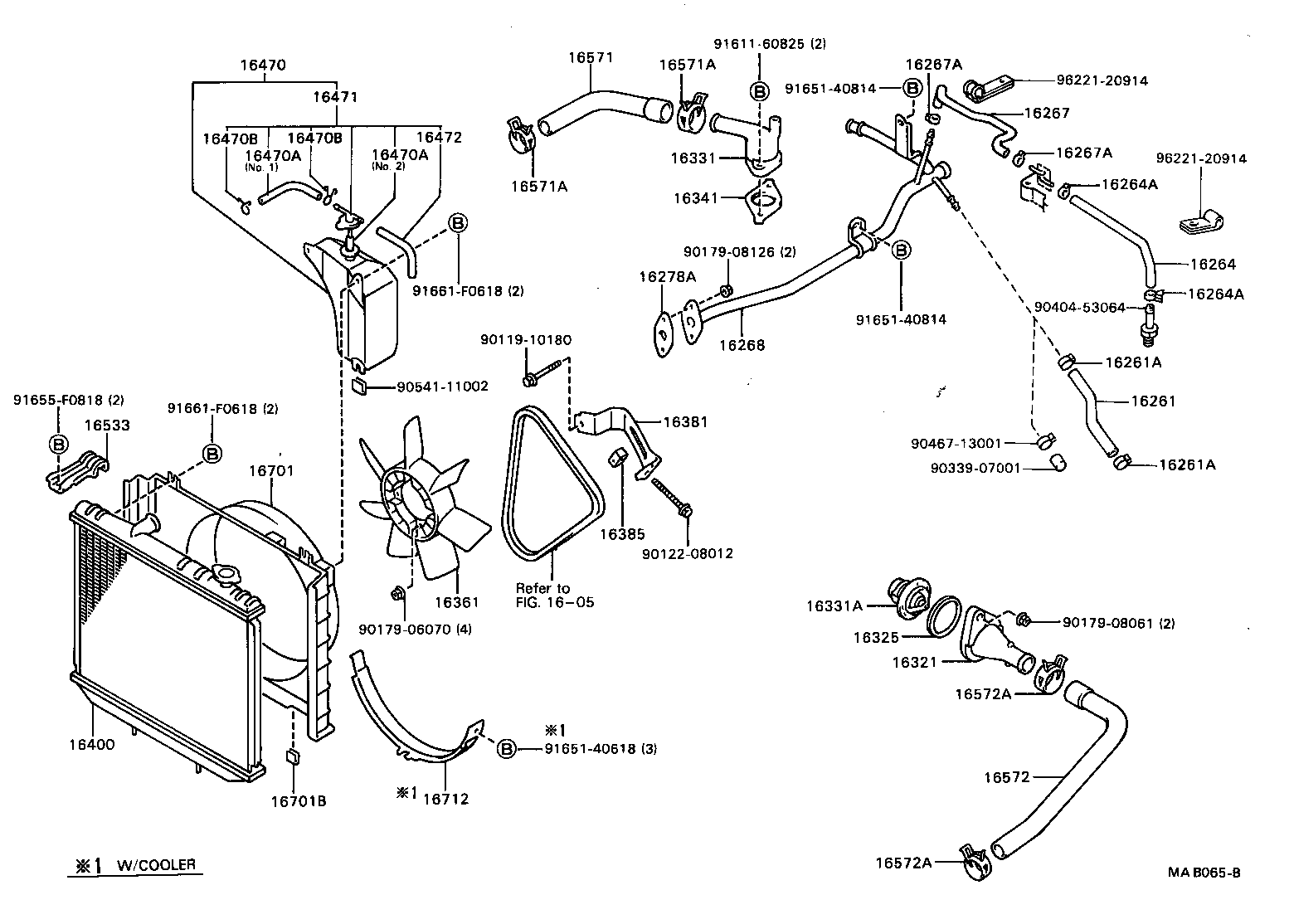

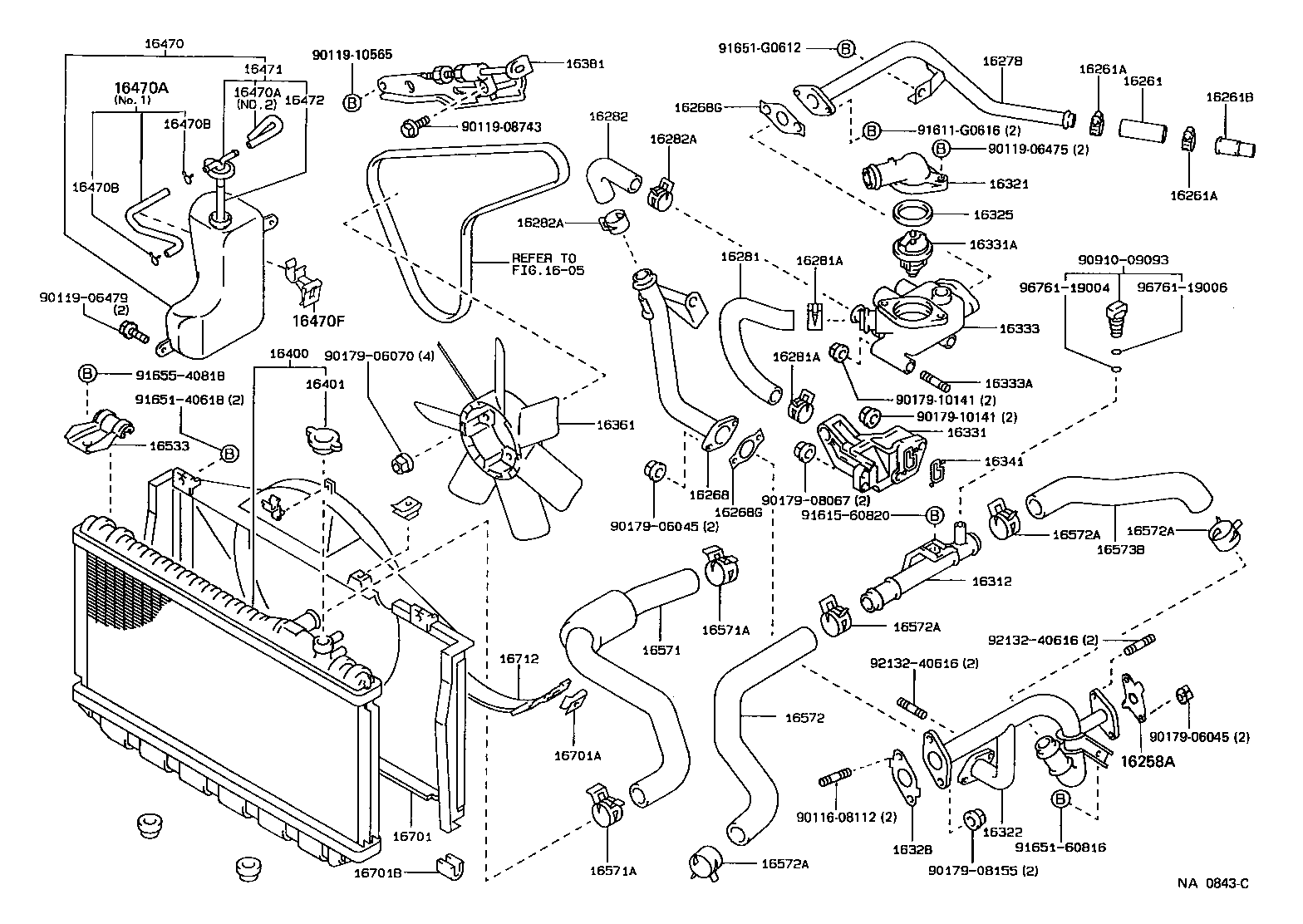

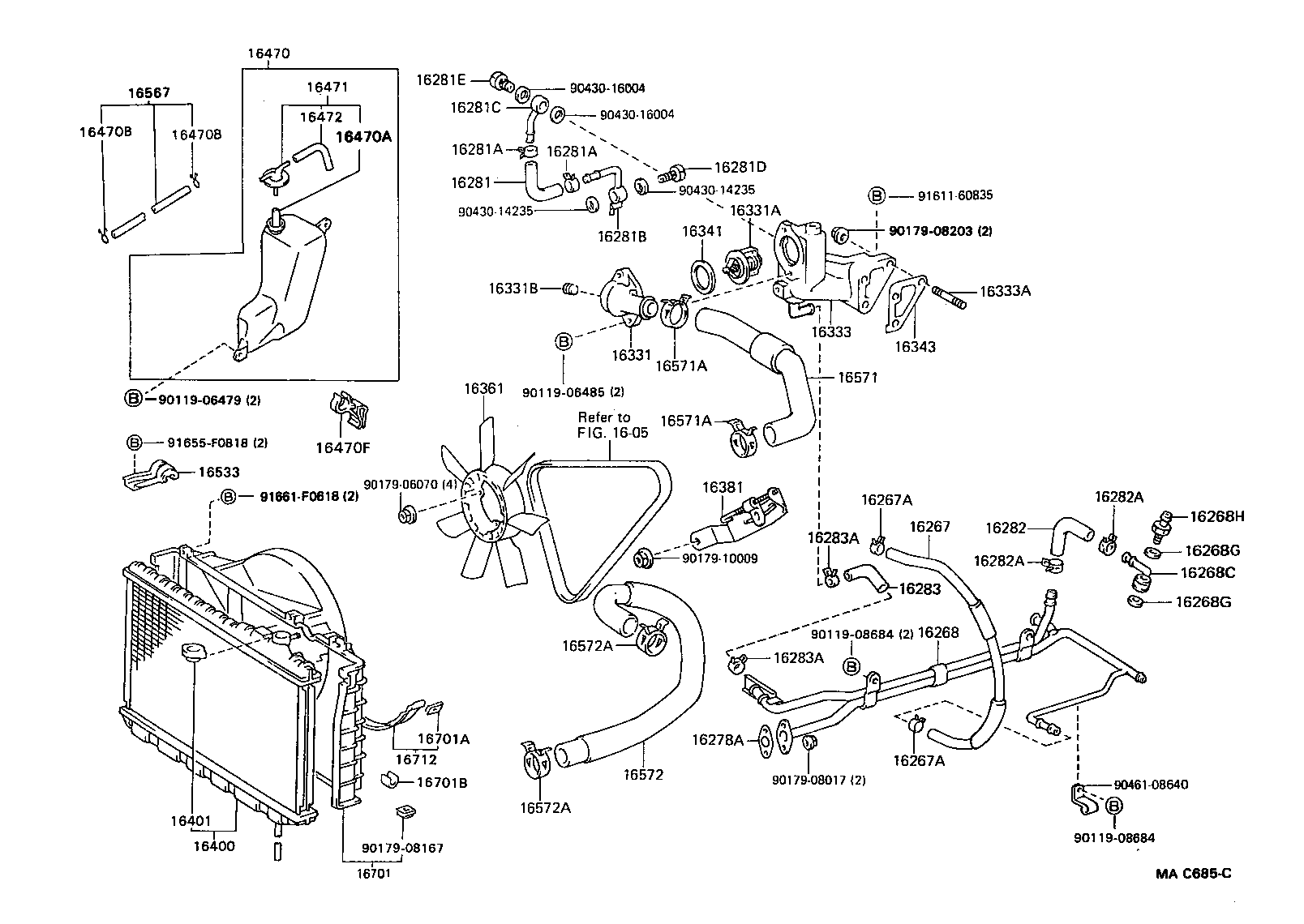

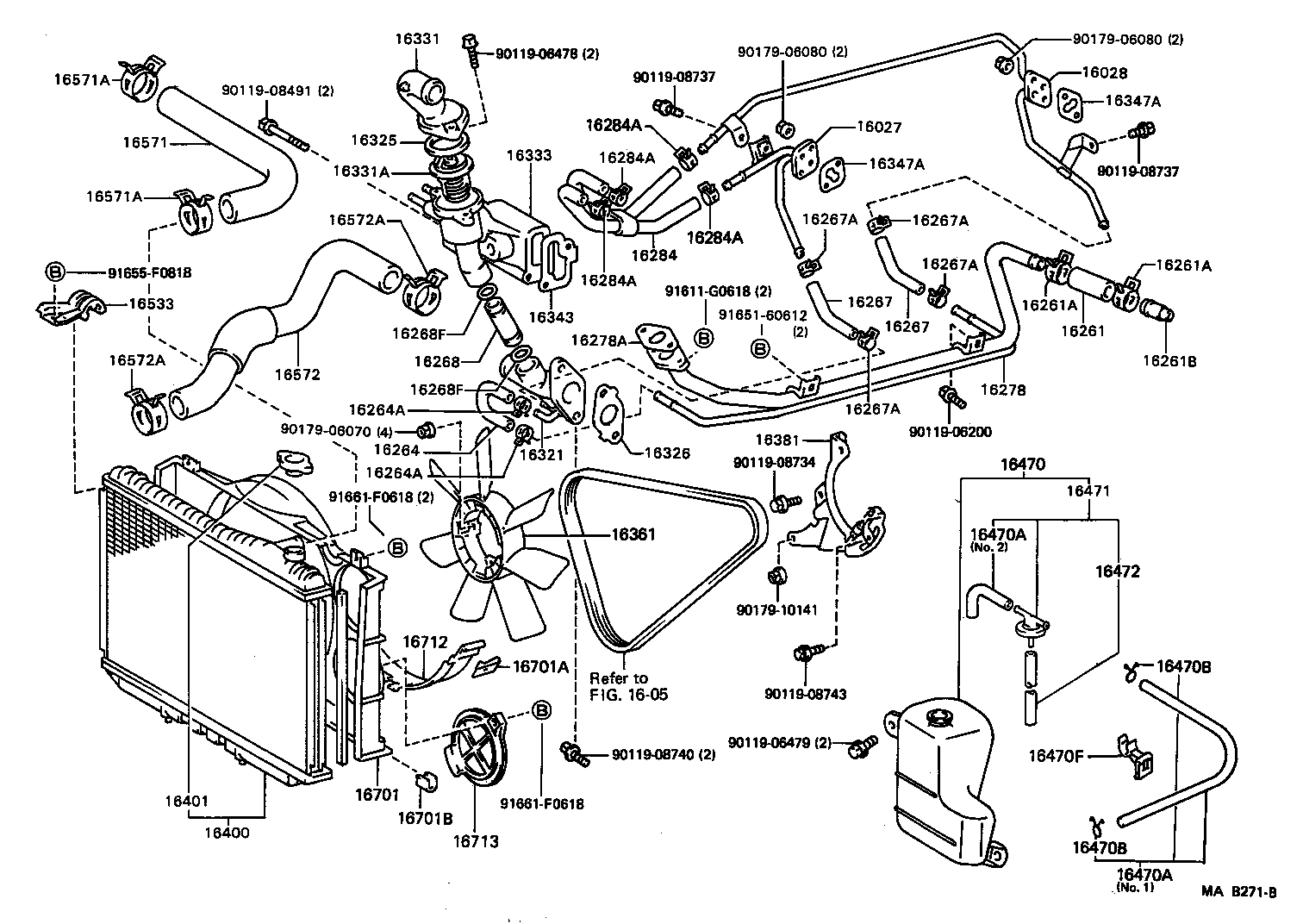

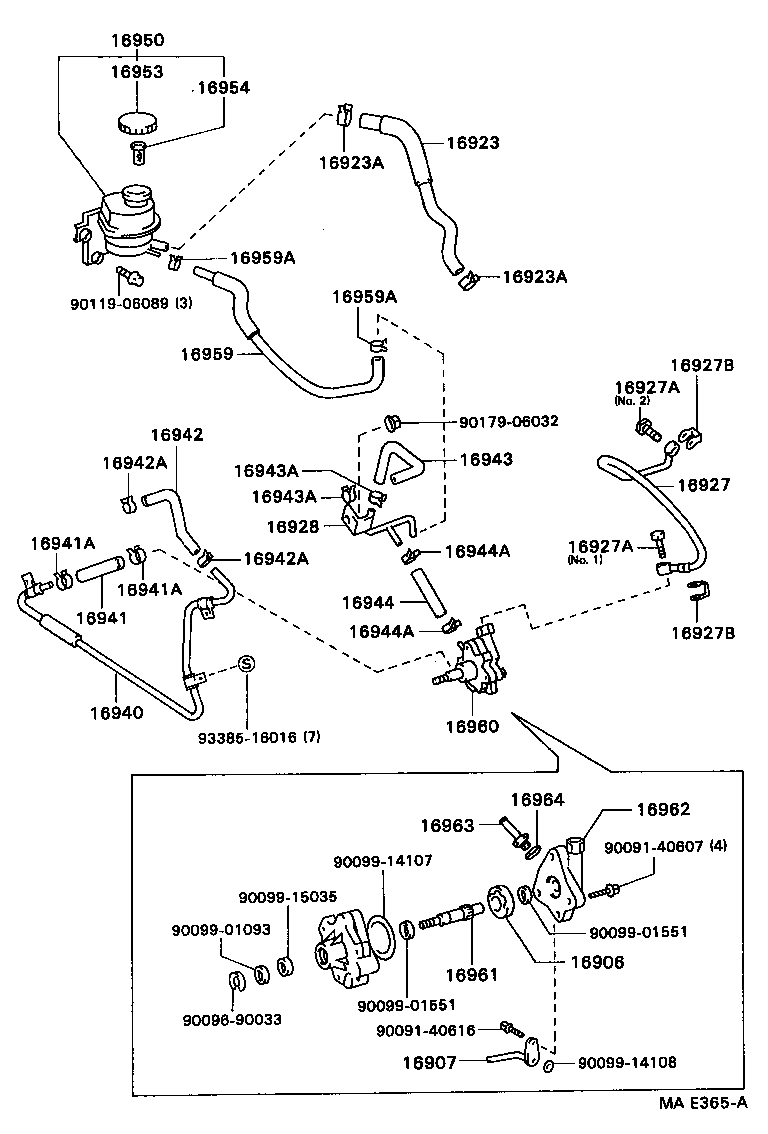

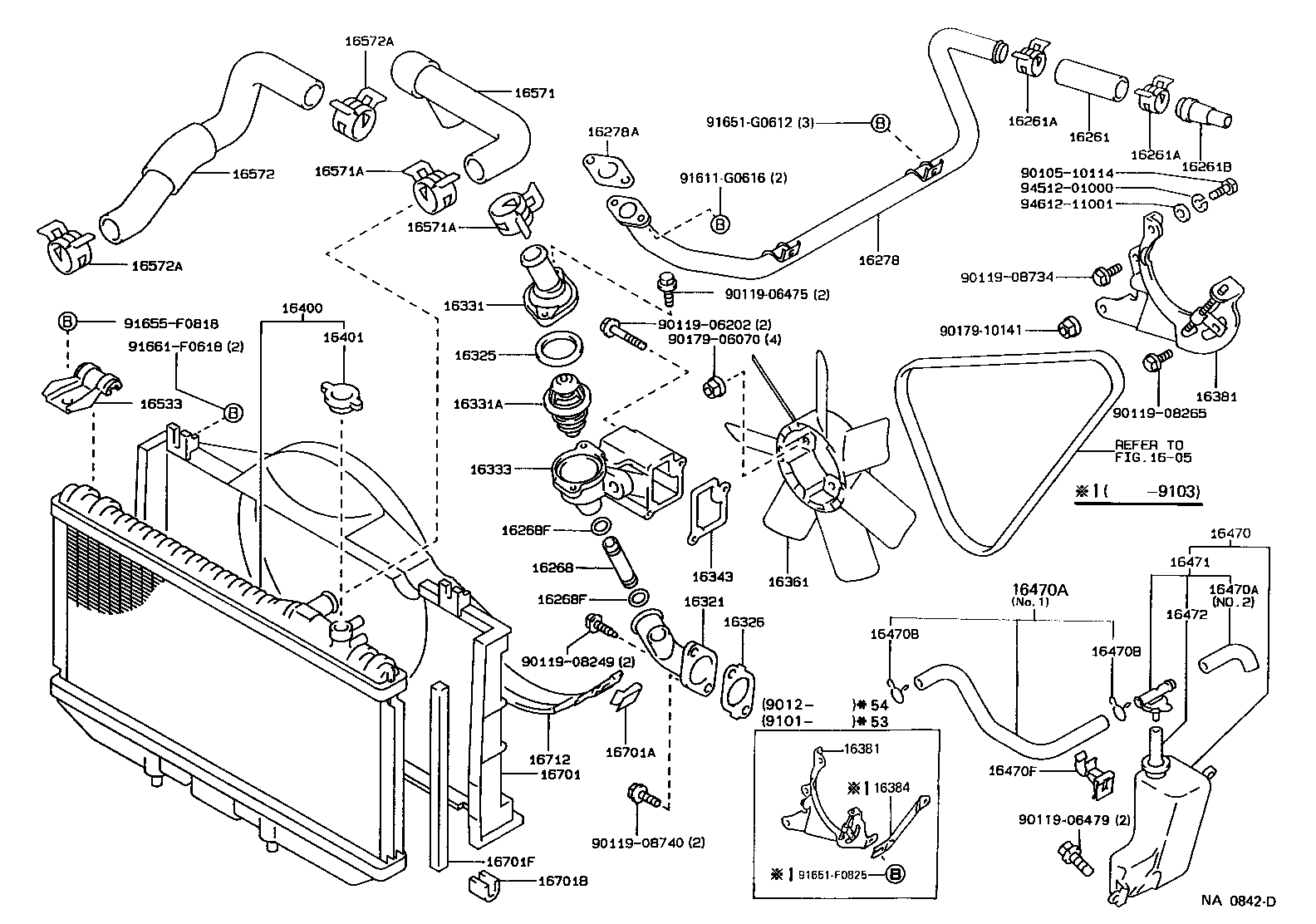

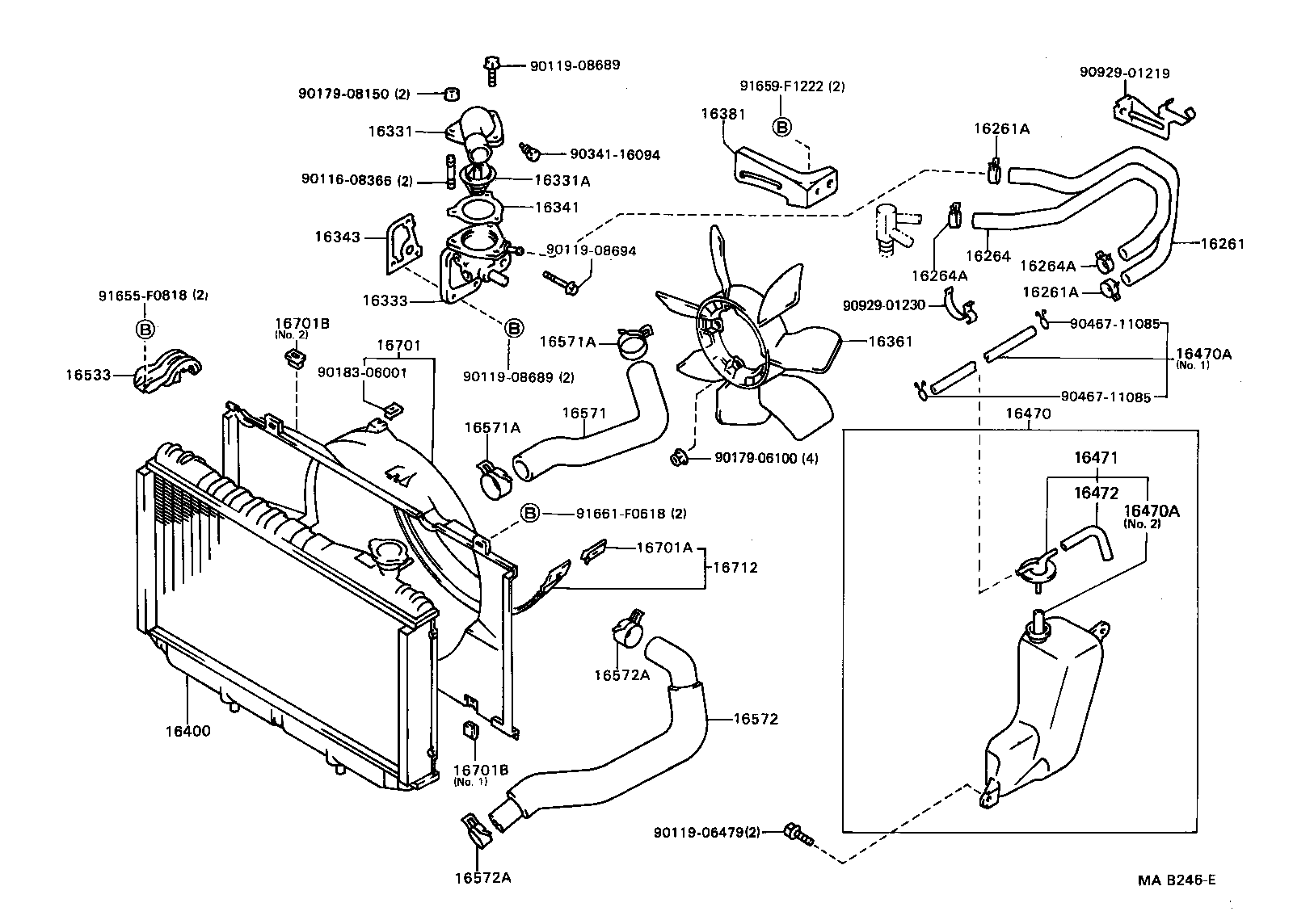

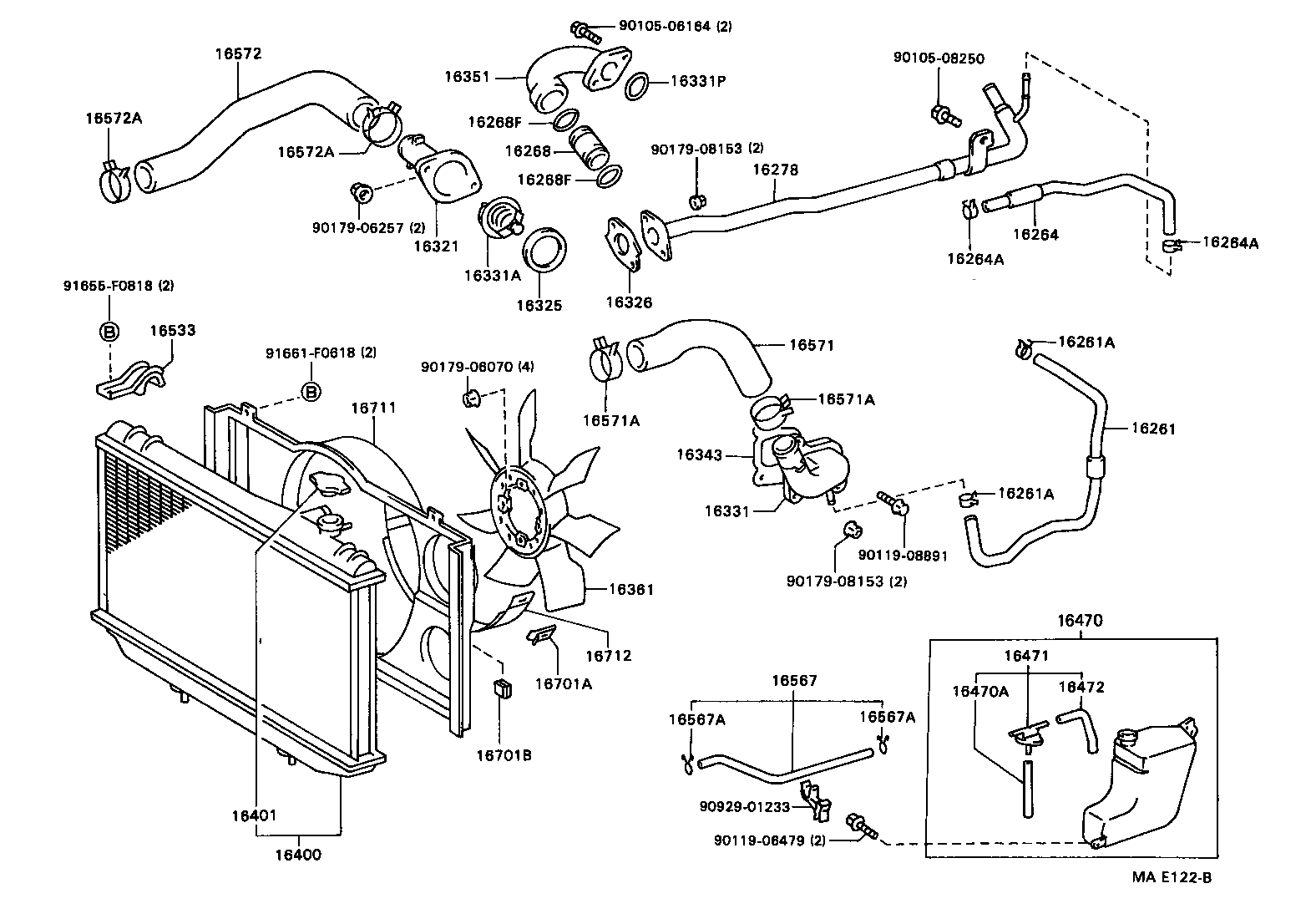

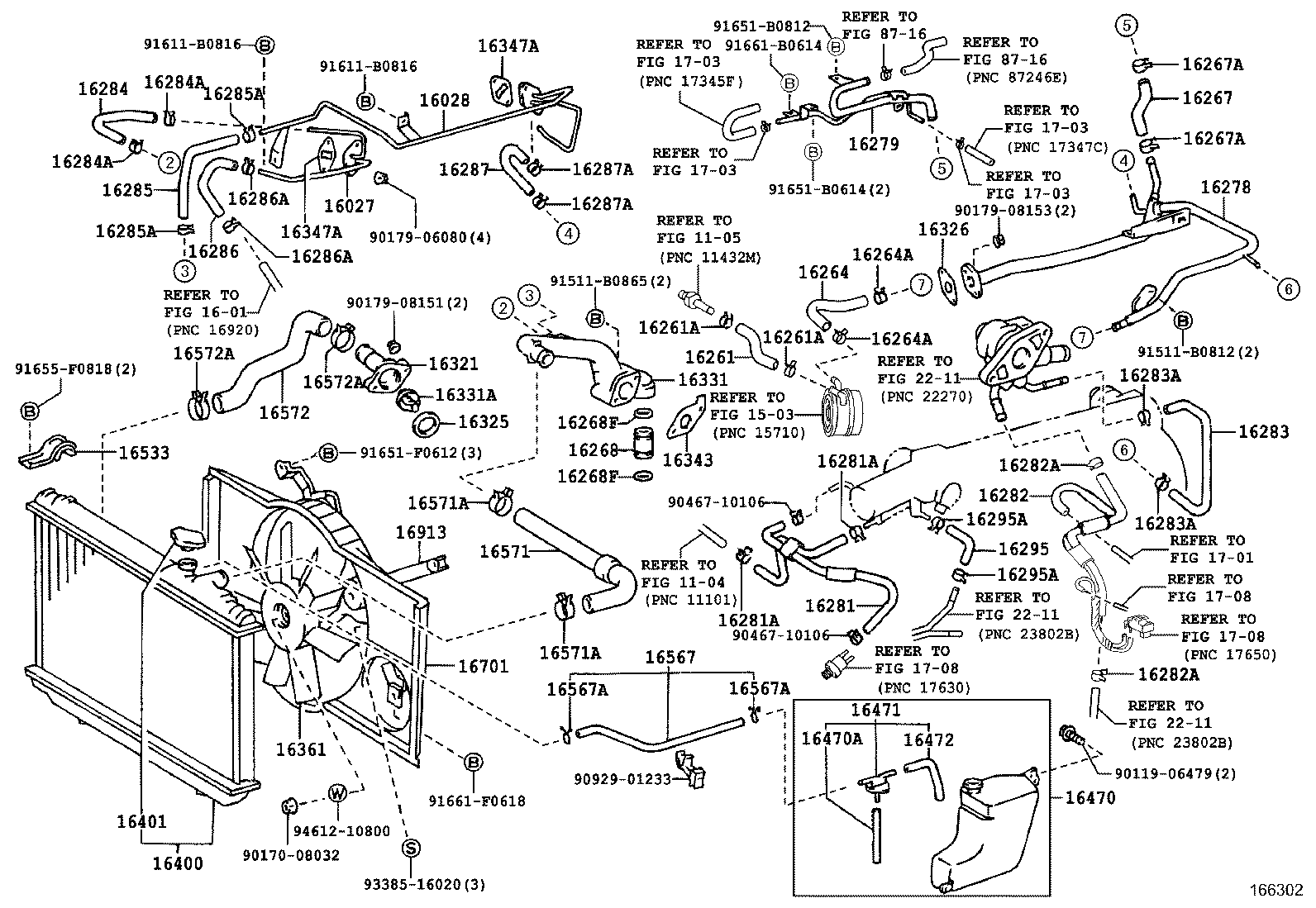

Illustrations
Part groups
| PNC | Description |
|---|---|
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16028 | Pipe Sub-assy, Turbo Water, NO.2 |
| 16258A | Gasket(FOR HEATER RETURN) |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261B | Union(FOR WATER BY-PASS HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268C | Union, Water By-pass Pipe |
| 16268F | Ring, O(FOR WATER BY-PASS PIPE) |
| 16268G | Gasket(FOR WATER BY-PASS PIPE) |
| 16268H | Bolt, Union(FOR WATER BY-PASS PIPE) |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16278A | Gasket, Water By-pass |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16281B | Union, Water By-pass Pipe, NO.2 |
| 16281C | Union, Water By-pass Pipe, NO.3 |
| 16281D | Bolt, Union(FOR WATER BY-PASS PIPE UNION NO.2) |
| 16281E | Bolt, Union(FOR WATER BY-PASS PIPE UNION NO.3) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16284 | Hose, Turbo Water, NO.1 |
| 16284A | Clip(FOR TURBO WATER HOSE NO.1) |
| 16285 | Hose, Turbo Water, NO.2 |
| 16285A | Clip(FOR TURBO WATER HOSE NO.2) |
| 16286 | Hose, Turbo Water, NO.3 |
| 16286A | Clip(FOR TURBO WATER HOSE NO.3) |
| 16287 | Hose, Turbo Water, NO.4 |
| 16287A | Clip(FOR TURBO WATER HOSE NO.4) |
| 16295 | Hose, Water By-pass, NO.7 |
| 16295A | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 16312 | Pipe, Water Inlet, NO.2 |
| 16321 | Inlet, Water |
| 16321D | Bolt, Stud(FOR WATER INLET) |
| 16322 | Pipe, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16328 | Gasket, Water Inlet Pipe |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16331B | Plug(FOR WATER OUTLET) |
| 16331P | Ring,O(FOR WATER OUTLET) |
| 16333 | Housing, Water Outlet |
| 16333A | Bolt, Stud(FOR WATER OUTLET HOUSING) |
| 16341 | Gasket, Water Outlet |
| 16343 | Gasket, Water Outlet Housing |
| 16347A | Gasket(FOR TURBO WATER PIPE) |
| 16347D | Gasket, Water By-pass |
| 16351 | Outlet, Water By-pass |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16381 | Bar, Fan Belt Adjusting |
| 16384 | Bracket, Fan Belt Adjusting Bar |
| 16385 | Slider, Fan Belt Adjusting |

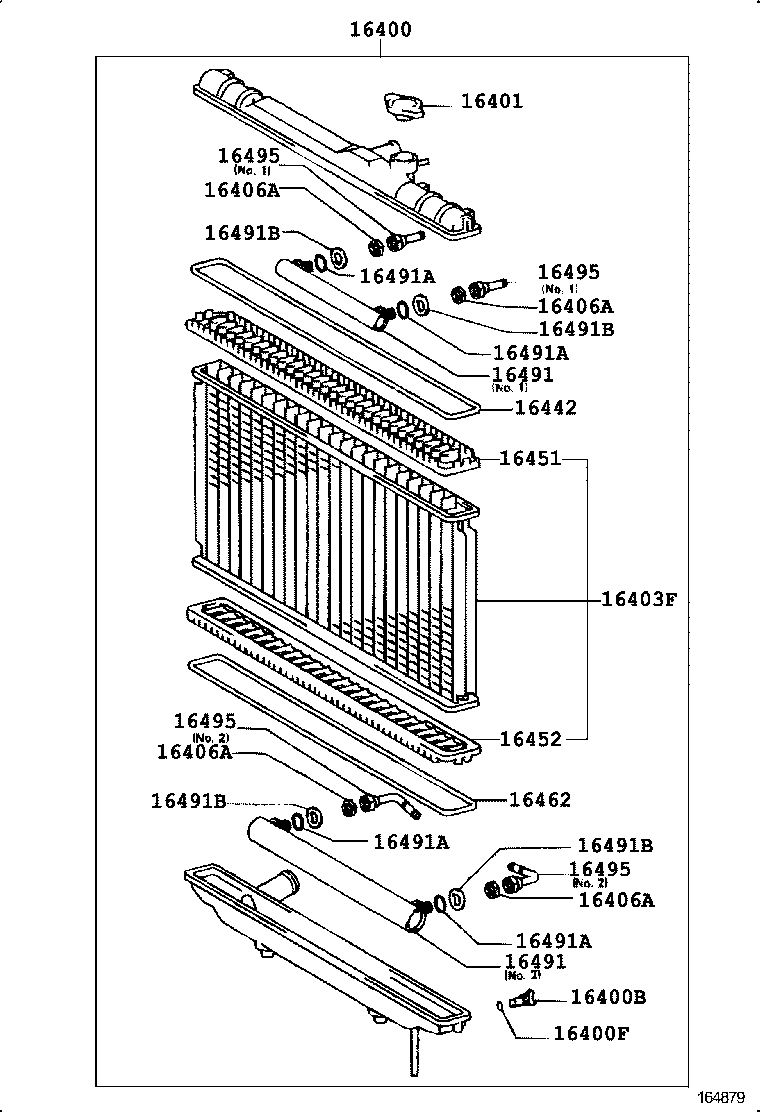

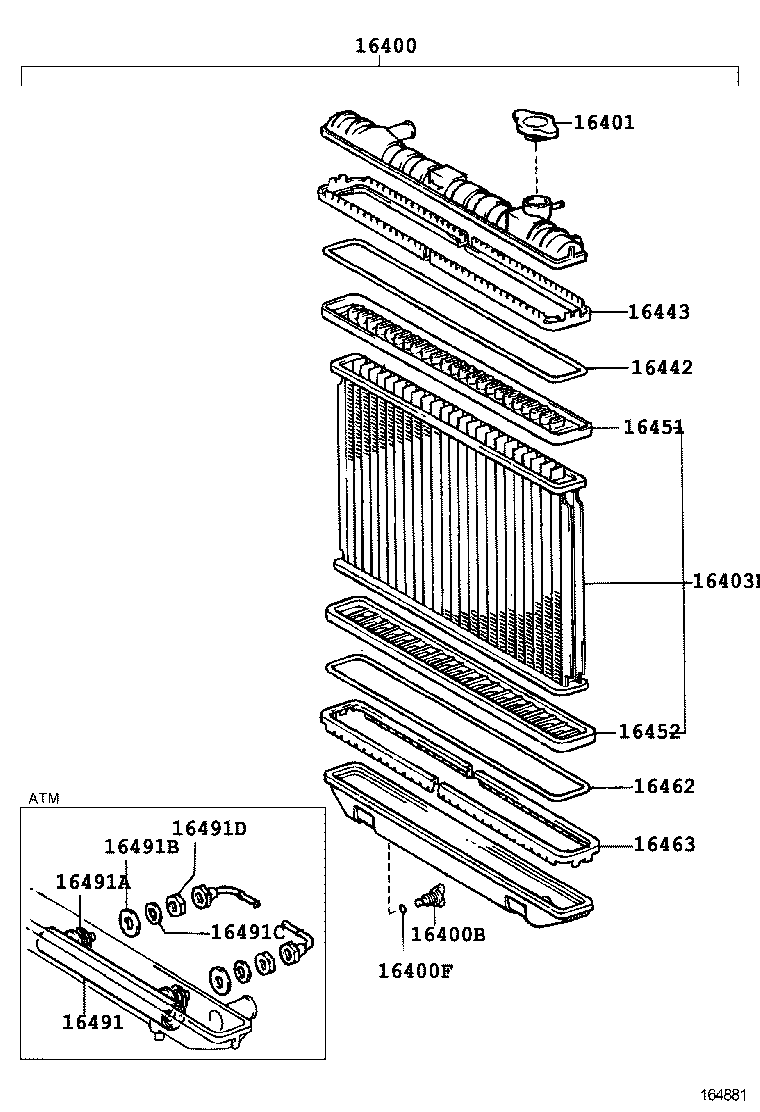

| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16403F | Core Sub-assy, Radiator |
| 16406A | Support(FOR OIL COOLER) |
| 16442 | Ring, O(FOR RADIATOR UPPER TANK) |
| 16443 | Plate, Radiator Tank, Lock, Upper |
| 16451 | Plate, Radiator Core, Upper |
| 16452 | Plate, Radiator Core, Lower |
| 16462 | Ring, O(FOR RADIATOR LOWER TANK) |
| 16463 | Plate, Radiator Tank, Lock, Lower |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16470F | Clamp, Radiator Reserve Tank Hose |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16472 | Hose, Breather |
| 16491 | Cooler, Oil(FOR ATM) |
| 16491A | Ring, O(FOR ATM OIL COOLER) |
| 16491B | Washer, Plate(FOR ATM OIL COOLER) |
| 16491C | Washer, Spring(FOR ATM OIL COOLER) |
| 16491D | Nut(FOR ATM OIL COOLER) |
| 16495 | Nut, Flare(FOR ATM OIL COOLER) |
| 16533 | Support, Radiator, Upper |
| 16567 | Hose(FOR RADIATOR RESERVE TANK) |
| 16567A | Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16573B | Hose, Radiator, NO.3 |
| 16701 | Shroud Sub-assy, Fan |
| 16701A | Clip(FOR FAN SHROUD) |
| 16701B | Cushion, Fan Shroud |
| 16701F | Seal(FOR FAN SHROUD) |
| 16711 | Shroud, Fan |
| 16712 | Shroud, Fan, NO.2 |
| 16713 | Shroud, Fan, NO.3 |
| 16906 | Gear Set, Hydraulic |
| 16907 | Pipe Sub-assy, Hydraulic Gear Motor |
| 16913 | Stay, Hydraulic Motor Fan Shroud |
| 16923 | Hose, Hydraulic Motor Suction, NO.1 |
| 16923A | Clip(FOR SUCTION HOSE NO.1) |
| 16927 | Hose, Hydraulic Motor Pressure |
| 16927A | Bolt, Union(FOR PRESSURE HOSE) |
| 16927B | Gasket(FOR PRESSURE HOSE) |
| 16928 | Way, Hydraulic Motor Return Hose |
| 16940 | Pipe Assy, Hydraulic Motor Return |
| 16941 | Hose, Hydraulic Motor Return, NO.1 |
| 16941A | Clip(FOR RETURN NO.1) |
| 16942 | Hose, Hydraulic Motor Return, NO.2 |
| 16942A | Clip(FOR RETURN HOSE NO.2) |
| 16943 | Hose, Hydraulic Motor Return, NO.3 |
| 16943A | Clip(FOR RETURN HOSE NO.3) |
| 16944 | Hose, Hydralic Moter Return, NO.4 |
| 16944A | Clip(FOR RETURN HOSE NO.4) |
| 16950 | Tank Assy, Hydraulic Motor Reserve |
| 16953 | Cap, Hydraulic Motor Reserve Tank |
| 16954 | Strainer, Hydraulic Motor Reserve Tank |
| 16959 | Hose, Hydralic Moter Return, NO.5 |
| 16959A | Clip (FOR RETURN HOSE NO.5) |
| 16960 | Motor Assy, Hydraulic Gear |
| 16961 | Shaft, Hydraulic Gear Motor |
| 16962 | Cover, Hydraulic Gear Motor |
| 16963 | Pipe |
| 16964 | Gasket, Hydraulic Gear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
