Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

9 part groups · 2 illustrations

Illustrations

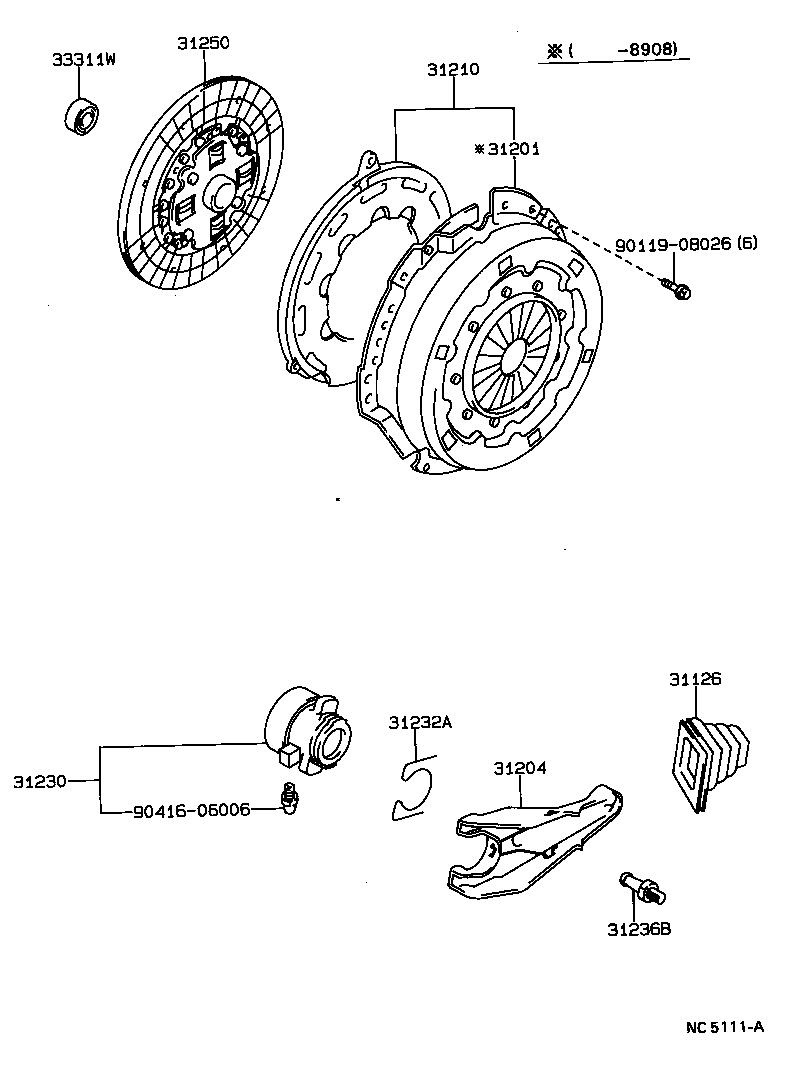

Figure MCN309A MCN309A 1988-08 → — Figure NC5111A NC5111A 1988-08 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31201 Cover Sub-assy, Clutch
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31232A Clip, Release Bearing Hub
31236B Support, Release Fork
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
