Toyota Cresta
1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan
Discontinued model
Data version 1993-06
Rear Door Panel & Glass
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67405B | Guide Sub-assy, Rear Door Window, Front RH |
| 67406B | Guide Sub-assy, Rear Door Window, Front LH |
| 67407D | Guide Sub-assy, Rear Door Window, Rear RH |
| 67408D | Guide Sub-assy, Rear Door Window, Rear LH |
| 67487A | Garnish, Rear Door Rear Guide Bracket, RH |
| 67488A | Garnish, Rear Door Rear Guide Bracket, LH |

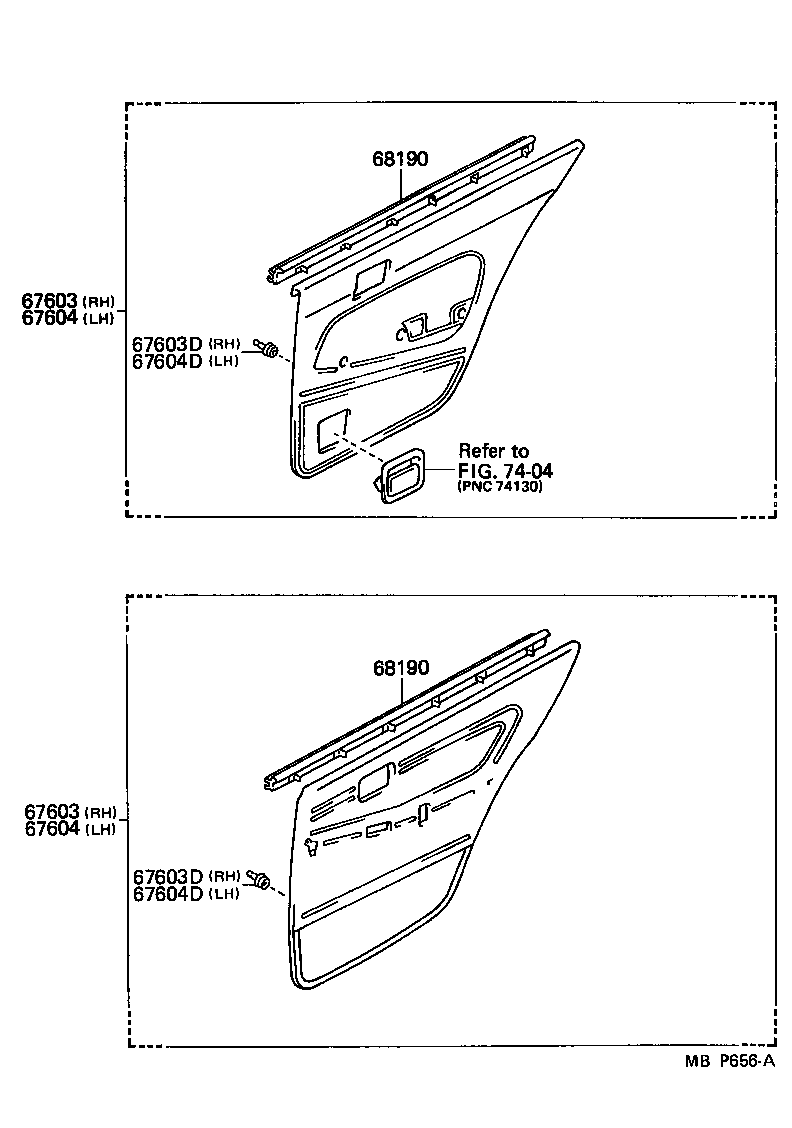

| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603D | Retainer, Rear Door Trim, RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67604D | Retainer, Rear Door Trim, LH |
| 67836 | Cover, Rear Door Lock Child Protection, RH |
| 67839B | Cover, Rear Door Service Hole, Lower |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 67887A | Weatherstrip, Rear Door, NO.2 RH |
| 67888A | Weatherstrip, Rear Door, NO.2 LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68190 | Weatherstrip Assy, Rear Door Glass, Inner |
| 68198 | Seal, Rear Door Belt, Rear RH |
| 68199 | Seal, Rear Door Belt, Rear LH |
| 68617A | Pin, Rear Door Check |
| 68623 | Cover, Door Check, RH |
| 68624 | Cover, Door Check, LH |
| 68630 | Check Assy, Rear Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
