Toyota Soarer

1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan

Discontinued model Data version 1991-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

12 part groups · 4 illustrations

Illustrations

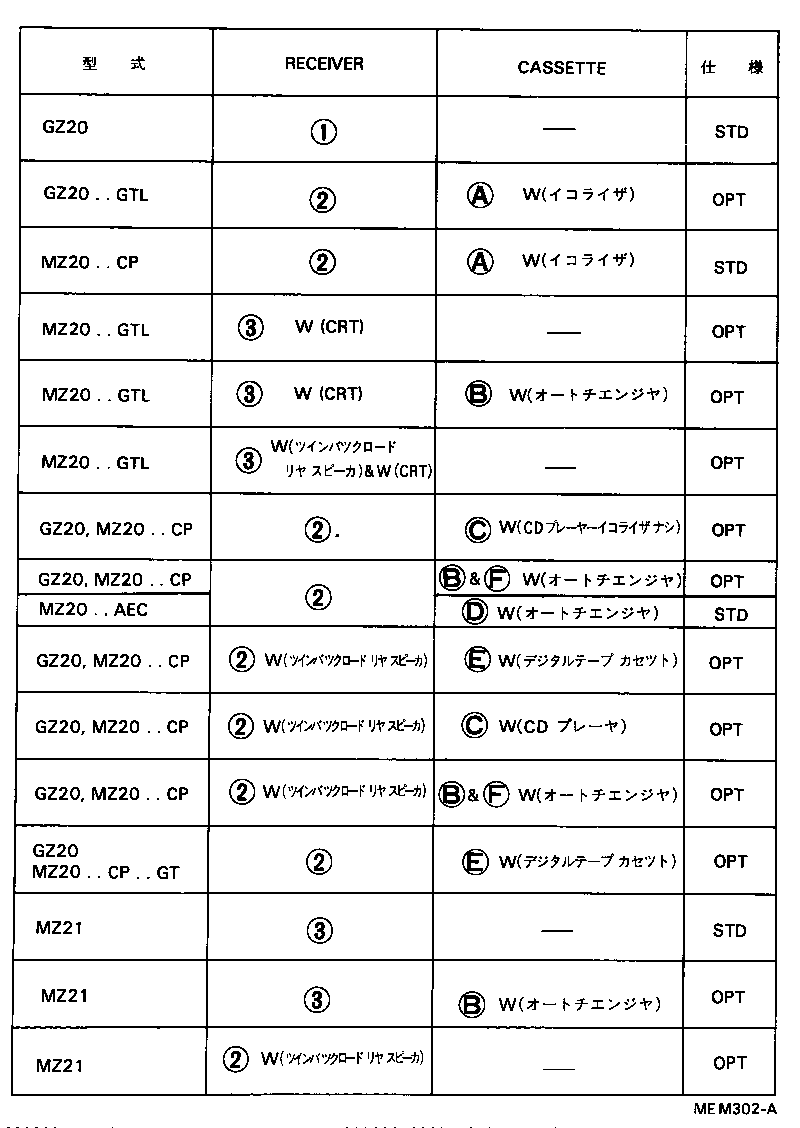

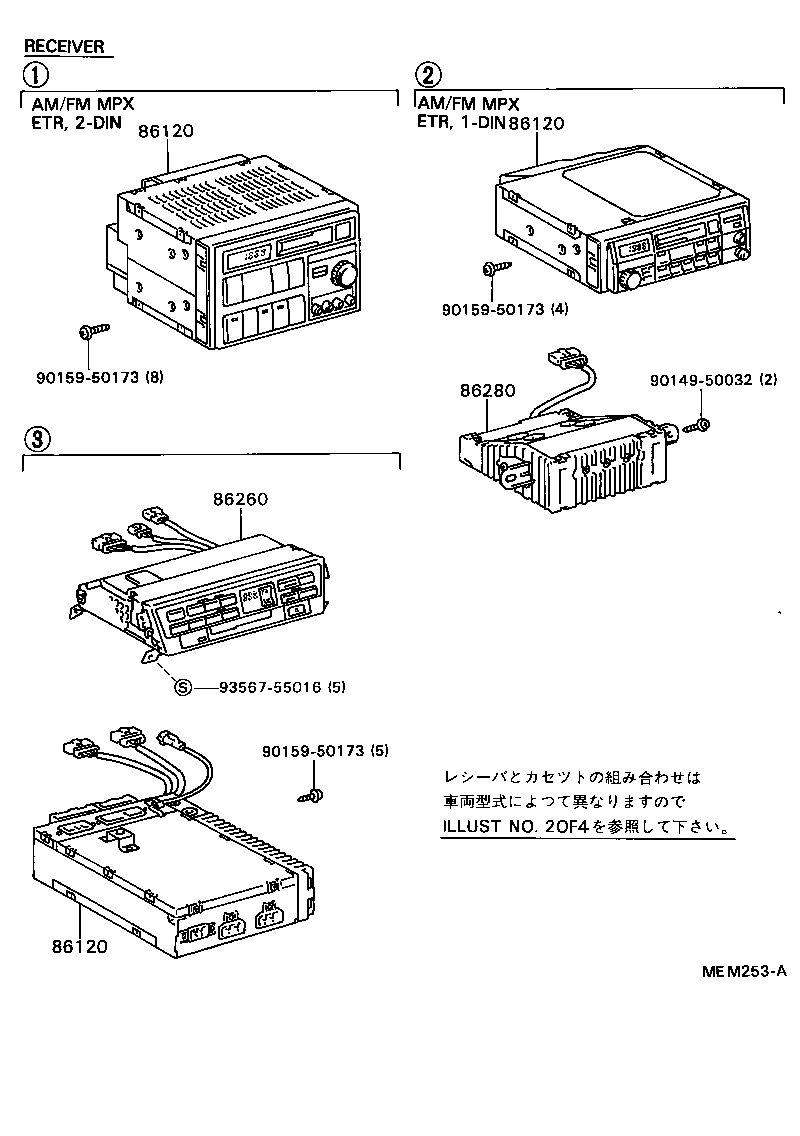

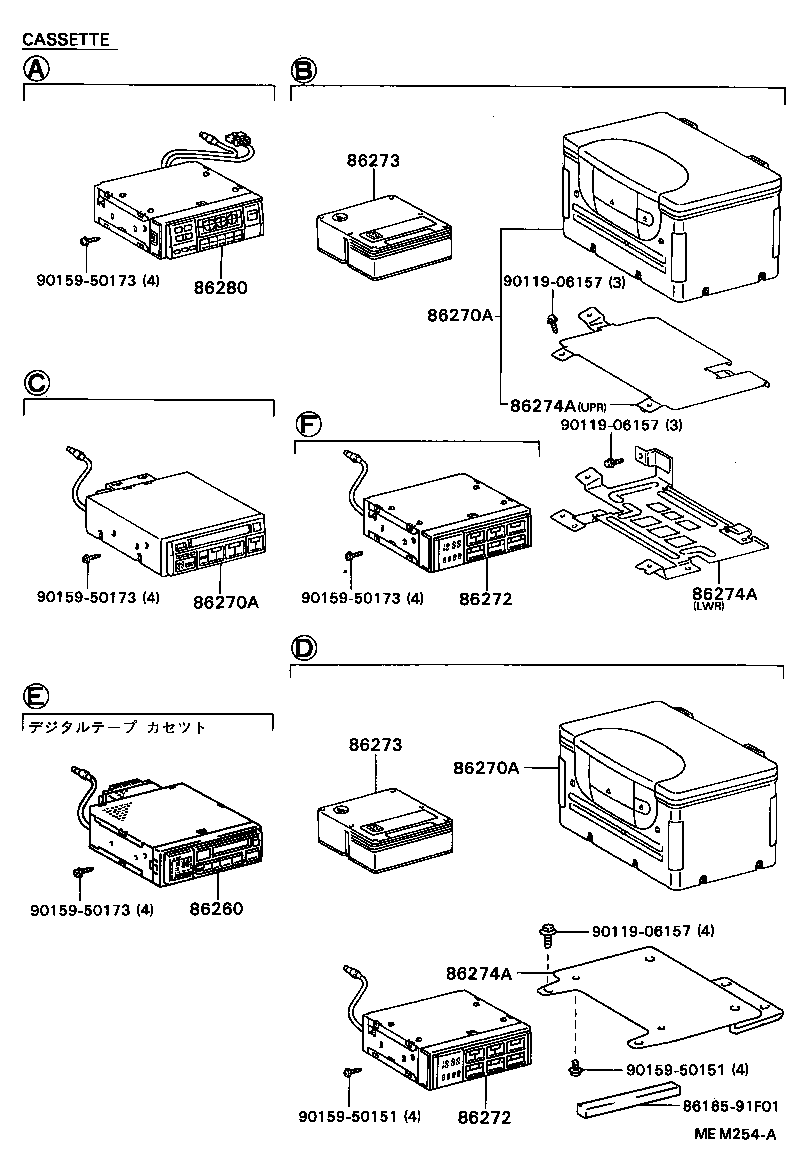

Figure MEM301 MEM301 1988-01 → — Figure MEM302A MEM302A 1988-01 → — Figure MEM253A MEM253A 1988-01 → — Figure MEM254A MEM254A 1988-01 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86260 Tape Player Assy
86261A Cassette, Information
86270A Disc Player Assy
86272 Controller, Disc Player
86273 Magazine, Disc Player
86274A Bracket, Disc Player
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
