Toyota Soarer

1988-01 → 1991-04 · chassis GZ20,MZ2# · catalogue 321130 · Japan

Discontinued model Data version 1991-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

16 part groups · 5 illustrations

Illustrations

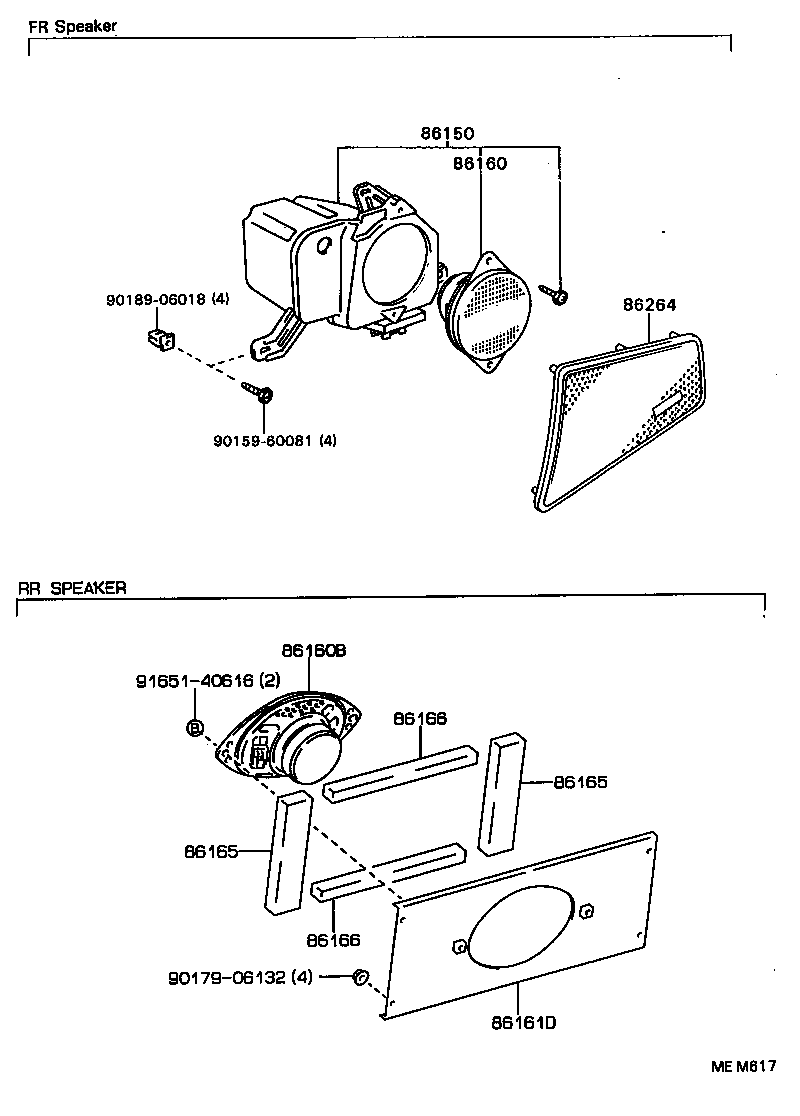

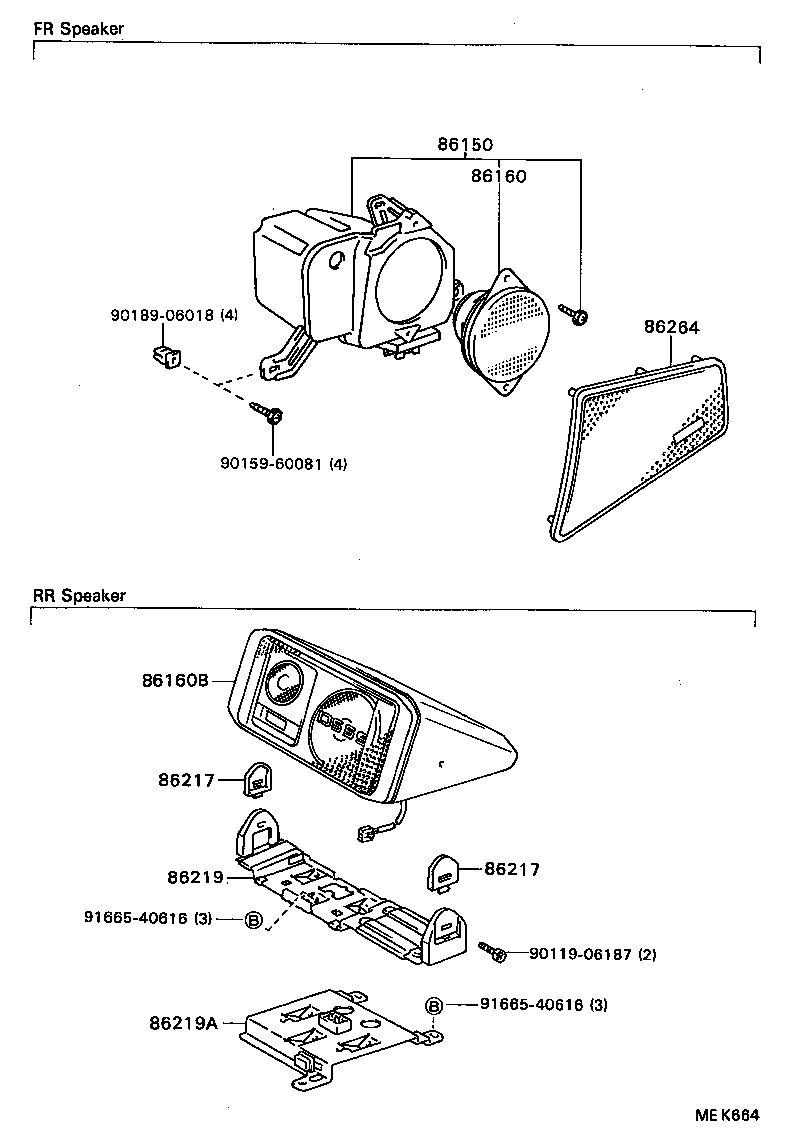

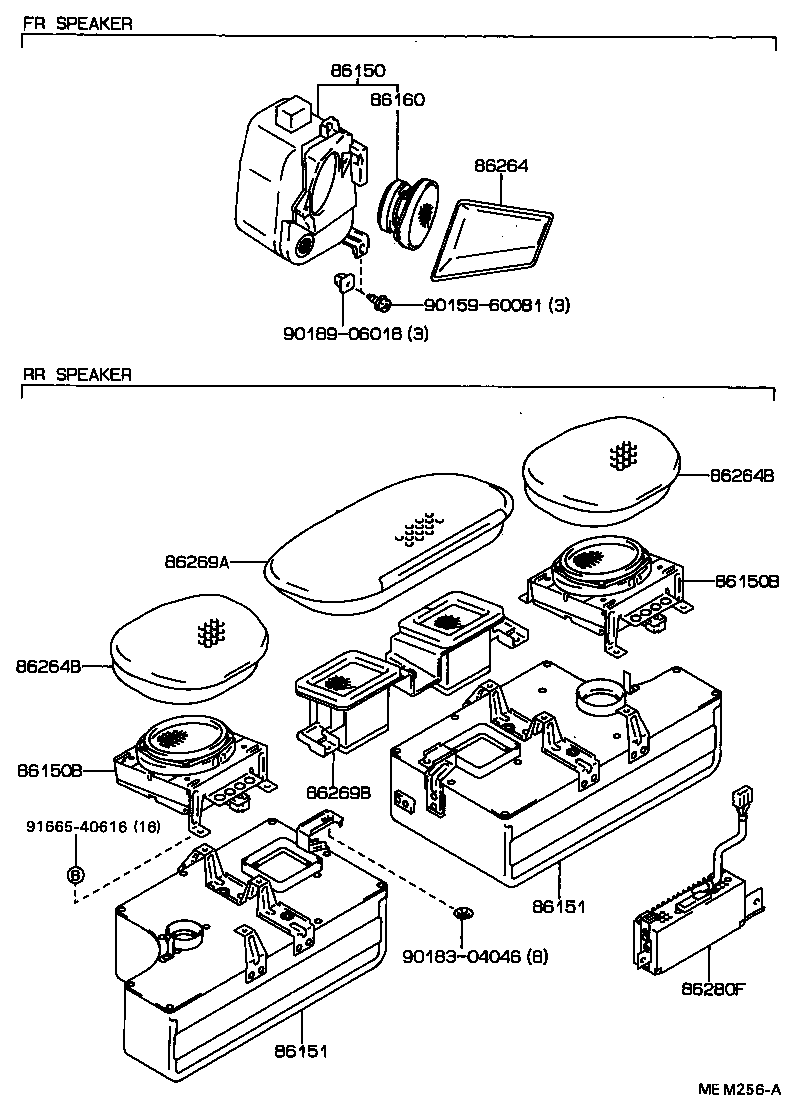

Figure MEK663 MEK663 1988-01 → — Figure MEK664 MEK664 1988-01 → — Figure MEM255 MEM255 1989-01 → — Figure MEM256A MEM256A 1989-01 → — Figure MEM617 MEM617 1989-04 → 1989-05

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86150B Speaker Assy, W/Box, NO.2
86151 Box, Speaker
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86161D Bracket, Speaker Mounting, NO.1
86165 Seal, Speaker, NO.1
86166 Seal, Speaker, NO.2
86217 Ornament, Speaker Box
86219 Bracket, Stereo Component Speaker, NO.1
86219A Bracket, Stereo Component Speaker, NO.2
86264 Grille, Speaker, Front
86264B Grille, Speaker, Rear
86269A Grille, Speaker
86269B Grille, Speaker
86280F Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
