Toyota Soarer

1991-05 → 2000-12 · chassis JZZ3#,UZZ3# · catalogue 321140 · Japan

Discontinued model Data version 2001-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

12 part groups · 3 illustrations

Illustrations

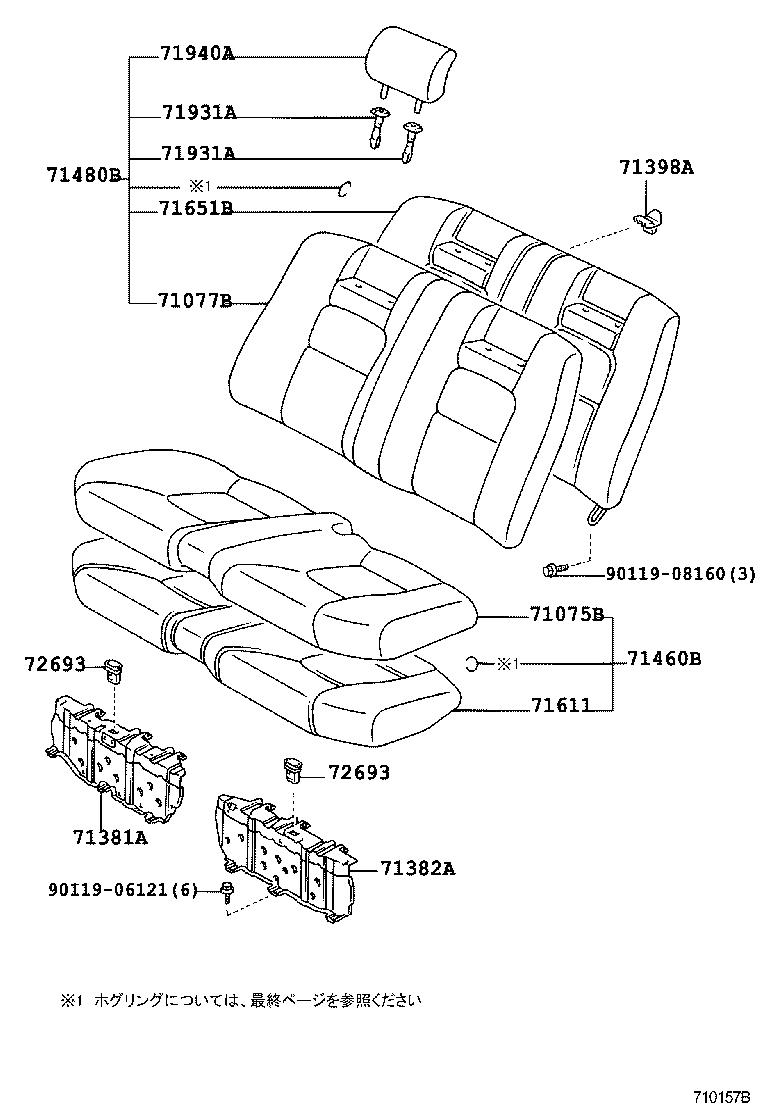

Figure 710153A 710153A 1991-05 → — Figure 710157B 710157B 1991-05 → — Figure 718165A 718165A 1991-05 → —

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71381A Bracket, Rear Seat Cushion Set, RH
71382A Bracket, Rear Seat Cushion Set, LH
71398A Holder, Rear Seatback
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72693 Hook, Rear Seat Cushion Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
