Toyota Crown
1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan
Discontinued model
Data version 1988-01

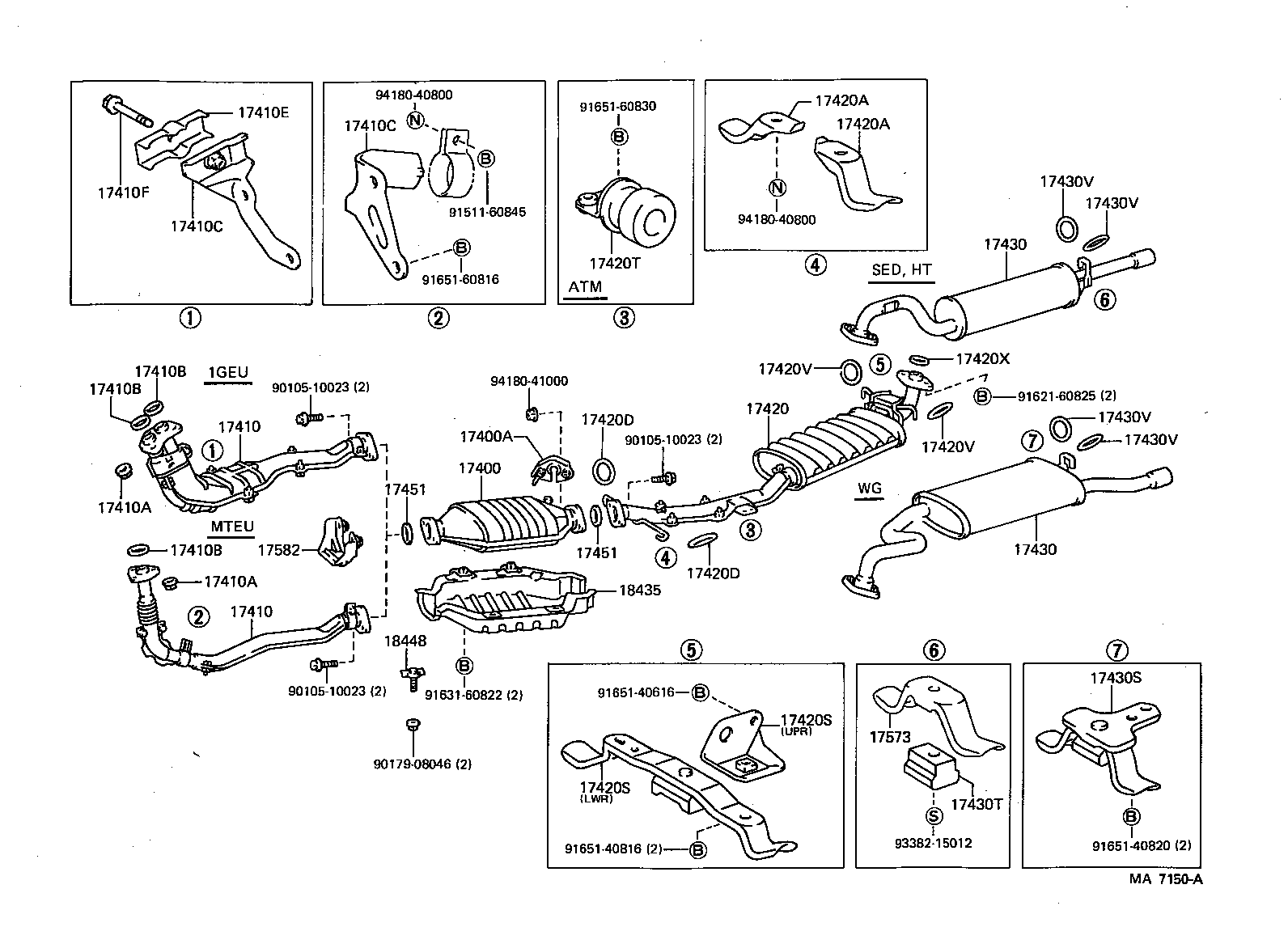

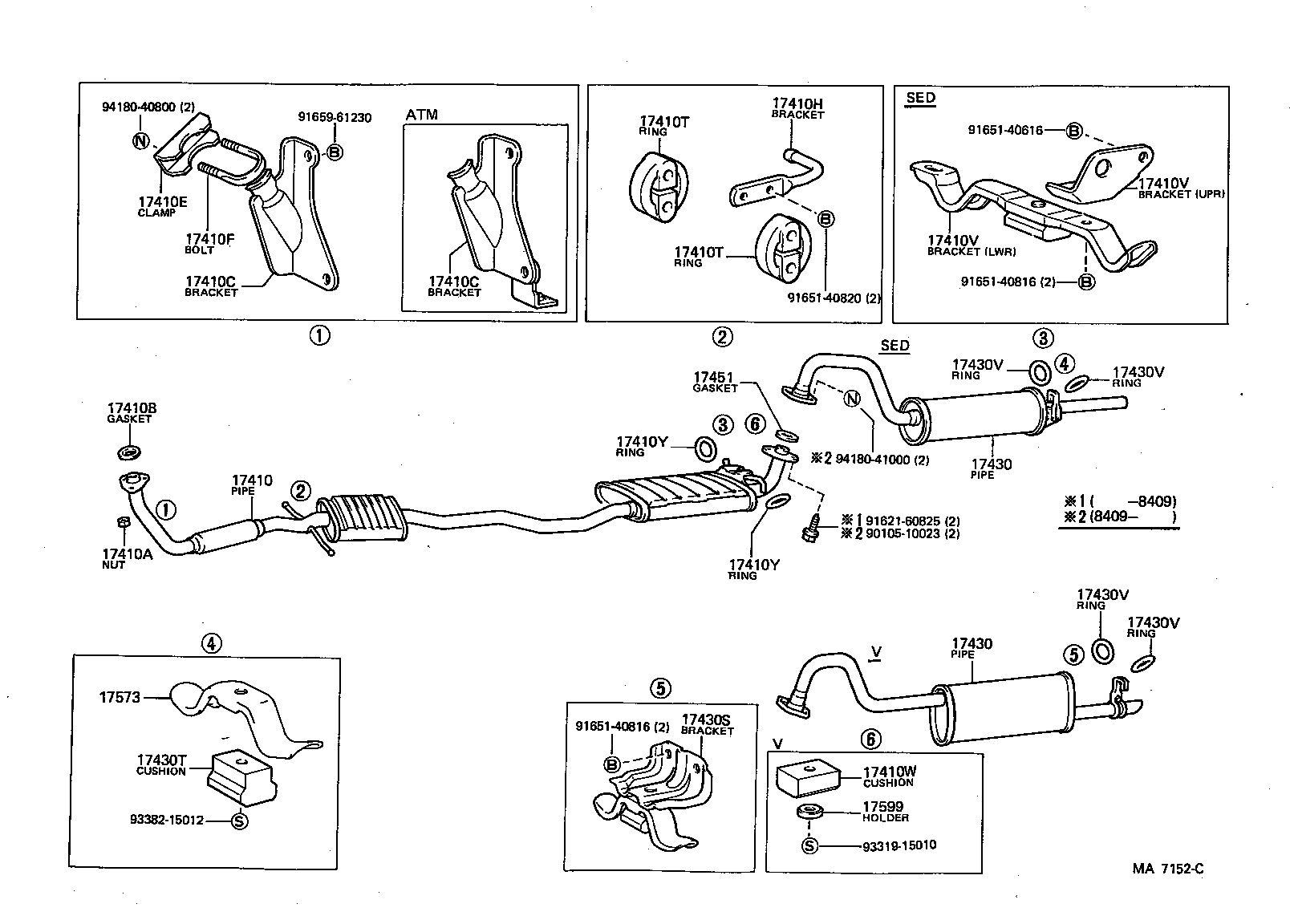

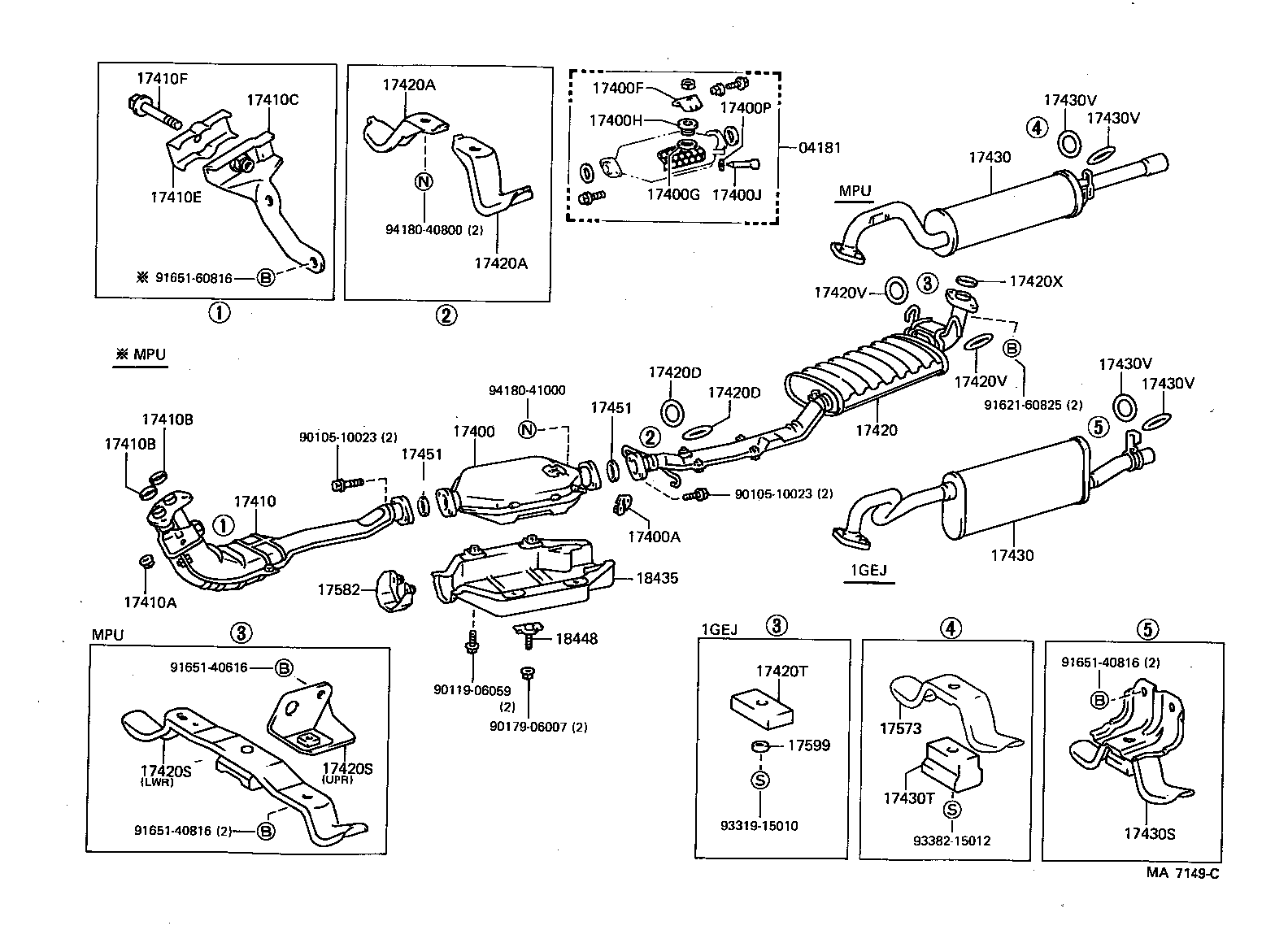

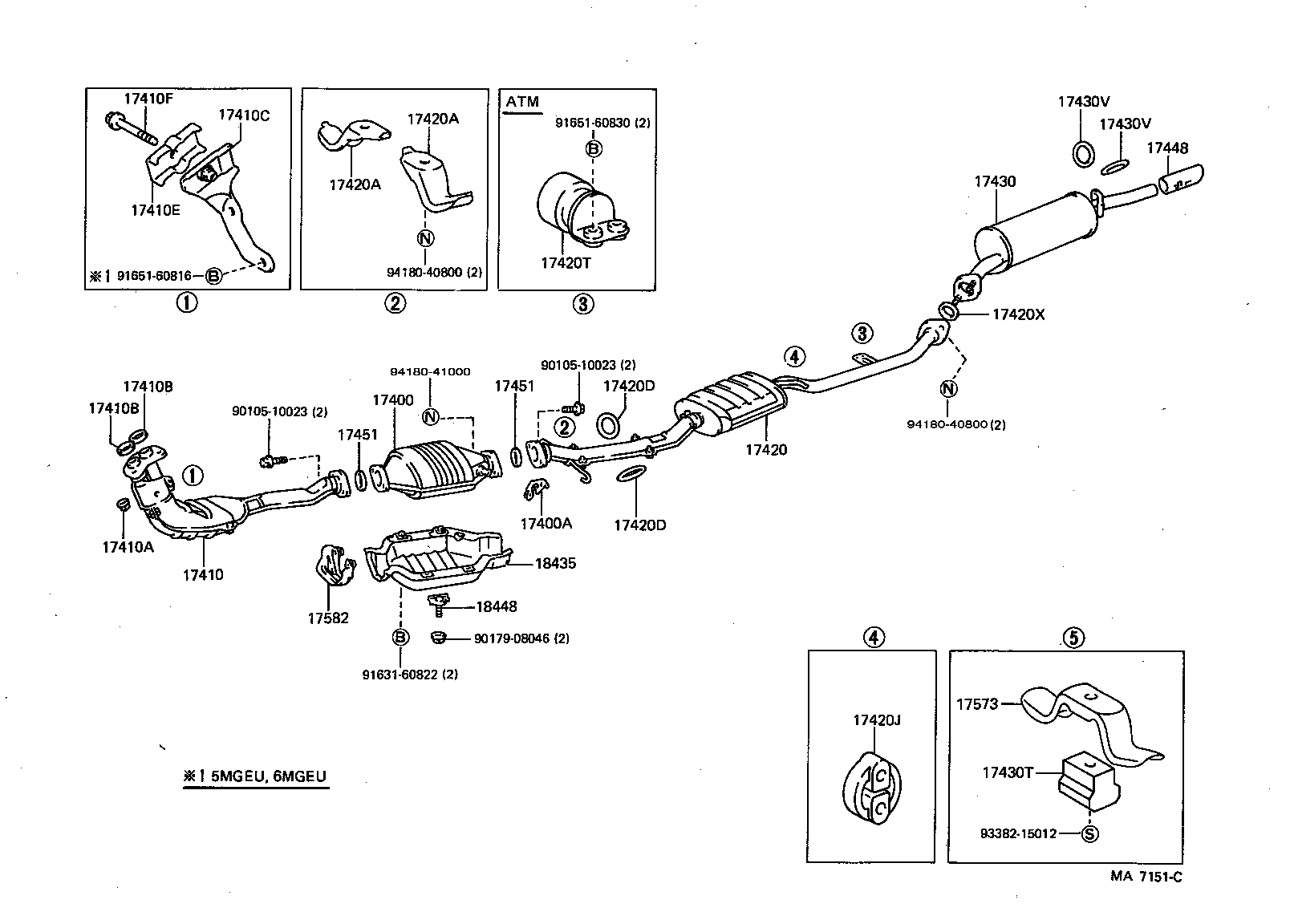

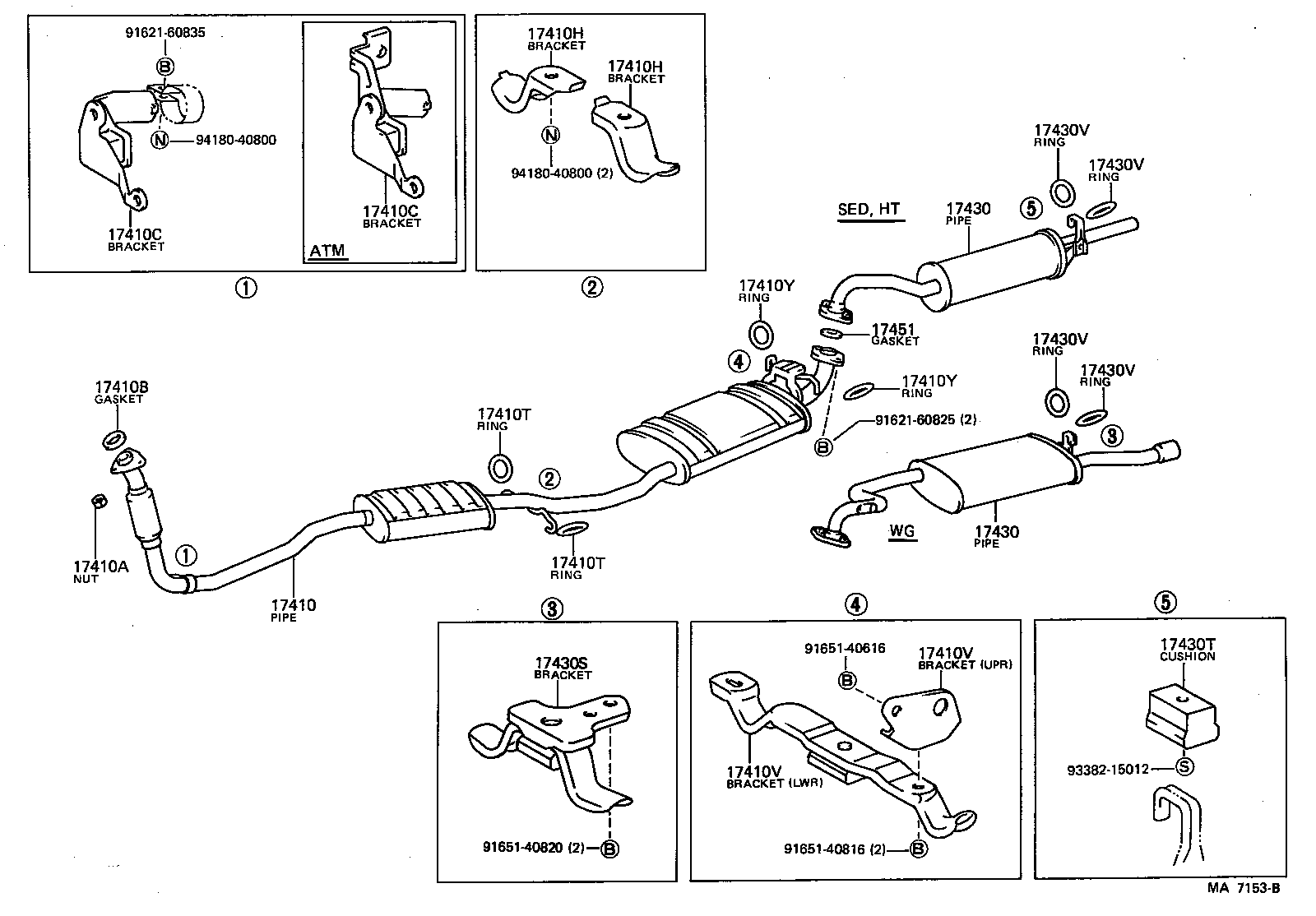

Exhaust Pipe
38 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 04181 | Pellet Kit |
| 17400 | Converter Assy, W/Catalyst |
| 17400A | Flange, Thermosenser Inlet |
| 17400F | Plate, Catalyzer Inlet Plug Lock |
| 17400G | Gasket, Catalyzer Inlet |
| 17400H | Plug, W/Head Straight Screw(FOR CATALYZER INLET) |
| 17400J | Guide, Catalytic Converter Sensor |
| 17400P | Gasket(FOR CATALYTIC CONVERTER SENSOR GUIDE) |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410C | Bracket, Exhaust Pipe Front (FOR FRONT) |
| 17410E | Clamp NO.1, Exhaust Pipe Front (FOR FRONT) |
| 17410F | Bolt OR Ring, Exhaust Pipe Front (FOR FRONT) |
| 17410H | Bracket, Exhaust Pipe Front (FOR CENTER) |
| 17410T | Bolt OR Ring, Exhaust Pipe Front (FOR CENTER) |
| 17410V | Bracket, Exhaust Pipe Front (FOR REAR) |
| 17410W | Cushion, Exhaust Pipe Front (FOR REAR) |
| 17410Y | Bolt OR Ring, Exhaust Pipe Front (FOR REAR) |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420A | Bracket, Exhaust Pipe Center, Front |
| 17420D | Bolt OR Ring, Exhaust Pipe Center, Front |
| 17420J | Bolt OR Ring, Exhaust Pipe Center |
| 17420S | Bracket, Exhaust Pipe Center, Rear |
| 17420T | Cushion, Exhaust Pipe Center, Rear |
| 17420V | Bolt OR Ring, Exhaust Pipe Center, Rear |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430S | Bracket, Exhaust Tailpipe (FOR REAR) |
| 17430T | Cushion, Exhaust Tailpipe (FOR REAR) |
| 17430V | Bolt OR Ring, Exhaust Tailpipe (FOR REAR) |
| 17448 | Baffle, Tailpipe |
| 17451 | Gasket, Exhaust Pipe |
| 17573 | Bracket, Exhaust Pipe NO.1 Support, Lower |
| 17582 | Bracket, Catalytic Converter Support, Upper |
| 17599 | Holder, Exhaust Pipe Support Stopper |
| 18435 | Protector, Catalytic Converter |
| 18448 | Bracket, Converter Protector, Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
