Toyota Crown
1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan
Discontinued model
Data version 1988-01
Meter
31 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83121 | Counter, Total |
| 83128 | Knob, Trip Counter |
| 83128B | Knob, Meter Switch |
| 83131 | Dial, Meter, NO.1 |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83159 | Switch, Meter, NO.1 |
| 83179 | Cover, Combination Meter, Hole |
| 83180 | Detector Assy, Revolution |
| 83189 | Bracket, Meter |
| 83241 | Meter Sub-assy, Speed |
| 83247 | Plate, Meter Circuit |
| 83270 | Tachometer Assy, Engine |
| 83291 | Computer, Combination Meter |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |

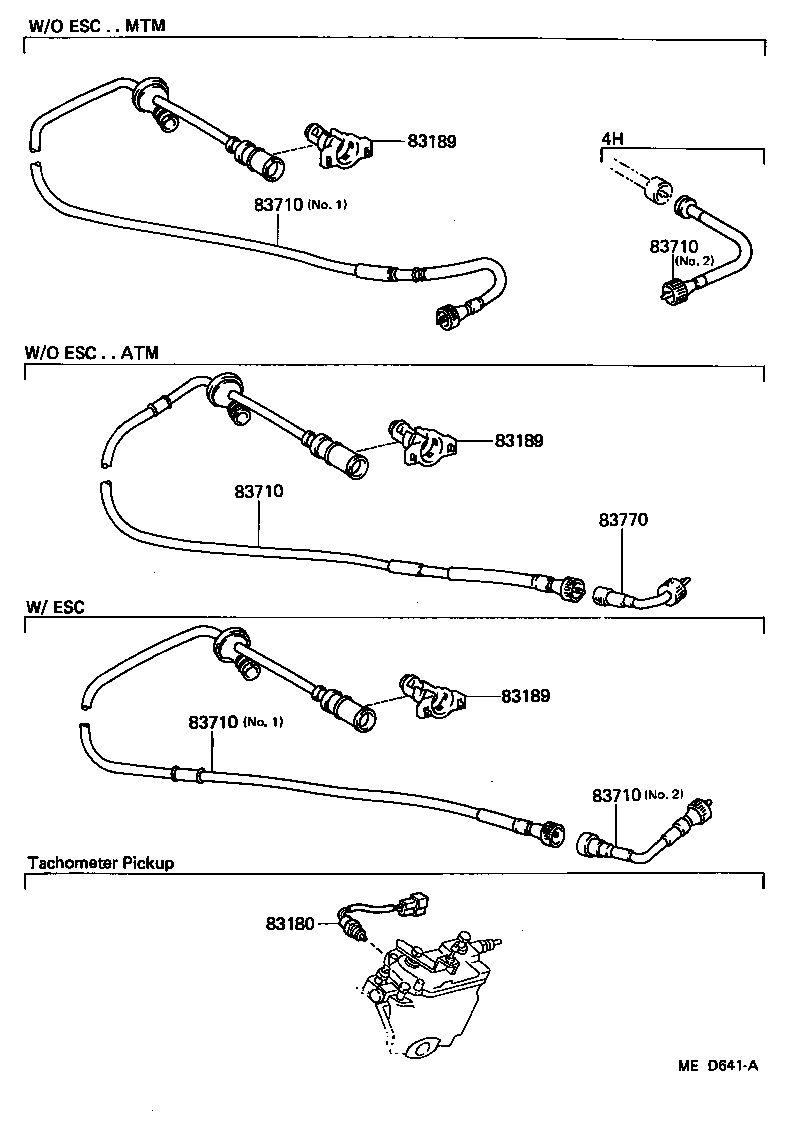

| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83770 | Adapter Assy, Speedometer Cable |

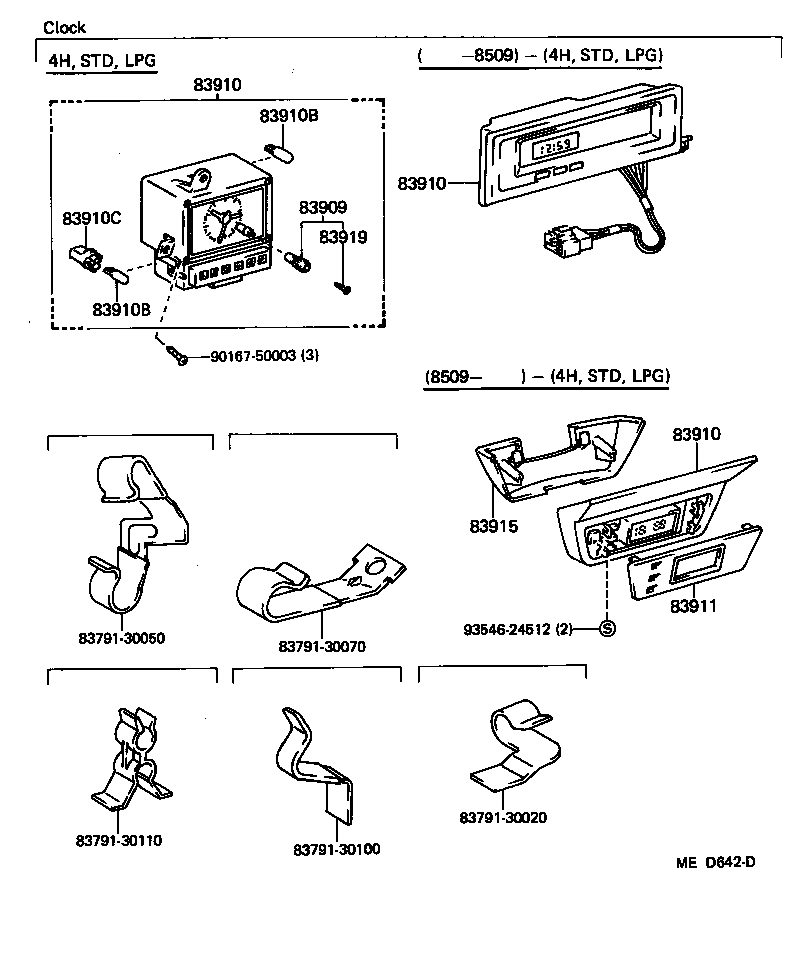

| 83909 | Knob, Clock |
| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
| 83910C | Socket Sub-assy, Clock Bulb |
| 83911 | Cover, Clock |
| 83915 | Bracket, Clock |
| 83919 | Screw, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
