Toyota Crown
1983-08 → 1987-08 · chassis GS12#,LS12#,MS12#,YS120 · catalogue 331150 · Japan
Discontinued model
Data version 1988-01
Radio Receiver & Amplifier & Condenser
16 part groups · 5 illustrations
Part groups

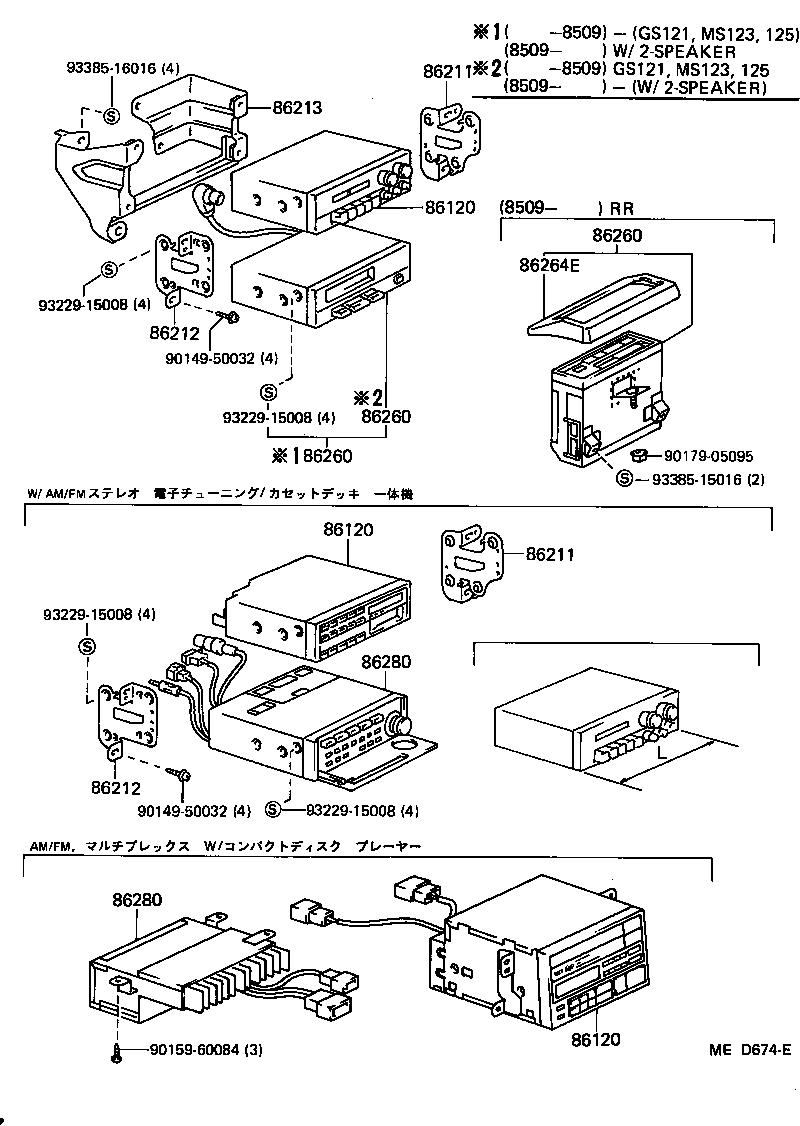

| PNC | Description |
|---|---|
| 86011 | Radio & Setting Parts Set |
| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86021 | Tape Player And Setting Parts Set |
| 86040 | Headphone Assy, Stereo |
| 86120 | Receiver Assy, Radio |

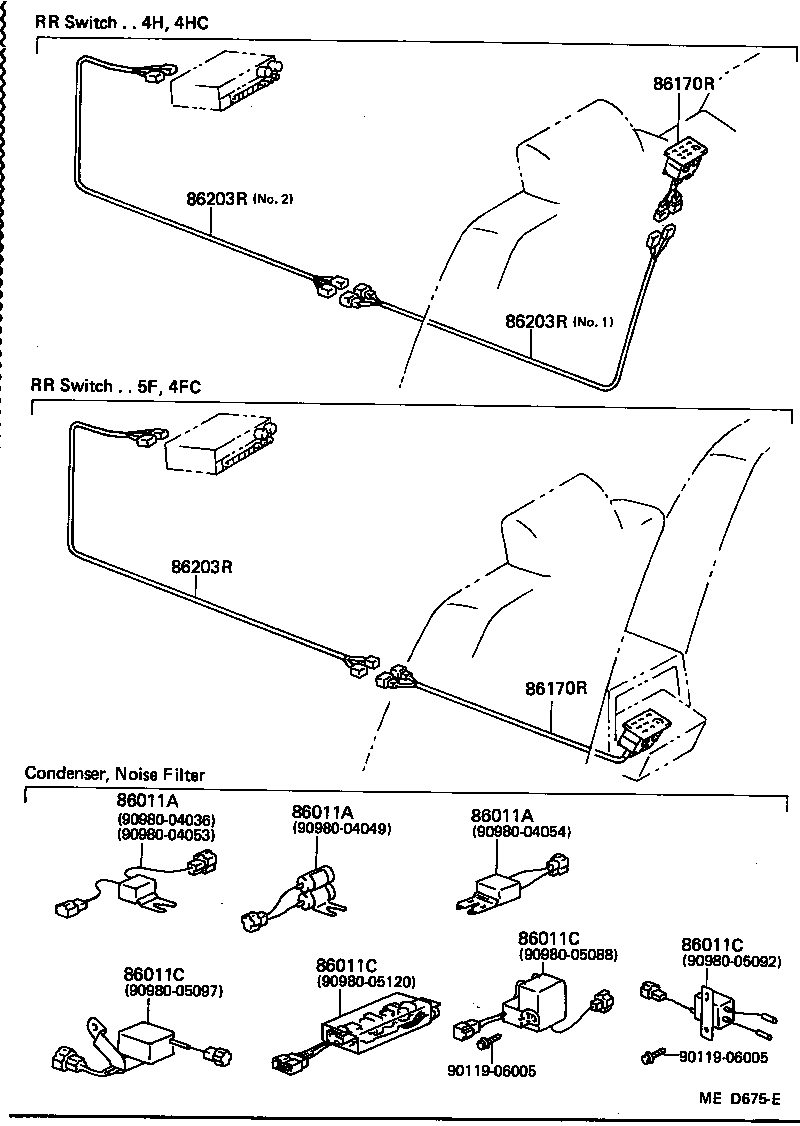

| 86170R | Switch & Volume Assy, RR |
| 86203 | Wire, Radio |
| 86203R | Wire Sub-assy, RR |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86213 | Bracket, Radio, NO.3 |
| 86260 | Tape Player Assy |
| 86264E | Cover, Tape Player |
| 86265 | Bracket, Tape Player, NO.1 |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
