Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

66 part groups · 16 illustrations

Illustrations

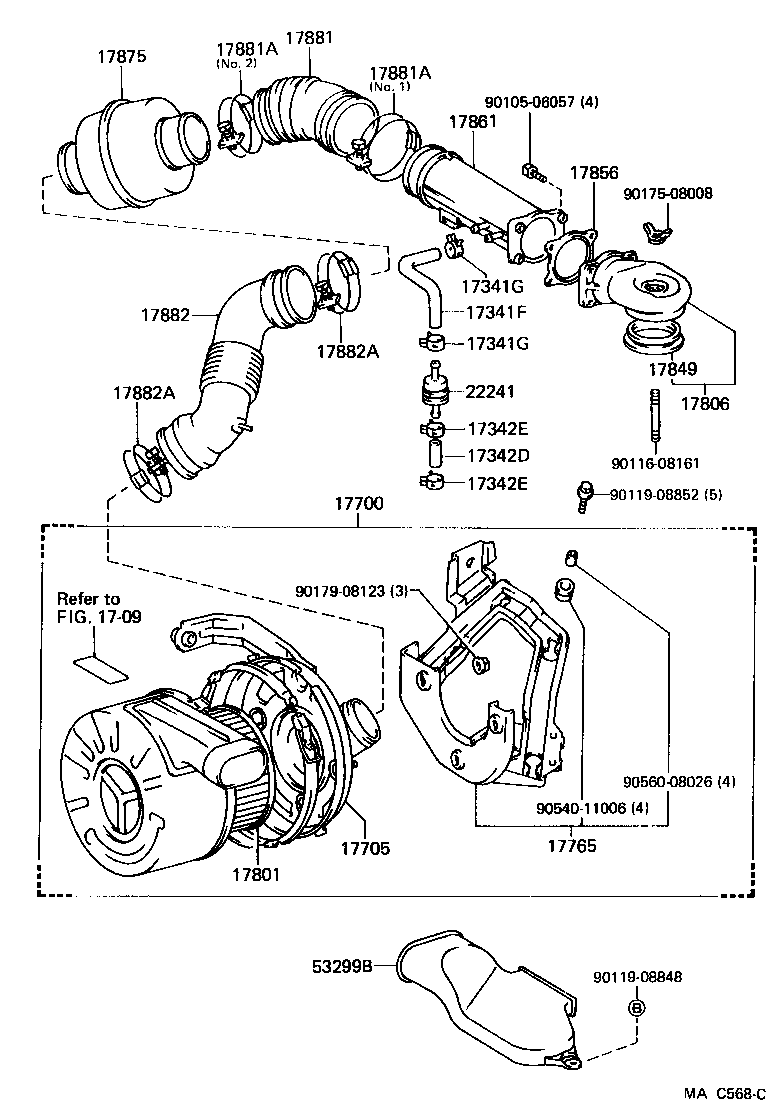

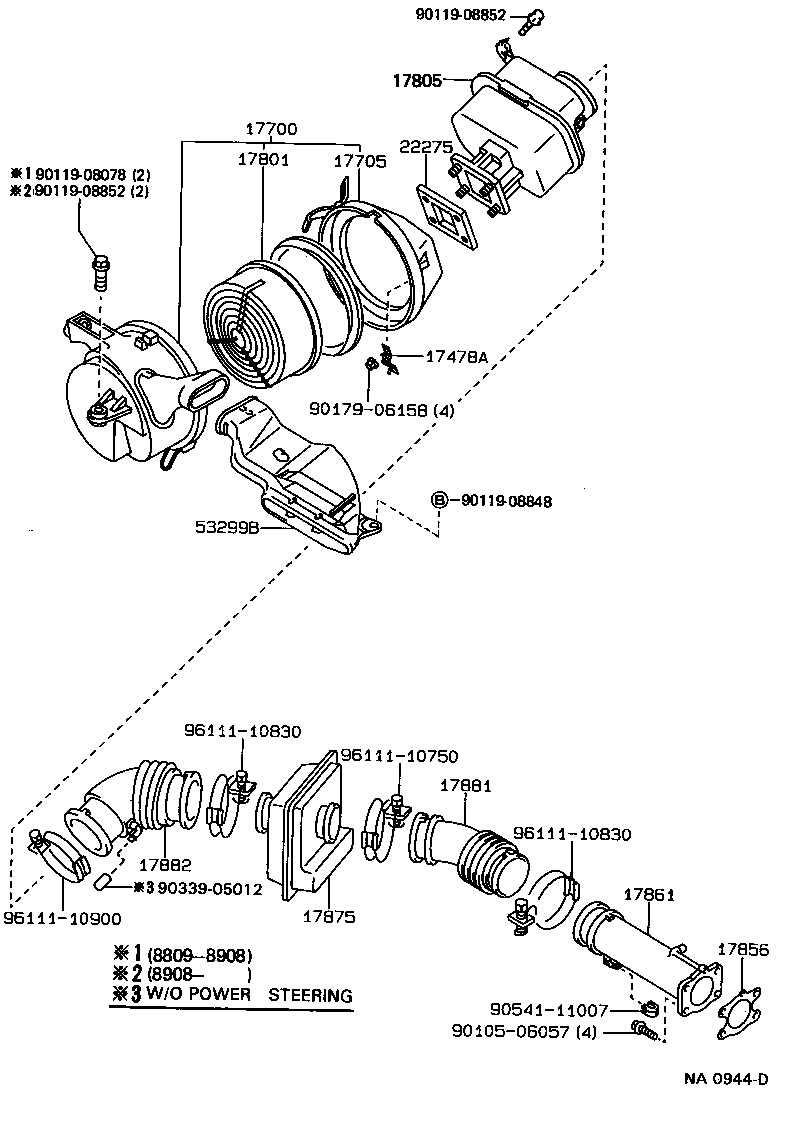

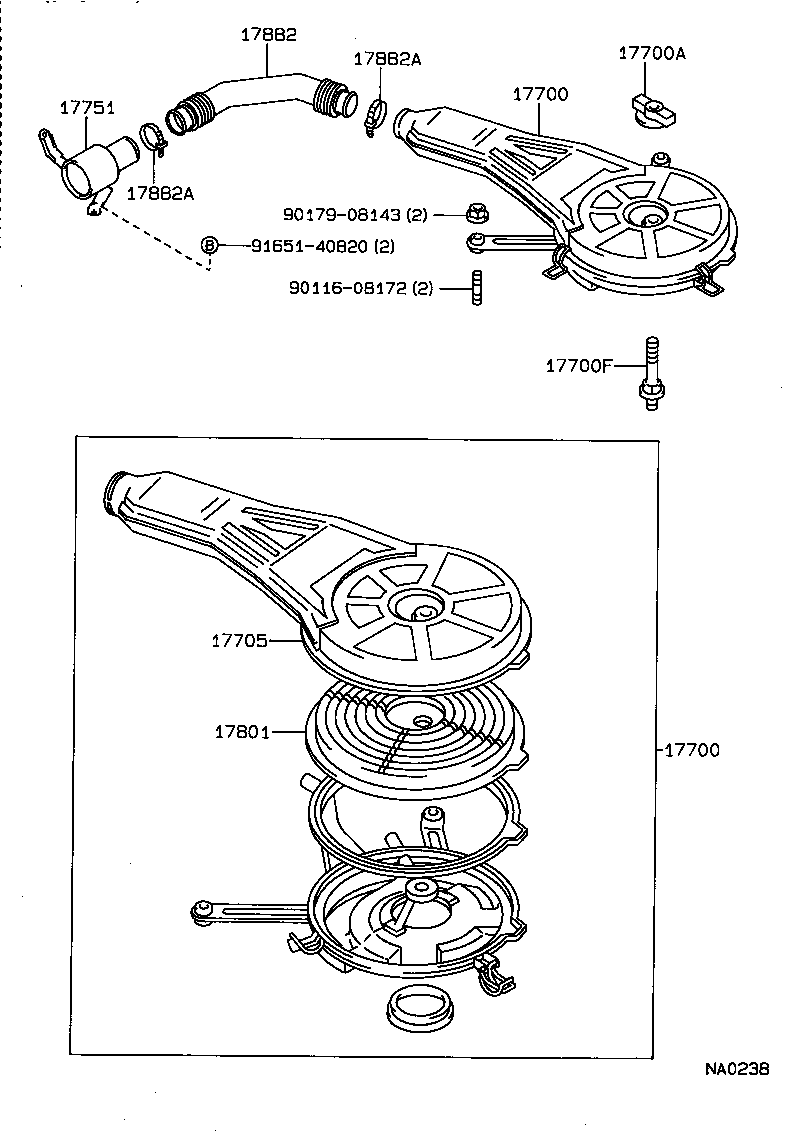

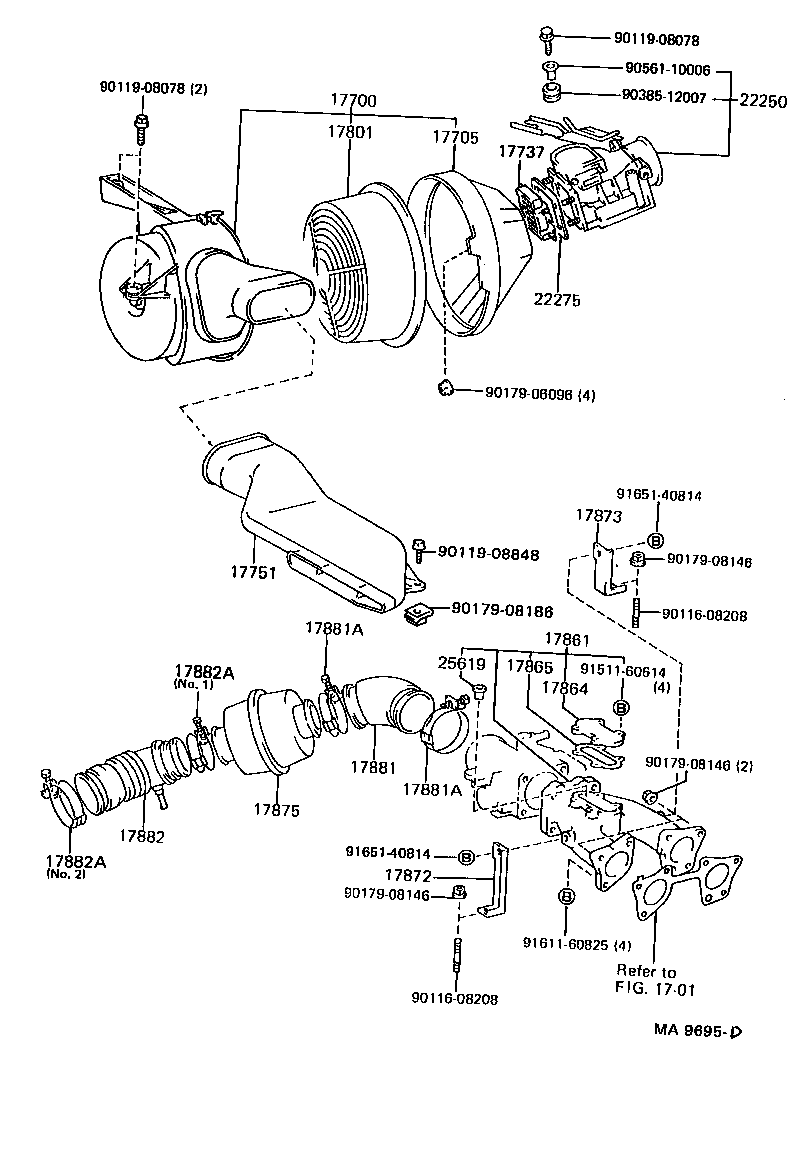

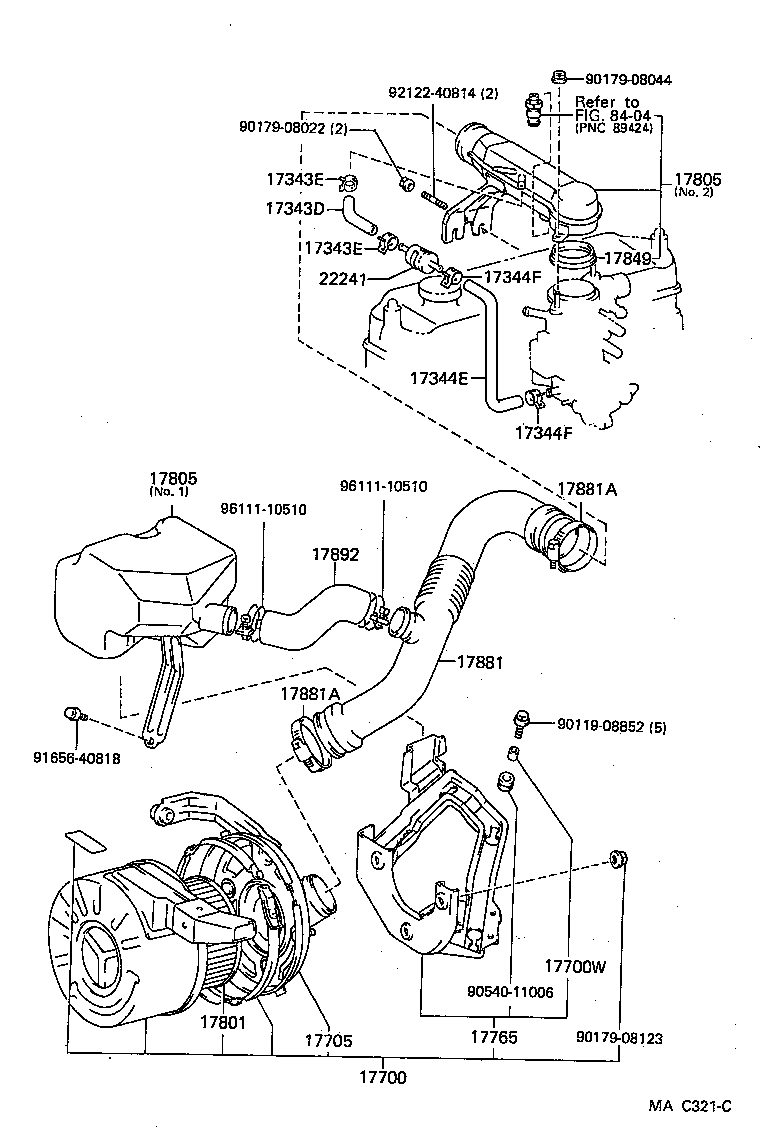

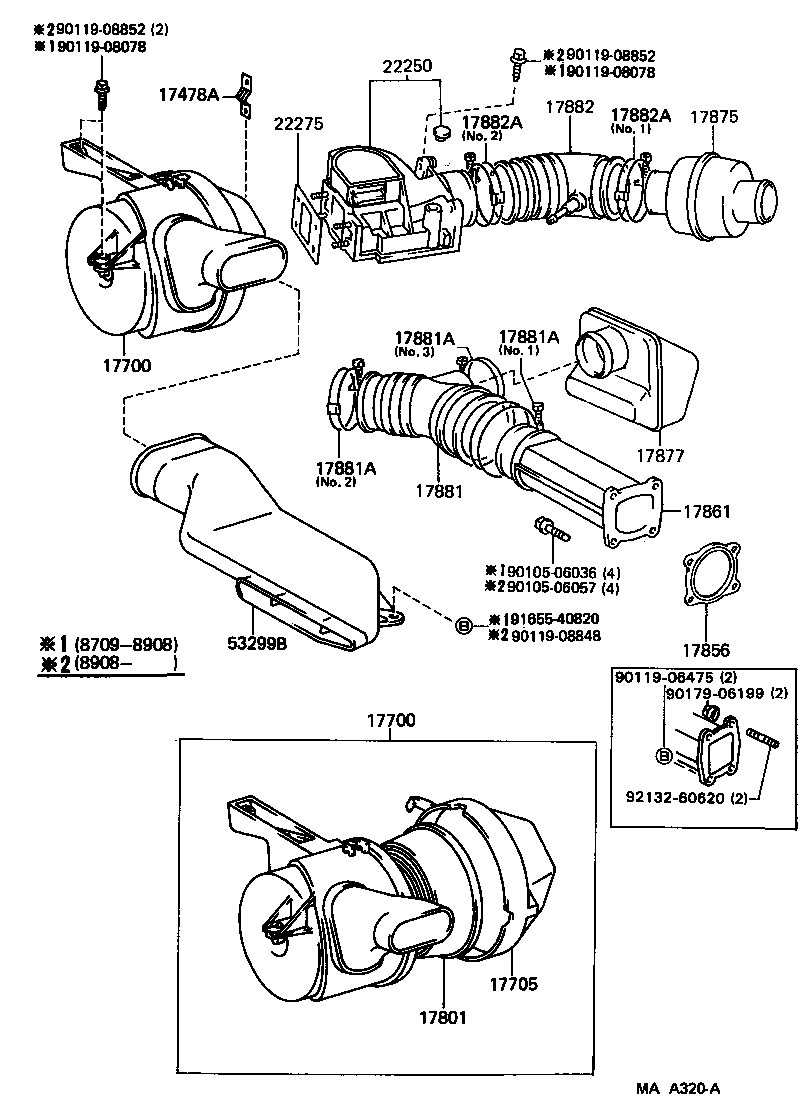

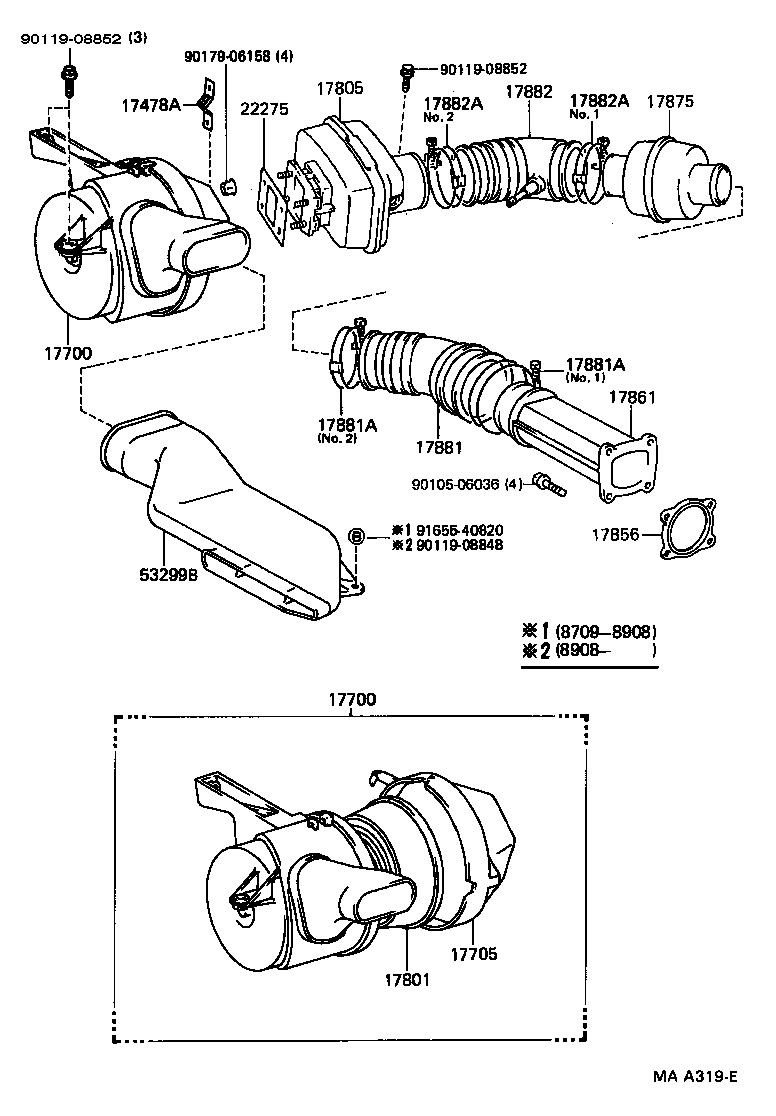

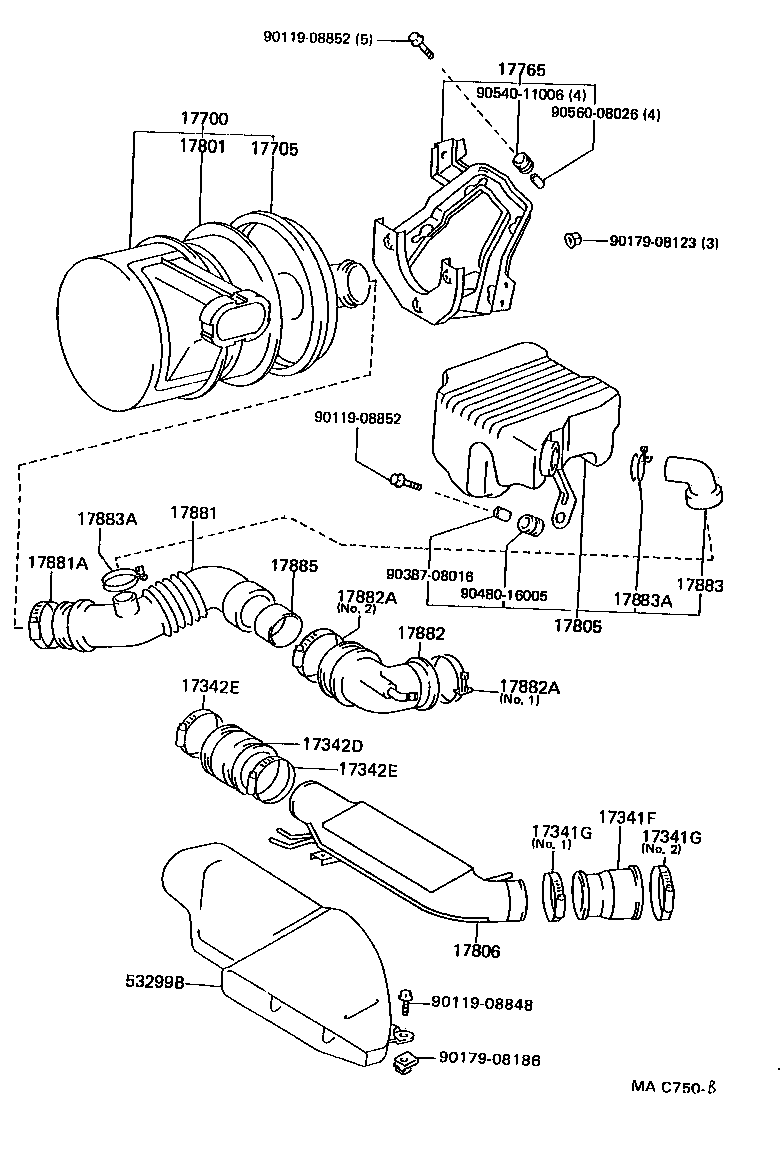

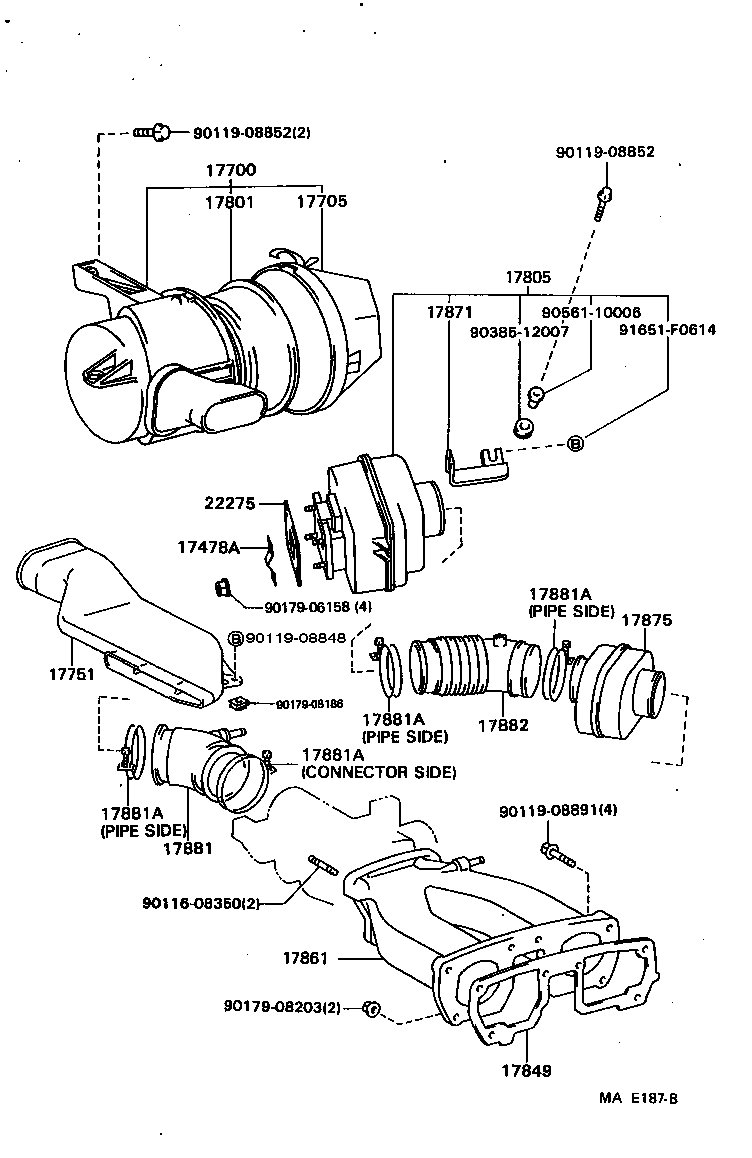

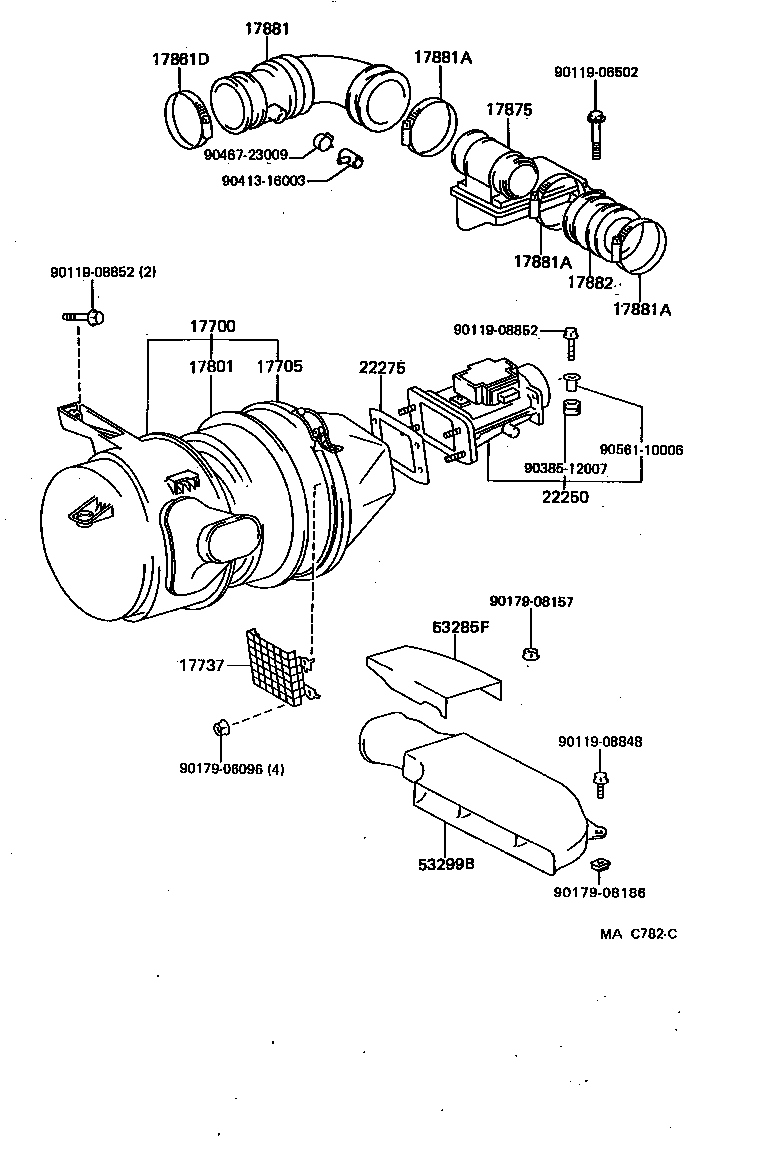

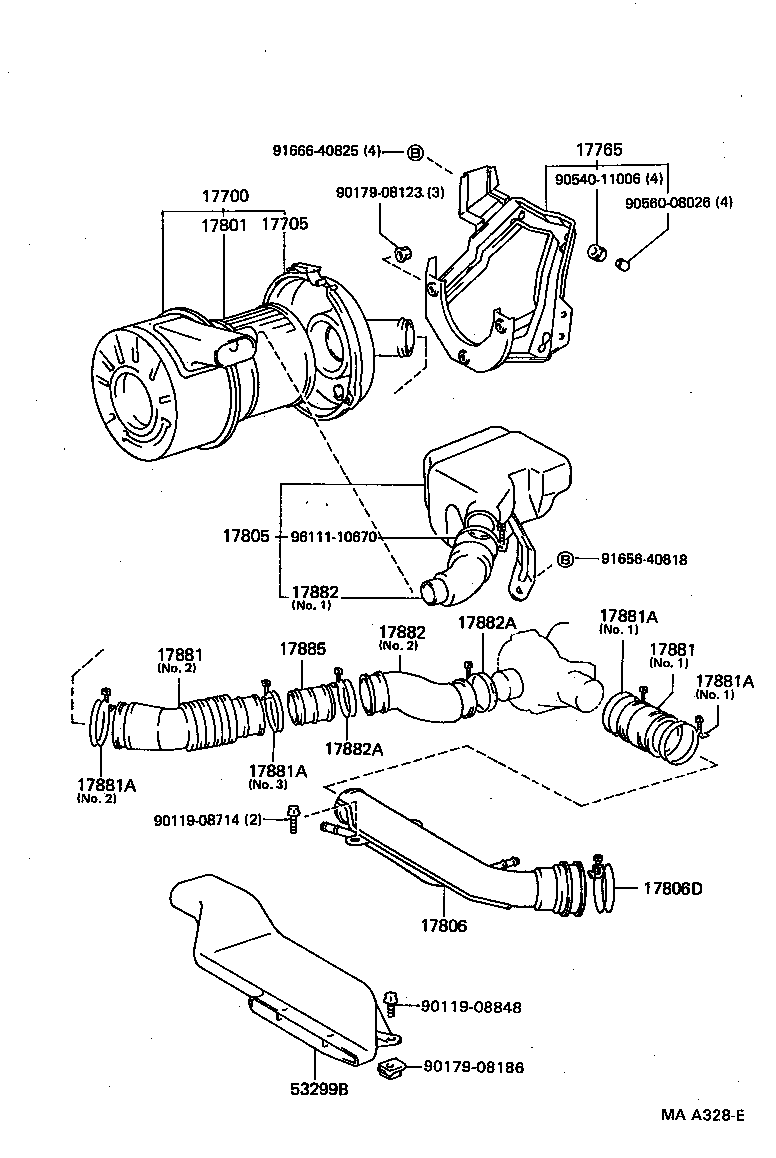

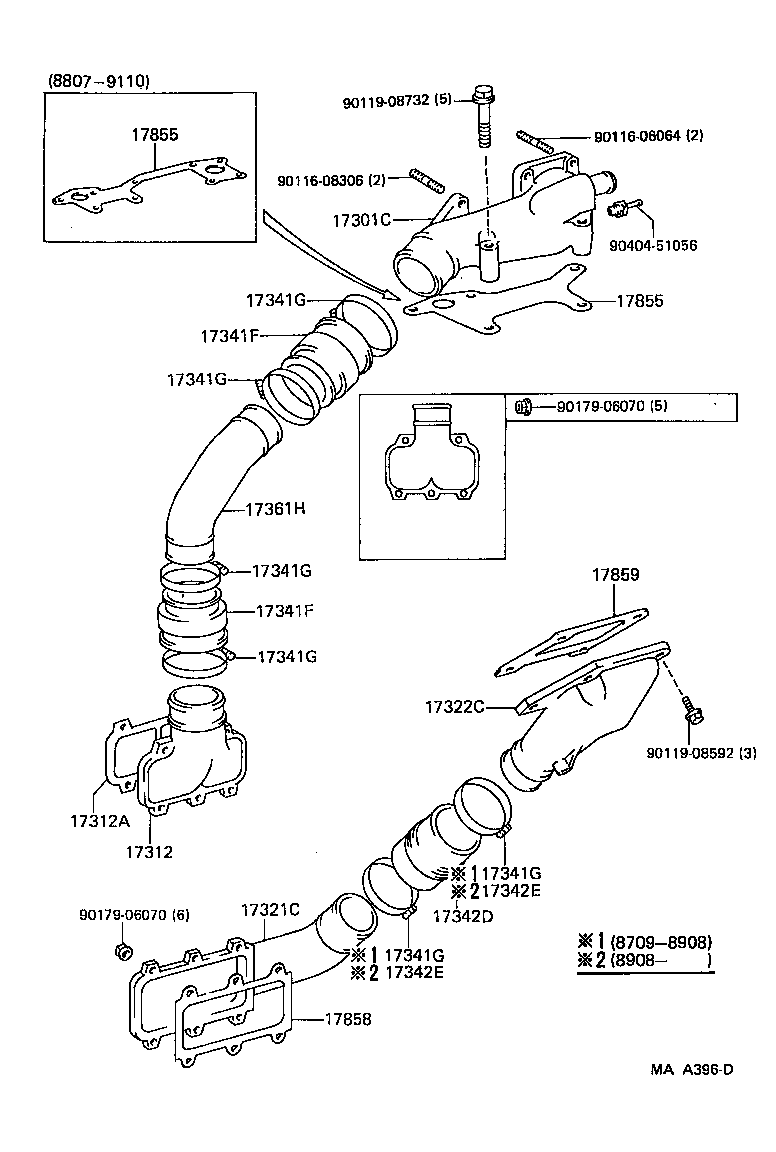

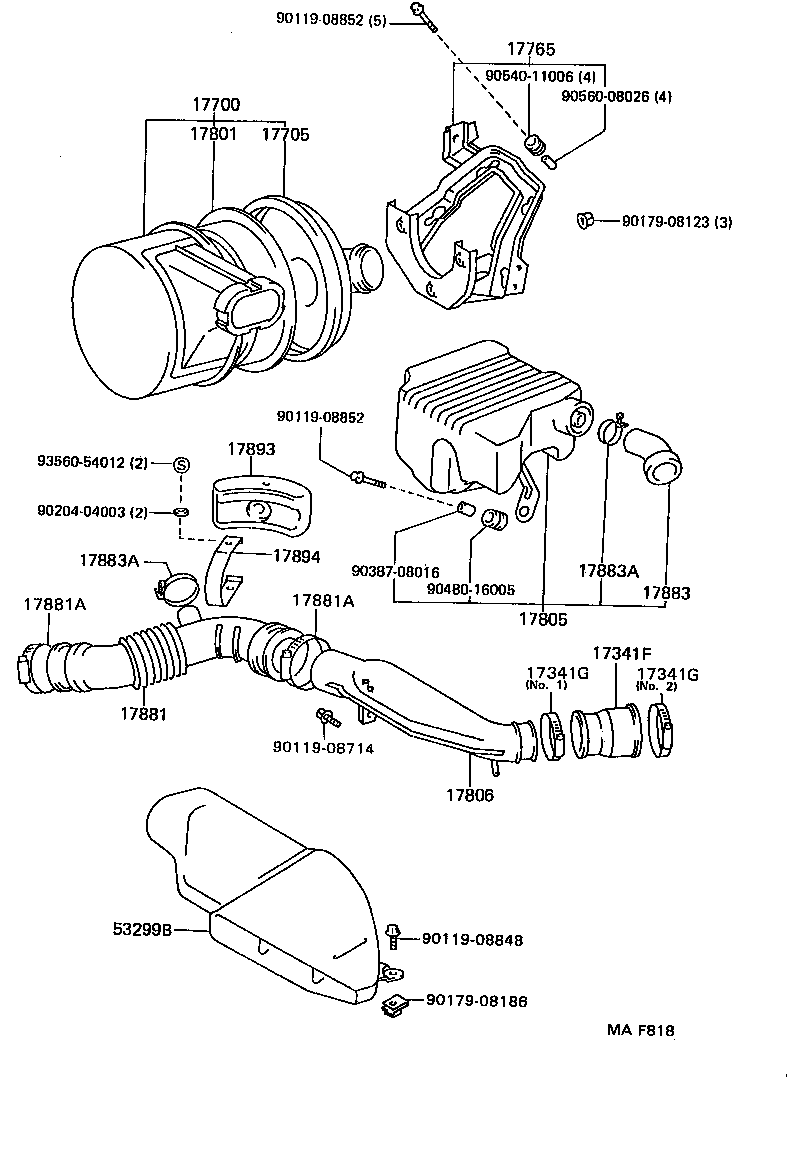

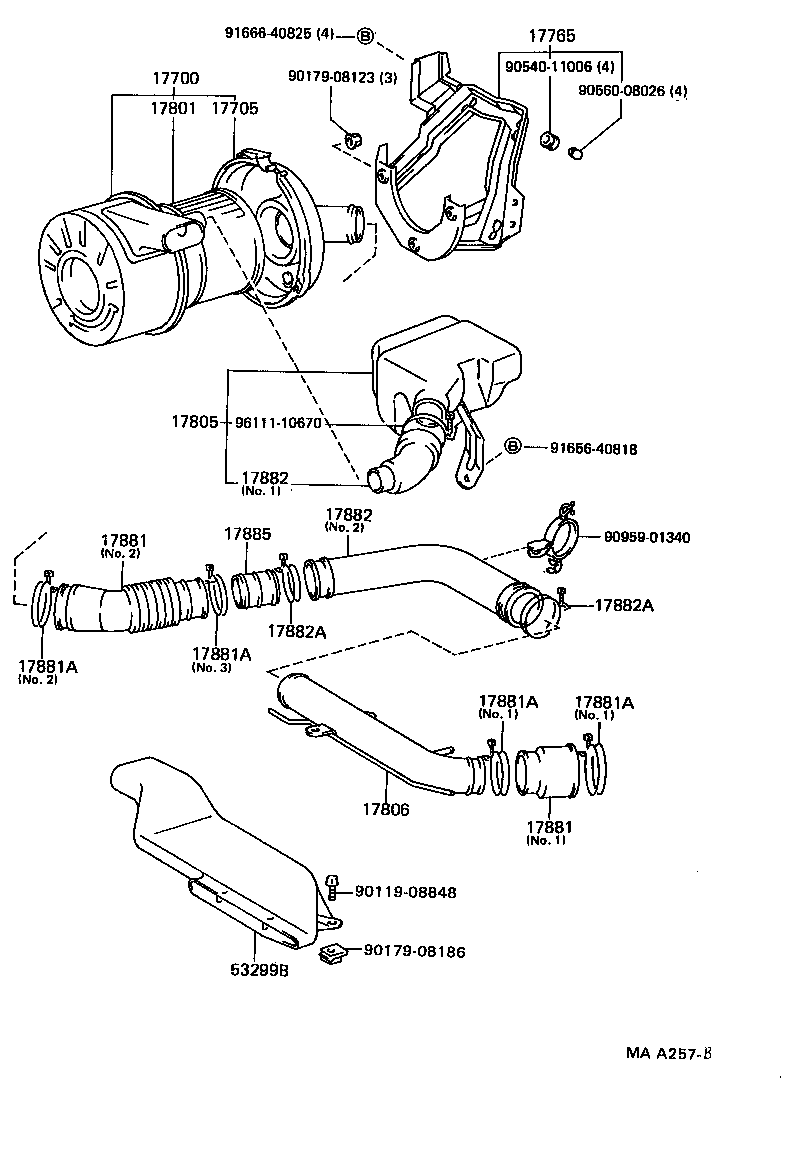

Figure MAA318C MAA318C 1987-09 → 1989-08 Figure NA0944D NA0944D 1988-09 → — Figure MAA319E MAA319E 1987-09 → — Figure MAA320A MAA320A 1987-09 → — Figure MAA396D MAA396D 1987-09 → — Figure MAC568C MAC568C 1989-08 → — Figure MAE187B MAE187B 1990-08 → — Figure MAA257B MAA257B 1987-09 → 1989-08 Figure MAA328E MAA328E 1987-09 → 1989-08 Figure MAF818 MAF818 1989-08 → — Figure MAC750B MAC750B 1989-08 → — Figure NA0238 NA0238 1987-09 → 1989-08 Figure MA9695D MA9695D 1987-09 → — Figure MAC782C MAC782C 1989-08 → — Figure MAA385A MAA385A 1987-09 → 1989-08 Figure MAC321C MAC321C 1989-08 → —

Part groups

PNCDescription
17301C Duct Sub-assy, Air Inlet, NO.1
17305 Valve Sub-assy, Reed
17312 Duct, Air Inlet, NO.2
17312A Gasket, Air Inlet Duct, NO.2
17321C Duct, Air Outlet, NO.1
17322C Duct, Air Outlet, NO.2
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17357 Case, Reed Valve
17361H Tube, Air(FOR SUPERCHARGER)
17478A Plate, Lock
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700W Spacer(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17737 Cover, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17765 Stay, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806D Clamp(FOR AIR CLEANER PIPE)
17812 Filter, Air Cleaner, NO.2
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17849 Gasket, Intake Air Connector
17855 Gasket, Air Inlet Duct, NO.1
17856 Gasket, Air Intake Flange
17858 Gasket, Air Outlet Duct, NO.1
17859 Gasket, Air Outlet Duct, NO.2
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17864 Cover, Intake Air Connector
17865 Gasket, Intake Air Connector Cover
17871 Stay, Air Connector
17872 Bracket, Intake Air Connector
17873 Bracket, Intake Air Connector, NO.2
17875 Pipe, Intake Air Connector
17877 Pipe, Intake Air Connector, NO.2
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885 Pipe, Air Cleaner
17892 Hose, Intake Air Resonator
17893 Resonator, Intake Air
17894 Bracket, Resonator
22241 Limitter Vacuum
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
25619 Tube, Egr Inlet
25710D Valve Assy, Air Switching
53285E Guard, Cool Air
53285F Duct, Cool Air Intake, NO.2
53297C Retainer, Cool Air Intake Duct, NO.2
53299B Duct, Cool Air Intake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
