Toyota Crown
1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan
Discontinued model
Data version 1992-04

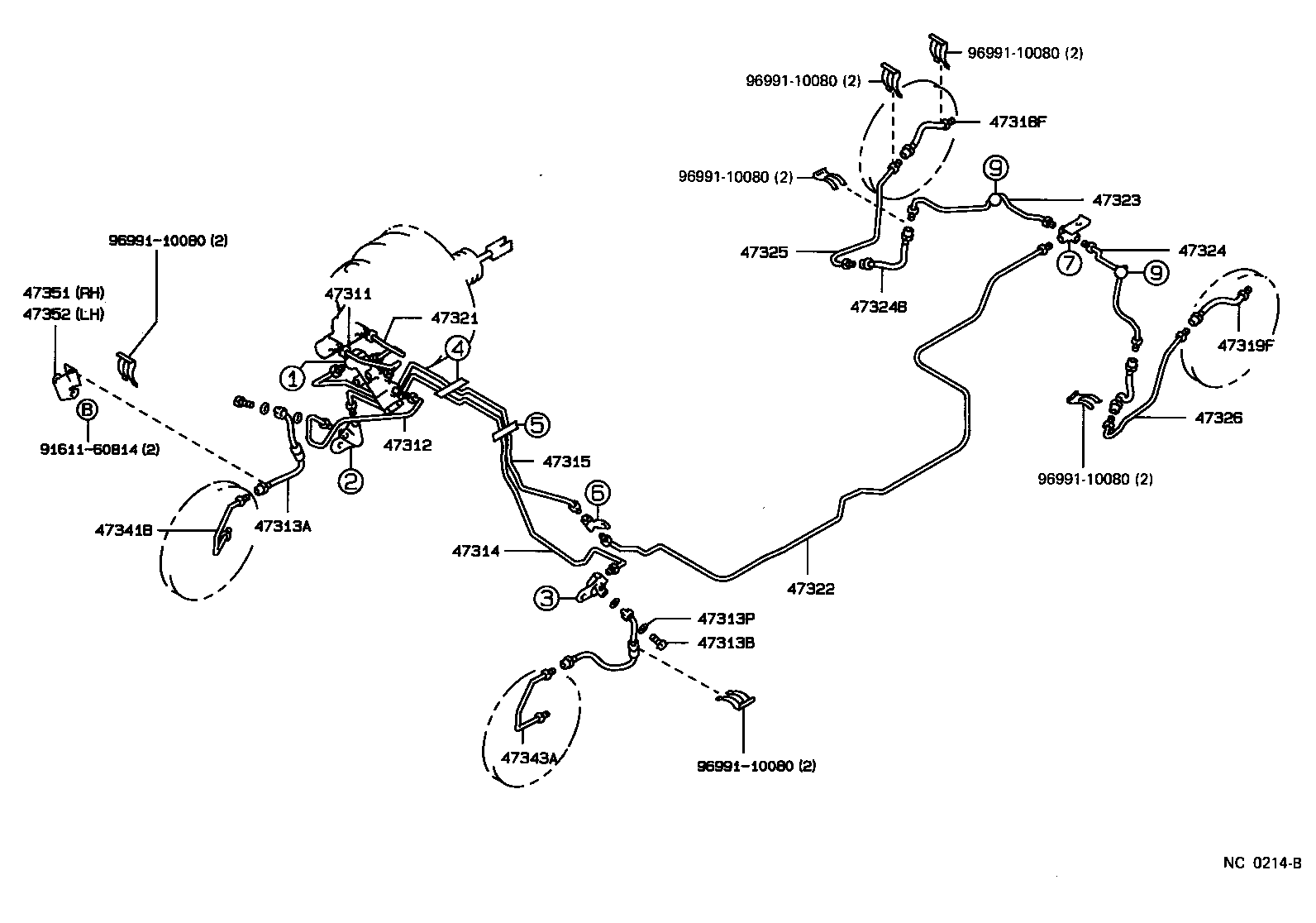

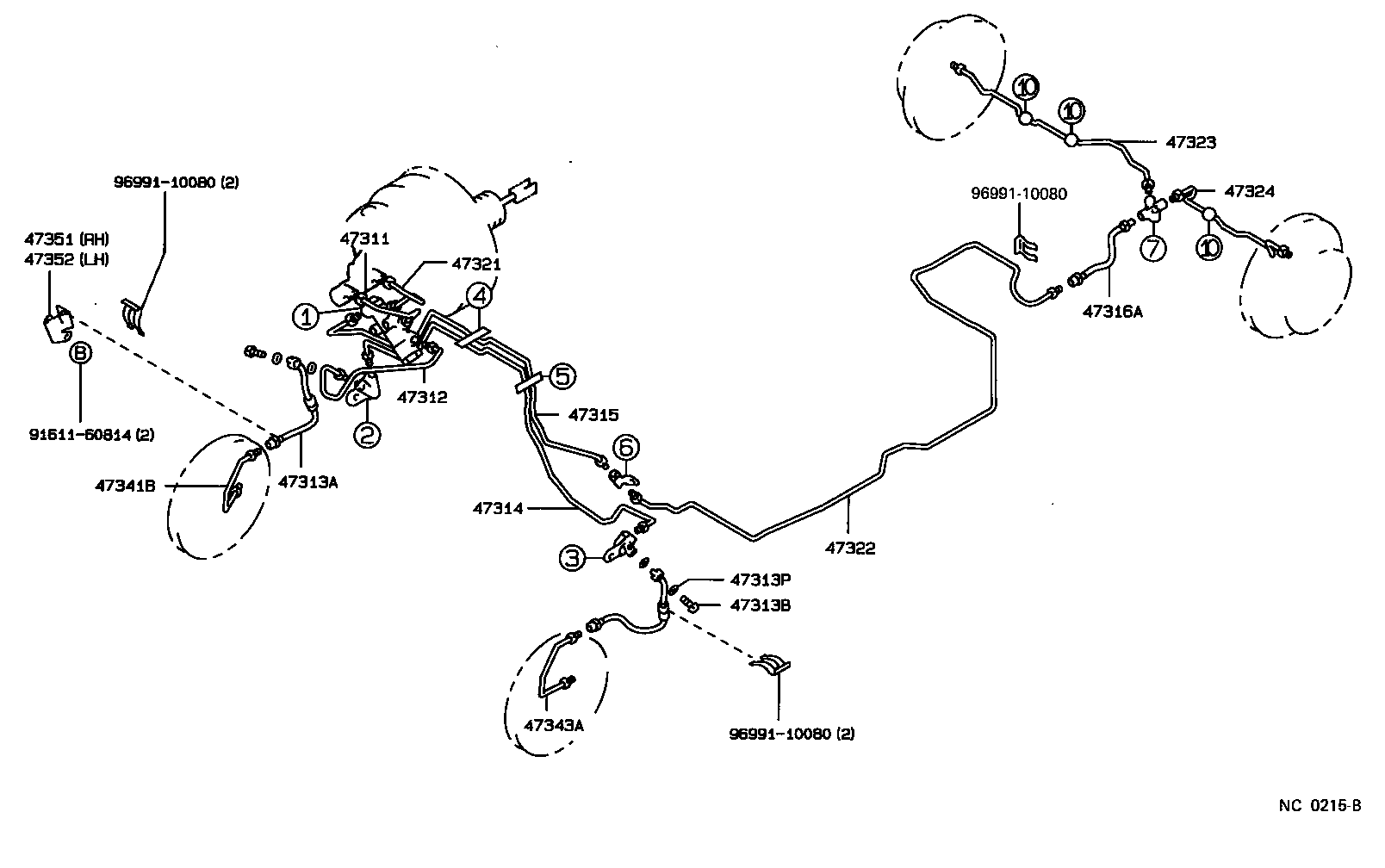

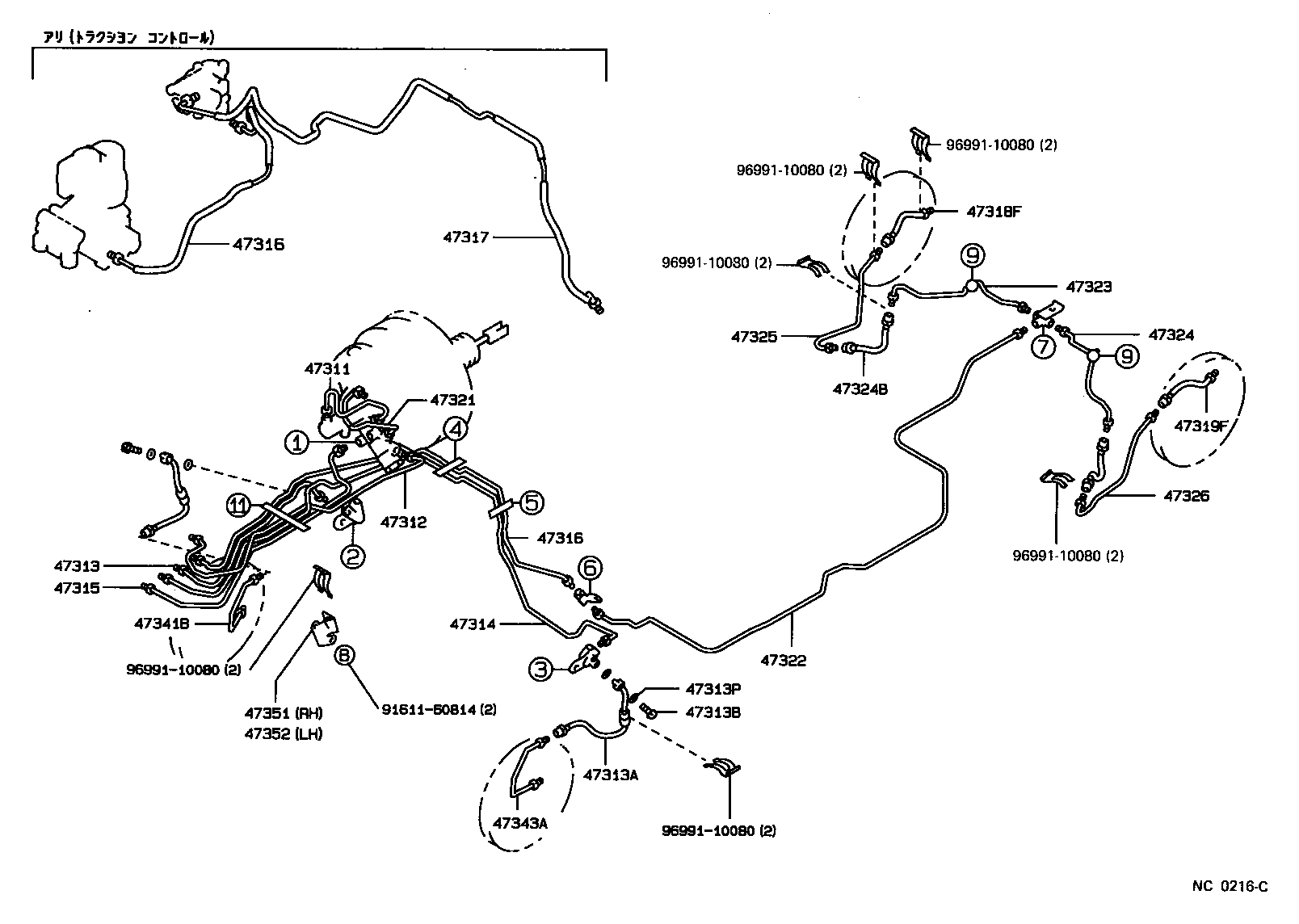

Brake Tube & Clamp
42 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

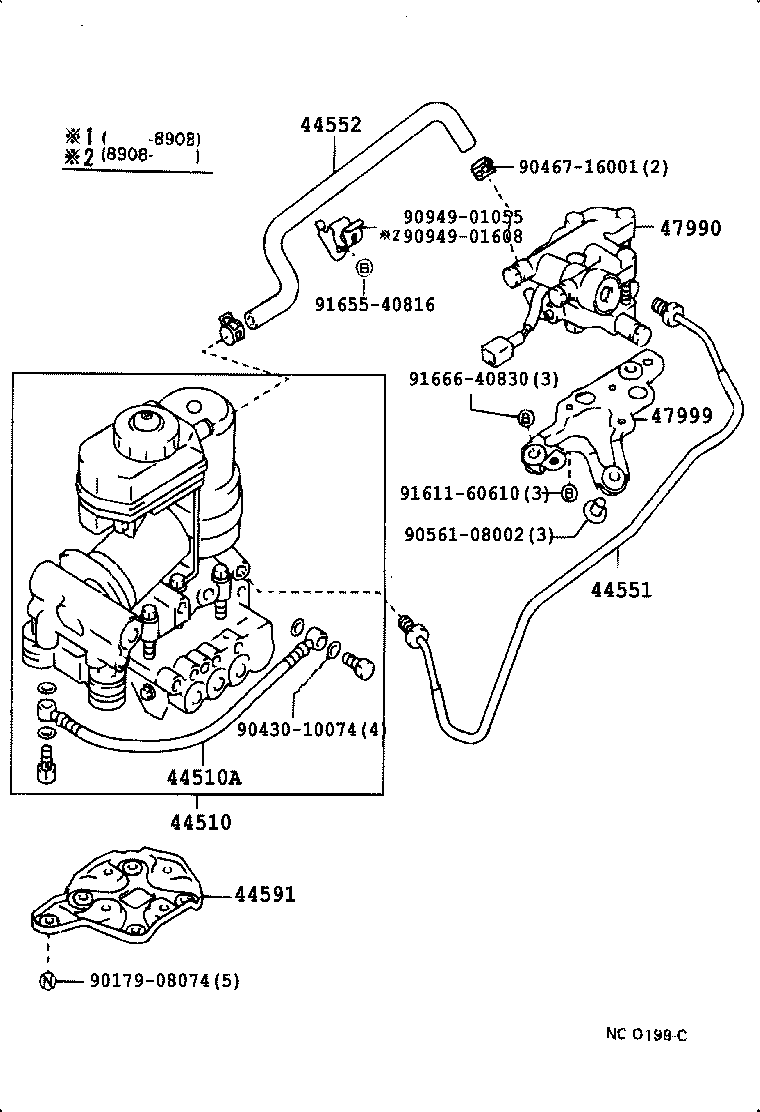

| 44510 | Actuator Assy, Brake |
| 44510A | Hose, Pressure |
| 44551 | Tube, Brake Actuator, NO.1 |
| 44552 | Tube, Brake Actuator, NO.2 |
| 44591 | Bracket, Brake Actuator, NO.1 |

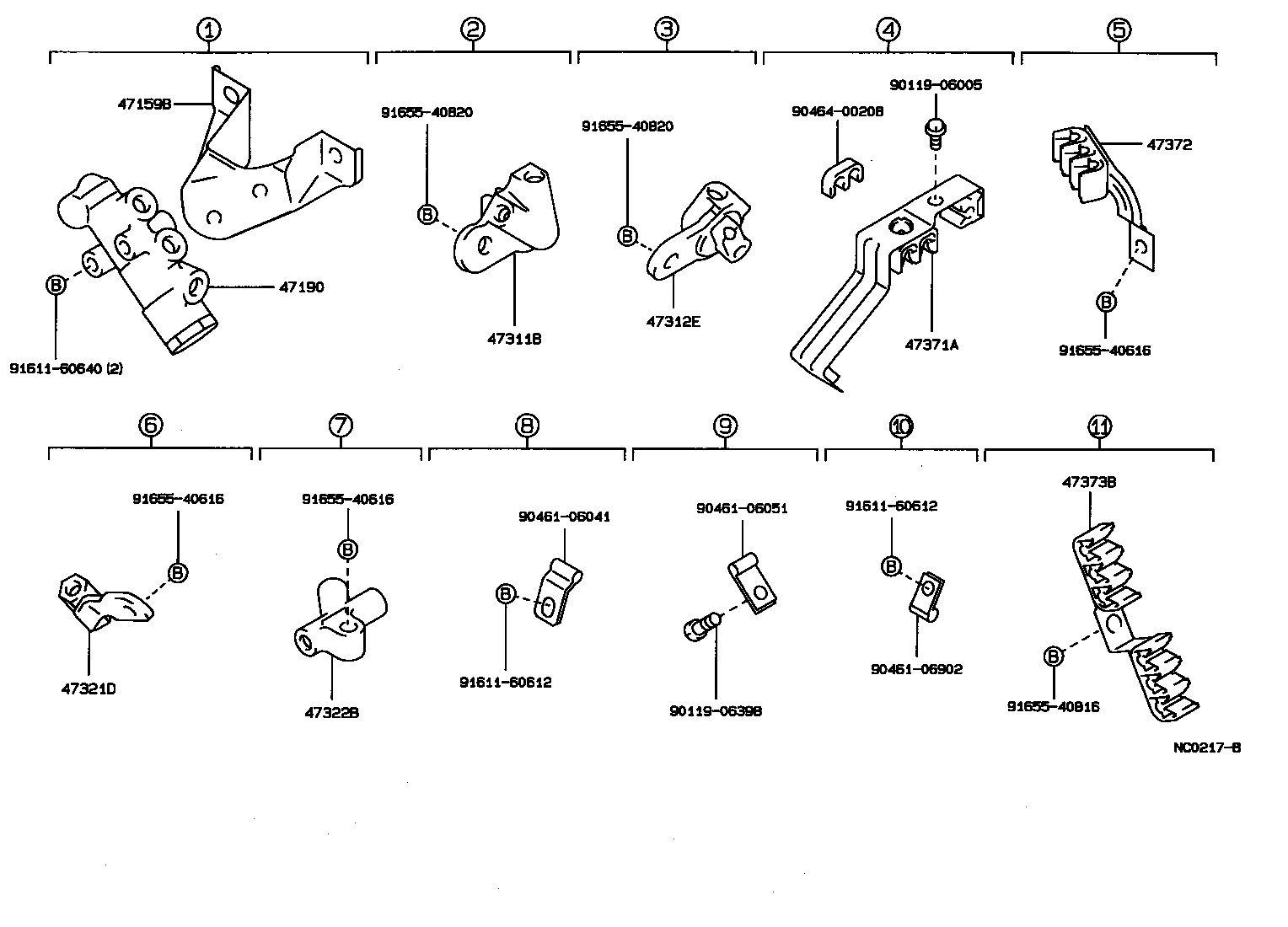

| 47159B | Bracket, Proportioning & By-pass Valve |
| 47190 | Valve Assy, Proportioning & By-pass |
| 47311 | Tube, Front Brake, NO.1 |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47312E | Way, NO.2(FOR FRONT BRAKE TUBE) |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47317 | Tube, Front Brake, NO.7 |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321D | Way, NO.1(FOR REAR BRAKE TUBE) |
| 47322 | Tube, Rear Brake, NO.2 |
| 47322B | Way, NO.2(FOR REAR BRAKE TUBE) |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47324B | Hose, Flexible(FOR REAR BRAKE TUBE, NO.2) |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47341B | Tube, Wheel Cylinder, Front RH NO.1 |
| 47342 | Tube, Wheel Cylinder, Front RH NO.2 |
| 47343A | Tube, Wheel Cylinder, Front LH NO.1 |
| 47344 | Tube, Wheel Cylinder, Front LH NO.2 |
| 47351 | Bracket, Flexible Hose(FOR FRONT RH) |
| 47352 | Bracket, Flexible Hose(FOR FRONT LH) |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47990 | Actuator Assy, Brake Traction |
| 47999 | Bracket, Brake Traction Actuator, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
