Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

14 part groups · 2 illustrations

Illustrations

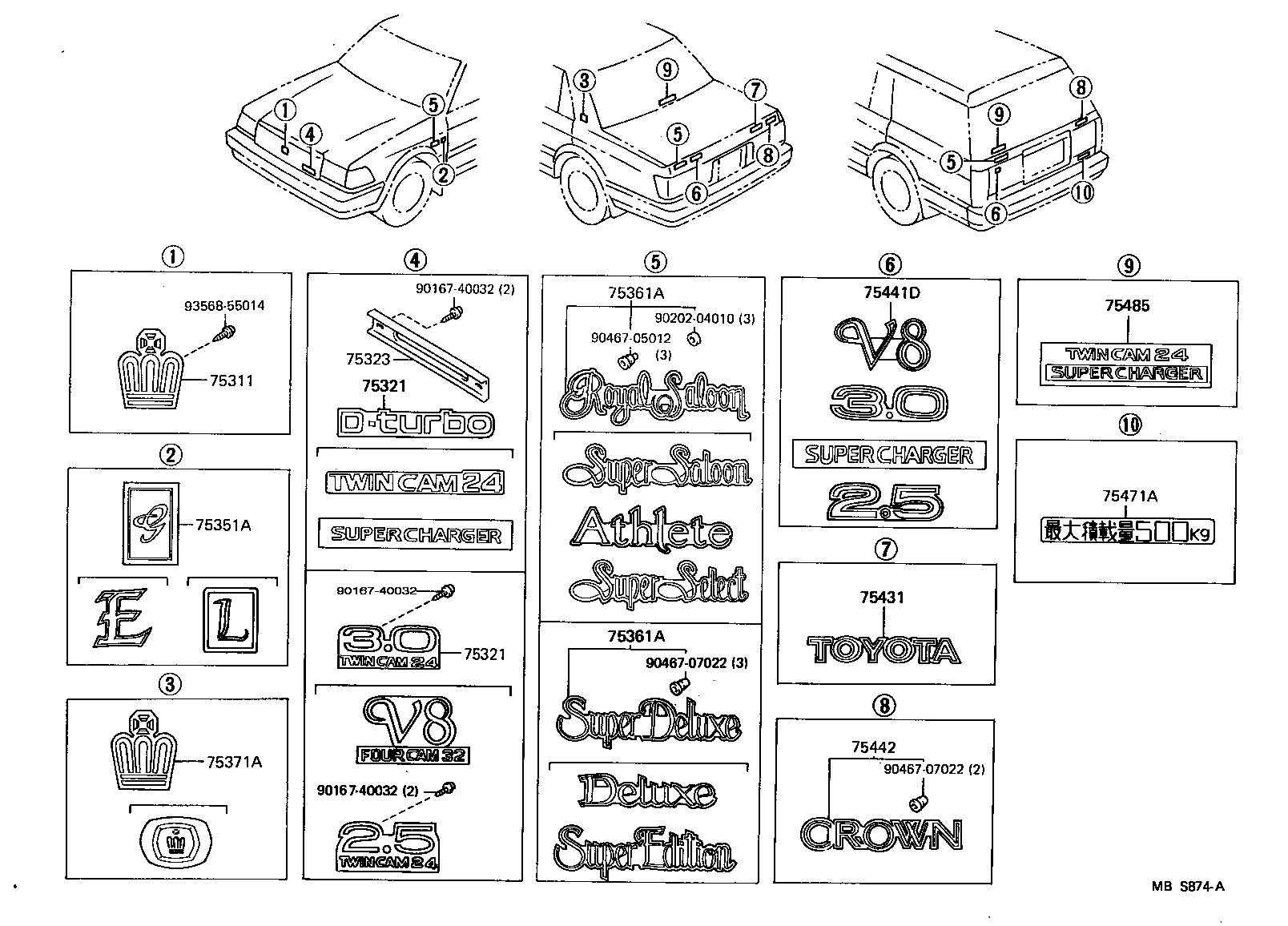

Figure MBM139A MBM139A 1987-09 → 1989-08 Figure MBS874A MBS874A 1989-08 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75323 Retainer, Radiator Grille
75351 Plate, Rear Name, NO.6 (MAXIMUM LOAD)
75351A Emblem, Front Fender
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75361A Plate, Front Fender Name, NO.1
75371A Emblem, Quarter Panel
75431 Emblem, Luggage Compartment Door
75441 Plate, Rear Name, NO.1
75441D Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75471A Mark, Maximum Load
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
