Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

28 part groups · 16 illustrations

Illustrations

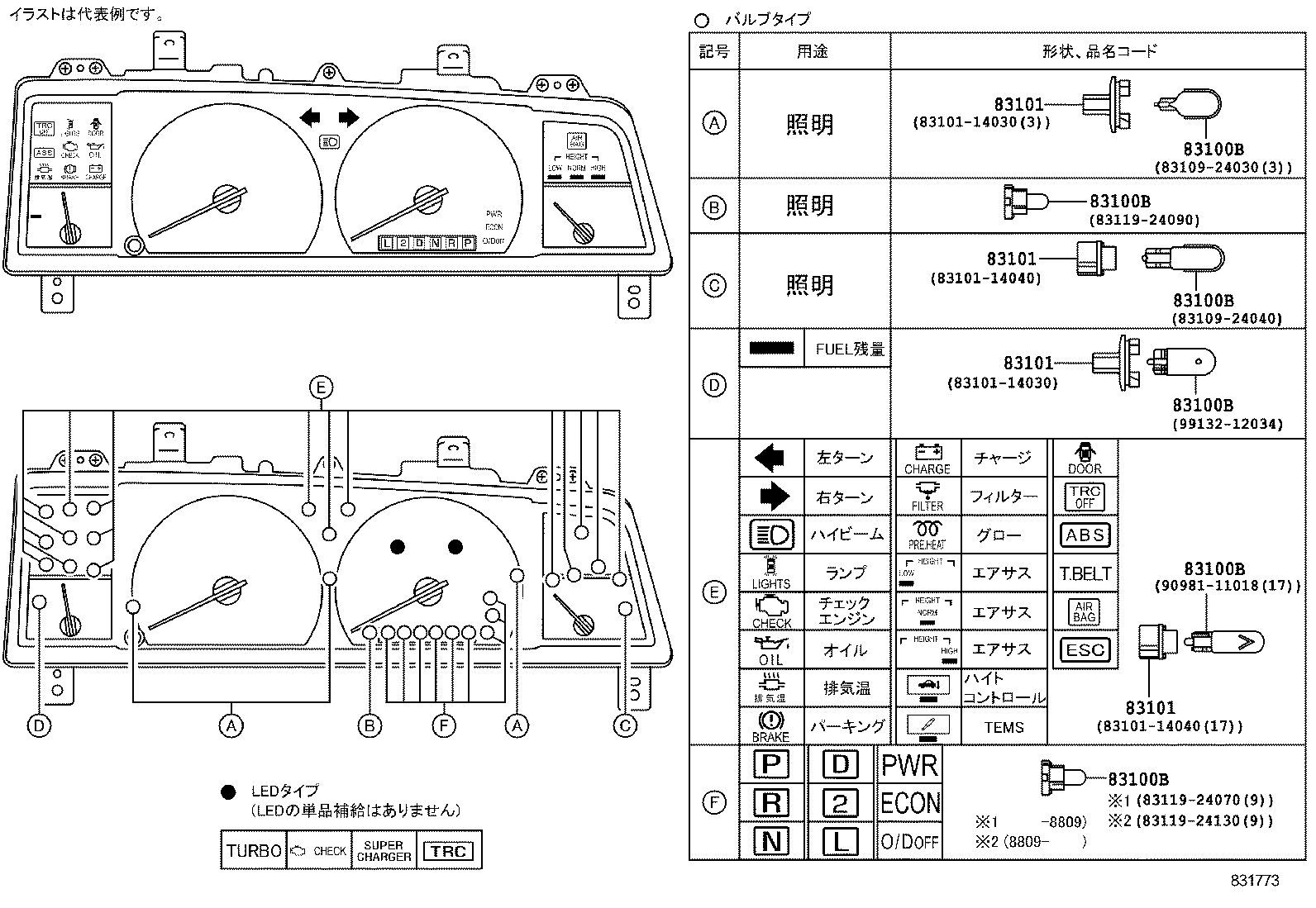

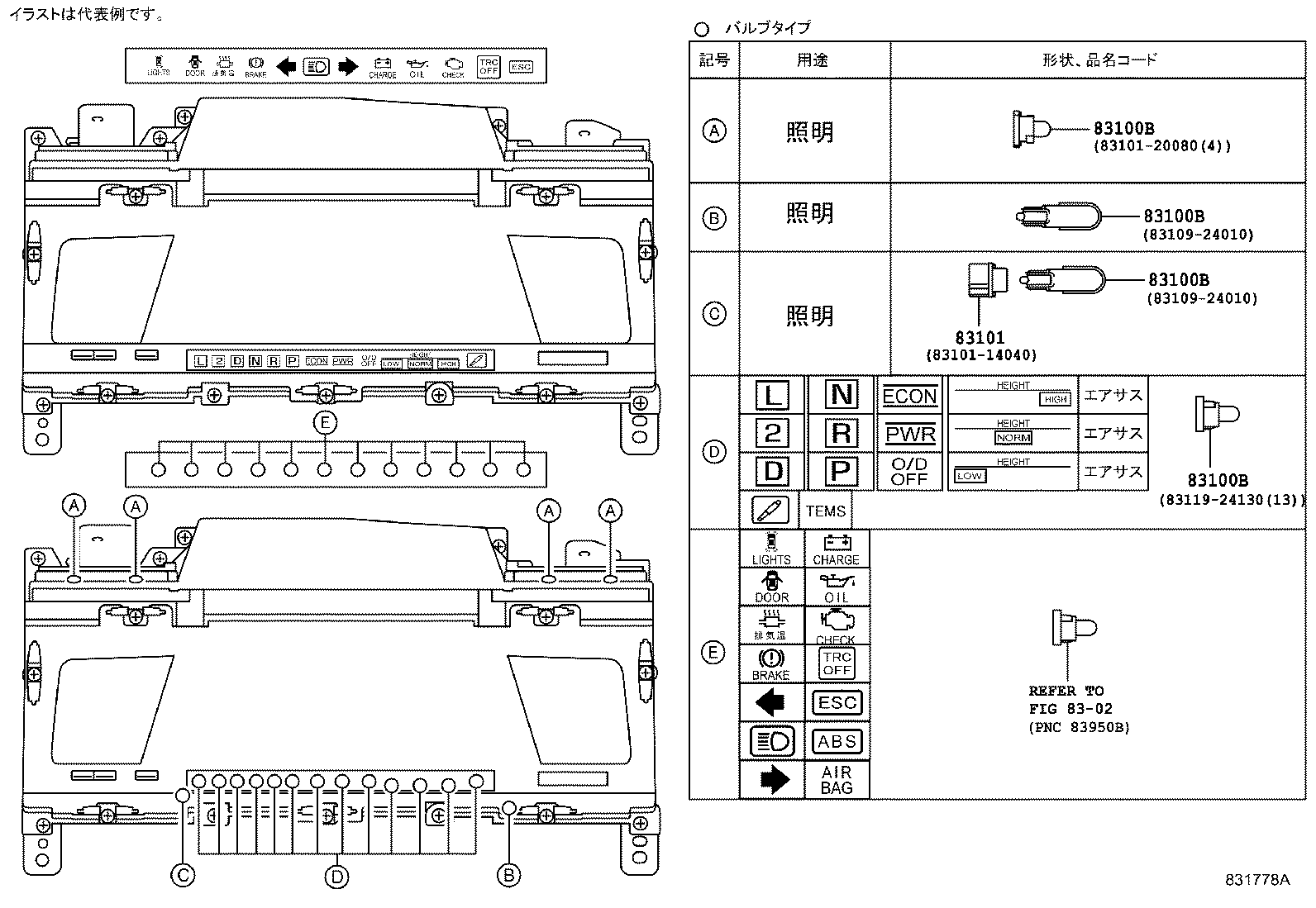

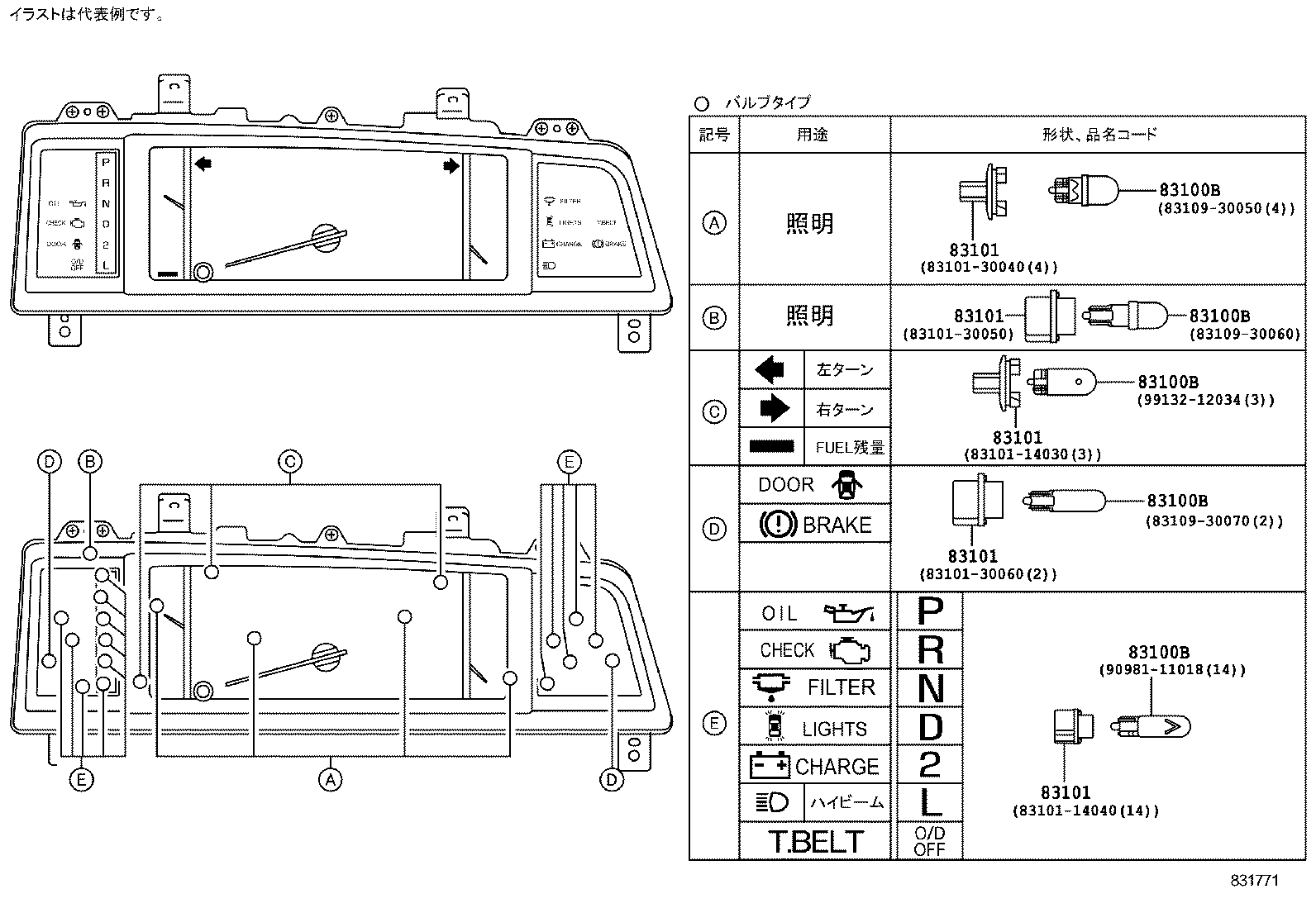

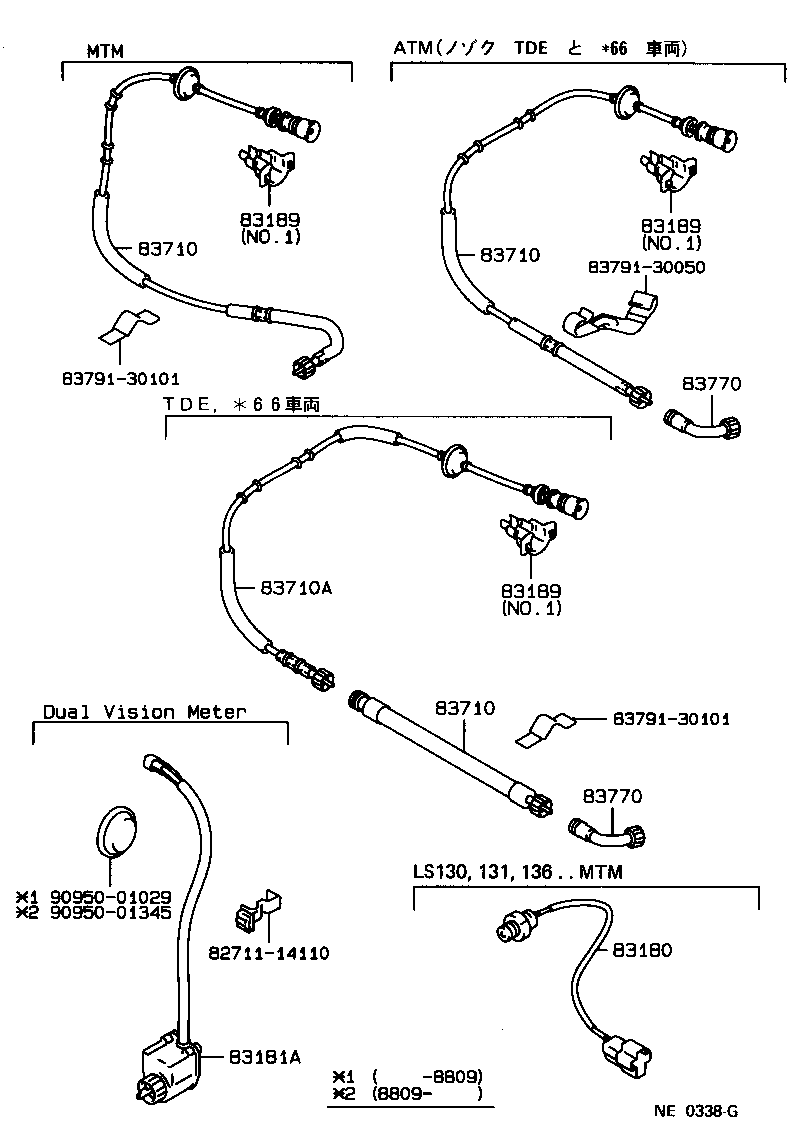

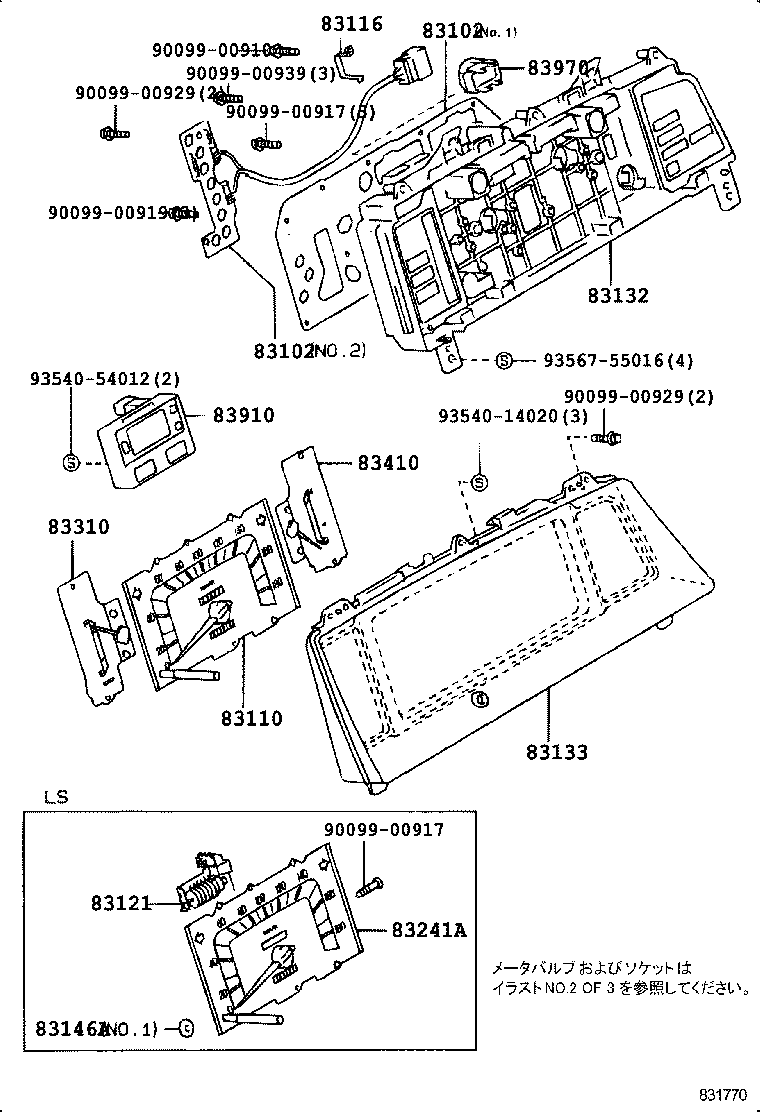

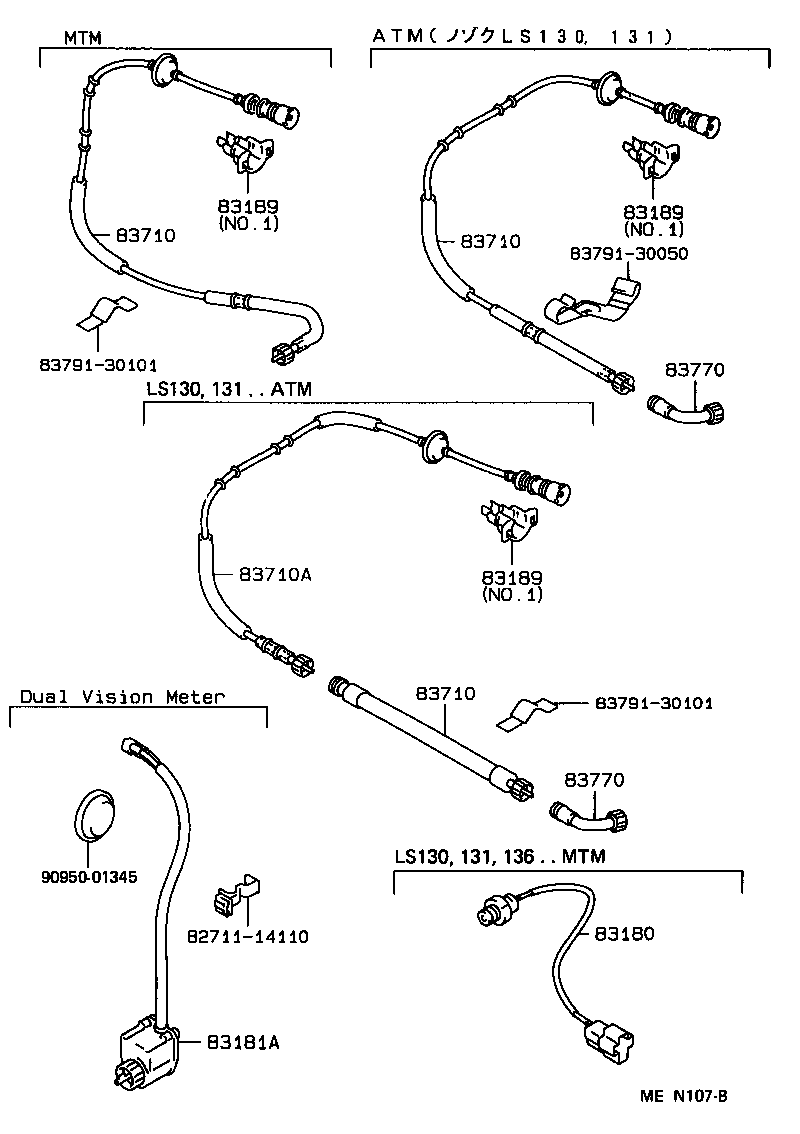

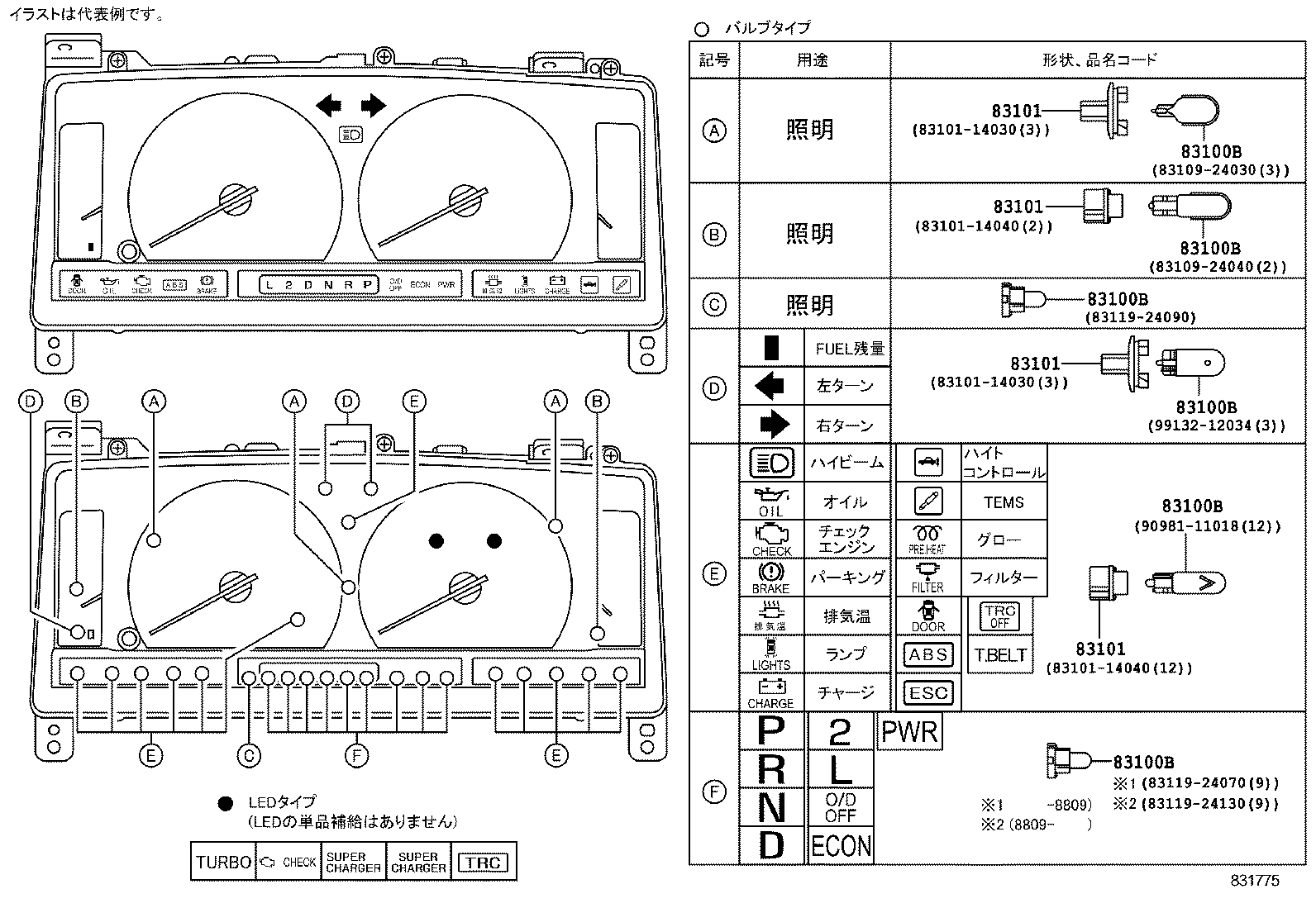

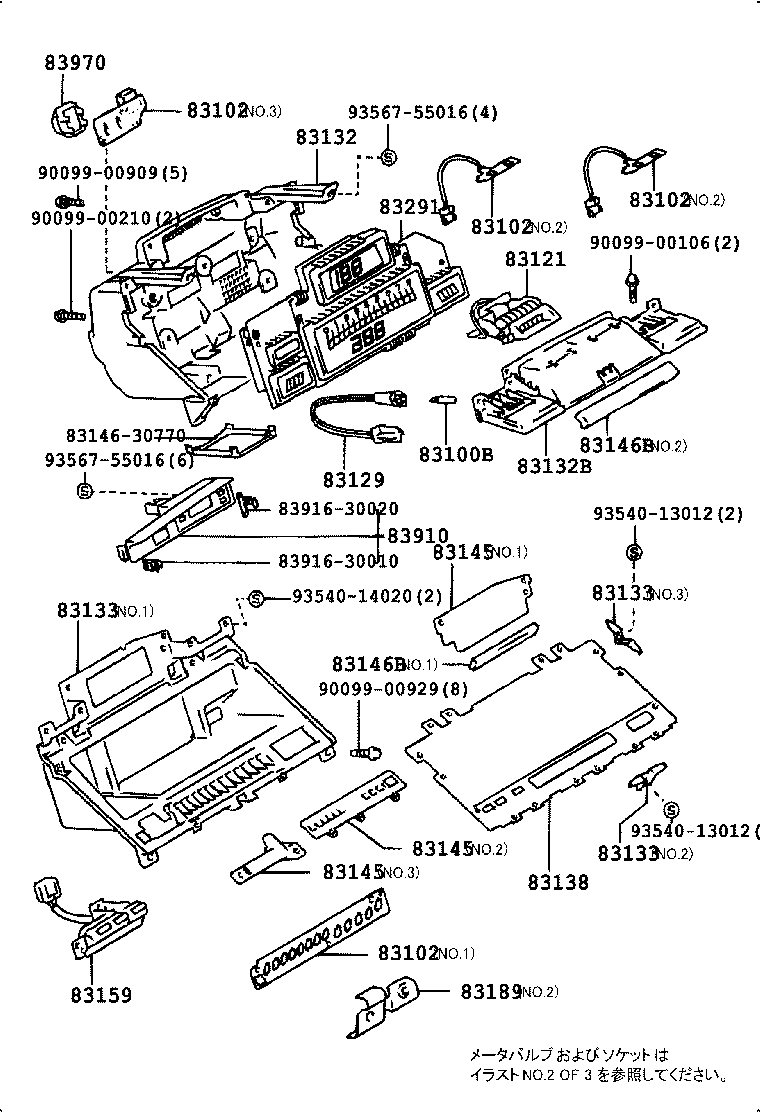

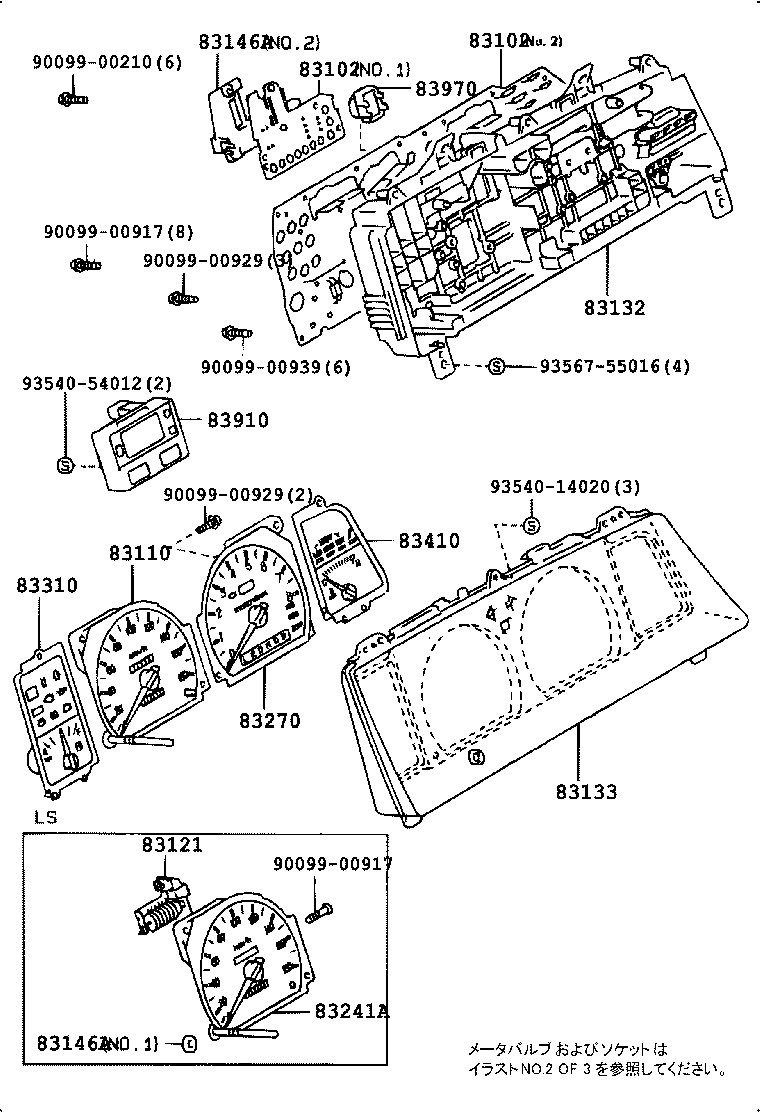

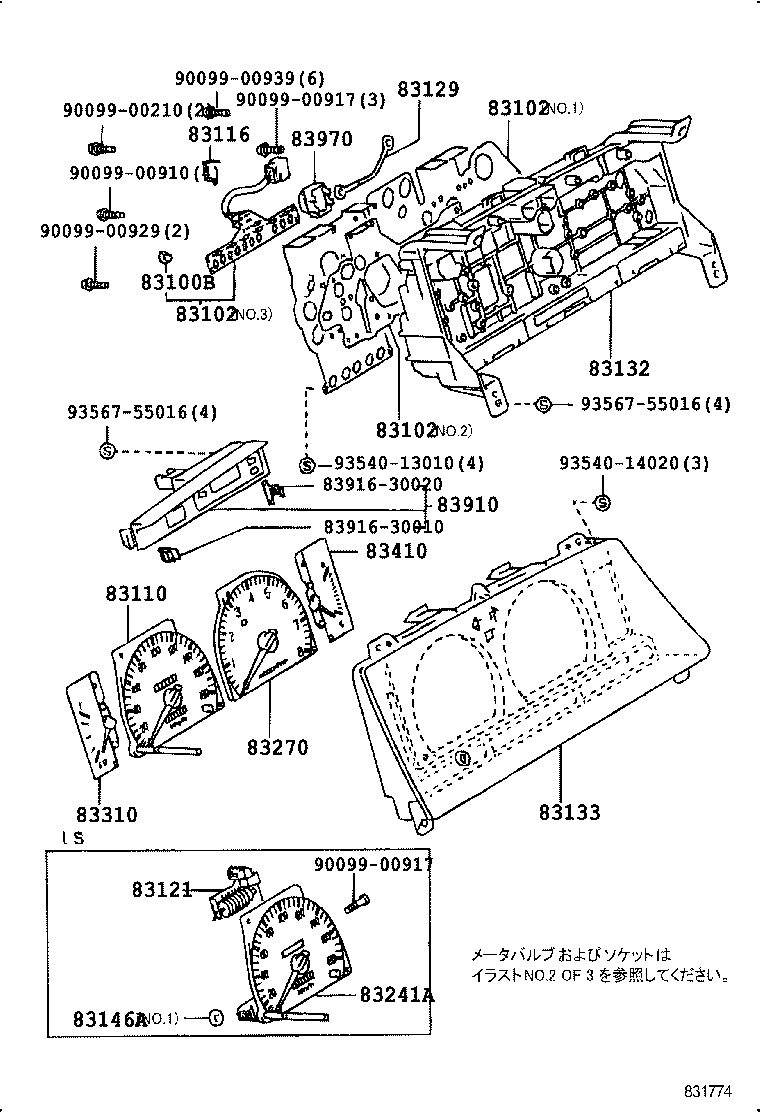

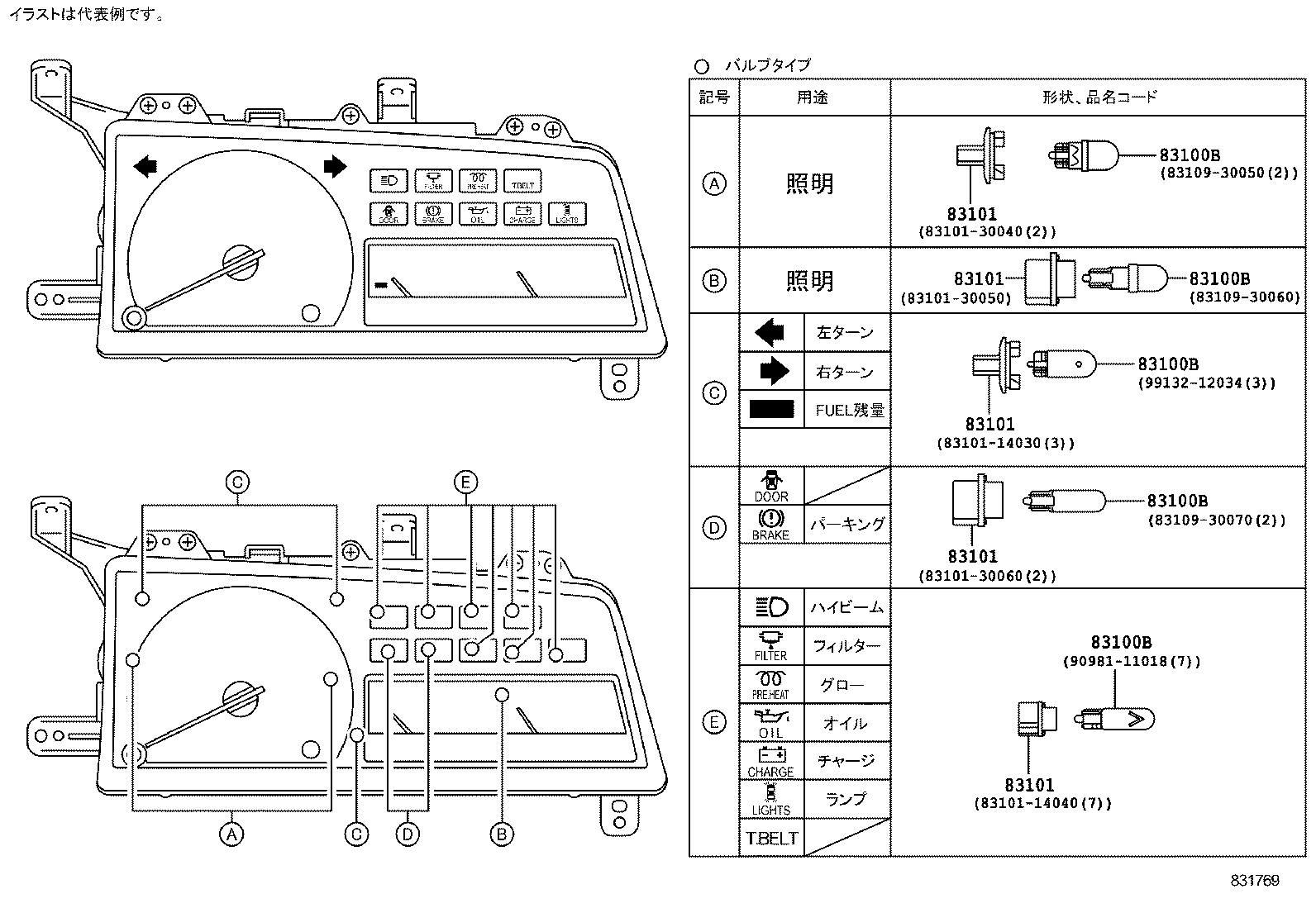

Figure 831768 831768 1987-09 → — Figure 831770 831770 1987-09 → — Figure 831770 831770 1987-09 → — Figure 831772 831772 1987-09 → — Figure 831772 831772 1987-09 → — Figure 831774 831774 1987-09 → — Figure 831784 831784 1987-09 → — Figure 831769 831769 1987-09 → — Figure 831771 831771 1987-09 → — Figure 831771 831771 1987-09 → — Figure 831773 831773 1987-09 → — Figure 831773 831773 1987-09 → — Figure 831775 831775 1987-09 → — Figure 831778A 831778A 1987-09 → — Figure NE0338G NE0338G 1987-09 → 1989-08 Figure MEN107B MEN107B 1989-08 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83110 Speedometer Assy
83116 Bracket, Speedometer
83121 Counter, Total
83129 Wire, Meter
83132 Case, Combination Meter
83132B Case, Combination Meter NO.3
83133 Plate, Combination Meter, NO.1
83138 Glass, Speedometer
83145 Lens, Meter, NO.1
83146A Cover, Speedmeter
83146B Plate, Urethane
83159 Switch, Meter, NO.1
83180 Detector Assy, Revolution
83181A Sensor, Speedometer
83189 Bracket, Meter
83241A Body Assy, Speedometer
83270 Tachometer Assy, Engine
83291 Computer, Combination Meter
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83770 Adapter Assy, Speedometer Cable
83910 Clock Assy
83970 Buzzer Assy, Reverse Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
