Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

136 part groups · 22 illustrations

Illustrations

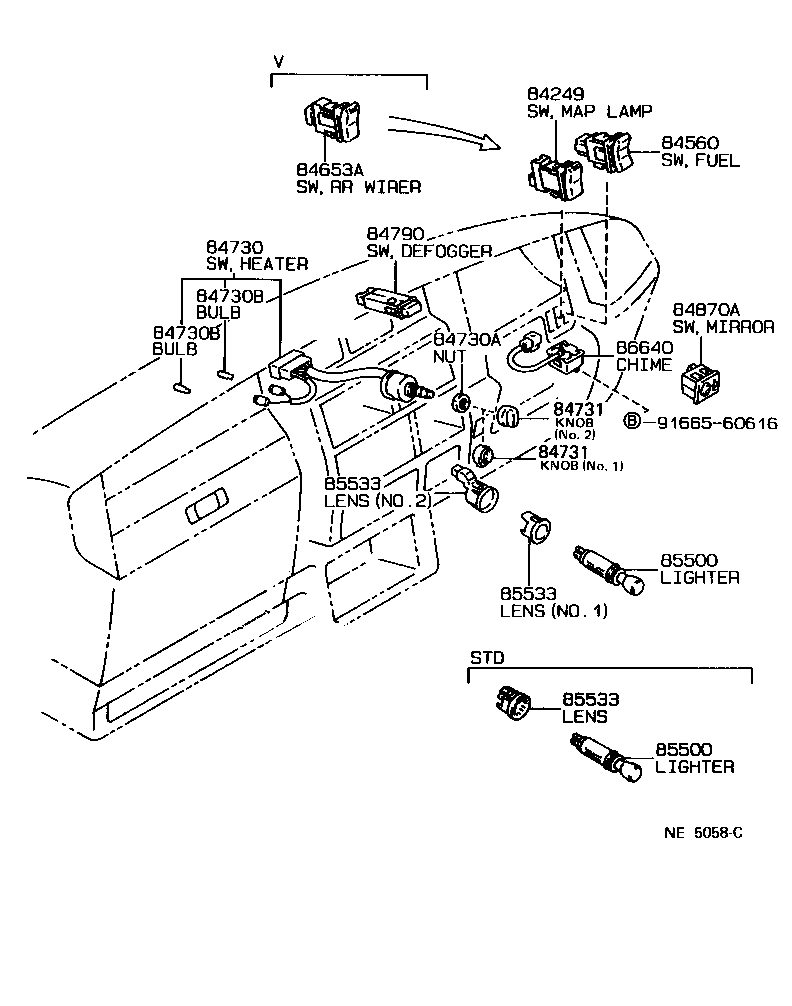

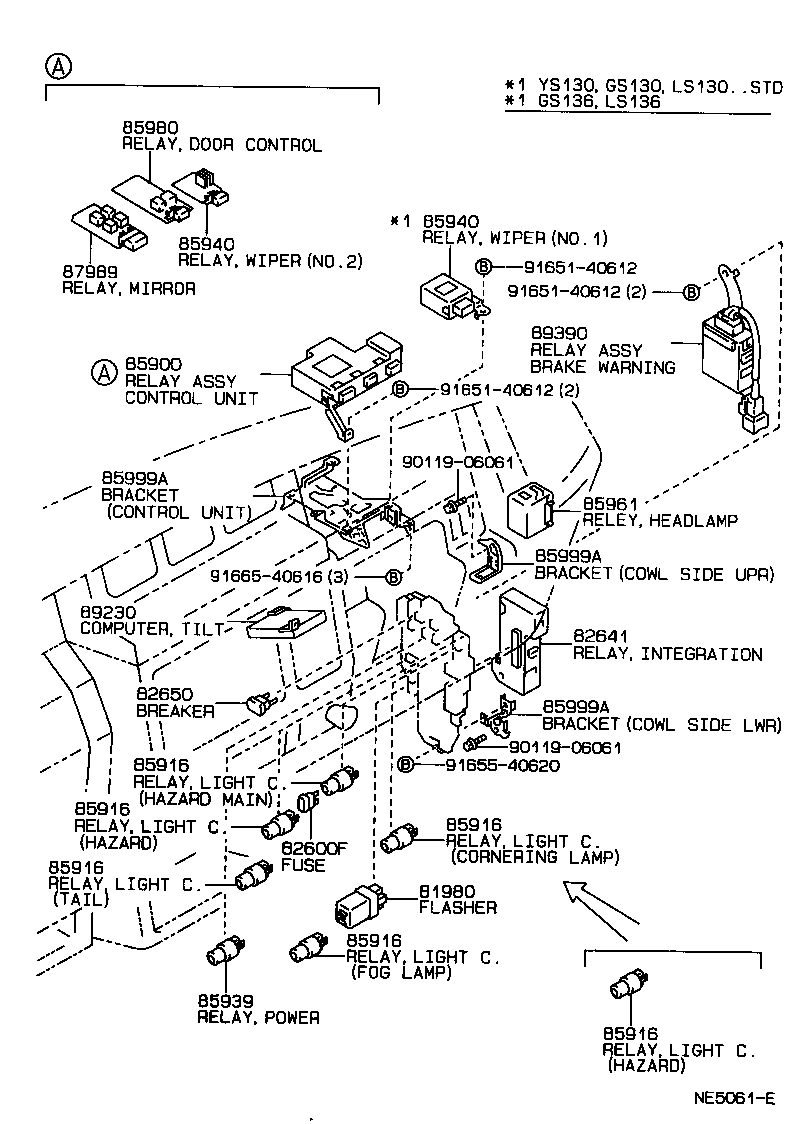

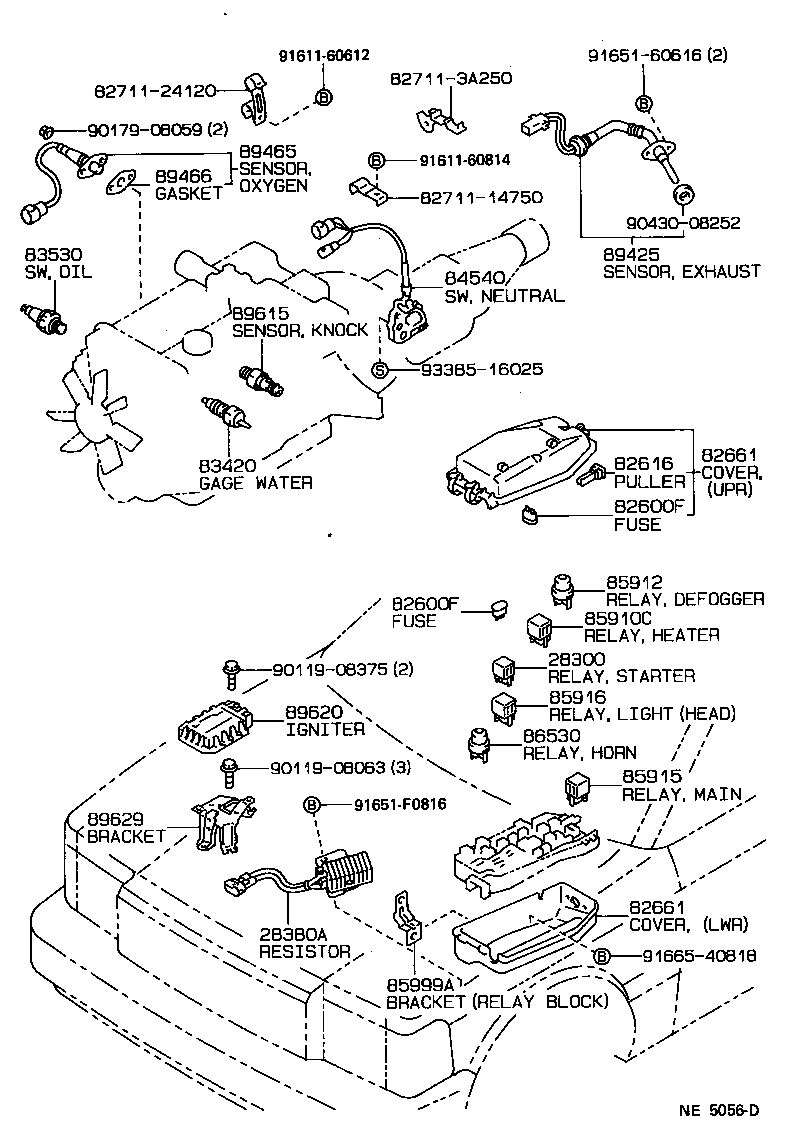

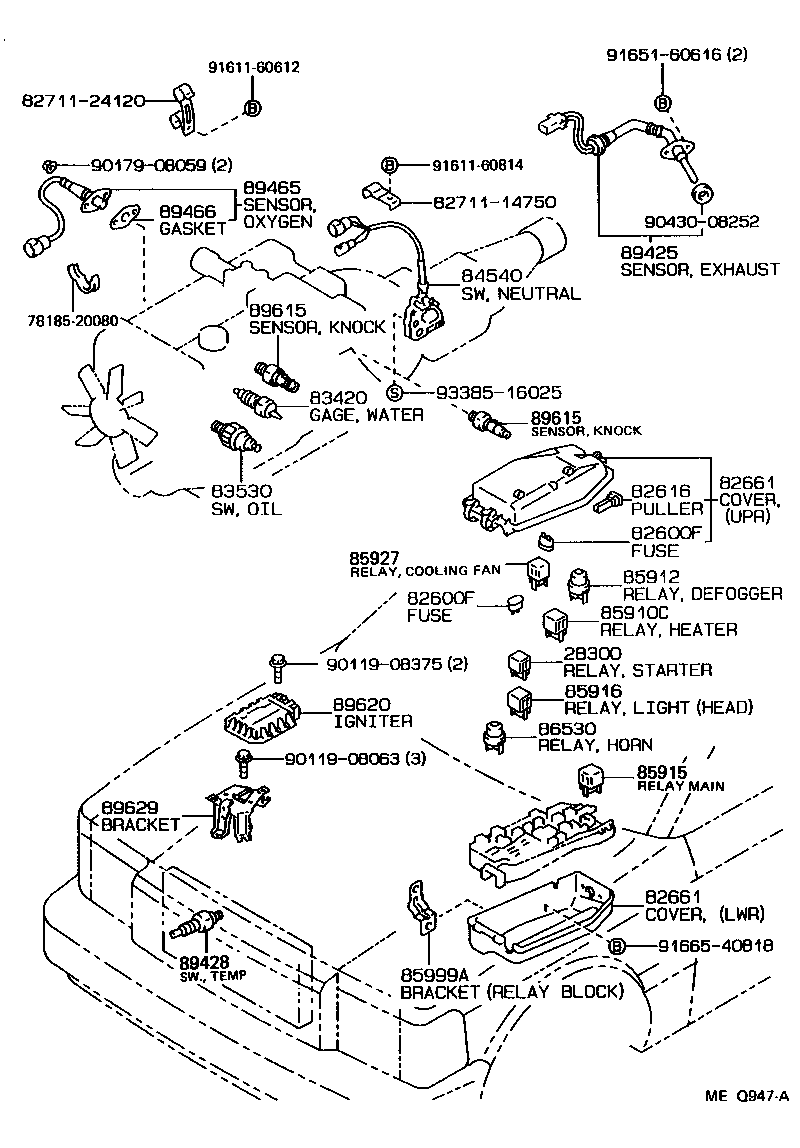

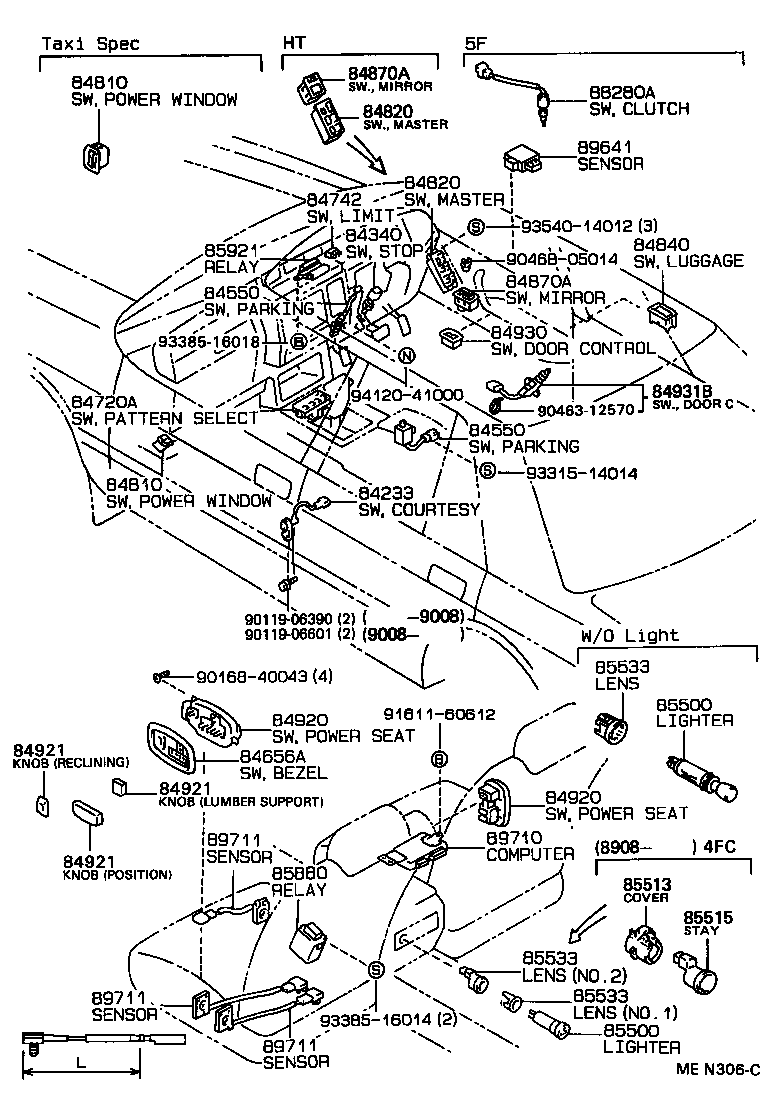

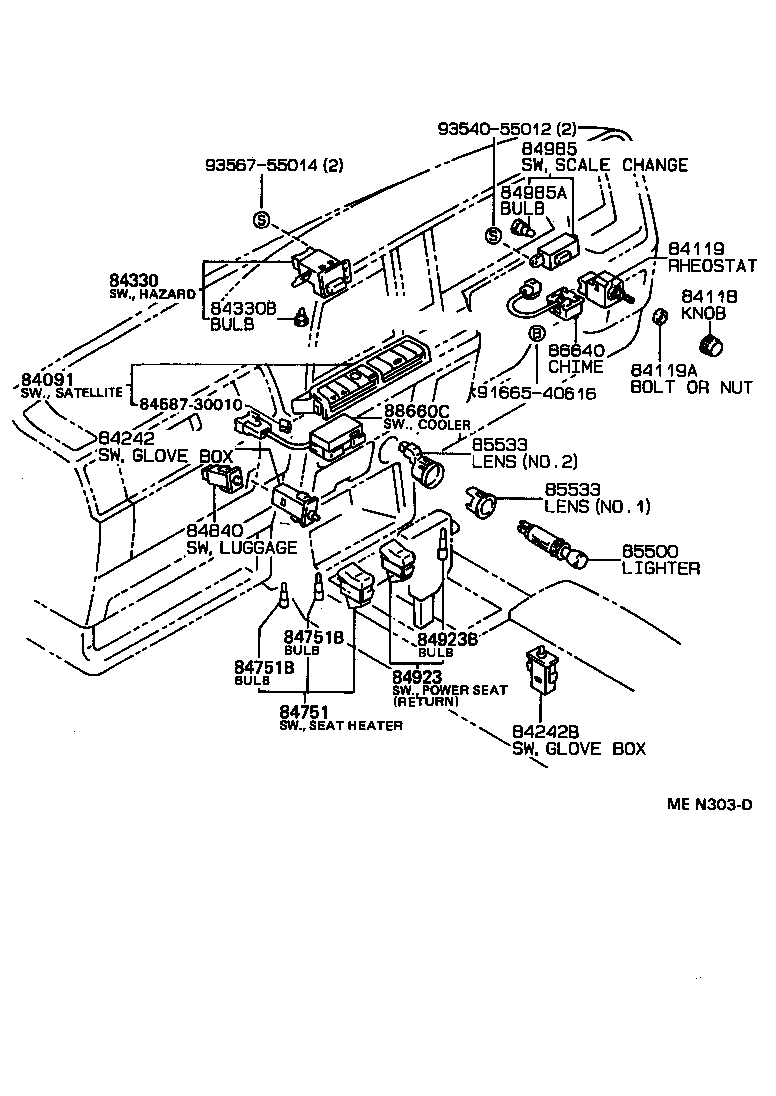

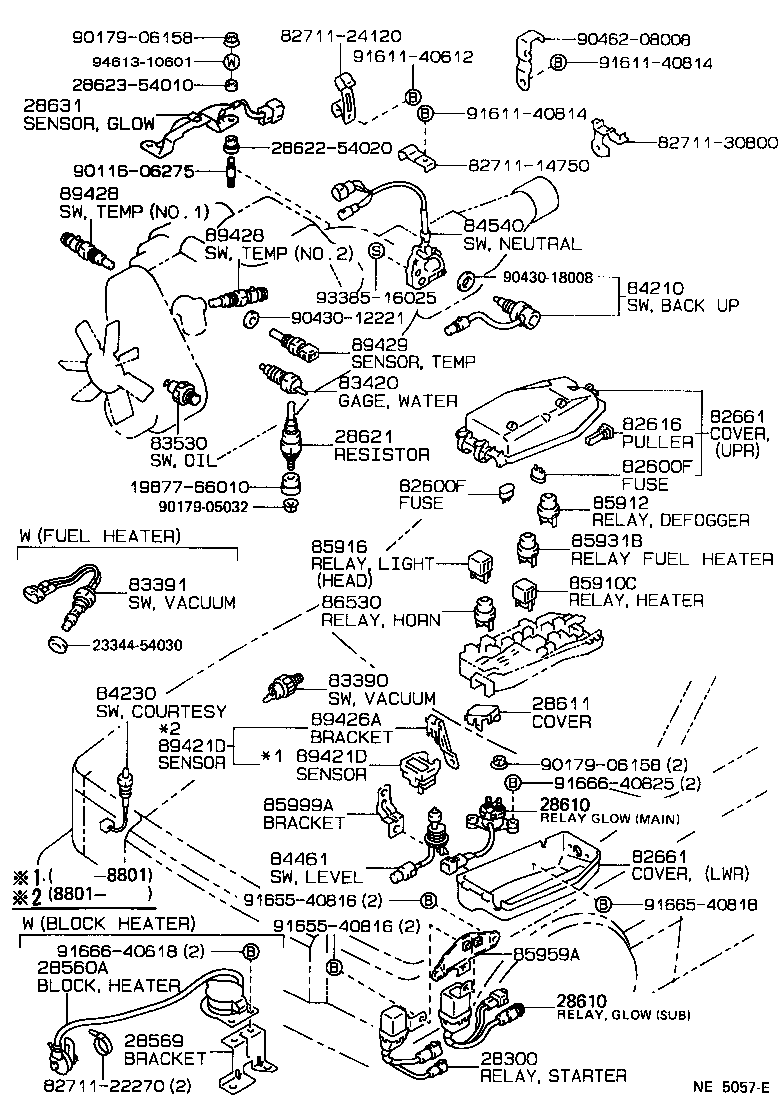

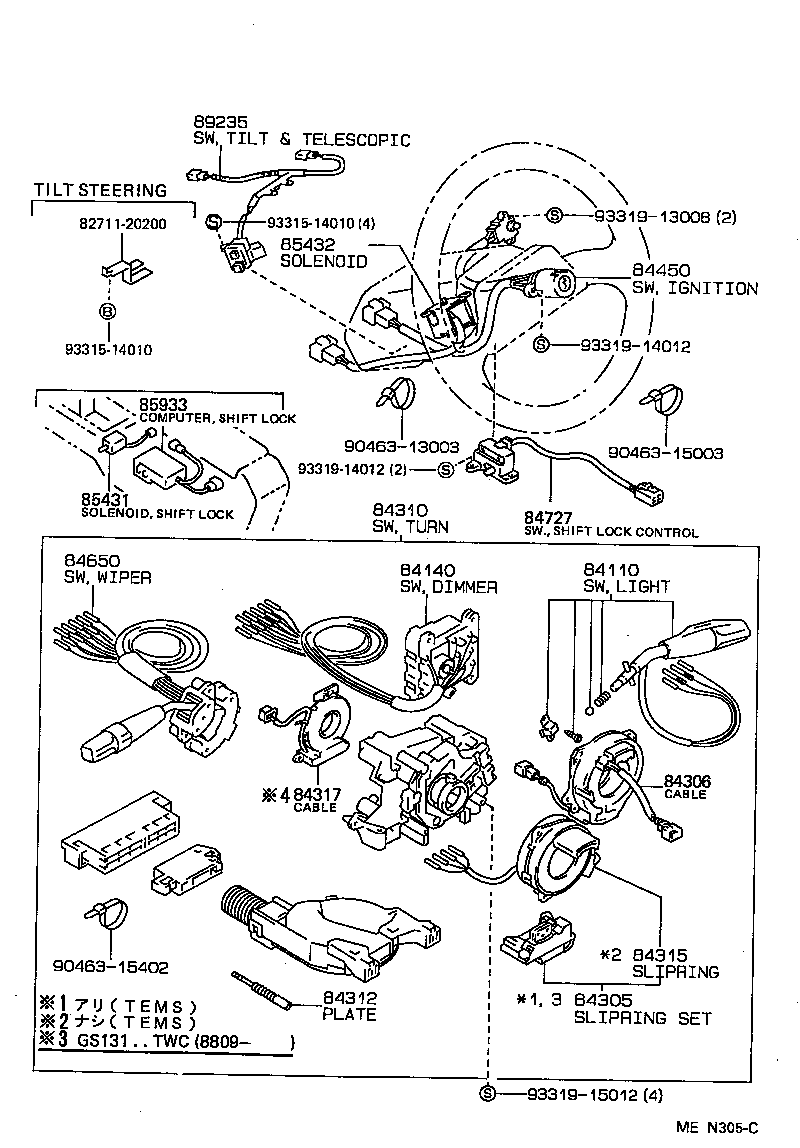

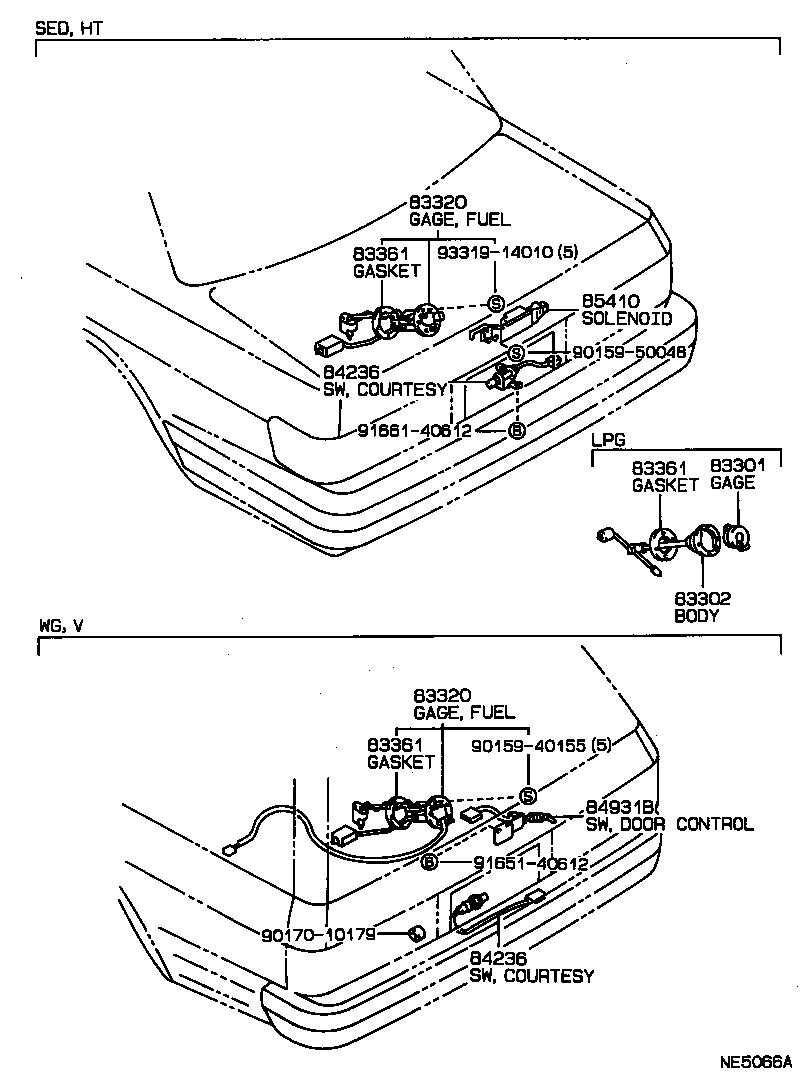

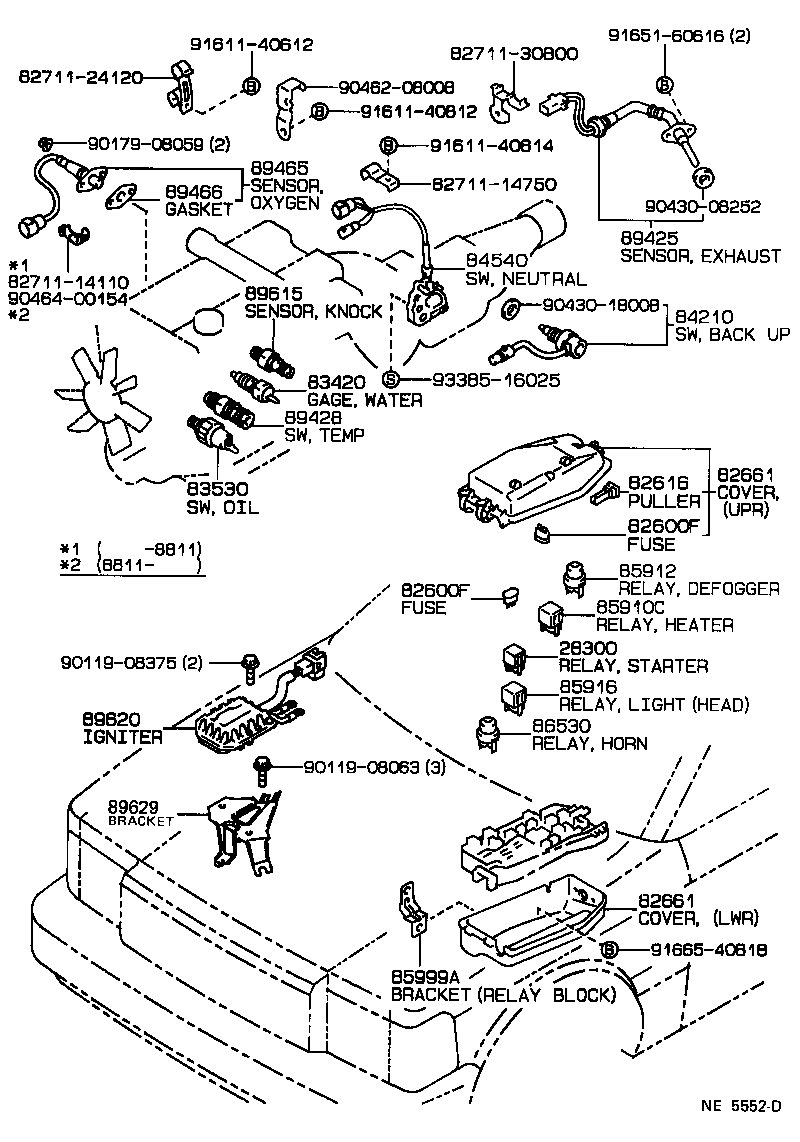

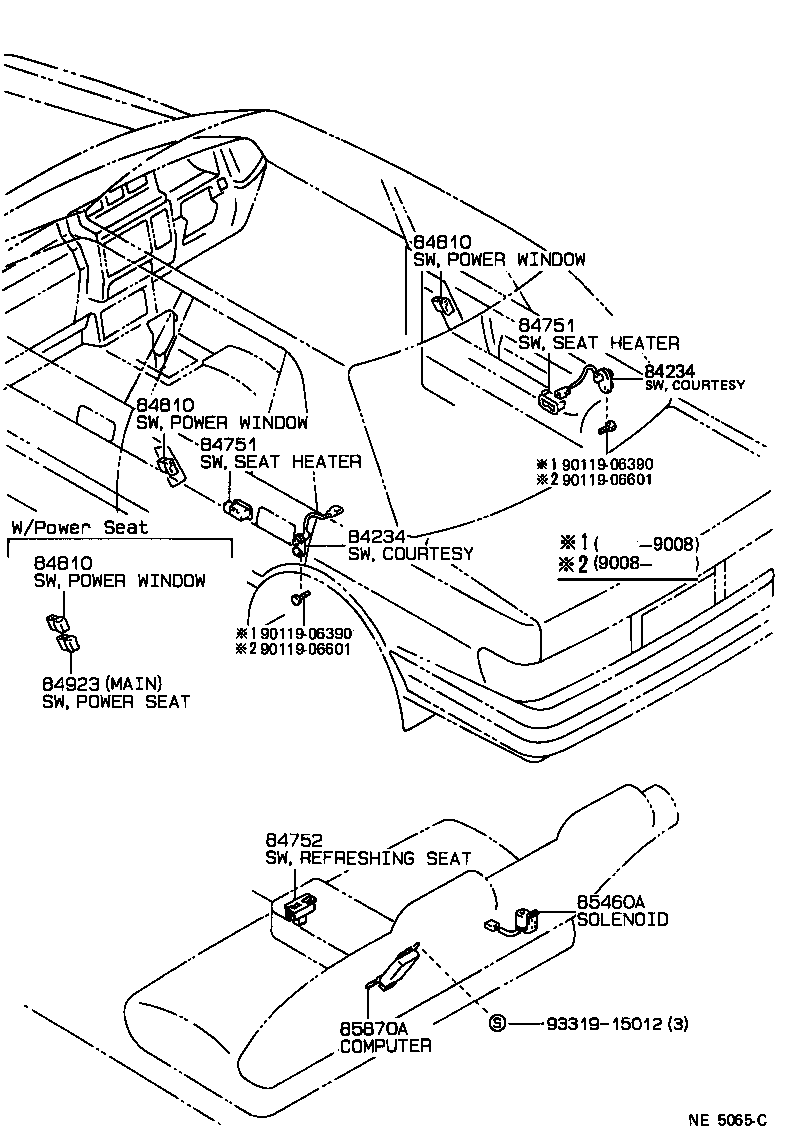

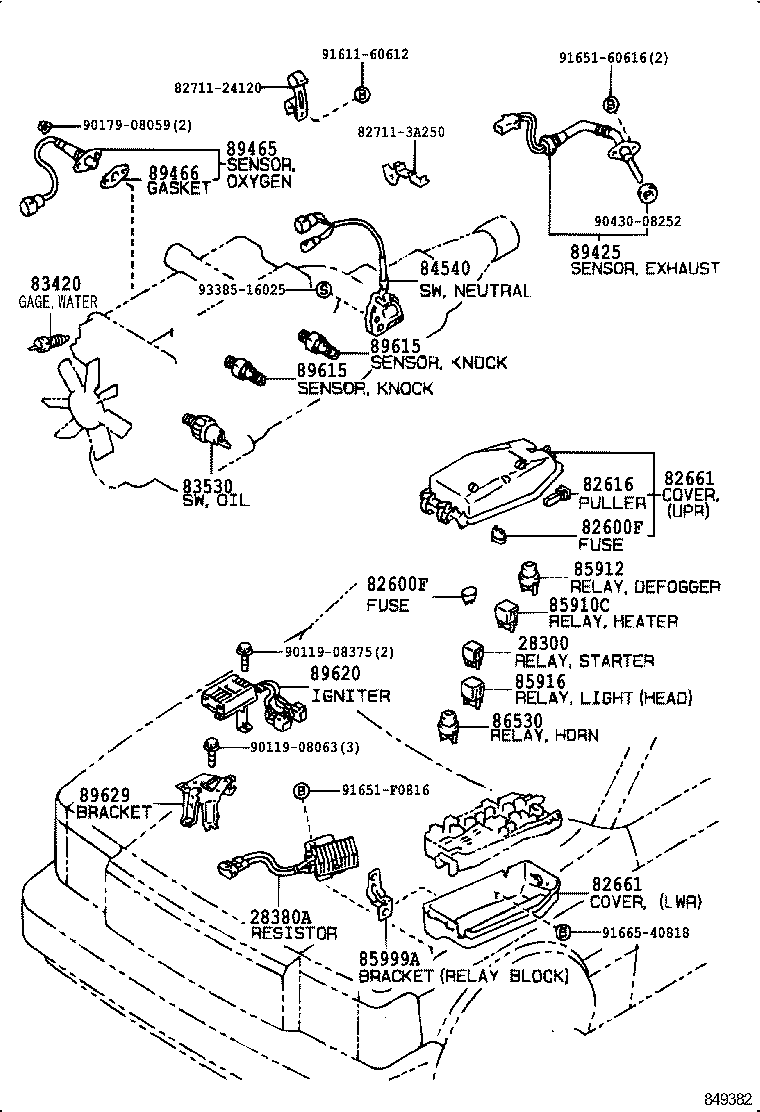

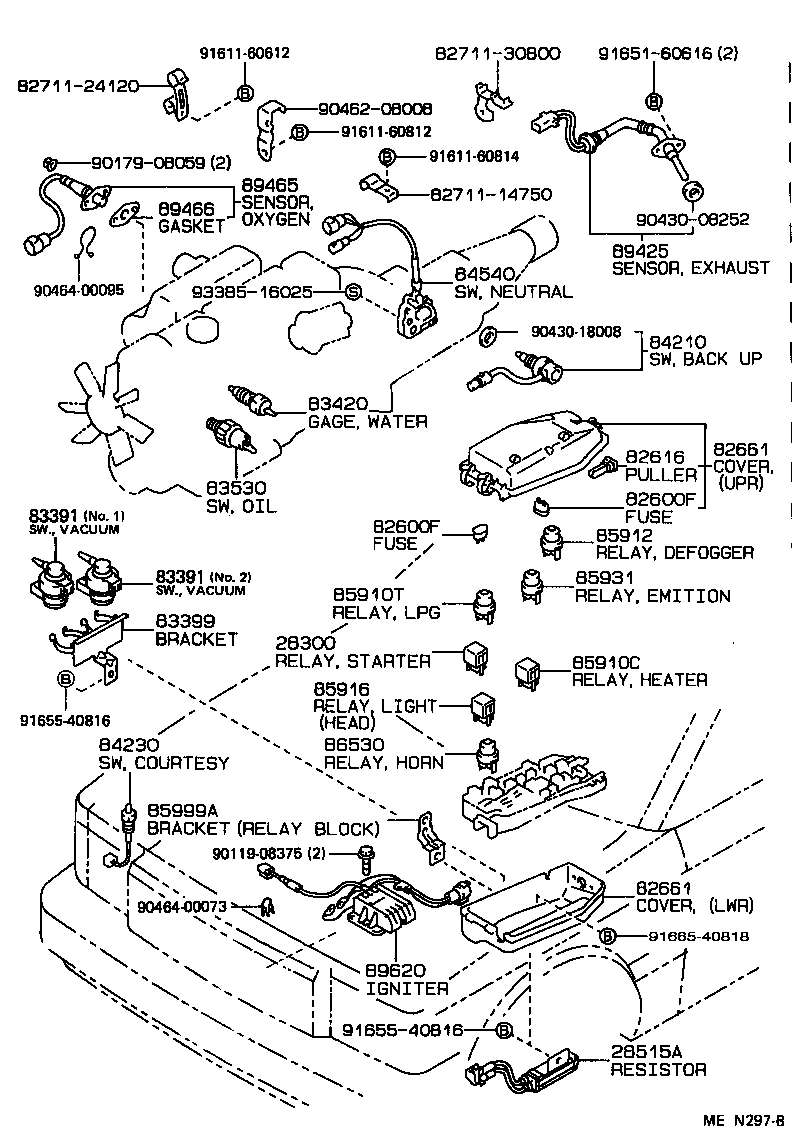

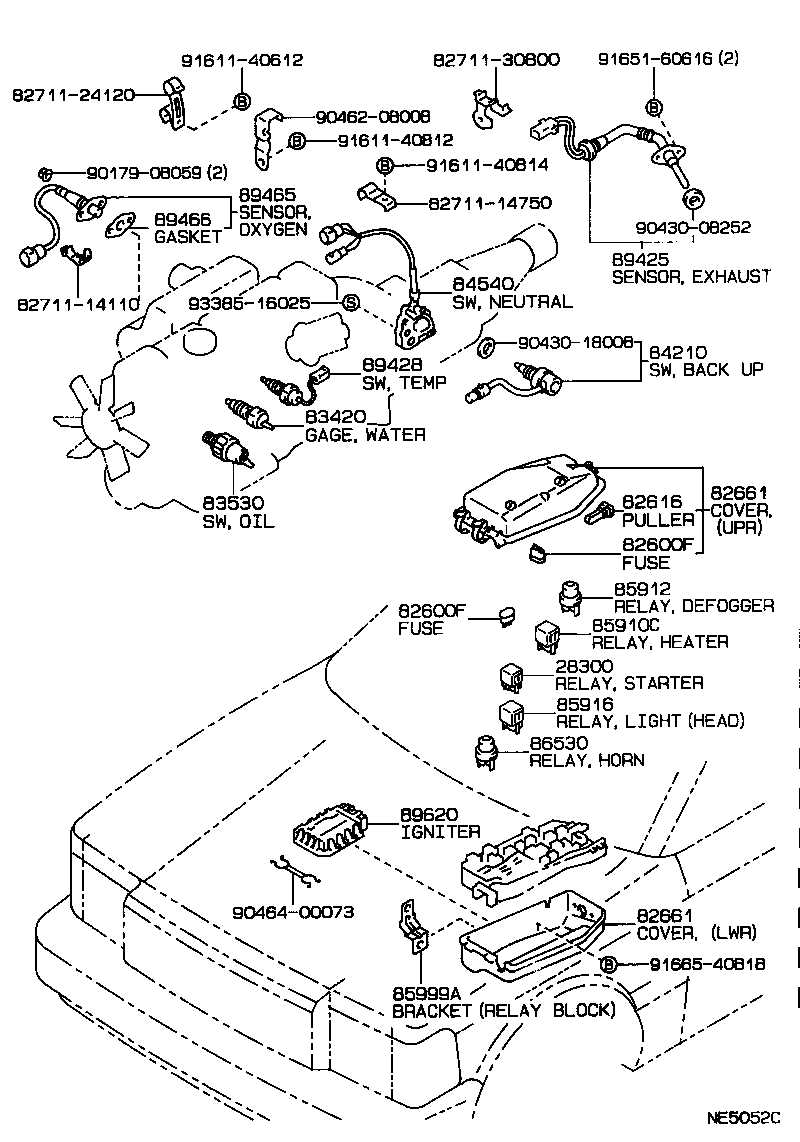

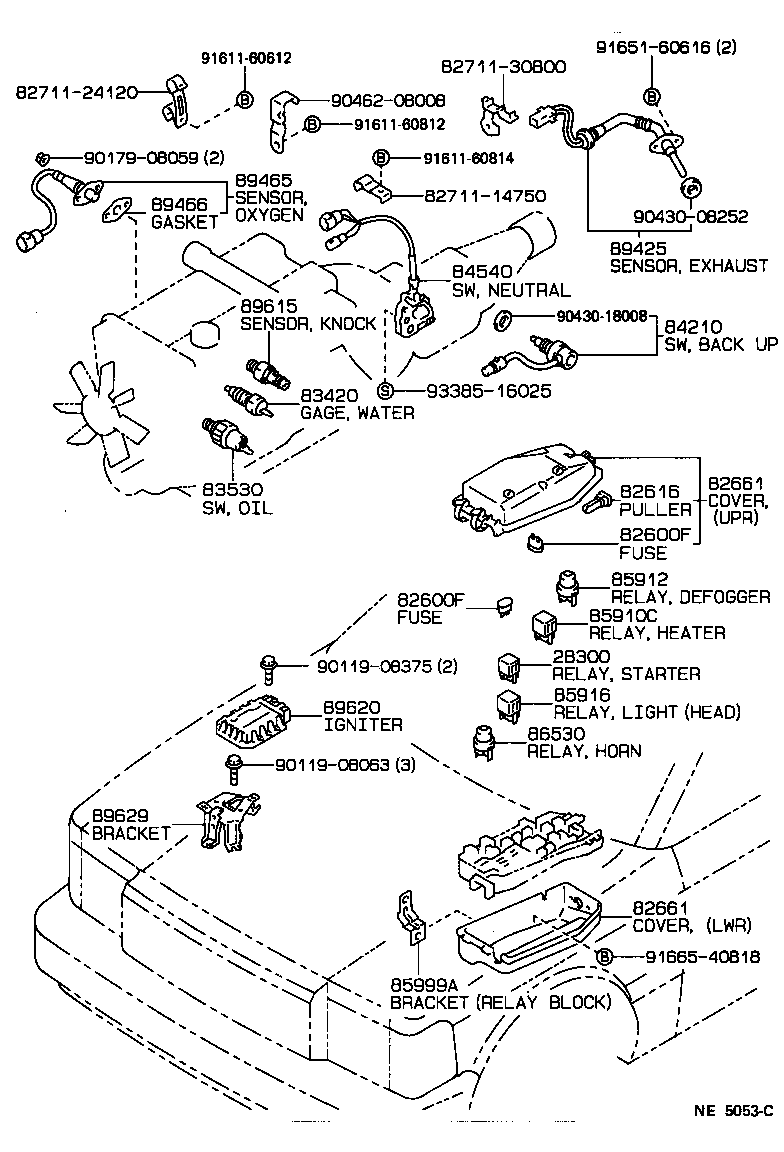

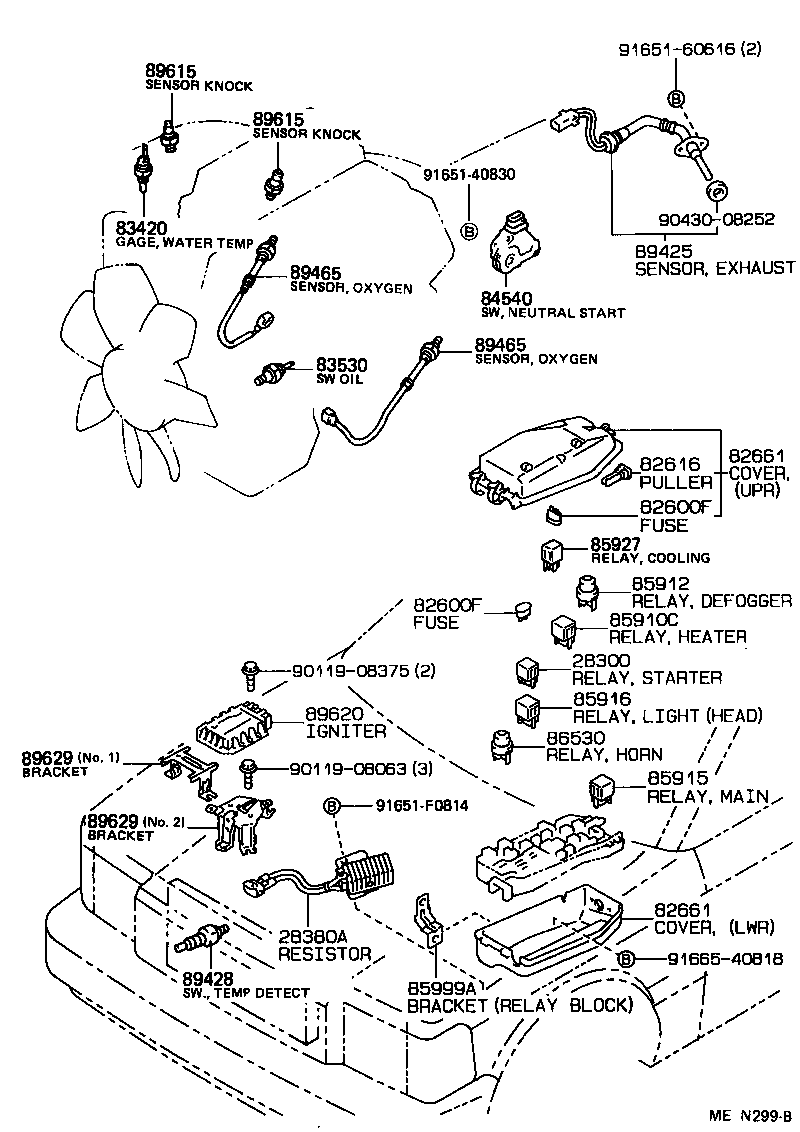

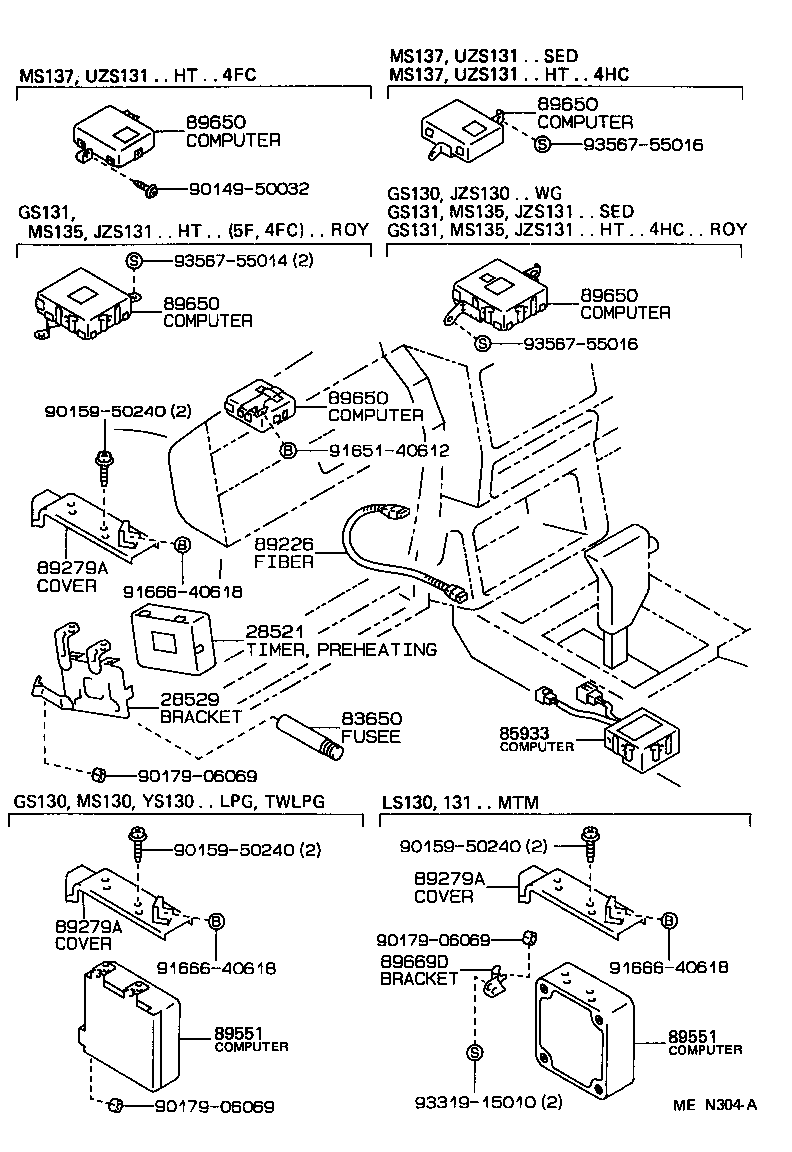

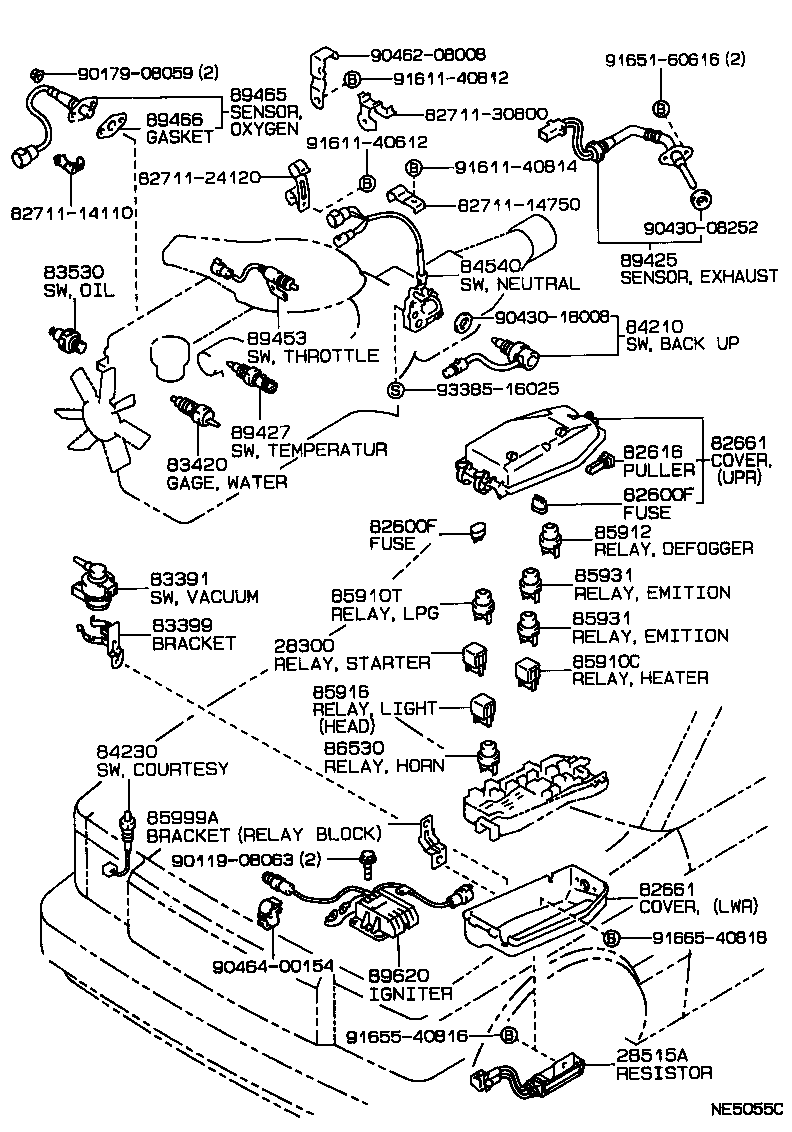

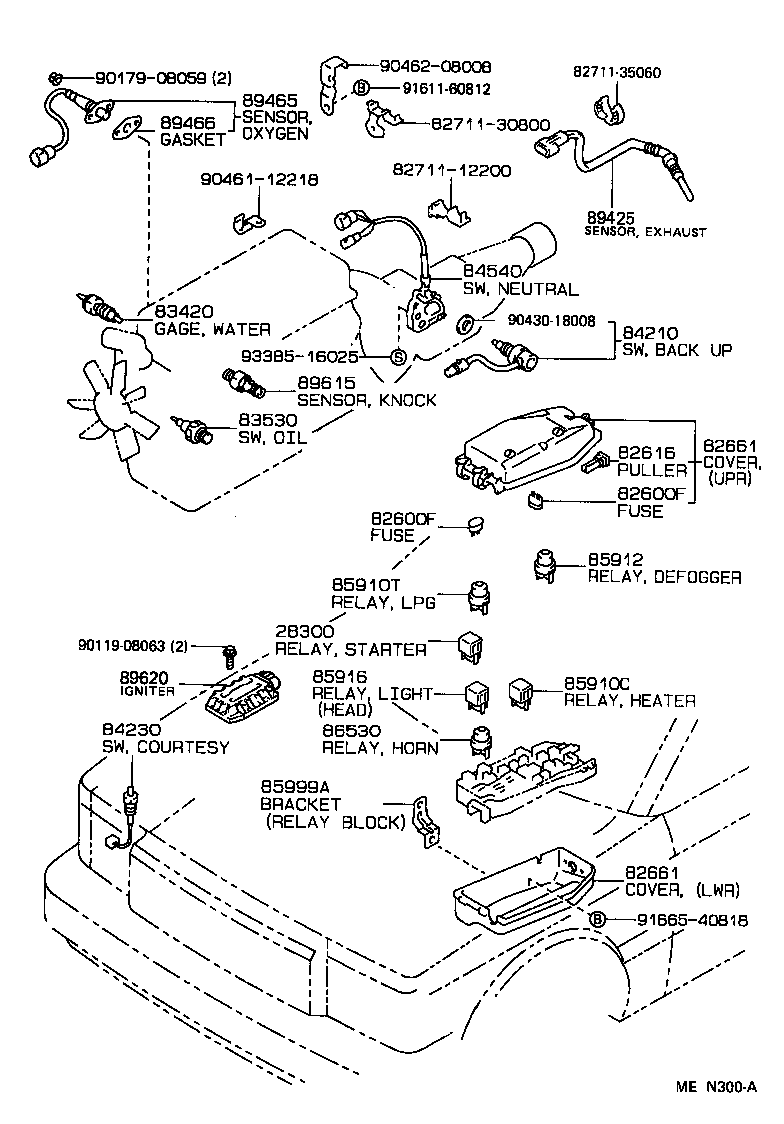

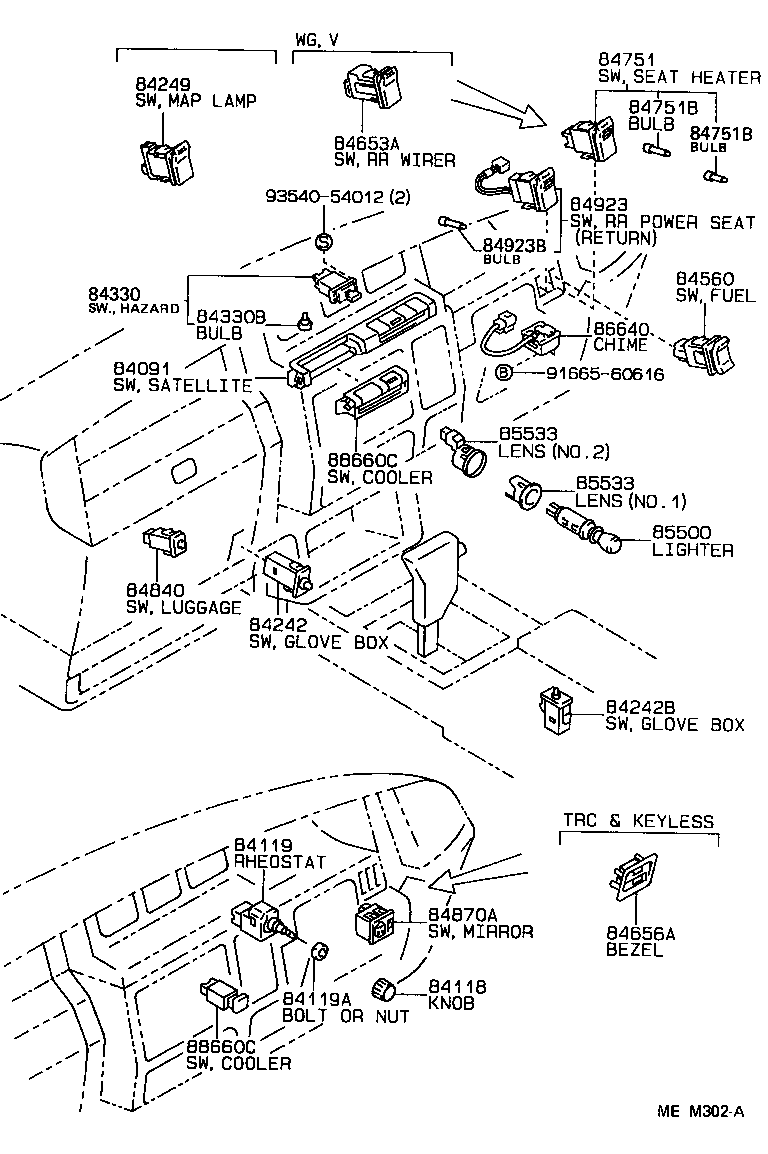

Figure NE5051B NE5051B 1987-09 → 1989-08 Figure MEN300A MEN300A 1989-08 → — Figure NE5052C NE5052C 1987-09 → — Figure NE5053C NE5053C 1987-09 → — Figure NE5552D NE5552D 1988-09 → — Figure 849382 849382 1987-09 → — Figure MEN297B MEN297B 1989-08 → — Figure NE5055C NE5055C 1987-09 → 1989-08 Figure NE5056D NE5056D 1987-09 → — Figure MEN299B MEN299B 1989-08 → — Figure MEQ947A MEQ947A 1990-08 → — Figure NE5057E NE5057E 1987-09 → — Figure NE5058C NE5058C 1987-09 → — Figure MEN302A MEN302A 1987-09 → — Figure MEN302A MEN302A 1987-09 → — Figure MEN303D MEN303D 1987-09 → — Figure NE5061E NE5061E 1987-09 → — Figure MEN304A MEN304A 1987-09 → — Figure MEN305C MEN305C 1987-09 → — Figure MEN306C MEN306C 1987-09 → — Figure NE5065C NE5065C 1987-09 → — Figure NE5066A NE5066A 1987-09 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28380A Resister, Fuel Pump
28515A Resistor, Solenoid
28521 Timer, Preheating
28529 Bracket, Preheating Timer, NO.1
28560A Block, Heater
28569 Bracket, Block Heater
28610 Relay Assy, Intake Heater OR Glow Plug
28611 Cover, Glow Plug Relay
28621 Resistor, Glow Plug
28631 Sensor, Glow Plug Current
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82616 Puller, Fuse
82641 Relay, Integration NO.1
82650 Breaker Assy, Wiring Circuit, NO.1
82661 Cover, Relay Block, NO.1
83301 Gage Sub-assy, Fuel Sender (FOR LPG TANK)
83302 Body Sub-assy, Fuel Sender Gage
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83391 Switch, Vacuum
83399 Bracket, Vacuum Switch
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84091 Switch Set, Satellite
84110 Switch Assy, Light Control, NO.1
84118 Knob, Light Control Rheostat
84119 Rheostat, Light Control
84119A Bolt OR Nut, Rheostat Control Set
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84230 Switch Assy, Courtesy Lamp (FOR ENGINE ROOM)
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84236 Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
84242 Switch, Glove Box Lamp
84242B Switch, Glove Box Lamp
84249 Switch, Map Lamp
84305 Slipring, Steering Sensor
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84315 Slipring, Horn Contact
84317 Sensor, Steering Position
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84461 Switch, Level Warning
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84560 Switch Assy, Fuel Valve Control
84650 Switch Assy, Windshield Wiper
84653A Switch, Rear Wiper
84656A Bezel, Switch
84720A Switch Assy, Pattern Select, NO.1
84727 Switch, Shift Lock Control
84730 Switch Assy, Heater Blower
84730A Nut, Heater Blower Switch
84730B Bulb, Heater Blower Switch
84731 Knob, Heater Blower Switch
84742 Switch, Slide Roof Limit
84751 Switch, Seat Heater
84751B Bulb, Seat Heater Switch
84752 Switch, Refreshing Seat
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84840 Switch Assy, Luggage Compartment Door Opening
84870A Switch Assy, Outer Mirror
84920 Switch Assy, Power Seat
84921 Knob, Power Seat Switch
84923 Switch, Rear Power Seat
84923B Bulb(FOR REAR POWER SEAT SWITCH)
84930 Switch Assy, Door Control
84931B Switch, Door Control
84985 Switch, Scale Cange
84985A Bulb, Scale Change Switch
85410 Solenoid Assy, Luggage Door Lock
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85460A Solenoid Assy, Lap Belt
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85533 Lens, Cigarette Lighter Indicator
85870A Computer Assy, Vibration Seat
85880 Relay Assy, Power Seat
85900 Relay Assy, Control Unit
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910T Relay, Lpg
85912 Relay, Defogger
85915 Relay, Main
85916 Relay, Light Control
85921 Relay, Sliding Roof Control
85927 Relay, Cooling Fan
85931 Relay, Emission Control
85931B Relay, Fuel Heater
85933 Computer, Shift Lock Control
85939 Relay, Power Window
85940 Relay Assy, Windshield Wiper
85959A Holder, Relay
85961 Relay, Headlamp Retainer
85980 Relay Assy, Door Control
85999A Bracket, Relay, NO.2
86530 Relay Assy, Horn
86640 Chime Assy
87989 Relay, Mirror Control
88280A Switch Assy, Clutch
88660C Switch Assy, Cooler Control
89226 Fiber, Optical
89230 Computer Assy, Tilt Steering
89235 Switch, Tilt Steering
89279A Cover, Computer
89390 Relay, Brake Warning
89421D Sensor, Turbo Pressure
89425 Sensor, Exhaust Gas Temperature
89426A Bracket, Vacuum Sensor
89427 Switch, Temperature Detect
89428 Switch, Temperature Detect, NO.2
89429 Sensor, Oil Temperature
89453 Switch, Throttle Position (FOR T.C.S.)
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89551 Computer, Emission Control
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
89641 Sensor, Magnetic Field
89650 Computer Assy, Power Steering
89669D Bracket, Engine Control Computer, NO.3
89710 Computer Assy, Position Control
89711 Sensor, Position Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
