Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 9 illustrations

Illustrations

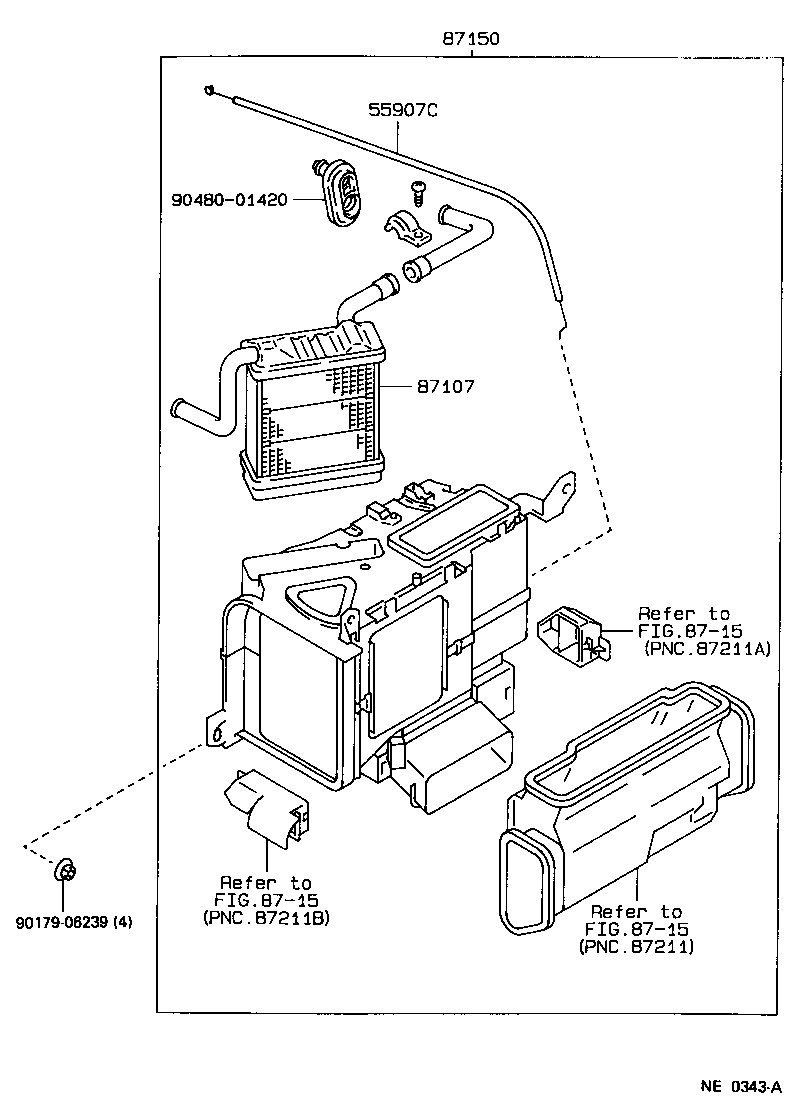

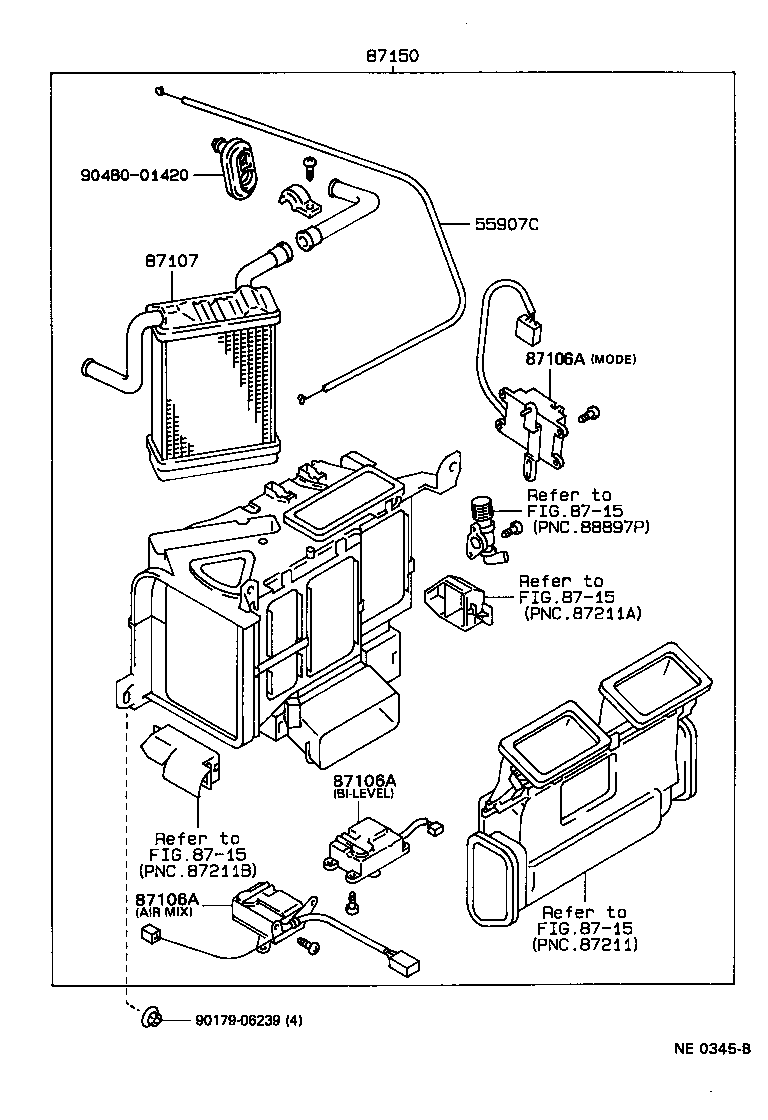

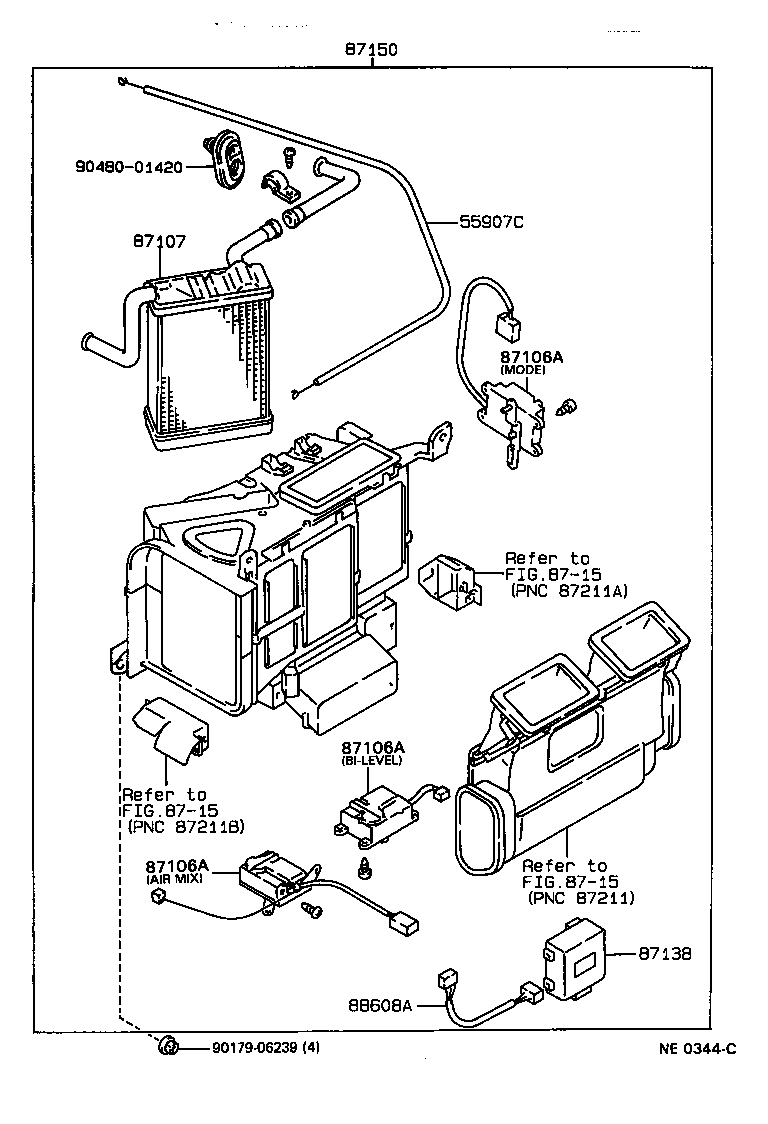

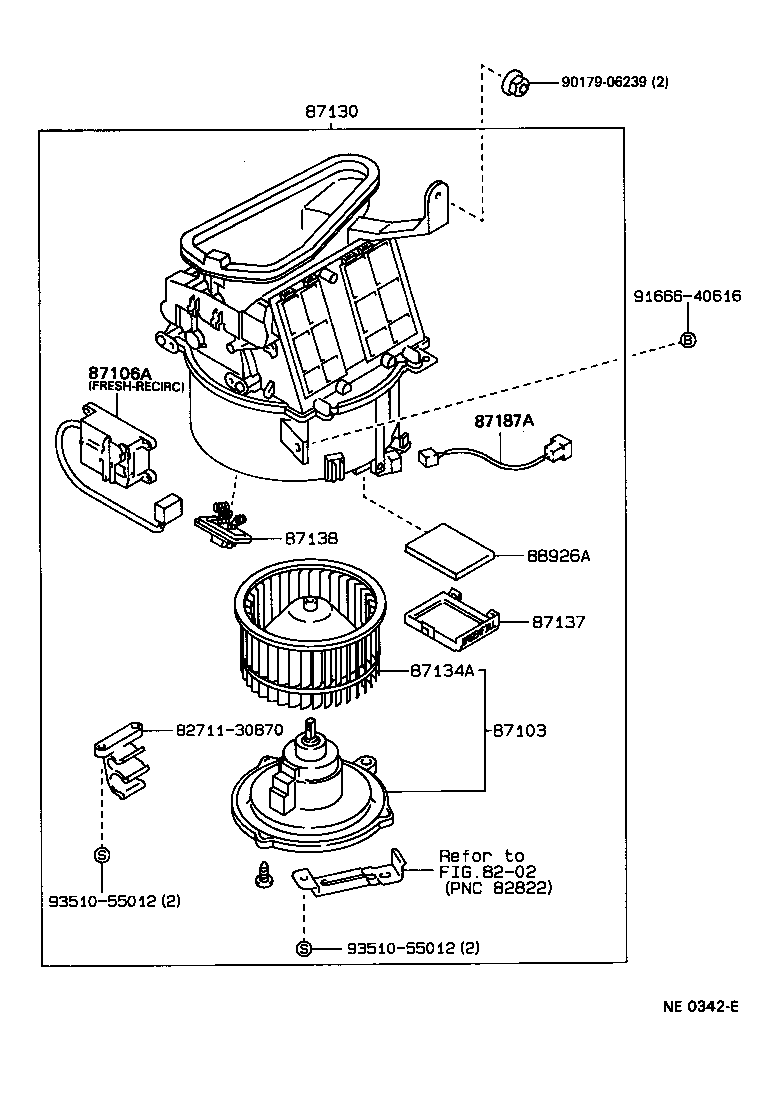

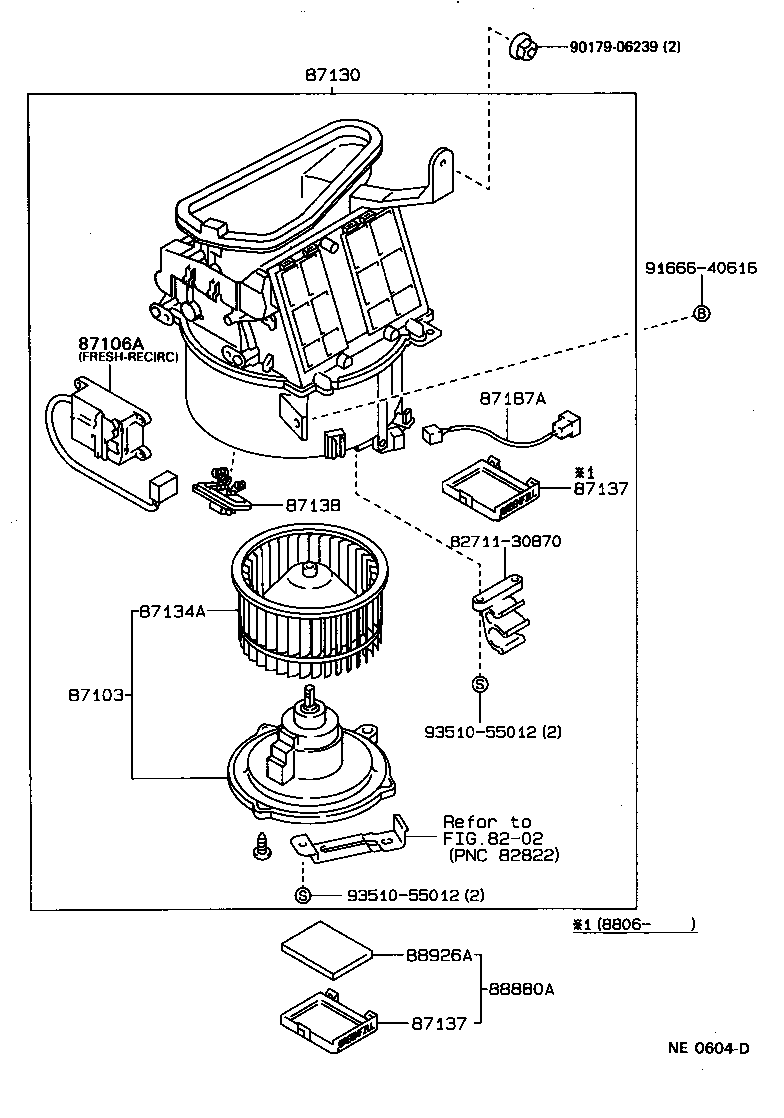

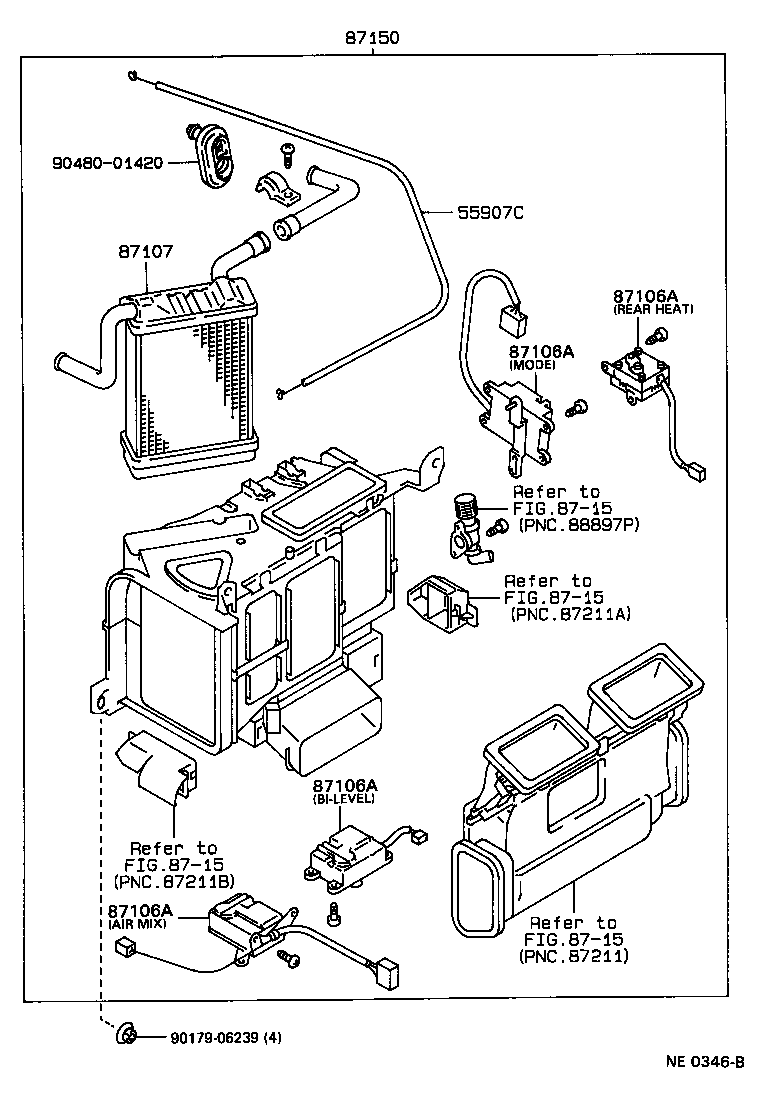

Figure NE0340C NE0340C 1987-09 → — Figure NE0604D NE0604D 1987-09 → — Figure NE0342E NE0342E 1987-09 → — Figure NE0343A NE0343A 1987-09 → — Figure NE0344C NE0344C 1987-09 → 1989-08 Figure NE0344C NE0344C 1989-08 → — Figure NE0345B NE0345B 1987-09 → 1989-08 Figure NE0345B NE0345B 1989-08 → — Figure NE0346B NE0346B 1987-09 → —

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
87103 Motor Sub-assy, Heater Blower, W/Fan
87106A Servo Sub-assy, Damper
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87134A Fan, Blower, NO.2
87137 Cover, Heater Blower
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87187A Wire, Blower Motor Lead
87441A Filter, Heater Air
88608A Harness Sub-assy, Wiring Air Conditioner, NO.2
88880A Filter & Accessory Assy, Air
88926A Odor, Cartridge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
