Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

28 part groups · 13 illustrations

Illustrations

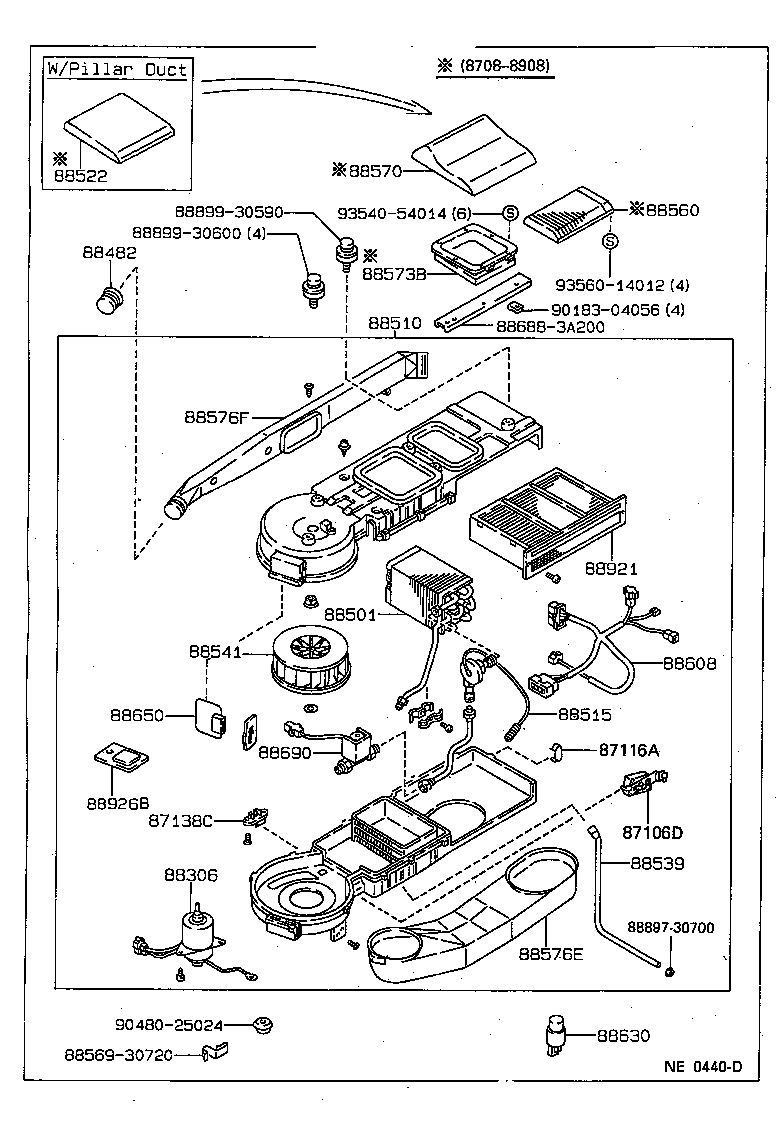

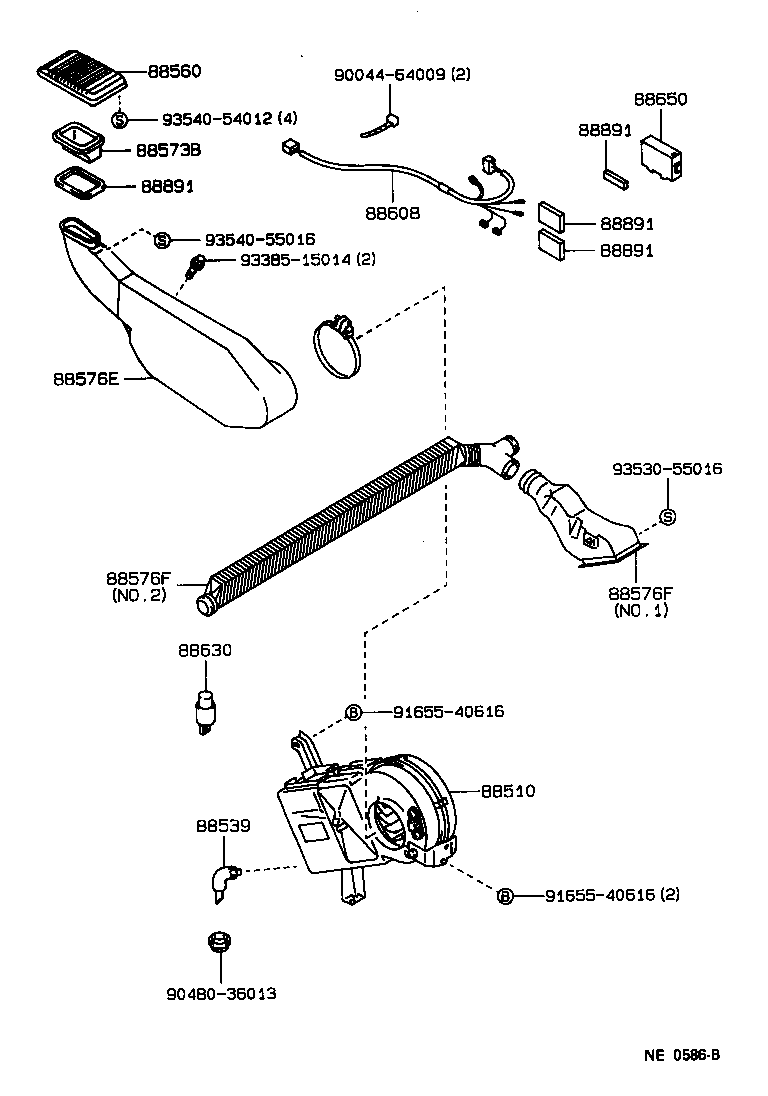

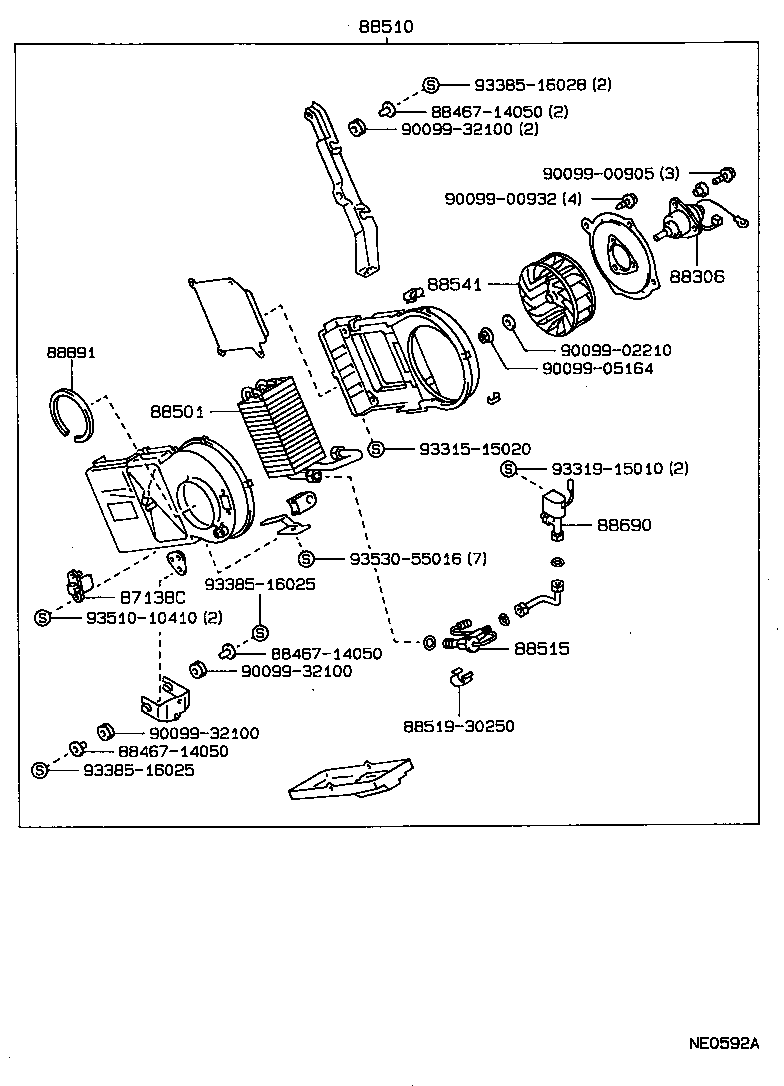

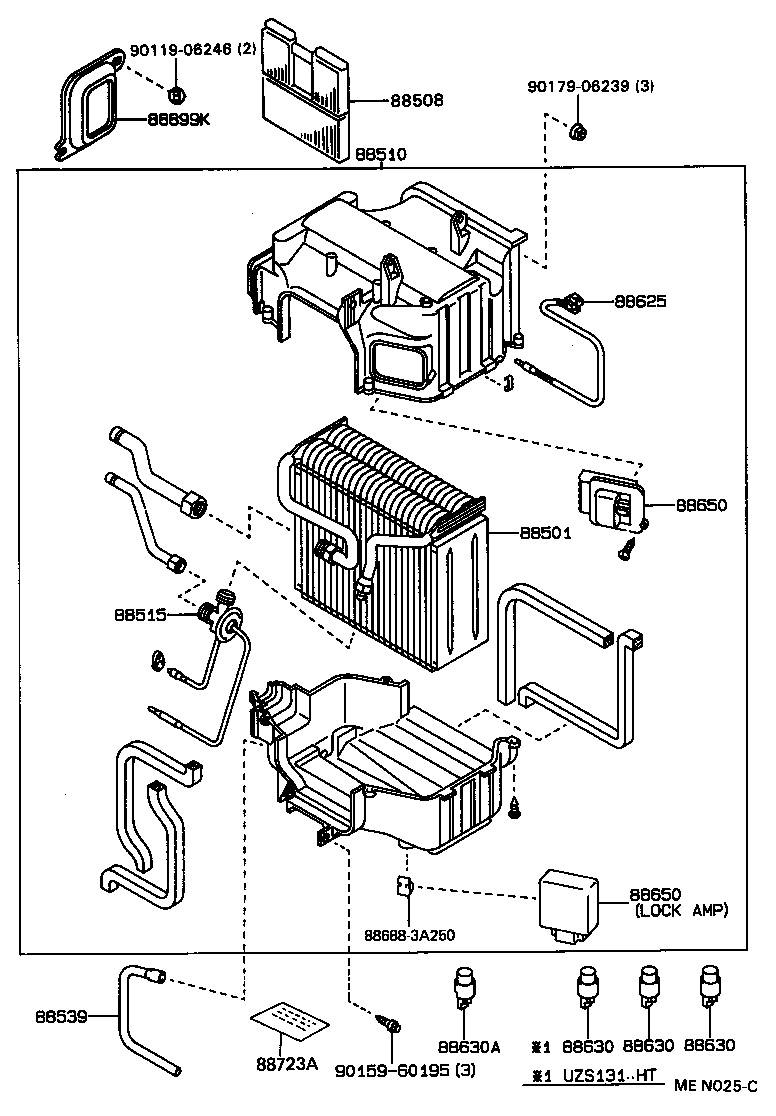

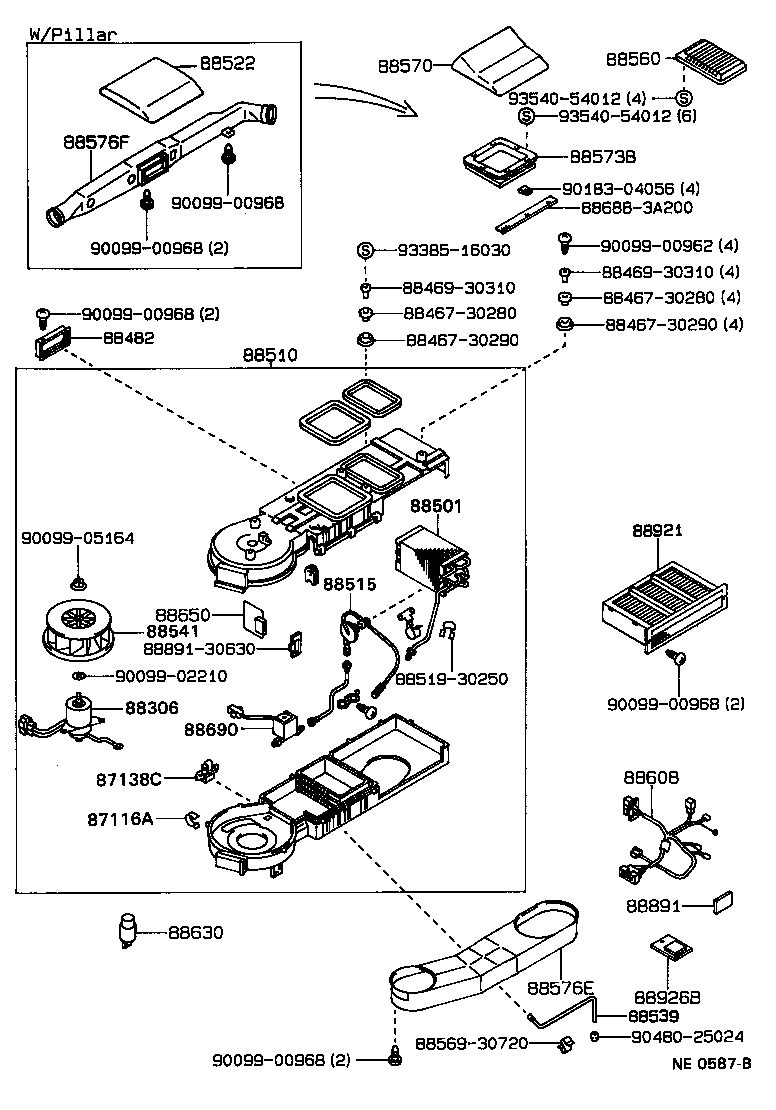

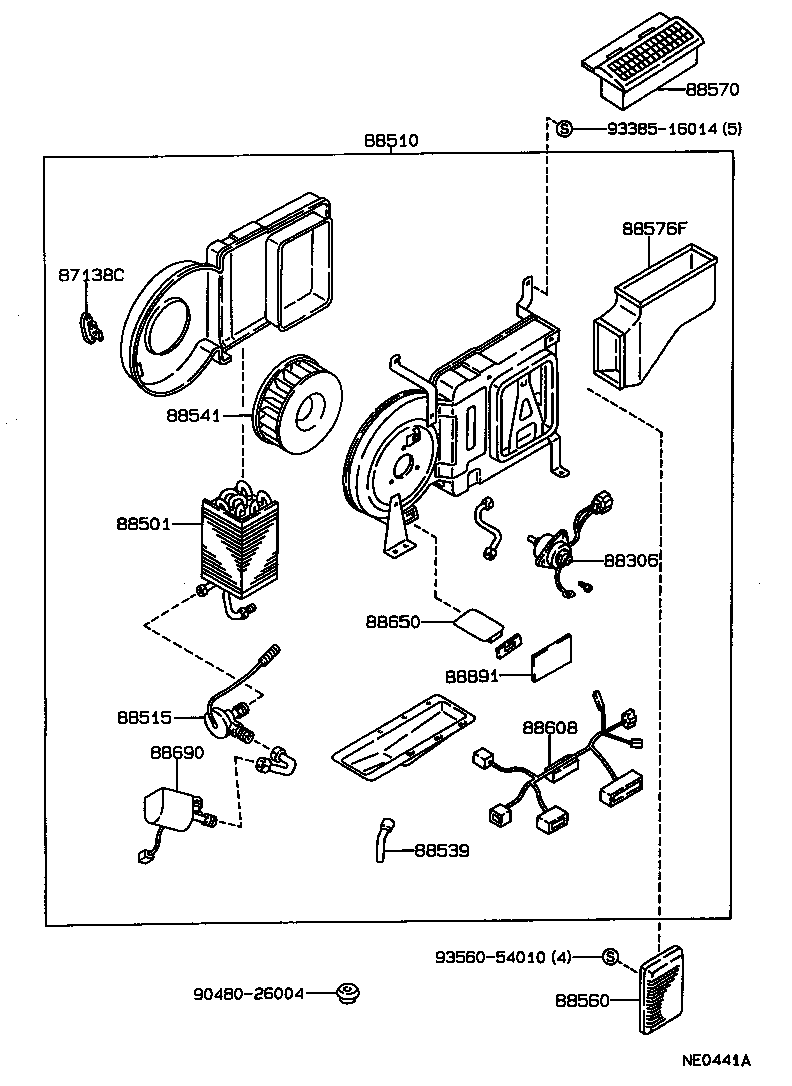

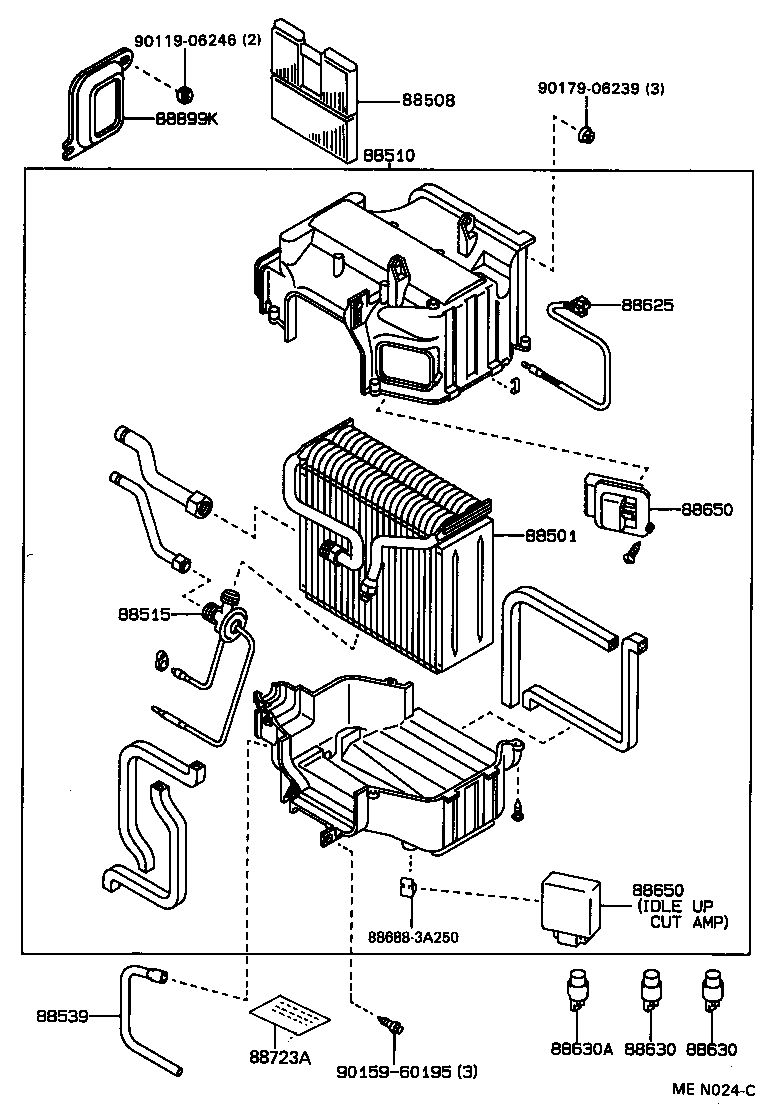

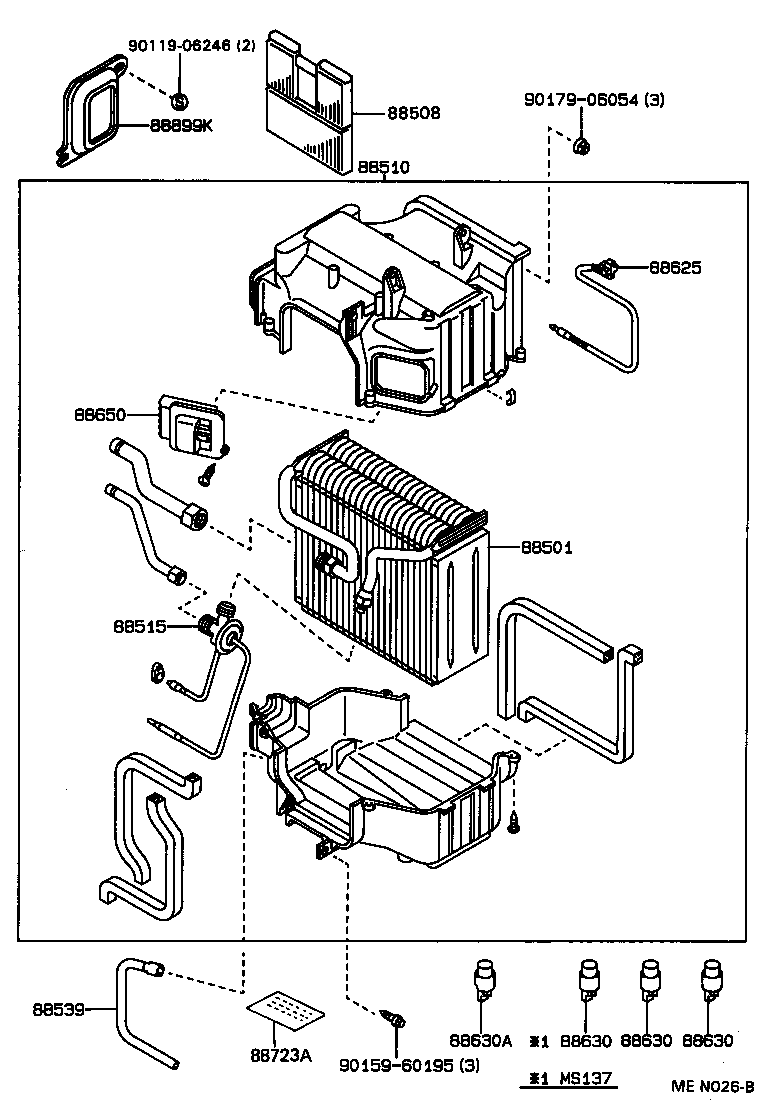

Figure NE0552C NE0552C 1987-09 → — Figure MEN024C MEN024C 1989-08 → — Figure MEN025C MEN025C 1987-09 → — Figure MEN025C MEN025C 1989-08 → — Figure MEN026B MEN026B 1987-09 → — Figure MEN026B MEN026B 1989-08 → — Figure NE0586B NE0586B 1987-09 → 1989-08 Figure NE0586B NE0586B 1989-08 → — Figure NE0592A NE0592A 1987-09 → 1989-08 Figure NE0592A NE0592A 1989-08 → — Figure NE0587B NE0587B 1987-09 → — Figure NE0440D NE0440D 1987-09 → — Figure NE0441A NE0441A 1987-09 → —

Part groups

PNCDescription
87106D Servo Sub-assy, Damper, NO.1
87116A Spring, Holding (FOR COOLER UNIT CASE)
87138C Resistor, Blower
88306 Motor Sub-assy, Cooler Blower, NO.1
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88508 Filter Sub-assy, Clean Air
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88522 Door, Cooling Unit
88539 Hose, Cooler Unit Drain, NO.1
88541 Fan, Blower
88560 Grille Assy, Cooler Air Inlet
88570 Grille Sub-assy, Cooler Air Outlet
88573B Base, Grille
88576E Duct, Cooler Air, NO.1
88576F Duct, Cooler Air, NO.2
88608 Harness Sub-assy, Wiring Air Conditioner
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88650 Amplifier Assy, Cooler Stabilizer
88690 Valve Assy, Cooler Magnet
88723A Label, Cooler Service Caution
88891 Packing (FOR COOLER)
88899K Plate, Cover
88921 Filter, Air Purifier, NO.1
88926B Filter, Air Purifier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
