Toyota Crown
1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan
Discontinued model
Data version 1999-09

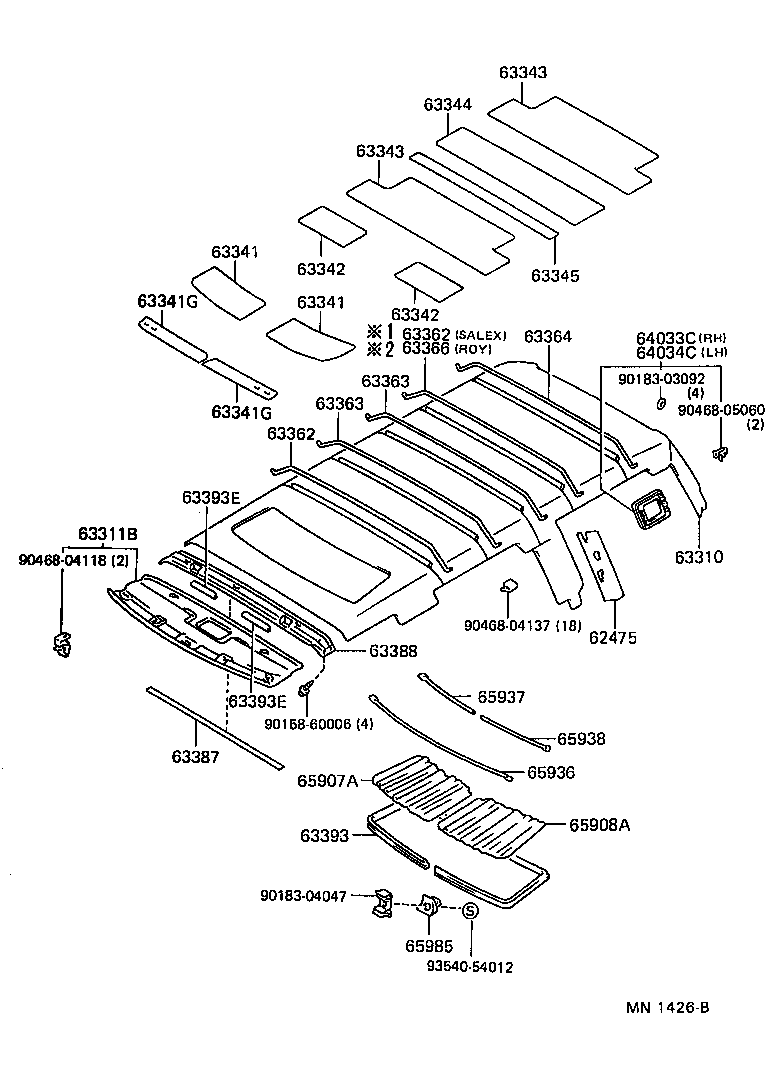

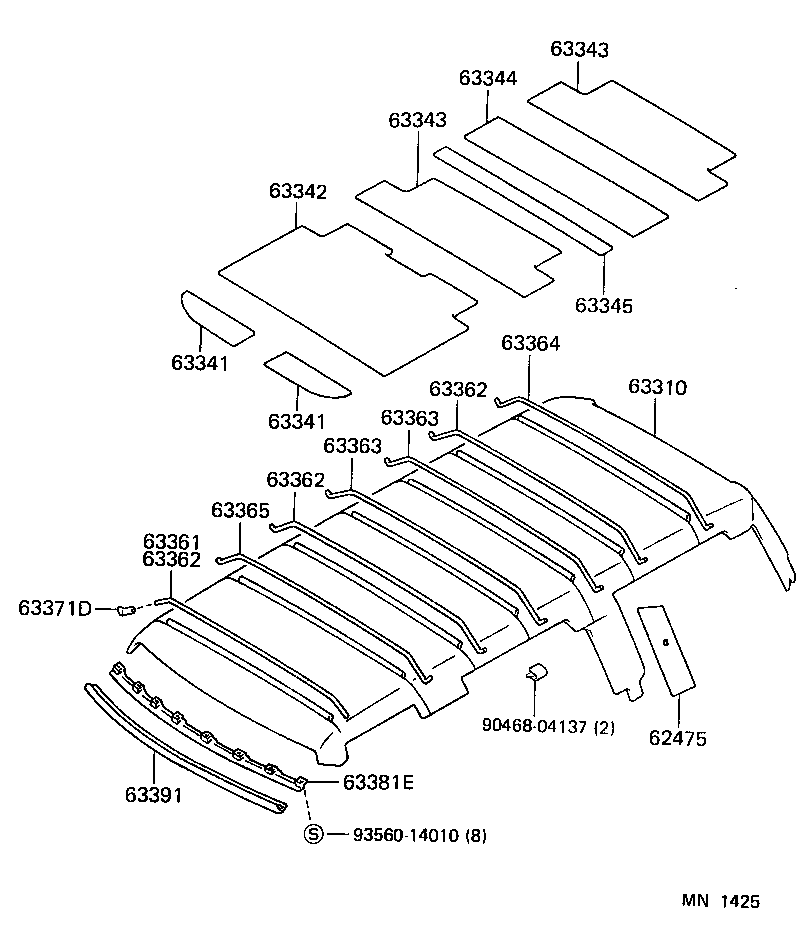

Roof Headlining & Silencer Pad
34 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62475 | Pad, Roof Side Inner Garnish |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63311B | Headlining, Roof, Front |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63341D | Pad, Roof Silencer, Front |
| 63341G | Pad, Roof Silencer |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63344 | Pad, Roof Silencer, NO.4 |
| 63345 | Pad, Roof Silencer, NO.5 |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365 | Support, Roof Headlining, NO.5 |
| 63366 | Support, Roof Headlining, NO.6 |
| 63371D | Retainer, Roof Headlining Support |
| 63381E | Retainer, Roof Headlining Trim, Front |
| 63383C | Retainer, Roof Headlining Trim, Rear |
| 63387 | Pad, Roof Headlining Forming |
| 63388 | Frame, Roof Headlining Forming |
| 63391 | Trim, Roof Headlining, Front |
| 63392 | Trim, Roof Headlining, Rear |
| 63393 | Trim, Roof Headlining, Center |
| 63393E | Trim, Roof Headlining |
| 64033C | Grille Sub-assy, Rear Speaker, RH |
| 64034C | Grille Sub-assy, Rear Speaker, LH |
| 65907A | Curtain Sub-assy, Rear RH |
| 65908A | Curtain Sub-assy, Rear LH |
| 65936 | Rail, Curtain, NO.1 |
| 65937 | Rail, Curtain, NO.2 |
| 65938 | Rail, Curtain, NO.3 |
| 65985 | Holder, Curtain Rail |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
