Toyota Crown

1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan

Discontinued model Data version 1999-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

46 part groups · 14 illustrations

Illustrations

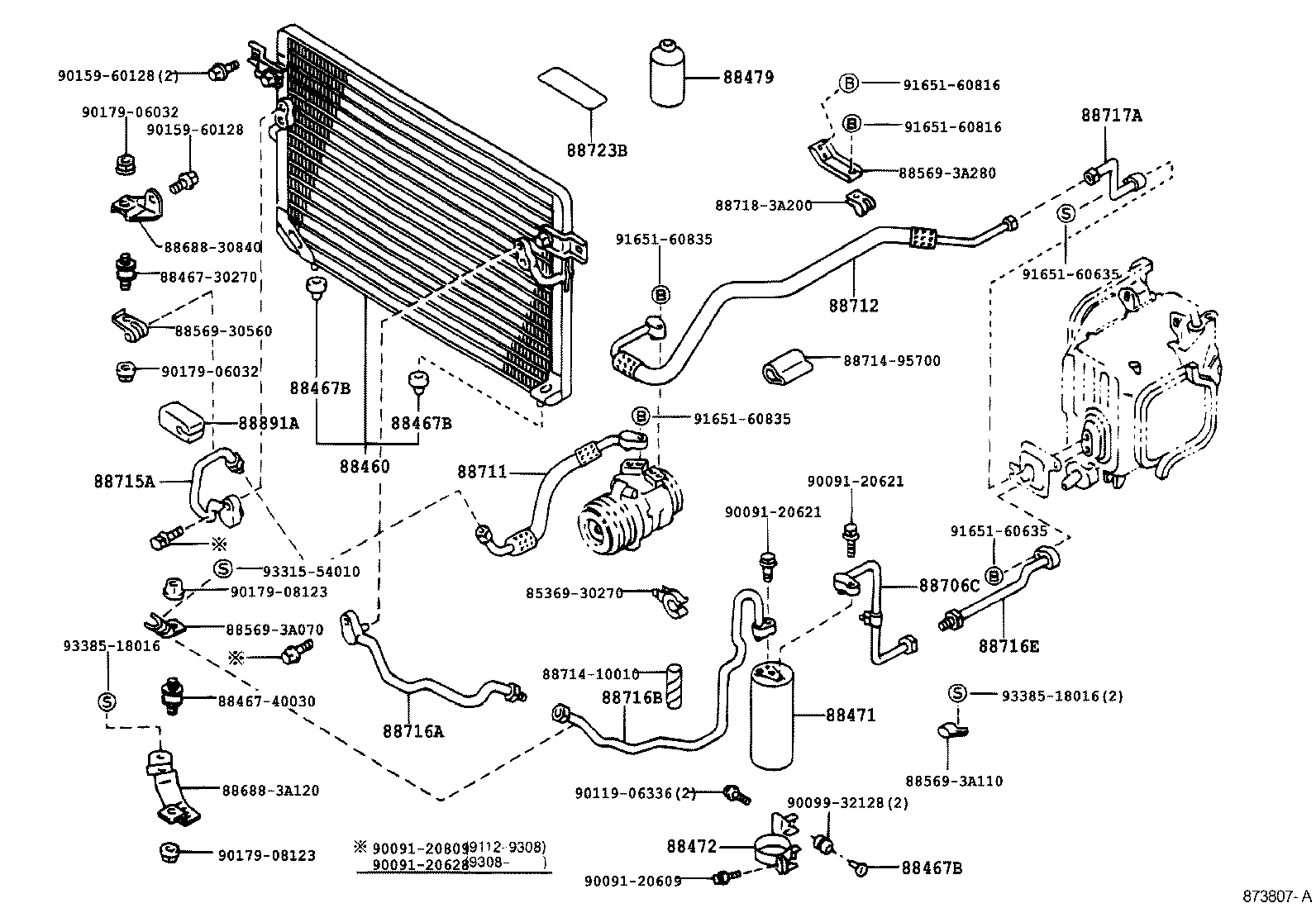

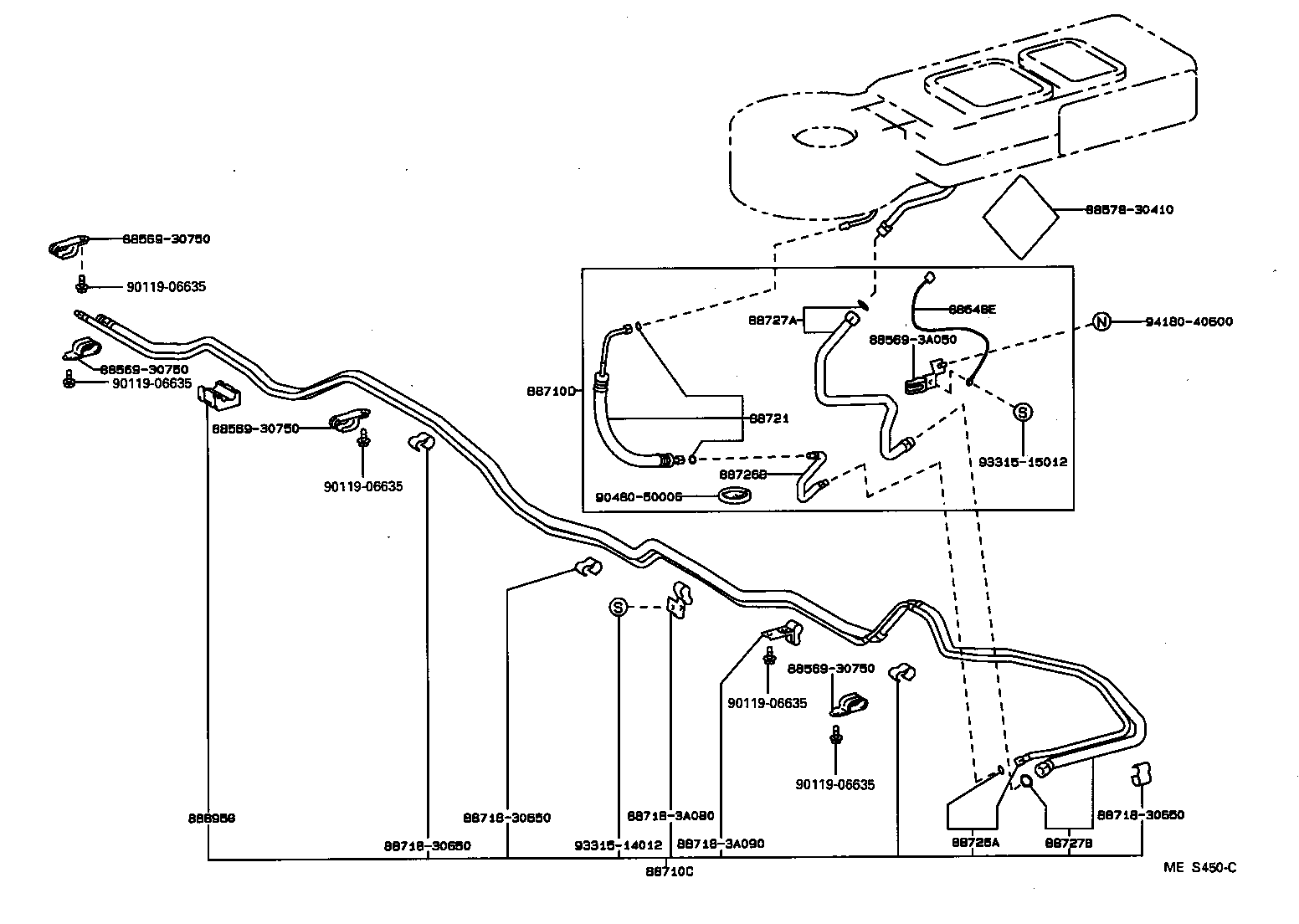

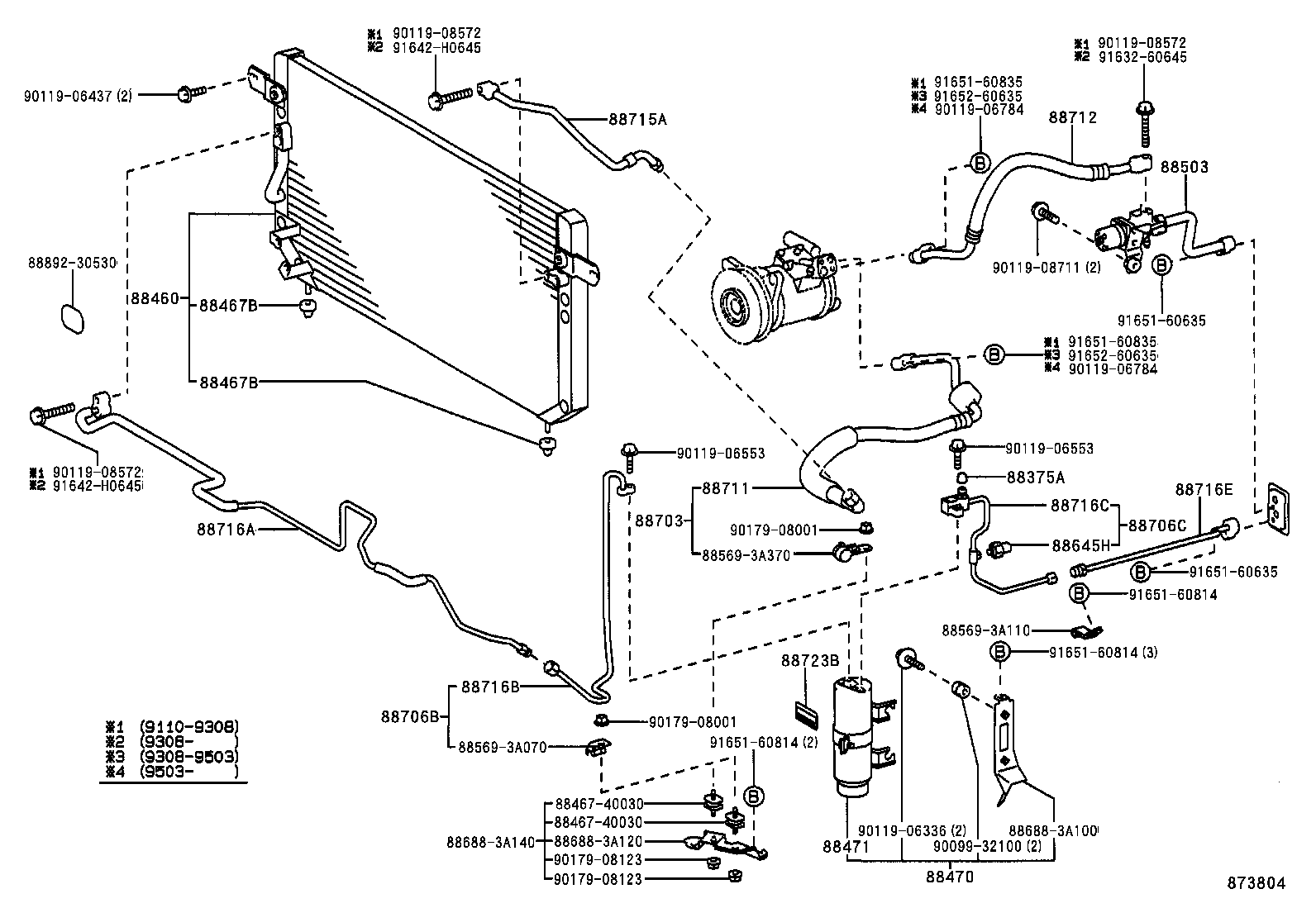

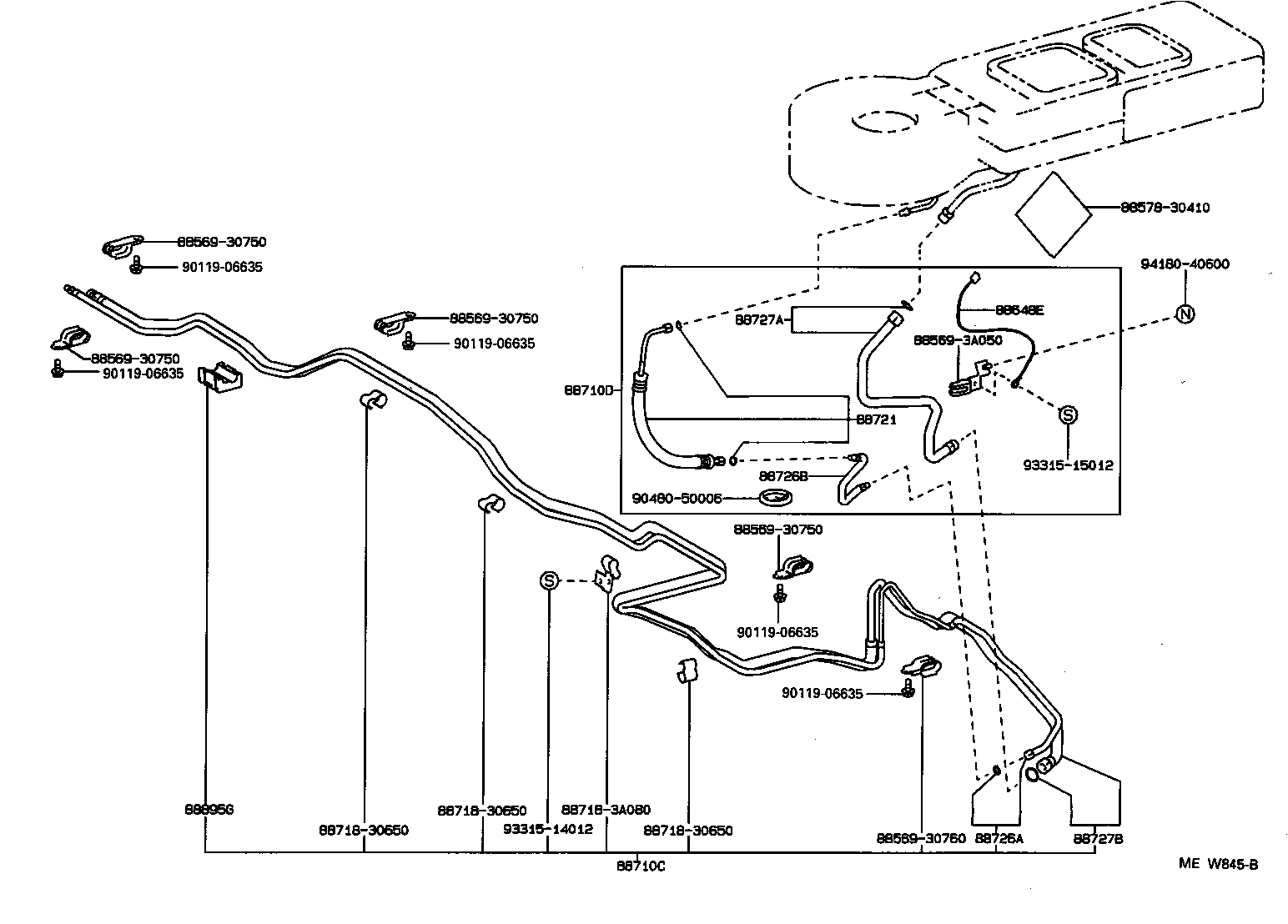

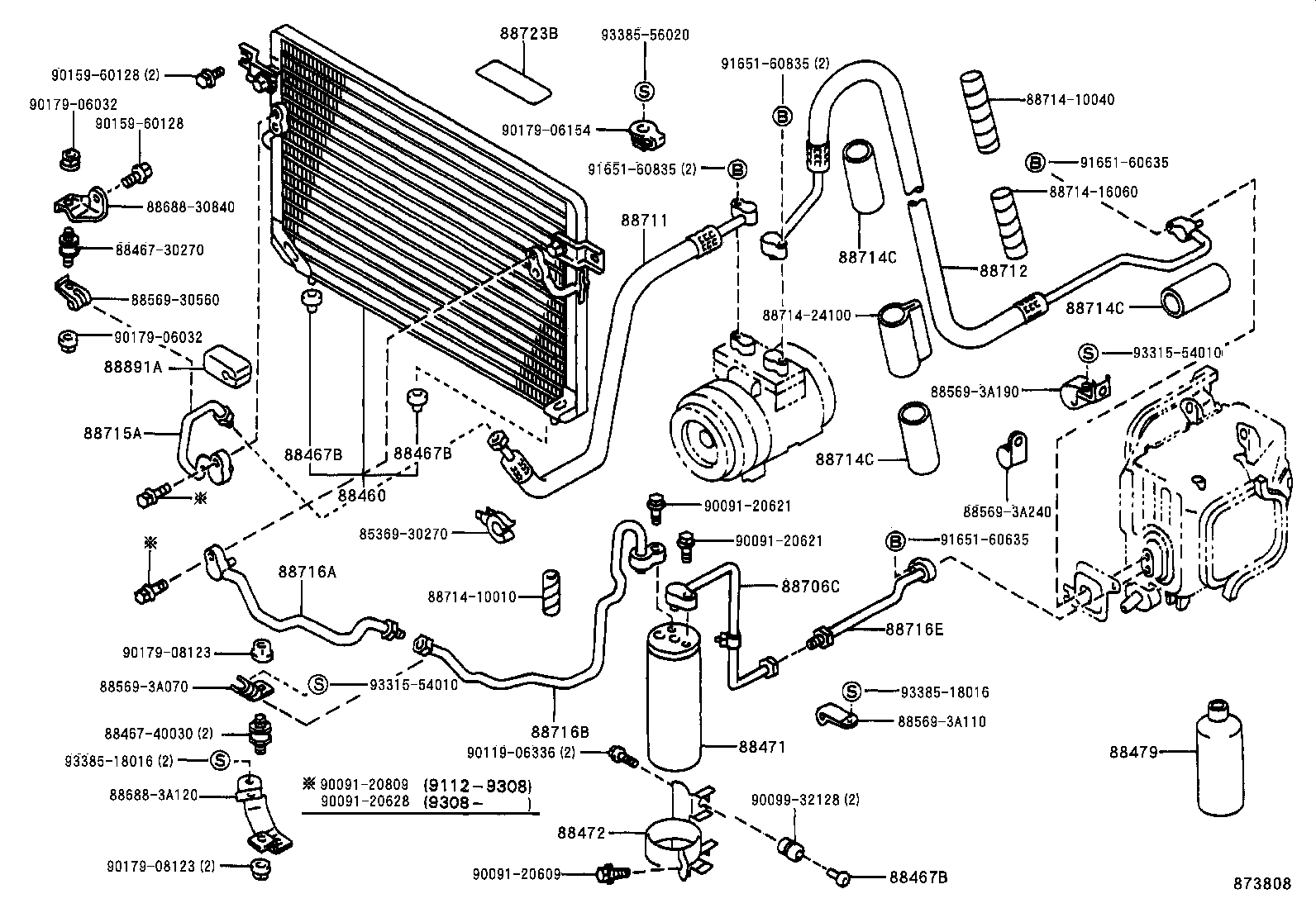

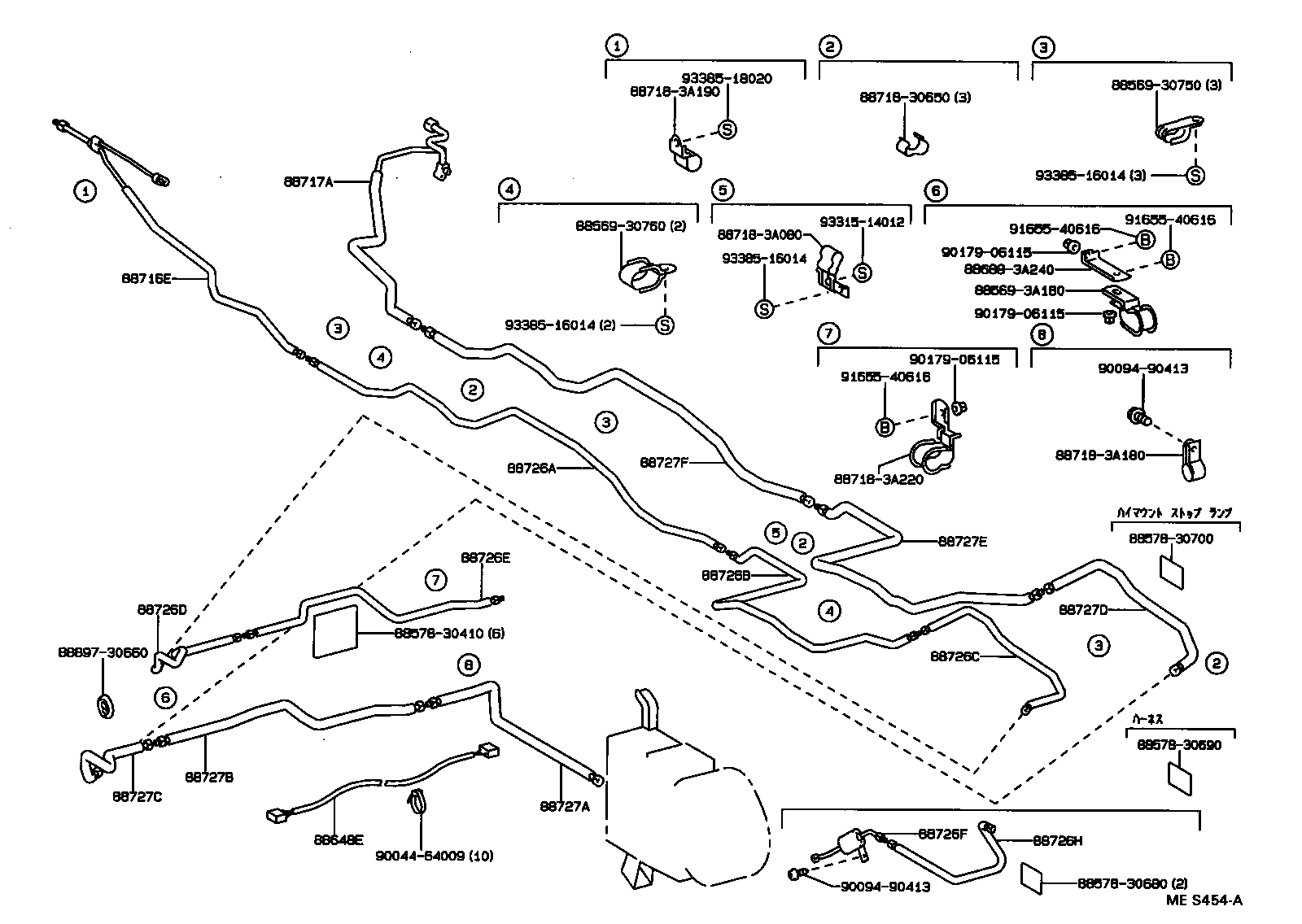

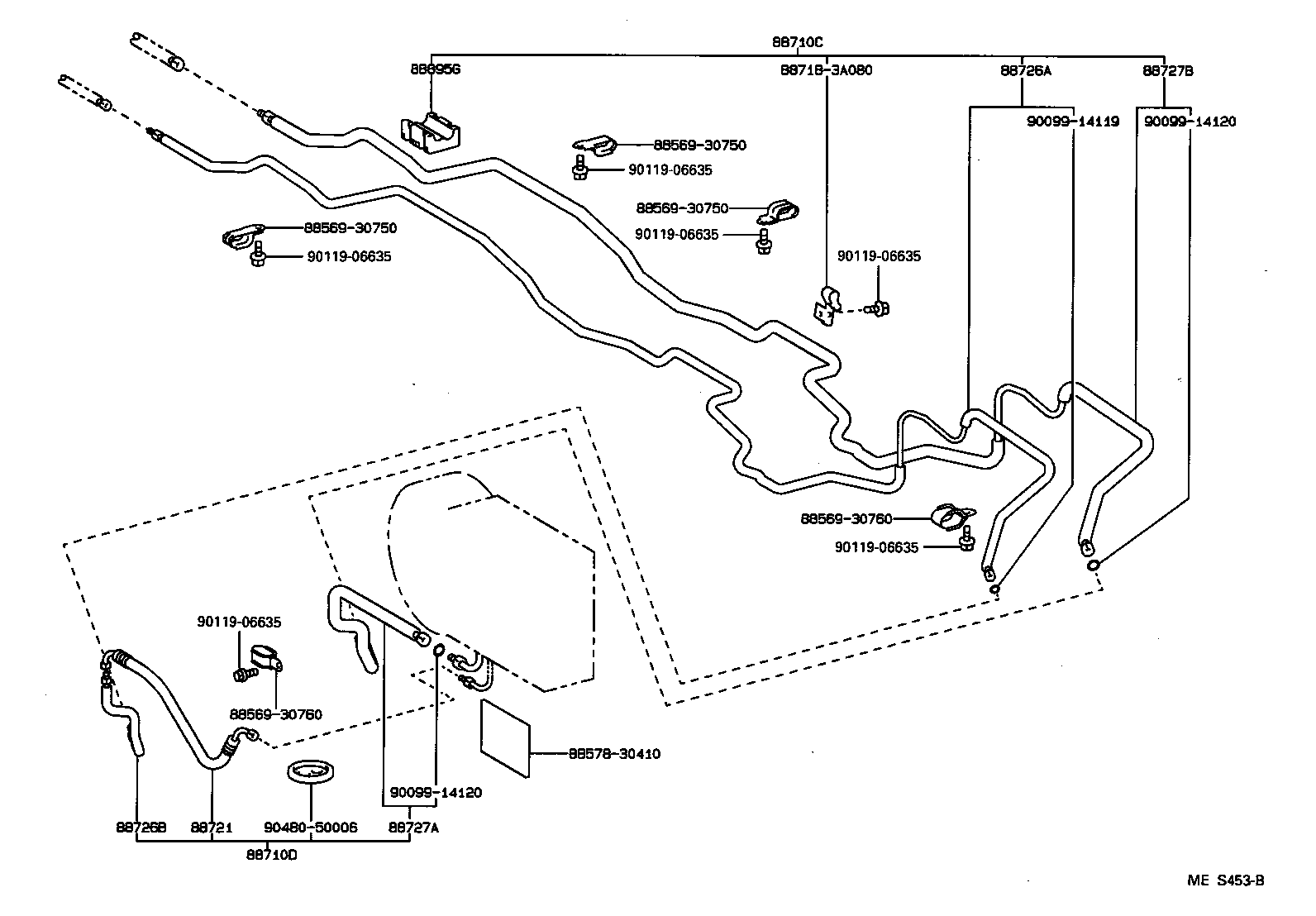

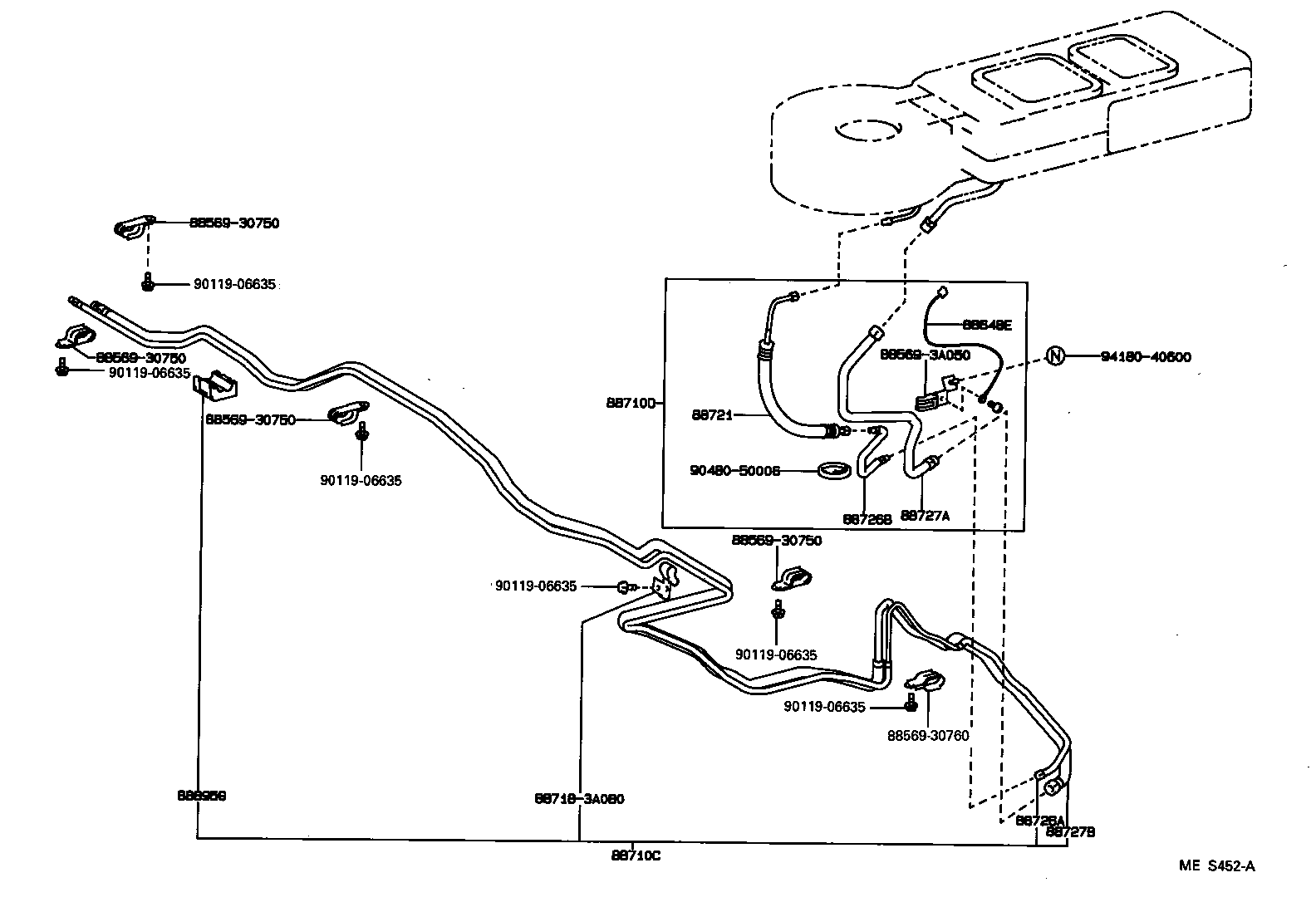

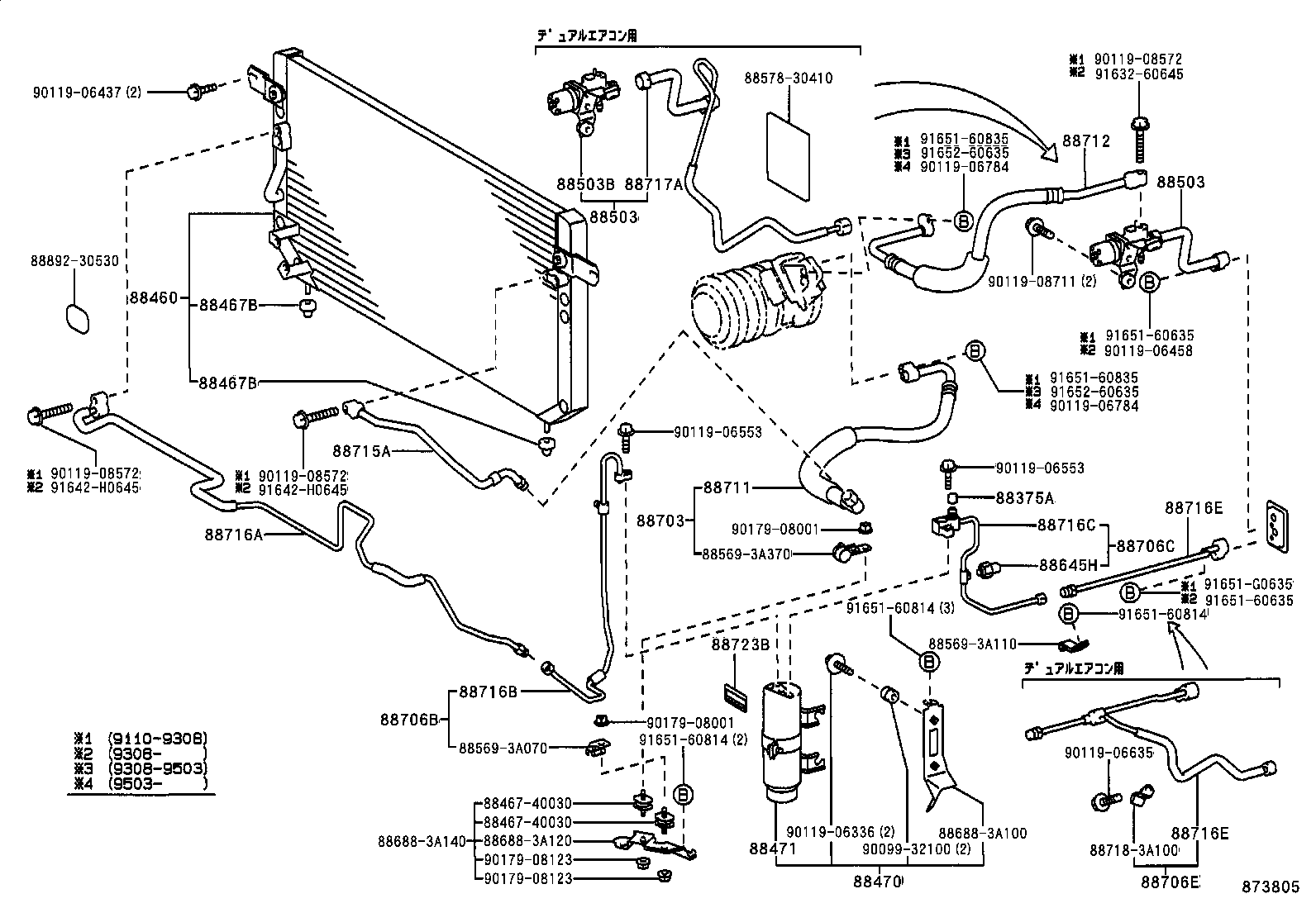

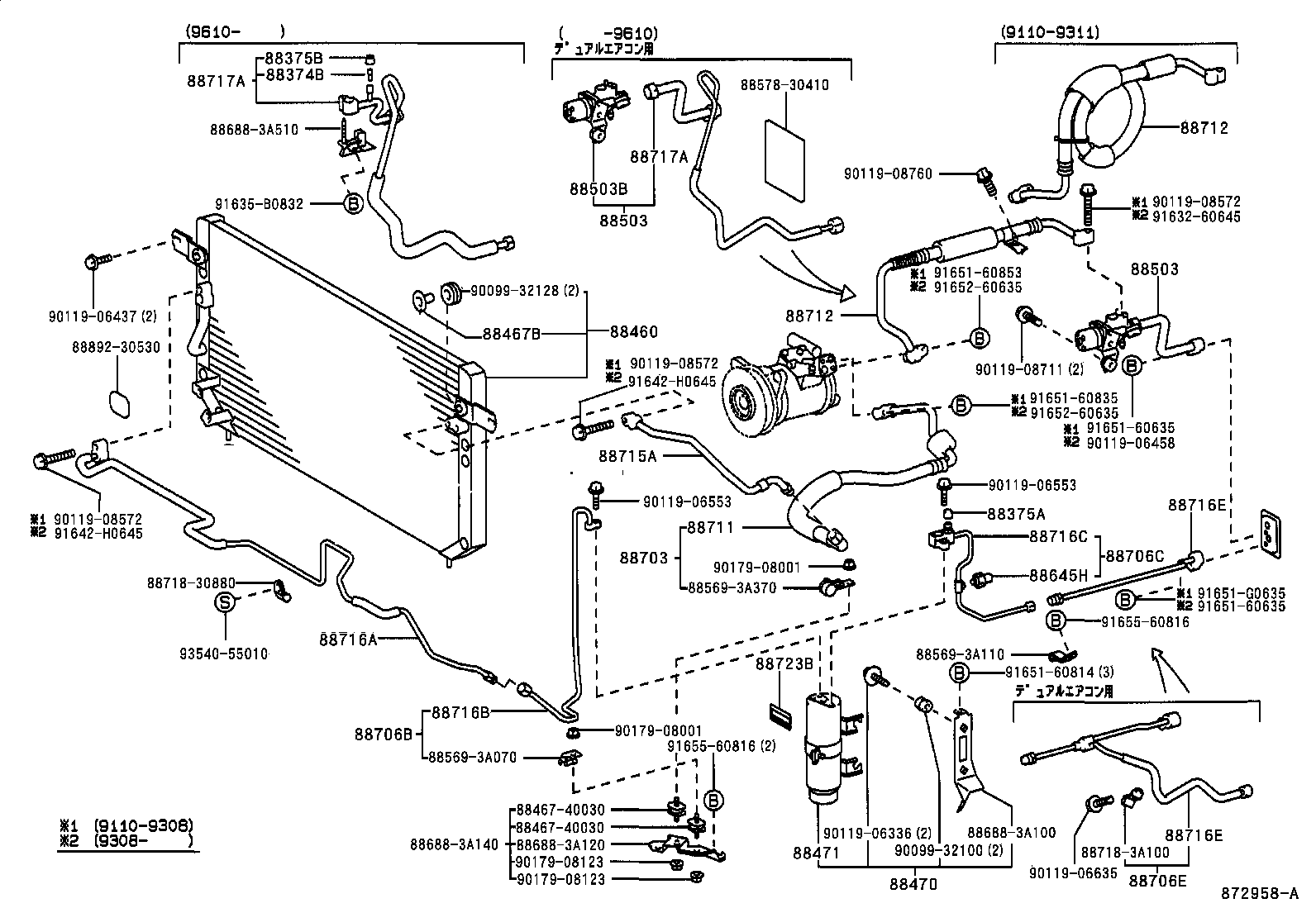

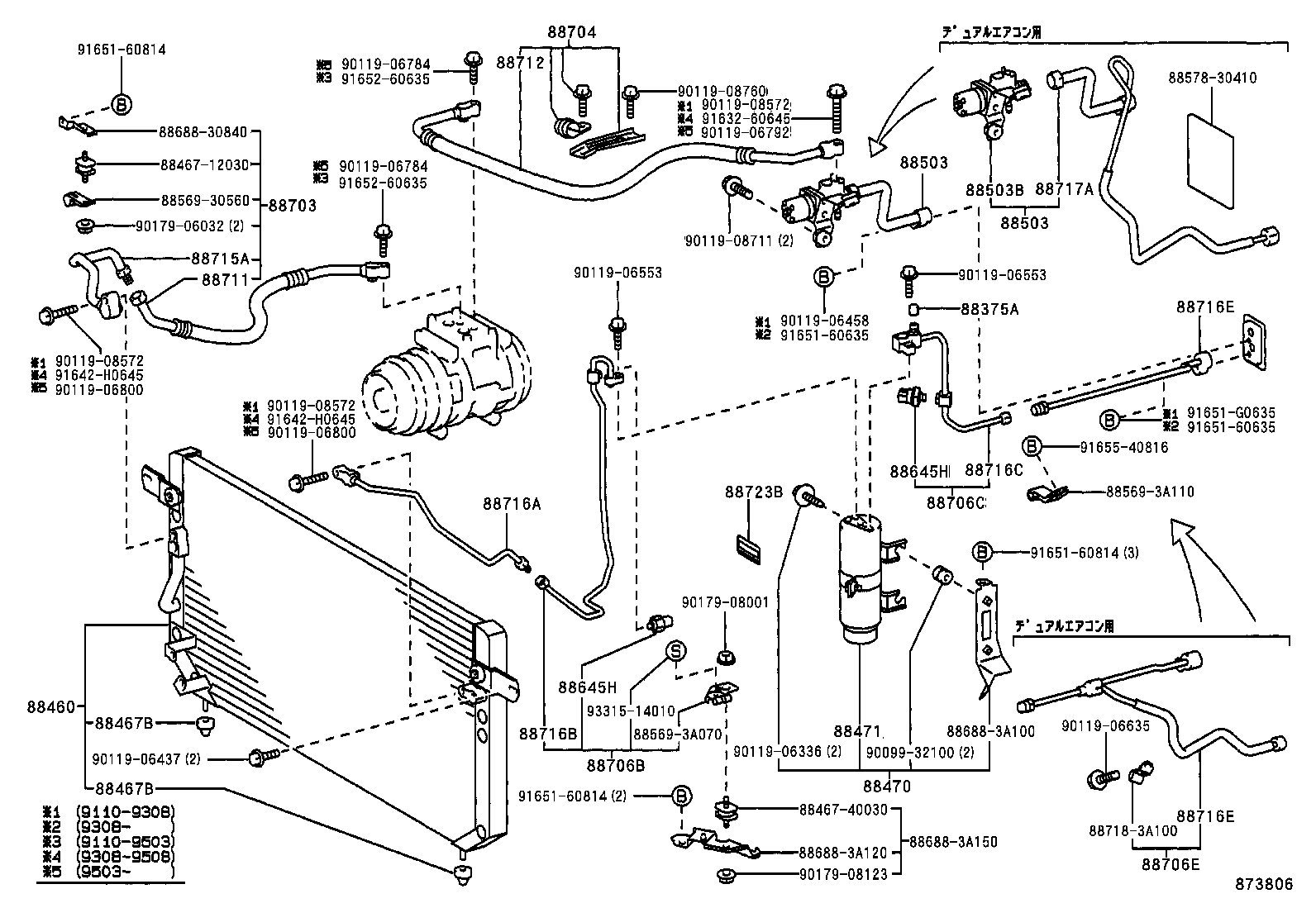

Figure 873803 873803 1991-10 → 1995-12 Figure 873803 873803 1991-10 → — Figure 873804 873804 1991-12 → 1995-12 Figure 873805 873805 1991-10 → — Figure 872958A 872958A 1991-10 → — Figure 873806 873806 1991-10 → — Figure 873807A 873807A 1991-12 → 1994-09 Figure 873808 873808 1991-12 → 1995-12 Figure MES452A MES452A 1991-10 → 1995-12 Figure MES454A MES454A 1991-12 → 1995-12 Figure MES453B MES453B 1991-10 → — Figure MES450C MES450C 1991-10 → — Figure MEW845B MEW845B 1991-10 → 1995-12 Figure 870152 870152 1991-10 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88467B Insulator, Cooler Condenser Mounting
88470 Receiver & Dryer Assy, Cooler
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88503 Regulator Assy, Pressure
88503B Regulator Sub-assy, Pressure
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706B Tube Sub-assy, Liquid, B
88706C Tube Sub-assy, Liquid, C
88706E Tube Sub-assy, Liquid, E
88710C Tube Assy, Air Conditioner
88710D Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714C Insulator, Cooler Refrigerant Hose, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88721 Pipe, Cooler Refrigerant Suction, NO.5
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726C Pipe, Cooler Refrigerant Liquid, C
88726D Pipe, Cooler Refrigerant Liquid, D
88726E Pipe, Cooler Refrigerant Liquid, E
88726F Pipe, Cooler Refrigerant Liquid, F
88726H Pipe, Cooler Refrigerant Liquid, H
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88727C Pipe, Cooler Refrigerant Suction, C
88727D Pipe, Cooler Refrigerant Suction, D
88727E Pipe, Cooler Refrigerant Suction, E
88727F Pipe, Cooler Refrigerant Suction, F
88891A Packing A (FOR COOLER)
88895G Bush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
