Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

65 part groups · 14 illustrations

Illustrations

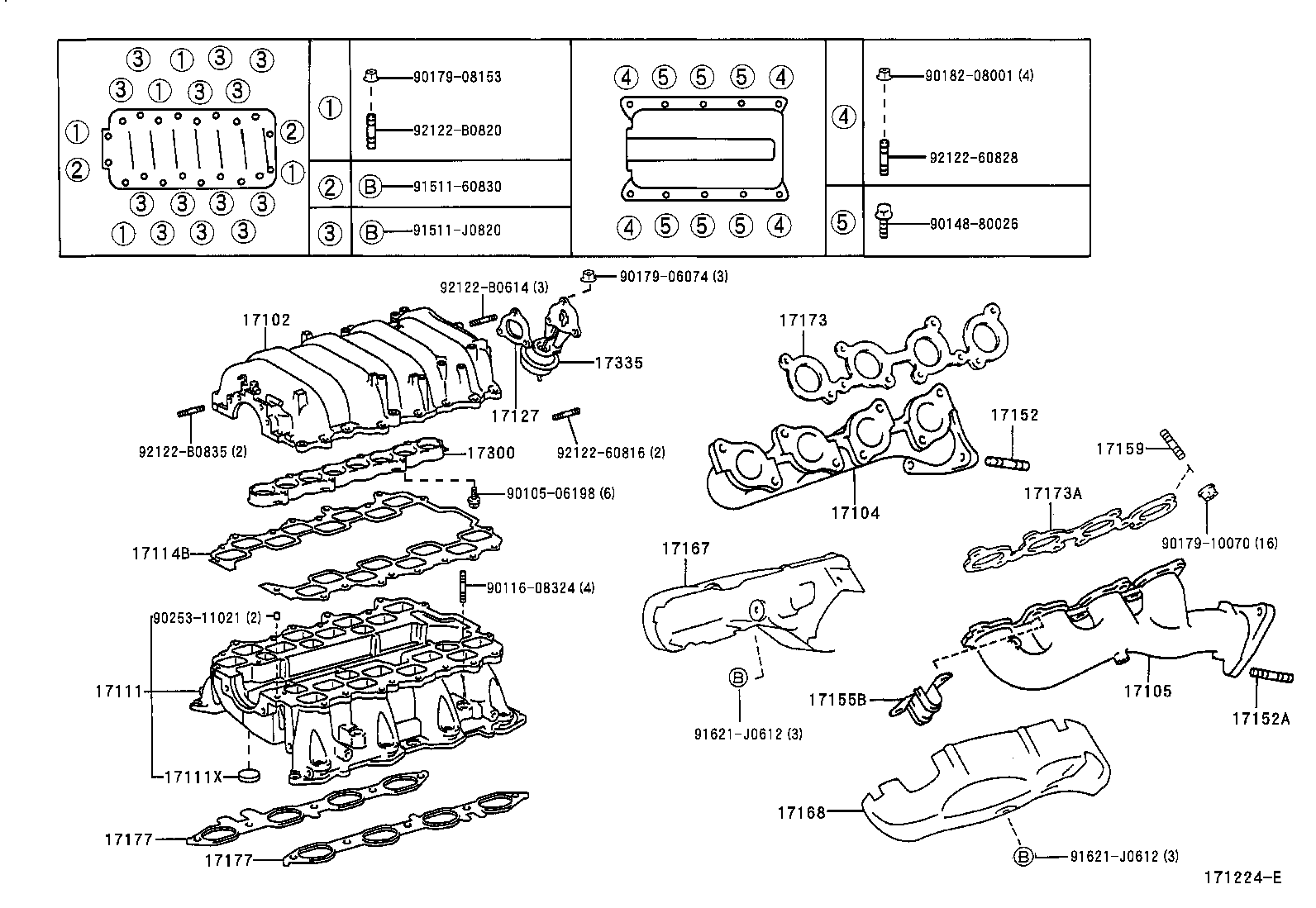

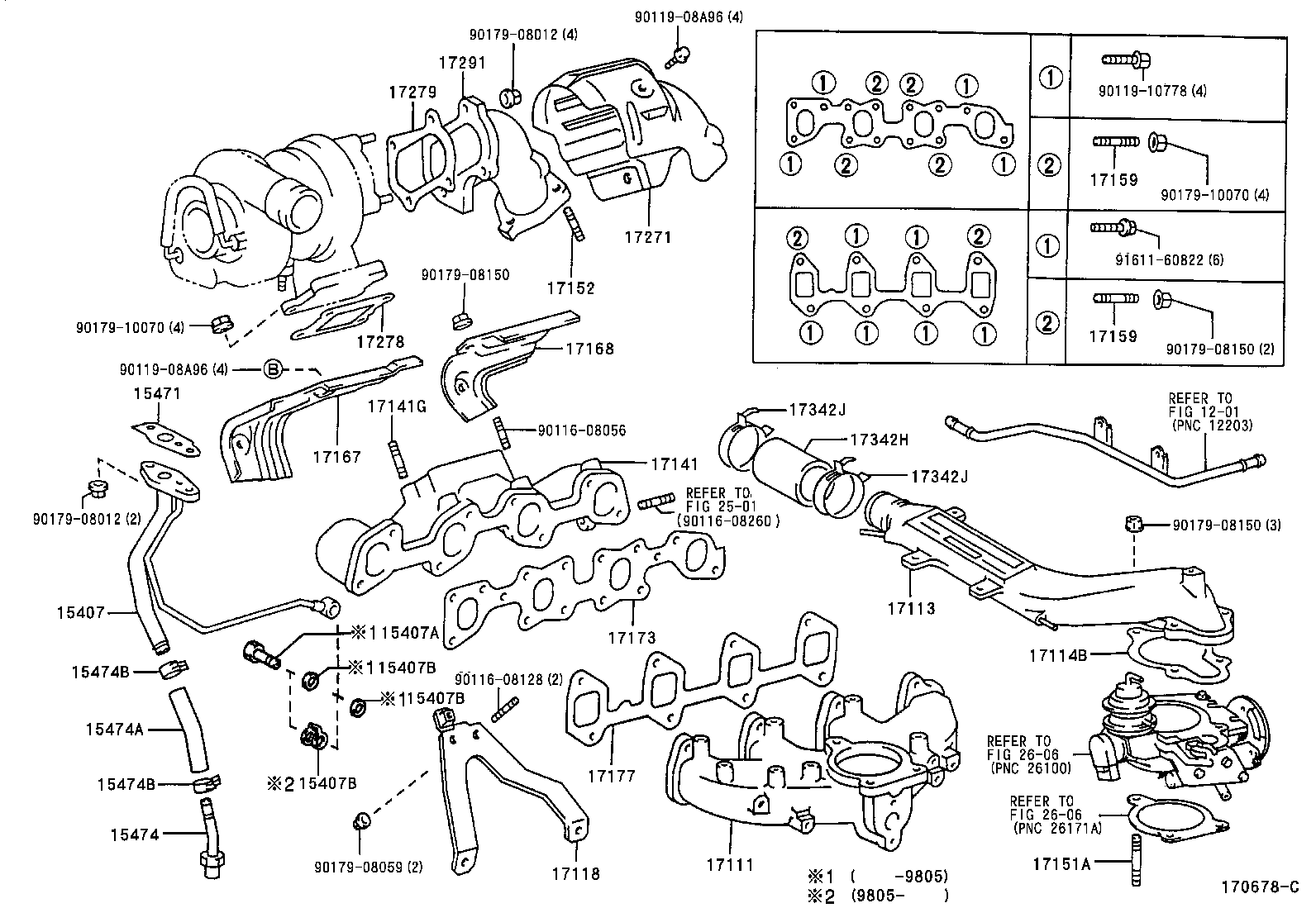

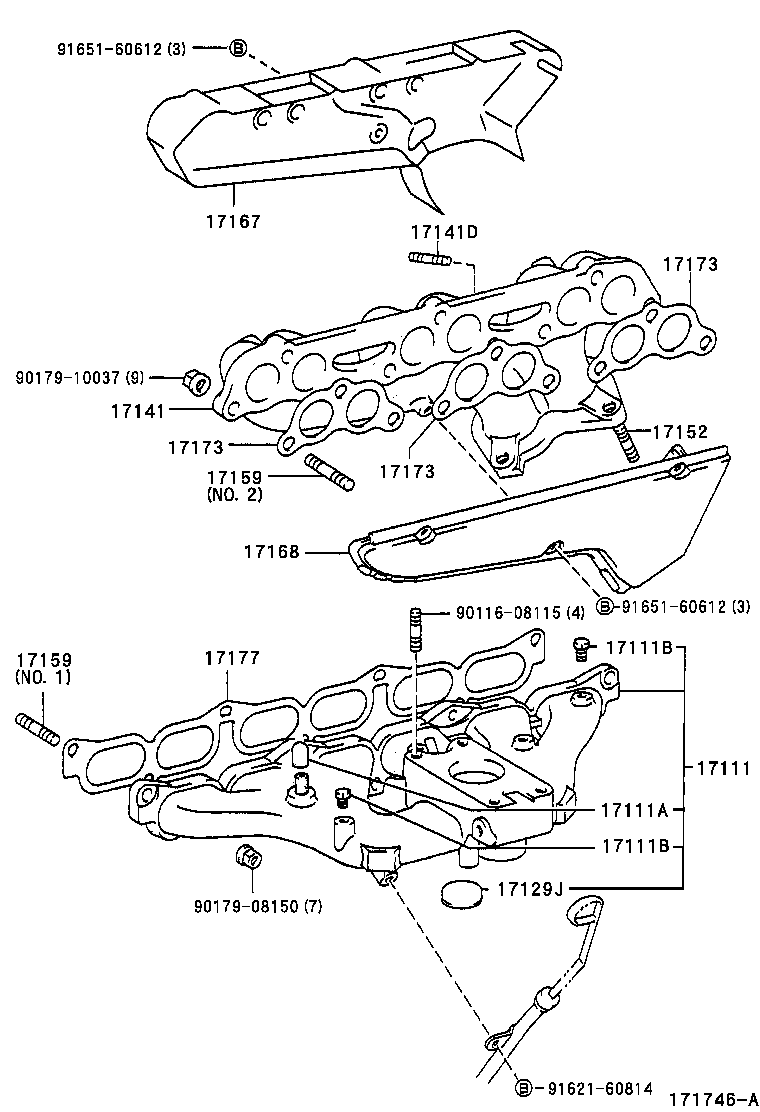

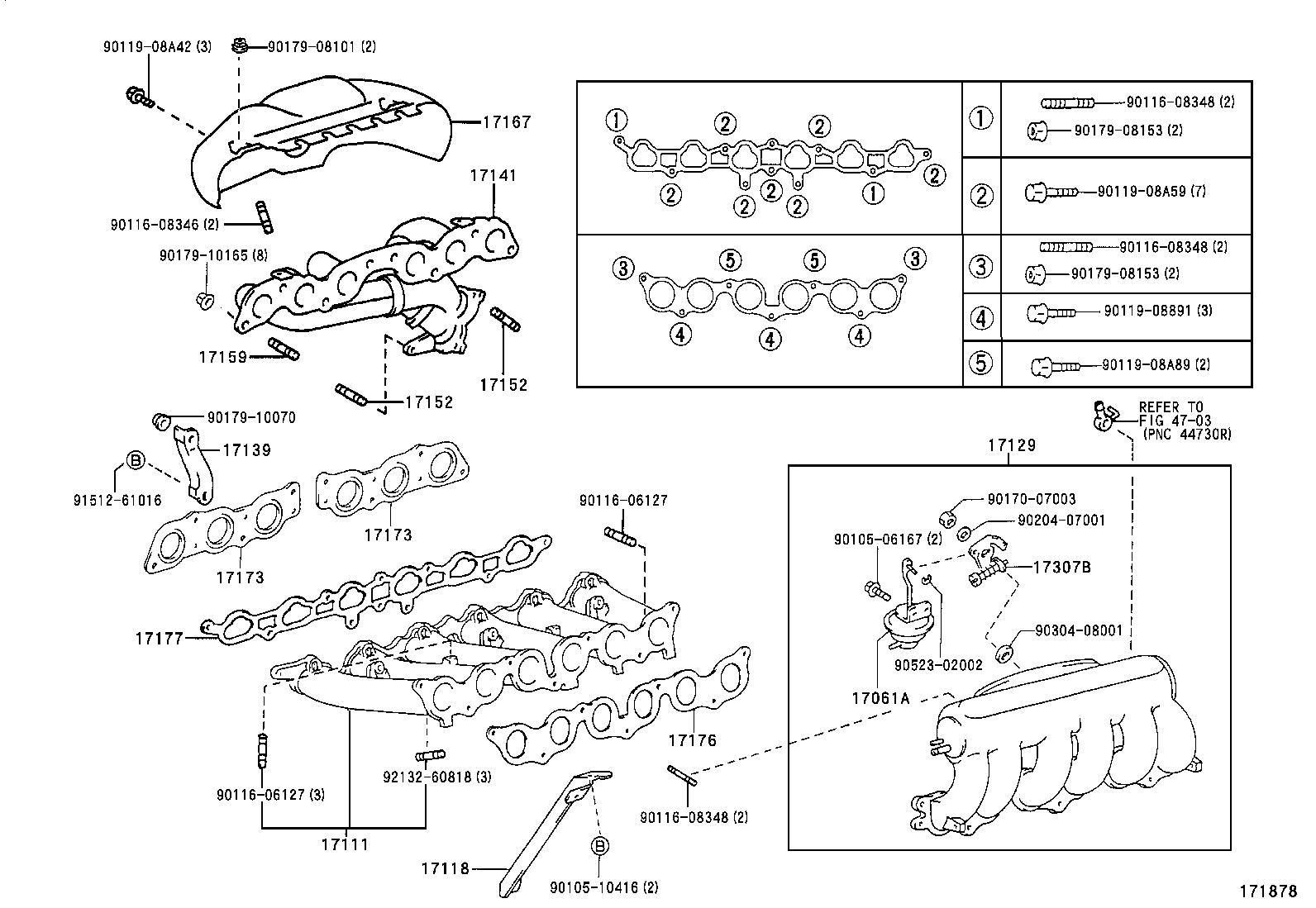

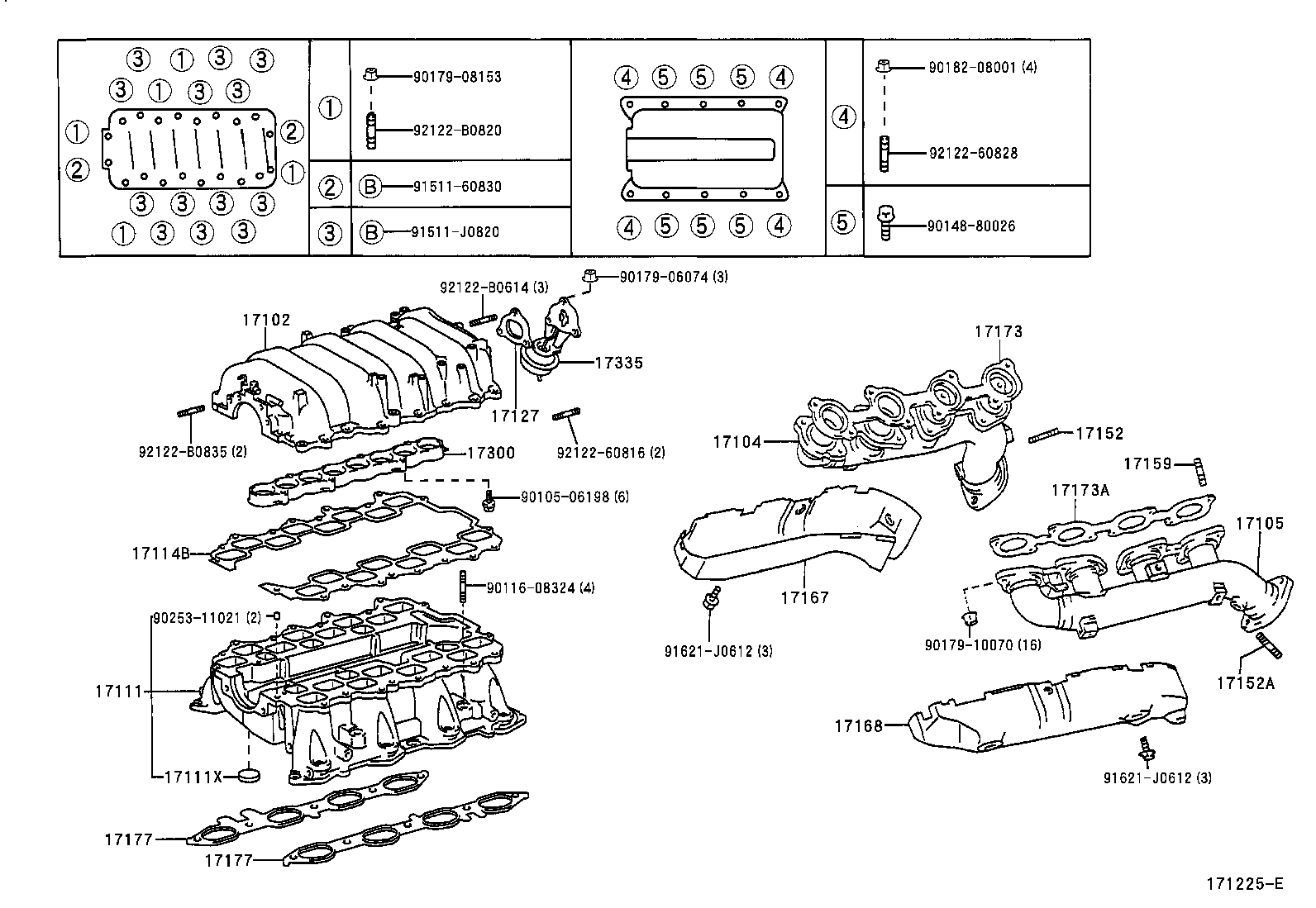

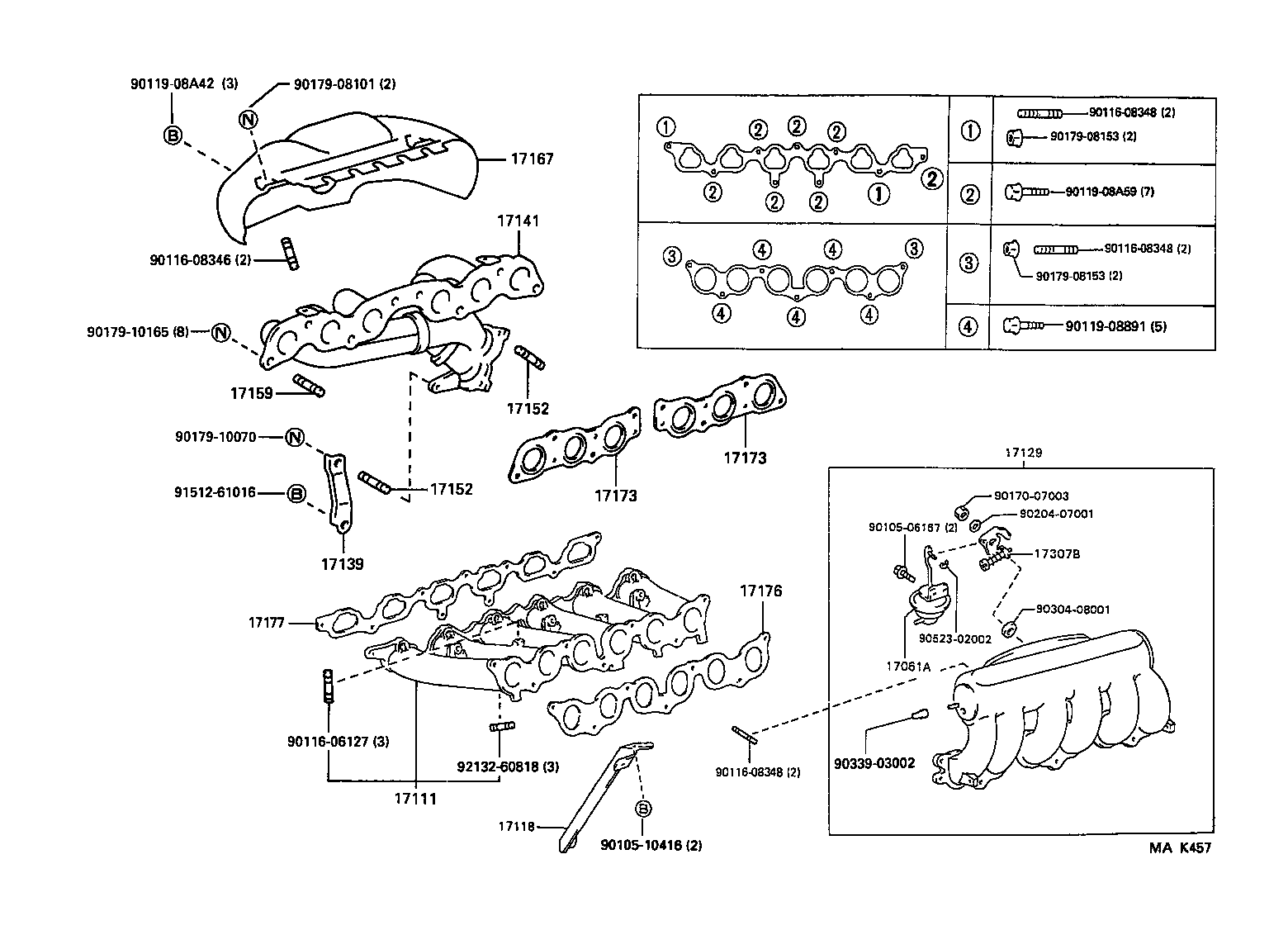

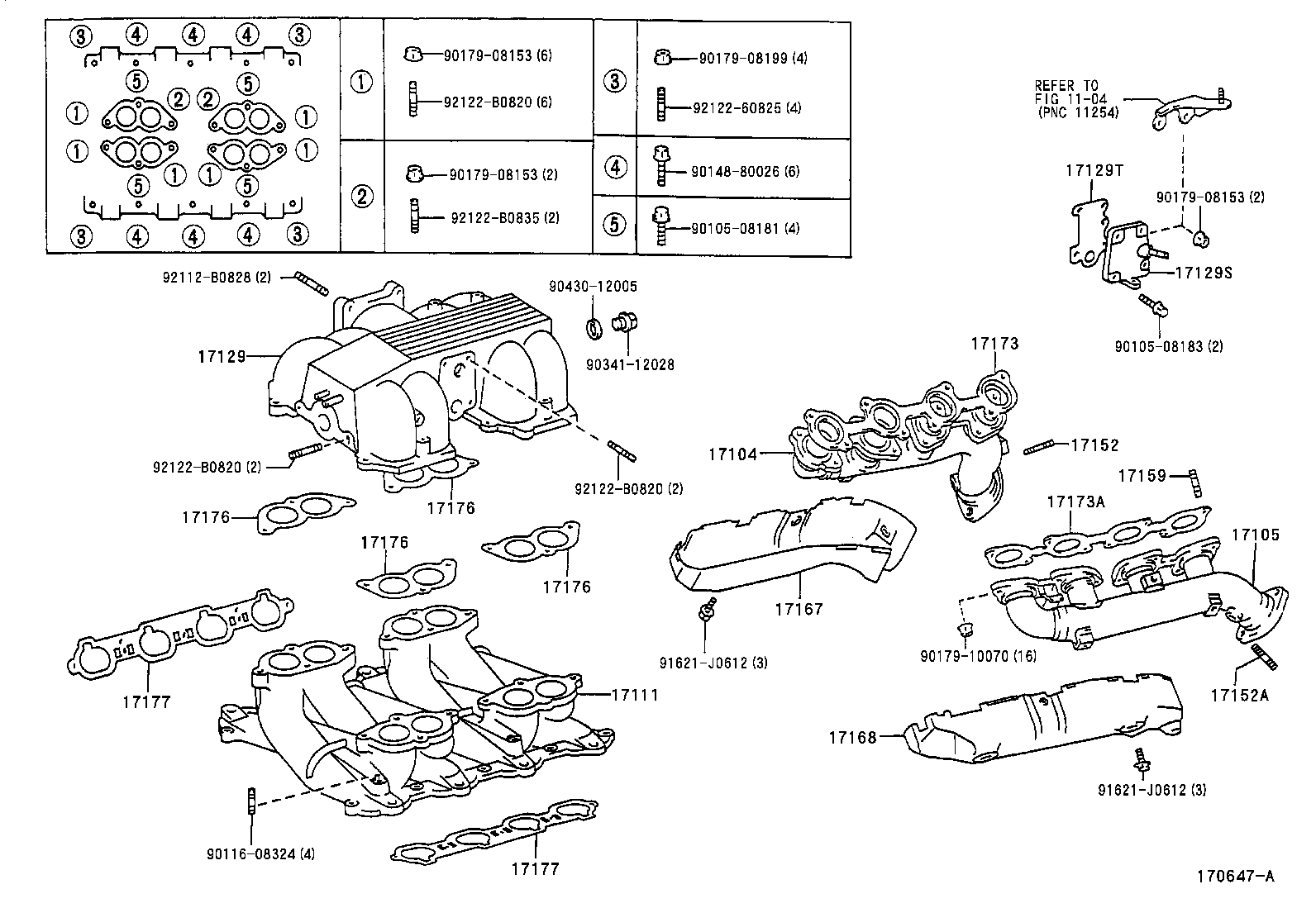

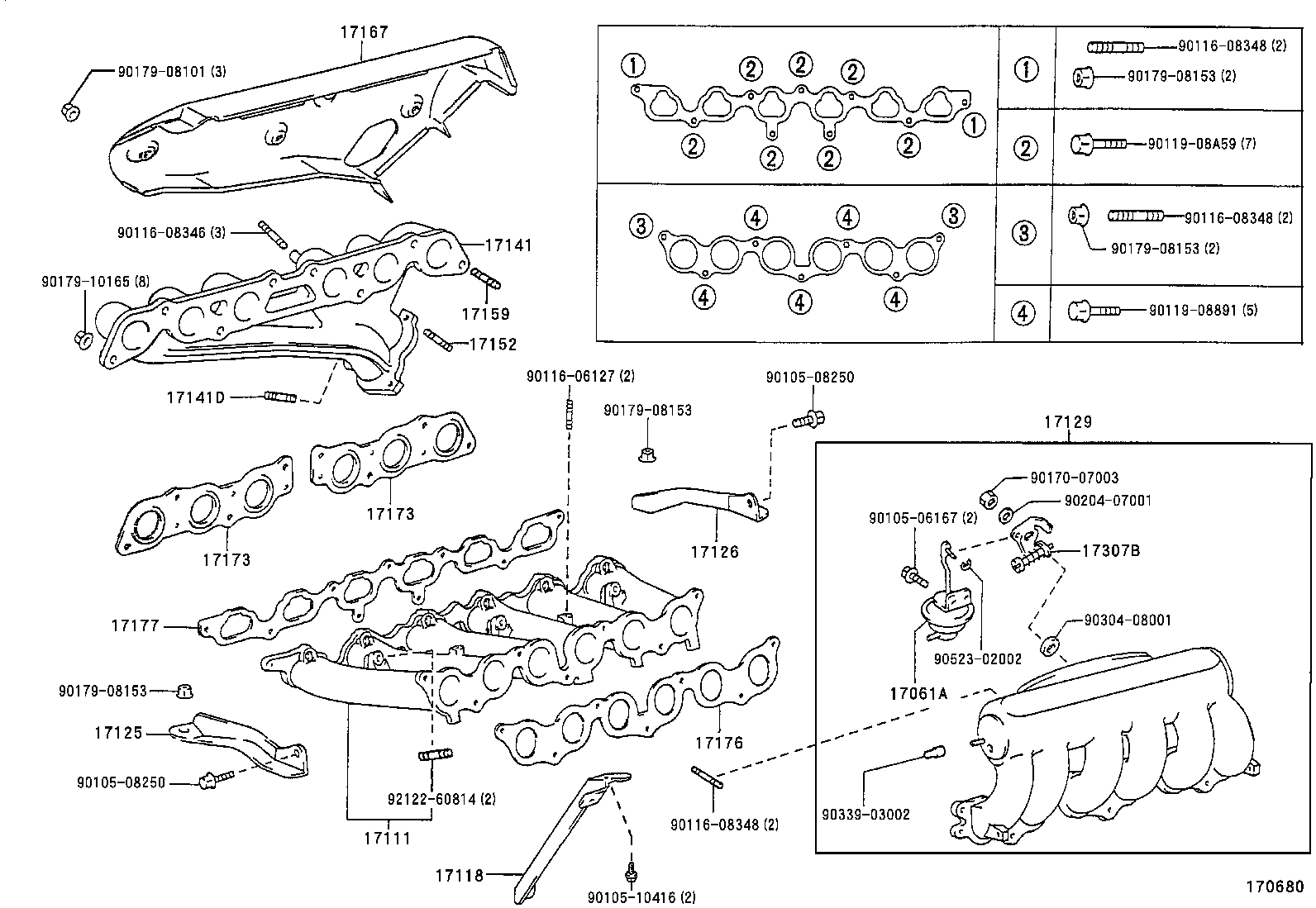

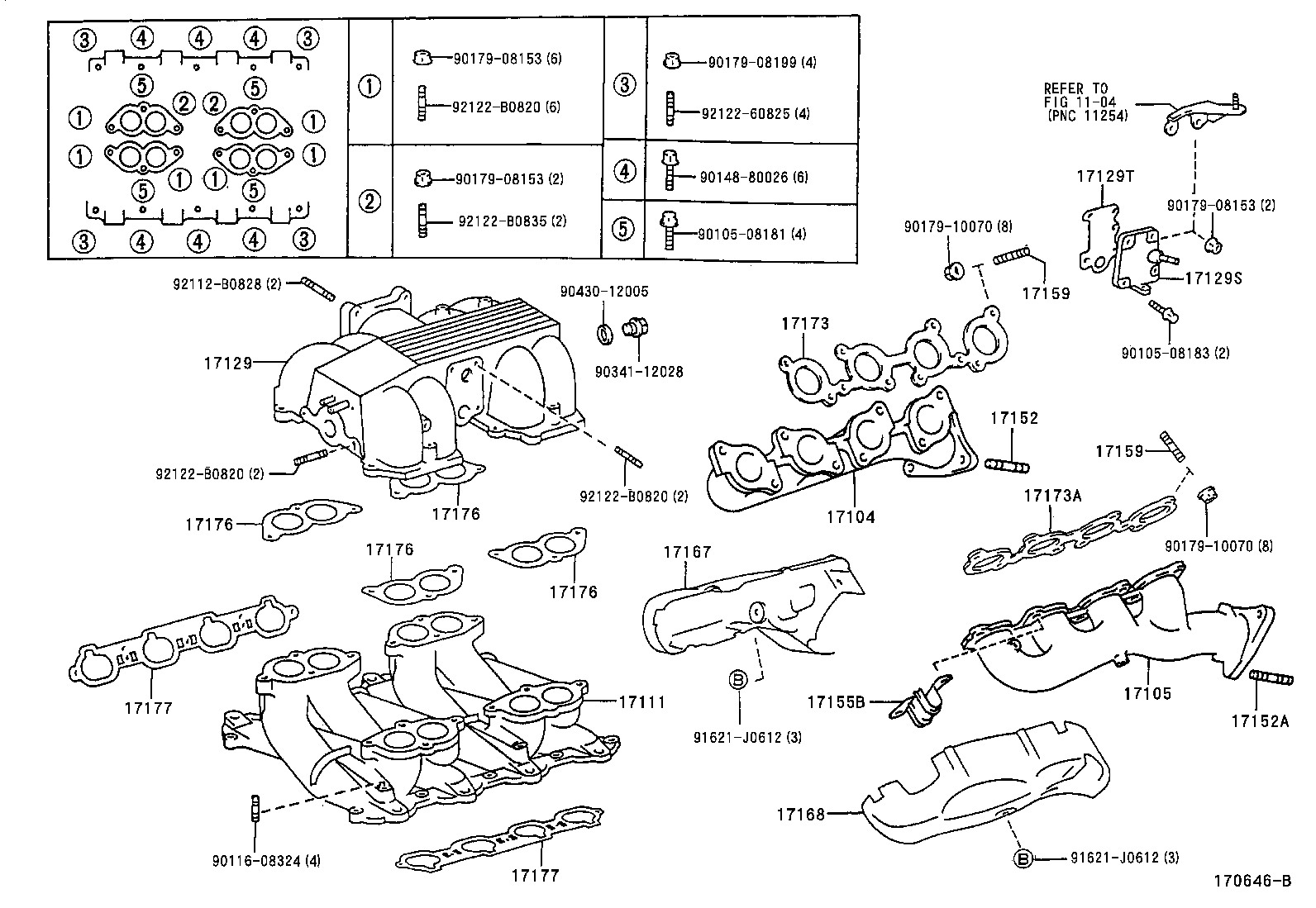

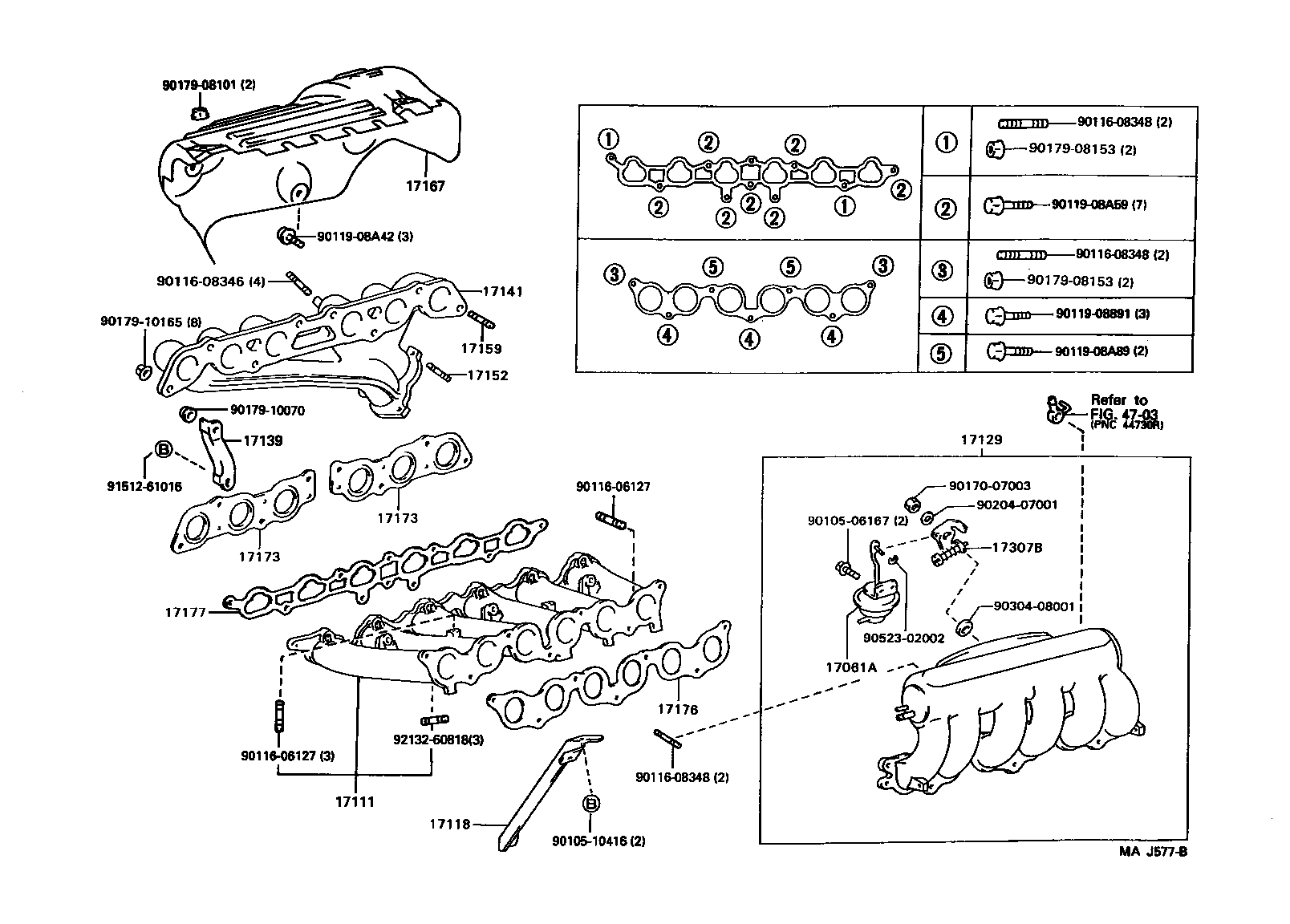

Figure 171745A 171745A 1995-08 → 1998-08 Figure 171789B 171789B 1998-08 → — Figure 171746A 171746A 1995-12 → 2001-02 Figure 170680 170680 1995-08 → 1996-09 Figure MAK457 MAK457 1996-09 → — Figure 171878 171878 1997-11 → 1998-08 Figure MAJ577B MAJ577B 1995-08 → — Figure 171876 171876 1998-08 → — Figure 170678C 170678C 1995-08 → 1999-09 Figure MAJ504A MAJ504A 1995-08 → 1999-09 Figure 170646B 170646B 1995-08 → 1997-07 Figure 171224E 171224E 1997-07 → — Figure 170647A 170647A 1995-08 → 1997-07 Figure 171225E 171225E 1997-07 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
04176 Seal Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
17021 Housing Sub-assy, Bearing
17021A Bolt, Stud(FOR BEARING HOUSING)
17021C Ring, Hole Snap(FOR BEARING HOUSING)
17025A Bolt, Stud(FOR TURBINE HOUSING)
17061A Diaphragm Sub-assy
17102 Manifold Sub-assy, Intake, Upper
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17110A Union, Vacuum Hose
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111X Plug, Tight NO.1(FOR INTAKE MANIFOLD)
17113 Pipe, Intake
17114B Gasket, Intake Flange
17118 Stay, Manifold
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17127 Gasket, Surge Tank Cover
17129 Tank, Intake Air Surge
17129J Plug, Tight(FOR INTAKE AIR SURGE TANK)
17129S Plate(FOR INTAKE AIR SURGE TANK)
17129T Gasket(FOR INTAKE AIR SURGE TANK)
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141G Bolt, Stud(FOR TURBOCHARGER)
17151A Bolt, Stud(FOR MANIFOLD TO VENTURI)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17152A Bolt,Stud(FOR MANIFOLD TO EXHAUST PIPE)
17155B Insulator, Exhaust Manifold Heat, NO.5
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17201 Turbocharger Sub-assy
17224 Housing, Compressor
17229 Band, V
17230A Repair Actuaor Assy, W/Bracket
17230B Washer, Plate(FOR REPAIR ACTUATOR SET)
17230C Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
17271 Insulator, Turbo, NO.1
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17291 Elbow, Turbine Outlet
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17300 Valve Assy, Intake Air Control
17307B Lever Sub-assy, Intake Air Control
17315A Gasket, Intake Air Control Valve
17335 Actuator, Intake Air Control Valve
17342H Hose, Air, NO.2(FOR TURBOCHARGER)
17342J Clip, Hose(FOR INTAKE PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
