Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

77 part groups · 27 illustrations

Illustrations

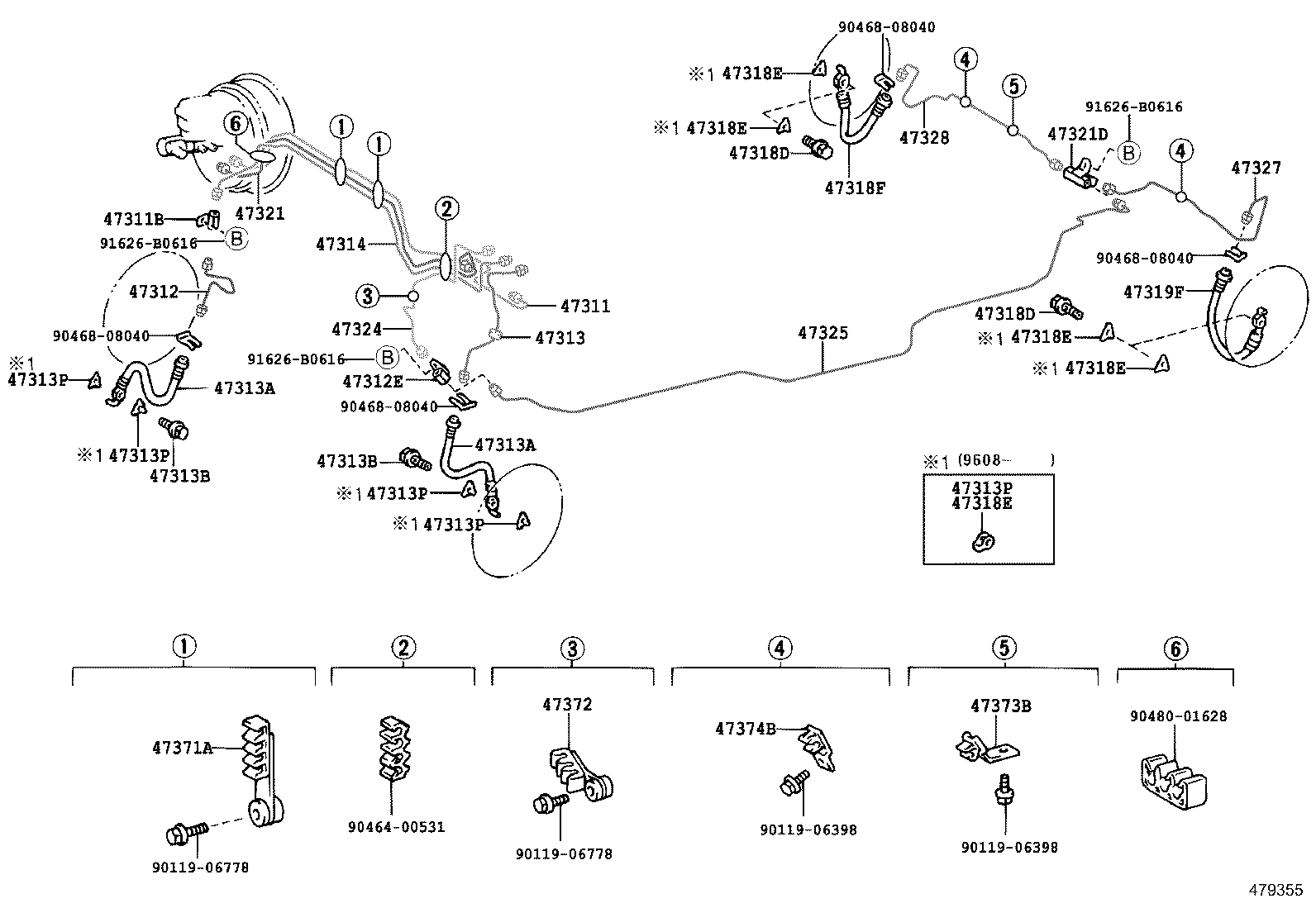

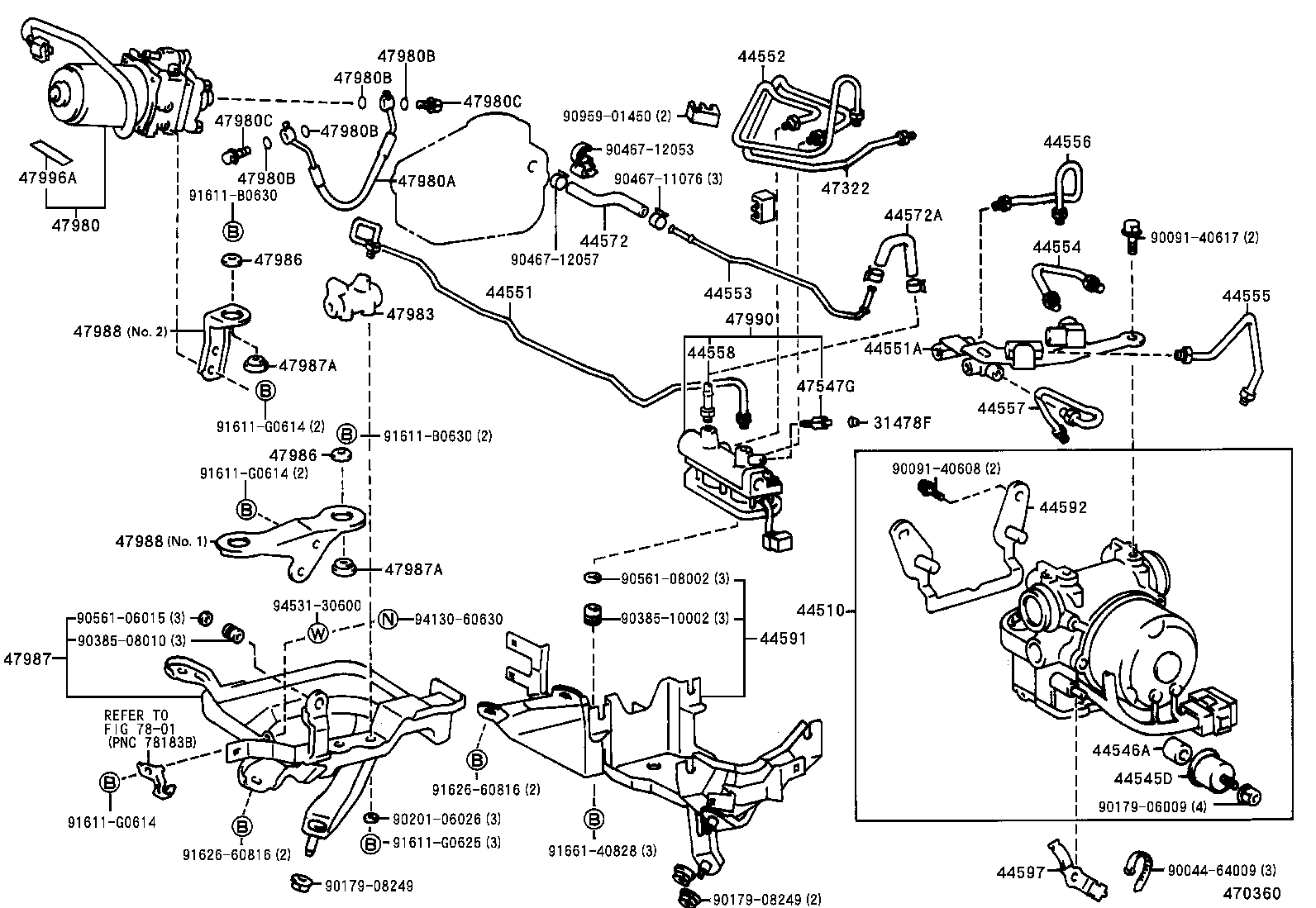

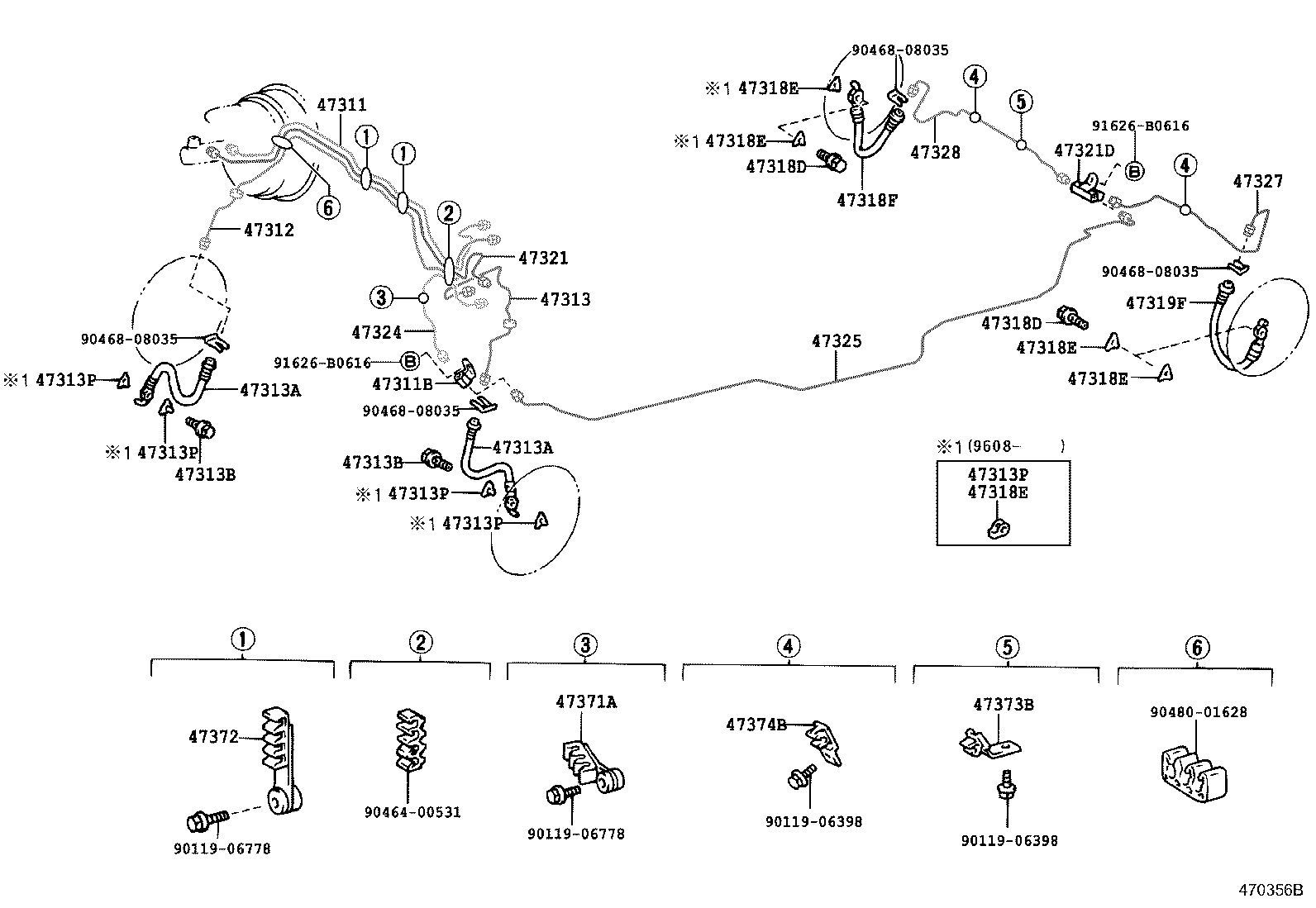

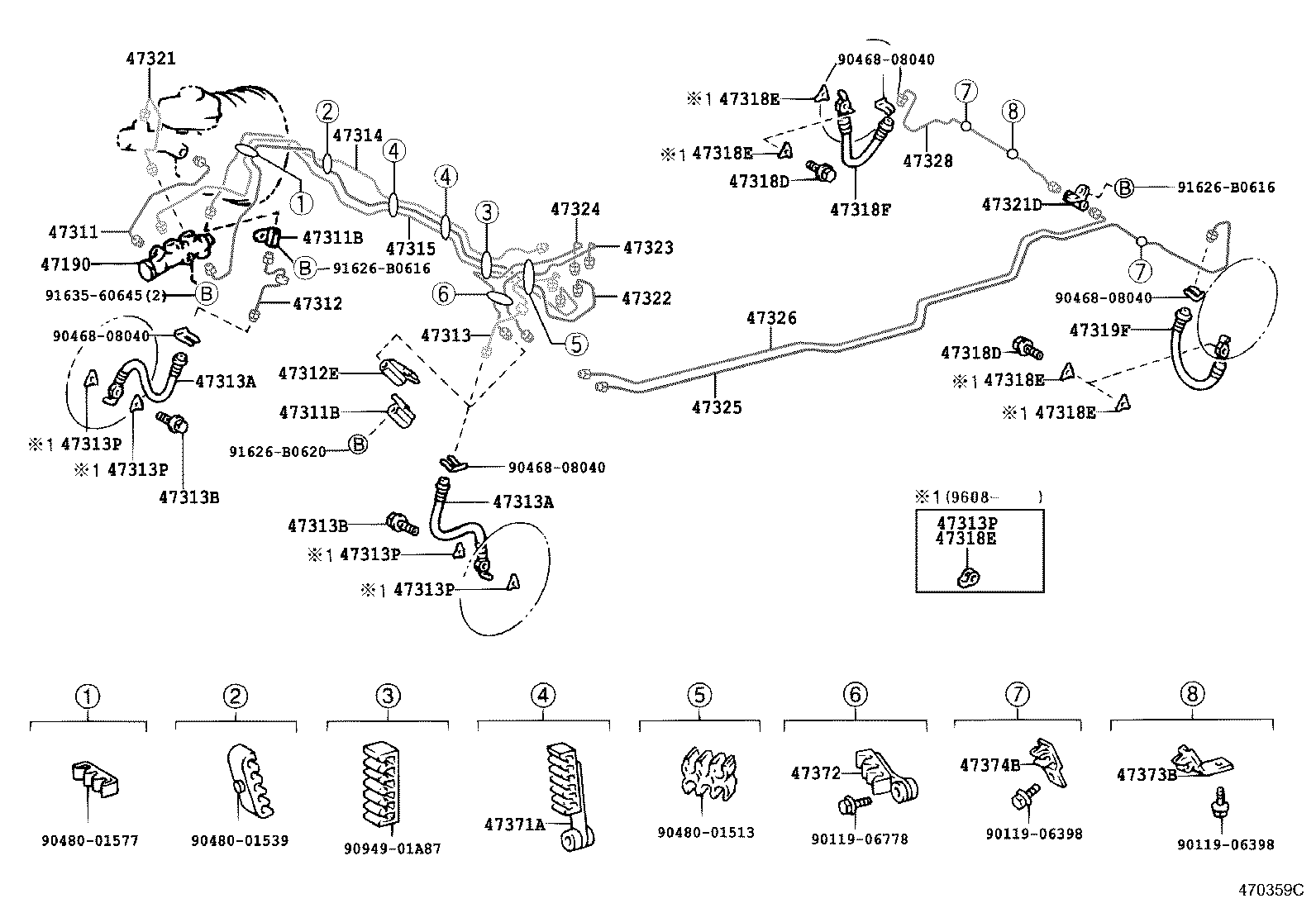

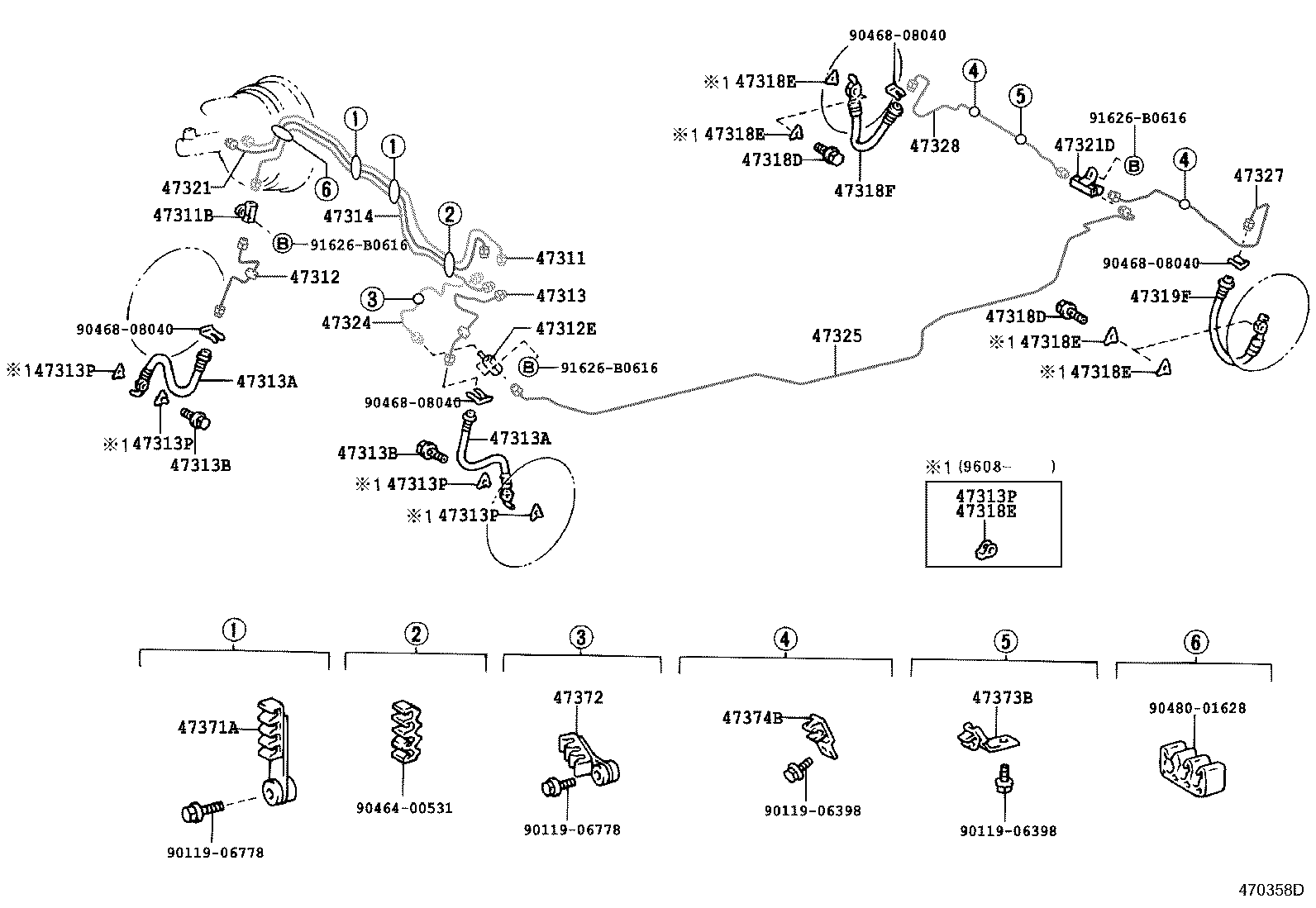

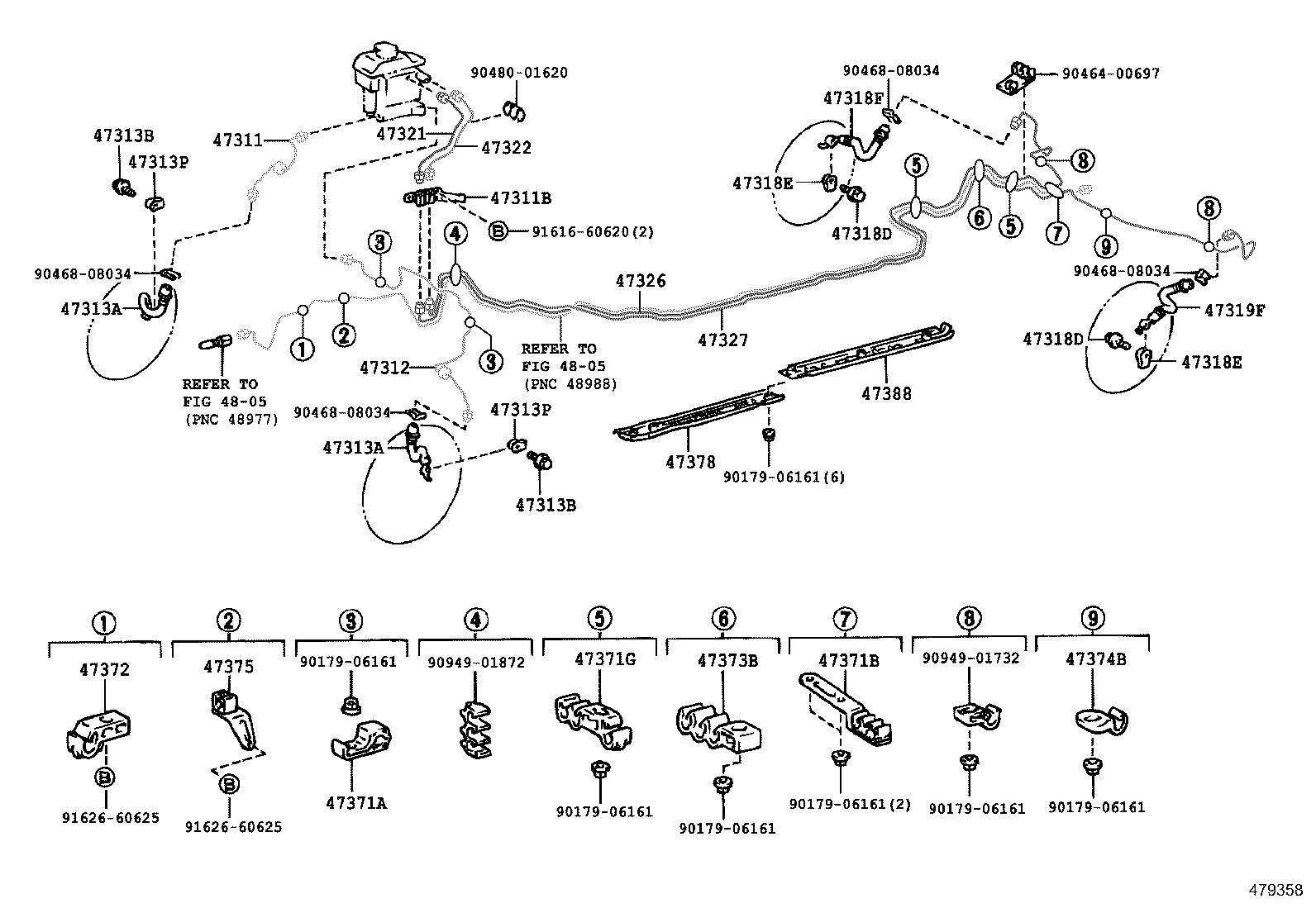

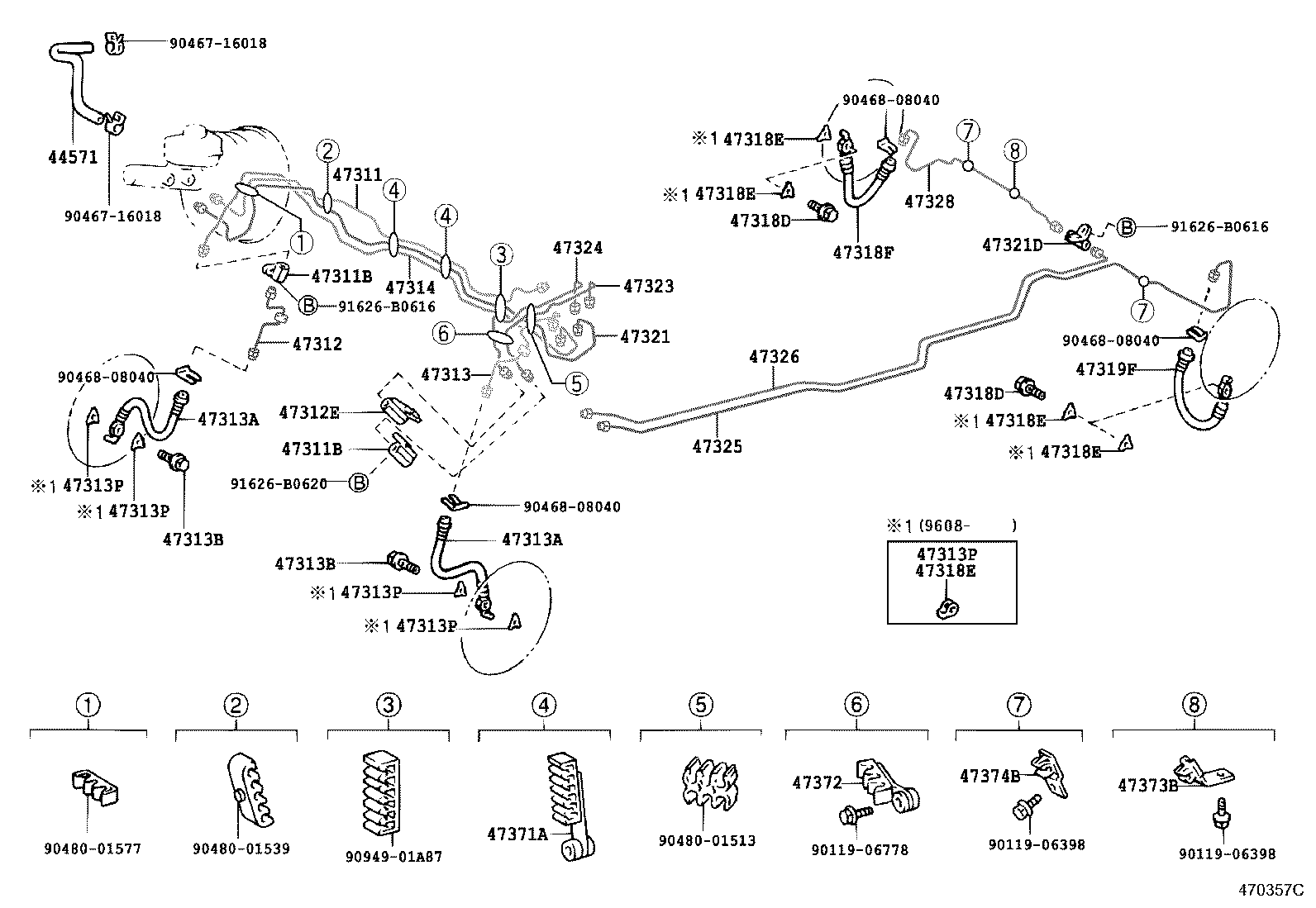

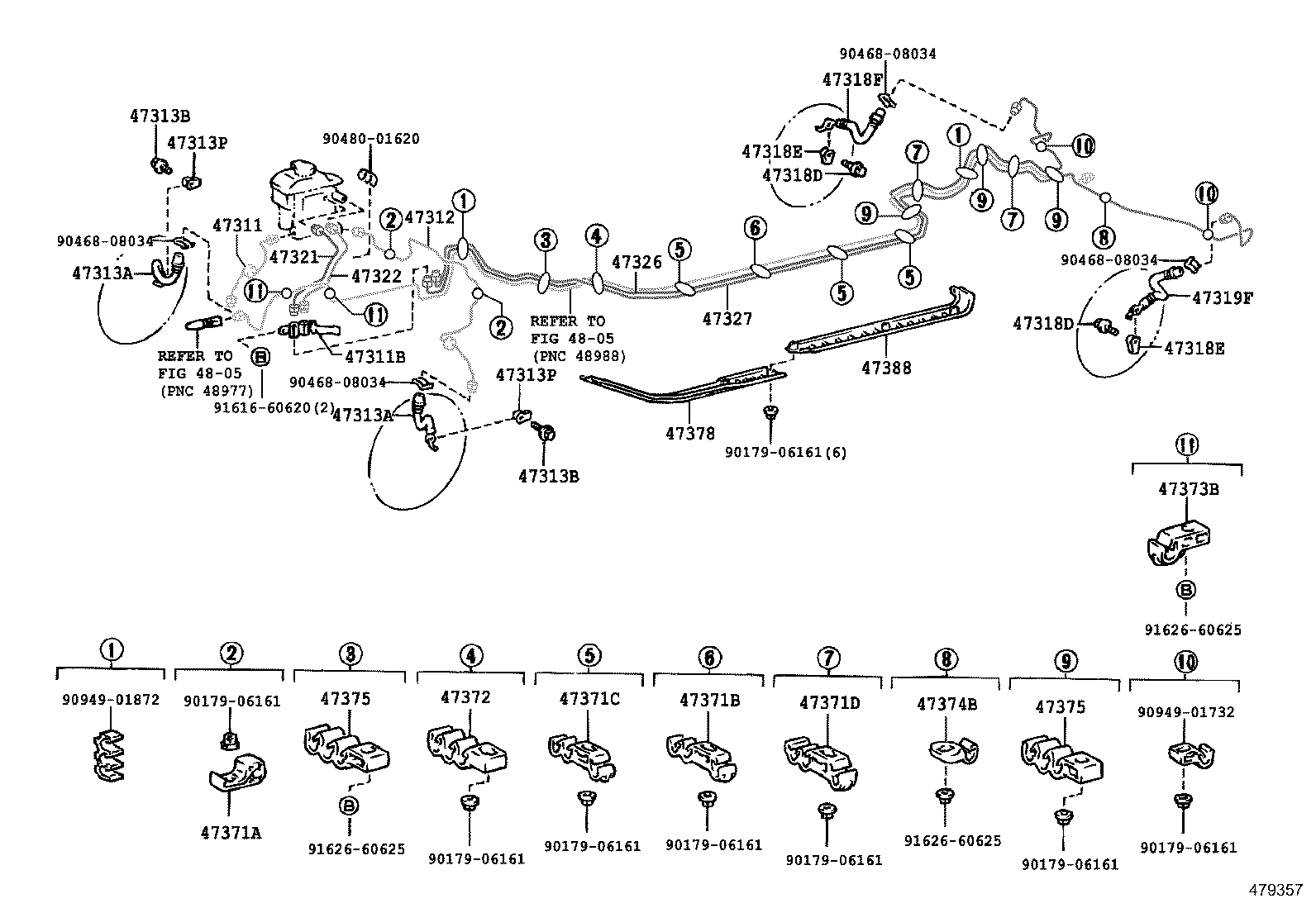

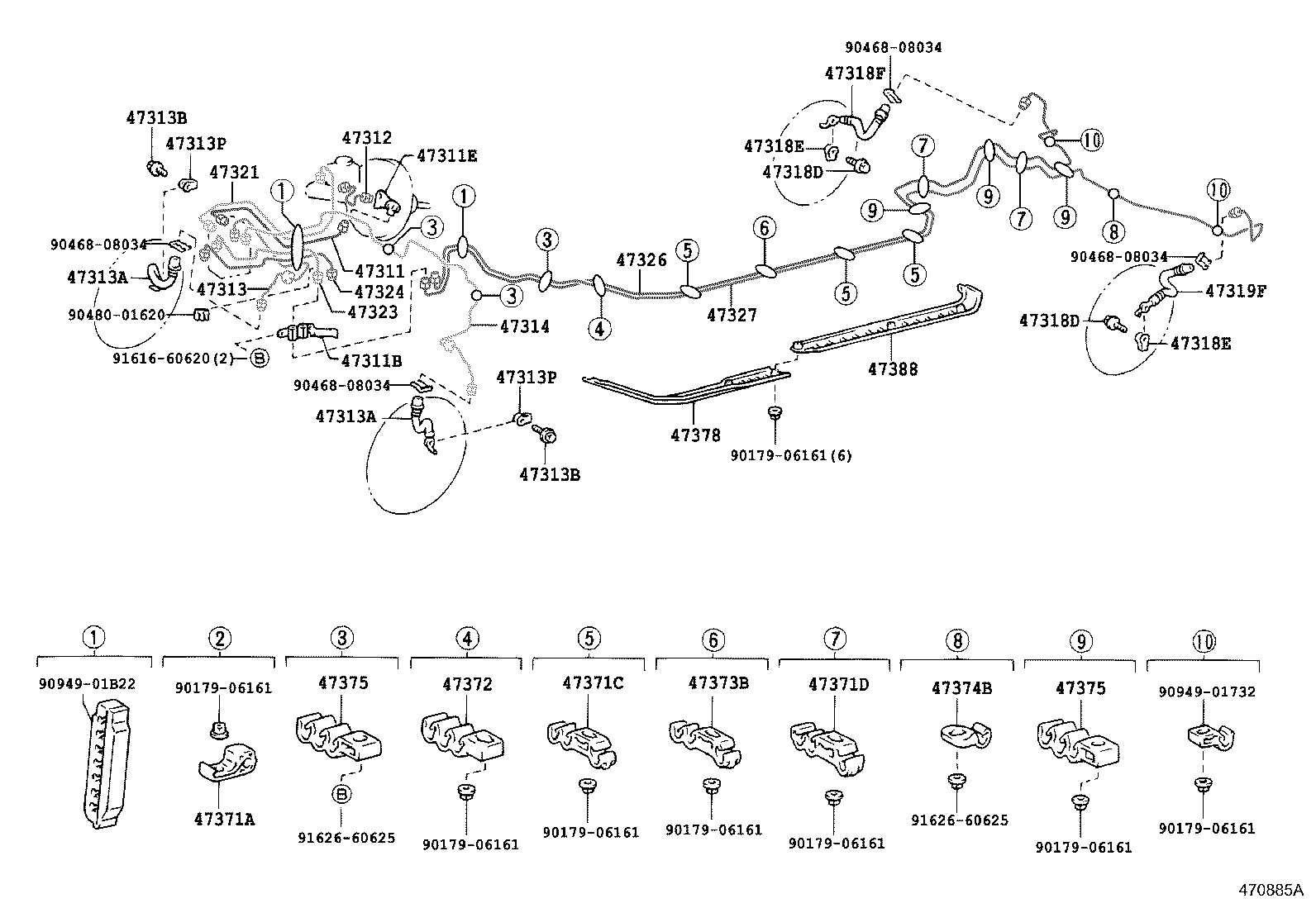

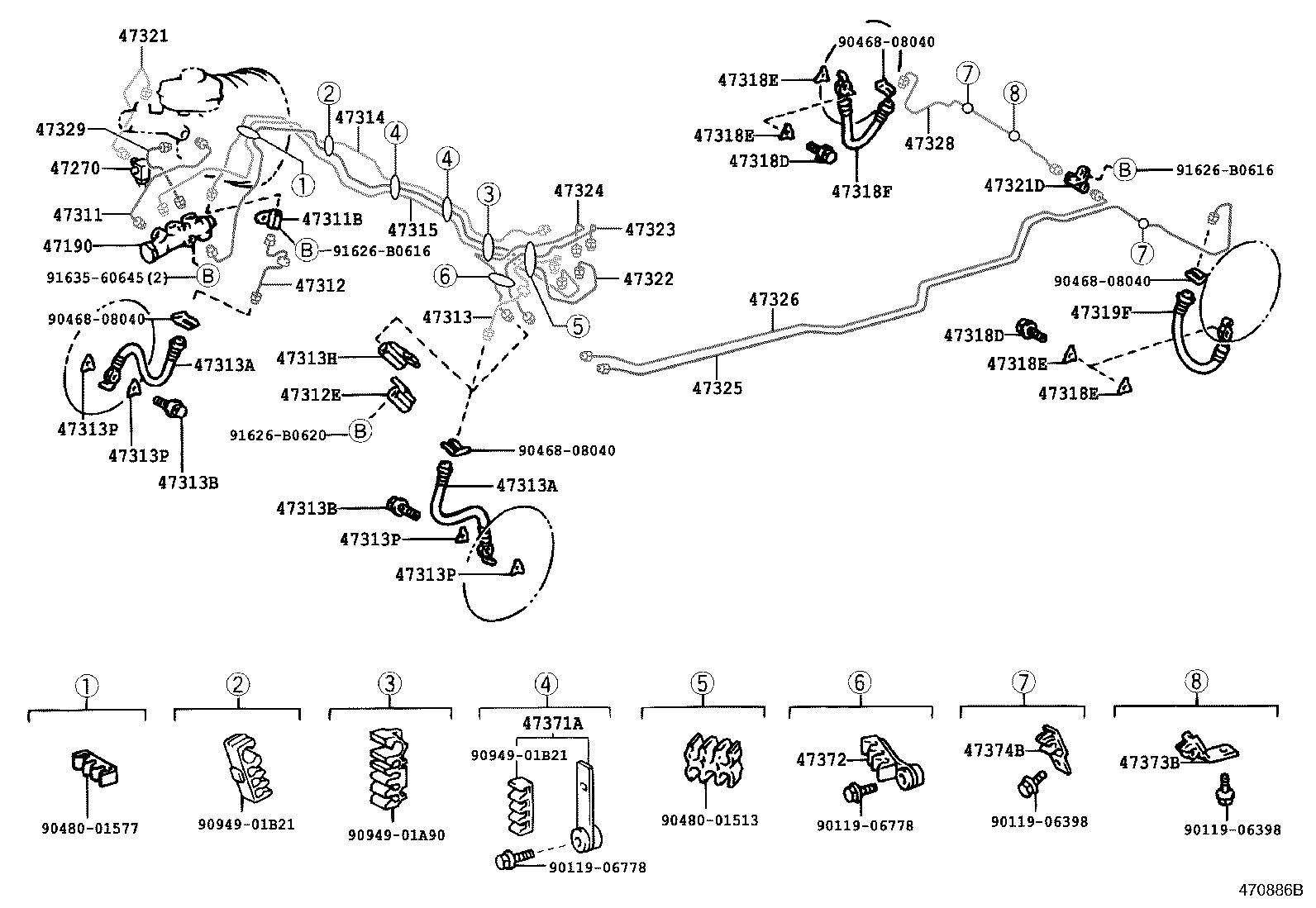

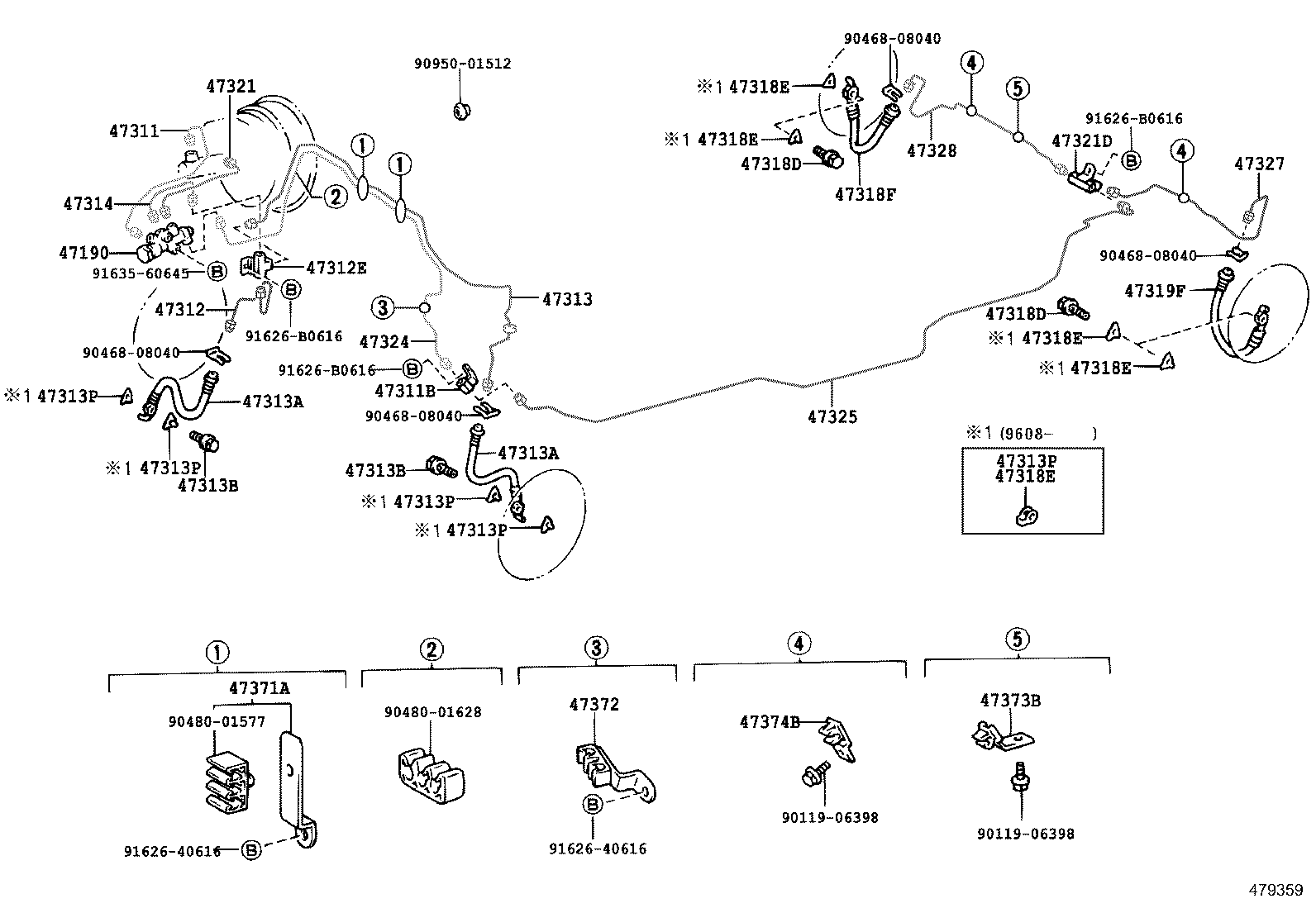

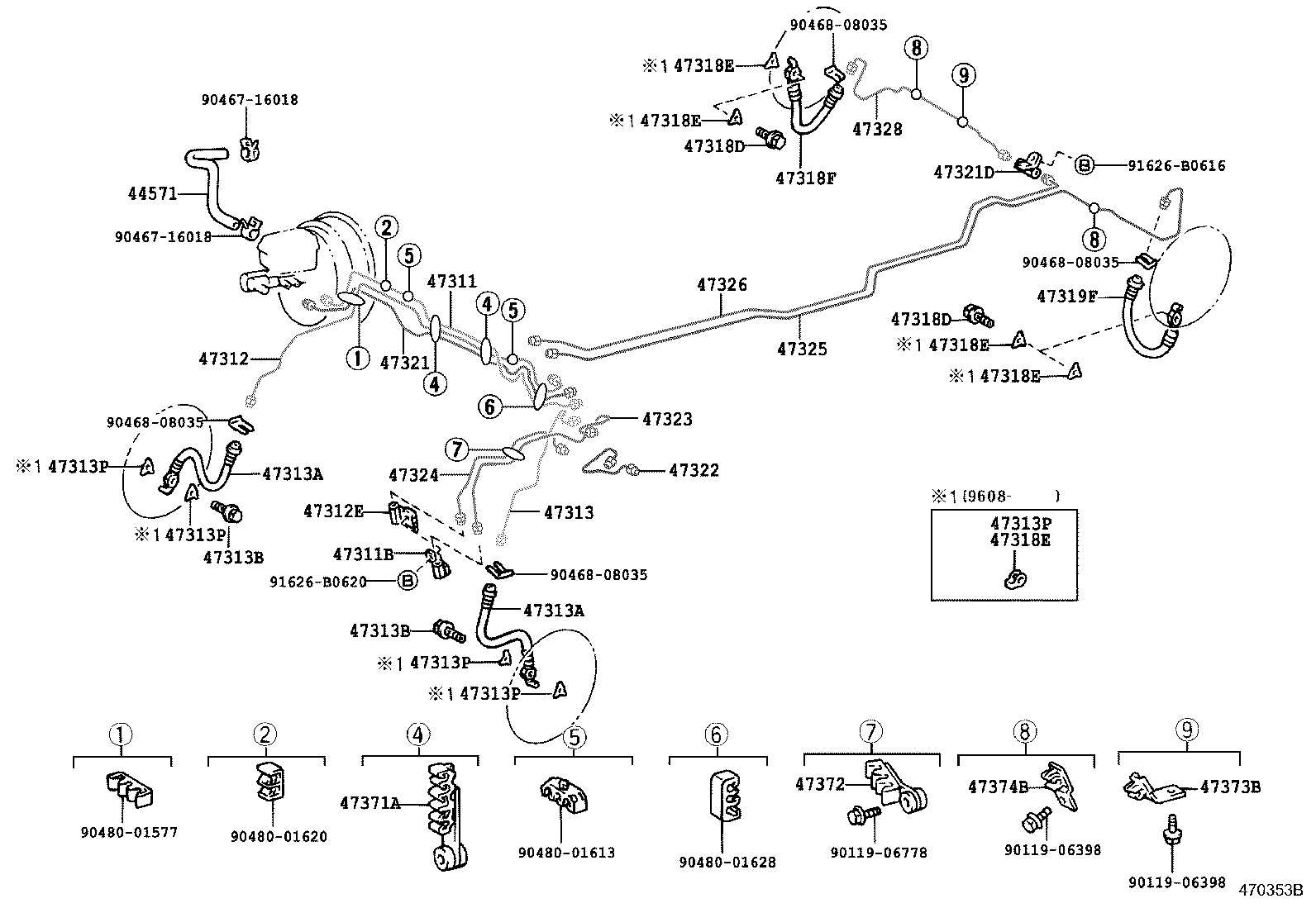

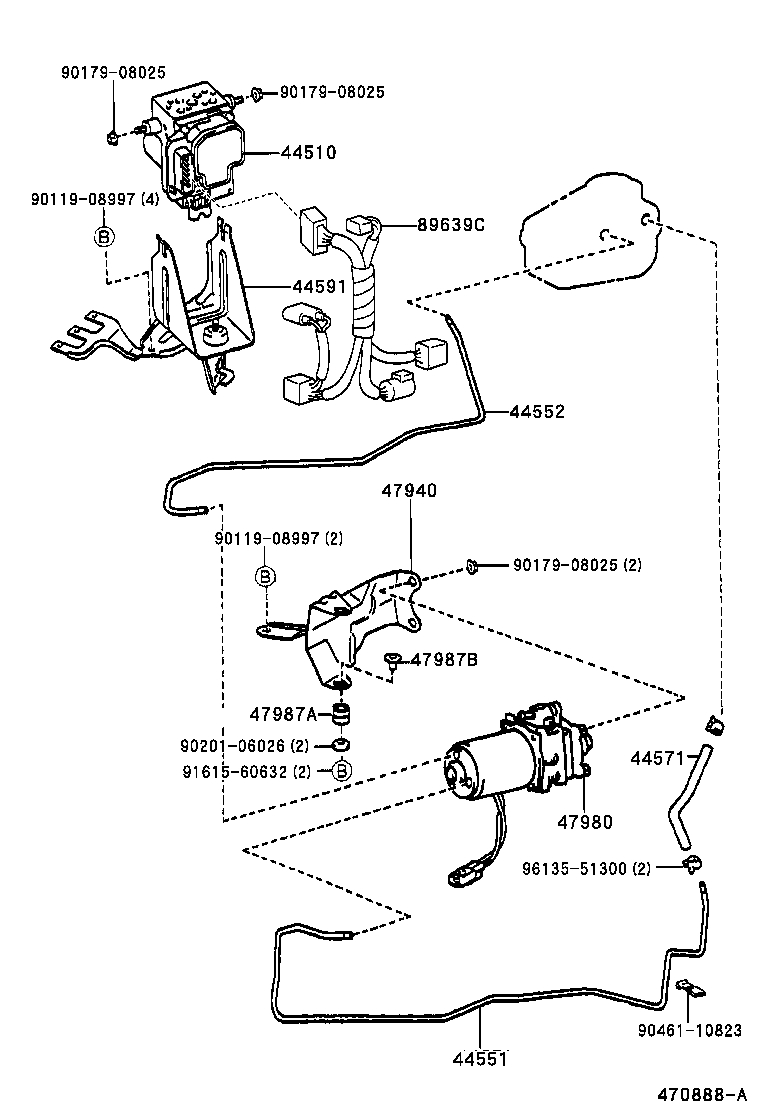

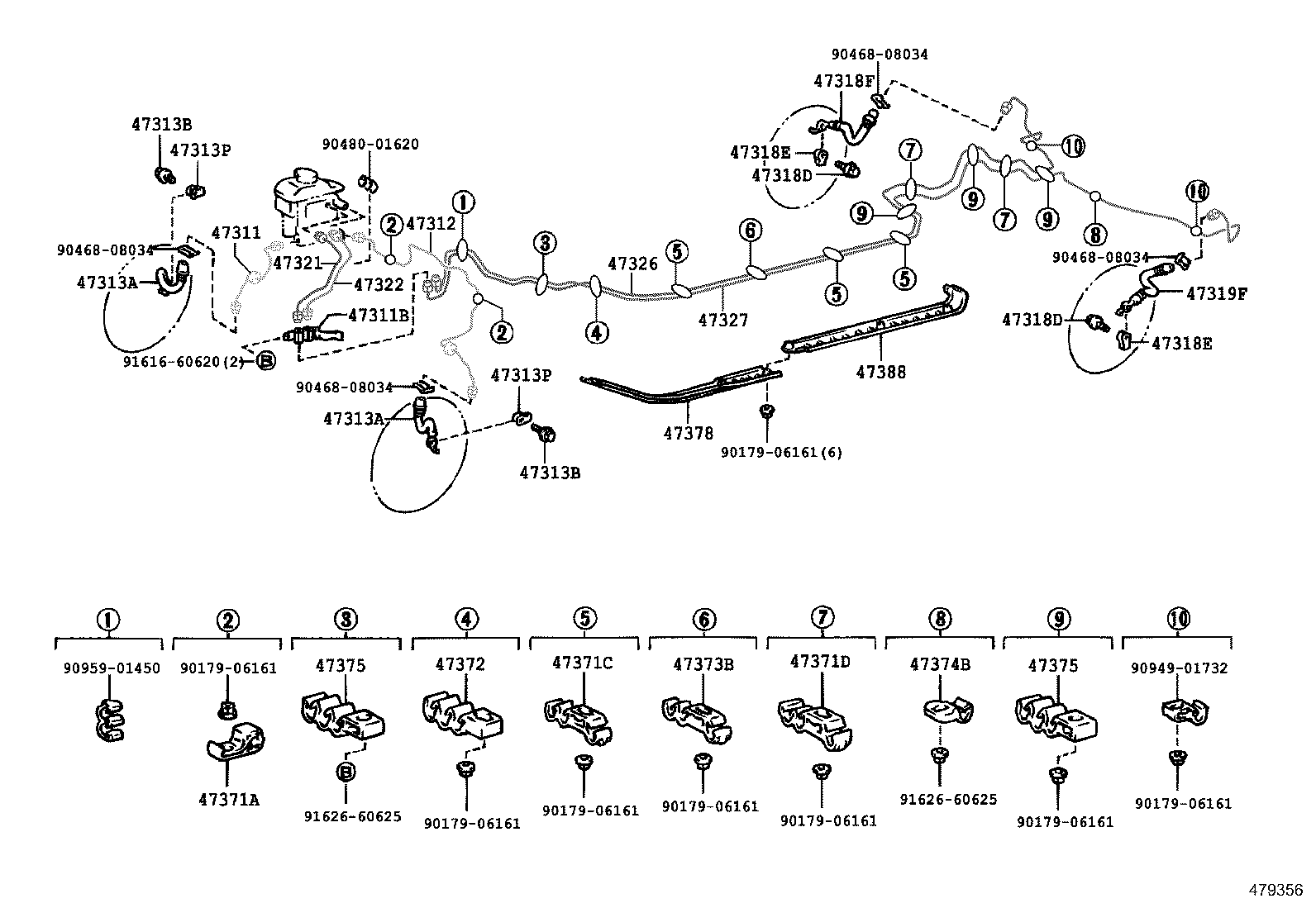

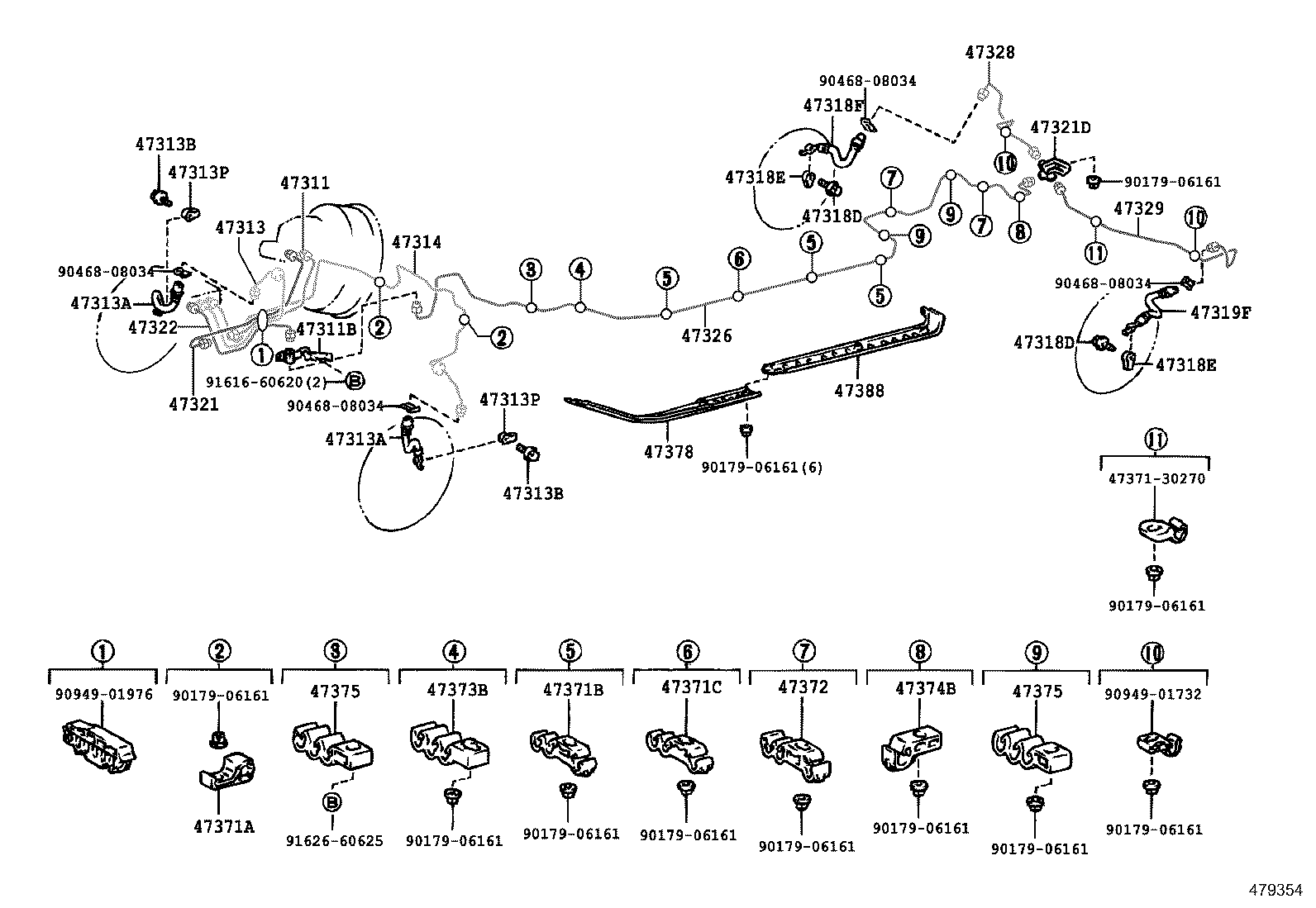

Figure 470354B 470354B 1995-08 → 1996-09 Figure 470356B 470356B 1995-12 → 1996-09 Figure 470353B 470353B 1995-08 → 1996-09 Figure 470353B 470353B 1996-09 → 1997-07 Figure 479354 479354 1995-08 → 1997-07 Figure 479355 479355 1995-08 → 1997-07 Figure 479355 479355 1997-07 → — Figure 479356 479356 1995-08 → 1997-07 Figure 479356 479356 1997-07 → — Figure 479357 479357 1995-08 → — Figure 479358 479358 1995-11 → — Figure 479359 479359 1995-12 → 1999-09 Figure 470357C 470357C 1996-09 → — Figure 470358D 470358D 1996-09 → — Figure 470359C 470359C 1996-09 → 1999-09 Figure 470886B 470886B 1997-07 → 2001-08 Figure 470885A 470885A 1997-07 → 1999-09 Figure MCU270 MCU270 1995-08 → 1996-09 Figure MCU271 MCU271 1995-08 → 1996-09 Figure 470360 470360 1995-08 → 1996-09 Figure 470360 470360 1996-09 → 1997-07 Figure MCU396 MCU396 1995-12 → 1996-09 Figure MCV772 MCV772 1996-09 → 1997-07 Figure 471375 471375 1996-09 → — Figure 470361 470361 1996-09 → 2001-08 Figure 470887A 470887A 1997-07 → 2001-08 Figure 470888A 470888A 1997-07 → 1999-09

Part groups

PNCDescription
31478F Cap, Bleeder Plug(FOR BRAKE TRACTION ACTUATOR)
44510 Actuator Assy, Brake
44540 Actuator Assy, Abs & Traction
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44551 Tube, Brake Actuator, NO.1
44551A Way, NO.1(FOR BRAKE ACTUATOR)
44551B Hose, Brake Actuator
44552 Tube, Brake Actuator, NO.2
44553 Tube, Brake Actuator, NO.3
44554 Tube, Brake Actuator, NO.4
44555 Tube, Brake Actuator, NO.5
44556 Tube, Brake Actuator, NO.6
44557 Tube, Brake Actuator, NO.7
44558 Tube, Brake Actuator, NO.8
44569A Harness, Brake Actuator
44571 Hose, Brake Actuator
44572 Hose, Brake Actuator, NO.2
44572A Hose, Brake Actuator, NO.3
44590 Bracket Assy, Brake Actuator
44591 Bracket, Brake Actuator, NO.1
44592 Bracket, Brake Actuator, NO.2
44597 Clamp, Brake Actuator Connector, NO.1
47190 Valve Assy, Proportioning & By-pass
47270 Sensor Assy, Brake Pressure
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47311E Union, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313H Way, NO.3(FOR FRONT BRAKE TUBE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47371G Clamp, Brake Tube, NO.11
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47378 Protector, Brake Tube
47388 Protector, Brake Tube, Lower
47547G Plug, Bleeder(FOR BRAKE TRACTION ACTUATOR)
47940 Bracket Assy, Brake Traction
47980 Pump Assy, Brake Traction
47980A Hose, Pressure(FOR BRAKE TRACTION PUMP)
47980B Ring, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE)
47980C Bolt, Union(FOR BRAKE TRACTION PUMP PRESSURE HOSE)
47983 Damper, Brake Traction
47986 Cover, Brake Traction Pump, NO.2
47987 Bracket, Brake Traction Pump, NO.1
47987A Bush, NO.1(FOR BRAKE TRACTION PUMP BRACKET)
47987B Spacer(FOR BRAKE TRACTION PUMP BRACKET)
47988 Bracket, Brake Traction Pump, NO.2
47990 Actuator Assy, Brake Traction
47996A Label, Brake Bleed Notice
89639C Wire, Brake Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
