Toyota Crown/Crown Majesta
1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan
Discontinued model
Data version 2003-10
Switch & Relay & Computer
134 part groups · 15 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 23289A | Cover, Fuel Pump Resistor |
| 28300 | Relay Assy, Starter |
| 28380A | Resister, Fuel Pump |
| 28610A | Relay Assy, Glow Plug(SUB) |
| 47993 | Label, Battery Terminal Install Notice |
| 55905G | Knob Sub-assy, Control |
| 81980 | Flasher Assy, Turn Signal |
| 82223F | Wire, Switch |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82638 | Retainer, Relay Block |

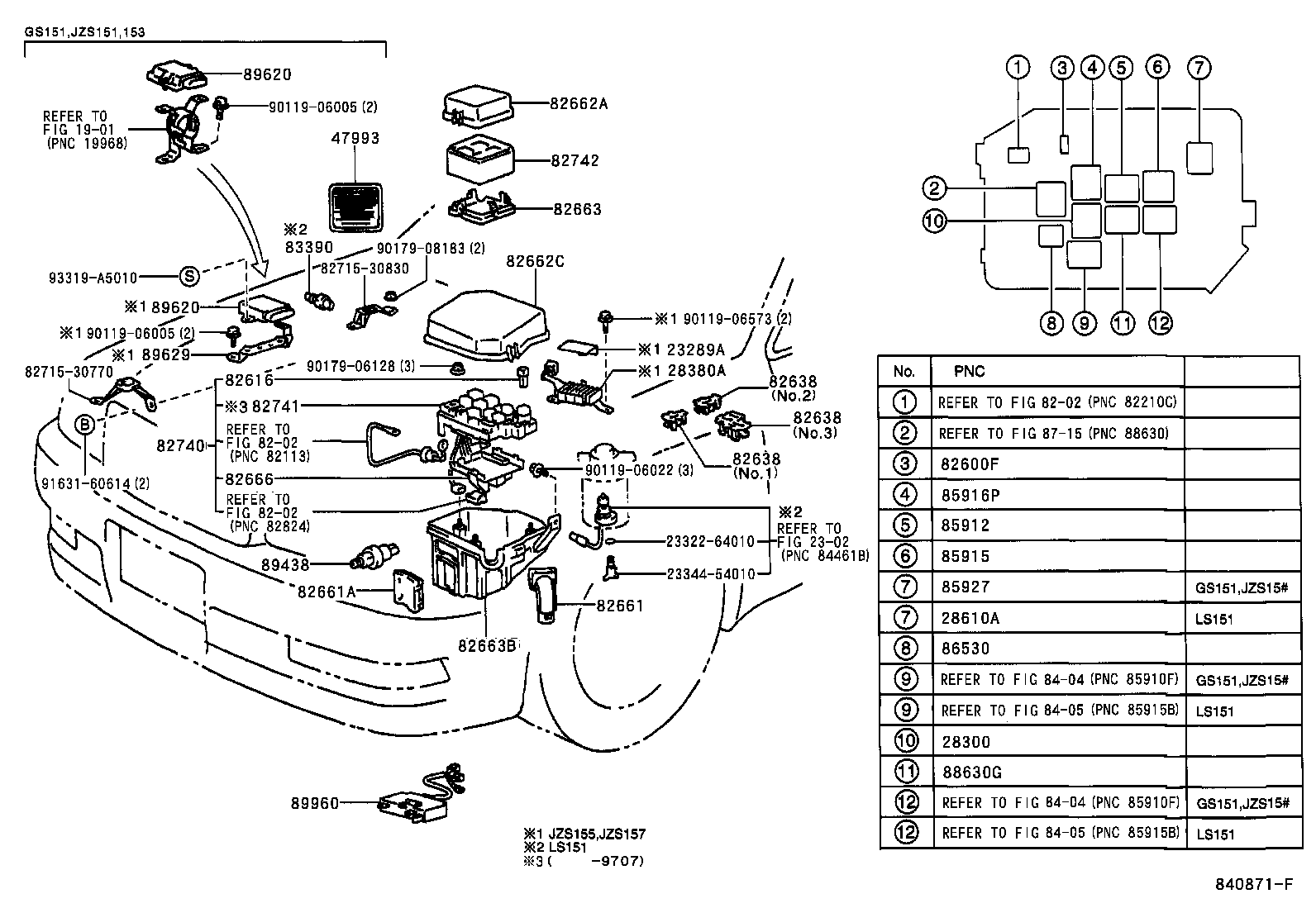

| 82660C | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82661A | Cover, Relay Block, NO.2 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82666 | Holder, Connector |
| 82671A | Block, Junction |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82683 | Plate, Fuse Block Caution |
| 82731 | Block, Driver Side Junction |
| 82734A | Block, Center Junction |
| 82740 | Block Assy, Engine Room Relay |
| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 83301 | Gage Sub-assy, Fuel Sender (FOR LPG TANK) |
| 83302 | Body Sub-assy, Fuel Sender Gage |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83380A | Switch Assy, Pressure |
| 83390 | Switch Assy, Vacuum Warning |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84030 | Switch Assy,Multiplex Network |
| 84040 | Master Switch Assy,Multiplex Network |
| 84052 | Switch Assy, Un-lock Warning |
| 84119 | Rheostat, Light Control |
| 84120 | Switch Assy, Head UP Display |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84162 | Switch, Front Fog Lamp |
| 84162A | Switch, Rear Fog Lamp |
| 84162B | Bulb, Fog Lamp Switch |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |
| 84162E | Cap, Fog Lamp Bulb |
| 84170A | Switch Assy, Room Lamp NO.1 |
| 84210 | Switch Assy, Back-up Lamp |
| 84220D | Switch Assy, Brake Differential Valve |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84236B | Cover, Courtesy Lamp Switch |
| 84242 | Switch, Glove Box Lamp |
| 84306 | Cable Sub-assy, Spiral |
| 84310 | Switch Assy, Turn Signal |
| 84317 | Sensor, Steering Position |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84553 | Cover, Parking Brake Switch |
| 84560 | Switch Assy, Fuel Valve Control |
| 84650 | Switch Assy, Windshield Wiper |
| 84660R | Switch, Cooler(REAR) |
| 84727 | Switch, Shift Lock Control |
| 84742 | Switch, Slide Roof Limit |
| 84751 | Switch, Seat Heater |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84840D | Switch Assy, Luggage Door Opening |
| 84841A | Switch, Fuel Lid Opener |
| 84870A | Switch Assy, Outer Mirror |

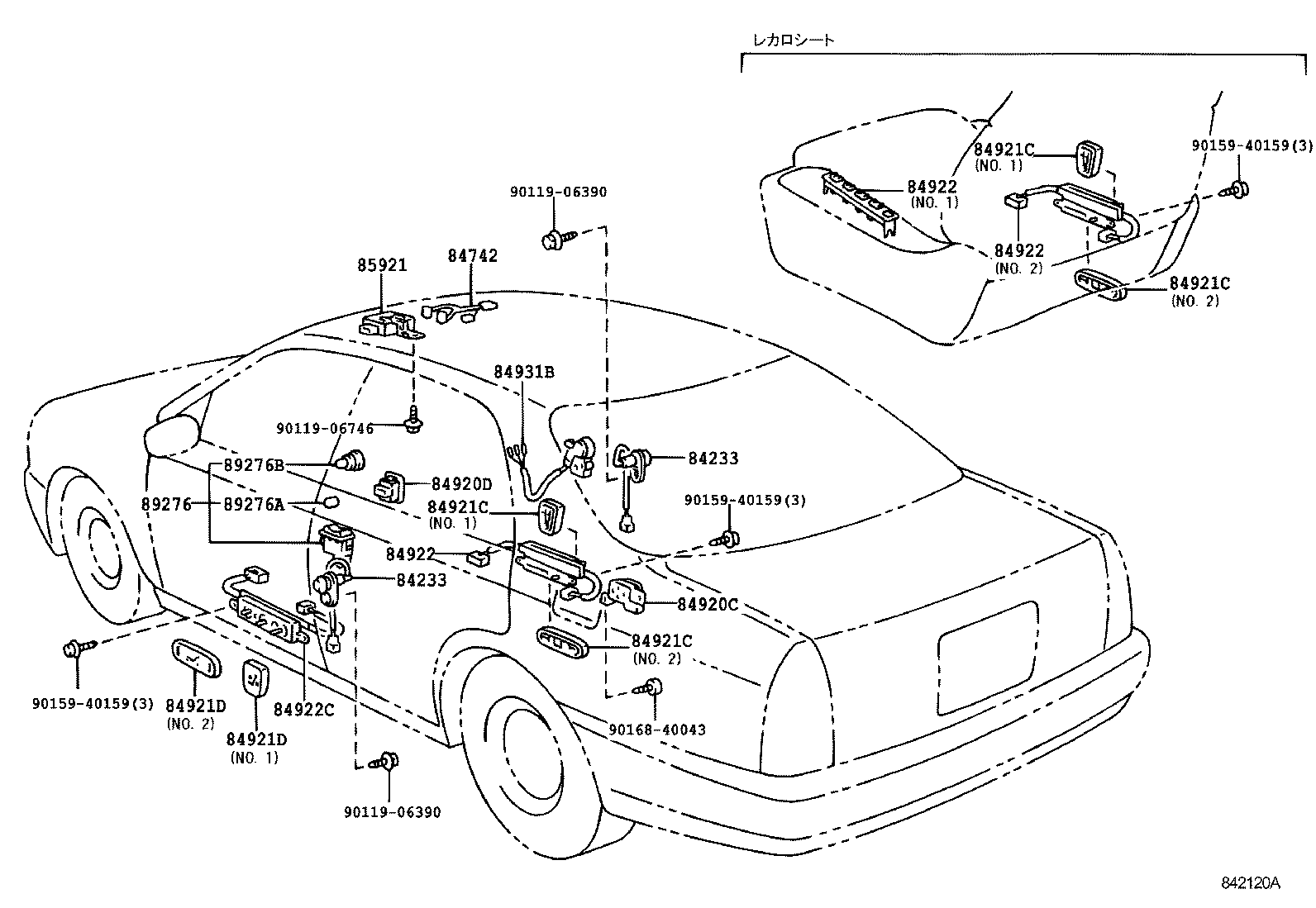

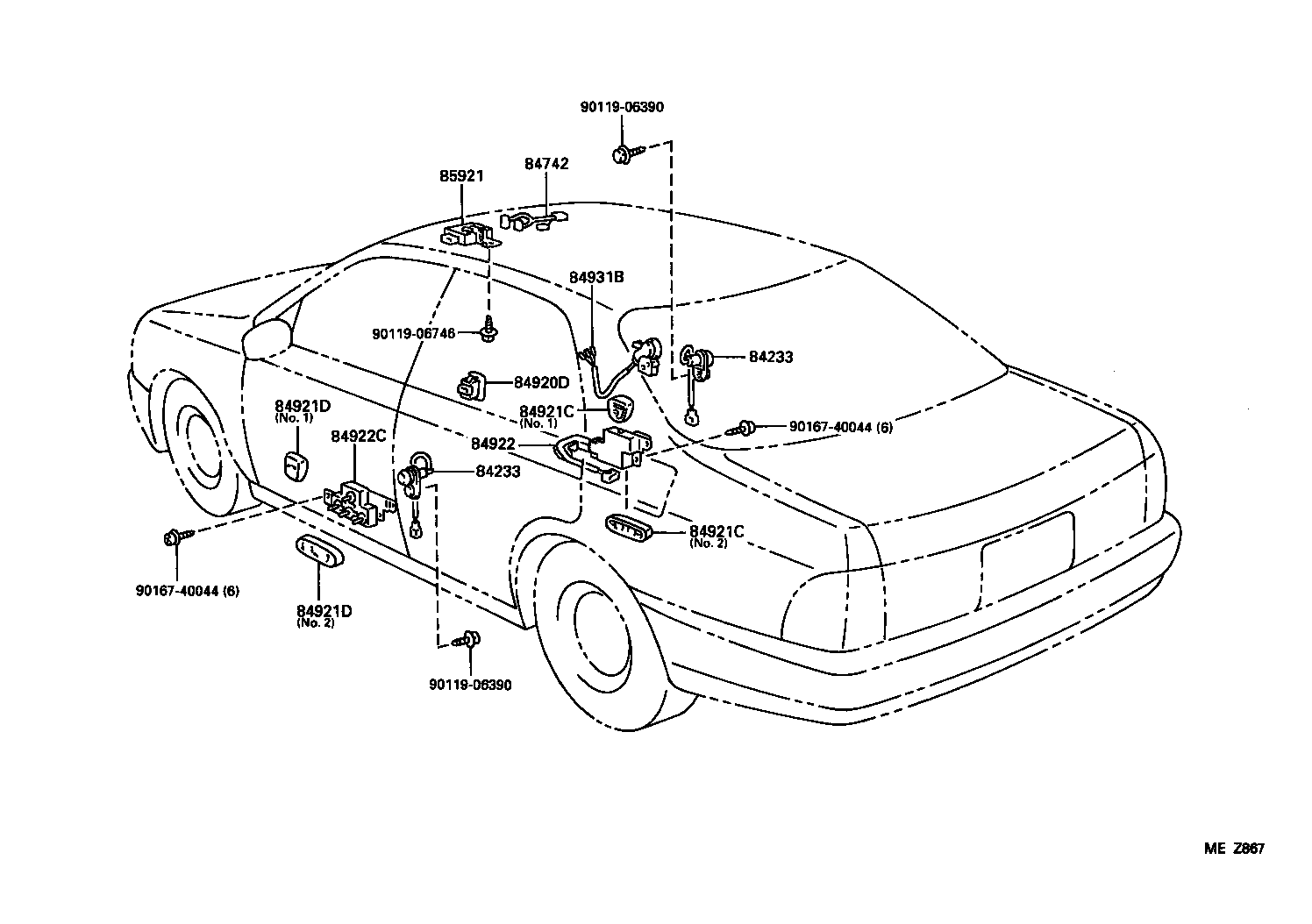

| 84920C | Switch Assy, Power Seat Front, RH |
| 84920D | Switch Assy, Power Seat Front, LH |
| 84921C | Knob, Power Seat Switch, RH |
| 84921D | Knob, Power Seat Switch, LH |
| 84922 | Switch, Front Power Seat |
| 84922C | Switch, Front Power Seat, LH |
| 84923 | Switch, Rear Power Seat |
| 84923C | Switch, Rear Power Seat Return |
| 84931B | Switch, Door Control |
| 85431 | Solenoid, Shift Lock |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530B | Socket Assy, Power Outlet, Rear NO.1 |
| 85535C | Cover, Power Outlet Socket, Rear |
| 85870A | Computer Assy, Vibration Seat |
| 85912 | Relay, Defogger |
| 85915 | Relay, Main |
| 85916D | Relay, Fog Lamp |
| 85916F | Relay, Cornering Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85921 | Relay, Sliding Roof Control |
| 85925 | Relay, Radiator Fan |
| 85927 | Relay, Cooling Fan |
| 85930 | Relay Assy, Power Window |
| 85933 | Computer, Shift Lock Control |
| 85985 | Relay, Key Reminder |
| 85985A | Bracket, Keyreminder Relay |
| 85999H | Bracket, Relay |
| 86530 | Relay Assy, Horn |
| 88630G | Relay Assy, Cooler |
| 89221 | Computer, Multiplex Network Body |
| 89230 | Computer Assy, Tilt Steering |
| 89233 | Sensor, Tilt Position |
| 89234 | Sensor, Telescopic Position |
| 89235 | Switch, Tilt Steering |
| 89276 | Switch, Height Control |
| 89276A | Color Cap (FOR HEIGHT CONTROL SWITCH BULB) |
| 89276B | Bulb (FOR HEIGHT CONTROL SWITCH) |
| 89373 | Sensor, Lamp Failure Indicator |
| 89390 | Relay, Brake Warning |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89427 | Switch, Temperature Detect |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89438 | Switch, Power Steering Oil Pressure |

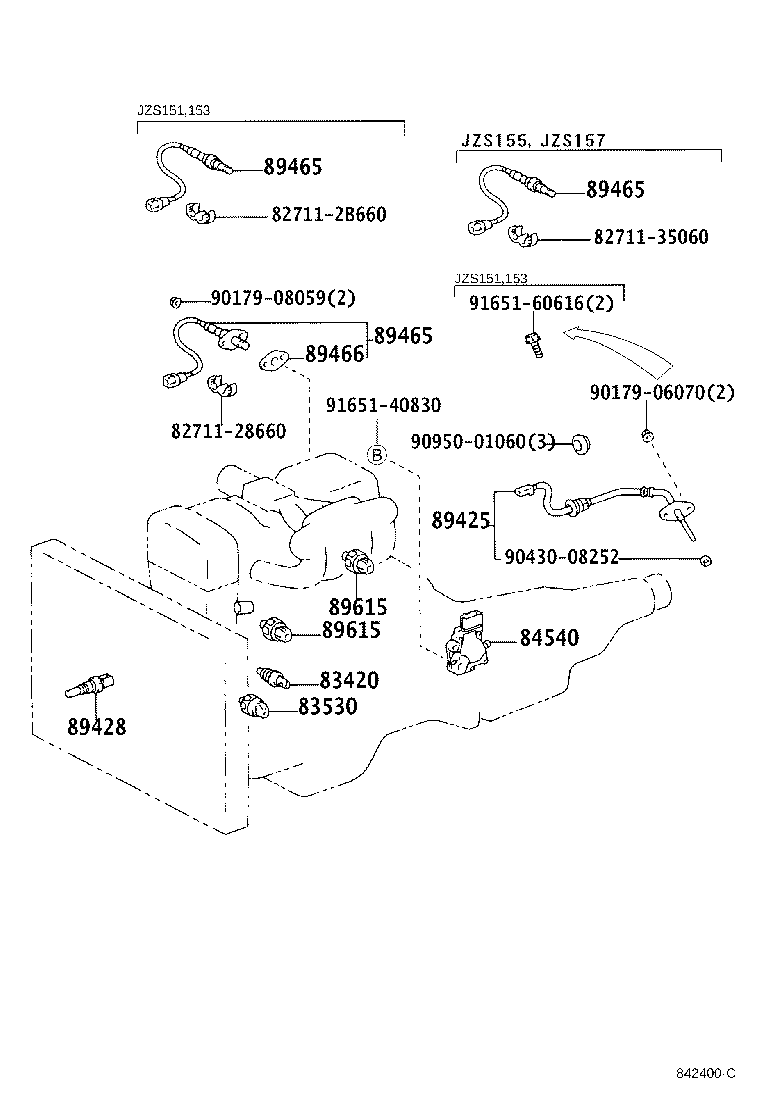

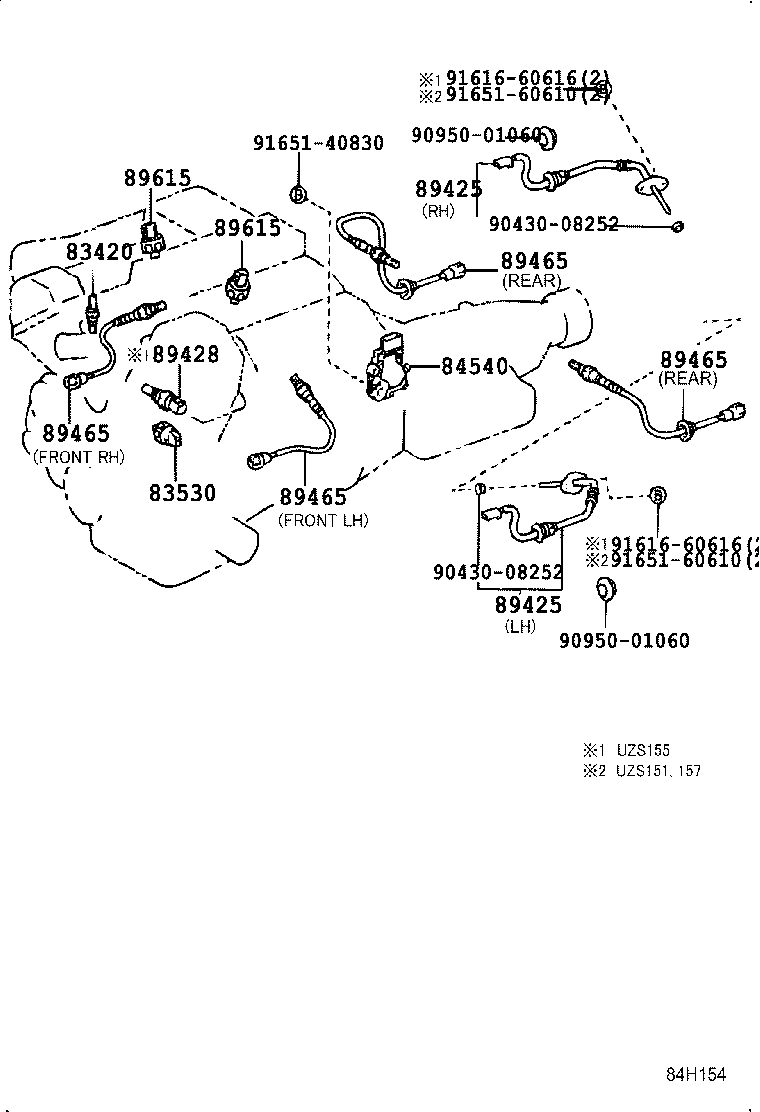

| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89615 | Sensor, Knock Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
| 89650 | Computer Assy, Power Steering |
| 89960 | Computer Assy, Headlamp Leveling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
