Valve Body & Oil Strainer (ATM)

232 part groups · 40 illustrations

Illustrations

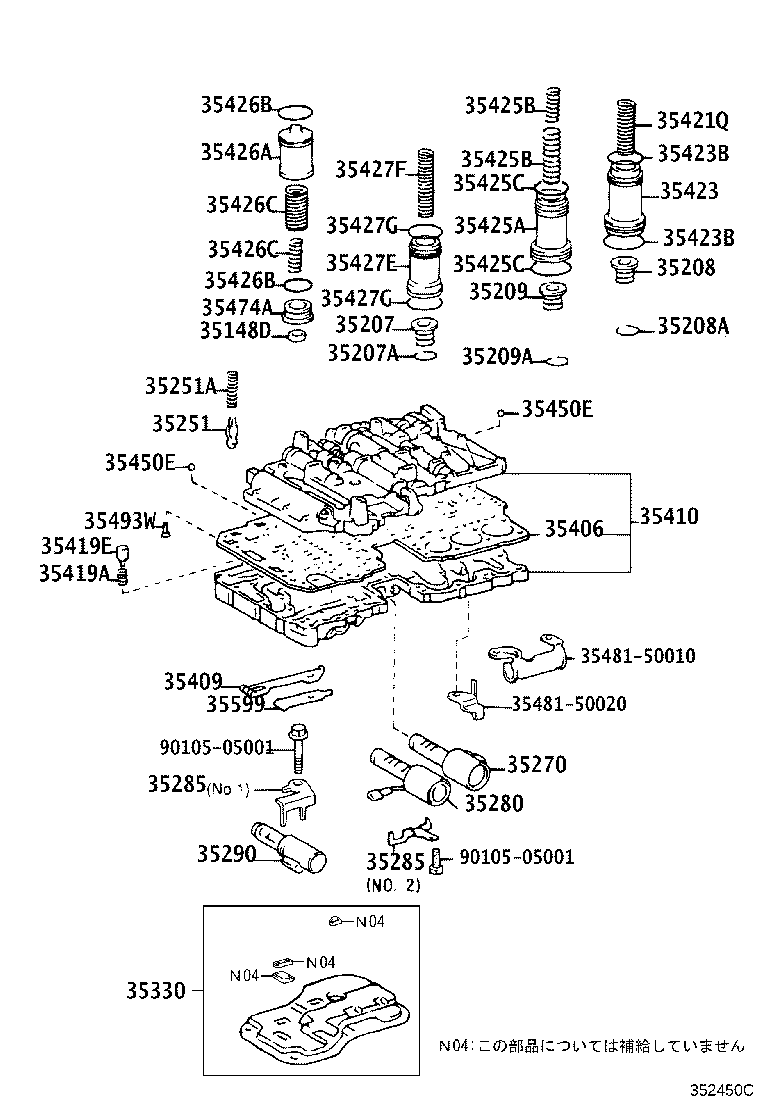

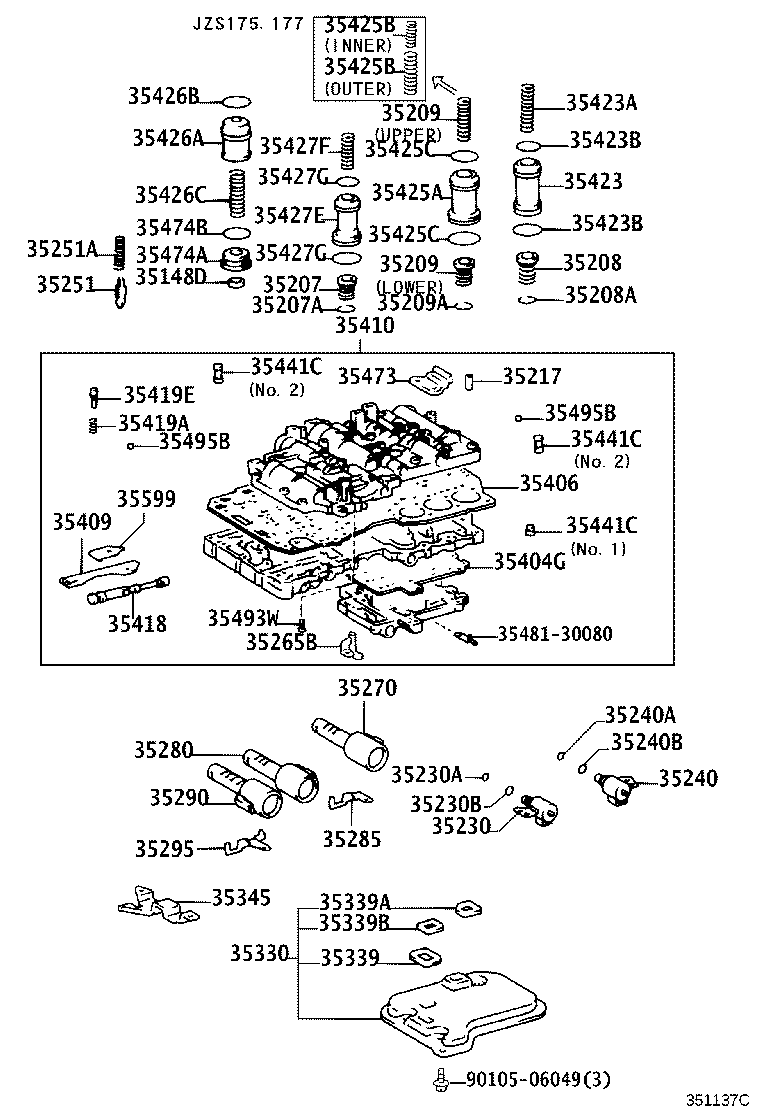

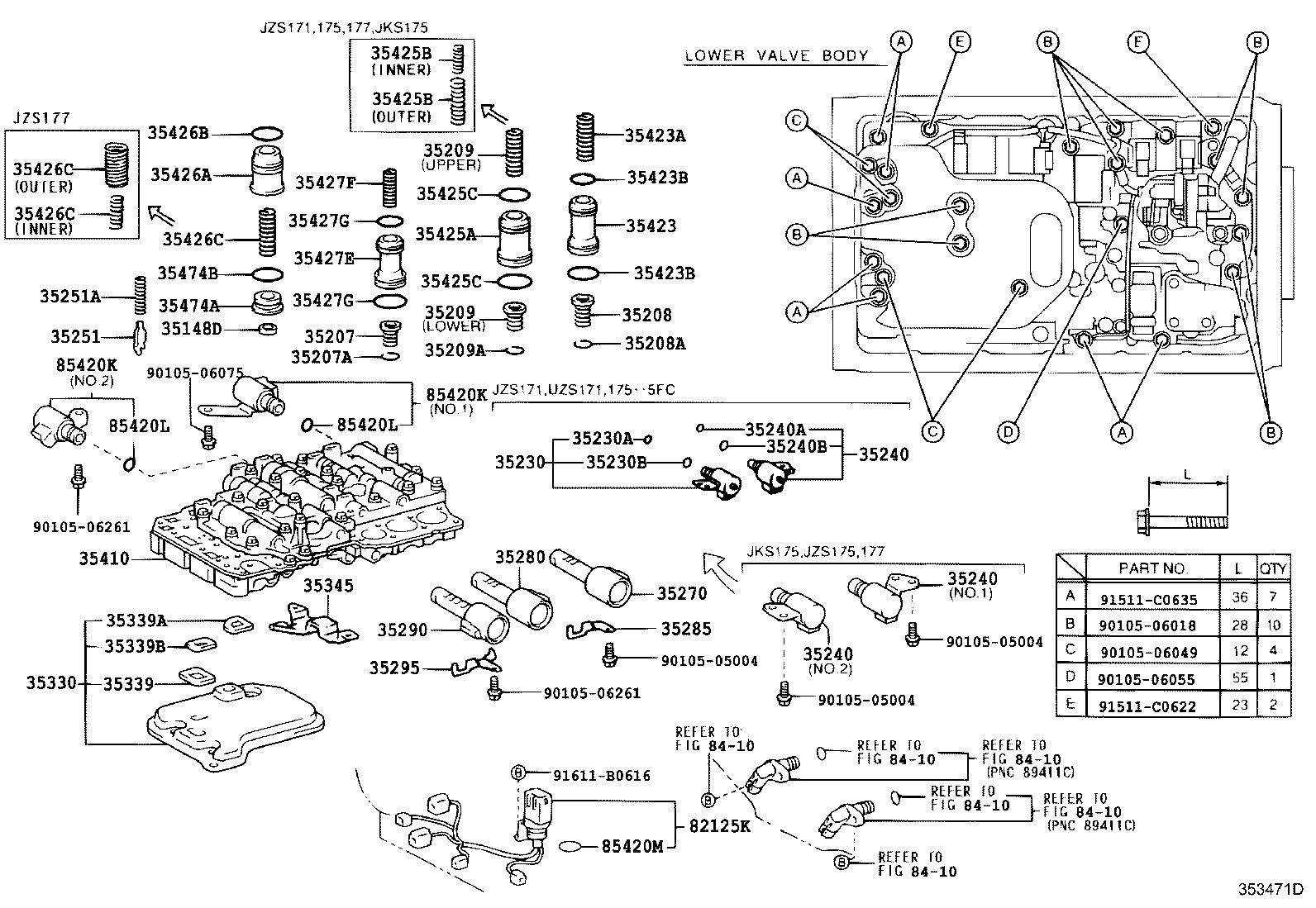

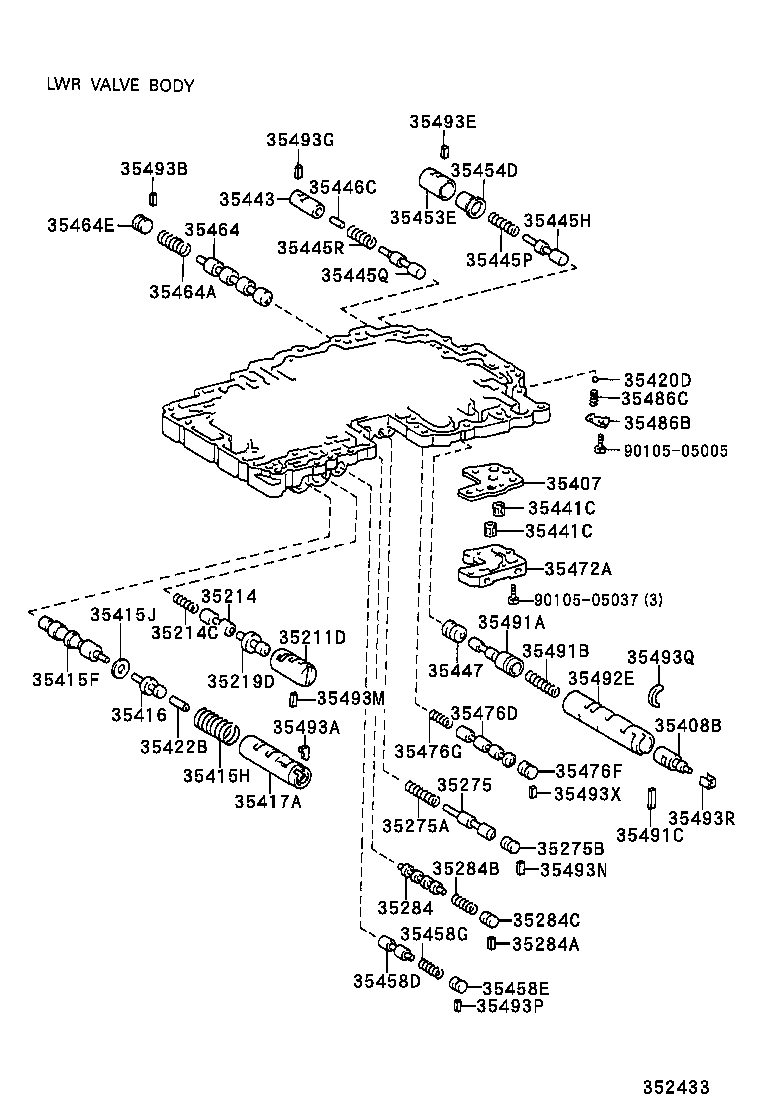

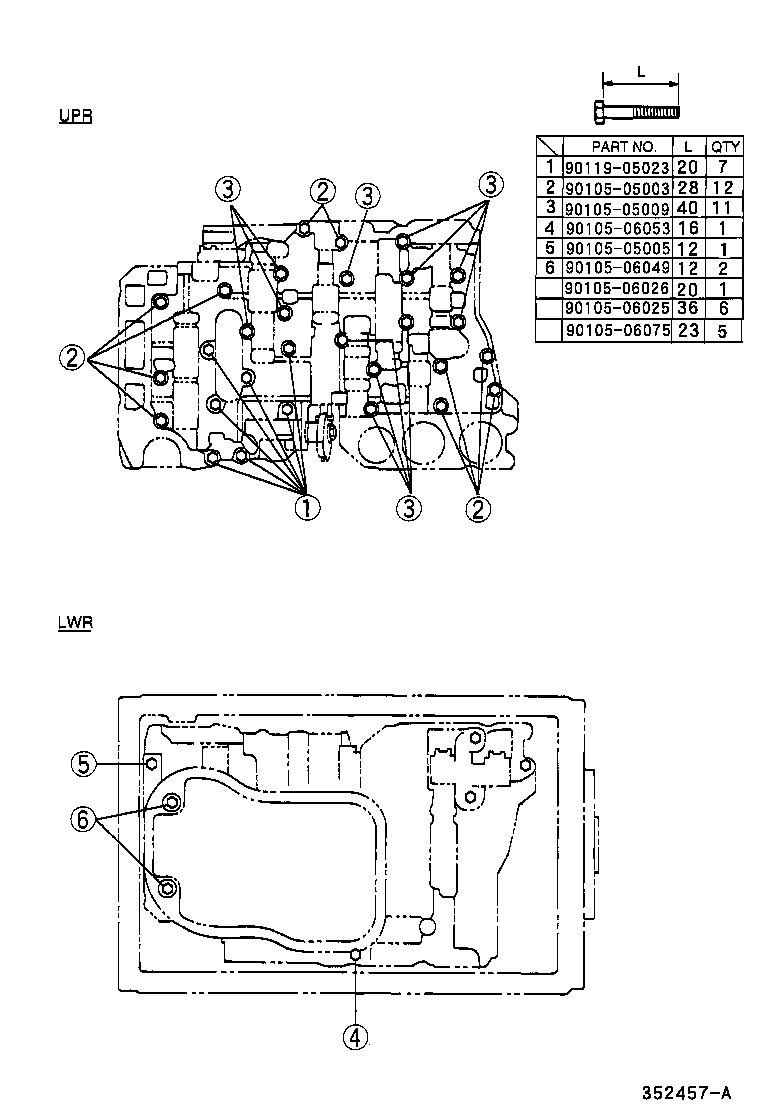

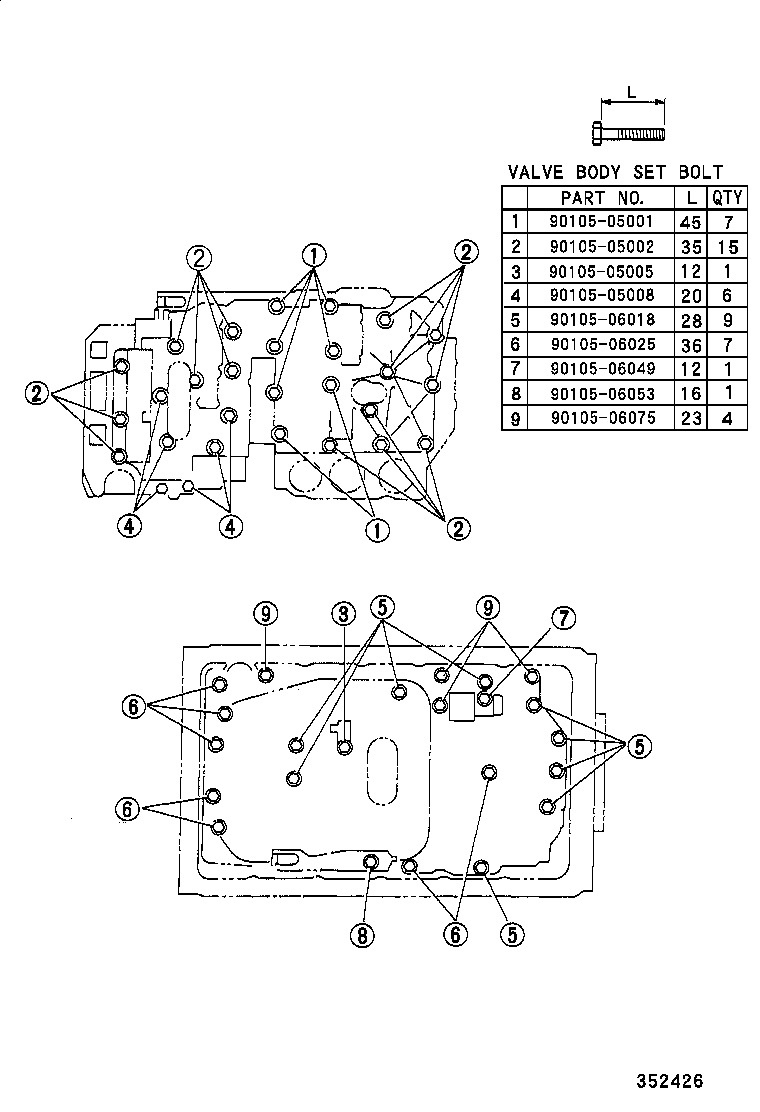

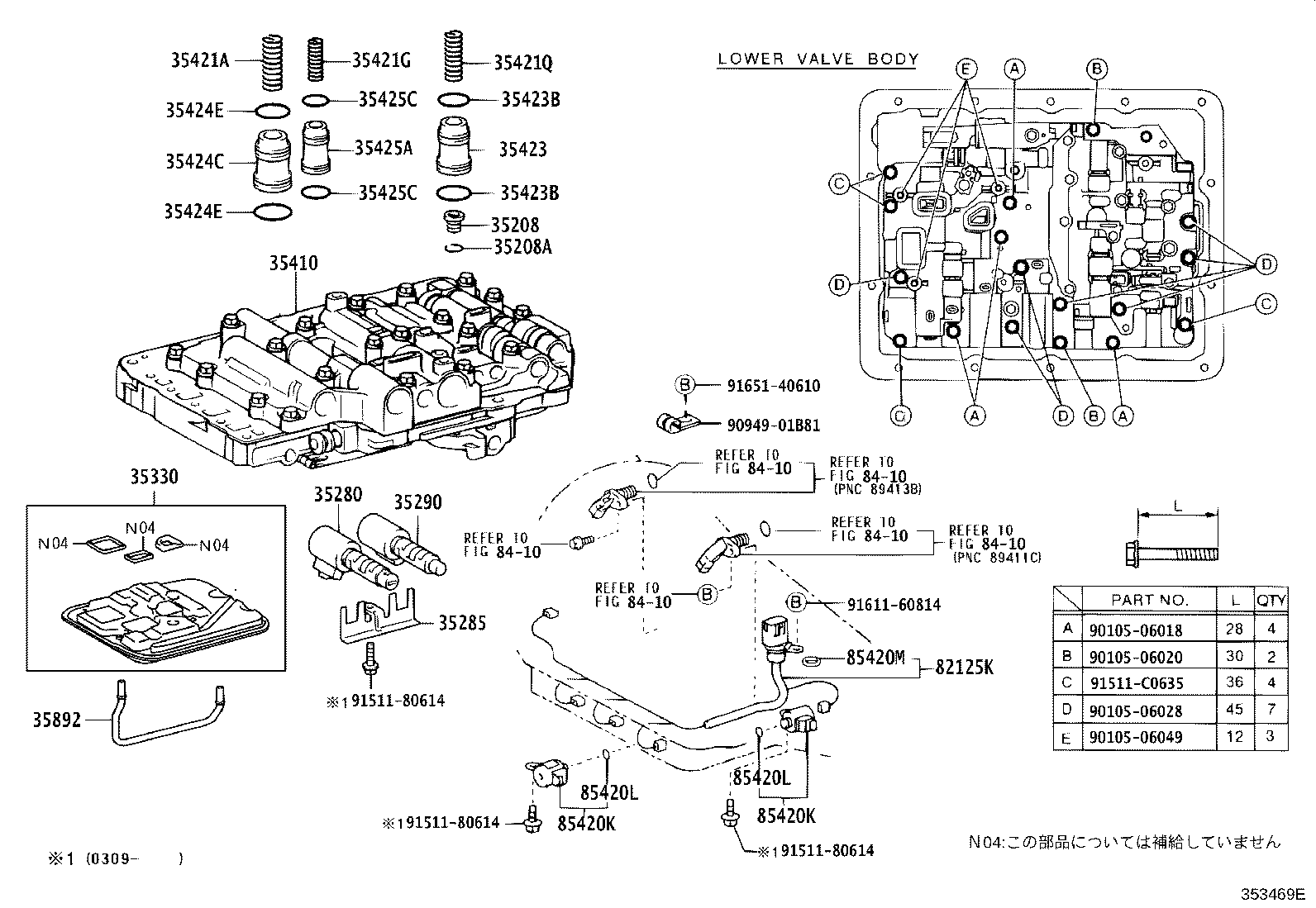

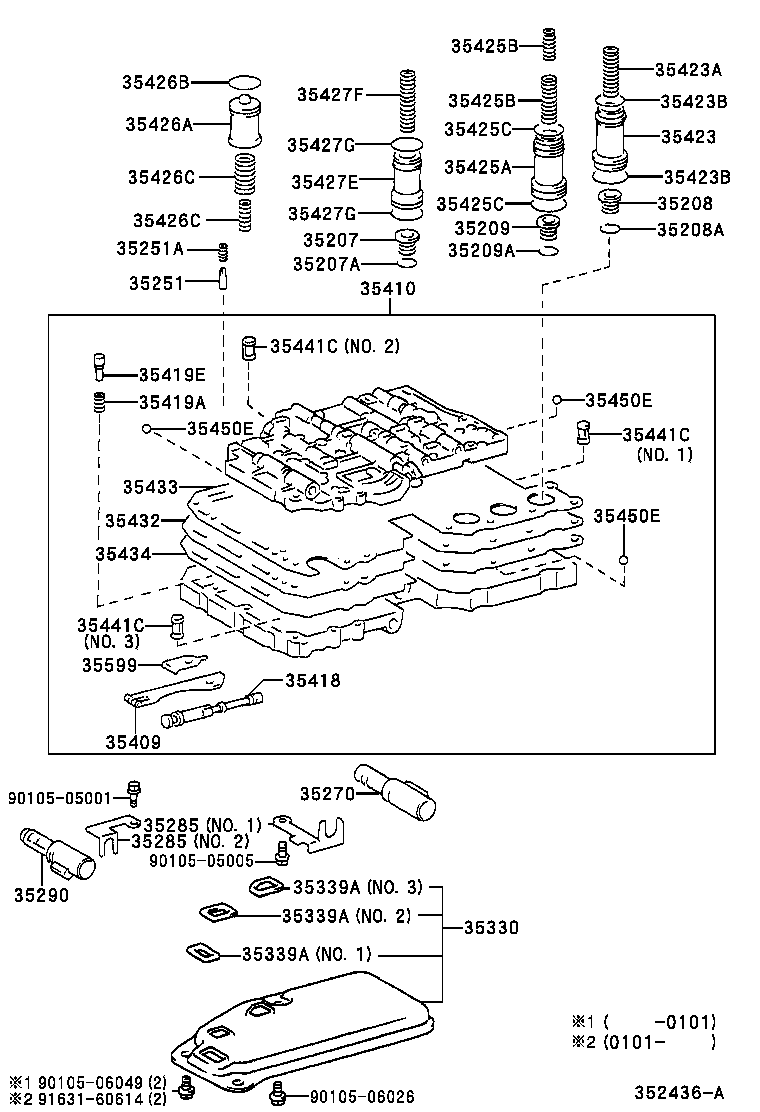

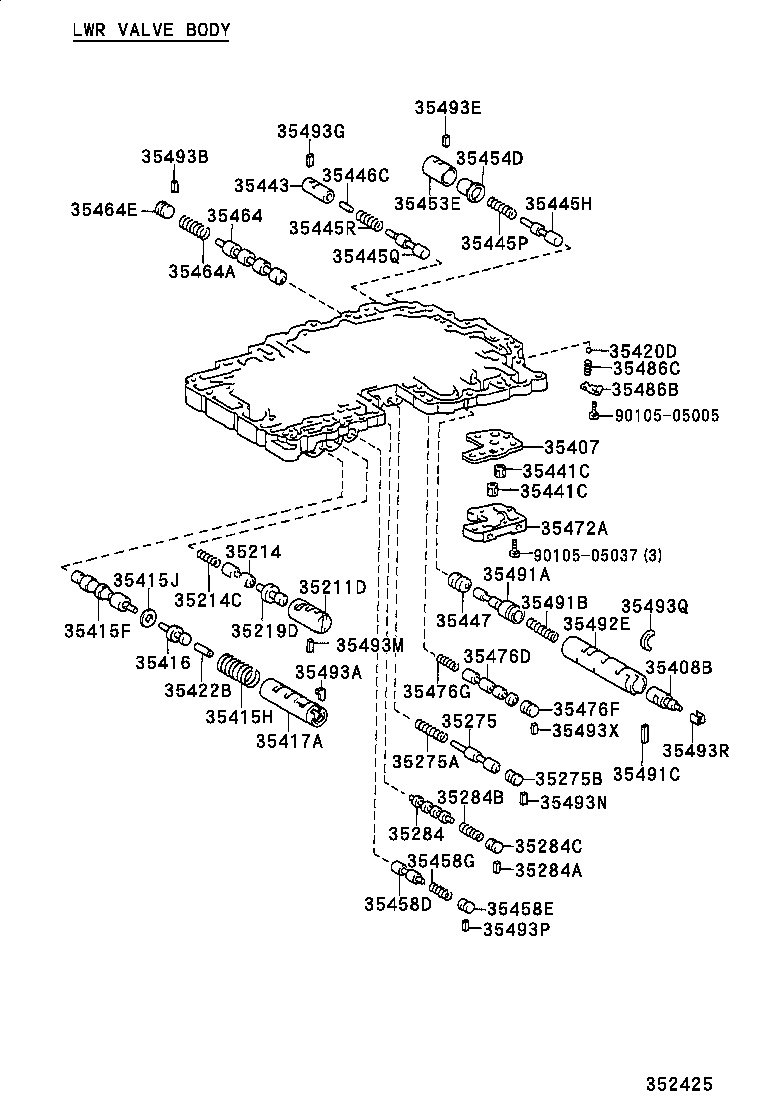

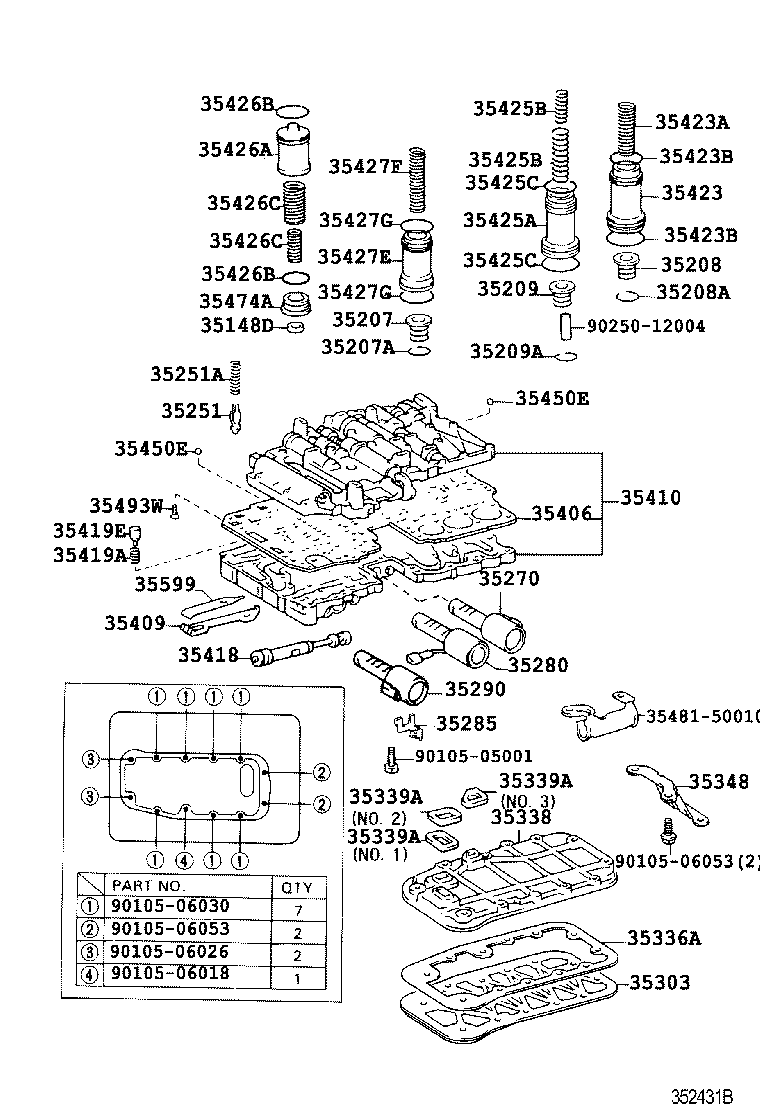

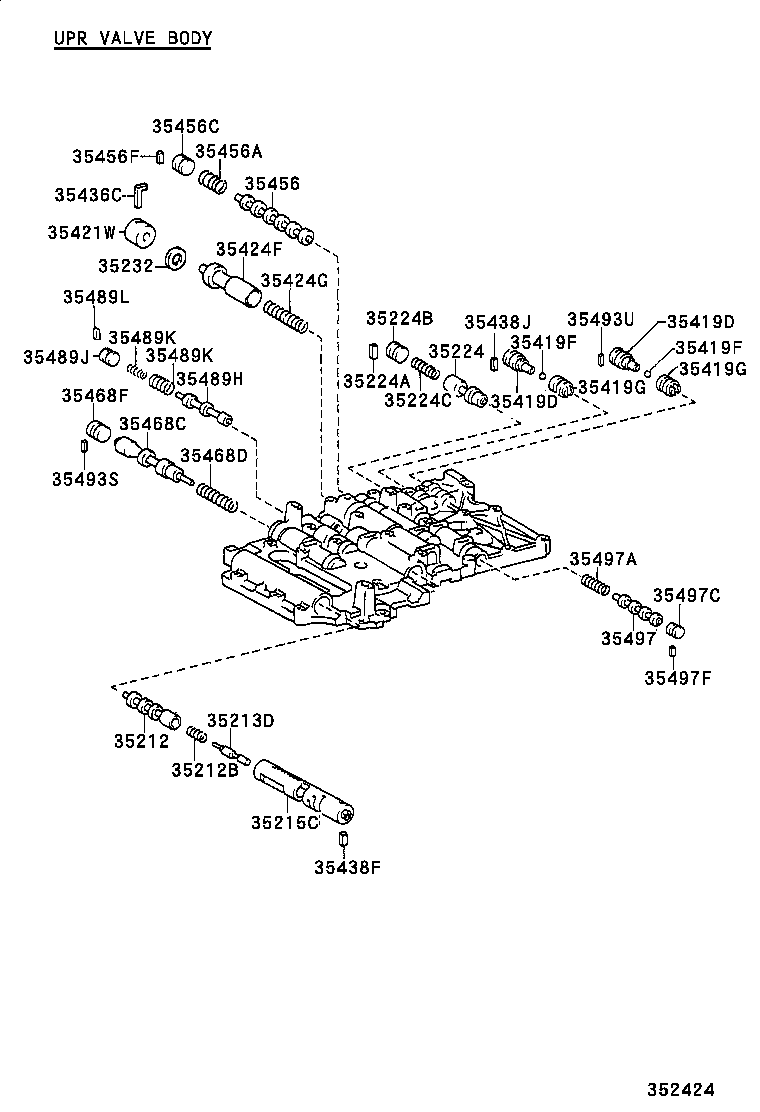

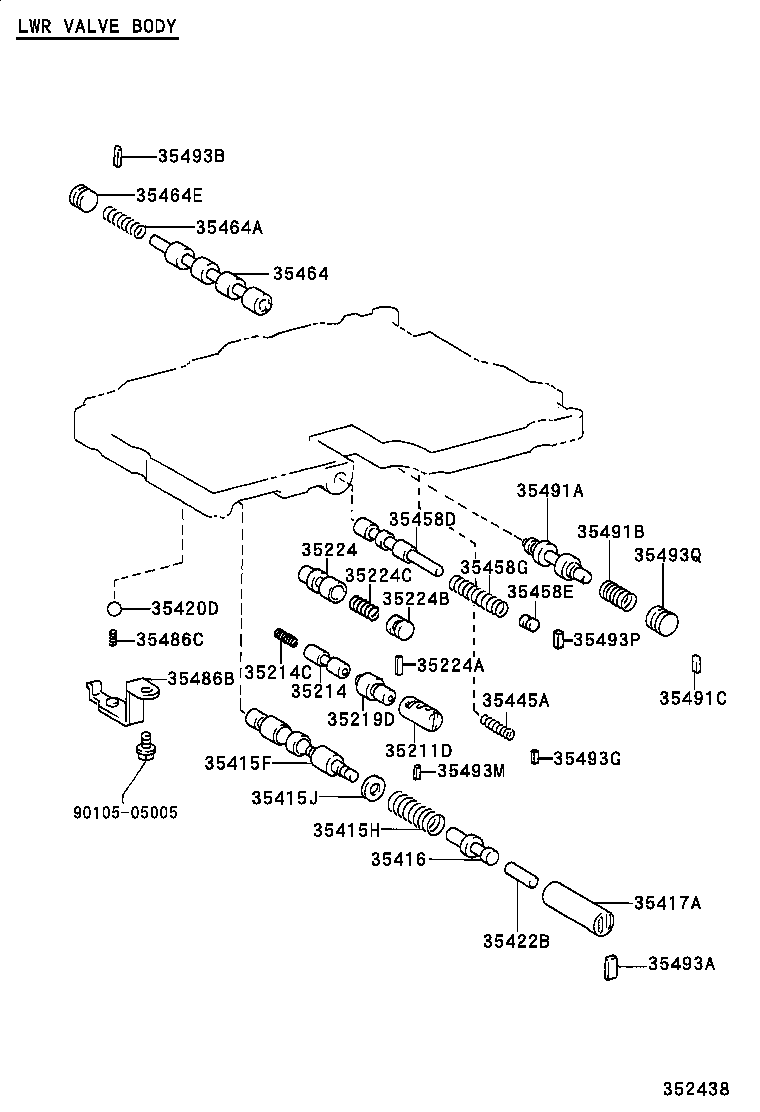

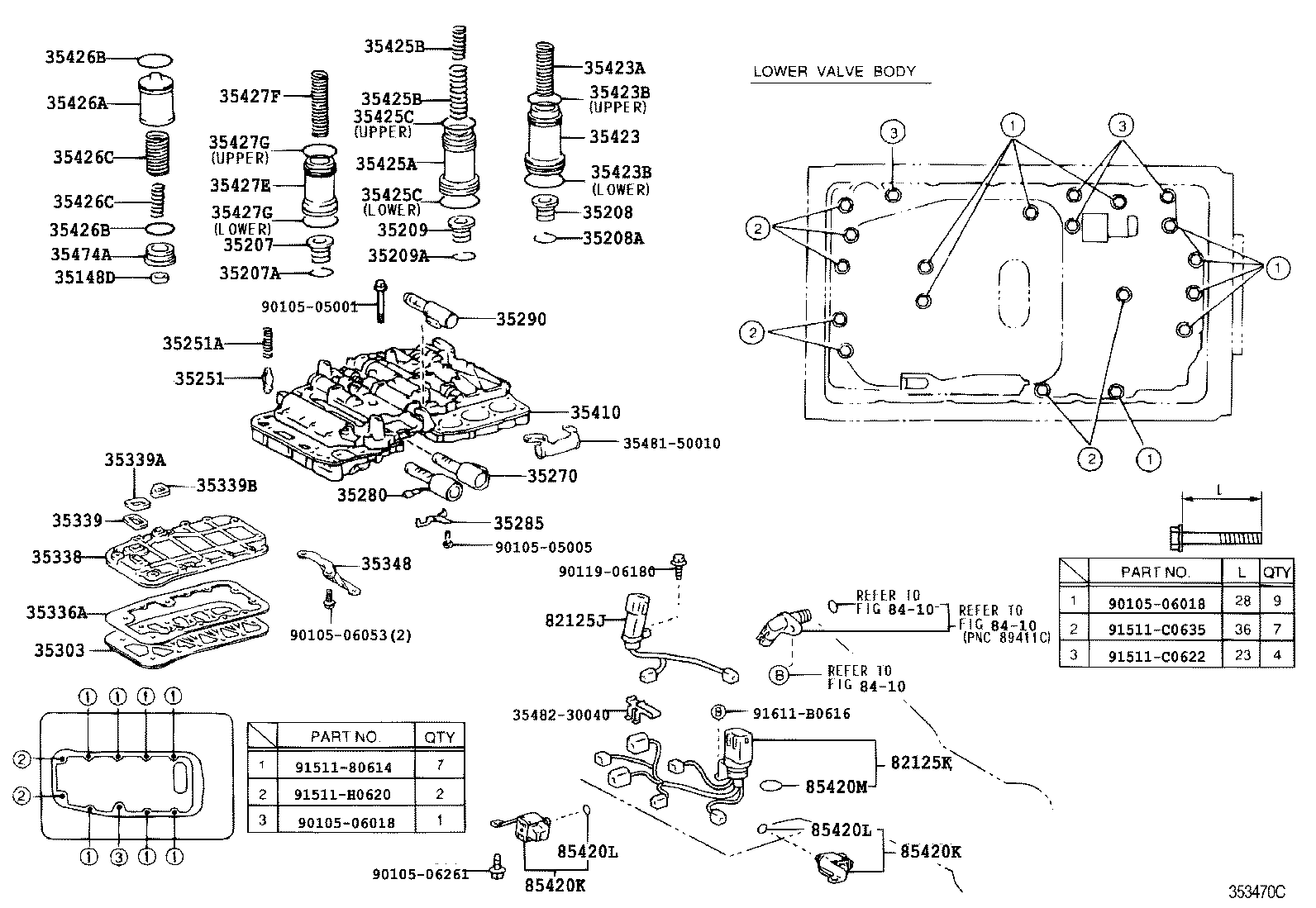

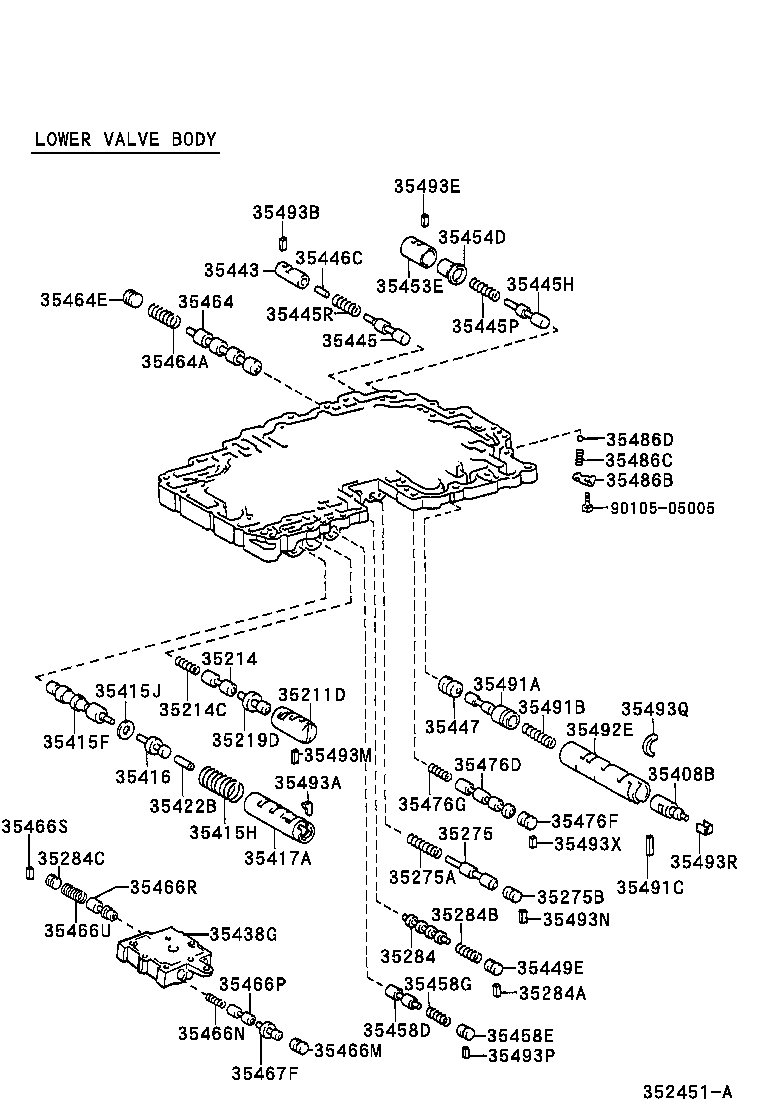

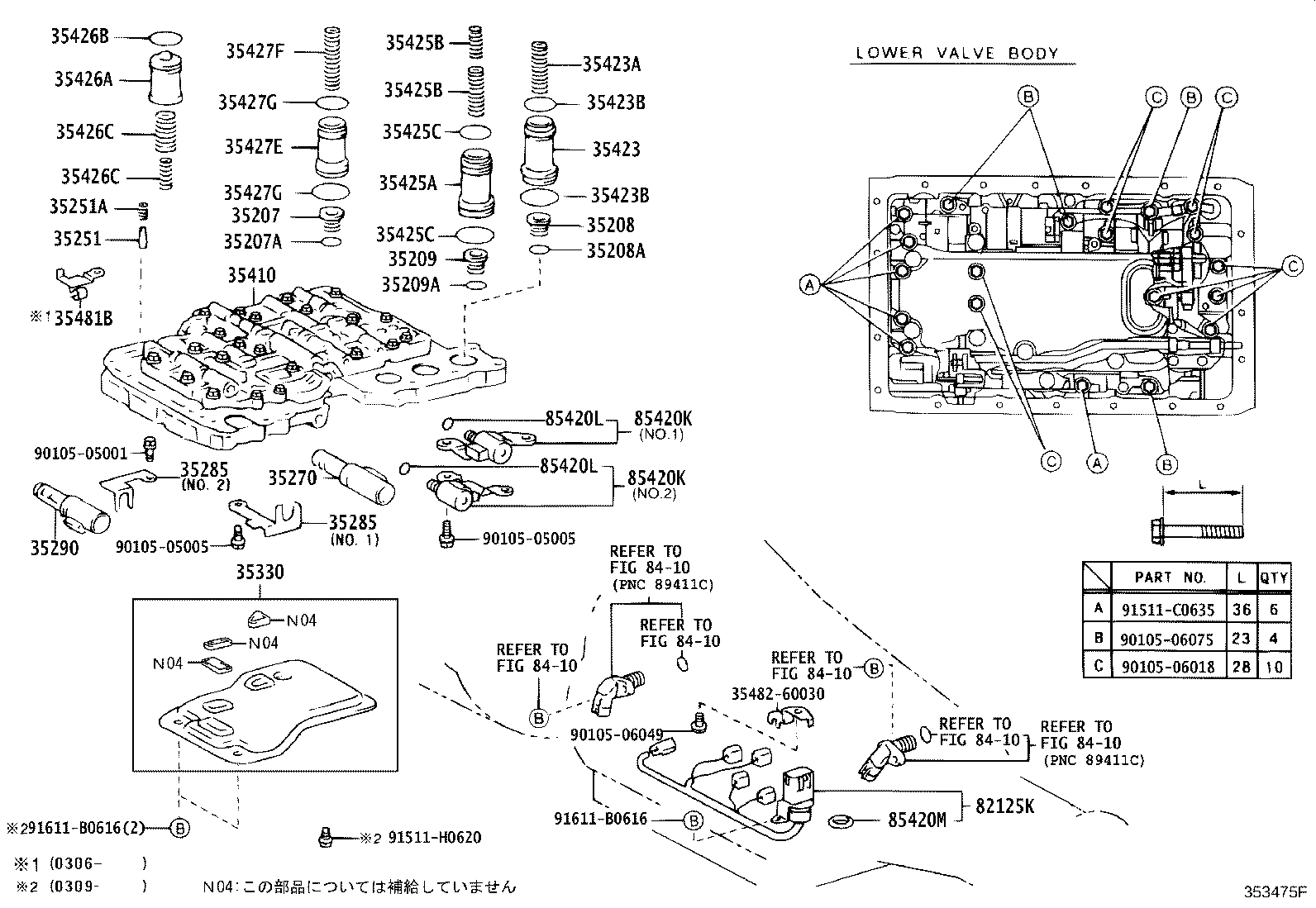

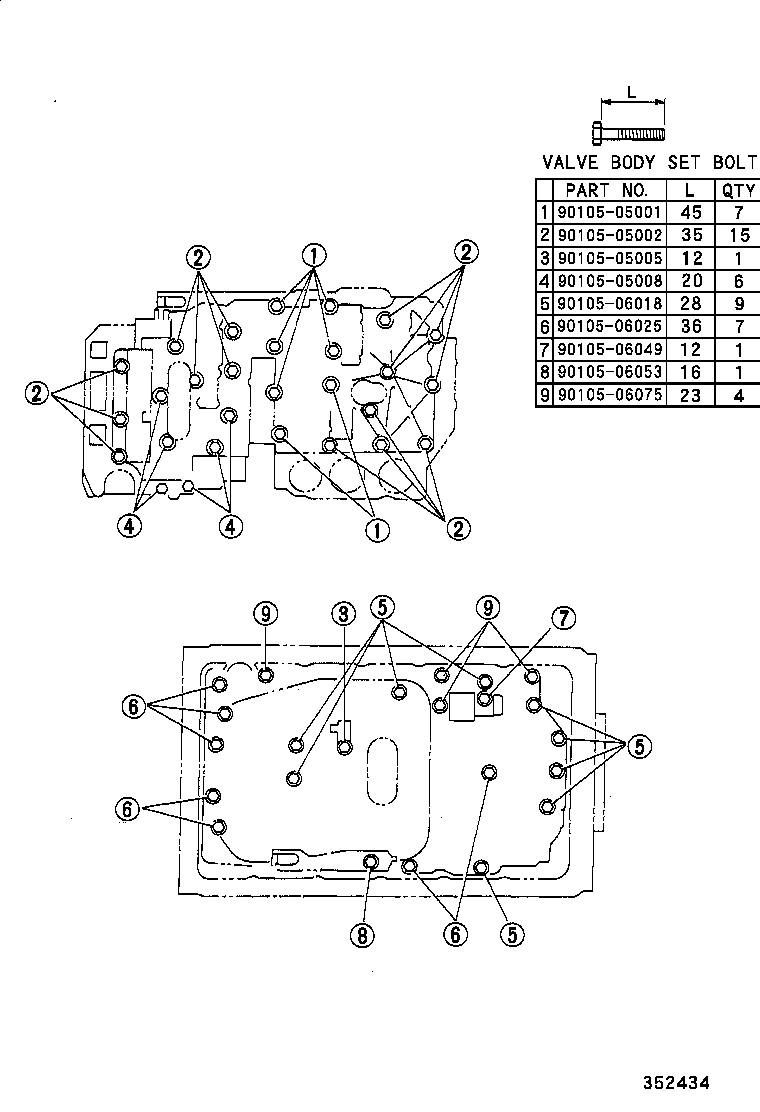

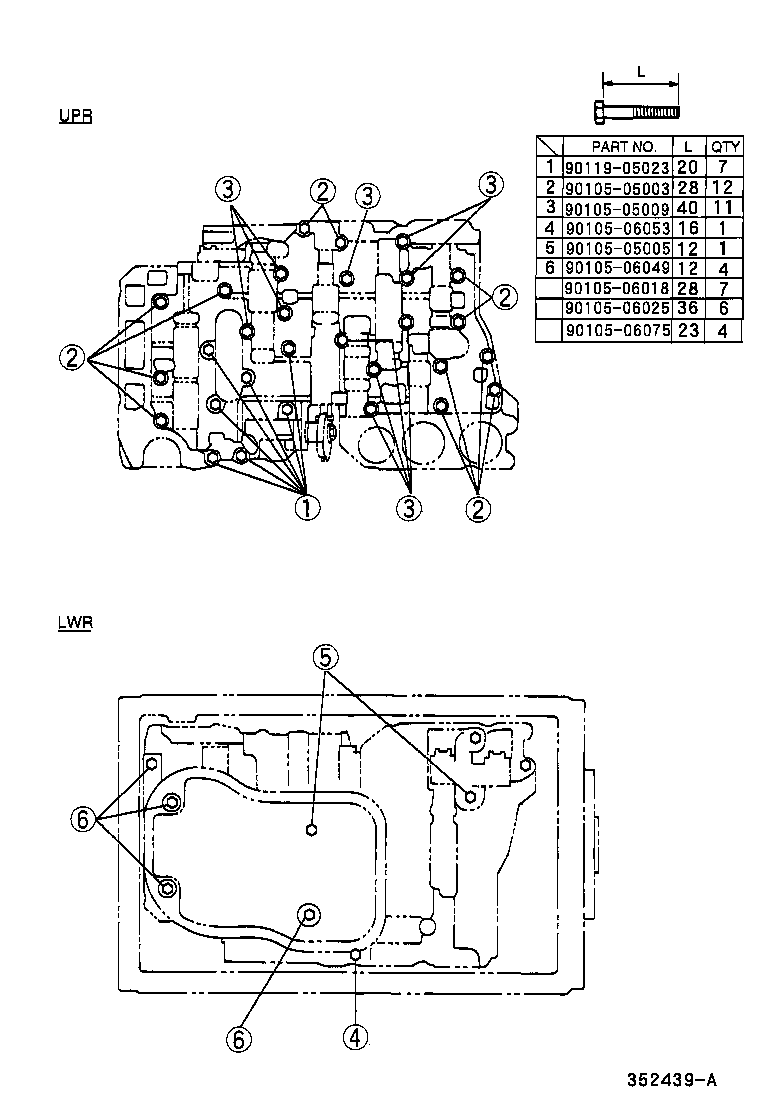

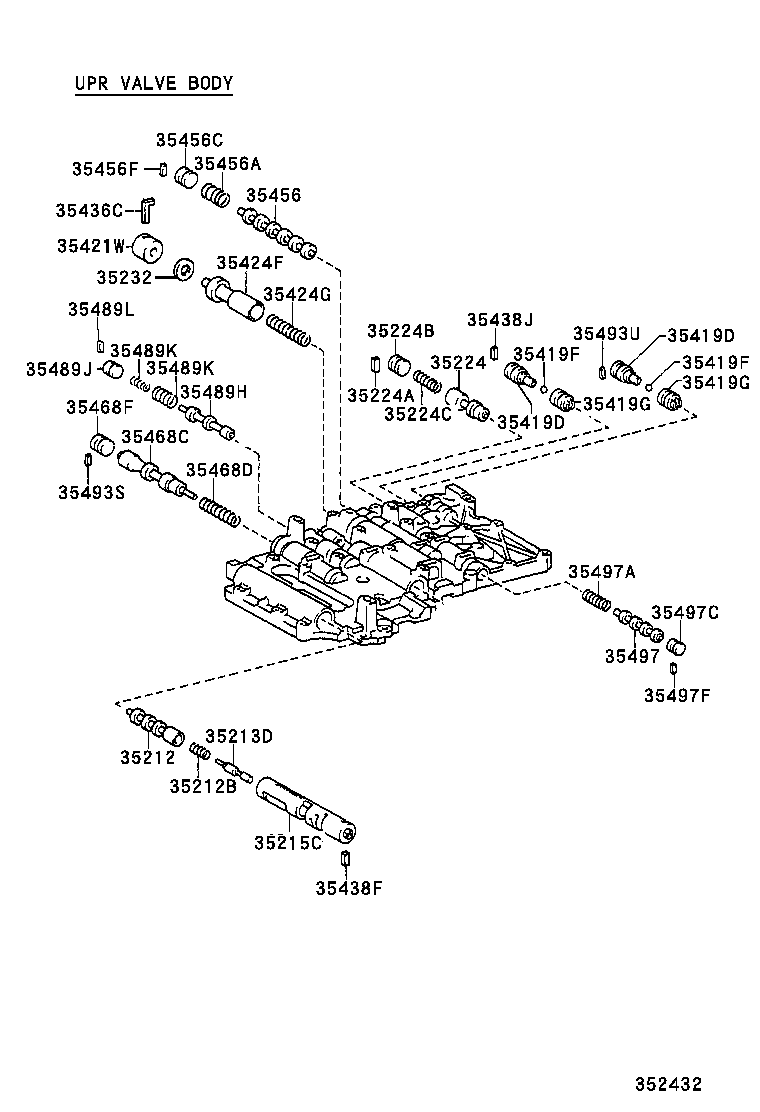

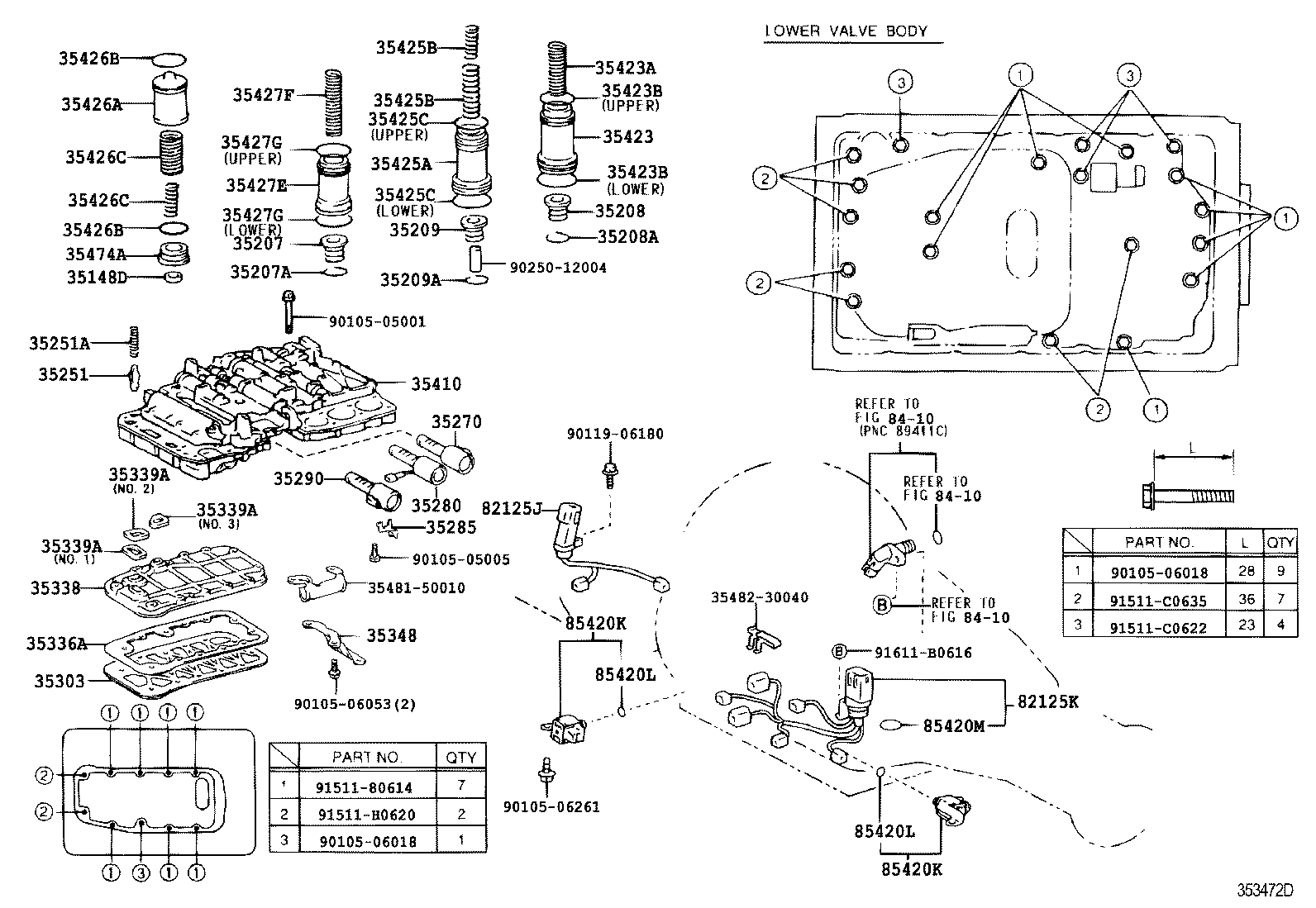

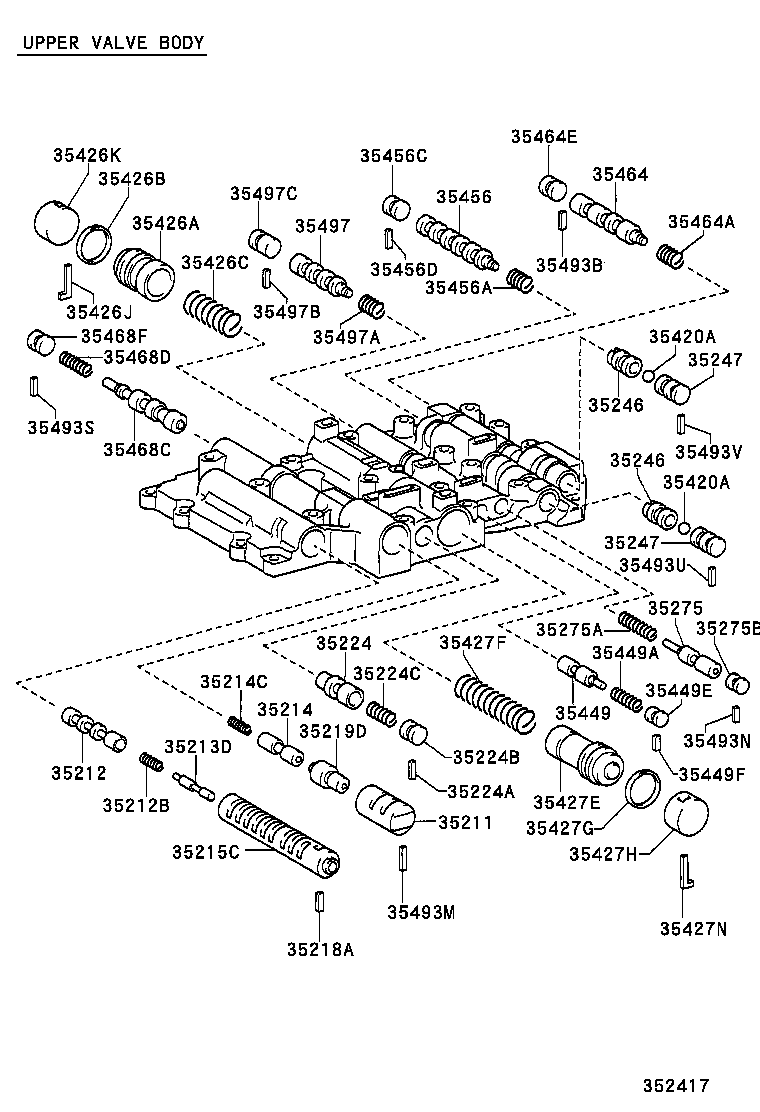

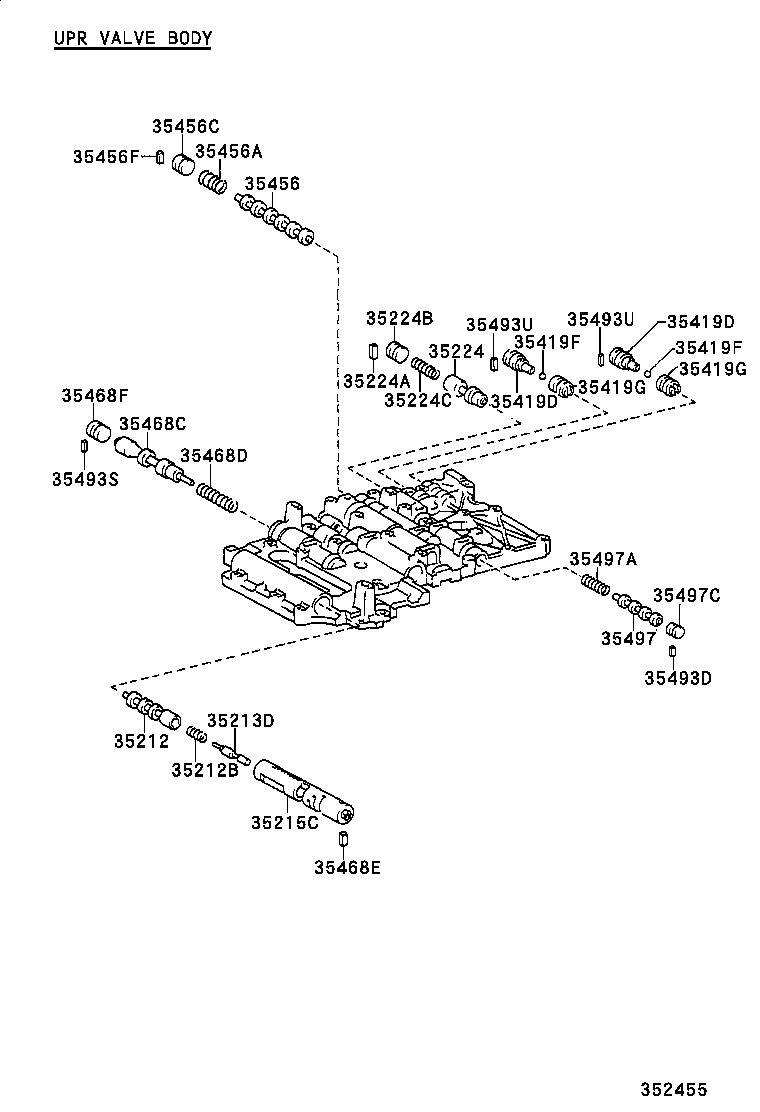

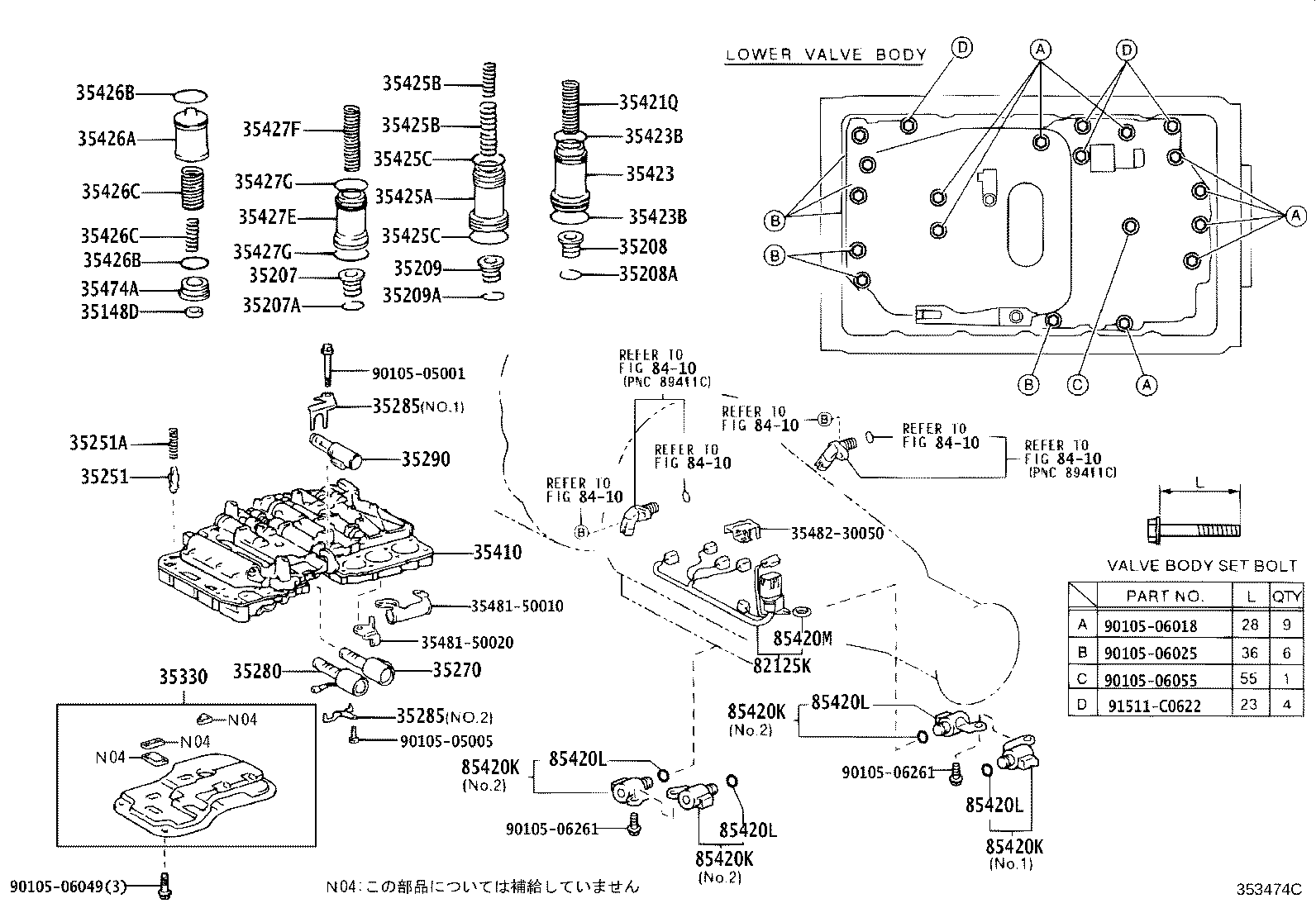

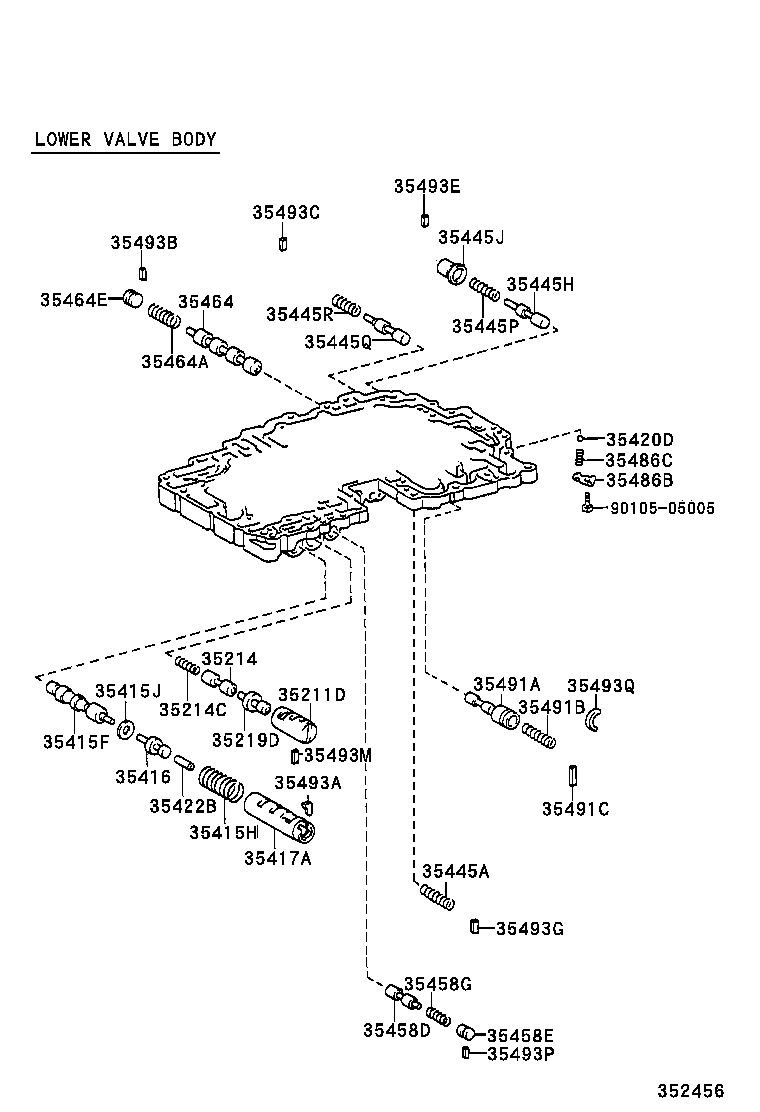

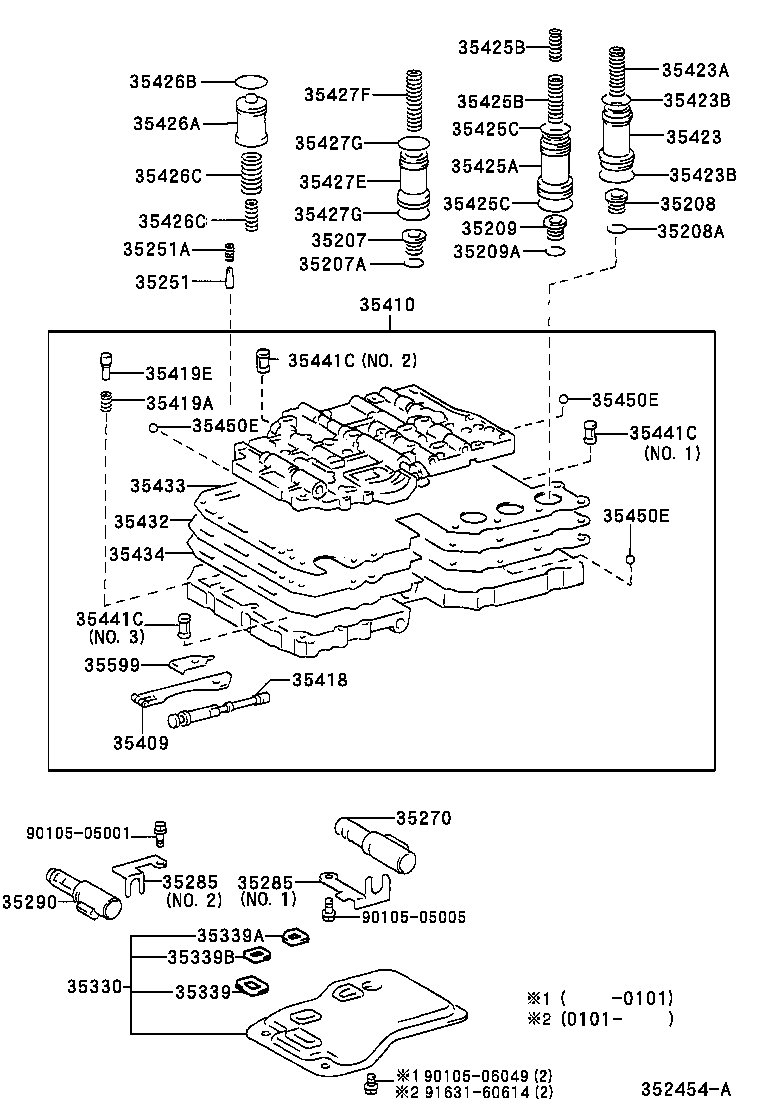

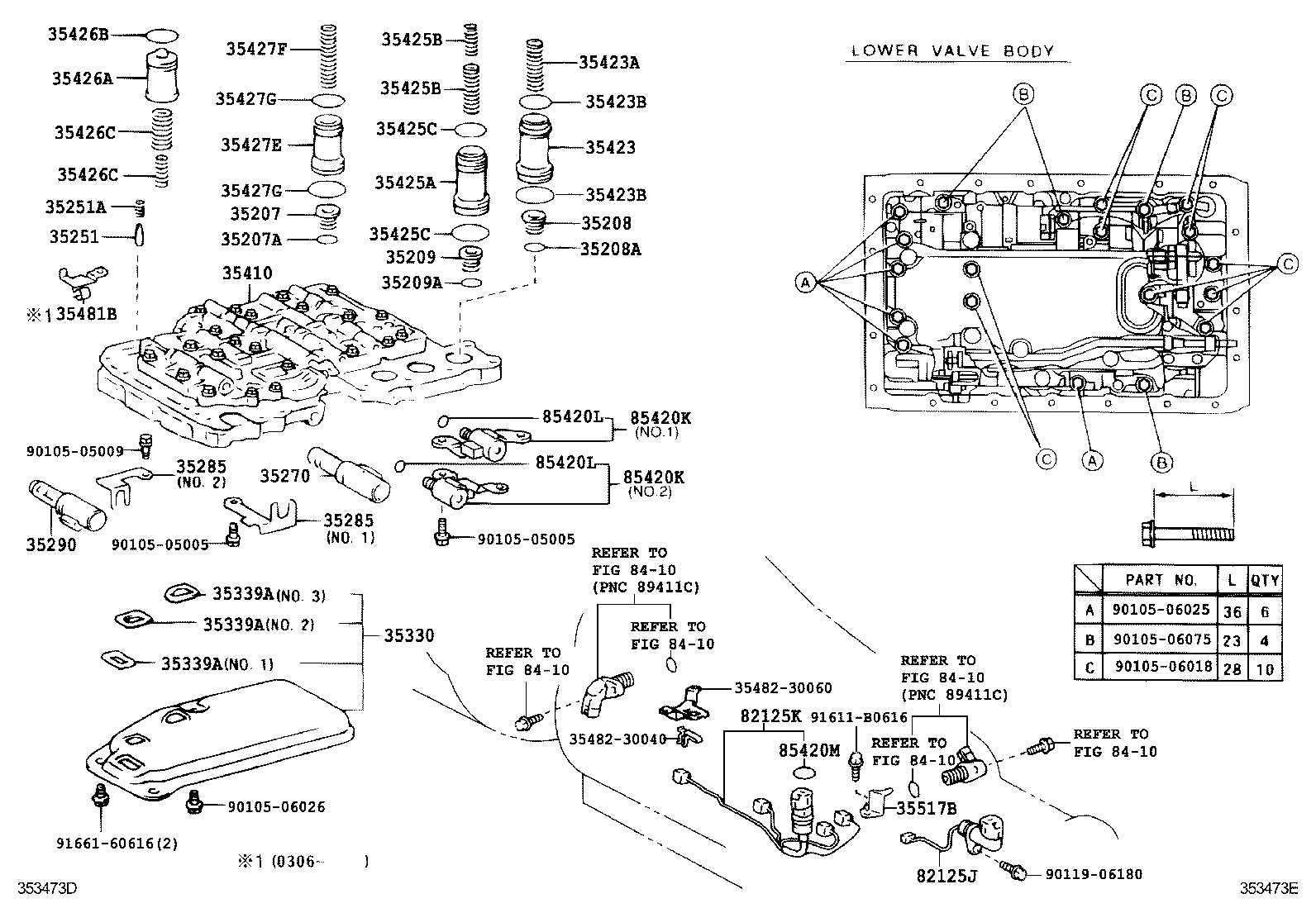

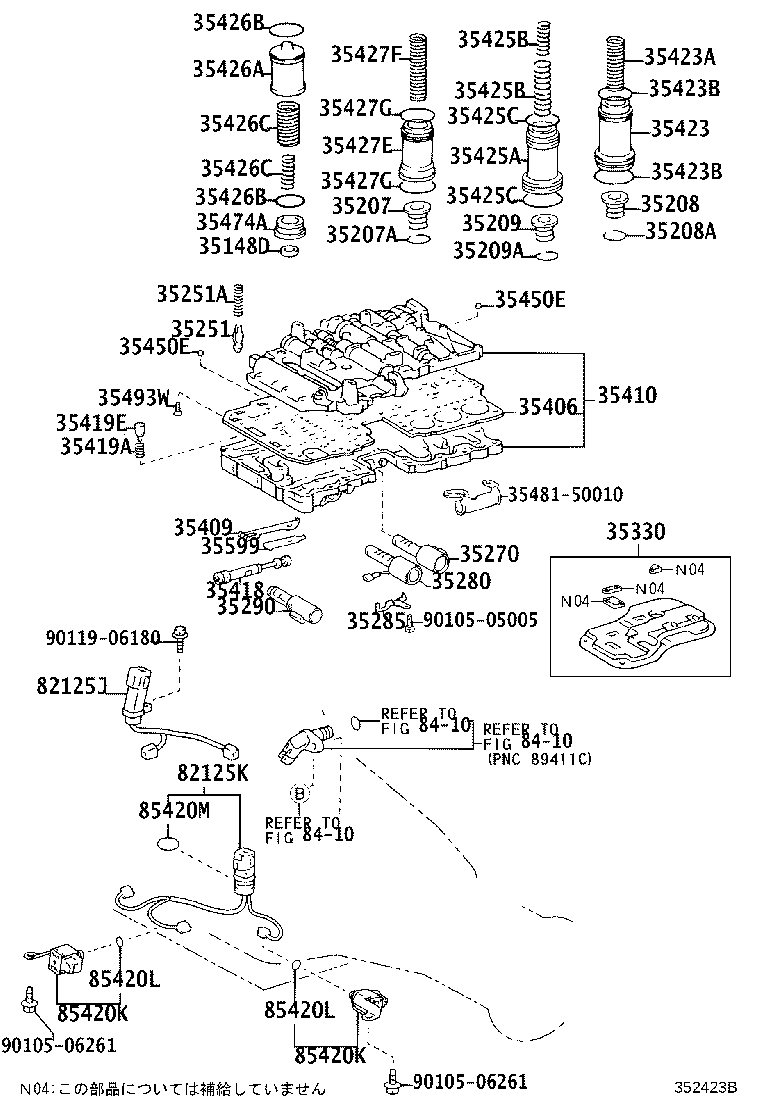

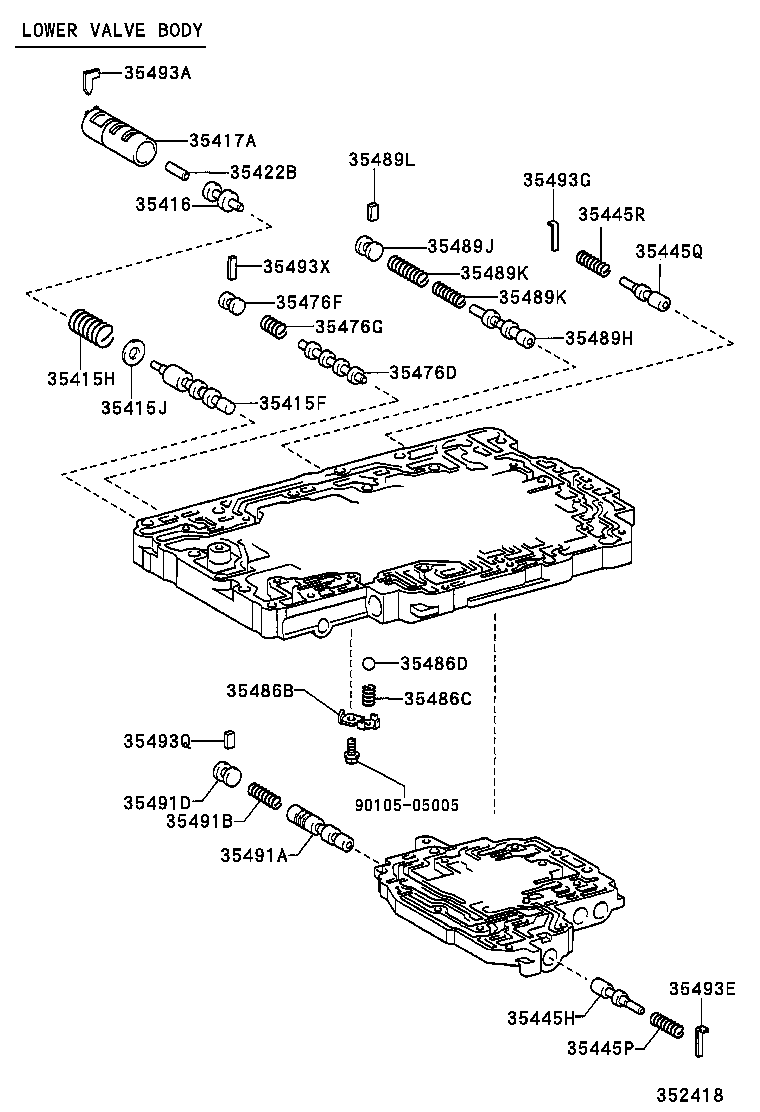

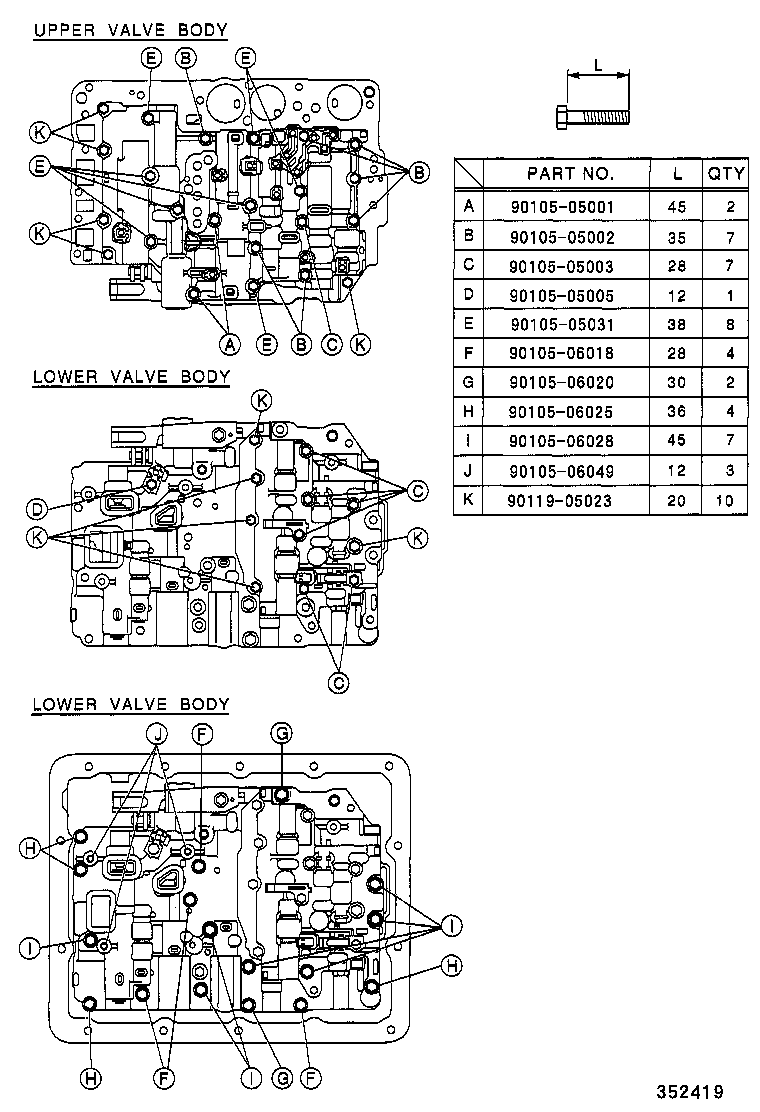

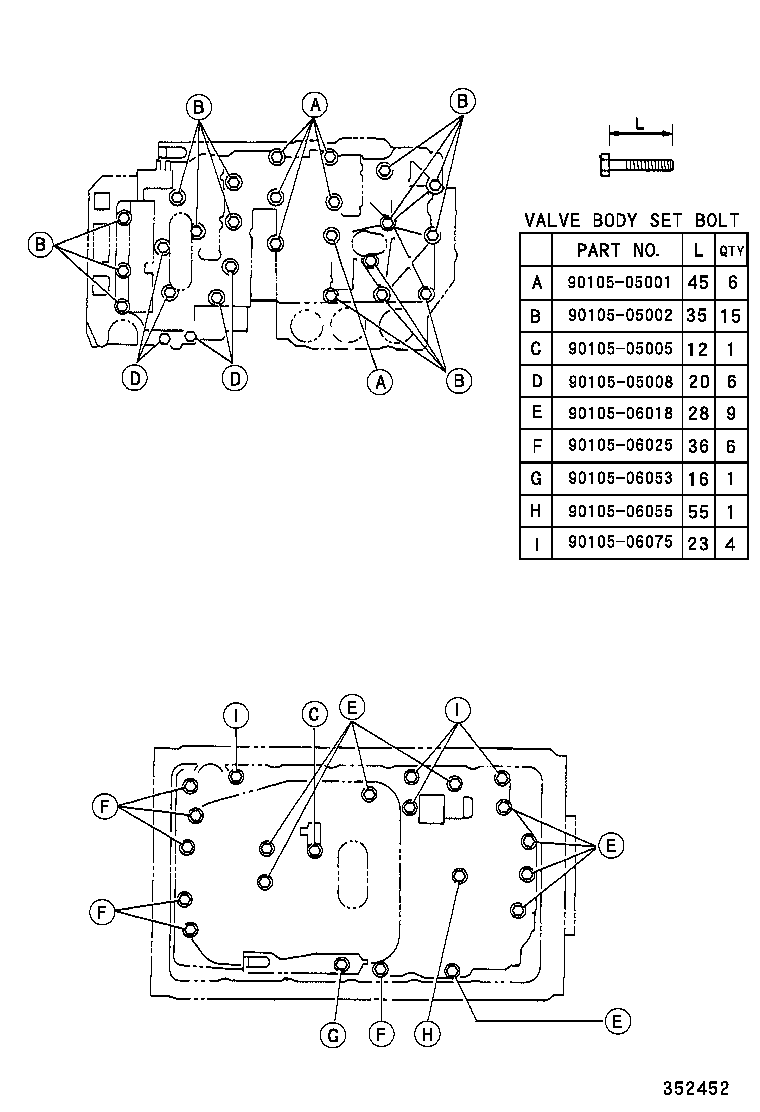

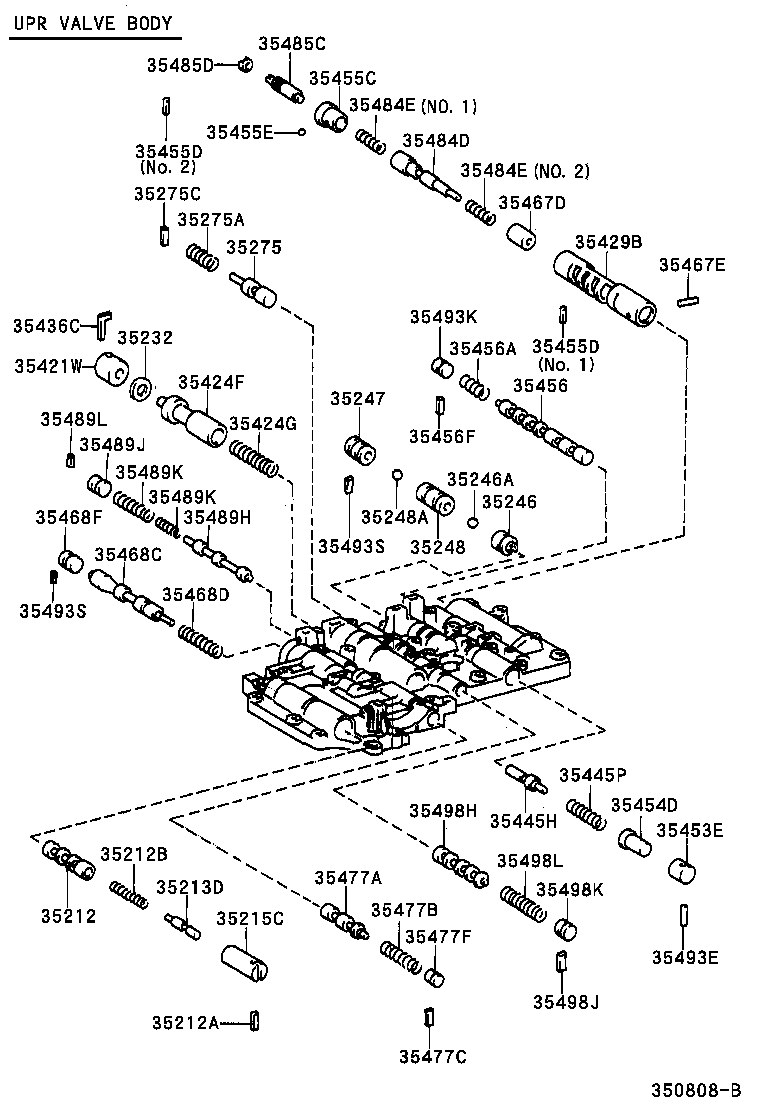

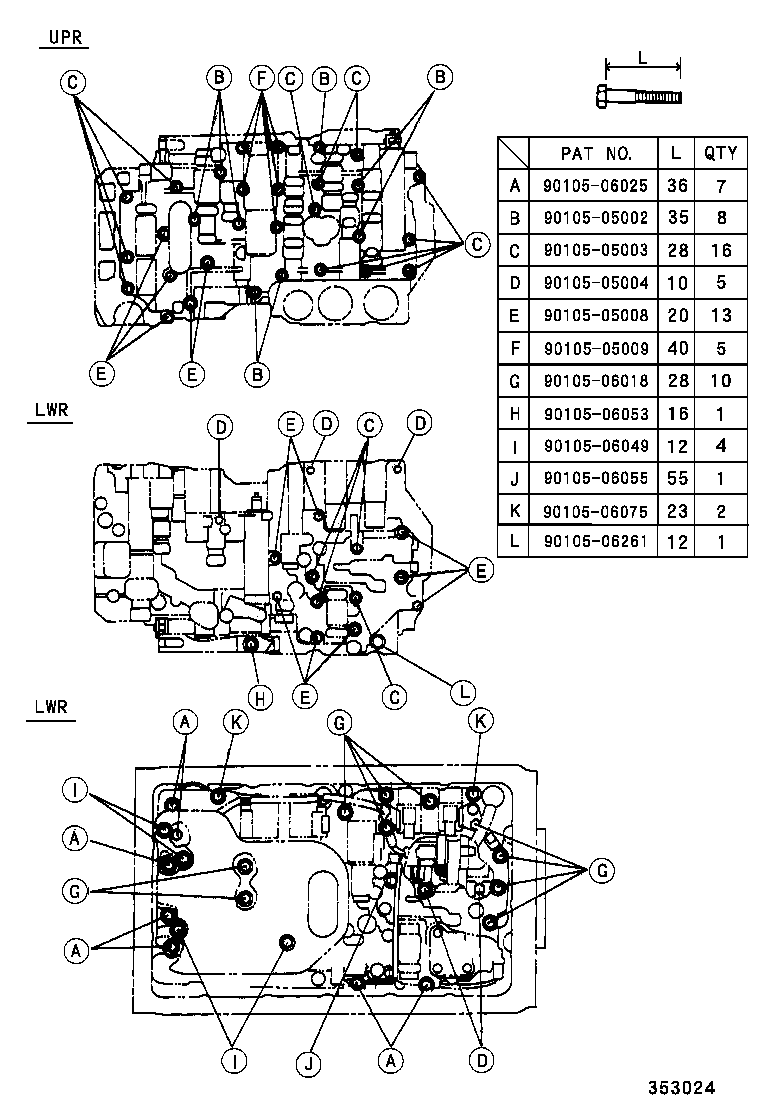

Figure 352416F 352416F 1999-09 → 2001-08 Figure 352417 352417 1999-09 → 2001-08 Figure 352418 352418 1999-09 → 2001-08 Figure 352419 352419 1999-09 → 2001-08 Figure 352423B 352423B 1999-09 → 2001-08 Figure 352424 352424 1999-09 → 2001-08 Figure 352425 352425 1999-09 → 2001-08 Figure 352426 352426 1999-09 → 2001-08 Figure 351137C 351137C 1999-09 → 2001-08 Figure 350808B 350808B 1999-09 → 2001-08 Figure 351135 351135 1999-09 → 2001-08 Figure 353024 353024 1999-09 → 2001-08 Figure 352430C 352430C 1999-09 → 2001-08 Figure 352431B 352431B 1999-09 → 2001-08 Figure 352432 352432 1999-09 → 2001-08 Figure 352433 352433 1999-09 → 2001-08 Figure 352434 352434 1999-09 → 2001-08 Figure 352435B 352435B 1999-09 → 2001-08 Figure 352436A 352436A 1999-09 → 2001-08 Figure 352437 352437 1999-09 → 2001-08 Figure 352438 352438 1999-09 → 2001-08 Figure 352439A 352439A 1999-09 → 2001-08 Figure 352440B 352440B 1999-09 → 2001-08 Figure 352450C 352450C 1999-09 → 2001-08 Figure 350953 350953 1999-09 → 2001-08 Figure 352451A 352451A 1999-09 → 2001-08 Figure 352452 352452 1999-09 → 2001-08 Figure 352453B 352453B 1999-09 → 2001-08 Figure 352454A 352454A 1999-09 → 2001-08 Figure 352455 352455 1999-09 → 2001-08 Figure 352456 352456 1999-09 → 2001-08 Figure 352457A 352457A 1999-09 → 2001-08 Figure 352458C 352458C 1999-09 → 2001-08 Figure 353469E 353469E 2001-08 → 2003-12 Figure 353470C 353470C 2001-08 → — Figure 353471D 353471D 2001-08 → — Figure 353472D 353472D 2001-08 → — Figure 353473E 353473E 2001-08 → — Figure 353474C 353474C 2001-08 → — Figure 353475F 353475F 2001-08 → —

Part groups

PNCDescription
35148D Gasket (FOR C-O ACCUMULATOR PISTON)
35207 Spring Sub-assy, B-0 Accumulator
35207A Ring, Hole Snap (FOR B-0 ACCUMULATOR SPRING)
35208 Spring Sub-assy, B-2 Accumulator
35208A Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35209 Spring Sub-assy, C-2 Accumulator
35209A Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35211 Valve, Lock UP Signal
35211D Sleeve, Lock UP Control Valve
35212 Valve, Lock UP Relay
35212A Seat, Plug (FOR LOCK UP RELAY VALVE)
35212B Spring, Compression (FOR LOCK UP RELAY VALVE)
35213D Plunger, Lock UP Relay Valve
35214 Valve, Lock UP Control
35214C Spring, Compression (FOR LOCK UP CONTROL VALVE)
35215C Sleeve, Lock UP Relay Valve, NO.1
35217 Valve, Accumulator Control, NO.2
35218A Key, Straight (FOR LOCK UP RELAY VALVE PLUG)
35219D Plunger, Lock UP Control Valve
35224 Valve, Reverse Control
35224A Key, Straight (FOR REVERSE CONTROL VALVE)
35224B Plug (FOR REVERSE CONTROL VALVE)
35224C Spring, Compression (FOR REVERSE CONTROL VALVE)
35230 Solenoid Assy, Transmission 3Way, NO.2
35230A Ring, O, NO.1(FOR TRANSMISSION 3WAY SOLENOID NO.2)
35230B Ring, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID NO.2)
35232 Ring, C-1 Accumulator Seal
35240 Solenoid Assy, Automatic Transmission 3Way
35240A Ring, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID)
35240B Ring, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID)
35246 Valve, Check, NO.1
35246A Ball, Reverse Shift Restrict (FOR CHECK VALVE NO.1)
35247 Valve, Check, NO.2
35248 Valve, Check, NO.3
35248A Ball, Reverse Shift Restrict (FOR CHECK VALVE NO.3)
35251 Body, Check Ball
35251A Spring, Compression (FOR CHECK BALL BODY)
35265B Tube, Oil Cooler Return
35270 Solenoid Assy, Shift Control
35275 Valve, Solenoid Modulator
35275A Spring, Compression (FOR SOLENOID MODULATOR VALVE)
35275B Plug (FOR SOLENOID MODULATOR VALVE)
35275C Key, Straight
35280 Solenoid Assy, Lock UP Control
35284 Valve, Solenoid Relay
35284A Key, Straight (FOR SOLENOID RELAY VALVE)
35284B Spring, Compression (FOR SOLENOID RELAY VALVE)
35284C Plug (FOR SOLENOID RELAY VALVE)
35285 Plate, Solenoid Lock
35290 Solenoid Assy, Line Pressure Control
35295 Plate, Solenoid Lock, NO.2
35303 Strainer Sub-assy, Oil
35330 Strainer Assy, Valve Body Oil
35336A Gasket, Oil Strainer Spacer
35338 Spacer, Oil Strainer
35339 Gasket, Oil Strainer
35339A Gasket, Oil Strainer, NO.1
35339B Gasket, Oil Strainer, NO.2
35345 Plate, Oil Guide
35348 Bracket, Oil Strainer, NO.1
35404G Plate Sub-assy, Valve Body, NO.2
35406 Plate Sub-assy, Valve Body
35406A Plate Sub-assy, Valve Body
35407 Plate Sub-assy, Valve Body Cover
35408B Plug Sub-assy, Accumulator Control Valve
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35415F Valve, Primary Regulator
35415H Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J Washer (FOR PRIMARY REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417A Sleeve, Primary Regulator Valve
35418 Valve, Manual
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35419D Valve, Check, NO.2
35419E Valve, Check, NO.3
35419F Ball, Check Valve
35419G Valve, Check, NO.4
35420A Ball (FOR PRESSURE RELIEF)
35420D Ball (FOR LOWER VALVE BODY)
35421A Spring, Compression (FOR ACCUMULATOR PISTON NO.1)
35421G Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
35421Q Spring, Compression (FOR ACCUMULATOR PISTON NO.3)
35421W Plug, C-1 Accumulator Valve
35422B Plunger, Primary Regulator Valve, NO.2
35423 Piston, B-2 Accumulator
35423A Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424C Piston, C-1 Accumulator
35424E Ring, O (FOR C-1 ACCUMULATOR PISTON)
35424F Valve, C-1 Accumulator
35424G Spring, Compression (FOR C-1 ACCUMULATOR VALVE)
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426A Piston, C-0 Accumulator
35426B Ring, O (FOR C-0 ACCUMULATOR PISTON)
35426C Spring, Compression (FOR C-0 ACCUMULATOR PISTON)
35426J Seat, C-0 Accumulator Piston Plug
35426K Plug, C-0 Accumulator Piston
35427E Piston, B-0 Accumulator
35427F Spring, Compression (FOR B-0 ACCUMULATOR PISTON)
35427G Ring, O (FOR B-0 ACCUMULATOR PISTON)
35427H Plug, B-0 Accumulator Piston
35427N Seat, B-0 Accumulator Piston Plug
35429B Sleeve, B-3 Control Valve
35432 Plate, Valve Body, NO.1
35433 Gasket, Valve Body, NO.1
35434 Gasket, Valve Body, NO.2
35436C Retainer, C-1 Accumulator Valve
35438F Seat, Detent Spring
35438G Plate, Valve Body, NO.2
35438J Seat, Throttle Valve Spring
35441C Strainer, Solenoid Oil
35443 Sleeve, Low Coast Shift Control Valve
35444D Valve, Release Control
35444L Spring, Compression (FOR SHIFT VALVE PLUG SEAT)
35445 Valve, Low Modulator
35445A Spring, Compression (FOR LOW MODULATOR VALVE)
35445H Valve, 2ND Coast Modulator
35445J Plug (FOR 2ND COAST MODULATOR VALVE)
35445P Spring, Compression (FOR 2ND COAST MODULATOR VALVE)
35445Q Valve, Low Coast Modulator
35445R Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35446C Plunger, Low Coast Modulator Valve
35447 Plunger, Accumulator Control Valve
35449 Valve, Sequence
35449A Spring, Compression (FOR SEQUENCE VALVE)
35449E Plug, Sequence Valve
35449F Seat, Reverse Sequence Valve Plug
35450E Ball (FOR UPPER VALVE BODY)
35453E Sleeve, 2ND Coast Modulator Valve
35454D Plunger, 2ND Coast Modulator Valve
35455C Plug, B-3 Control Valve
35455D Seat, Shift Valve Plug, NO.3
35455E Roller, NO.2 (FOR B-3 CONTROL VALVE)
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C Plug (FOR 2-3 SHIFT VALVE)
35456D Seat (FOR 2-3 SHIFT VALVE)
35456F Key, Straight (FOR 2-3 SHIFT VALVE)
35458D Valve, Cut Back
35458E Plug (FOR CUT BACK VALVE)
35458G Spring, Compression (FOR CUT BACK VALVE)
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464E Plug (FOR 1-2 SHIFT VALVE)
35466M Plug (FOR COAST BRAKE RELAY VALVE)
35466N Spring, Compression (FOR COAST BRAKE RELAY VALVE)
35466P Valve, Coast Brake Control, NO.1
35466R Valve, Coast Brake Control, NO.2
35466S Key, Straight (FOR COAST BRAKE CONTROL VALVE)
35466U Spring, Compression (FOR COAST BRAKE CONTROL VALVE)
35467D Plunger, B-3 Control Valve
35467E Roller, NO.1 (FOR B-3 CONTROL VALVE)
35467F Plunger, Coast Brake Relay Valve
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F Plug (FOR SECONDARY REGULATOR VALVE)
35472A Cover, Lower Valve Body
35473 Cover, Transmission Valve Body
35474A Cover, Accumulator
35474B Ring, O (FOR ACCUMULATOR COVER)
35476D Valve, Cut Off
35476F Plug (FOR CUT OFF VALVE)
35476G Spring, Compression (FOR CUT OFF VALVE)
35477A Valve, Overdrive Clutch Exhaust
35477B Spring, Compression (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477C Seat, Valve (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477F Plug (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35481B Clamp, Valve Body Wire Harness
35482B Clamp, Temperature Sensor
35483E Valve, C-0 Control Relay
35483F Plug (FOR C-0 CONTROL RELAY VALVE)
35483G Spring, Compression (FOR C-0 CONTROL RELAY VALVE)
35484D Valve, B-3 Control
35484E Spring, Compression (FOR B-3 CONTROL VALVE)
35485C Adjuster, B-3 Control Valve
35485D Cap (FOR B-3 CONTROL VALVE ADJUSTER)
35486B Seat, Pressure Relief Valve Spring
35486C Spring, Compression(FOR PRESSURE RELIFE VALVE)
35486D Ball (FOR PRESSURE RELIFE VALVE)
35487B Ball, Check, NO.4
35487C Spring, Compression (FOR CHECK BALL)
35489H Valve, C-1 Orifice Control
35489J Plug (FOR C-1 ORIFICE CONTROL VALVE)
35489K Spring, Compression (FOR C-1 ORIFICE CONTROL VALVE)
35489L Key, Straight (FOR C-1 ORIFICE CONTROL VALVE)
35491A Valve, Accumulator Control, NO.1
35491B Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D Plug (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492E Sleeve, Accumulator Control Valve
35493A Seat, Primary Regulator Valve Plug
35493B Seat, 1-2 Shift Valve Plug
35493C Seat, Release Control Valve Plug
35493D Seat, 3-4 Shift Valve Plug
35493E Seat, 2ND Coast Modulator Valve Plug
35493G Seat, Low Coast Modulator Valve Plug
35493K Seat, Shift Valve Plug
35493L Seat, Shift Valve Plug
35493M Seat, Lock UP Control Valve Plug
35493N Seat, Solenoid Modulator Valve Plug
35493P Seat, Cut Back Valve Plug
35493Q Seat, Accumulator Control Valve Plug, NO.1
35493R Seat, Accumulator Control Valve Plug, NO.2
35493S Seat, Secondary Regulator Valve Plug
35493U Seat, Check Valve, NO.1
35493V Seat, Check Valve, NO.2
35493W Seat, Valve Body
35493X Seat, Cut Off Valae
35493Z Seat, Shift Valve Plug, NO.1
35495B Ball, Check, NO.1
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497B Seat, Shift Valve Plug (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35497F Key, Straight (FOR 3-4 SHIFT VALVE)
35498H Valve, 4-5 Shift
35498J Seat, Shift Valve Plug, NO.2
35498K Plug (FOR 4-5 SHIFT VALVE)
35498L Spring, Compression (FOR 4-5 SHIFT VALVE)
35517B Plate, Transmission Wire Lock
35599 Cover, Manual Detent Spring
35892 Tube, Overdrive Brake
82125J Wire, Transmission
82125K Wire, Transmission
85420K Solenoid Assy, Transmission
85420L Ring, O(FOR TRANSMISSION SOLENOID)
85420M Ring, O(FOR SPEED SENSOR)
