Toyota Crown/Majesta

2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

33 part groups · 4 illustrations

Illustrations

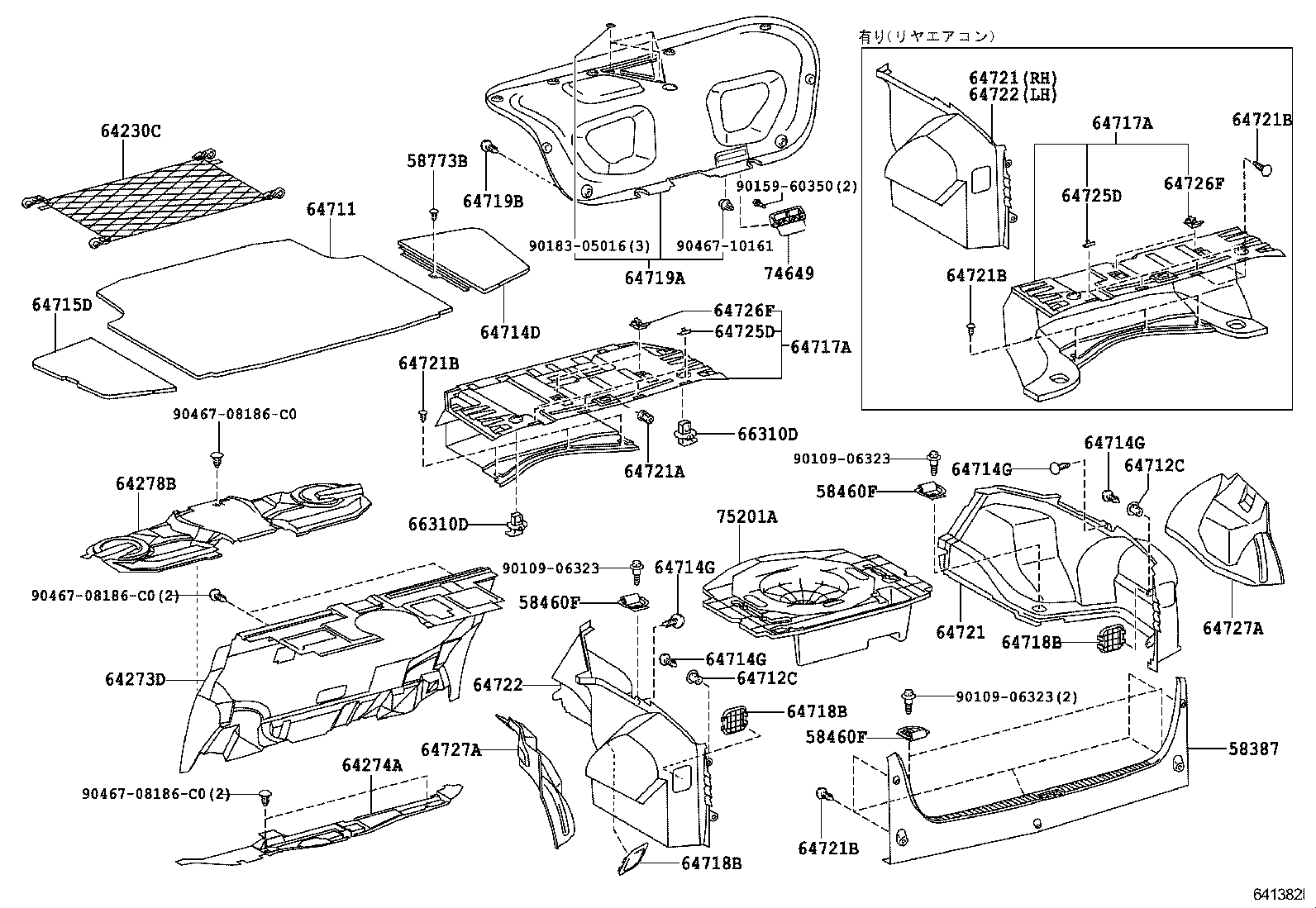

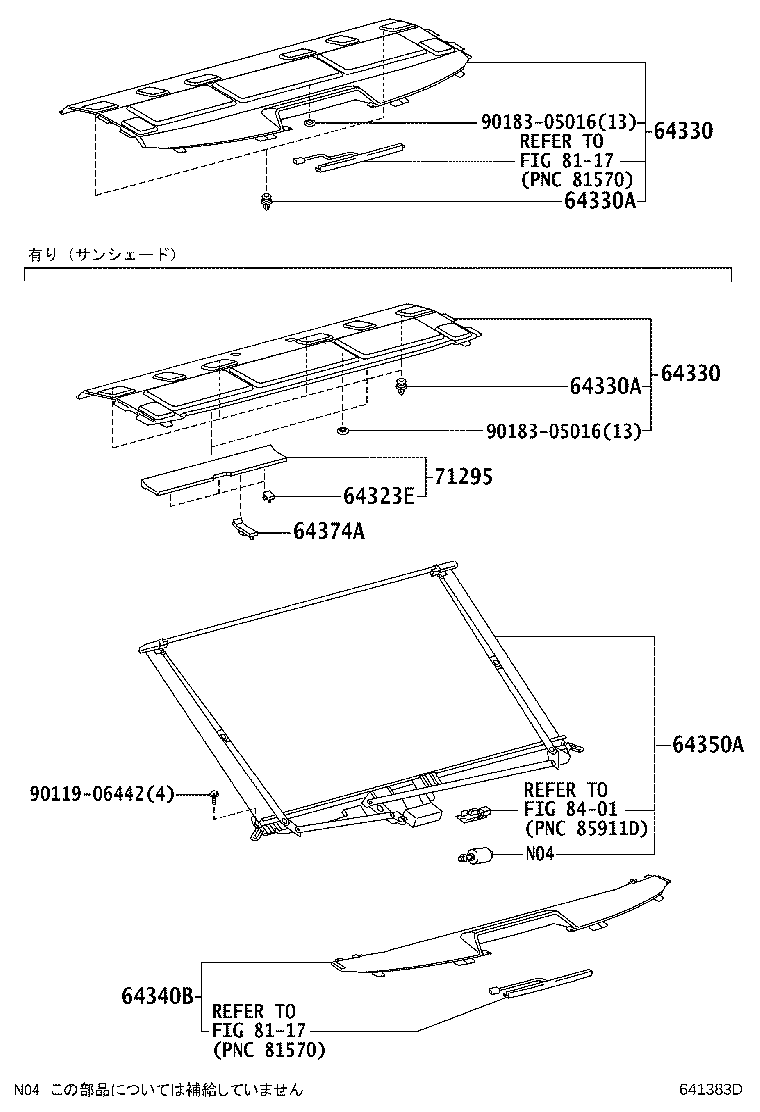

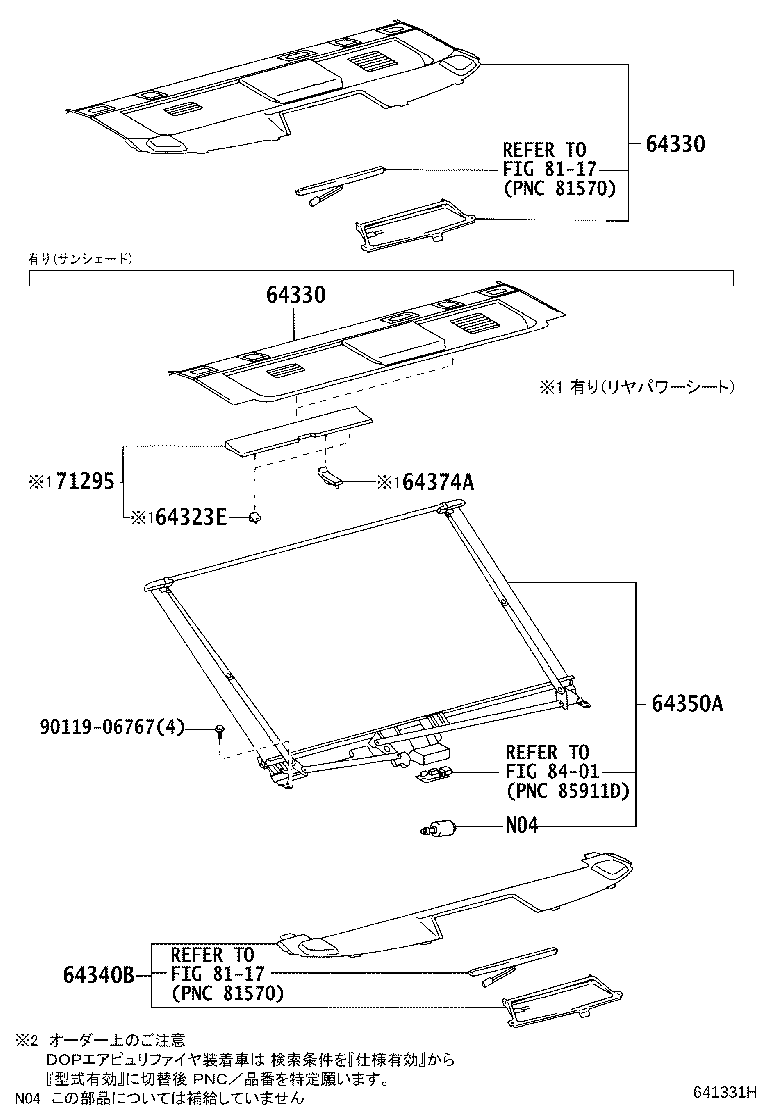

Figure 641330F 641330F 2003-12 → — Figure 641382I 641382I 2004-06 → — Figure 641331H 641331H 2003-12 → — Figure 641383D 641383D 2004-06 → —

Part groups

PNCDescription
58387 Plate, Rear Floor Finish
58460F Striker Assy, Luggage Hold Belt
58773B Clip(FOR LUGGAGE COMPARTMENT SIDE COVER)
64230C Net Assy, Room Partition
64273D Pad, Room Partition, NO.1
64274A Pad, Room Partition, NO.2
64278B Pad, Room Partition, NO.3
64323E Clamp, Package Tray Trim
64330 Panel Assy, Package Tray Trim
64330A Clip(FOR PACKAGE TRAY TRIM PANEL)
64340B Panel Assy, Package Tray Trim, NO.2
64350A Shade Assy, Rear Window
64374A Support, Package Tray Trim
64711 Mat, Luggage Compartment Floor
64712C Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
64714D Cover, Luggage Compartment Trim, Side, RH
64714G Clip(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64715D Cover, Luggage Compartment Trim, Side, LH
64717A Cover, Luggage Compartment Trim, Front
64718B Cover, Luggage Trim Service Hole
64719A Cover, Luggage Compartment Door
64719B Clip(FOR LUGGAGE COMPARTMENT DOOR)
64721 Cover, Luggage Compartment Trim, Inner RH
64721A Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721B Cover, Luggage Compartment Trim, NO.1
64722 Cover, Luggage Compartment Trim, Inner LH
64725D Hook, Luggage Compartment Trim, NO.1
64726F Hook, Luggage Compartment Trim, NO.2
64727A Pad, Luggage Compartment Trim, Inner
66310D Hook Assy, Rope
71295 Plate, Rear Seatback, Upper RH
74649 Grip, Luggage Compartment Door Assist
75201A Box, Tool
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
