Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07
Switch & Relay & Computer
142 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28300D | Relay, Starter Cut |
| 28371C | Relay, Ignition, NO.2 |
| 28380A | Resister, Fuel Pump |
| 28850 | Sensor Assy, Battery Current |
| 28865 | Sensor, Battery Thermometer |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82610A | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82641 | Relay, Integration NO.1 |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82666 | Holder, Connector |
| 82670A | Block Assy, Junction, NO.1 |
| 82672A | Cover, Junction Block |
| 82731 | Block, Driver Side Junction |
| 82733 | Block, Passenger Side Junction |
| 82740 | Block Assy, Engine Room Relay |
| 82743 | Block, Engine Room Relay, NO.3 |
| 82821B | Cover, Connector |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |

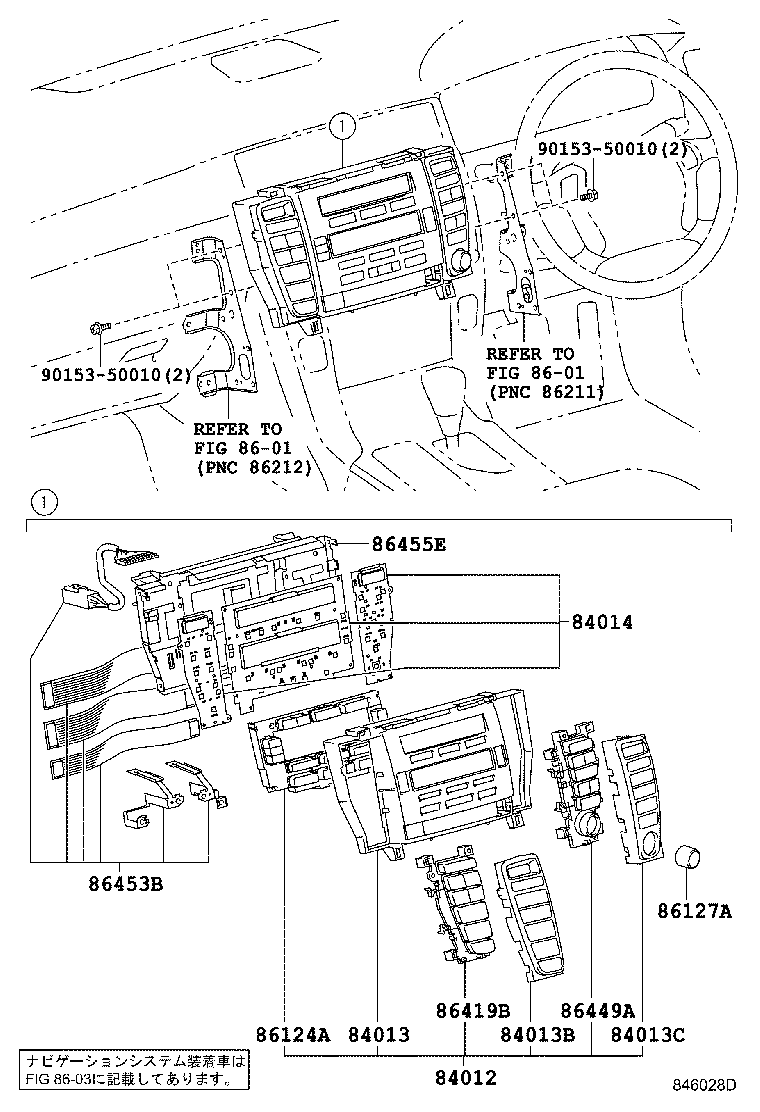

| 84010D | Control & Panel Assy, Integration |
| 84012 | Control & Panel Sub-assy, Integration |
| 84013 | Panel Sub-assy, Integration |
| 84013B | Panel Sub-assy, Integration, NO.2 |
| 84013C | Panel Sub-assy, Integration, NO.3 |
| 84014 | Board Sub-assy, Printed Wire Integration |
| 84030 | Switch Assy,Multiplex Network |
| 84040 | Master Switch Assy,Multiplex Network |
| 84052 | Switch Assy, Un-lock Warning |
| 84070 | Computer & Switch Assy, Position Control |
| 84091 | Switch Set, Satellite |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84155 | Switch, Headlamp Swivel Main |
| 84204 | Cable Sub-assy, Steering Pad Switch |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84244B | Switch, Steering Pad, RH |
| 84247A | Switch, Steering Pad, LH |
| 84306 | Cable Sub-assy, Spiral |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84656A | Bezel, Switch |
| 84660R | Switch, Cooler(REAR) |
| 84661C | Knob, Cooler Control Switch |
| 84662 | Panel, Cooler Control Switch |
| 84720A | Switch Assy, Pattern Select, NO.1 |
| 84720B | Bulb (FOR PATTERN SELECT SWITCH) |
| 84720F | Cap, Pattern Select Switch |
| 84746 | Switch, Tire Pressure Warning |
| 84751 | Switch, Seat Heater |
| 84751B | Bulb, Seat Heater Switch |
| 84751F | Switch, Seat Heater |
| 84770A | Switch Assy, Pre-collision System Cancel |
| 84794 | Switch, FR Wiper Deicer |
| 84794A | Relay, FR Wiper Deicer |

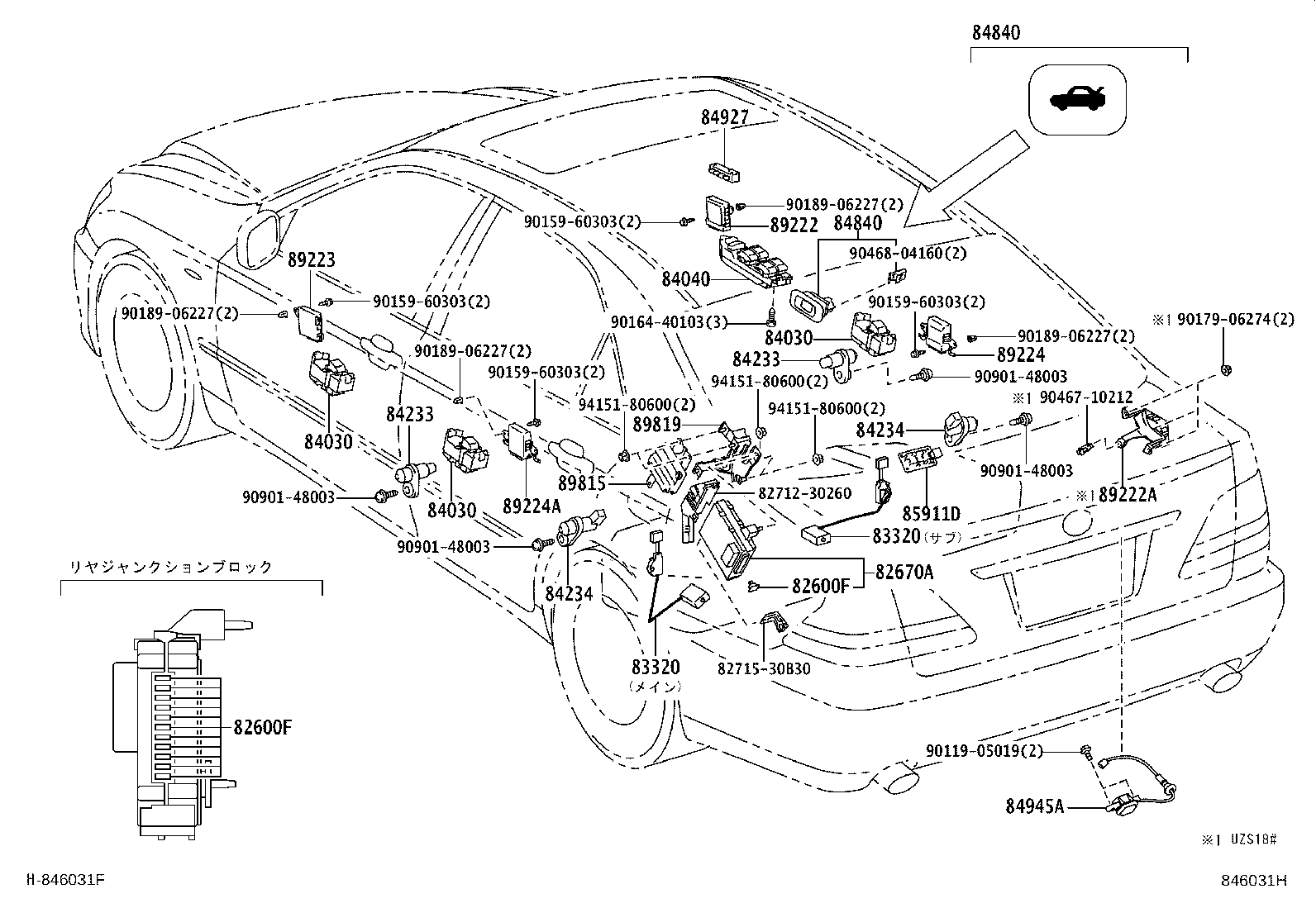

| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84840D | Switch Assy, Luggage Door Opening |
| 84841A | Switch, Fuel Lid Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84873A | Switch, Retractable Outer Mirror |
| 84873B | Bulb, Retractable Outer Mirror Switch |

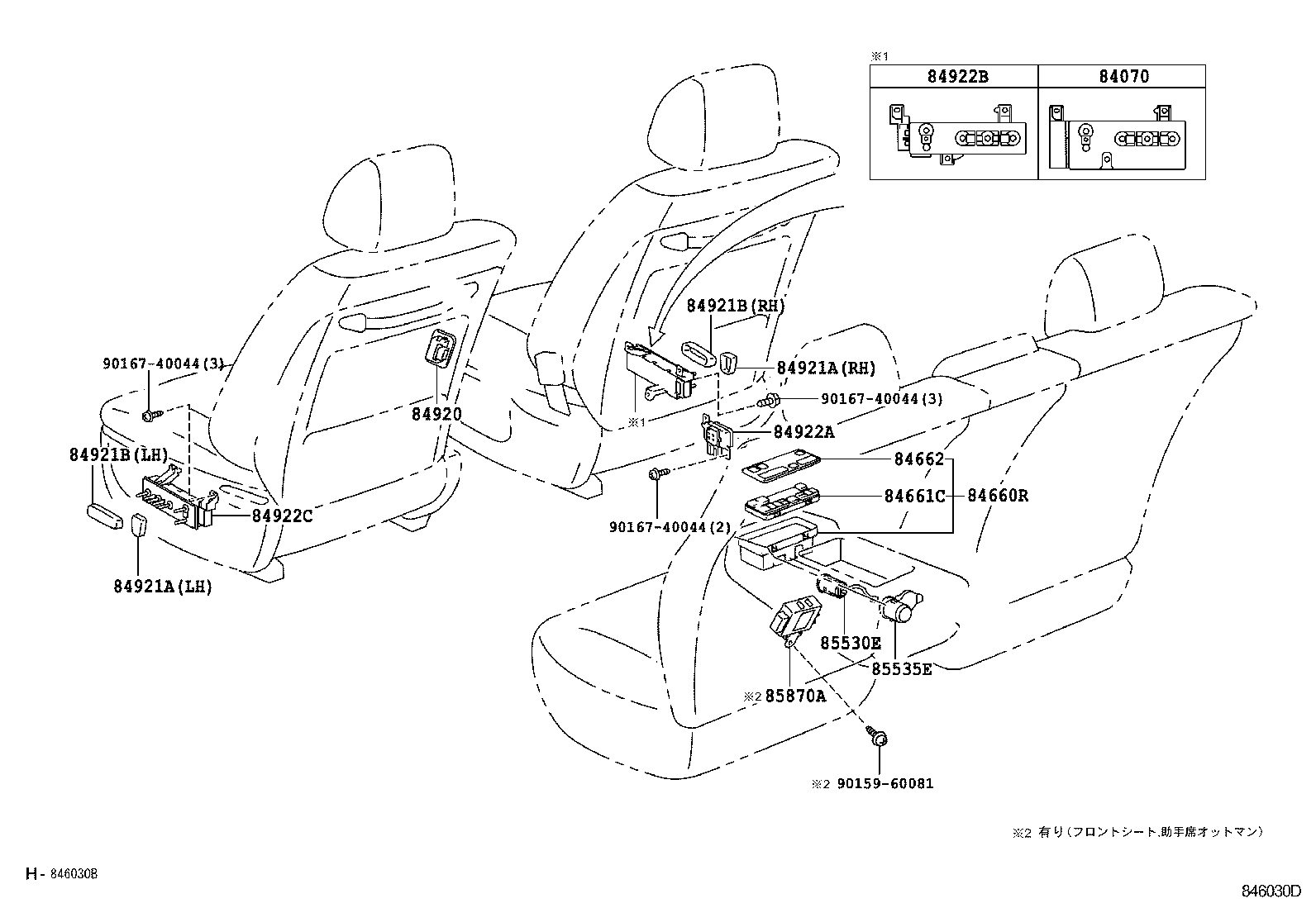

| 84920 | Switch Assy, Power Seat |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922A | Switch, Front Power Seat(FOR LUMBAR) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84923 | Switch, Rear Power Seat |
| 84927 | Switch, Seat Memory |
| 84940D | Switch Assy, Rear Sun Shade |
| 84940E | Bulb, Rear Sun Shade |
| 84945A | Switch, Luggage Electrical Key |
| 84975 | Switch, Trip |
| 84988F | Switch, Traction Control |
| 84988G | Bulb, Traction Control Switch |
| 85432 | Solenoid, Key Interlock |

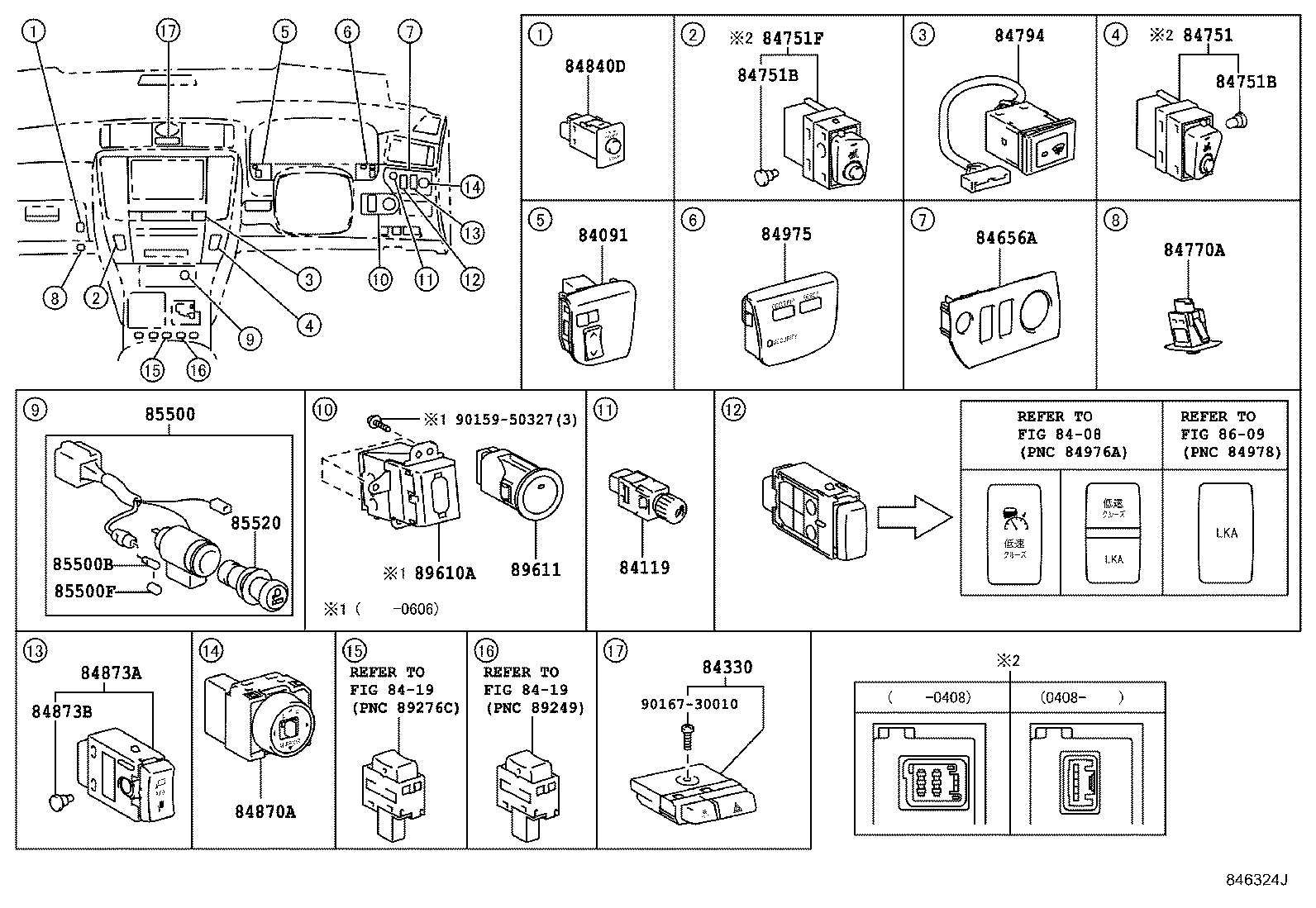

| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530C | Socket Assy, Power Outlet, Center |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85535D | Cover, Power Outlet Socket, Center |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85870A | Computer Assy, Vibration Seat |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85911D | Relay, Rear Sunshade |
| 85912 | Relay, Defogger |
| 85916P | Relay, Headlamp |
| 85927 | Relay, Cooling Fan |
| 85930G | Relay, Acc |
| 86124A | Knob, Radio Receiver Tone Control |
| 86127A | Knob,Radio Receiver, NO.1 |
| 86419B | Knob, Audio Module |
| 86449A | Knob,Heater Control Module |
| 86453B | Wire, Multi-media Module |
| 86455E | Case, Multi-media Module |
| 88310C | Relay, Air Conditioner Compressor |
| 89111 | Computer, Network Gateway |
| 89211A | Computer, Multiplex Network Body |
| 89222 | Computer, Multiplex Network Door, Front RH |
| 89222A | Computer, Multiplex Network Door |
| 89223 | Computer, Multiplex Network Door, Front LH |
| 89224 | Computer, Multiplex Network Door, Rear RH |
| 89224A | Computer, Multiplex Network Door, Rear LH |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |
| 89257 | Computer, Cooling Fan |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89610A | Holder Assy, Electrical Key |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89618A | Computer, Power Source Control |
| 89650 | Computer Assy, Power Steering |
| 89650E | Relay, Electric Power Steering |
| 89815 | Computer, Seat Belt Control |
| 89819 | Bracket, Seat Belt Control |
| 89940 | Computer Assy, Headlamp Swivel |
| 89940A | Relay, Headlamp Swivel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
