Toyota Crown/Majesta

2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

13 part groups · 5 illustrations

Illustrations

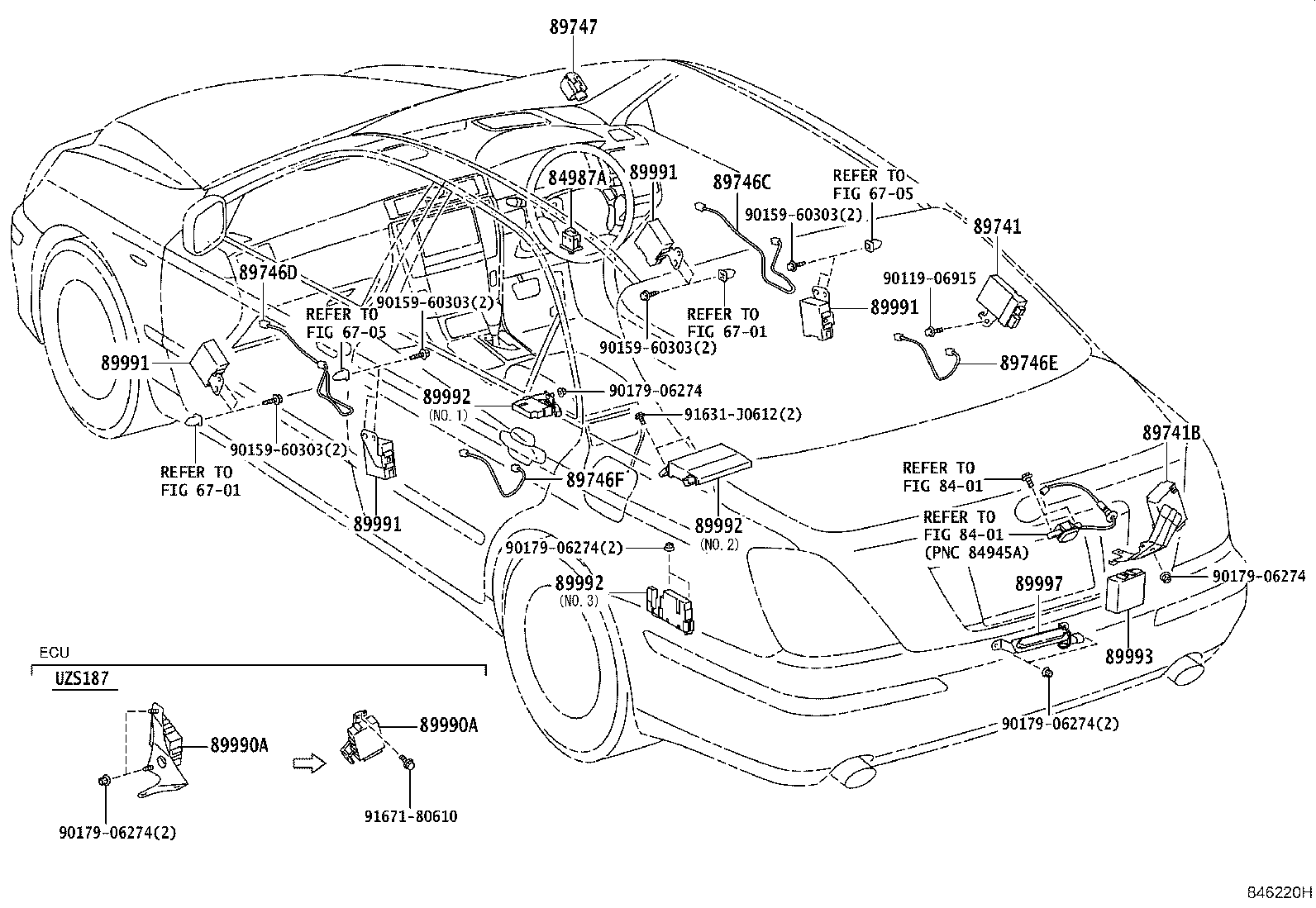

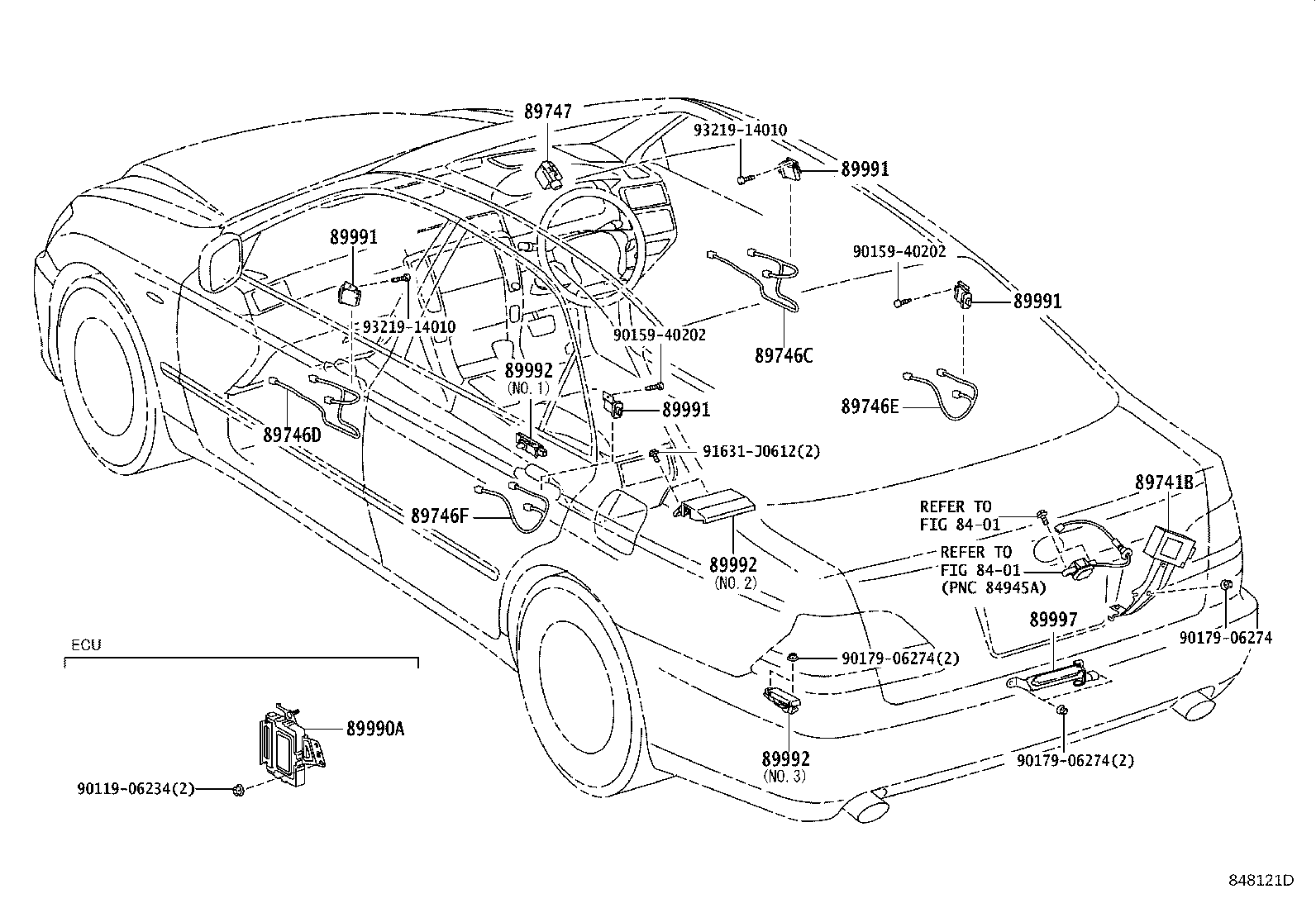

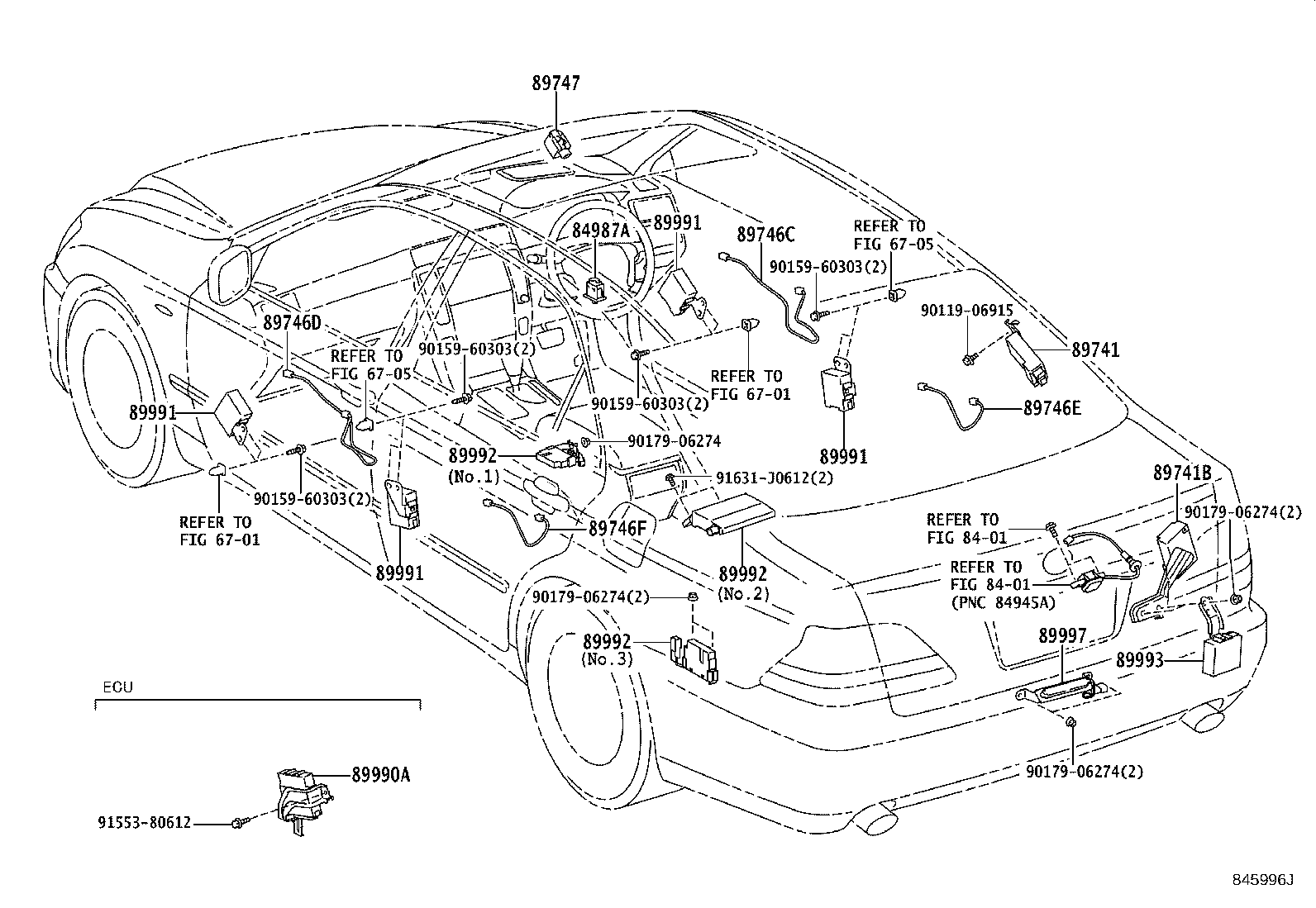

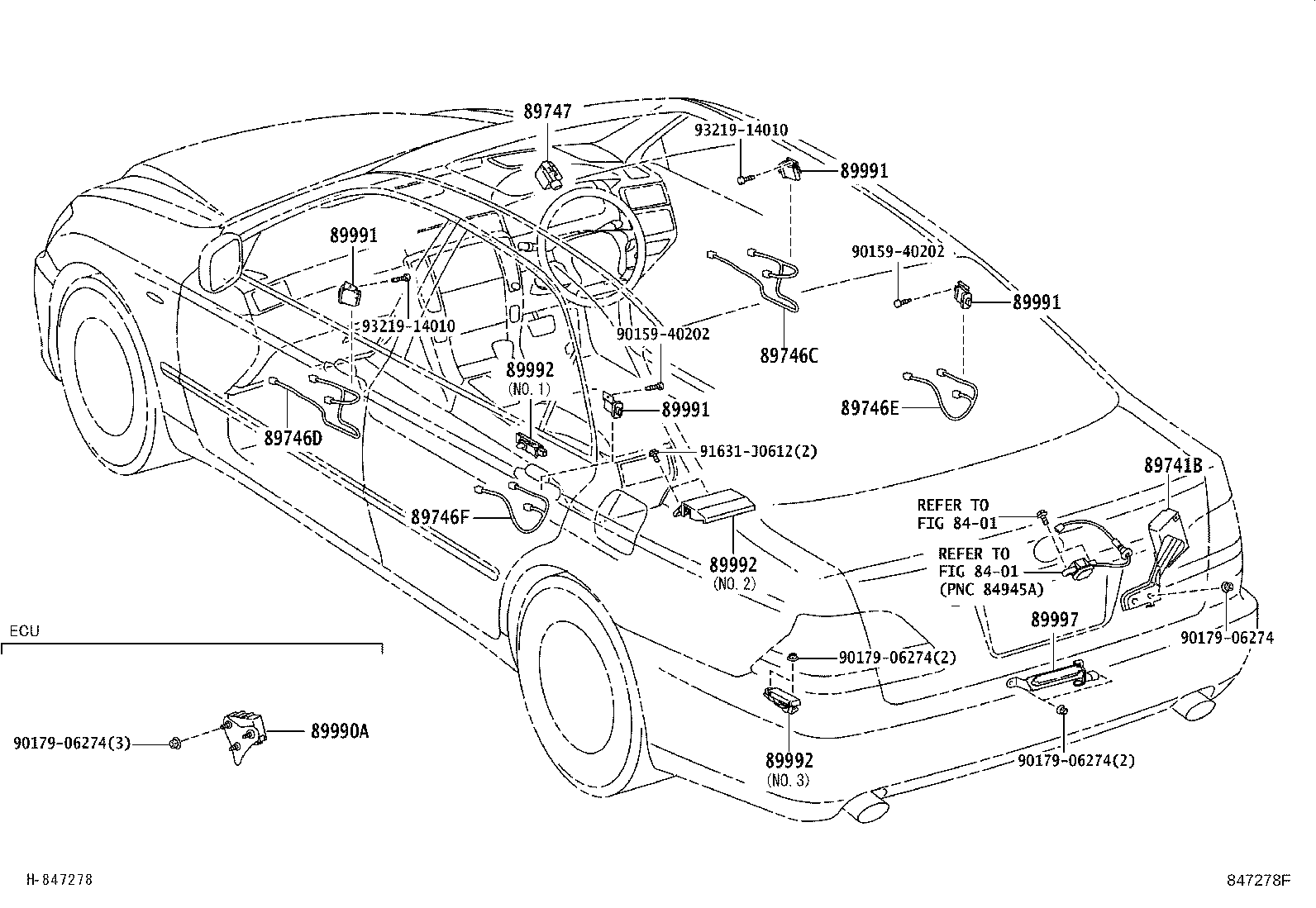

Figure 847277 847277 2003-12 → 2008-02 Figure 845996J 845996J 2003-12 → 2005-09 Figure 847278F 847278F 2005-09 → 2008-02 Figure 846220H 846220H 2004-06 → 2006-06 Figure 848121D 848121D 2006-06 → —

Part groups

PNCDescription
84987A Switch, Keyless Entry Cancel
89741 Receiver, Door Control
89741B Receiver, Door Control, NO.2
89746C Harness, Electrical Key Wire, NO.1
89746D Harness, Electrical Key Wire, NO.2
89746E Harness, Electrical Key Wire, NO.3
89746F Harness, Electrical Key Wire, NO.4
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89991 Oscillator, Door Electrical Key
89992 Oscillator, Indoor Electrical Key
89993 Oscillator, Luggage Electrical Key
89997 Antenna, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
