Toyota Crown

2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan

Supported model Data version 2012-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

91 part groups · 22 illustrations

Illustrations

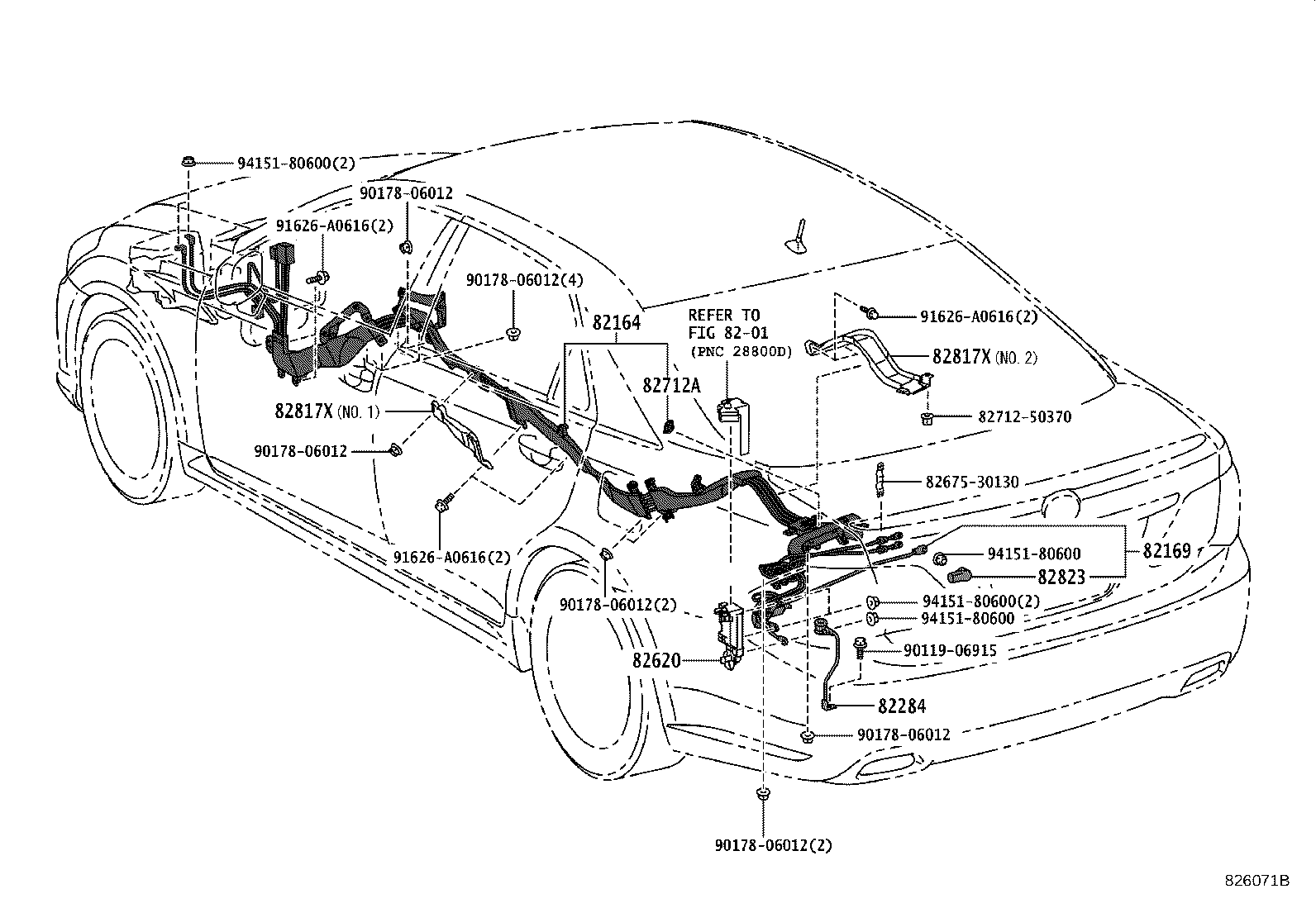

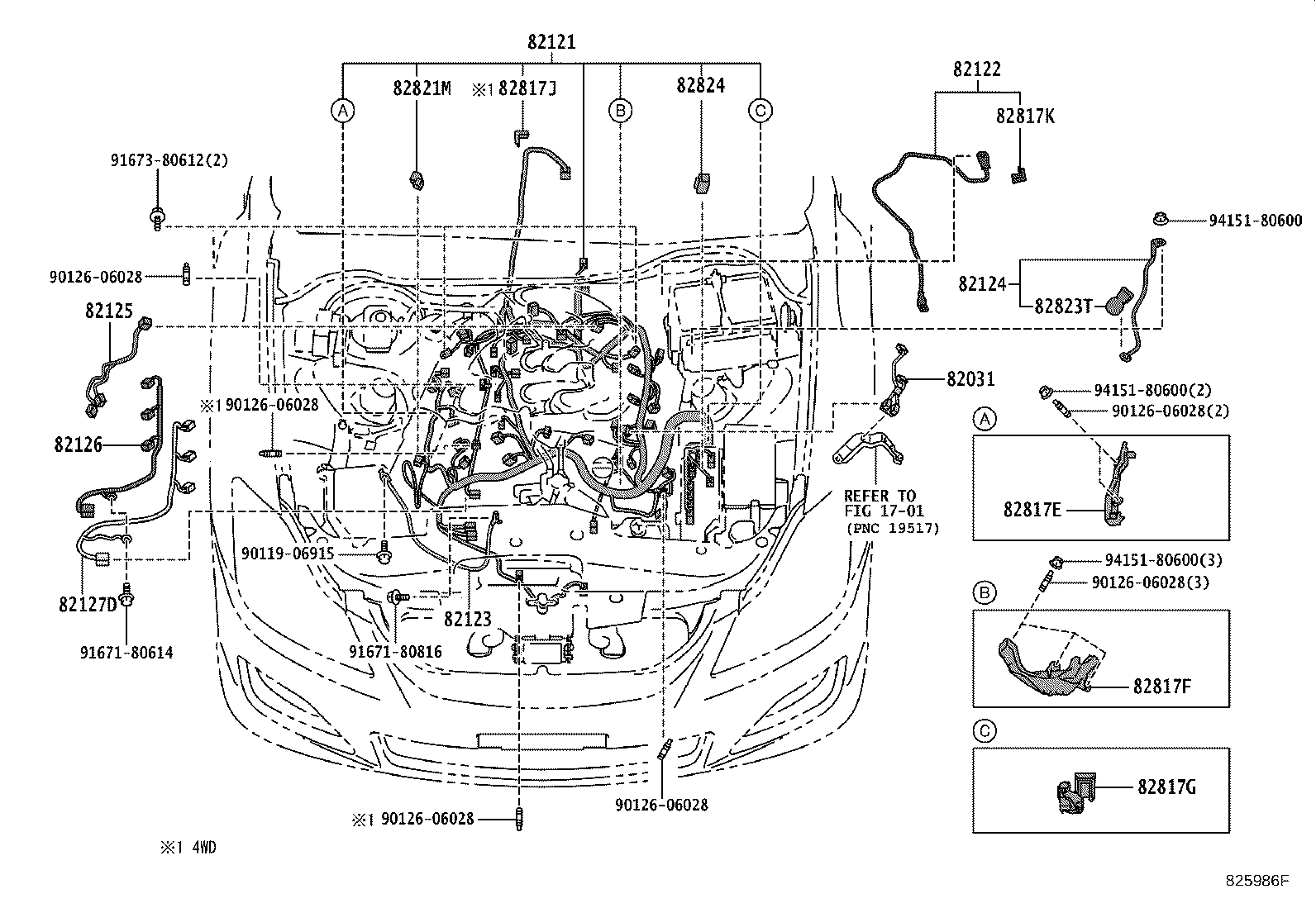

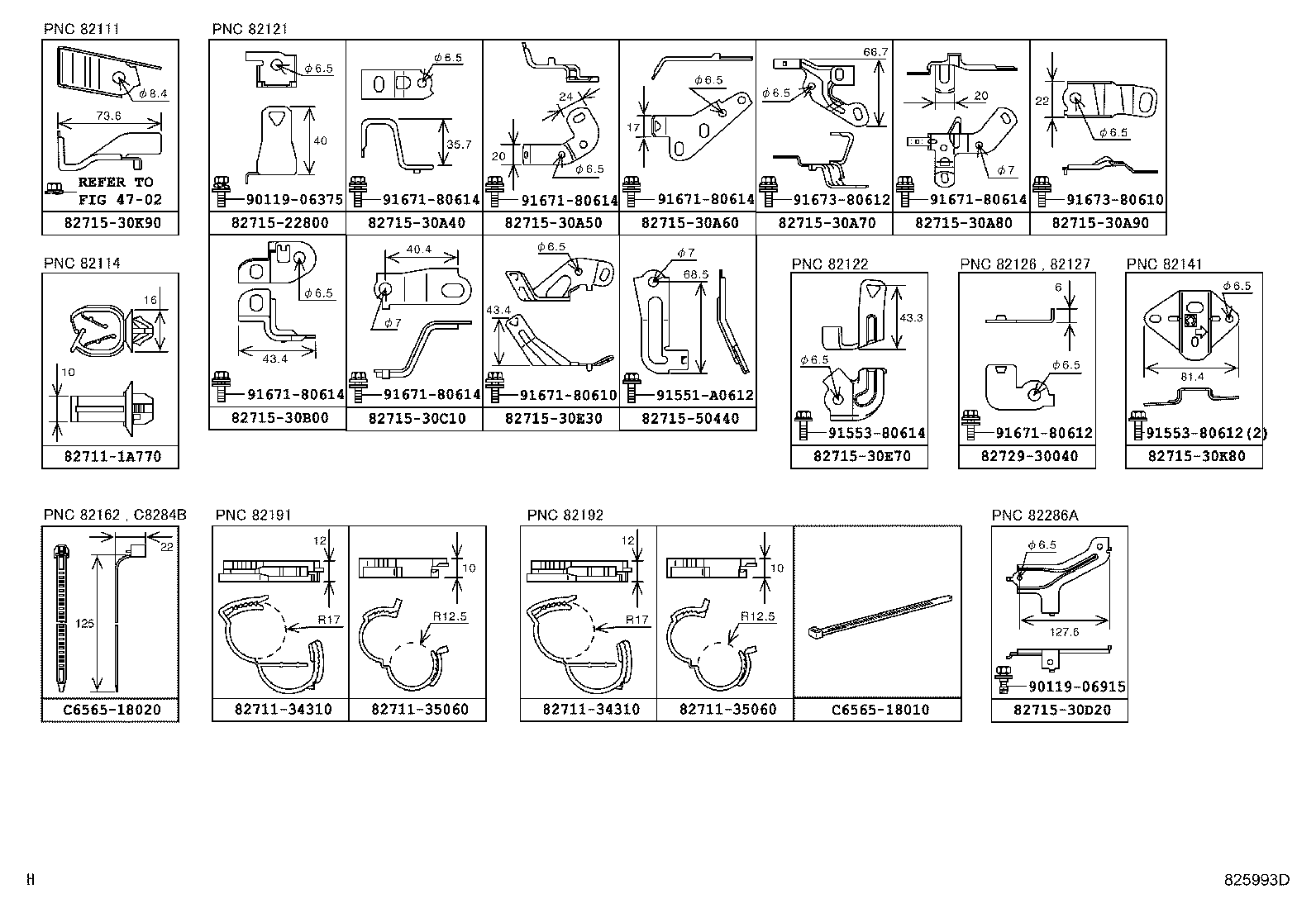

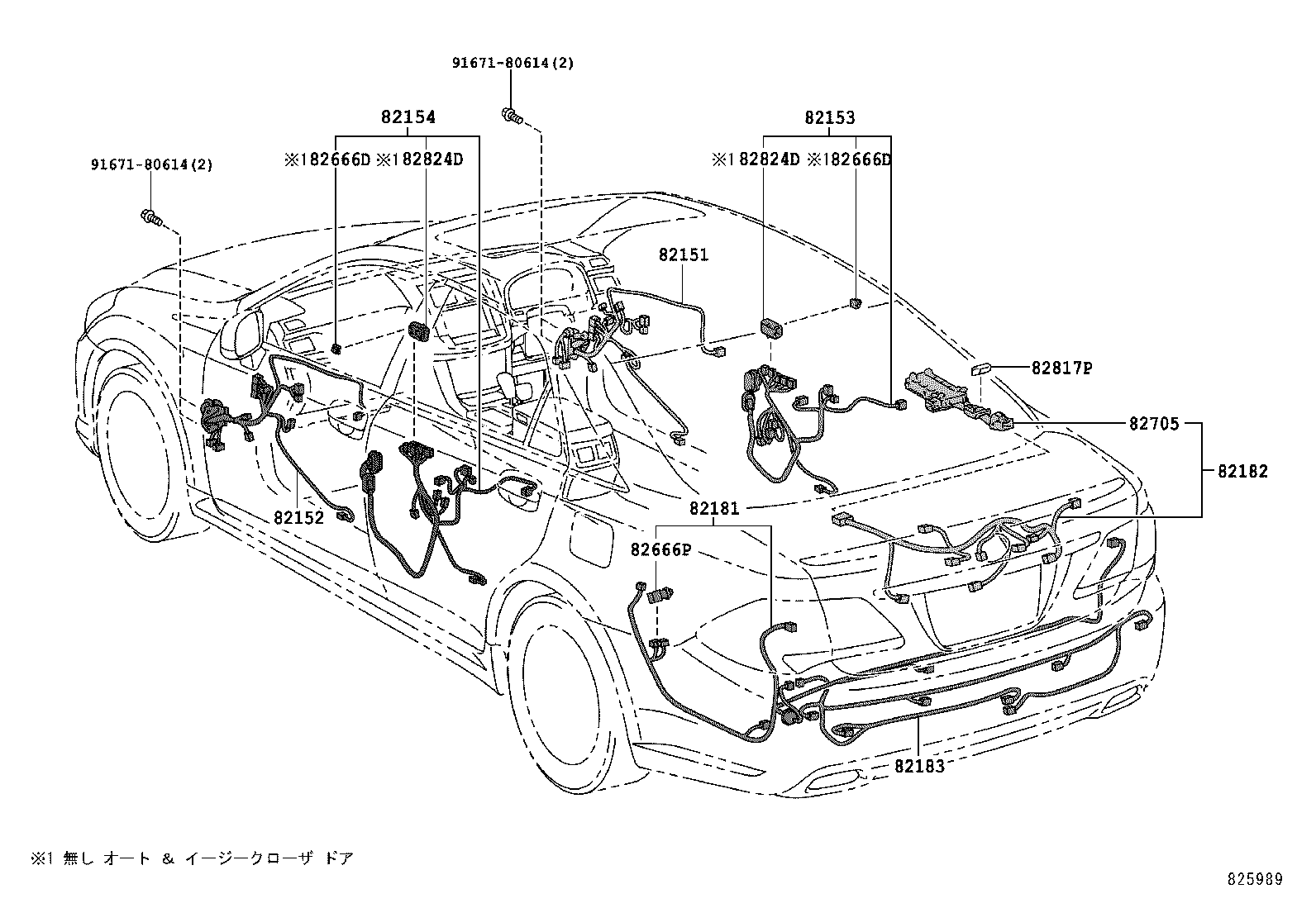

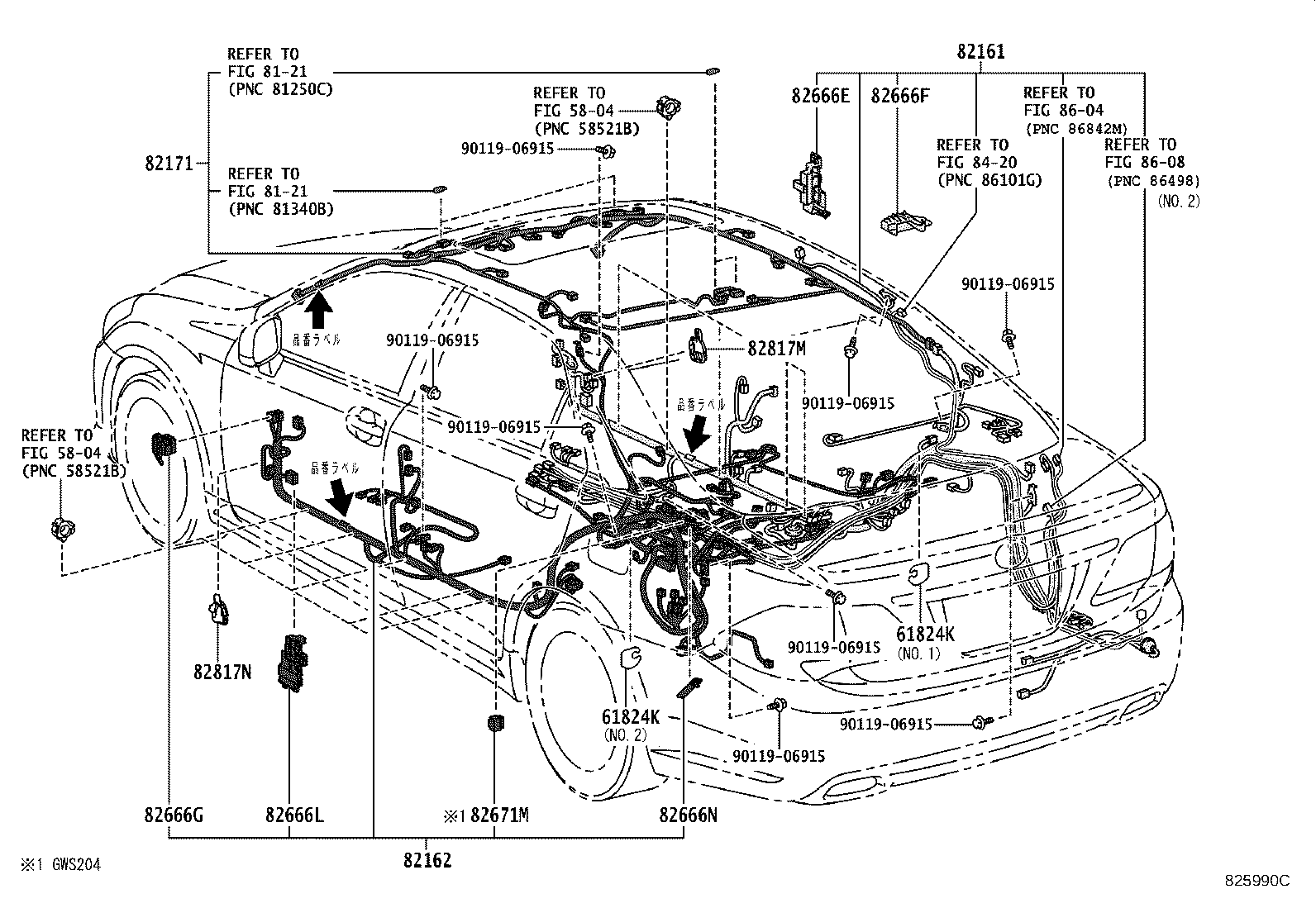

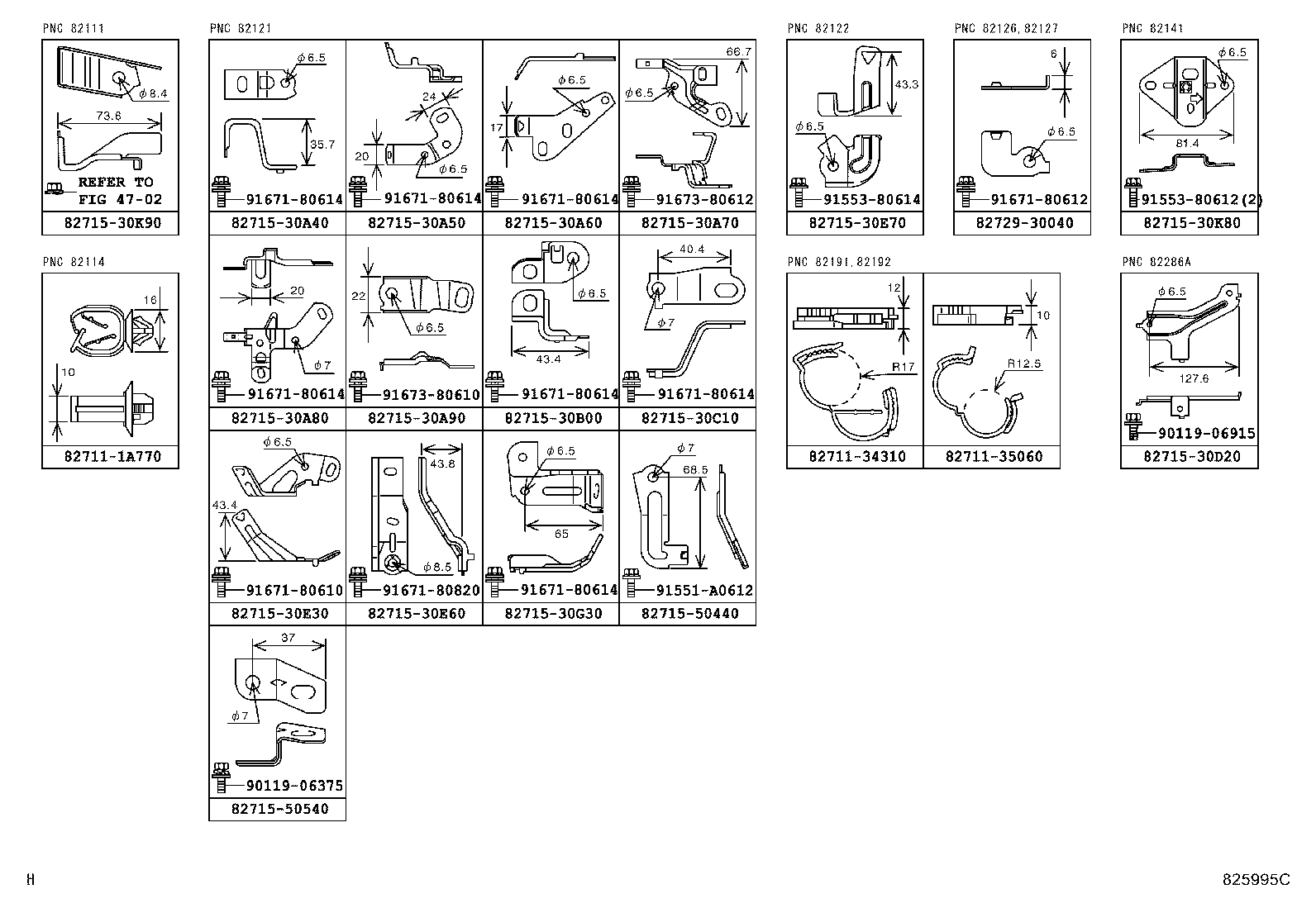

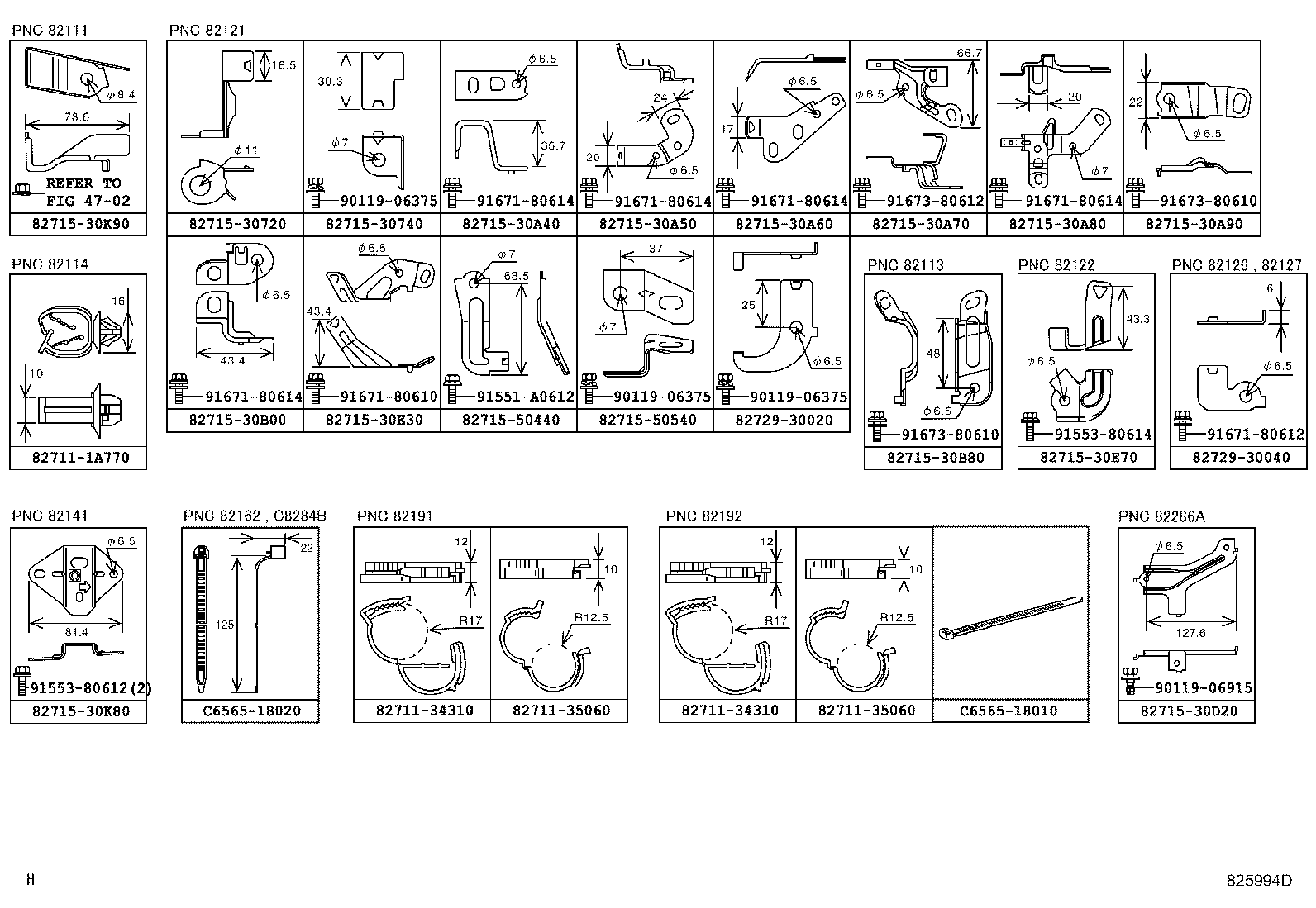

Figure 825985D 825985D 2008-02 → — Figure 825997C 825997C 2008-02 → — Figure 826068C 826068C 2008-05 → — Figure 826069B 826069B 2008-05 → — Figure 825986F 825986F 2008-02 → — Figure 825987D 825987D 2008-02 → — Figure 826070C 826070C 2008-05 → — Figure 825988D 825988D 2008-02 → — Figure 825989 825989 2008-02 → — Figure 825990C 825990C 2008-02 → — Figure 826071B 826071B 2008-05 → — Figure 825991 825991 2008-02 → — Figure 825992 825992 2008-02 → — Figure 825993D 825993D 2008-02 → — Figure 825994D 825994D 2008-02 → — Figure 825995C 825995C 2008-02 → — Figure 826072B 826072B 2008-05 → — Figure 825996 825996 2008-02 → — Figure 826073 826073 2008-05 → — Figure 826040C 826040C 2008-02 → — Figure 826041B 826041B 2008-02 → — Figure 82E923 82E923 2008-02 → —

Part groups

PNCDescription
61824K Plate, Noise Control, NO.1

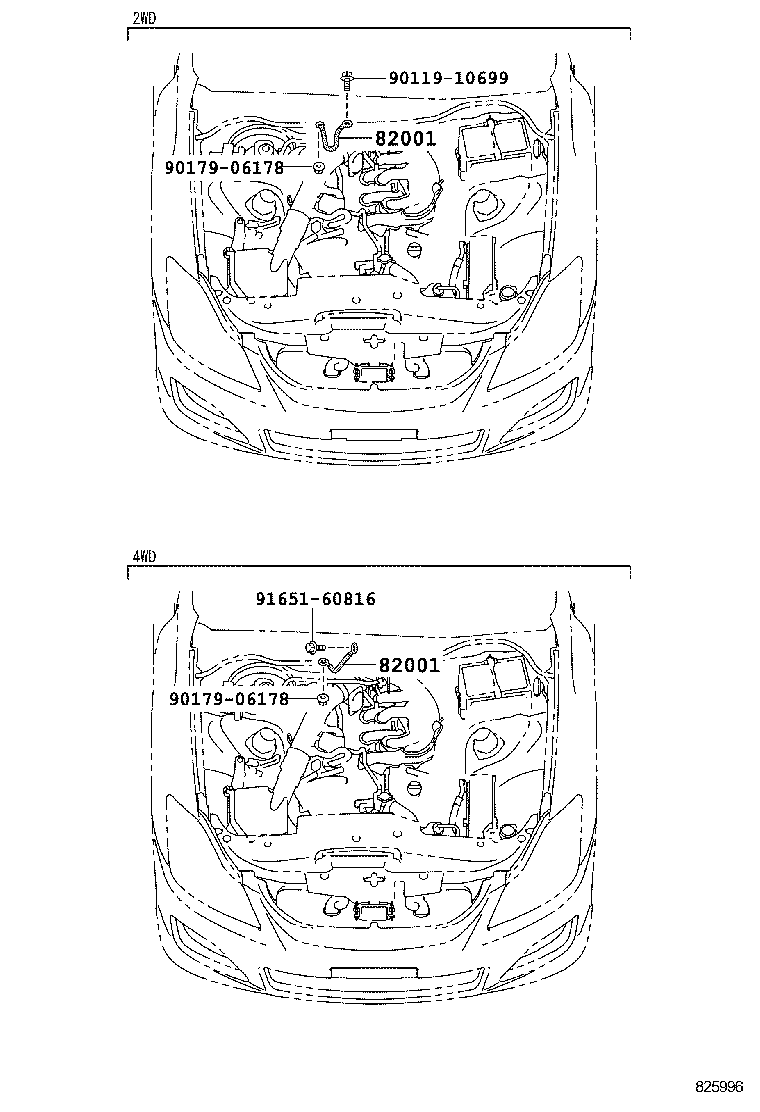

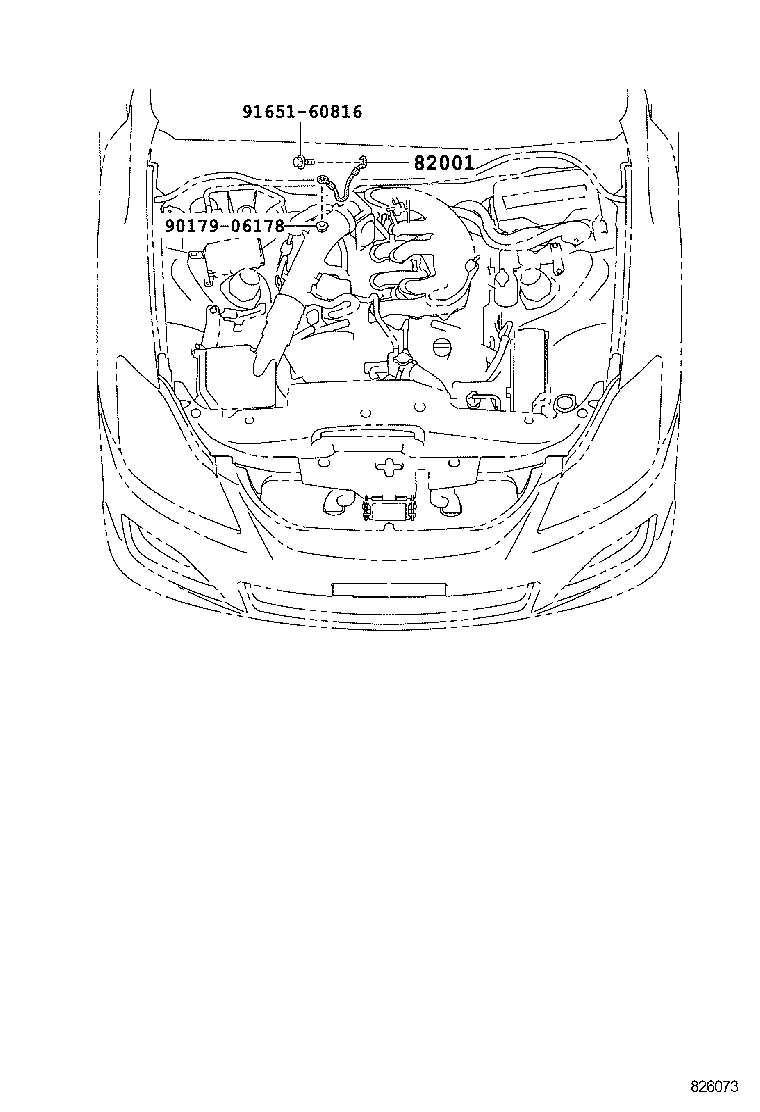

82001 Cable, Bond, NO.1
82031 Wire Sub-assy, Ignition Coil

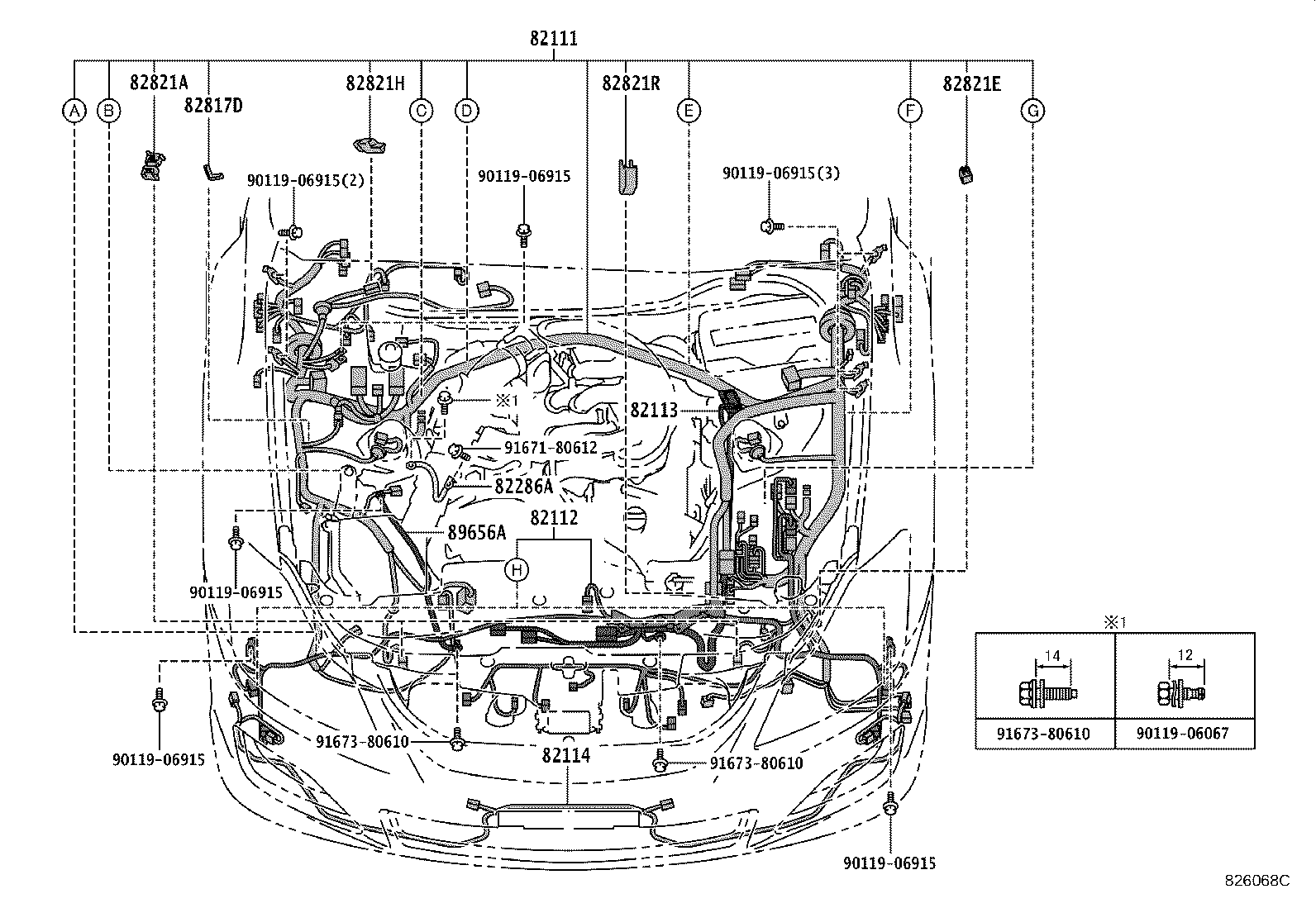

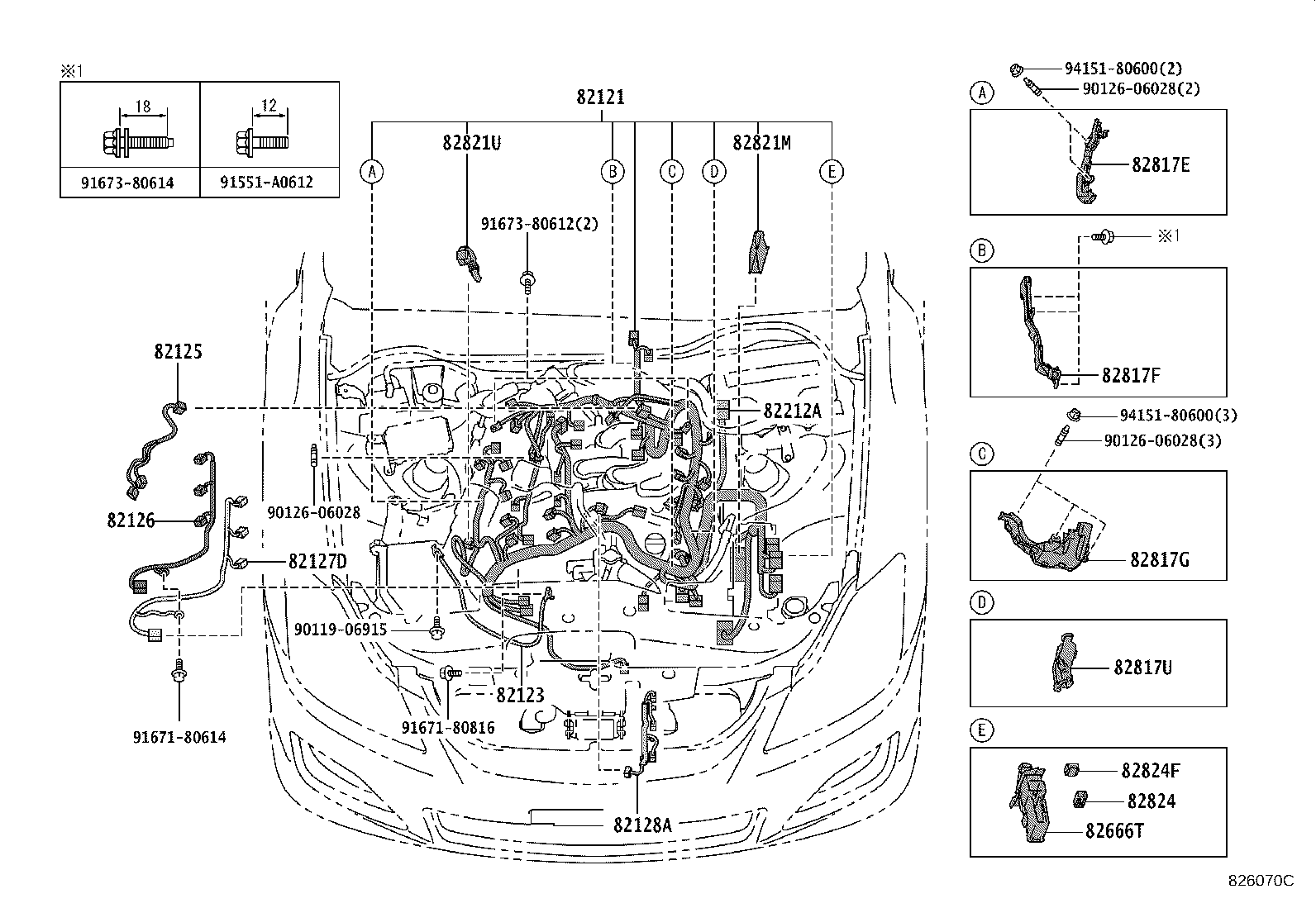

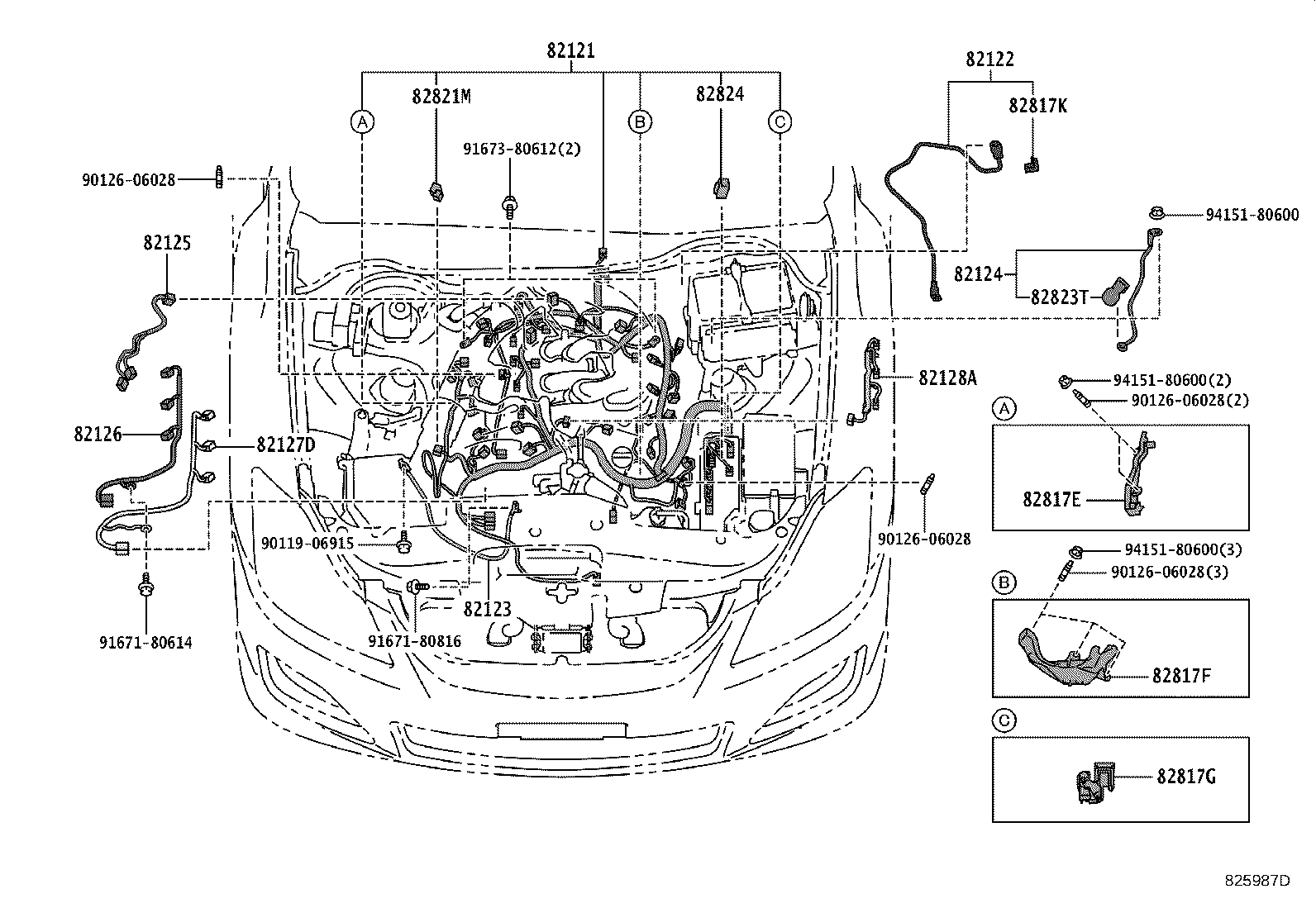

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82126 Wire, Engine
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8

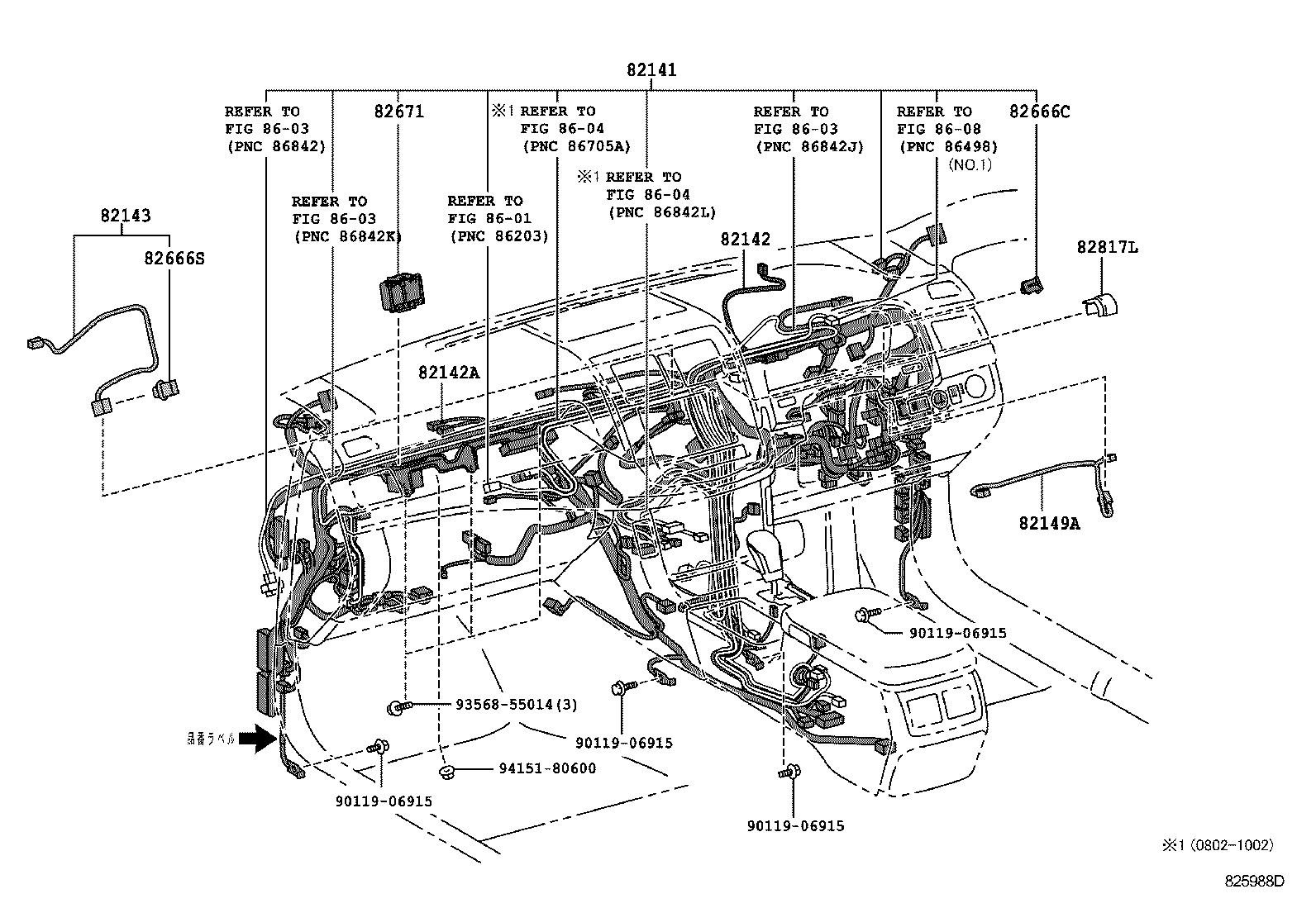

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82149A Wire, Instrument Panel, NO.5
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3

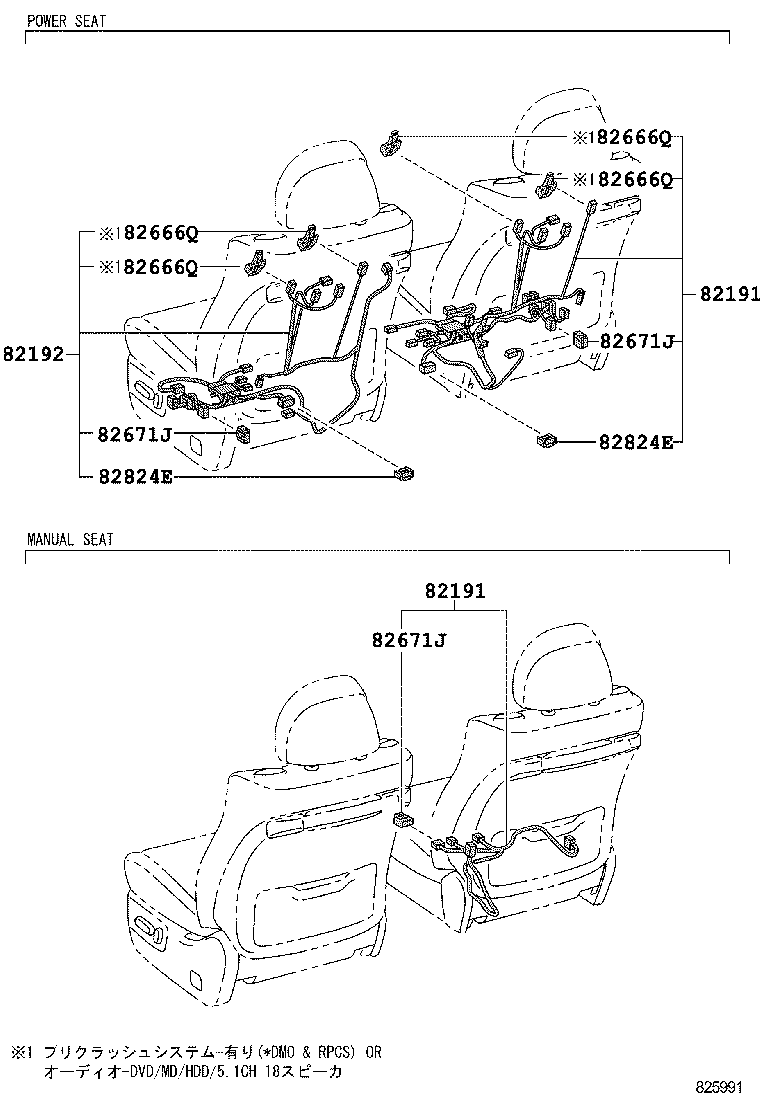

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196 Wire, Rear Seat, LH NO.2
82212A Harness, Air Conditioner
82284 Wire, Earth
82286A Wire, Earth, NO.2
82620 Block Assy, Fusible Link

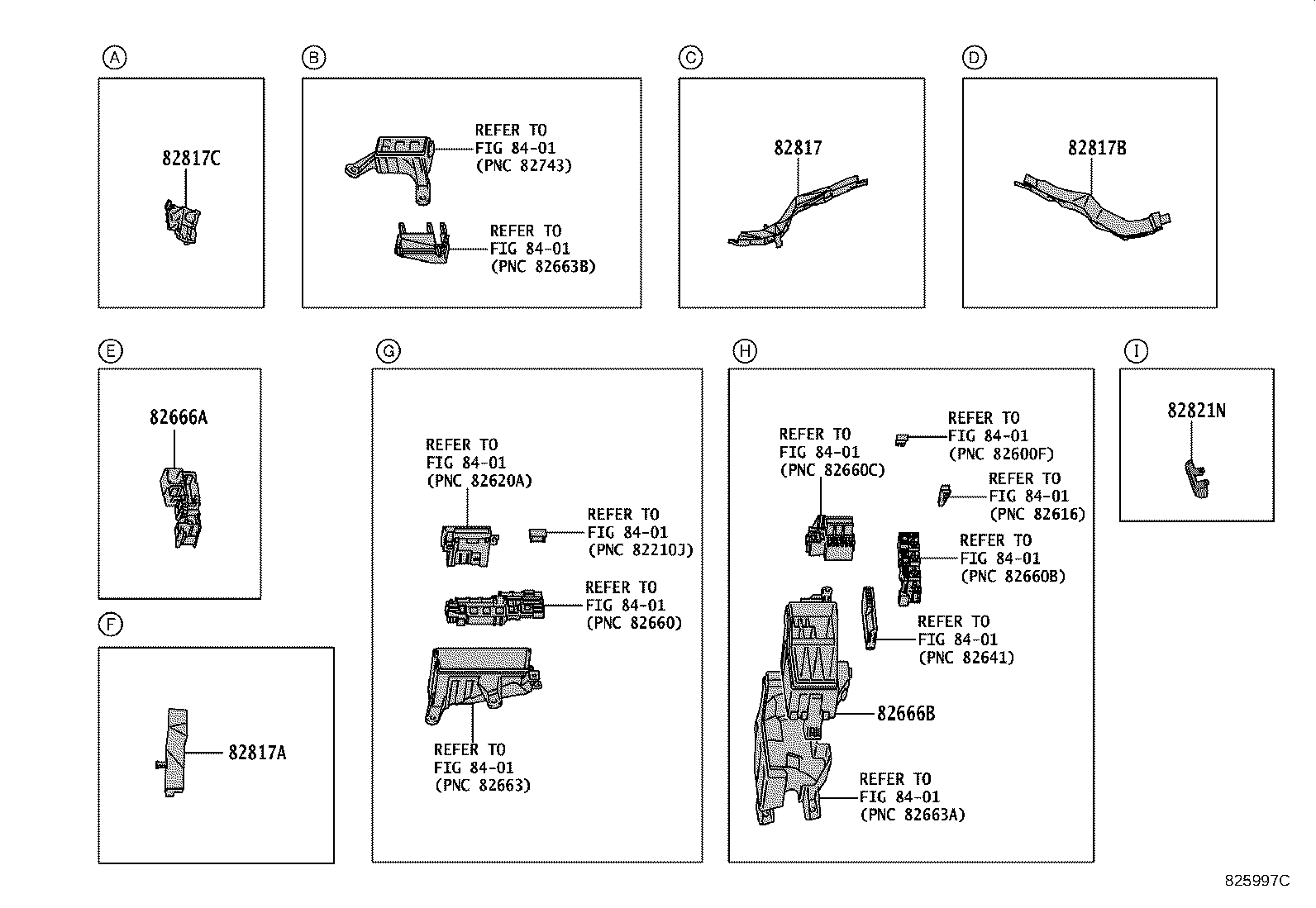

82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82671 Block, Junction
82671J Block, Junction, NO.2
82671K Block, Junction, NO.3
82671L Block, Junction, NO.4
82671M Block, Junction, NO.5
82705 Spool Sub-assy, Wiring Harness

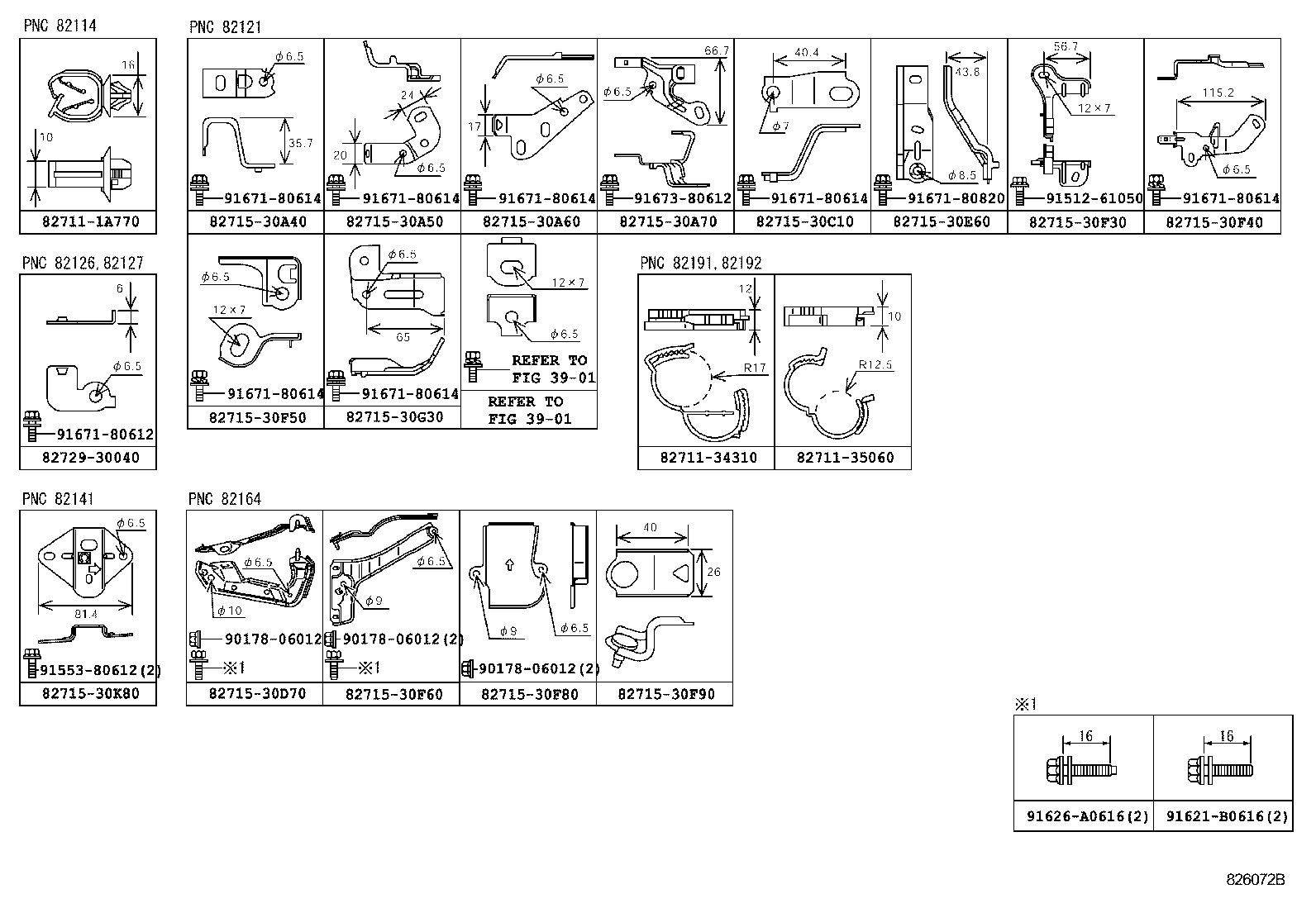

82712A Support, Wiring Harness

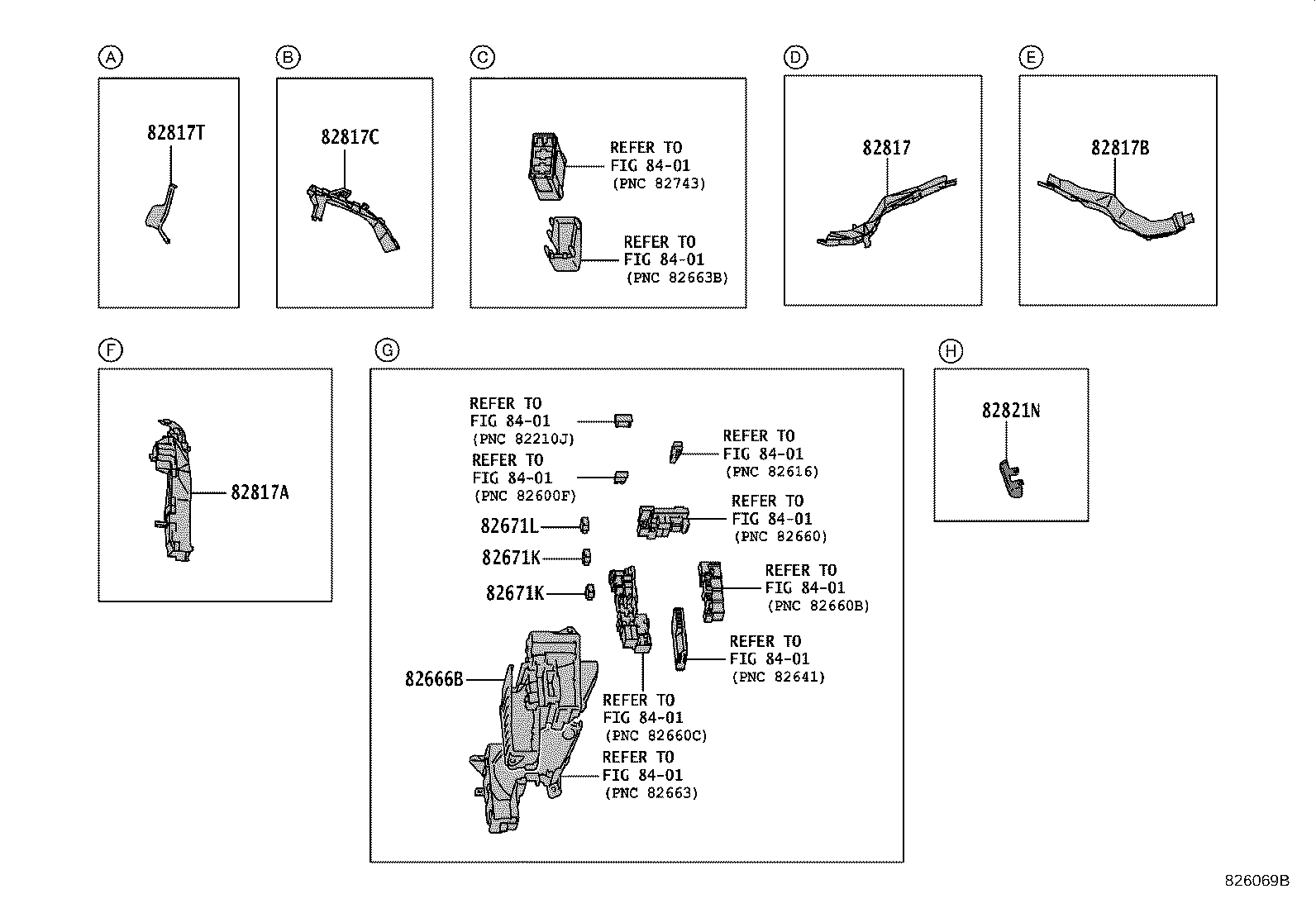

82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82823 Cap, Terminal, NO.1
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness

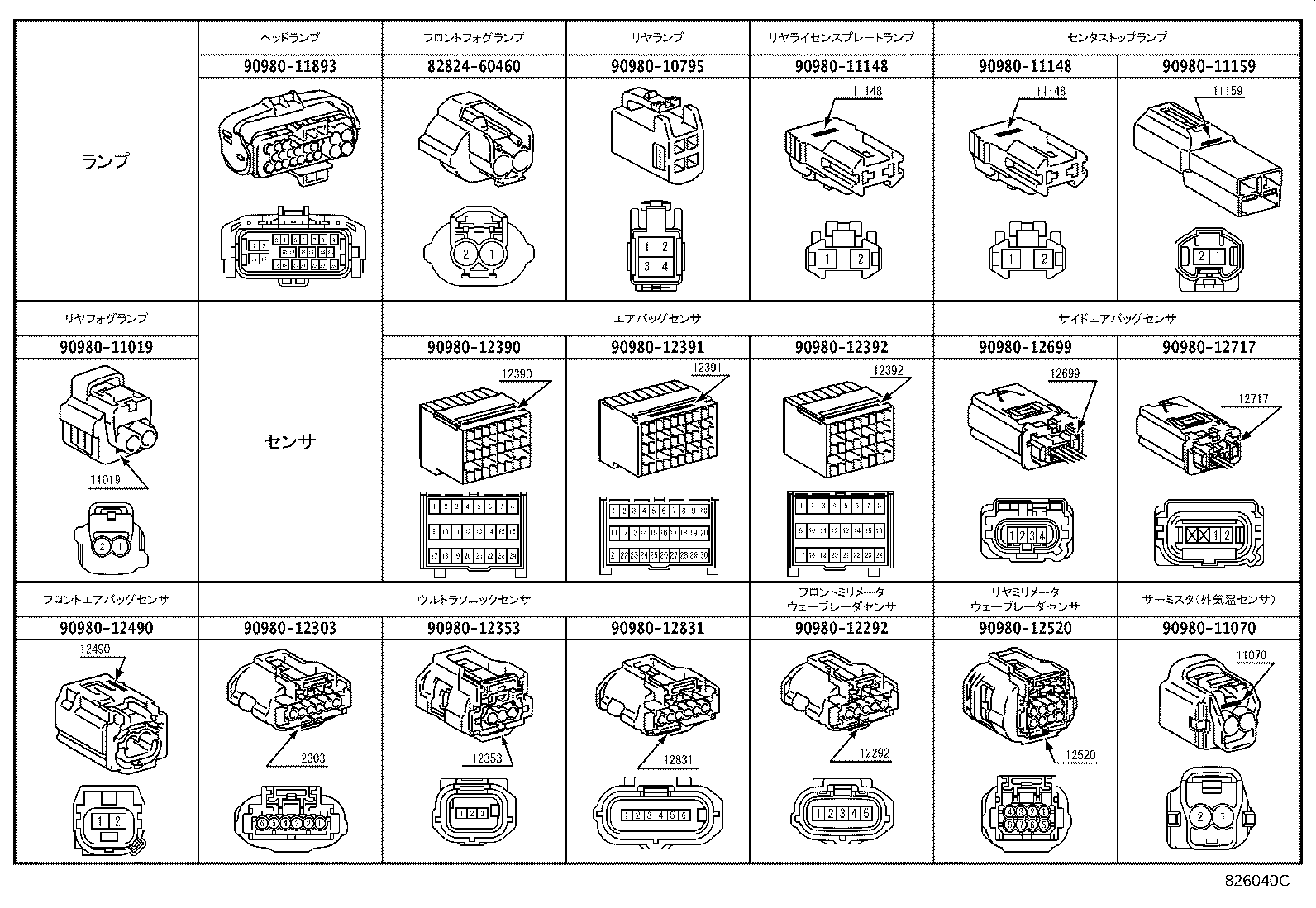

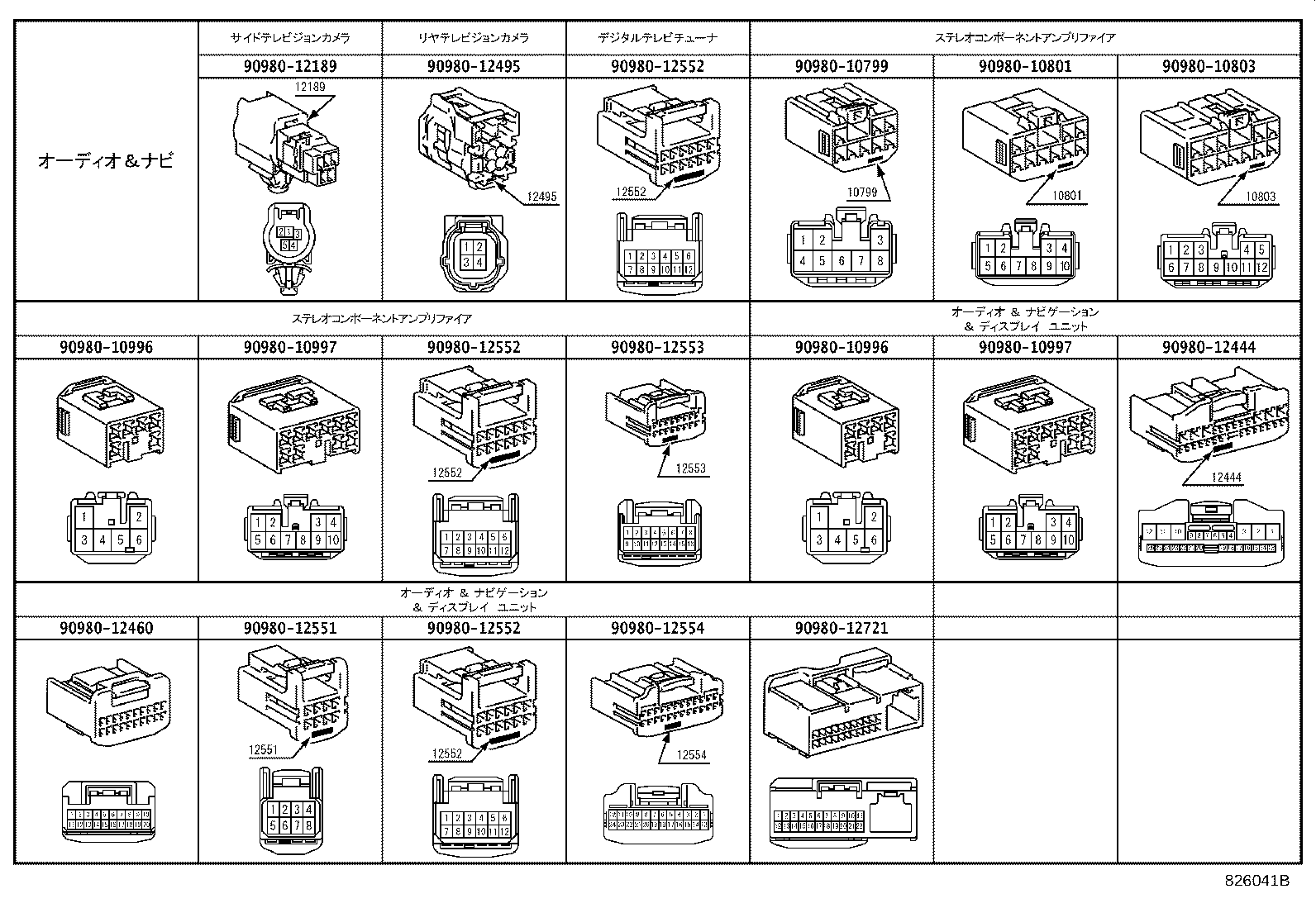

82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
89656A Wire, Power Steering Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
