Toyota Crown

2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan

Supported model Data version 2012-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

16 part groups · 3 illustrations

Illustrations

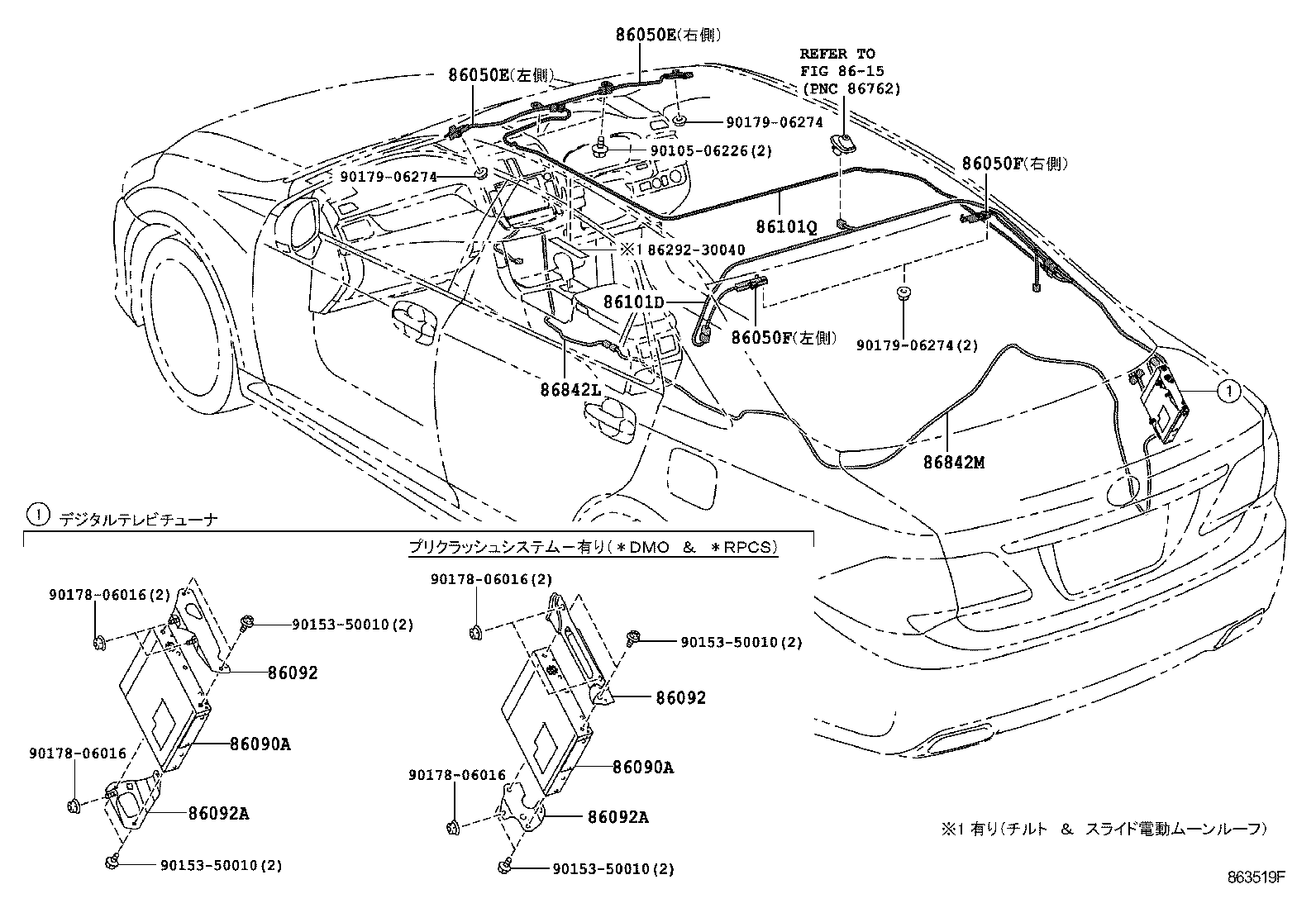

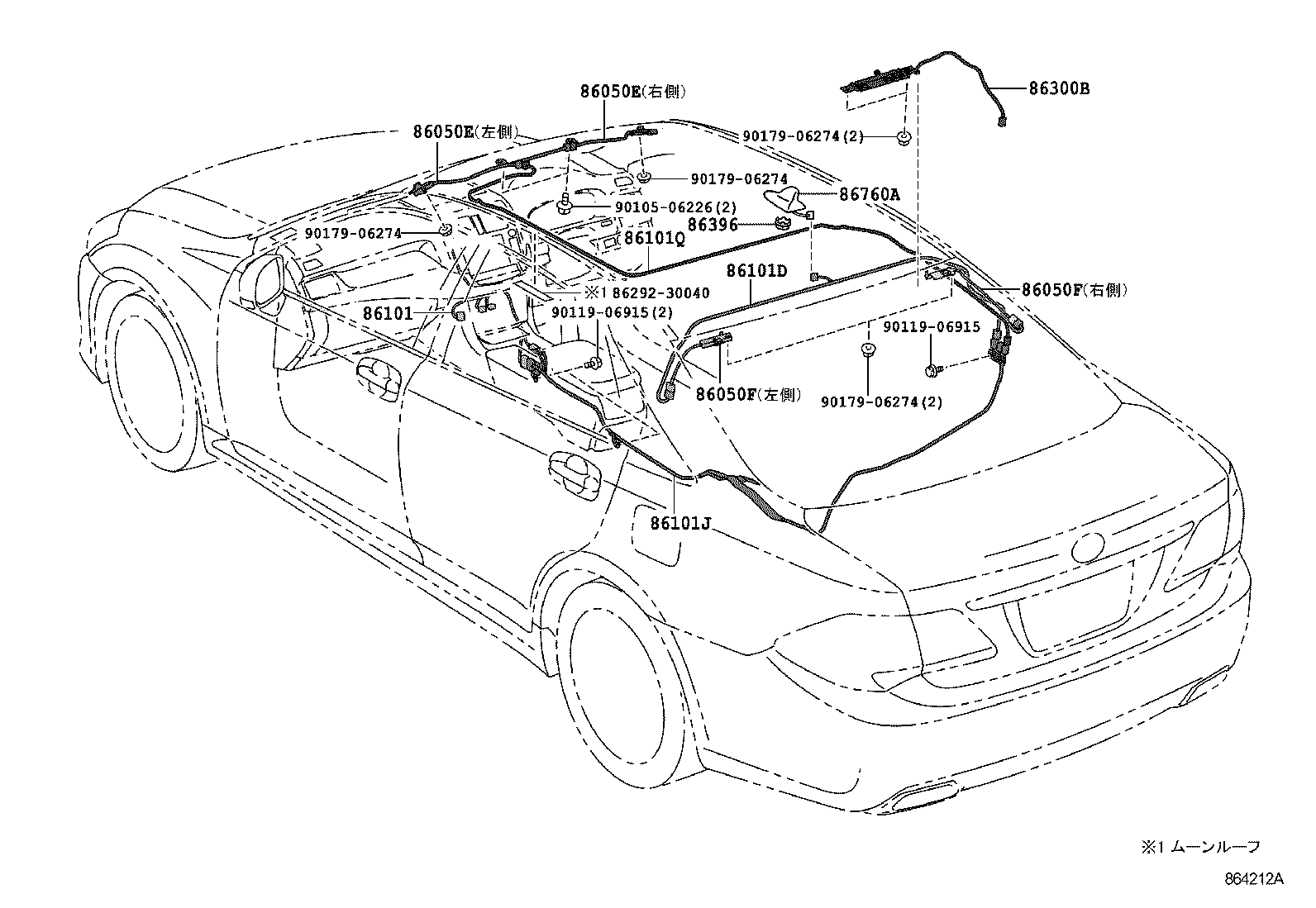

Figure 863518F 863518F 2008-02 → 2010-02 Figure 863519F 863519F 2008-02 → 2010-02 Figure 864212A 864212A 2010-02 → —

Part groups

PNCDescription
86050 Antenna Assy, Television
86050E Antenna Assy, Television
86050F Antenna Assy, Television
86090A Tuner Assy, Digital Television
86092 Bracket, Digital Television, Front
86092A Bracket, Digital Television, Rear
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86300B Antenna Assy, Amplifier, NO.1
86396 Nut, Antenna
86705A Cord Sub-assy, Telephone Antenna
86760A Antenna Assy, Telephone
86842L Wire, Navigation, NO.1
86842M Wire, Navigation, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
