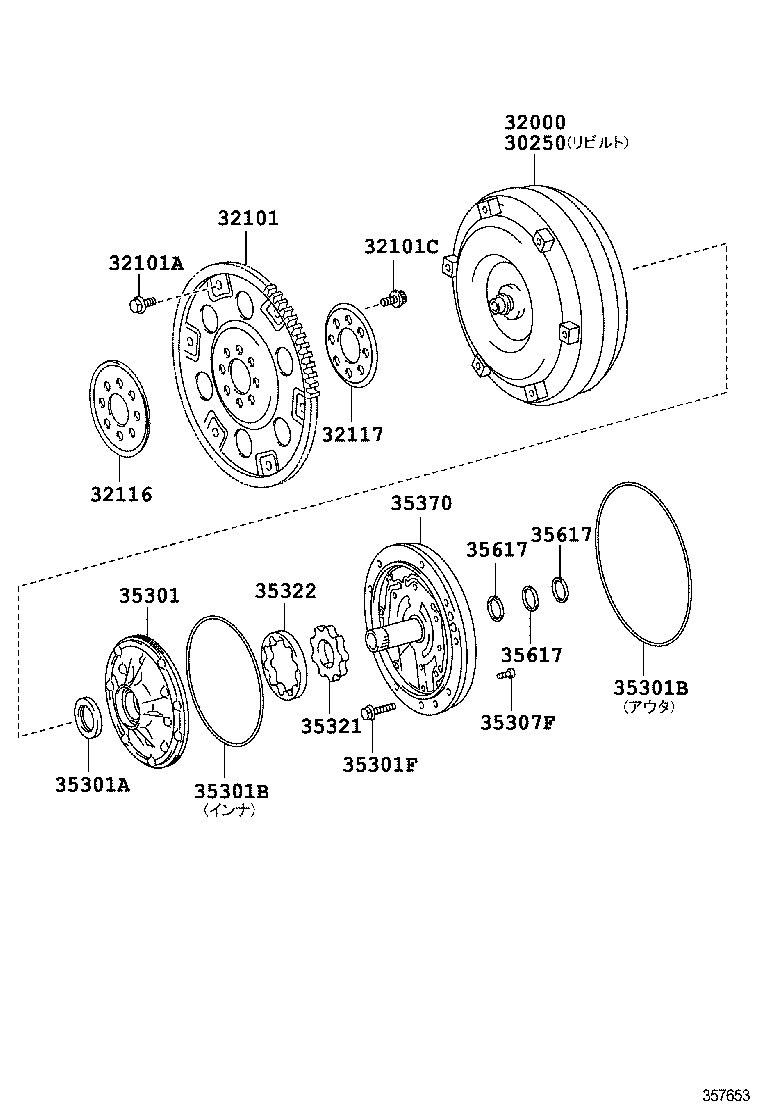

Exploded illustration 357653 35301F — BOLT (FOR FRONT OIL PUMP SETTING) (6 parts) 35301 — BODY SUB-ASSY, FRONT OIL PUMP (7 parts) 35301A — SEAL, OIL (FOR FRONT OIL PUMP) (4 parts) 35301B — RING, O (FOR FRONT OIL PUMP BODY) (13 parts) 35301B — RING, O (FOR FRONT OIL PUMP BODY) (13 parts) 35322 — GEAR, FRONT OIL PUMP DRIVEN (43 parts) 35321 — GEAR, FRONT OIL PUMP DRIVE (43 parts) 35617 — RING, CLUTCH DRUM OIL SEAL (4 parts) 35617 — RING, CLUTCH DRUM OIL SEAL (4 parts) 35617 — RING, CLUTCH DRUM OIL SEAL (4 parts) 35370 — SHAFT ASSY, STATOR (8 parts) 35307F — BOLT (FOR STATOR SHAFT) (4 parts) 30250 — CONVERTER ASSY, TORQUE, REBUILT (6 parts) 32000 — CONVERTER ASSY, TORQUE (6 parts) 32101C — BOLT, HEXAGON(FOR DRIVE PLATE SETTING) (3 parts) 32117 — SPACER, DRIVE PLATE, REAR (3 parts) 32101A — BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) (4 parts) 32101 — GEAR SUB-ASSY, DRIVE PLATE & RING (3 parts) 32116 — SPACER, DRIVE PLATE, FRONT (3 parts)
357653 · 19 callouts Full size ↗
160 parts on this figure
Part number Description Fitment Price
30250 — Converter Assy, Torque, Rebuilt
30250-30400 Converter Assy, Torque, Rebuilt
2012-12 → 2015-09 ended
GRS210,211 ¥72,400
30250-30430 Converter Assy, Torque, Rebuilt
2012-12 → 2015-09 ended
GRS214 ¥78,400
30250-30400 Converter Assy, Torque, Rebuilt
2015-09 → 2018-04 ended
GRS210,211 ¥72,400
30250-30430 Converter Assy, Torque, Rebuilt
2015-09 → 2018-04 ended
GRS214 ¥78,400
30250-30470 Converter Assy, Torque, Rebuilt
2018-02 → 2018-04 ended
ARS210 ¥57,000
30250-53020 Converter Assy, Torque, Rebuilt
2015-09 → 2018-02 ended
ARS210 ¥75,200
32000 — Converter Assy, Torque
32000-30400 Converter Assy, Torque
2012-12 → 2015-09 ended
GRS210,211 ¥104,000
32000-30430 Converter Assy, Torque
2012-12 → 2015-09 ended
GRS214 ¥113,000
32000-30400 Converter Assy, Torque
2015-09 → 2018-04 ended
GRS210,211 ¥104,000
32000-30430 Converter Assy, Torque
2015-09 → 2018-04 ended
GRS214 ¥113,000
32000-30470 Converter Assy, Torque
2018-02 → 2018-04 ended
ARS210 ¥89,500
32000-53020 Converter Assy, Torque
2015-09 → 2018-02 ended
ARS210 ¥108,000
32101 — Gear Sub-assy, Drive Plate & Ring
32101-30081 Gear Sub-assy, Drive Plate & Ring
2012-12 → 2015-09 ended
GRS21# ¥13,400
32101-30081 Gear Sub-assy, Drive Plate & Ring
2015-09 → 2018-04 ended
GRS21# ¥13,400
32101-30100 Gear Sub-assy, Drive Plate & Ring
2015-09 → 2018-04 ended
ARS210 ¥13,400
32101A — Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90105-09005 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2012-12 → 2015-09 ended
GRS21# ¥80
90105-09006 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2012-12 → 2015-09 ended
GRS21# ¥80
90105-09005 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2015-09 → 2018-04 ended
ARS210,GRS21# ¥80
90105-09006 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2015-09 → 2018-04 ended
ARS210,GRS21# ¥80
32101C — Bolt, Hexagon(FOR DRIVE PLATE SETTING)
90105-10048 note Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2012-12 → 2015-09 ended
GRS21# ¥130
90105-10048 note Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2015-09 → 2018-04 ended
GRS21# ¥130
90105-12384 note Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2015-09 → 2018-04 ended
ARS210 ¥100
32116 — Spacer, Drive Plate, Front
32116-32020 Spacer, Drive Plate, Front
2012-12 → 2015-09 ended
GRS21# ¥1,050
32116-20050 Spacer, Drive Plate, Front
2015-09 → 2018-04 ended
ARS210 ¥640
32116-32020 Spacer, Drive Plate, Front
2015-09 → 2018-04 ended
GRS21# ¥1,050
32117 — Spacer, Drive Plate, Rear
32117-30030 Spacer, Drive Plate, Rear
2012-12 → 2015-09 ended
GRS21# ¥930
32117-20060 Spacer, Drive Plate, Rear
2015-09 → 2018-04 ended
ARS210 ¥840
32117-30030 Spacer, Drive Plate, Rear
2015-09 → 2018-04 ended
GRS21# ¥930
35301 — Body Sub-assy, Front Oil Pump
35301-22030 Body Sub-assy, Front Oil Pump
2012-12 → 2015-09 ended
GRS210 ¥14,200
35301-50031 Body Sub-assy, Front Oil Pump
2012-12 → 2015-09 ended
GRS214 ¥14,100
35301-60030 Body Sub-assy, Front Oil Pump
2012-12 → 2015-09 ended
GRS211 ¥13,000
35301-22030 Body Sub-assy, Front Oil Pump
2015-09 → 2018-04 ended
GRS210 ¥14,200
35301-50031 Body Sub-assy, Front Oil Pump
2015-09 → 2018-04 ended
GRS214 ¥14,100
35301-53010 Body Sub-assy, Front Oil Pump
2015-09 → 2018-04 ended
ARS210 ¥8,600
35301-60030 Body Sub-assy, Front Oil Pump
2015-09 → 2018-04 ended
GRS211 ¥13,000
35301A — Seal, Oil (FOR FRONT OIL PUMP)
90311-38083 Seal, Oil (FOR FRONT OIL PUMP)
2012-12 → 2015-09 ended
GRS210,211 ¥290
90311-45032 Seal, Oil (FOR FRONT OIL PUMP)
2012-12 → 2015-09 ended
GRS214 ¥470
90311-38083 Seal, Oil (FOR FRONT OIL PUMP)
2015-09 → 2018-04 ended
ARS210,GRS210,211 ¥290
90311-45032 Seal, Oil (FOR FRONT OIL PUMP)
2015-09 → 2018-04 ended
GRS214 ¥470
35301B — Ring, O (FOR FRONT OIL PUMP BODY)
35697-60010 note Ring, O (FOR FRONT OIL PUMP BODY)
2014-06 → 2015-09 ended
GRS211 ¥280
90301-99087 note Ring, O (FOR FRONT OIL PUMP BODY)
2012-12 → 2015-09 ended
GRS214 ¥200
90301-99093 note Ring, O (FOR FRONT OIL PUMP BODY)
2012-12 → 2015-09 ended
GRS210 ¥200
90301-99139 note Ring, O (FOR FRONT OIL PUMP BODY)
2012-12 → 2014-06 ended
GRS211 ¥450
90301-99148 note Ring, O (FOR FRONT OIL PUMP BODY)
2012-12 → 2015-09 ended
GRS211 ¥200
90301-99153 note Ring, O (FOR FRONT OIL PUMP BODY)
2012-12 → 2015-09 ended
GRS210 ¥270
90301-99171 note Ring, O (FOR FRONT OIL PUMP BODY)
2012-12 → 2015-09 ended
GRS214 ¥270
35697-60010 note Ring, O (FOR FRONT OIL PUMP BODY)
2015-09 → 2018-04 ended
GRS211 ¥280
90301-99087 note Ring, O (FOR FRONT OIL PUMP BODY)
2015-09 → 2018-04 ended
ARS210,GRS214 ¥200
90301-99093 note Ring, O (FOR FRONT OIL PUMP BODY)
2015-09 → 2018-04 ended
GRS210 ¥200
90301-99148 note Ring, O (FOR FRONT OIL PUMP BODY)
2015-09 → 2018-04 ended
GRS211 ¥200
90301-99153 note Ring, O (FOR FRONT OIL PUMP BODY)
2015-09 → 2018-04 ended
GRS210 ¥270
90301-99171 note Ring, O (FOR FRONT OIL PUMP BODY)
2015-09 → 2018-04 ended
ARS210,GRS214 ¥270
35301F — Bolt (FOR FRONT OIL PUMP SETTING)
90105-08353 note Bolt (FOR FRONT OIL PUMP SETTING)
2012-12 → 2015-09 ended
GRS214 ¥100
90105-08451 note Bolt (FOR FRONT OIL PUMP SETTING)
2012-12 → 2015-09 ended
GRS210 ¥100
90105-08451 note Bolt (FOR FRONT OIL PUMP SETTING)
2012-12 → 2015-09 ended
GRS211 ¥100
90105-08353 note Bolt (FOR FRONT OIL PUMP SETTING)
2015-09 → 2018-04 ended
ARS210,GRS214 ¥100
90105-08451 note Bolt (FOR FRONT OIL PUMP SETTING)
2015-09 → 2018-04 ended
GRS210 ¥100
90105-08451 note Bolt (FOR FRONT OIL PUMP SETTING)
2015-09 → 2018-04 ended
GRS211 ¥100
35307F — Bolt (FOR STATOR SHAFT)
90148-06001 Bolt (FOR STATOR SHAFT)
2012-12 → 2015-09 ended
GRS214 ¥60
90148-60079 Bolt (FOR STATOR SHAFT)
2012-12 → 2015-09 ended
GRS210,211 ¥60
90148-06001 Bolt (FOR STATOR SHAFT)
2015-09 → 2018-04 ended
ARS210,GRS214 ¥60
90148-60079 Bolt (FOR STATOR SHAFT)
2015-09 → 2018-04 ended
GRS210,211 ¥60
35321 — Gear, Front Oil Pump Drive
35321-22120 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS210 ¥3,890
35321-22130 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS210 ¥3,890
35321-22140 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS210 ¥3,890
35321-22150 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS210 ¥3,890
35321-22160 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS210 ¥3,890
35321-22170 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS210 ¥3,890
35321-22180 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS210 ¥3,890
35321-50010 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS211 ¥2,940
35321-50020 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS211 ¥2,940
35321-50030 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS211 ¥2,940
35321-50040 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS211 ¥2,940
35321-50050 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS211 ¥2,940
35321-50060 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS211 ¥2,940
35321-50070 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS211 ¥2,940
35321-50080 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS214 ¥2,950
35321-50090 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS214 ¥2,950
35321-50100 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS214 ¥2,950
35321-50110 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS214 ¥2,950
35321-50120 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS214 ¥2,950
35321-50130 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS214 ¥2,950
35321-50140 note Gear, Front Oil Pump Drive
2012-12 → 2015-09 ended
GRS214 ¥2,950
35321-22120 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS210 ¥3,890
35321-22130 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS210 ¥3,890
35321-22140 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS210 ¥3,890
35321-22150 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS210 ¥3,890
35321-22160 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS210 ¥3,890
35321-22170 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS210 ¥3,890
35321-22180 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS210 ¥3,890
35321-50010 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS211 ¥2,940
35321-50020 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS211 ¥2,940
35321-50030 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS211 ¥2,940
35321-50040 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS211 ¥2,940
35321-50050 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS211 ¥2,940
35321-50060 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS211 ¥2,940
35321-50070 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS211 ¥2,940
35321-50080 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS214 ¥2,950
35321-50090 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS214 ¥2,950
35321-50100 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS214 ¥2,950
35321-50110 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS214 ¥2,950
35321-50120 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS214 ¥2,950
35321-50130 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS214 ¥2,950
35321-50140 note Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
GRS214 ¥2,950
35321-53011 Gear, Front Oil Pump Drive
2015-09 → 2018-04 ended
ARS210 ¥3,030
35322 — Gear, Front Oil Pump Driven
35322-22120 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS210 ¥3,320
35322-22130 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS210 ¥3,320
35322-22140 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS210 ¥3,320
35322-22150 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS210 ¥3,320
35322-22160 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS210 ¥3,320
35322-22170 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS210 ¥3,320
35322-22180 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS210 ¥3,320
35322-50010 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS211 ¥2,500
35322-50020 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS211 ¥2,500
35322-50030 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS211 ¥2,500
35322-50040 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS211 ¥2,500
35322-50050 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS211 ¥2,500
35322-50060 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS211 ¥2,500
35322-50070 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS211 ¥2,500
35322-50080 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS214 ¥2,500
35322-50090 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS214 ¥2,500
35322-50100 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS214 ¥2,500
35322-50110 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS214 ¥2,500
35322-50120 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS214 ¥2,500
35322-50130 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS214 ¥2,500
35322-50140 note Gear, Front Oil Pump Driven
2012-12 → 2015-09 ended
GRS214 ¥2,500
35322-22120 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS210 ¥3,320
35322-22130 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS210 ¥3,320
35322-22140 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS210 ¥3,320
35322-22150 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS210 ¥3,320
35322-22160 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS210 ¥3,320
35322-22170 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS210 ¥3,320
35322-22180 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS210 ¥3,320
35322-50010 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS211 ¥2,500
35322-50020 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS211 ¥2,500
35322-50030 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS211 ¥2,500
35322-50040 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS211 ¥2,500
35322-50050 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS211 ¥2,500
35322-50060 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS211 ¥2,500
35322-50070 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS211 ¥2,500
35322-50080 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS214 ¥2,500
35322-50090 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS214 ¥2,500
35322-50100 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS214 ¥2,500
35322-50110 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS214 ¥2,500
35322-50120 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS214 ¥2,500
35322-50130 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS214 ¥2,500
35322-50140 note Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
GRS214 ¥2,500
35322-53011 Gear, Front Oil Pump Driven
2015-09 → 2018-04 ended
ARS210 ¥3,030
35370 — Shaft Assy, Stator
35370-22070 Shaft Assy, Stator
2012-12 → 2015-09 ended
GRS210 ¥19,800
35370-30071 Shaft Assy, Stator
2012-12 → 2015-09 ended
GRS214 ¥19,800
35370-50030 Shaft Assy, Stator
2012-12 → 2015-09 ended
GRS211 ¥14,900
35370-22070 Shaft Assy, Stator
2015-09 → 2018-04 ended
GRS210 ¥19,800
35370-30071 Shaft Assy, Stator
2015-09 → 2018-04 ended
GRS214 ¥19,800
35370-50030 Shaft Assy, Stator
2015-09 → 2018-04 ended
GRS211 ¥14,900
35370-53010 Shaft Assy, Stator
2015-09 → 2015-10 ended
ARS210 ¥23,800
35370-53020 Shaft Assy, Stator
2015-10 → 2018-04 ended
ARS210 ¥14,900
35617 — Ring, Clutch Drum Oil Seal
35617-50030 Ring, Clutch Drum Oil Seal
2012-12 → 2015-09 ended
GRS210,211 ¥280
35617-50030 Ring, Clutch Drum Oil Seal
2012-12 → 2015-09 ended
GRS214 ¥280
35617-50030 Ring, Clutch Drum Oil Seal
2015-09 → 2018-04 ended
GRS210,211 ¥280
35617-50030 Ring, Clutch Drum Oil Seal
2015-09 → 2018-04 ended
ARS210,GRS214 ¥280
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.

This drawing is also used by

Crown
