Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

9 part groups · 3 illustrations

Illustrations

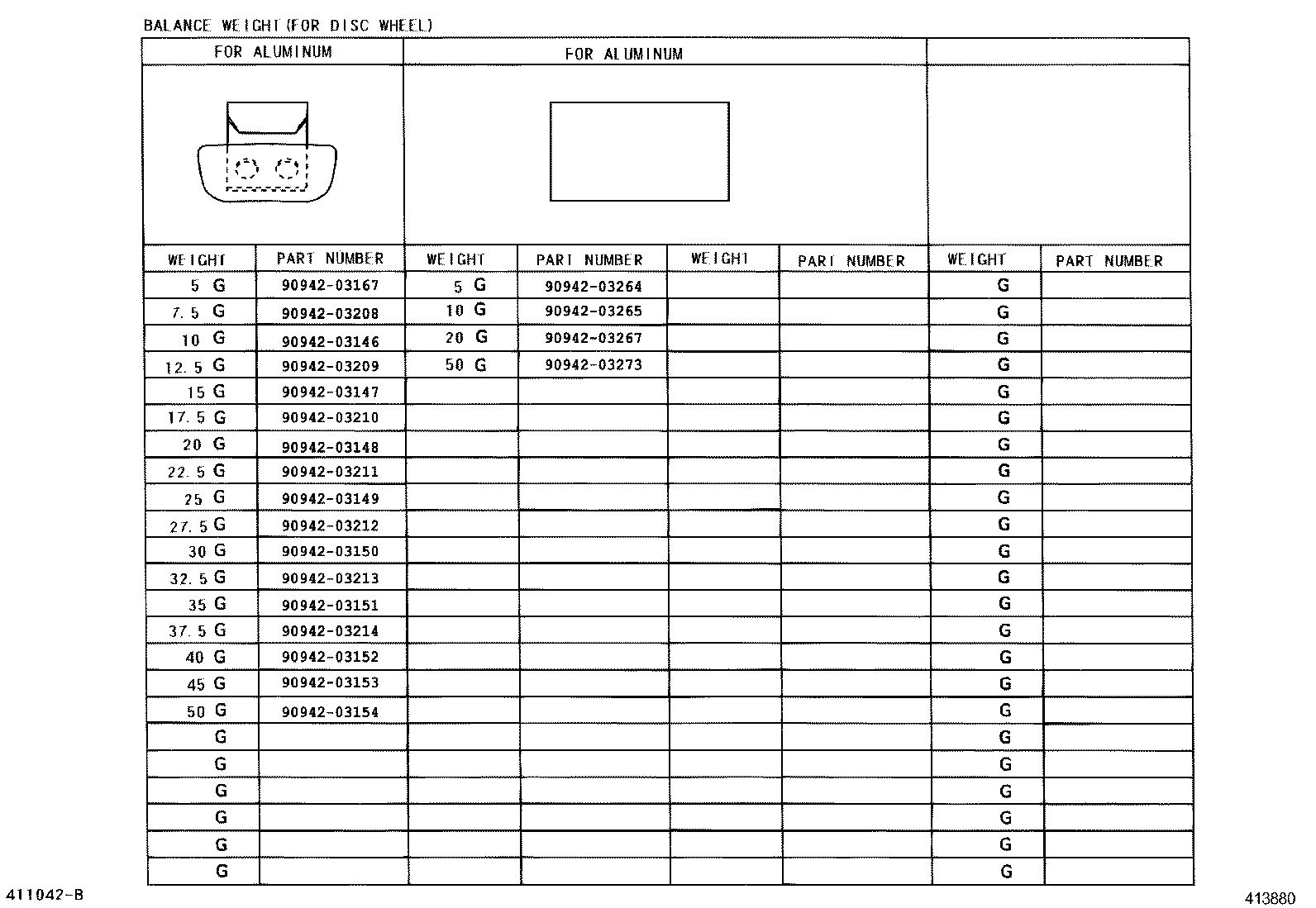

Figure 413881H 413881H 2012-12 → — Figure 414395B 414395B 2012-12 → — Figure 413880 413880 2012-12 → —

Part groups

PNCDescription
04423 Fitting Kit, Tire Pressure Monitor OR Balancer Valve
42601 Wheel, Disc
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)
42603 Ornament Sub-assy, Wheel Hub
42607 Valve Sub-assy, Tire Pressure Monitor
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
42611U Cap, Tire Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
