Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

67 part groups · 12 illustrations

Illustrations

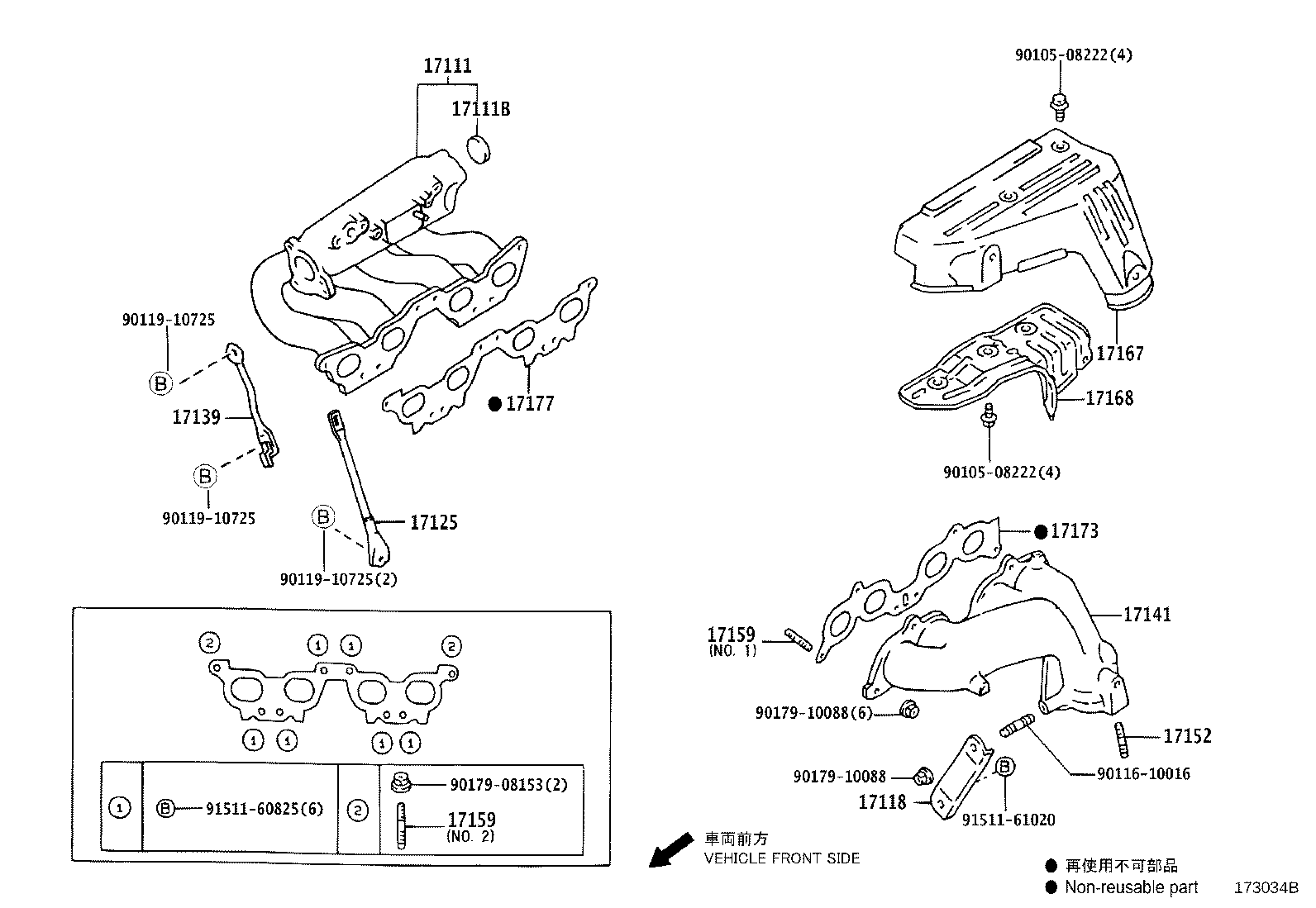

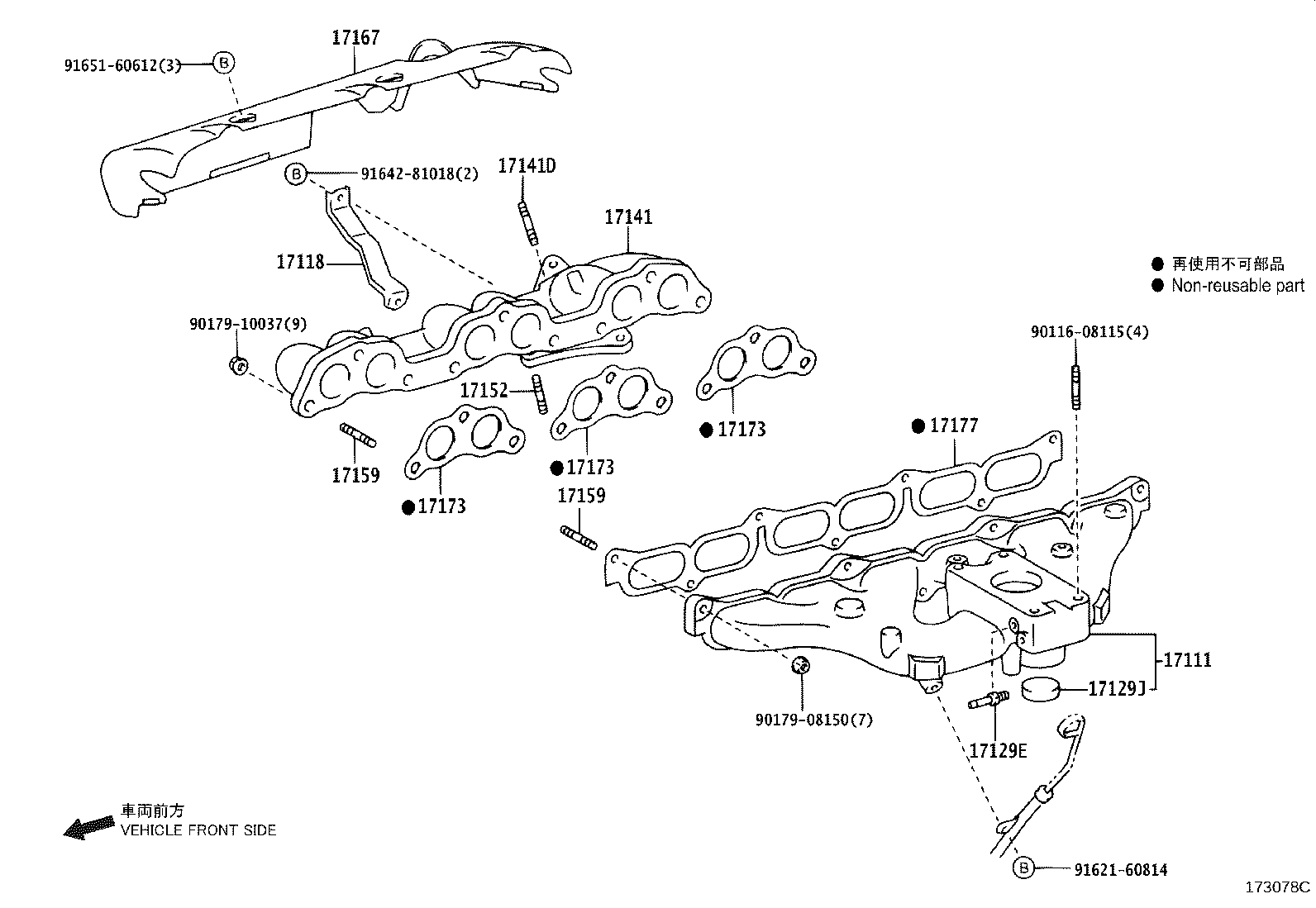

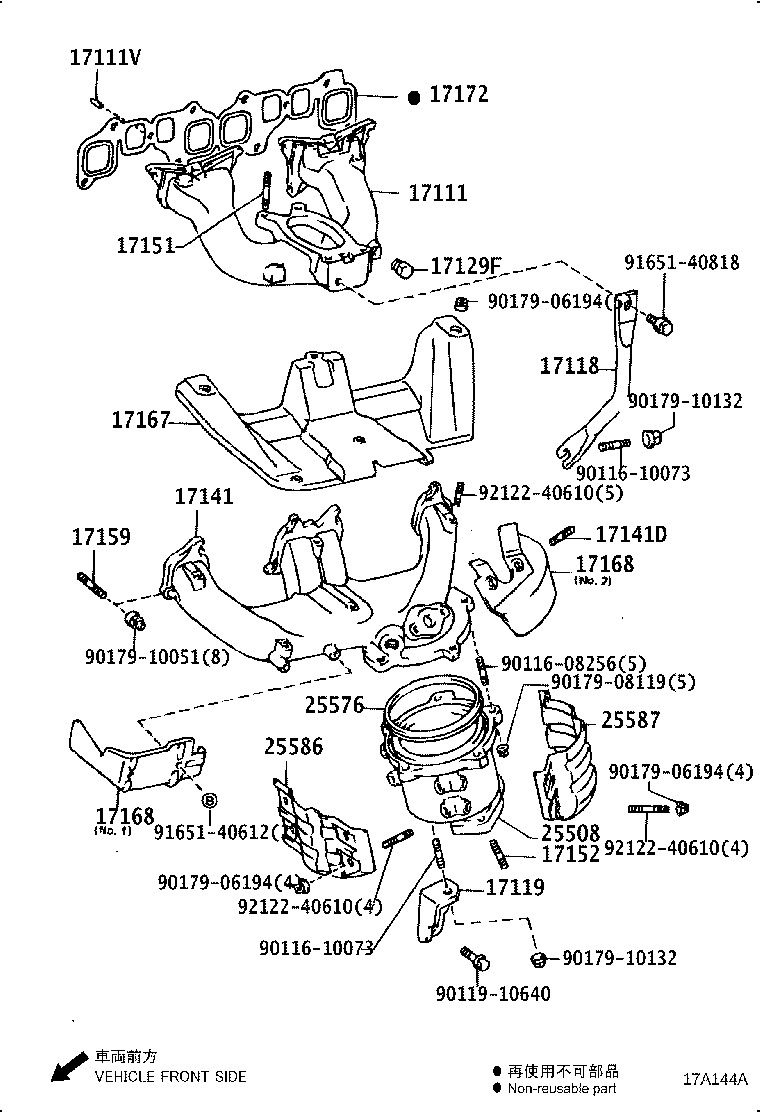

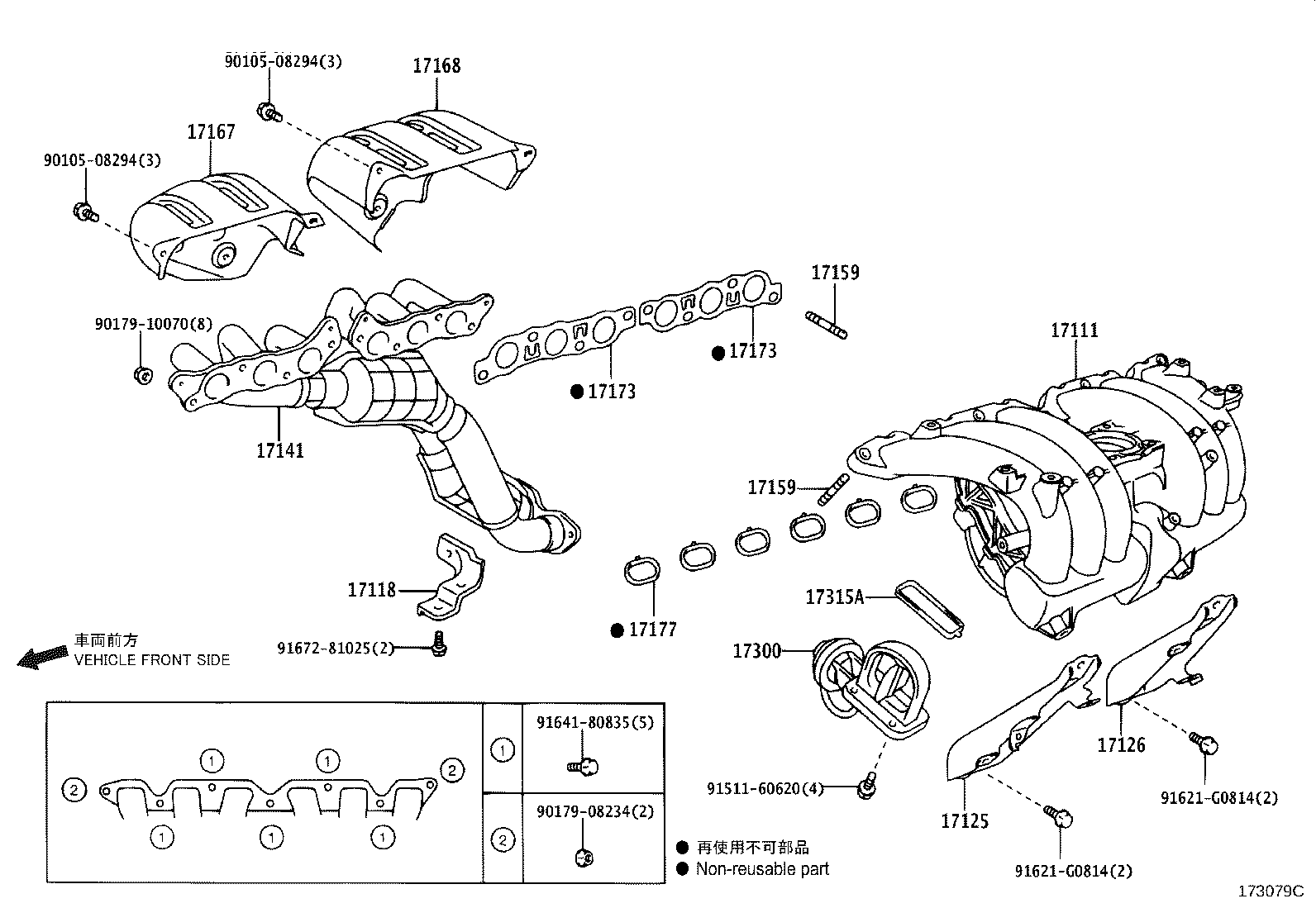

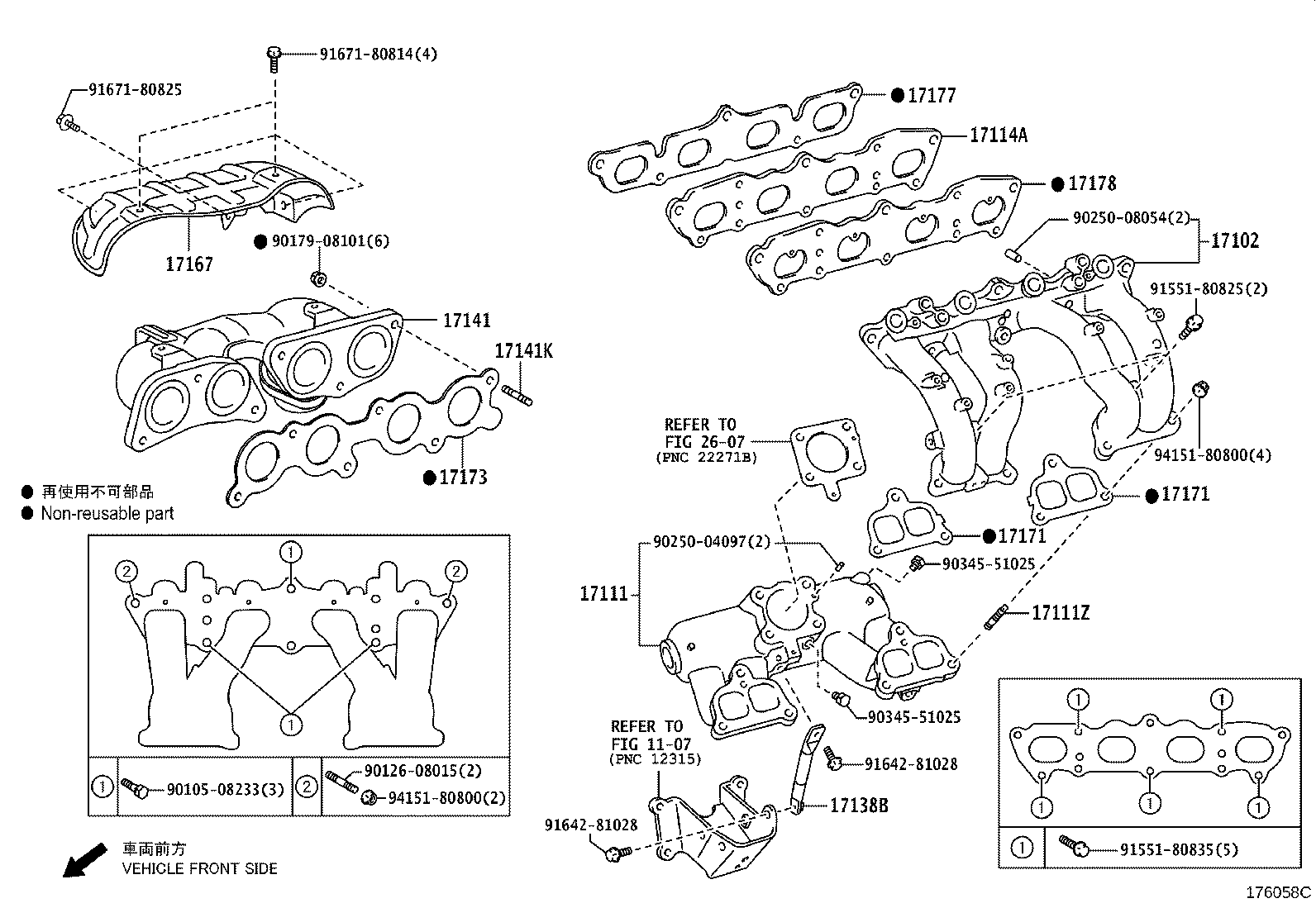

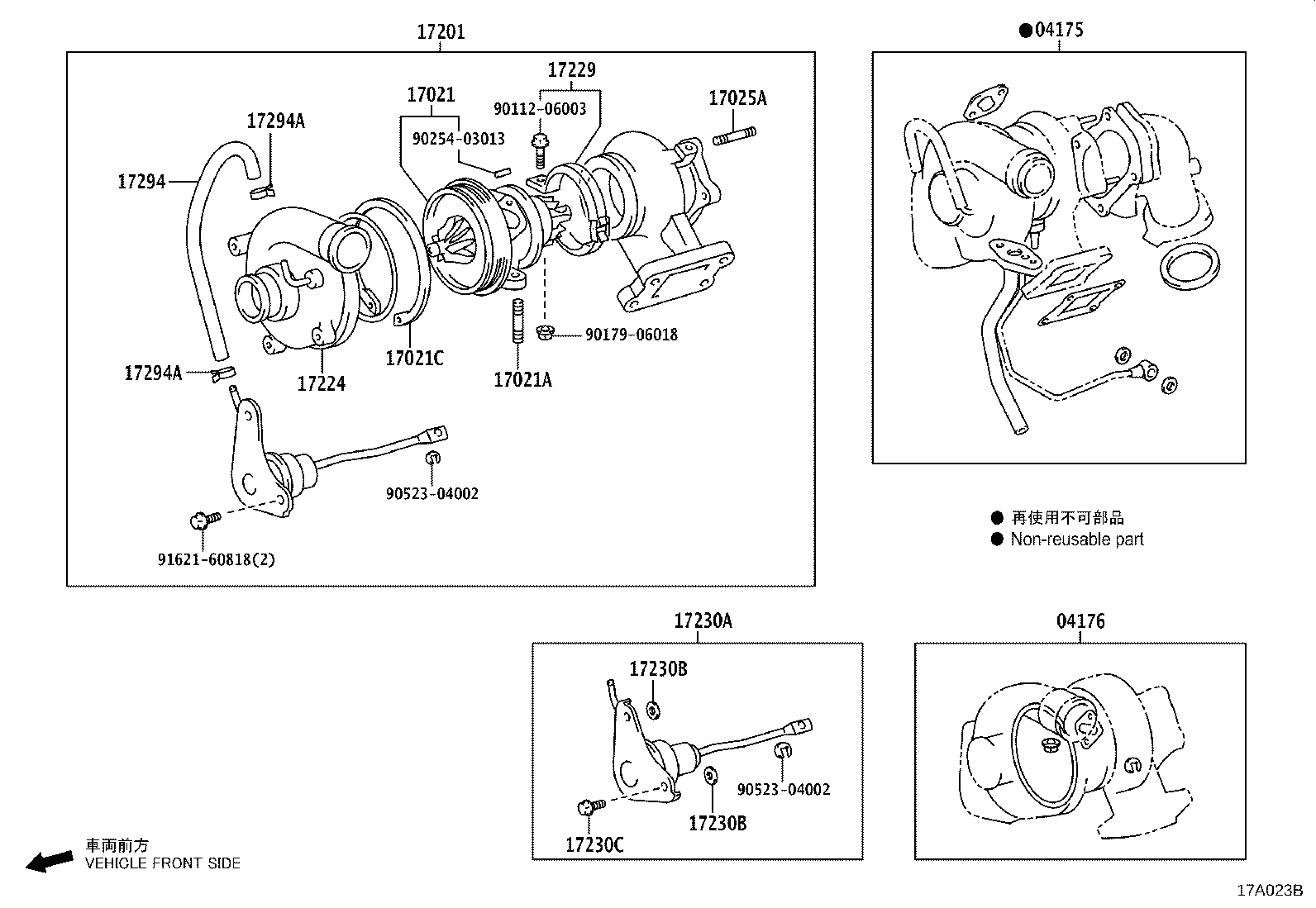

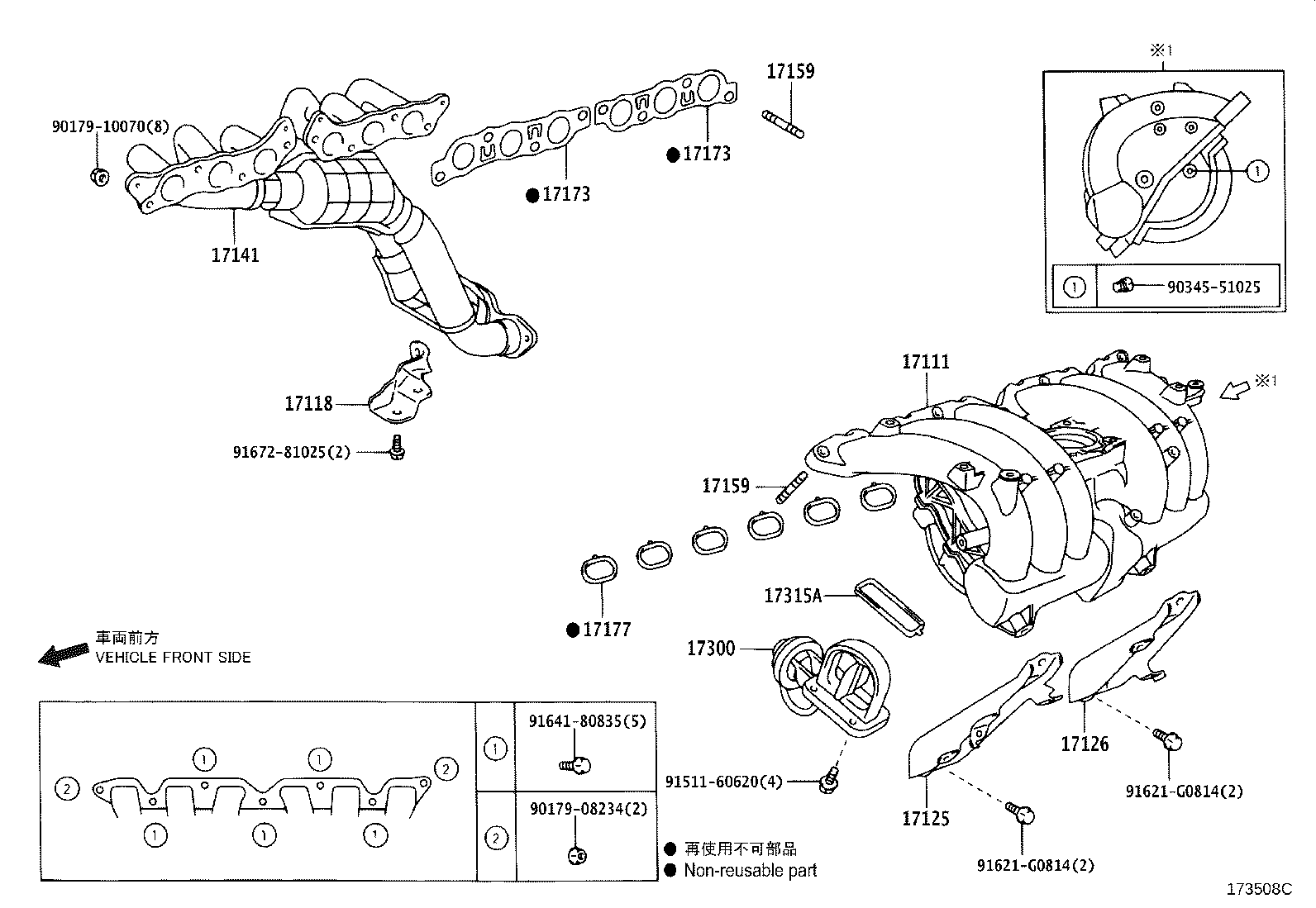

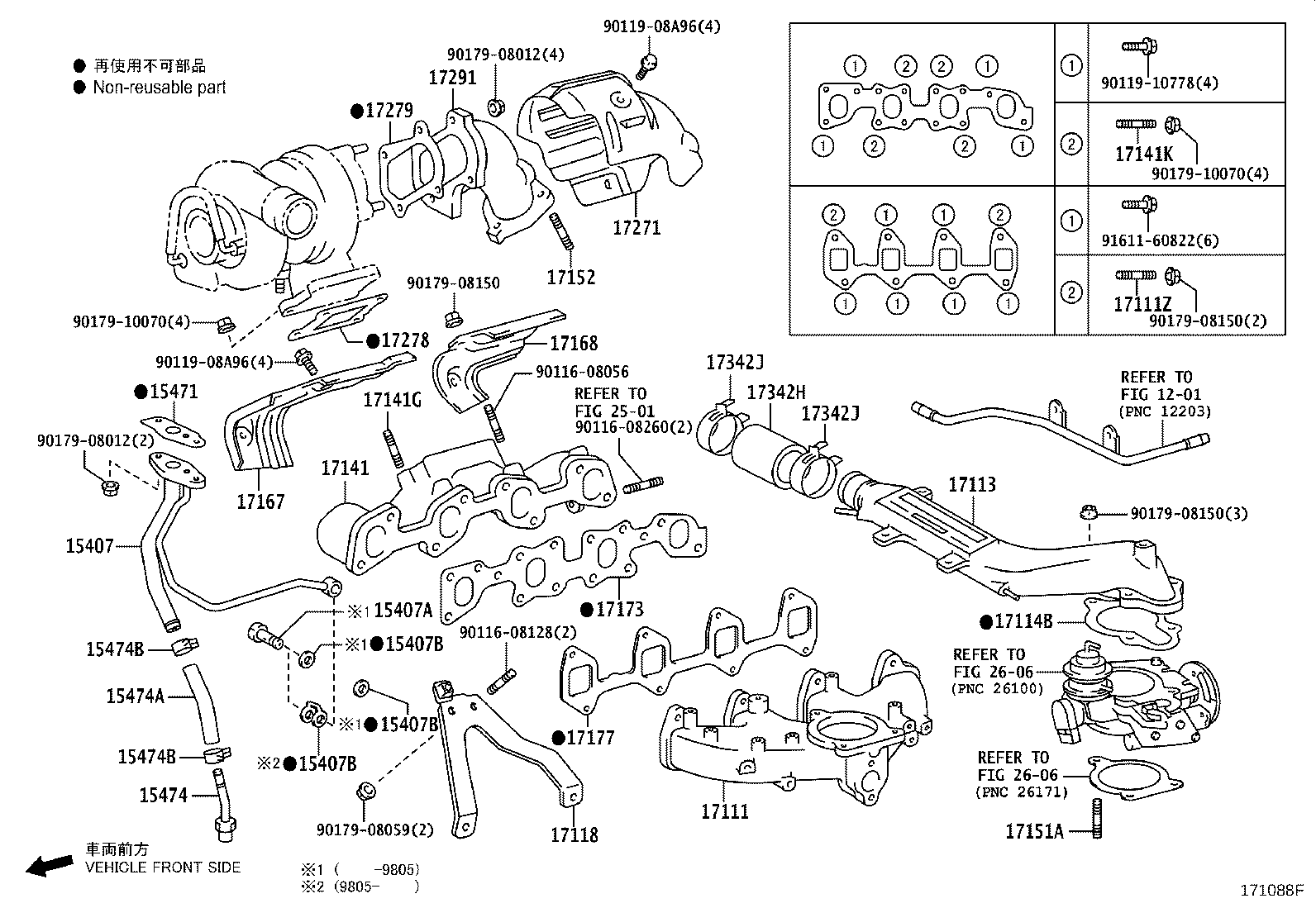

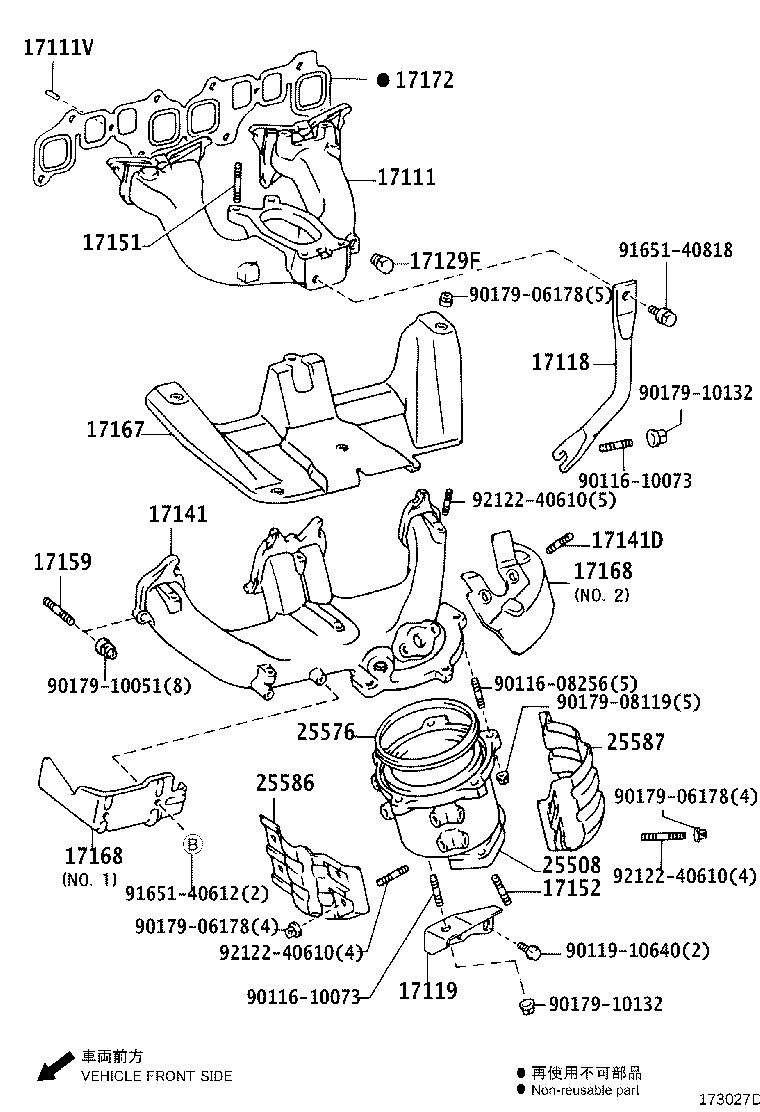

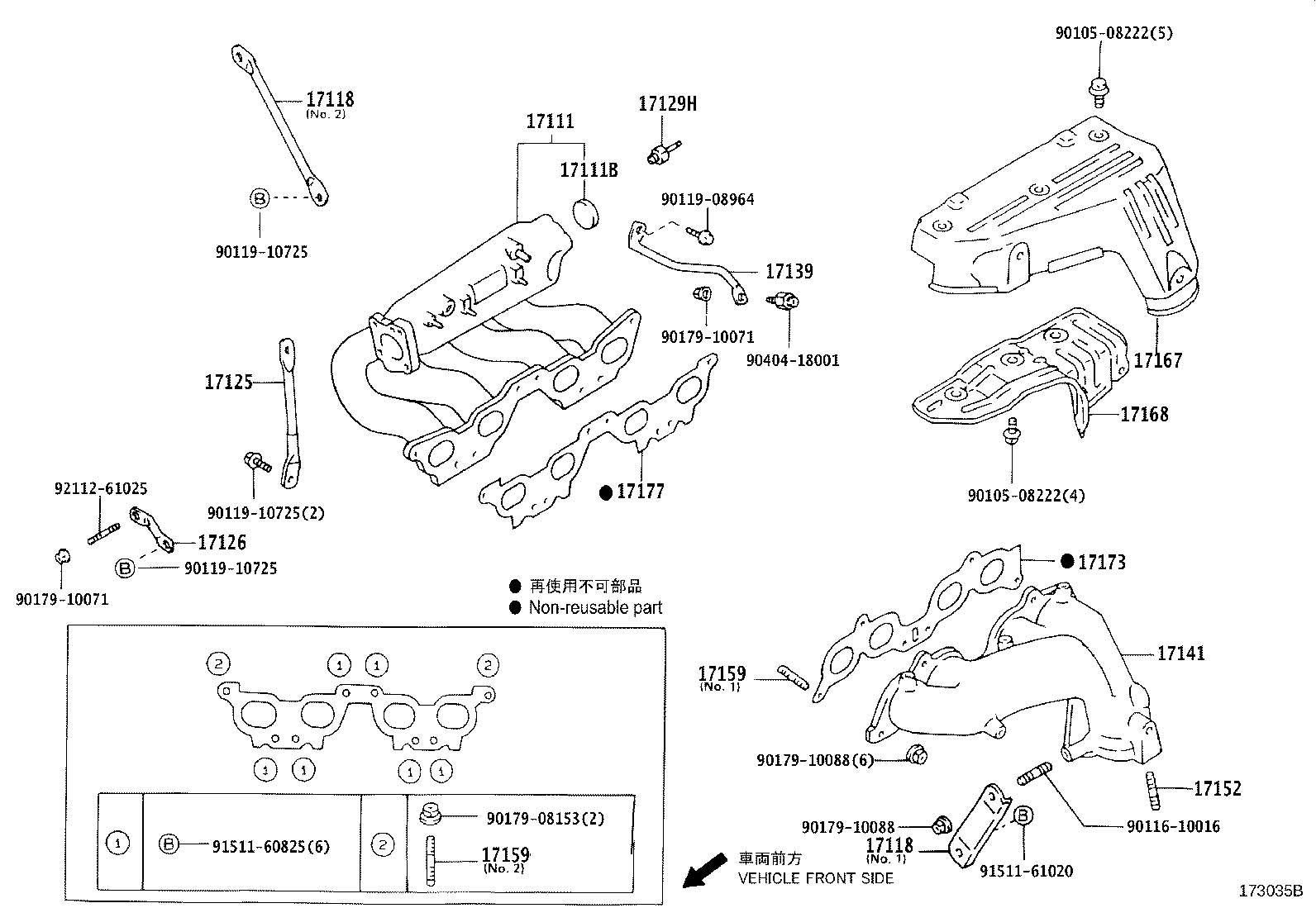

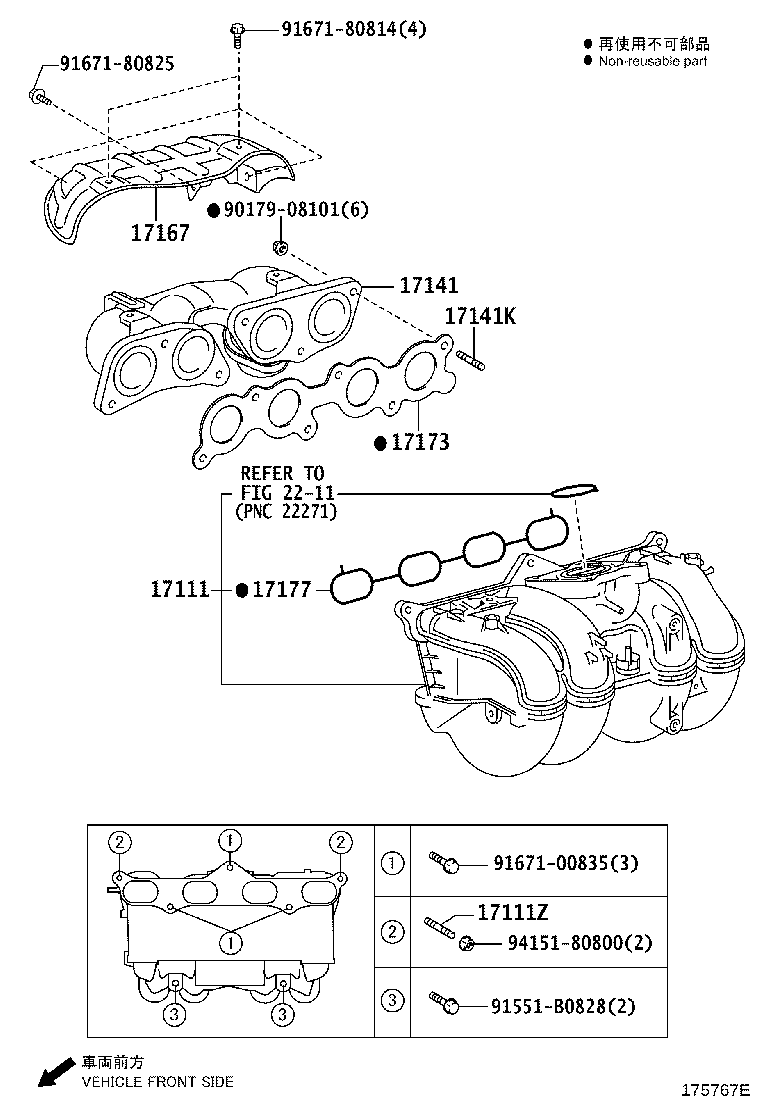

Figure 17A152A 17A152A 1995-12 → 2001-02 Figure 173078C 173078C 2001-08 → — Figure 173079C 173079C 2001-08 → — Figure 173508C 173508C 2002-10 → — Figure 171088F 171088F 1995-12 → 1999-08 Figure 17A023B 17A023B 1995-12 → 1999-08 Figure 173035B 173035B 1996-04 → 2001-08 Figure 173034B 173034B 2001-08 → — Figure 175767E 175767E 2007-09 → — Figure 176058C 176058C 2008-08 → — Figure 17A144A 17A144A 1995-12 → 2001-08 Figure 173027D 173027D 2001-08 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
04176 Seal Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
17021 Housing Sub-assy, Bearing
17021A Bolt, Stud(FOR BEARING HOUSING)
17021C Ring, Hole Snap(FOR BEARING HOUSING)
17025A Bolt, Stud(FOR TURBINE HOUSING)
17102 Manifold Sub-assy, Intake, Upper
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111V Pin, Straight(FOR INTAKE MANIFOLD SETTING)
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17113 Pipe, Intake
17114A Flange, Intake
17114B Gasket, Intake Flange
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129E Union, NO.3
17129F Plug, Intake Manifold Suction Hole
17129H Union, NO.4
17129J Plug, Tight(FOR INTAKE AIR SURGE TANK)
17138B Stay, Intake Manifold
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141G Bolt, Stud(FOR TURBOCHARGER)
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17151A Bolt, Stud(FOR MANIFOLD TO VENTURI)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17201 Turbocharger Sub-assy
17224 Housing, Compressor
17229 Band, V
17230A Repair Actuaor Assy, W/Bracket
17230B Washer, Plate(FOR REPAIR ACTUATOR SET)
17230C Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
17271 Insulator, Turbo, NO.1
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17291 Elbow, Turbine Outlet
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17300 Valve Assy, Intake Air Control
17315A Gasket, Intake Air Control Valve
17342H Hose, Air, NO.2(FOR TURBOCHARGER)
17342J Clip, Hose(FOR INTAKE PIPE)
25508 Converter Sub-assy, Manifold
25576 Gasket, Manifold Converter
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
