Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

40 part groups · 12 illustrations

Illustrations

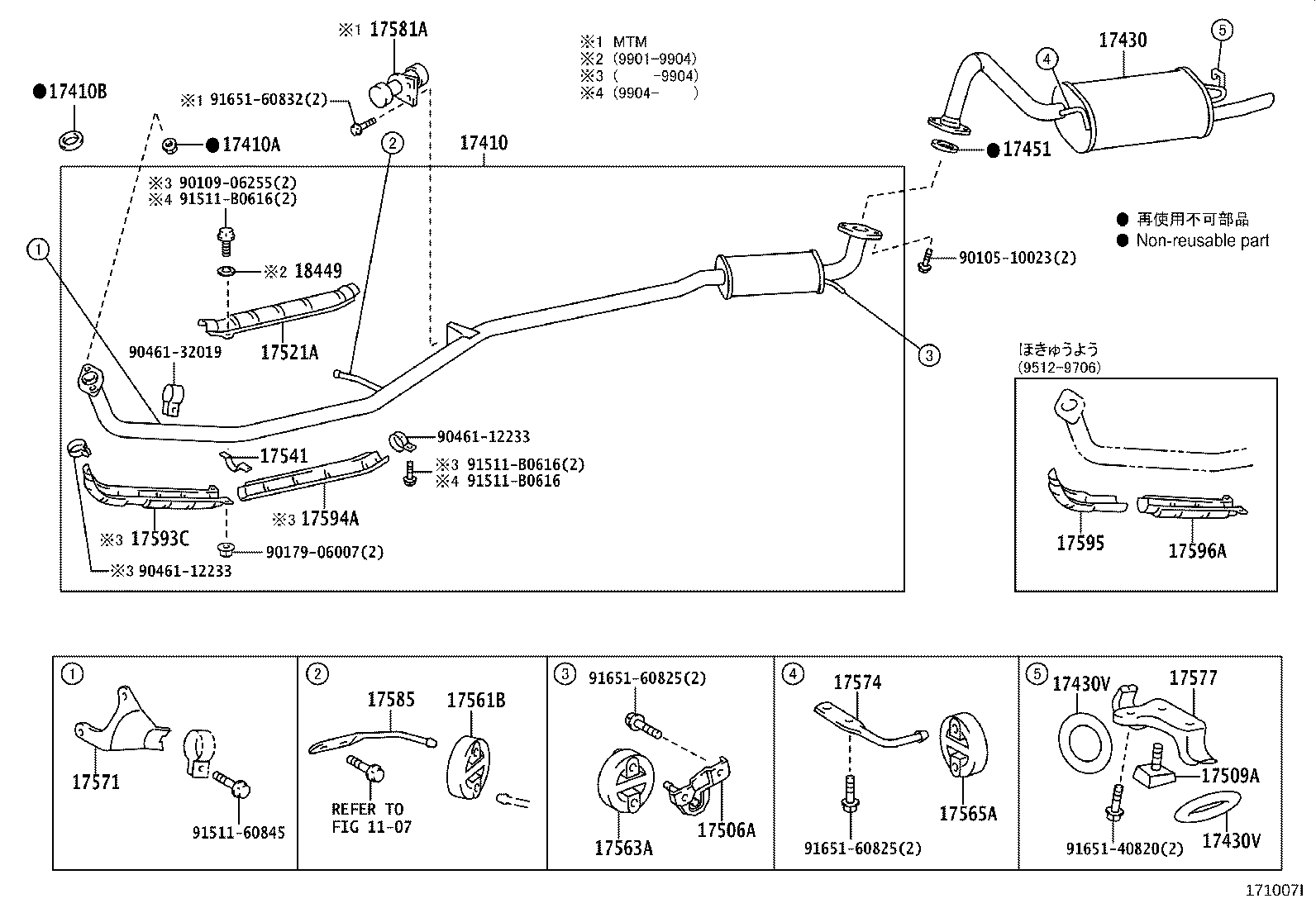

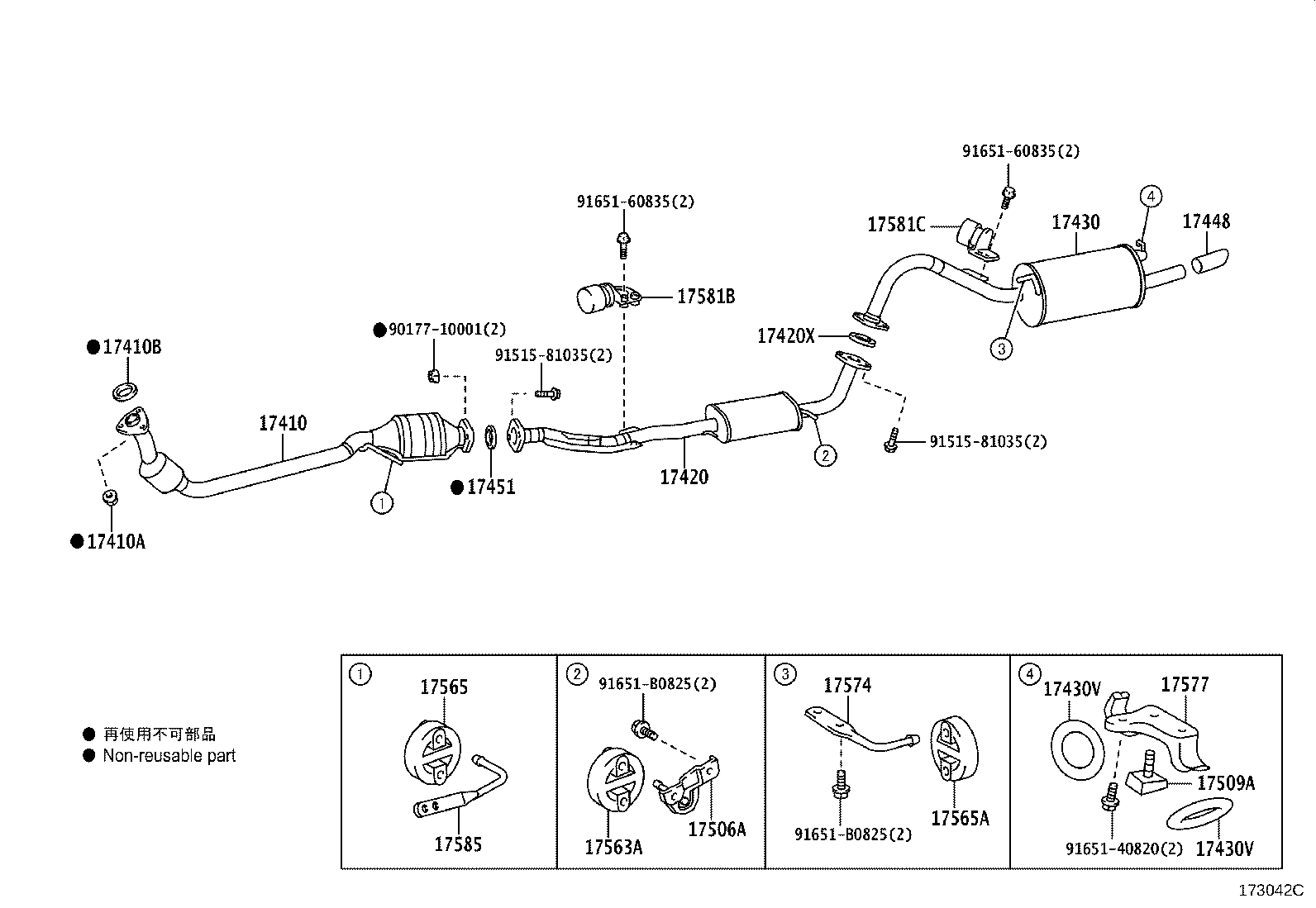

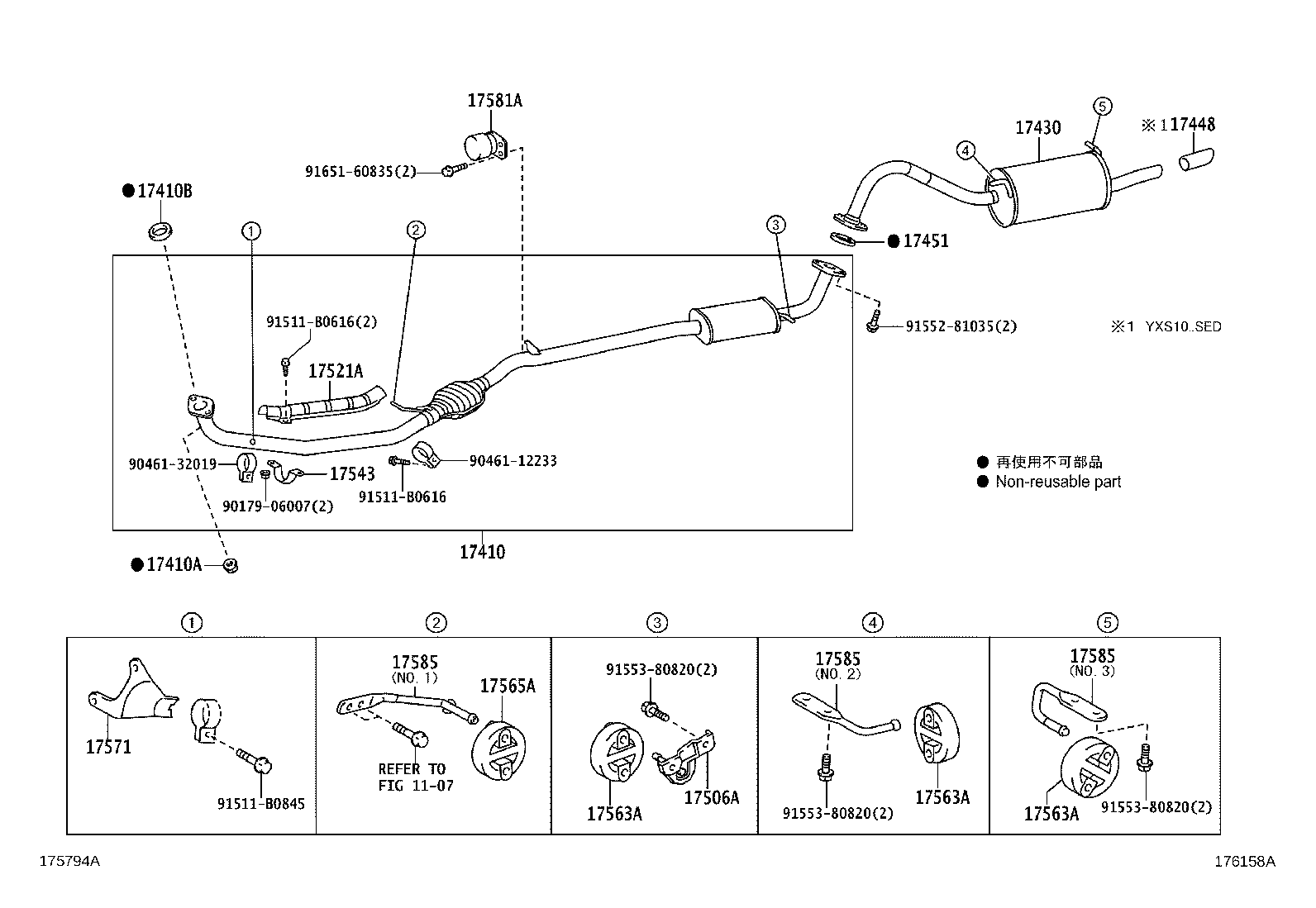

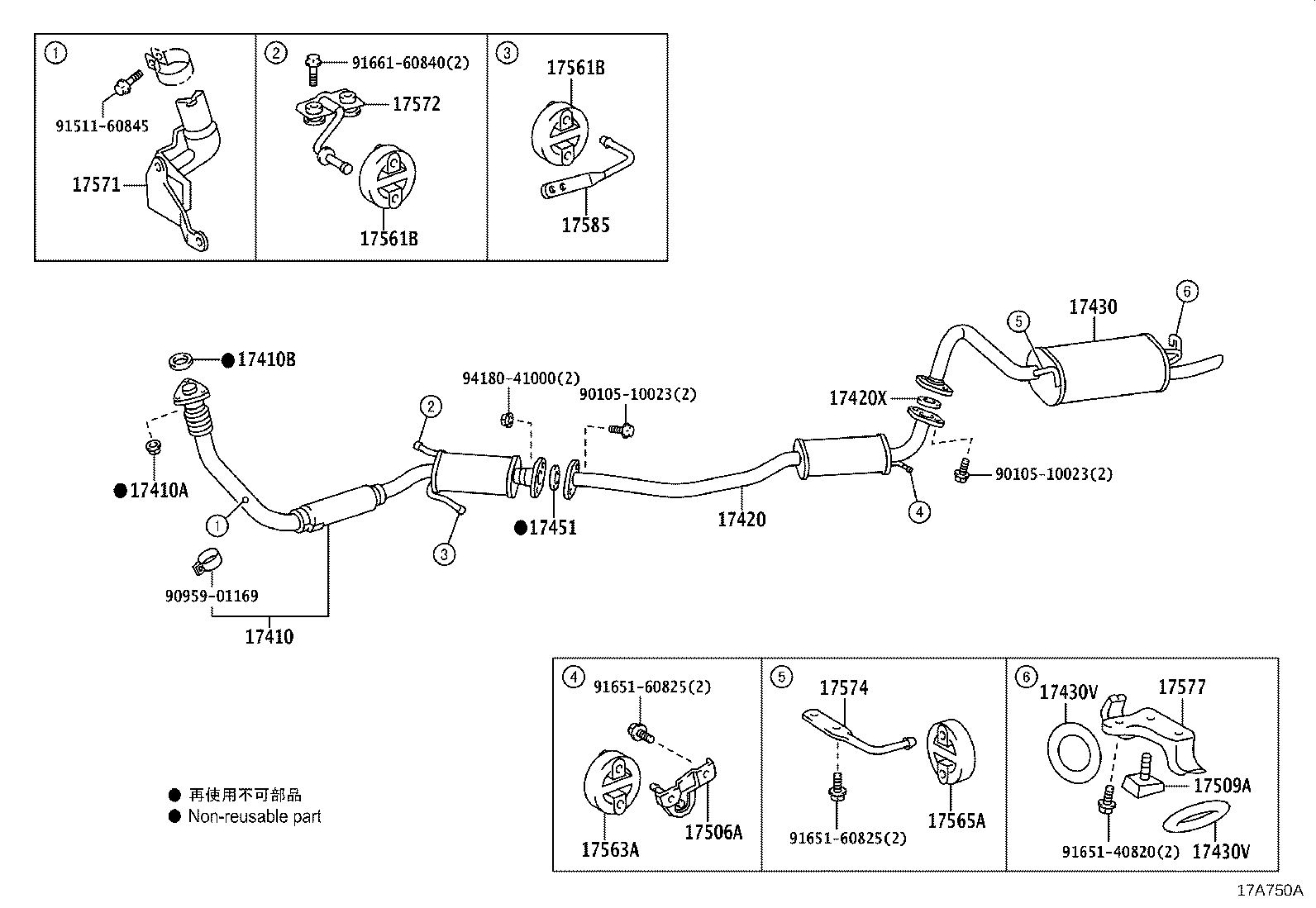

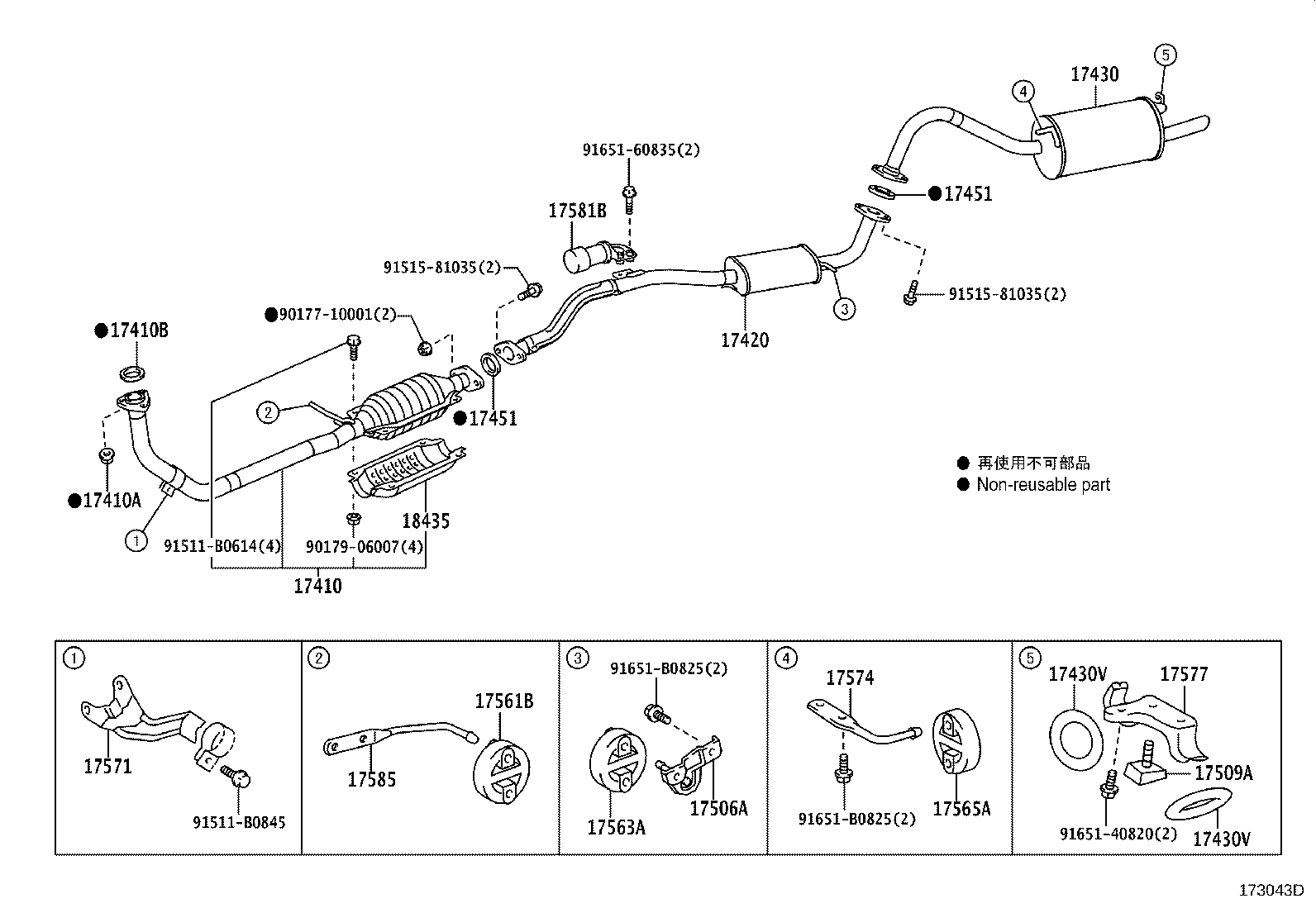

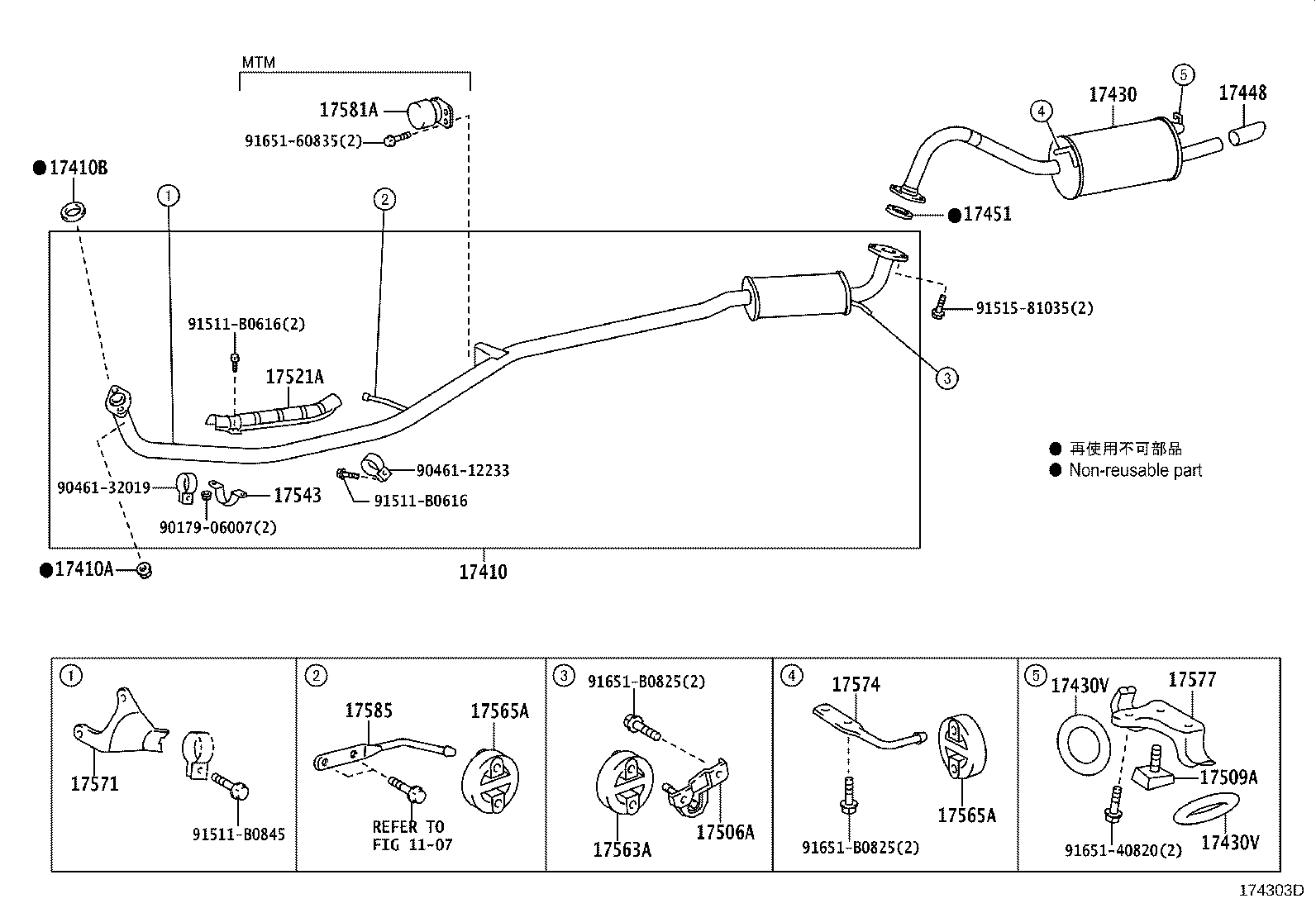

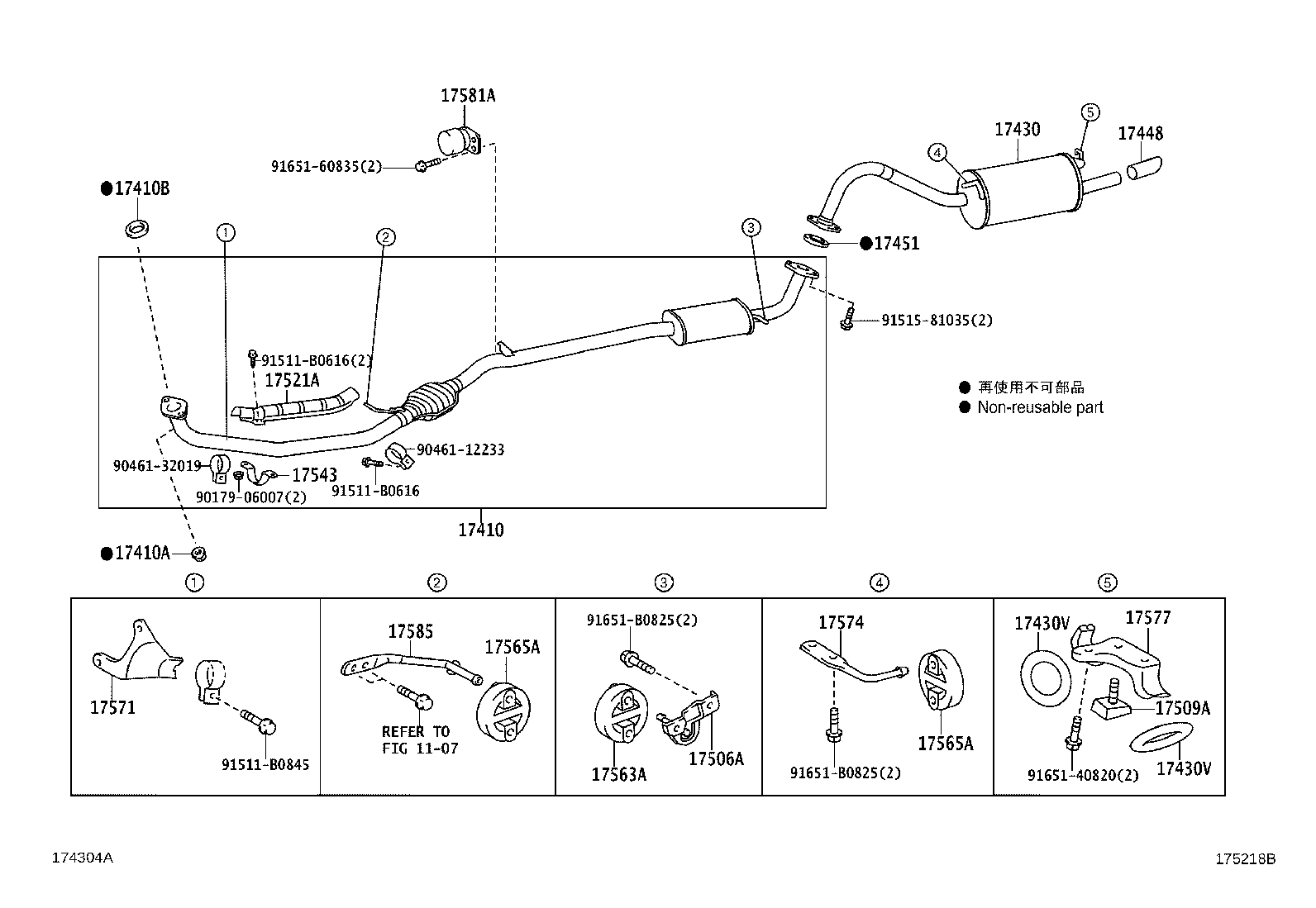

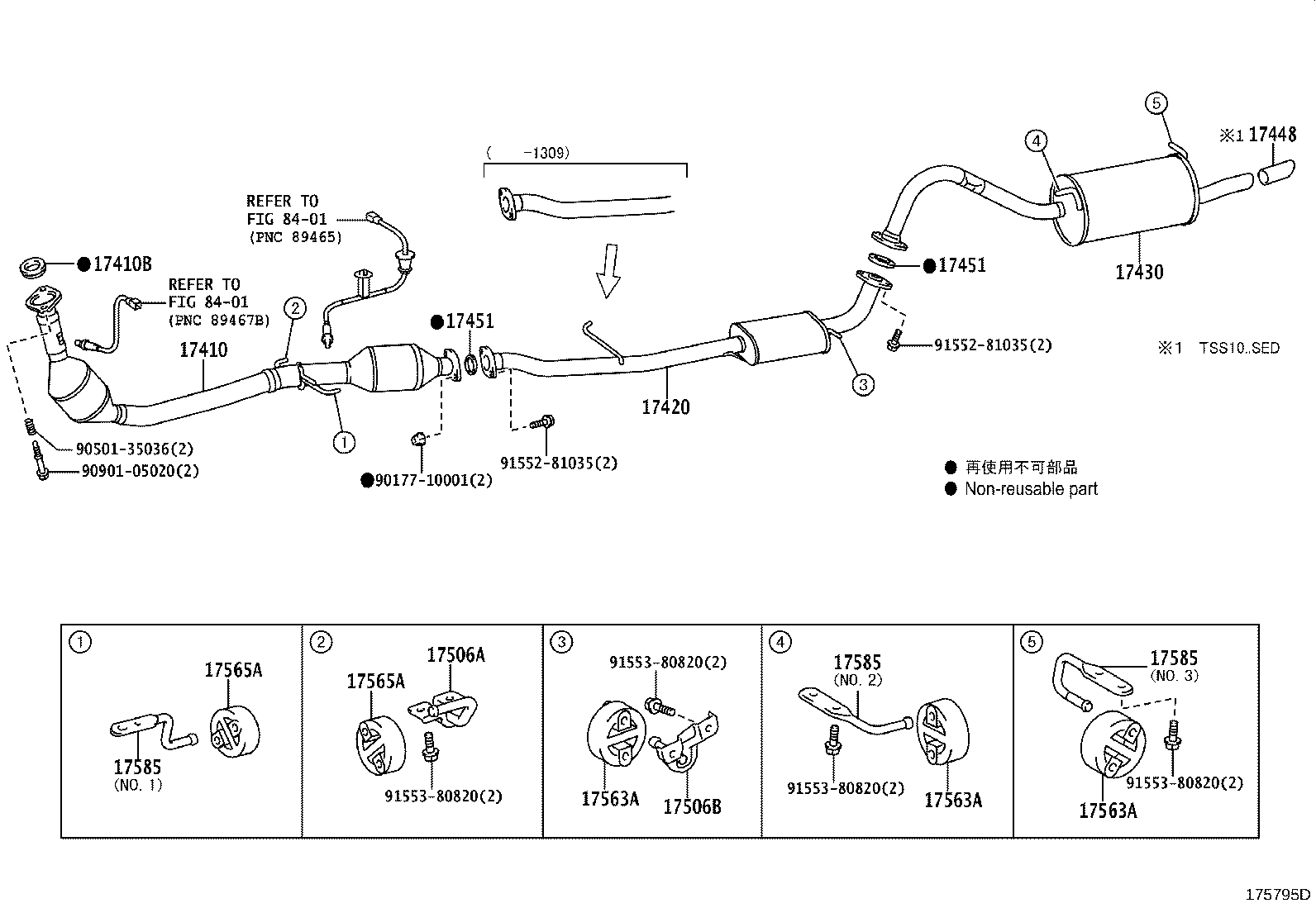

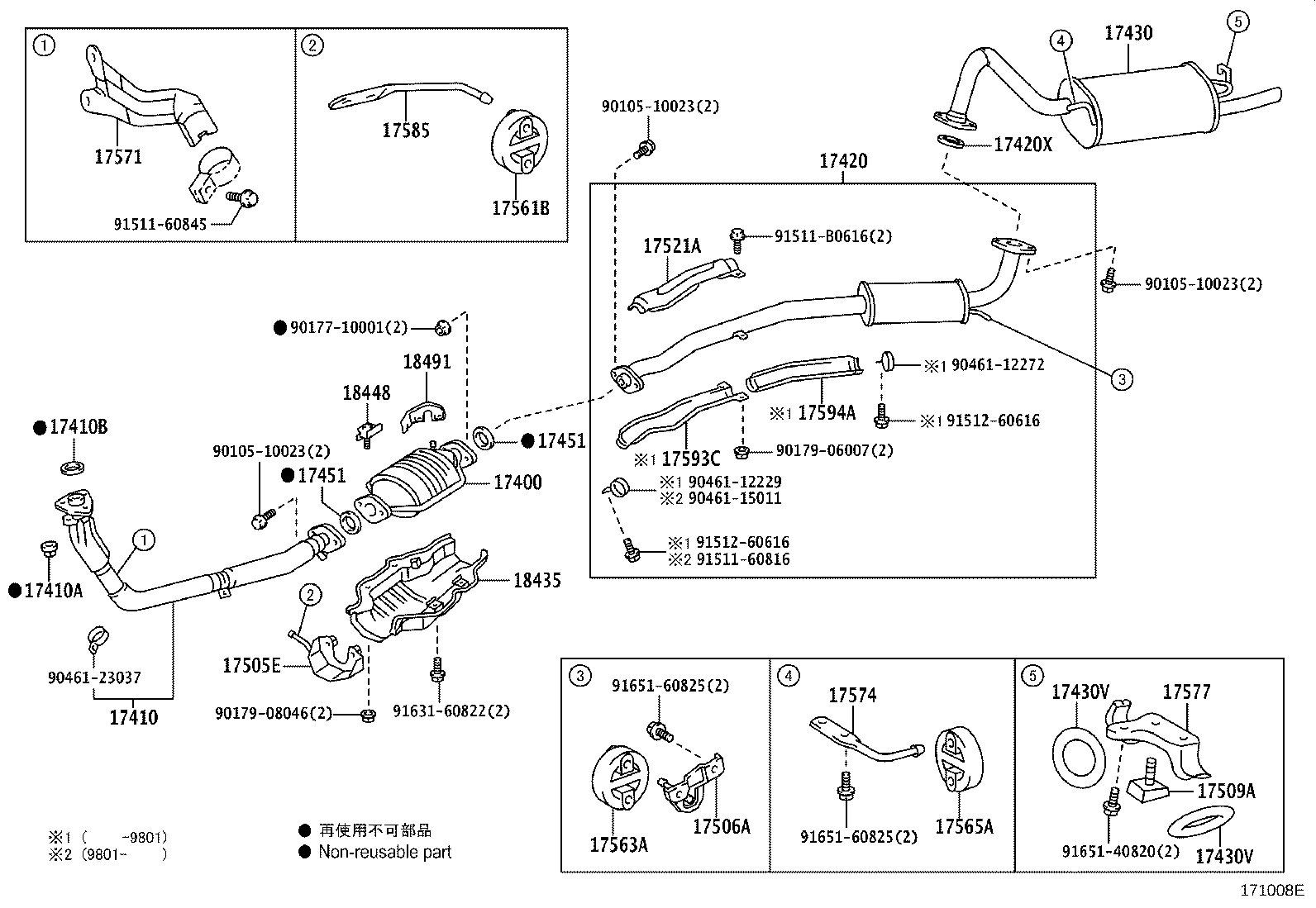

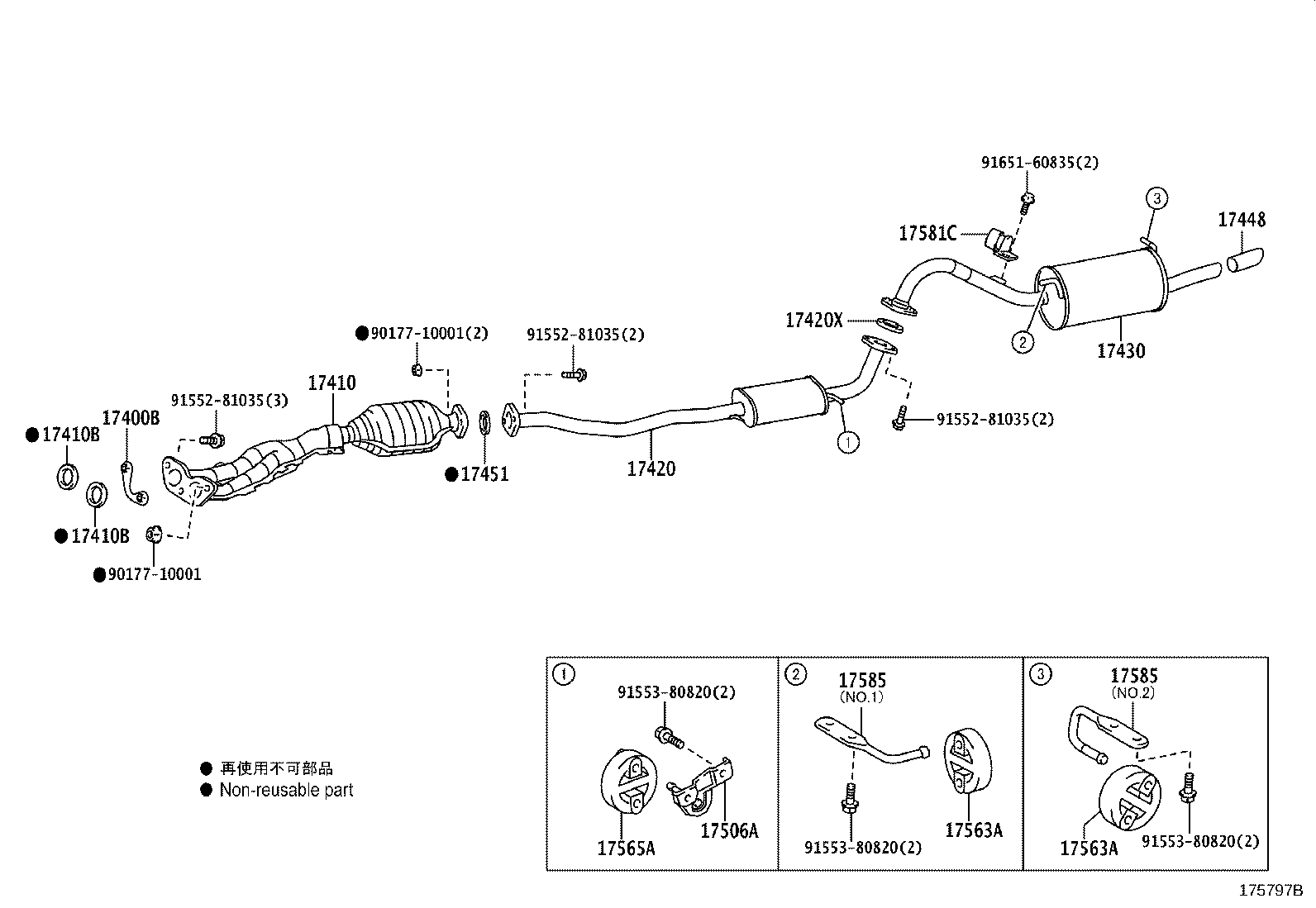

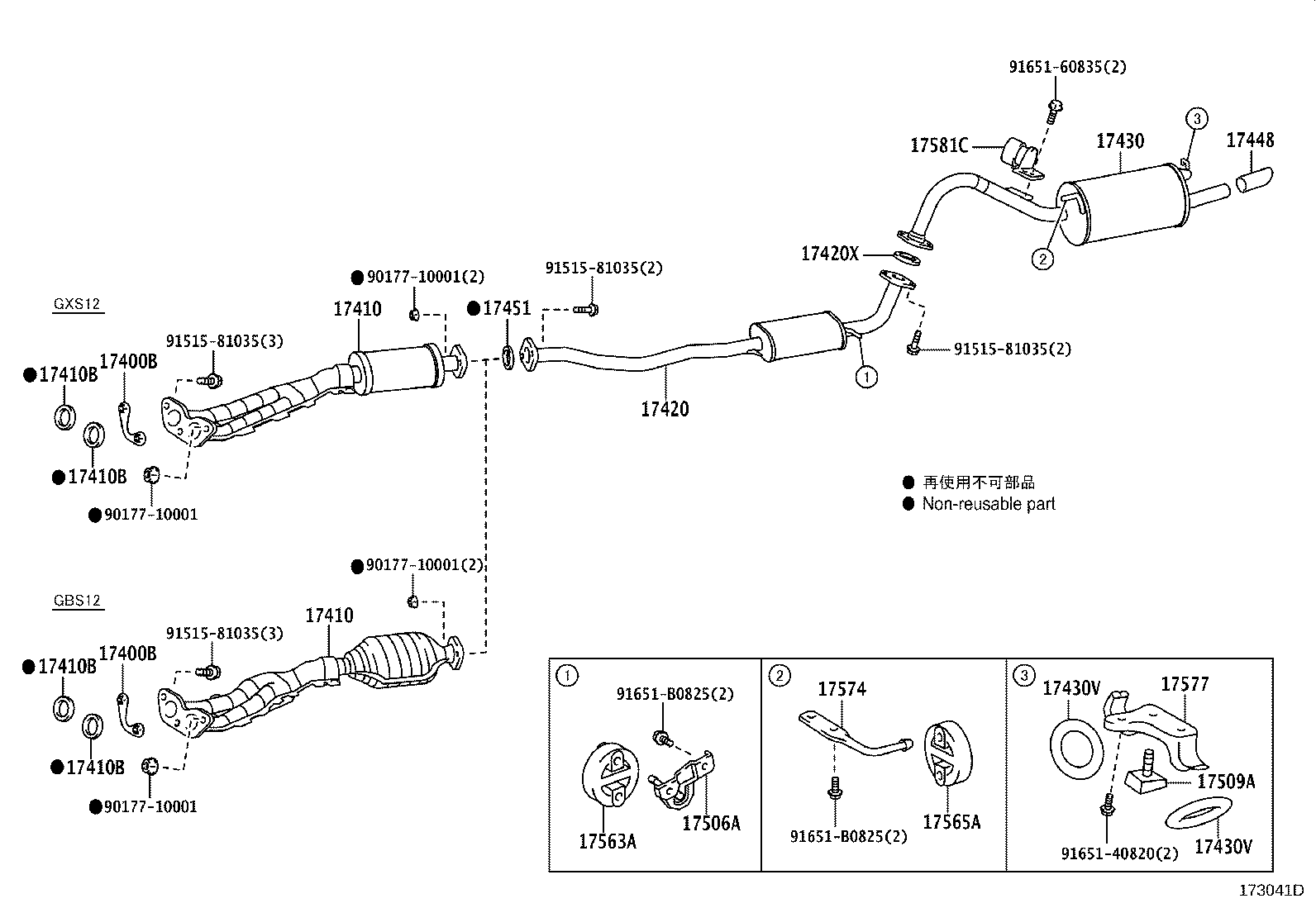

Figure 172377C 172377C 1995-12 → 2001-02 Figure 17A750A 17A750A 1995-12 → 1999-08 Figure 171007I 171007I 1995-12 → 2001-08 Figure 171008E 171008E 1996-04 → 2001-08 Figure 174303D 174303D 2001-08 → 2004-06 Figure 173041D 173041D 2001-08 → 2007-09 Figure 173042C 173042C 2001-10 → 2002-10 Figure 173043D 173043D 2001-08 → 2007-07 Figure 175218B 175218B 2004-06 → 2007-09 Figure 175797B 175797B 2007-09 → — Figure 176158A 176158A 2007-09 → — Figure 175795D 175795D 2007-09 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400B Retainer, Exhaust Pipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17505E Support Sub-assy, Catalytic Converter
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17506B Bracket Sub-assy, Exhaust Pipe Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17521A Protector, Exhaust Pipe, Upper NO.1
17541 Stay, Exhust Pipe Protector, NO.1
17543 Stay, Exhaust Pipe Protector, NO.3
17561B Support, Exhaust Pipe, NO.1
17563A Support, Exhaust Pipe, NO.3
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17574 Bracket, Exhaust Pipe Support, NO.4
17577 Bracket, Exhaust Pipe Support, NO.7
17581A Damper, Exhaust Pipe
17581B Damper, Exhaust Pipe, NO.2
17581C Damper, Exhaust Pipe, NO.3
17585 Hanger, Exhaust Pipe
17593C Protector, Exhaust Pipe, Lower NO.1
17594A Protector, Exhaust Pipe, Lower NO.2
17595 Protector, Exhaust Pipe, Lower NO.3
17596A Protector, Exhaust Pipe, Lower NO.4
18435 Protector, Catalytic Converter
18448 Bracket, Converter Protector, Center
18449 Spacer, Converter Protector
18491 Flange, Thermosensor Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
