Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

39 part groups · 23 illustrations

Illustrations

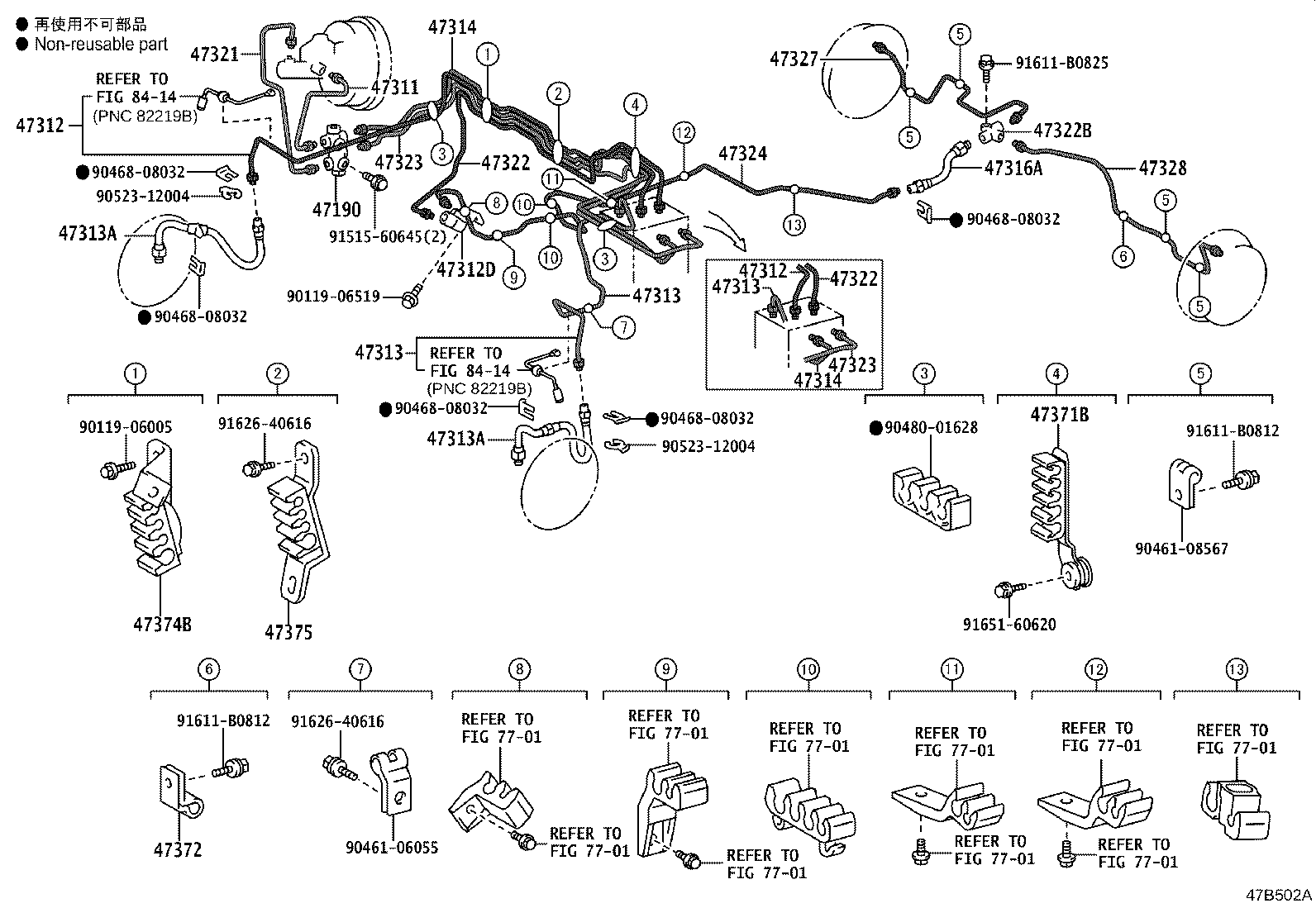

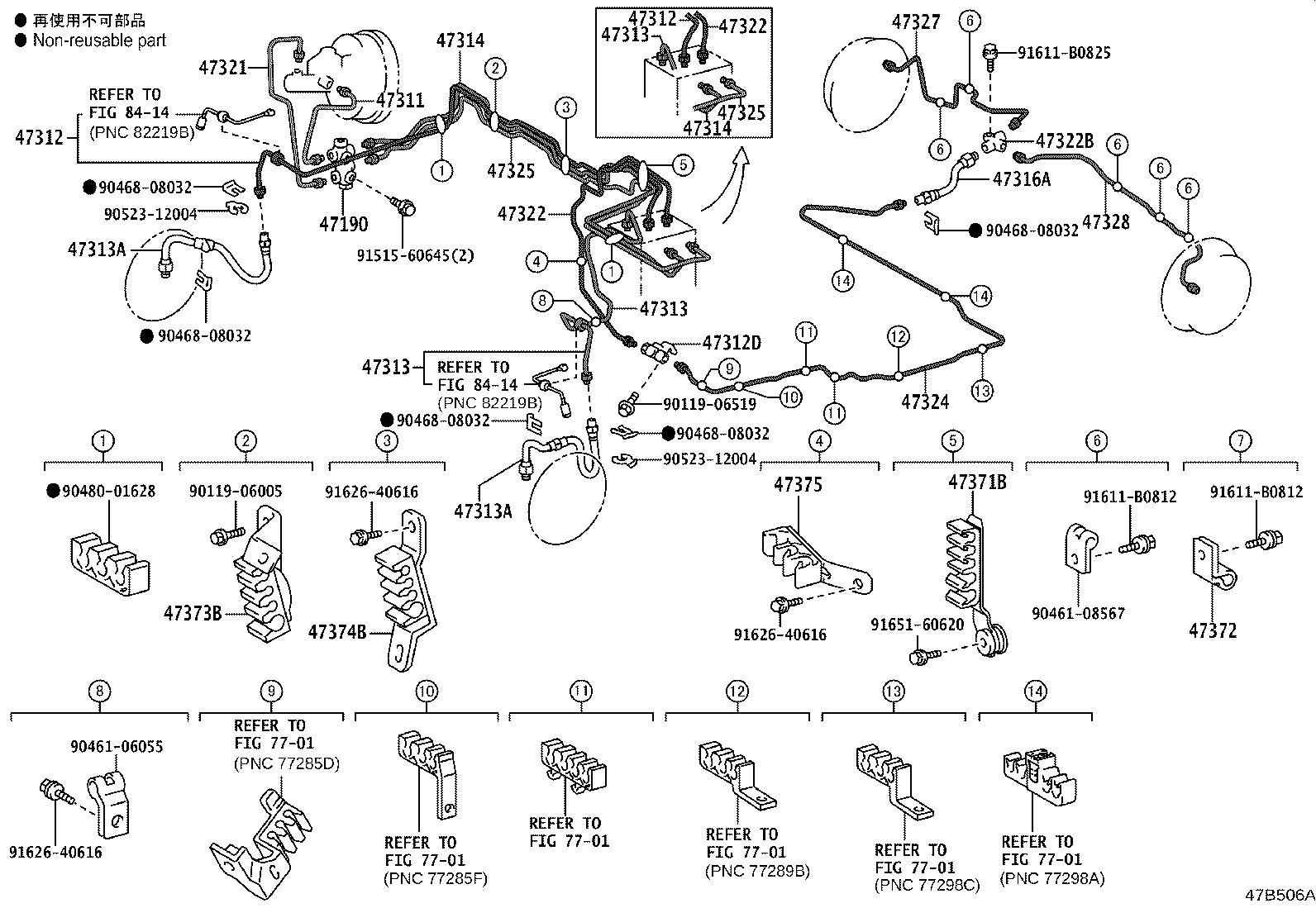

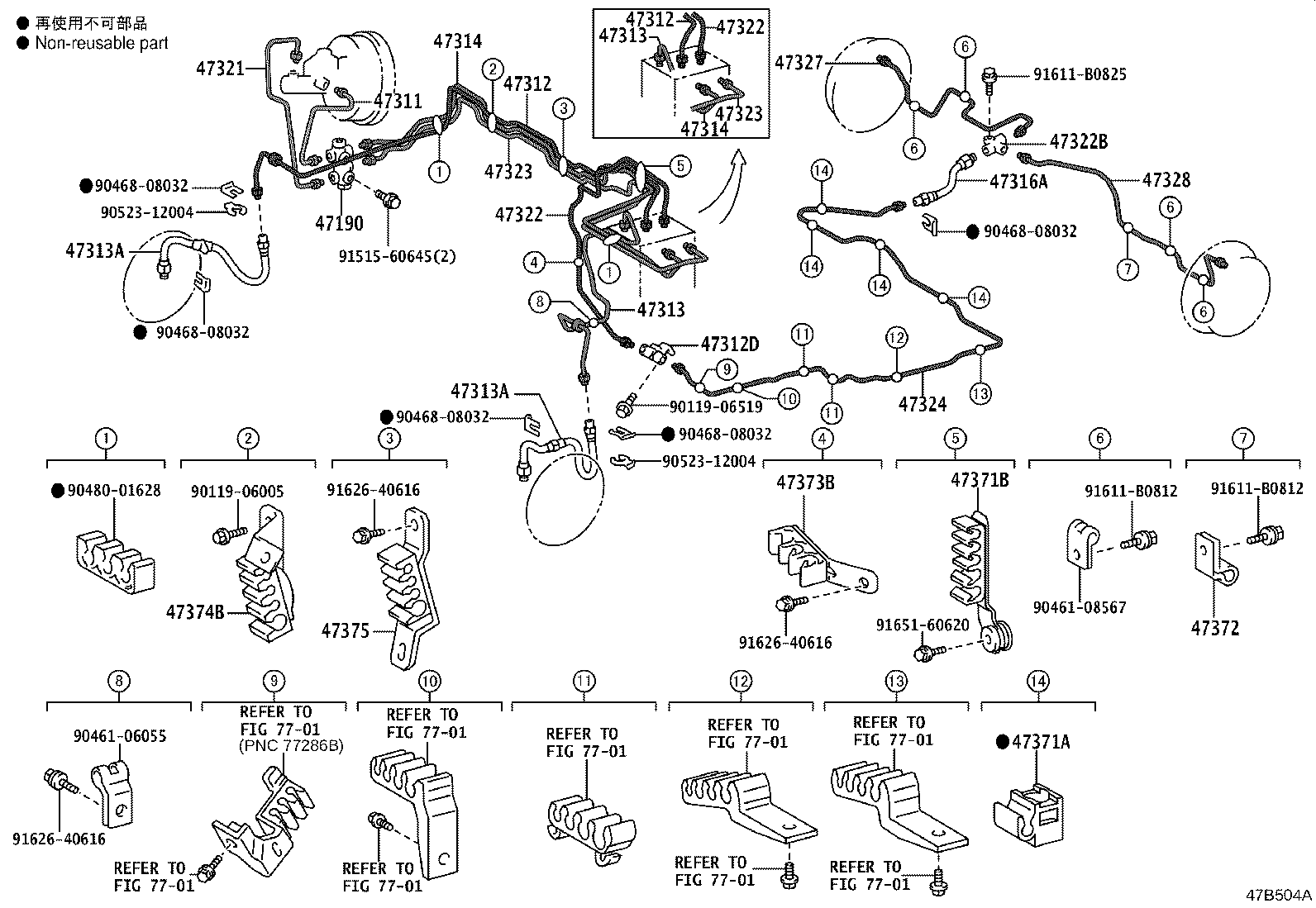

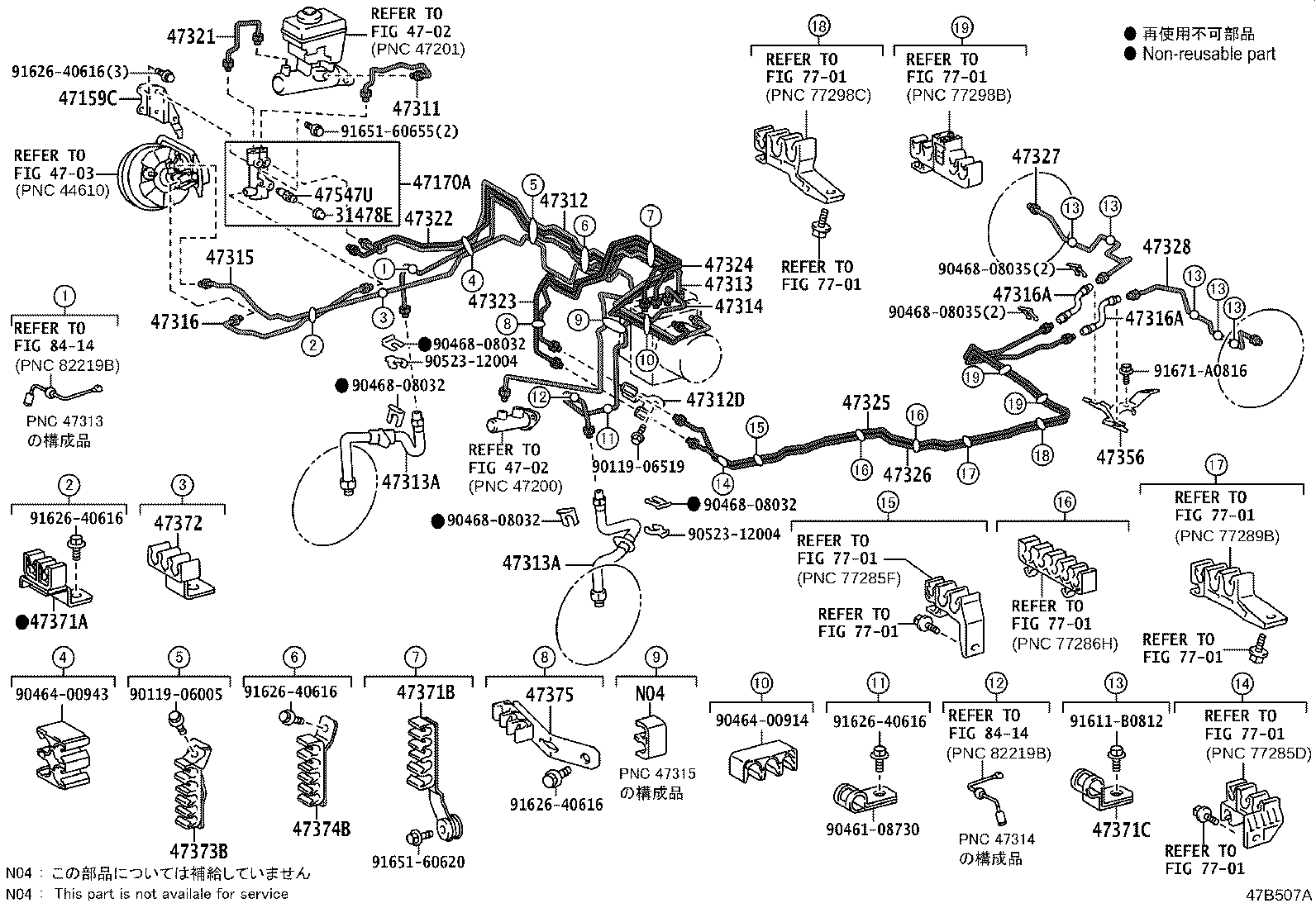

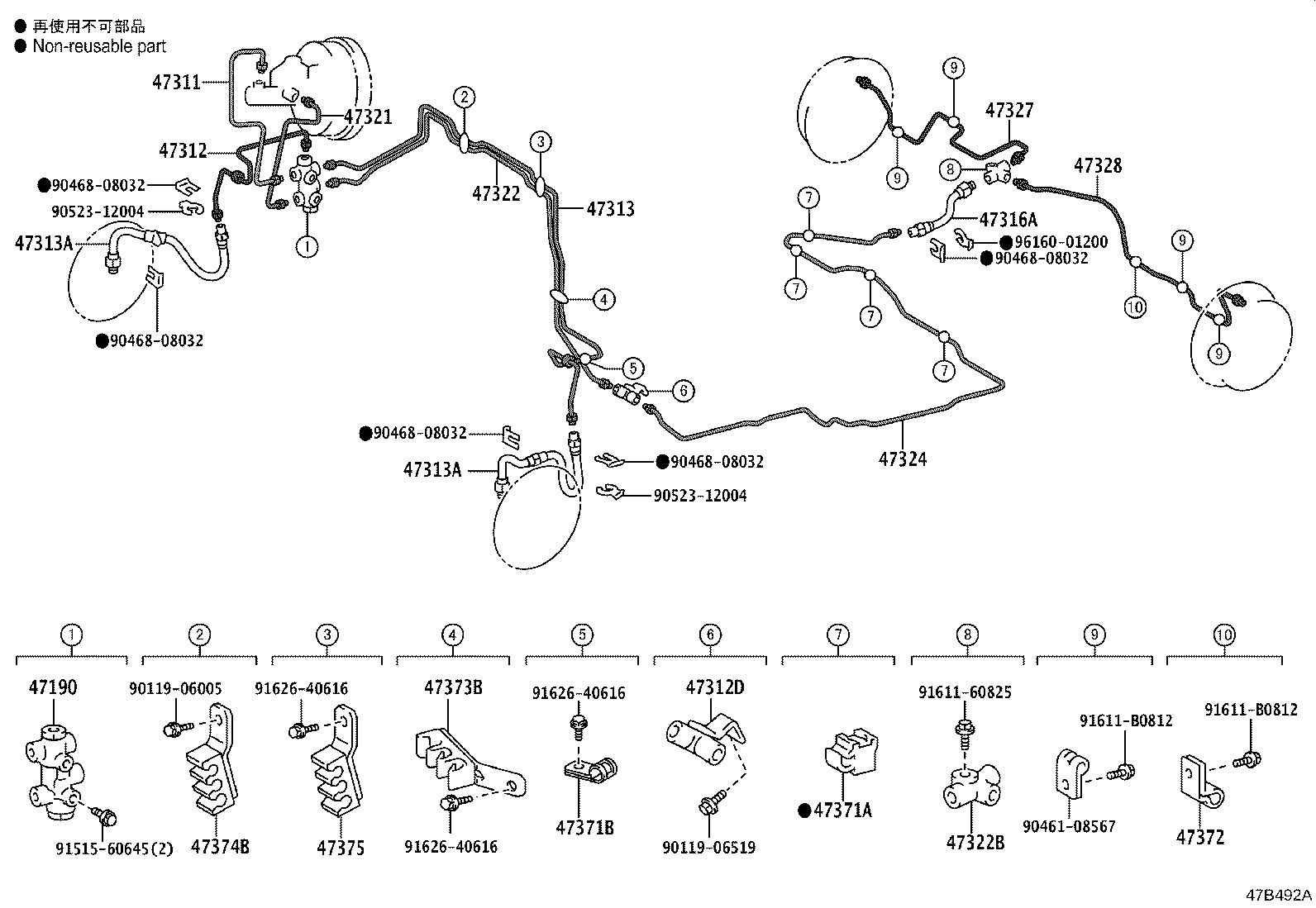

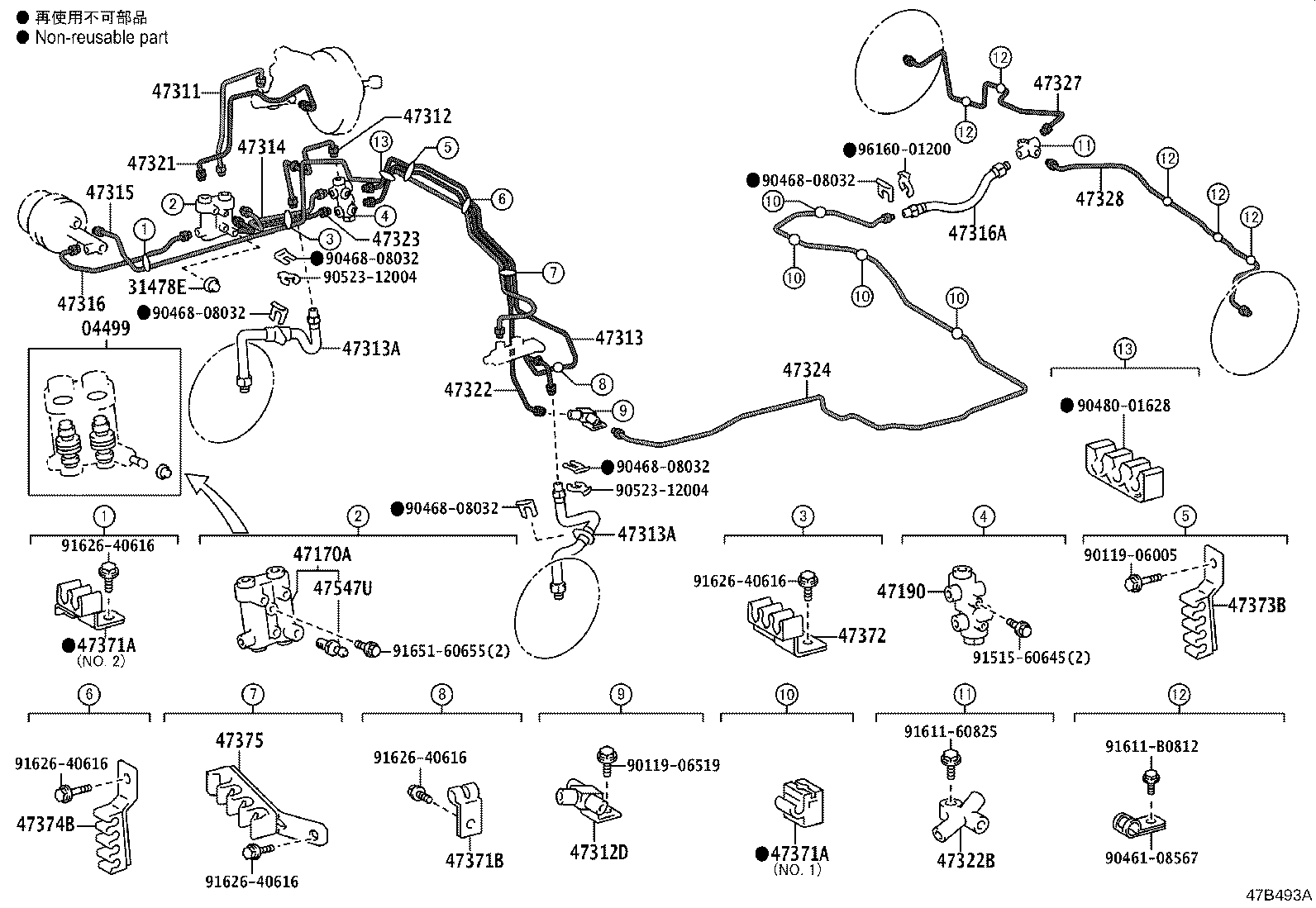

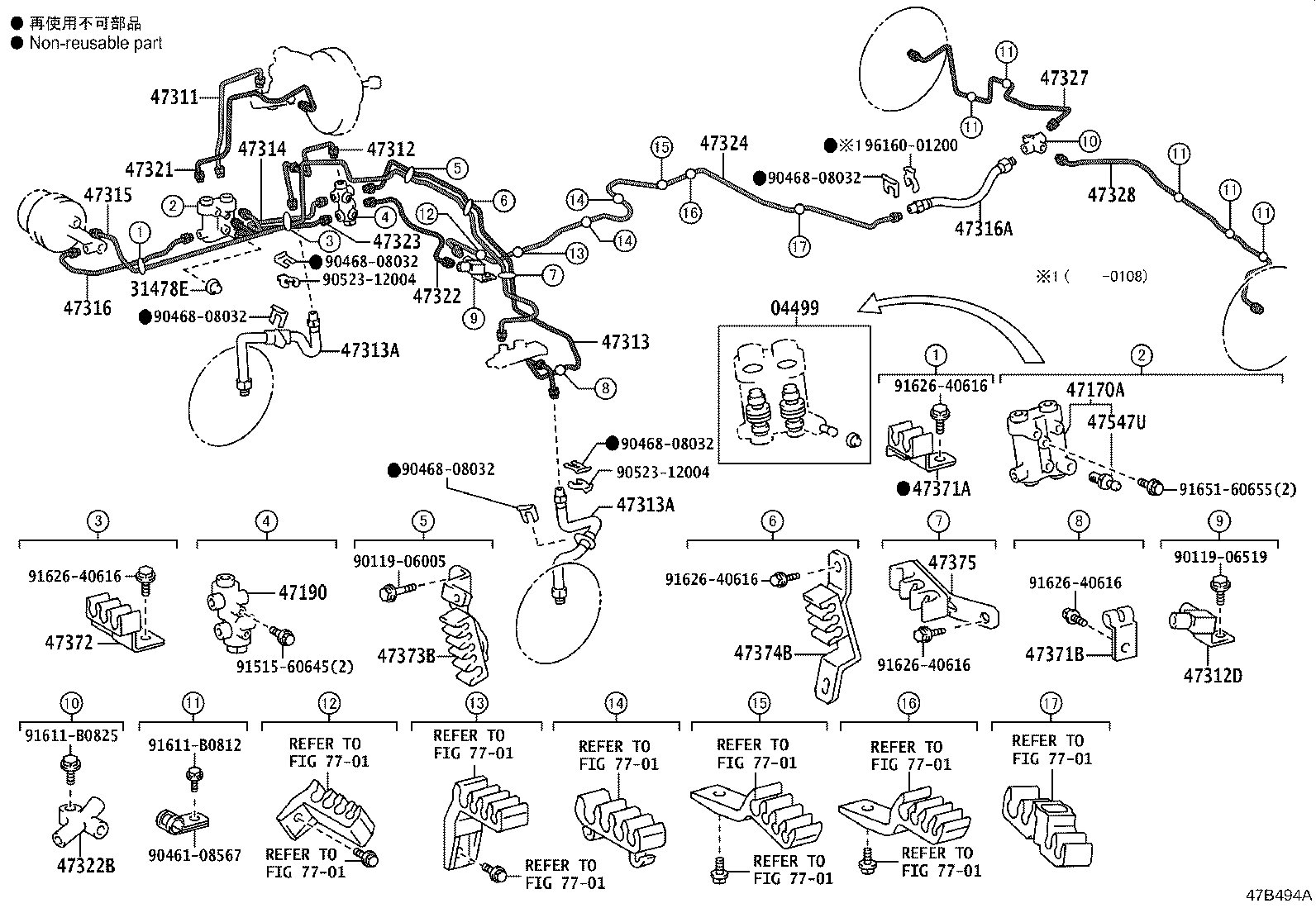

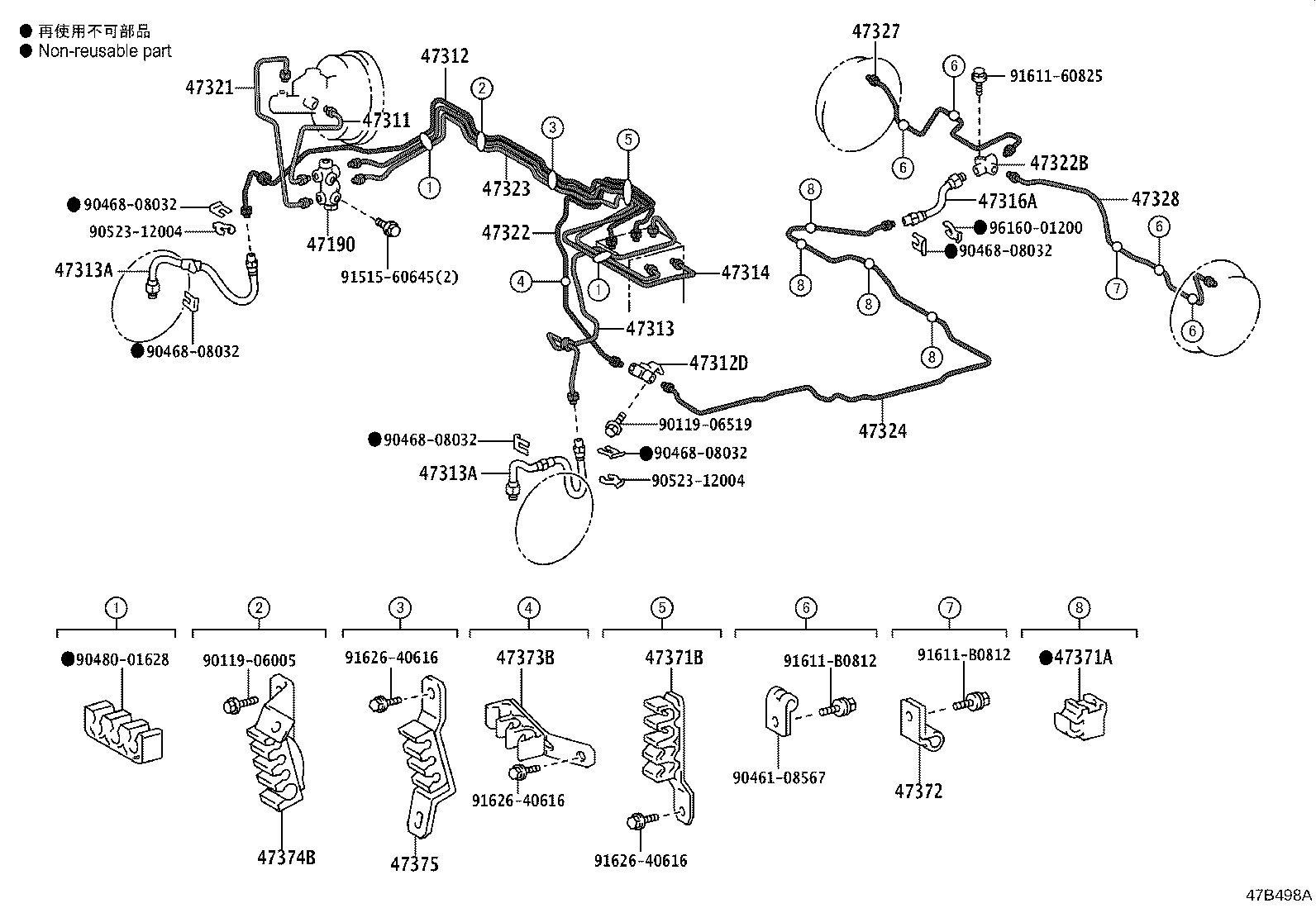

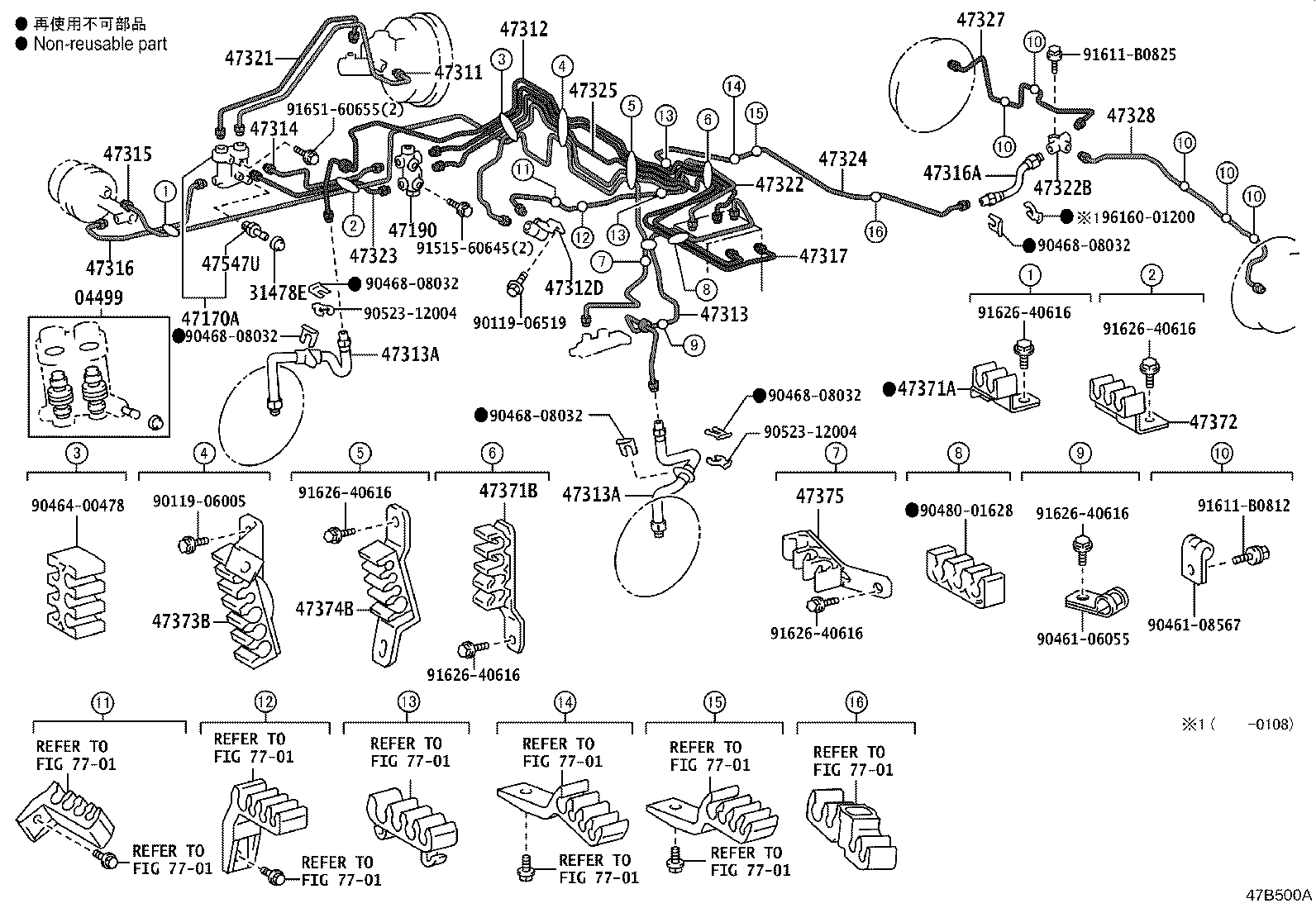

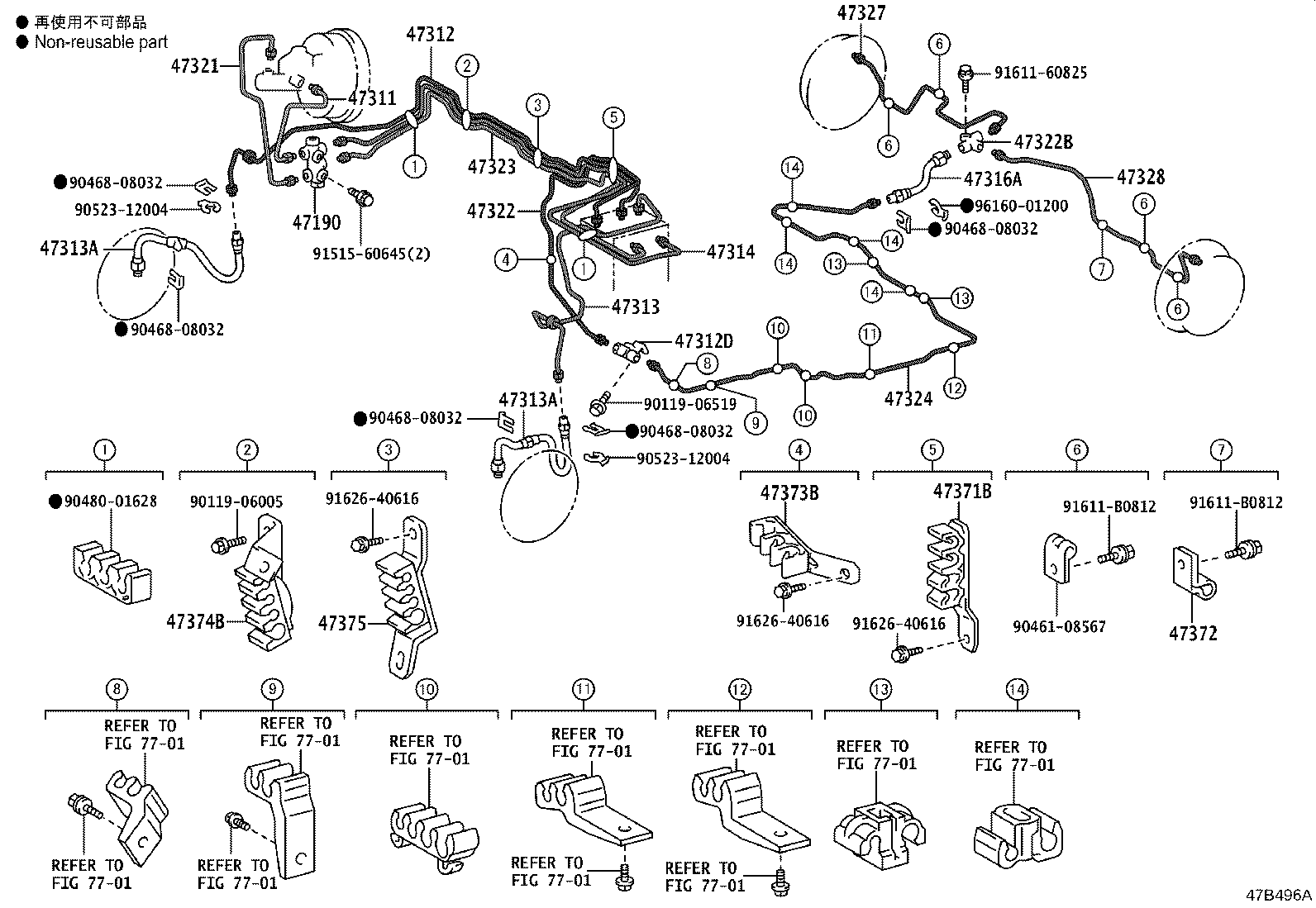

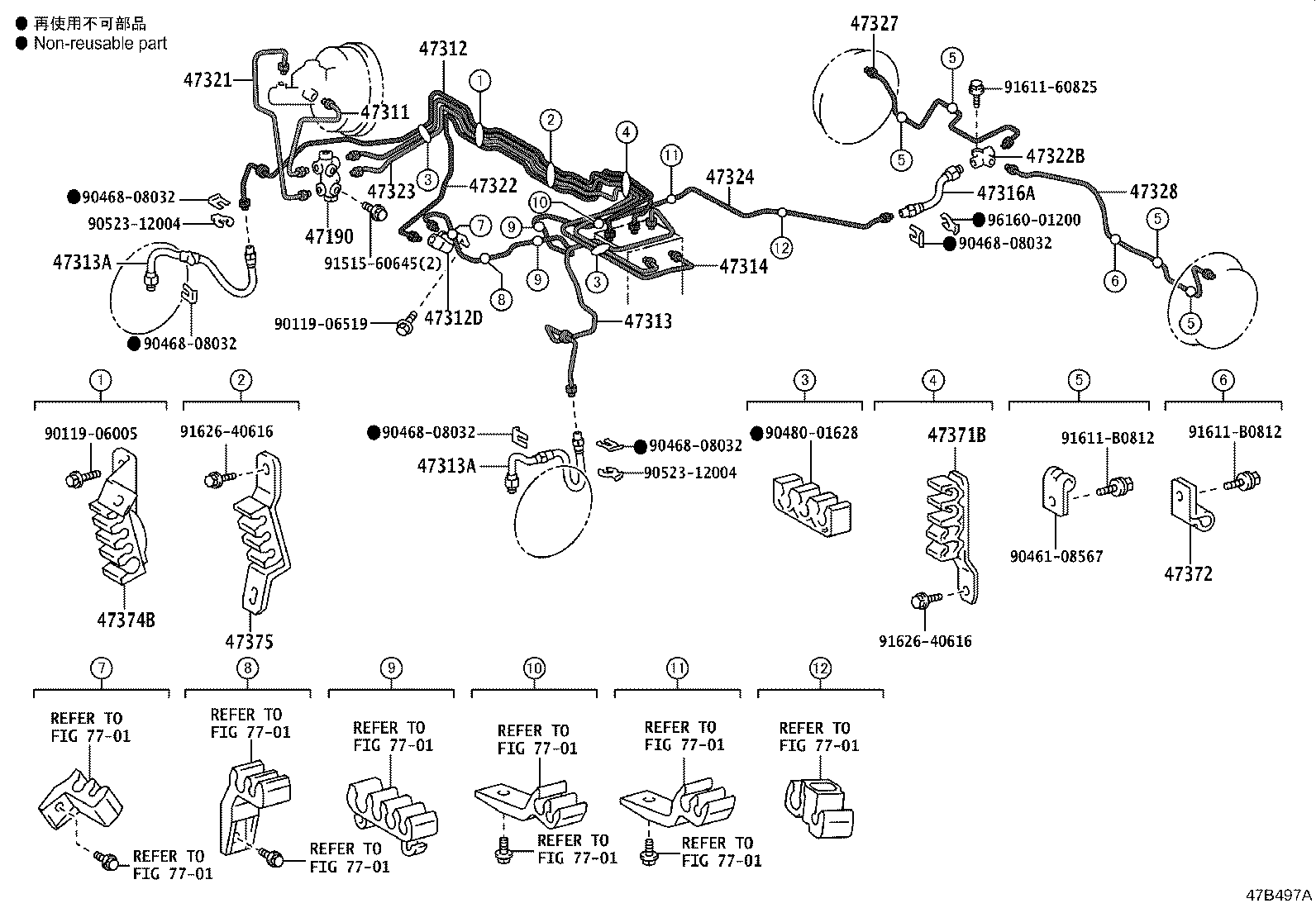

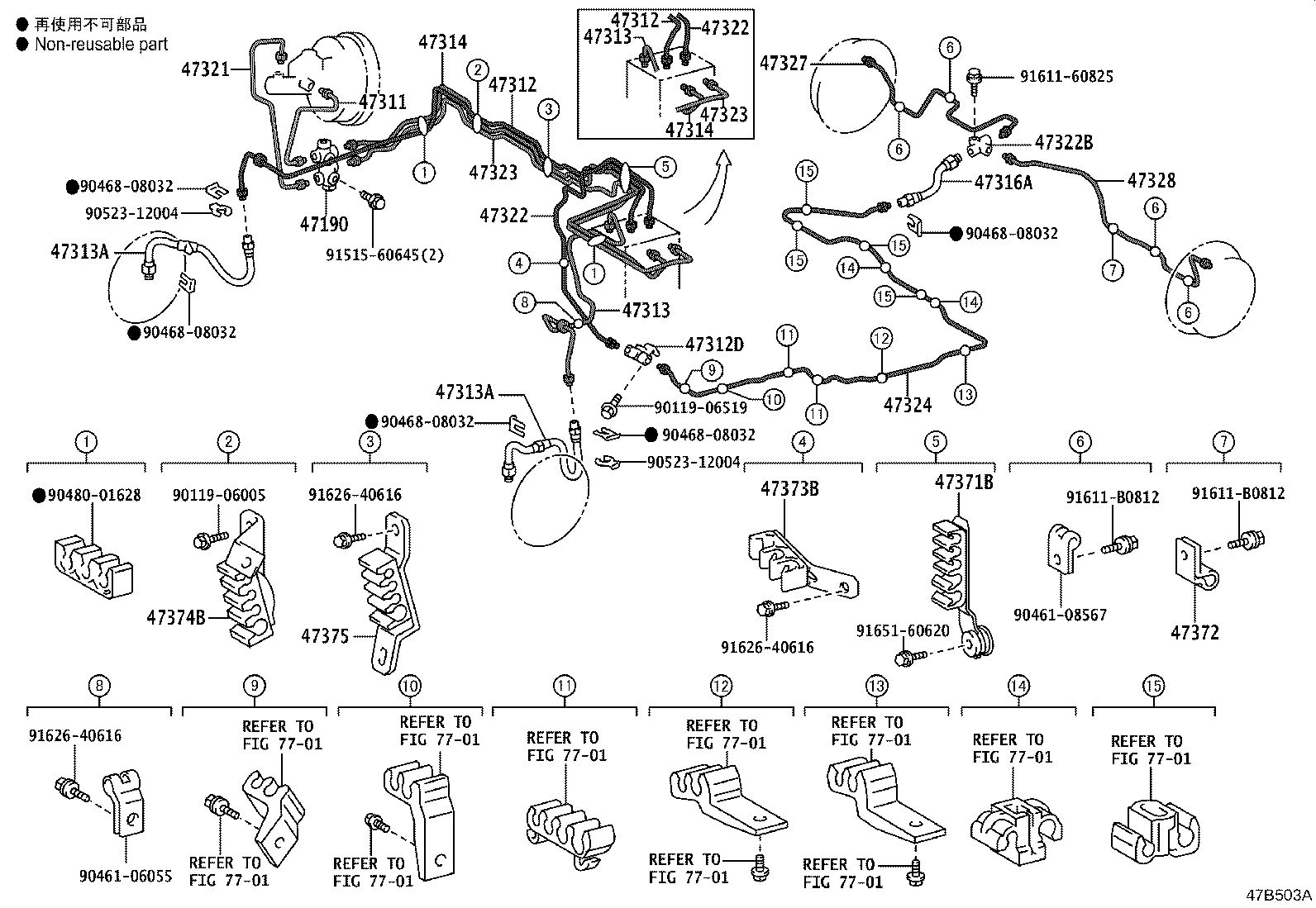

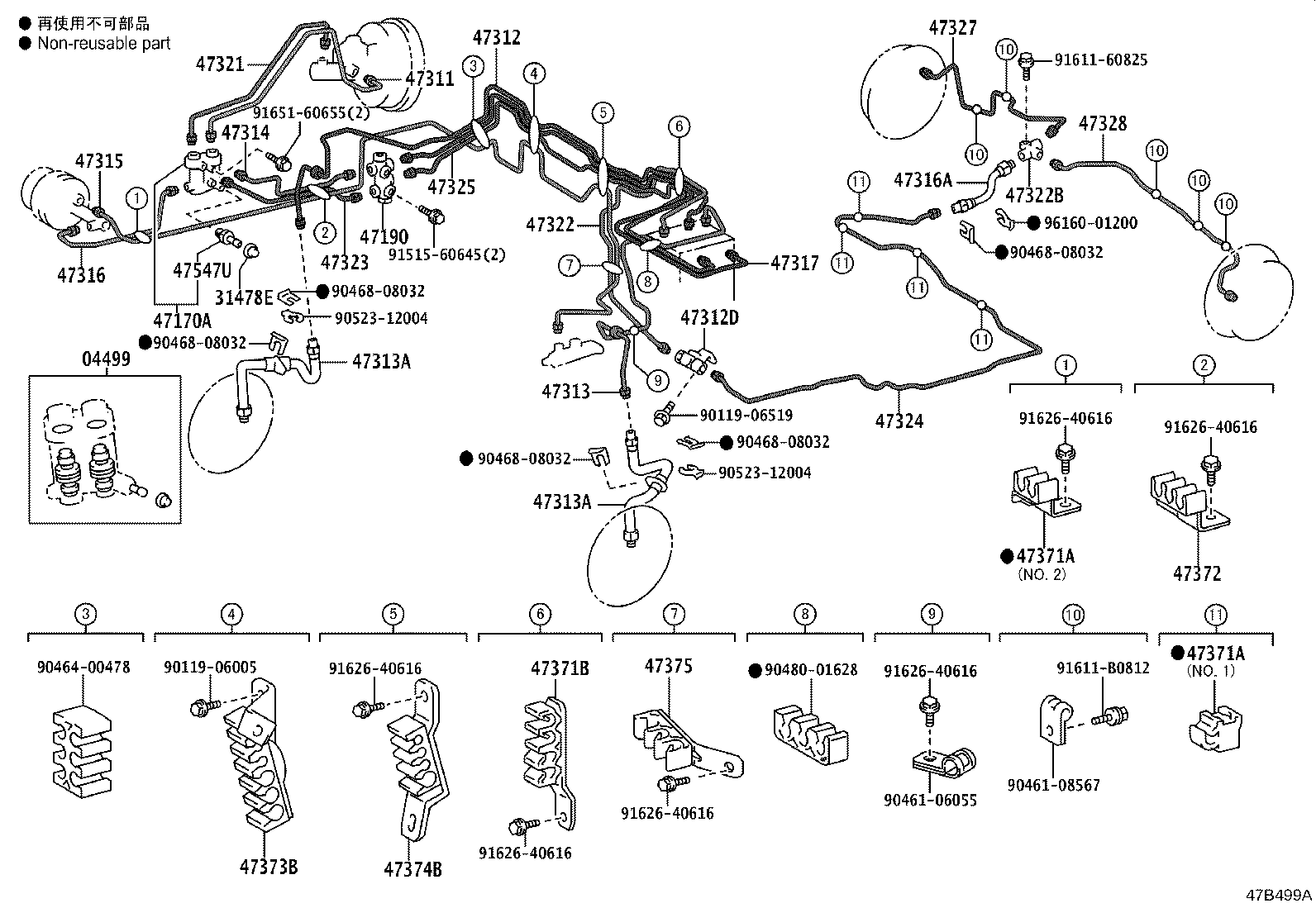

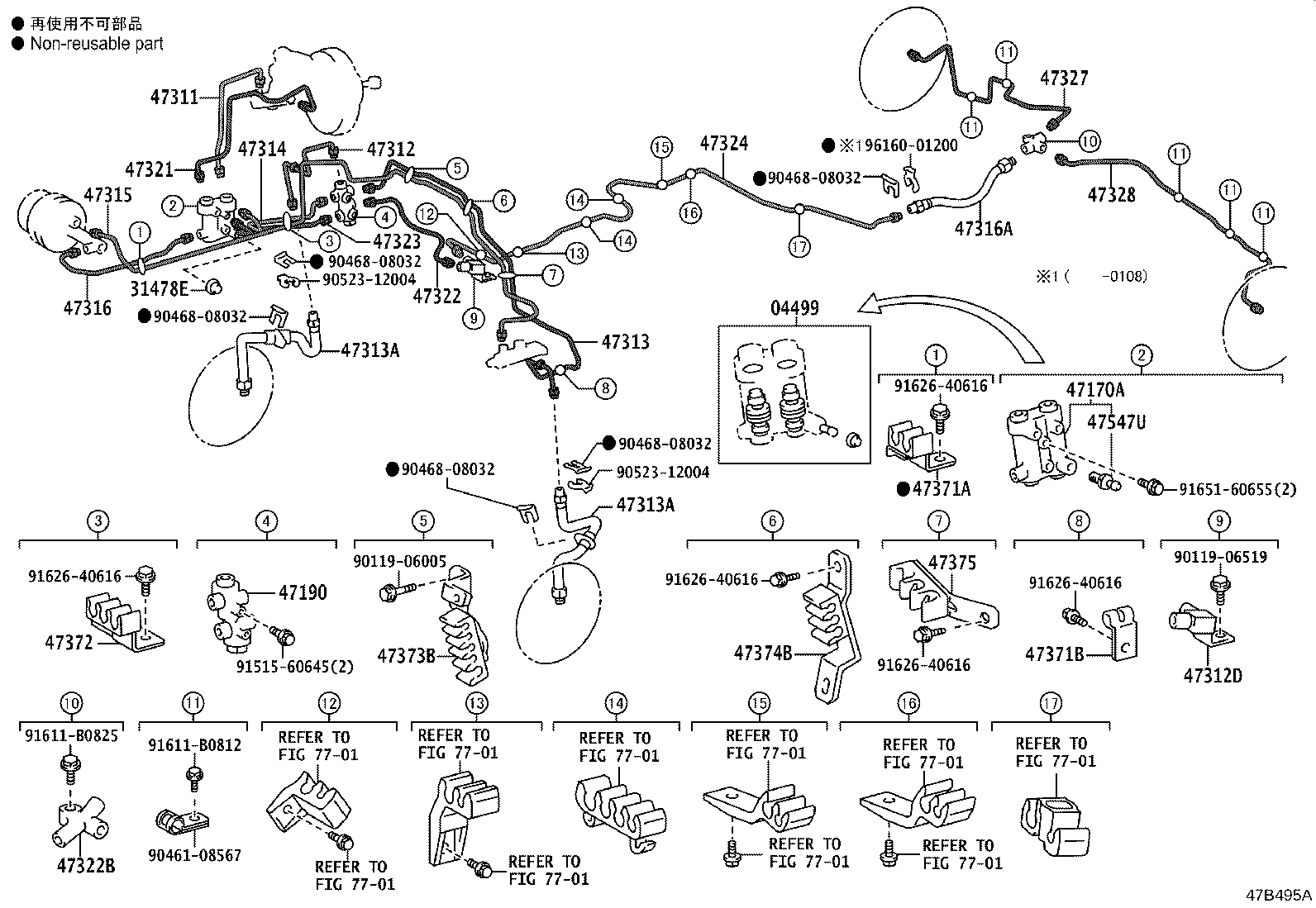

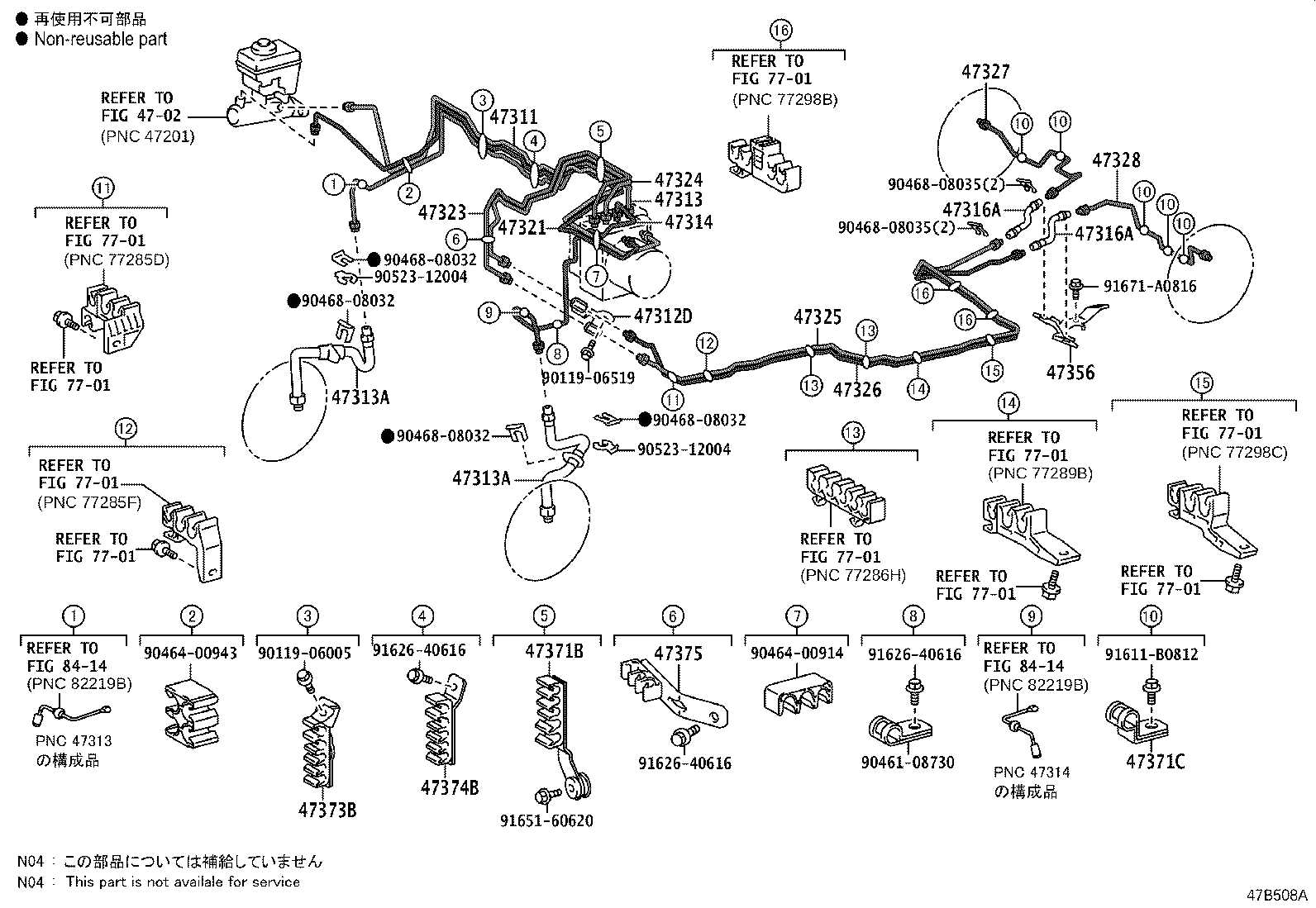

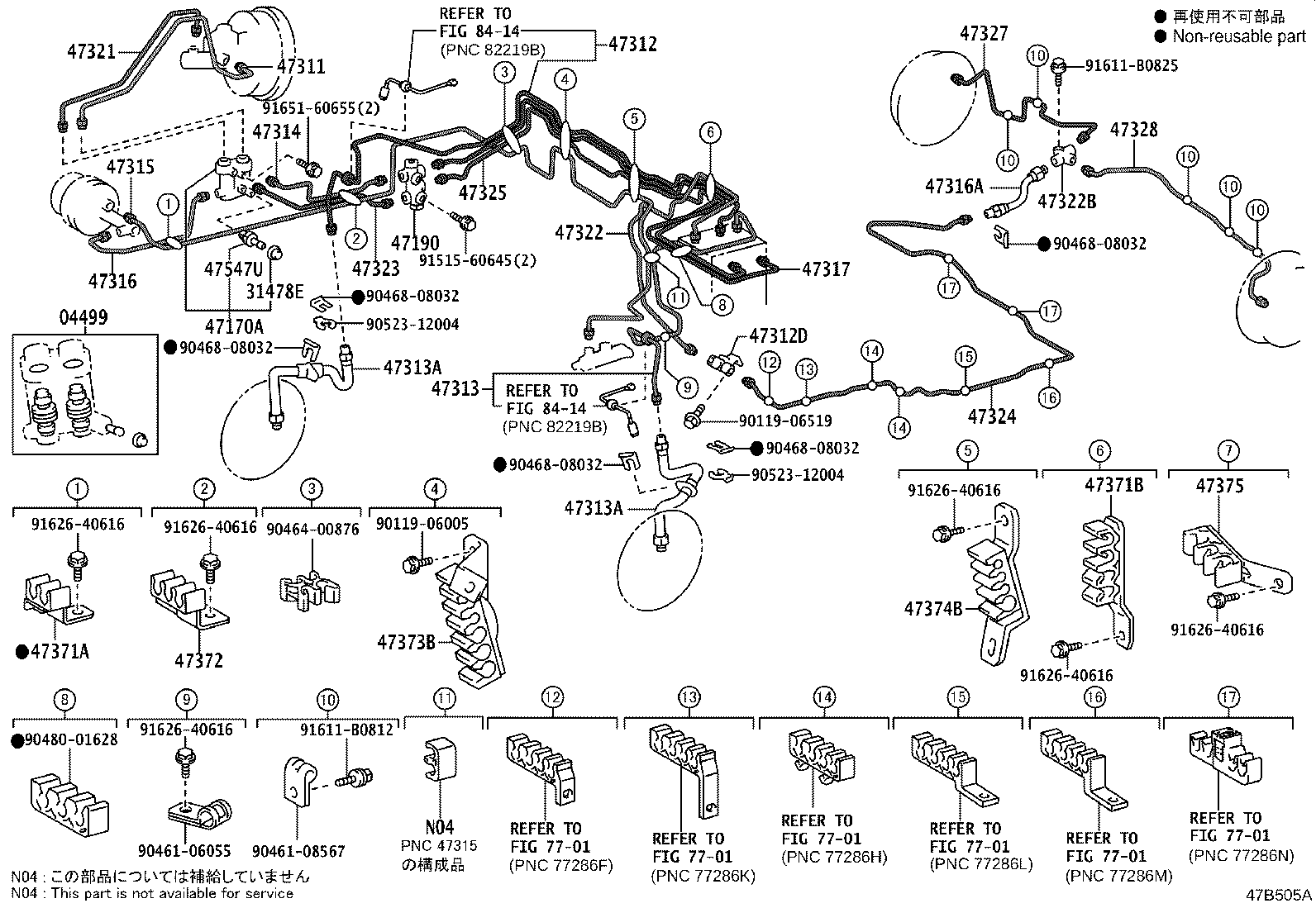

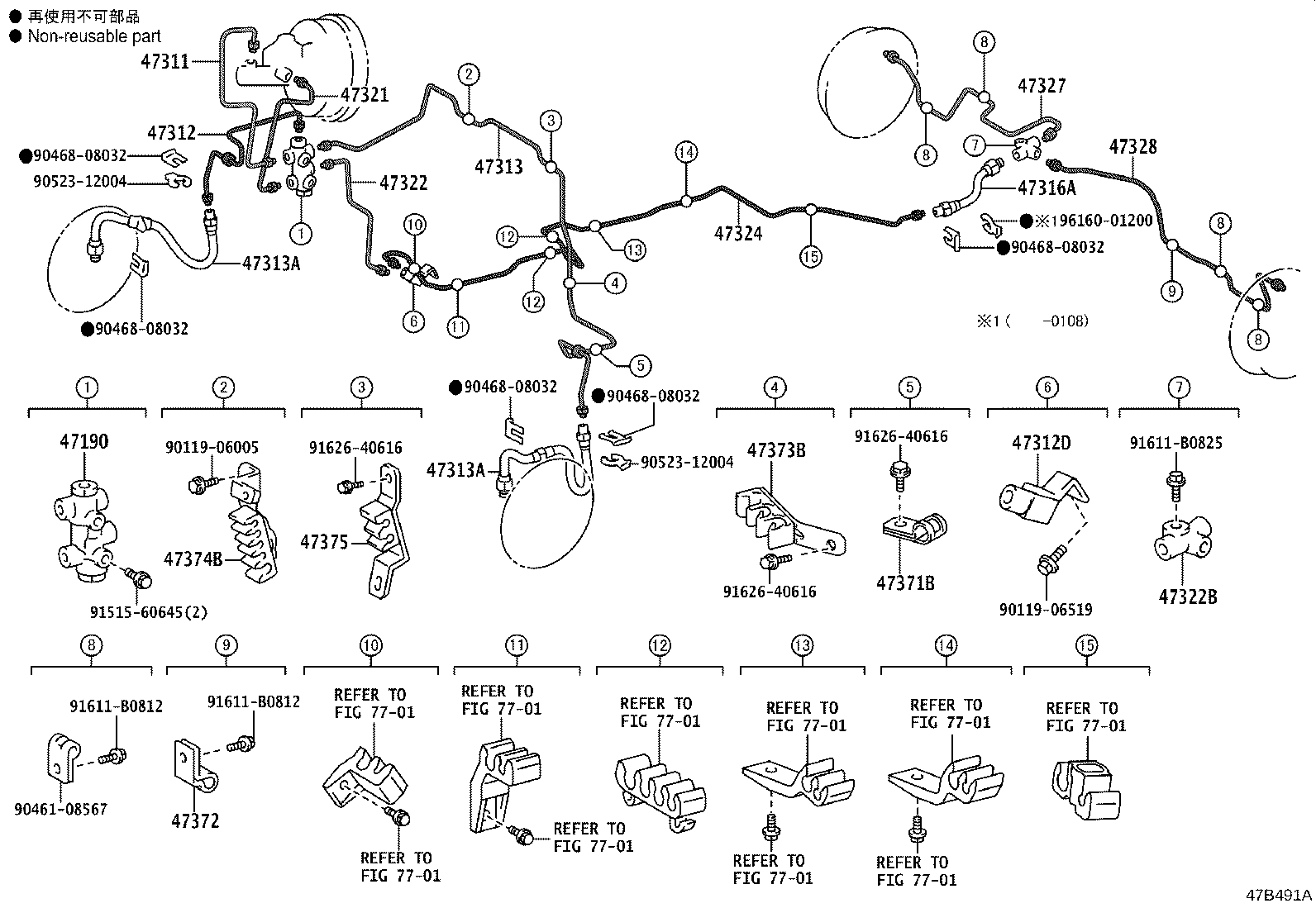

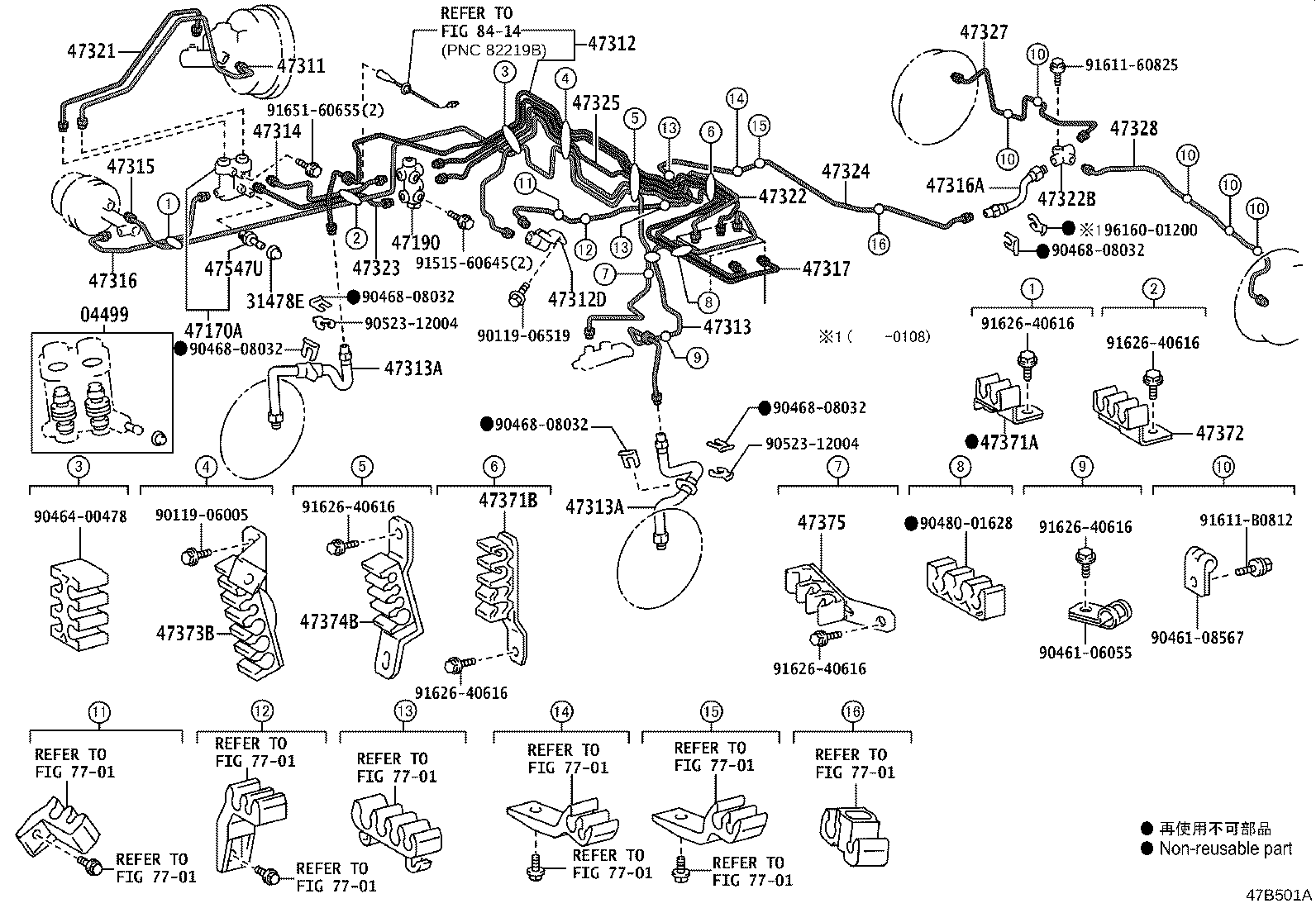

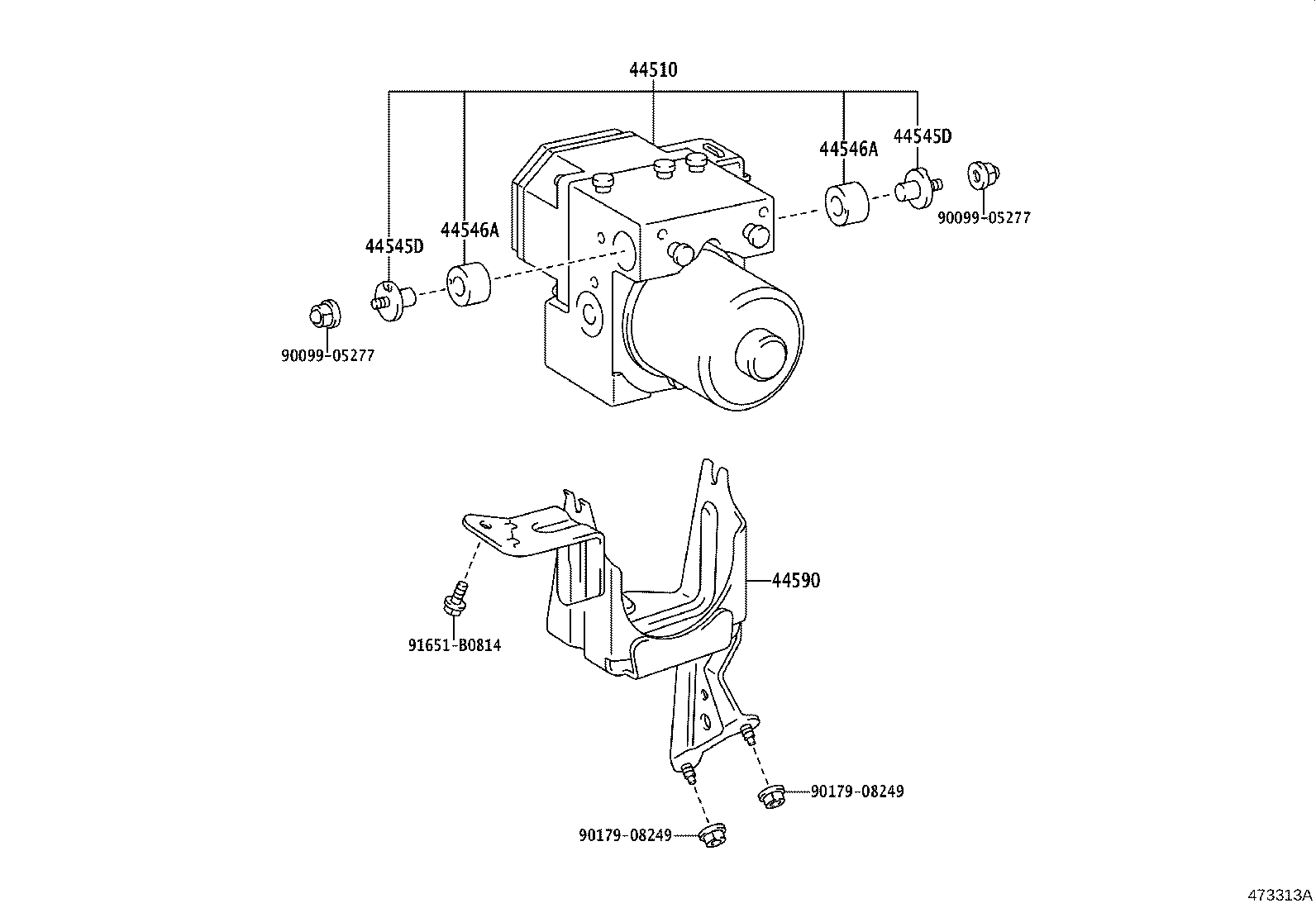

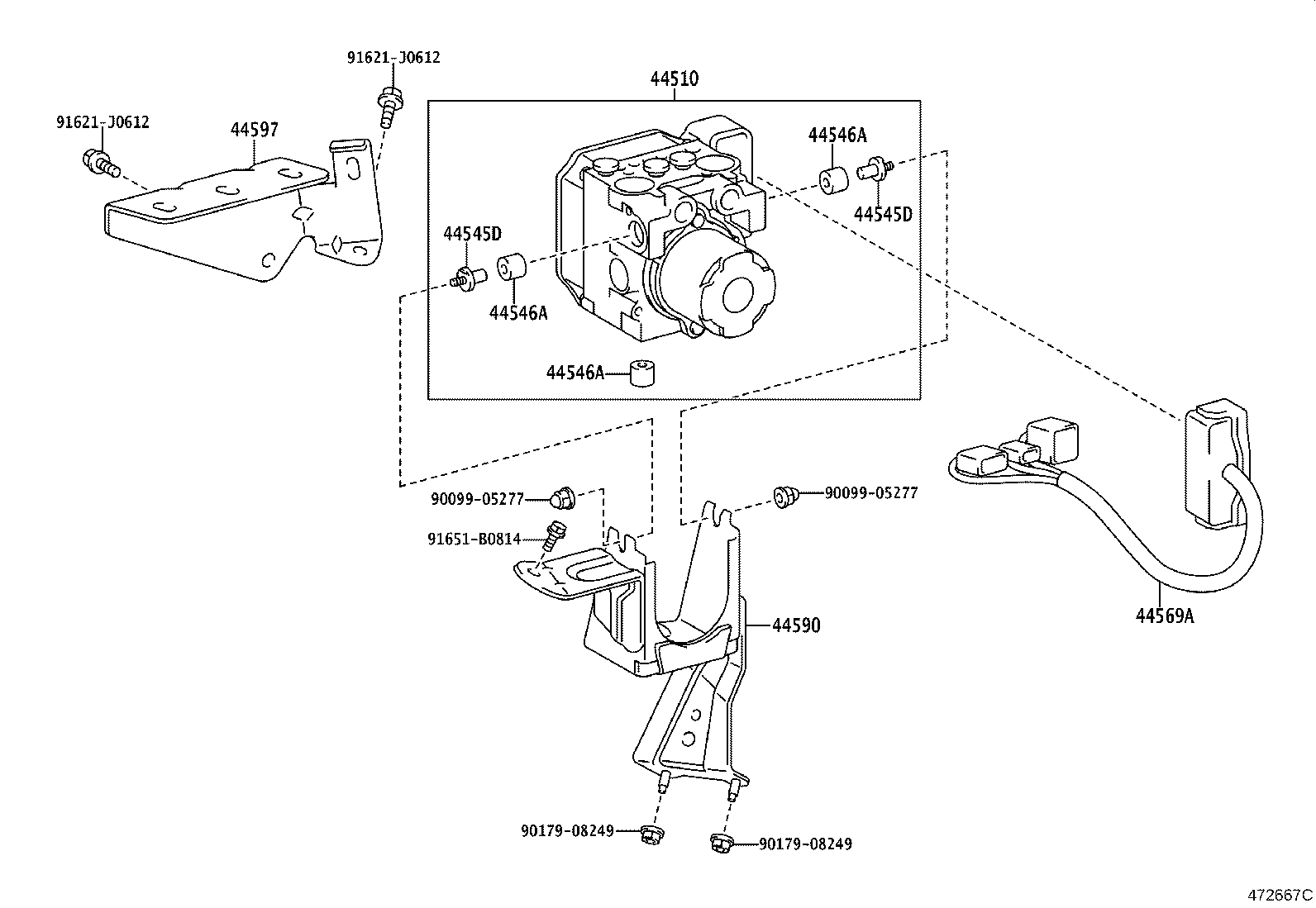

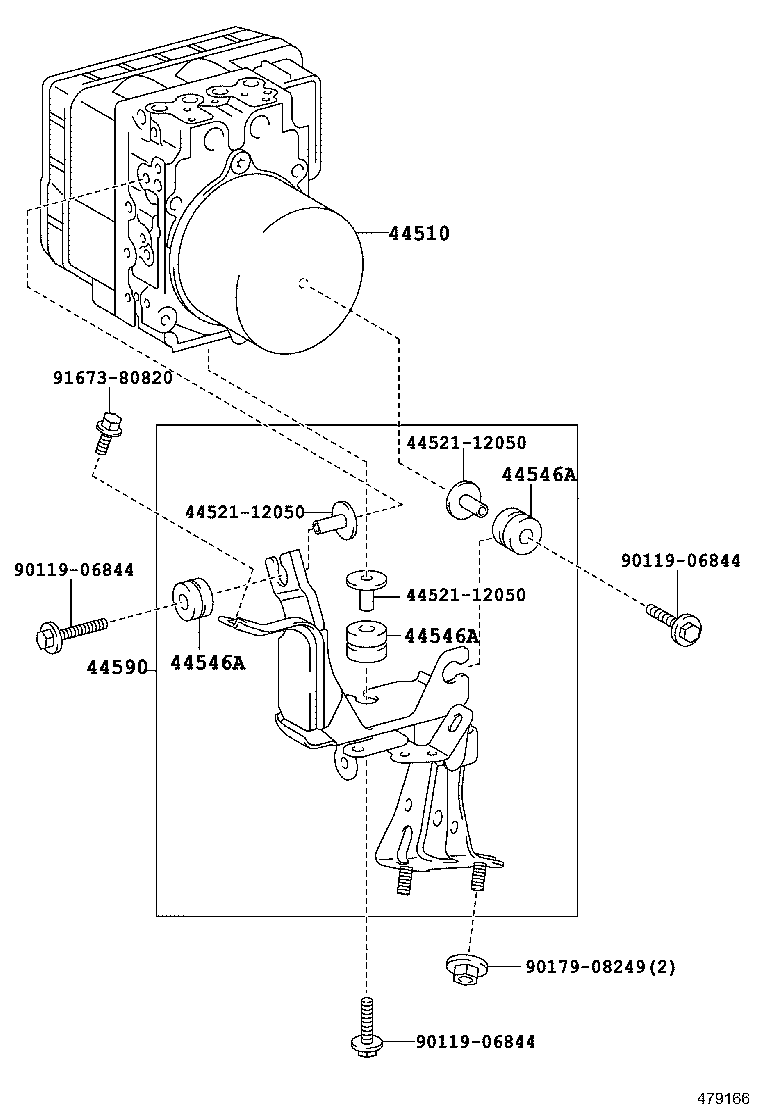

Figure 47B490A 47B490A 1995-12 → 2001-02 Figure 47B491A 47B491A 1995-12 → — Figure 47B492A 47B492A 1995-12 → 1999-08 Figure 47B493A 47B493A 1996-04 → 1999-08 Figure 47B494A 47B494A 1996-04 → — Figure 47B495A 47B495A 1996-04 → — Figure 47B496A 47B496A 1997-01 → 2001-02 Figure 47B497A 47B497A 1997-01 → 2001-08 Figure 47B498A 47B498A 1997-01 → 1999-08 Figure 47B499A 47B499A 1997-01 → 1999-08 Figure 47B500A 47B500A 1997-01 → — Figure 47B501A 47B501A 2001-08 → — Figure 47B502A 47B502A 2001-08 → — Figure 47B503A 47B503A 2001-10 → 2002-10 Figure 47B504A 47B504A 2001-08 → — Figure 47B505A 47B505A 2007-09 → 2013-10 Figure 47B506A 47B506A 2008-08 → 2013-10 Figure 47B507A 47B507A 2013-10 → — Figure 47B508A 47B508A 2013-10 → — Figure 473313A 473313A 1997-01 → 2001-08 Figure 473313A 473313A 2001-08 → — Figure 472667C 472667C 2001-08 → 2013-10 Figure 479166 479166 2013-10 → —

Part groups

PNCDescription
04499 Piston Kit, Brake Change Valve
31478E Cap, Bleeder Plug(FOR BRAKE CHANGE VALVE)
44510 Actuator Assy, Brake
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44569A Harness, Brake Actuator
44590 Bracket Assy, Brake Actuator
44597 Clamp, Brake Actuator Connector, NO.1
47159C Bracket, Change Valve
47170A Valve Assy, Brake Change
47190 Valve Assy, Proportioning & By-pass
47311 Tube, Front Brake, NO.1
47312 Tube, Front Brake, NO.2
47312D Way, 2(FOR REAR BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47356 Bracket, Flexible Hose, NO.6
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47547U Plug, Bleeder(FOR BRAKE CHANGE VALVE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
