Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

35 part groups · 9 illustrations

Illustrations

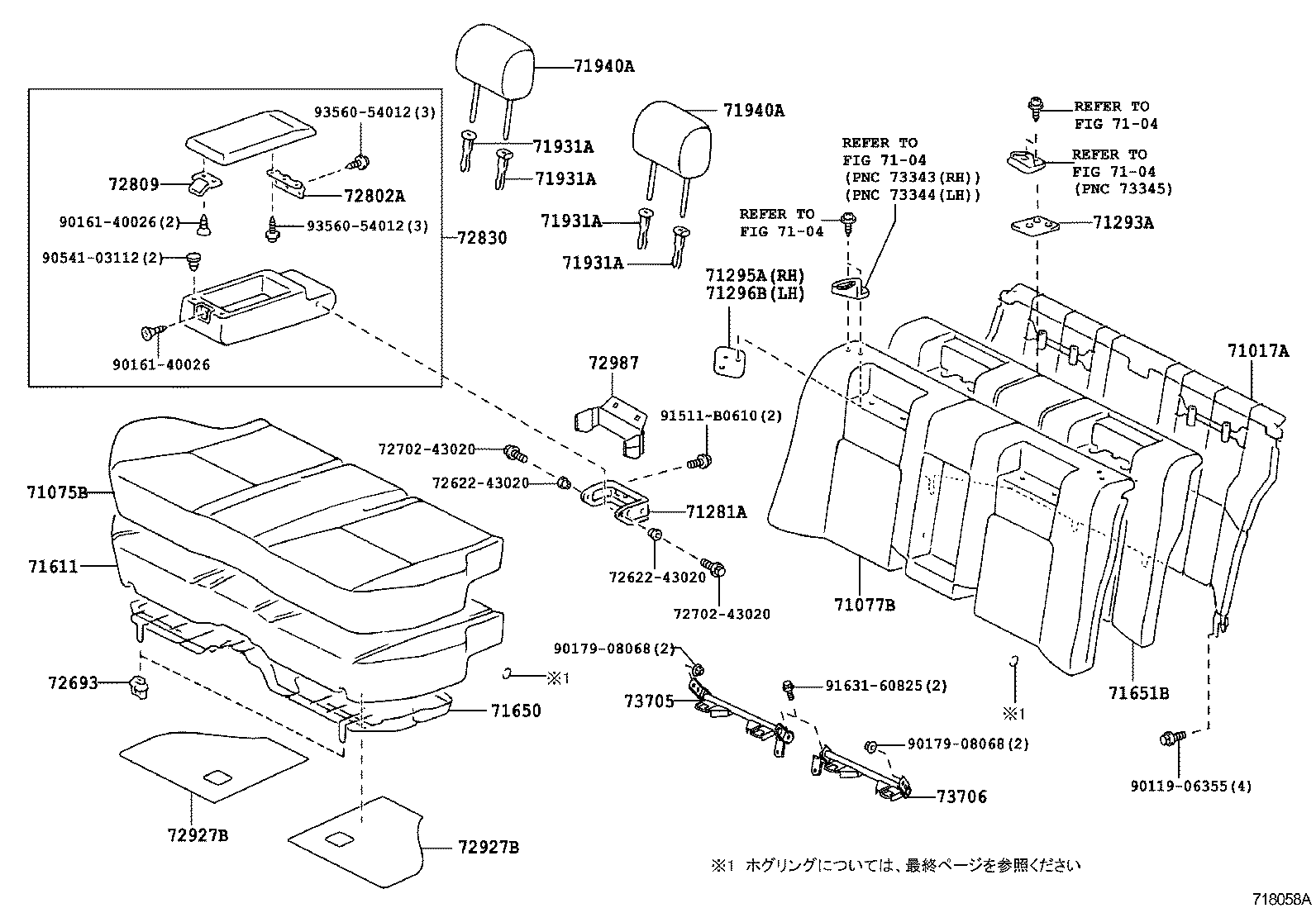

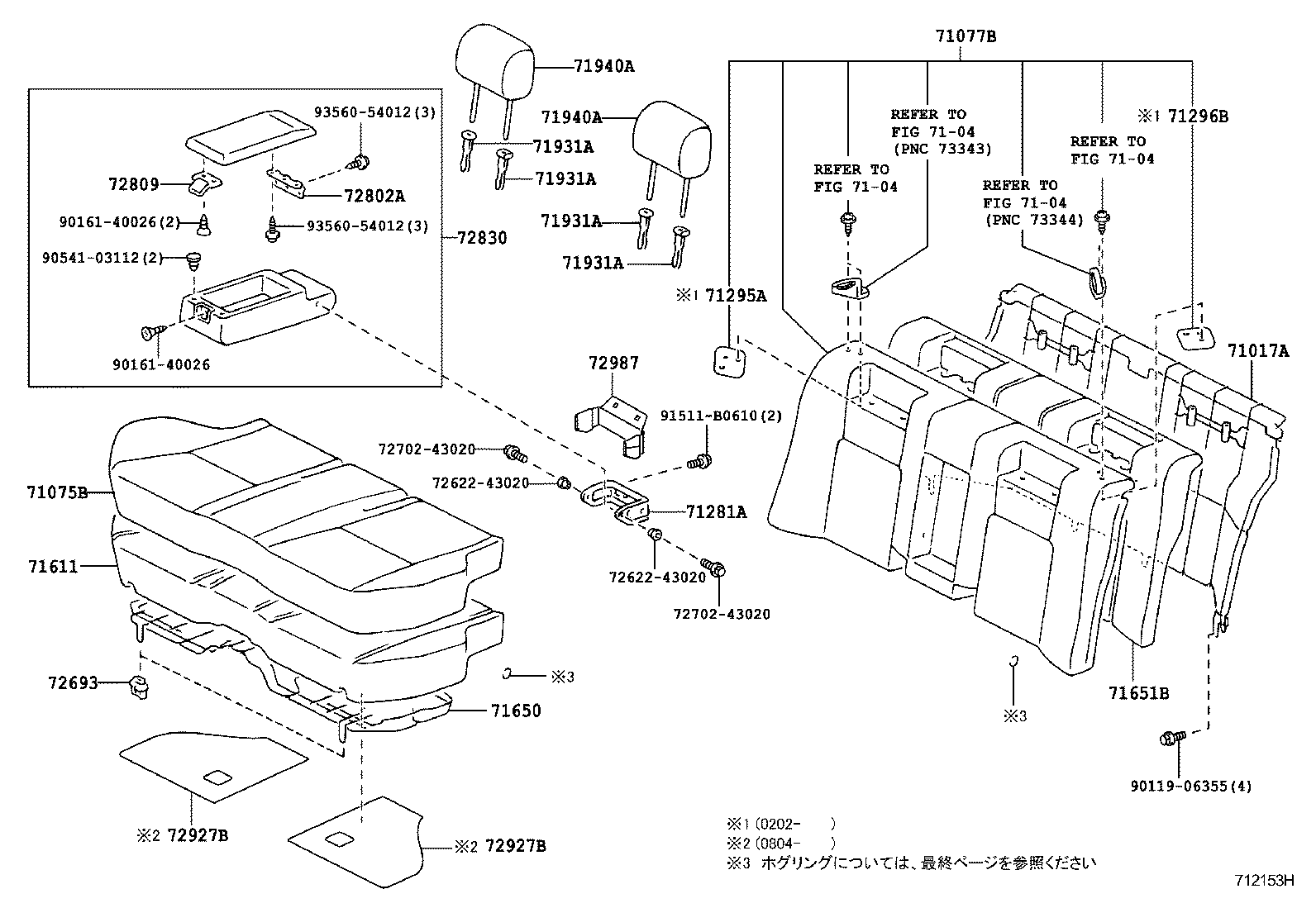

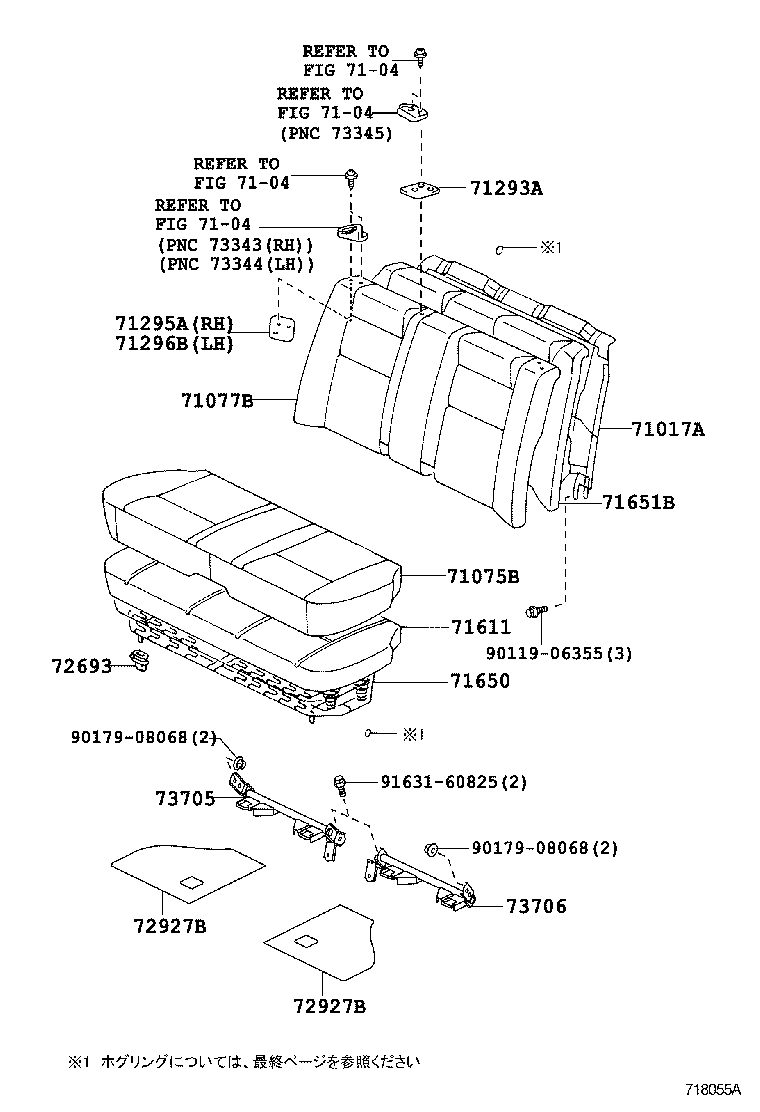

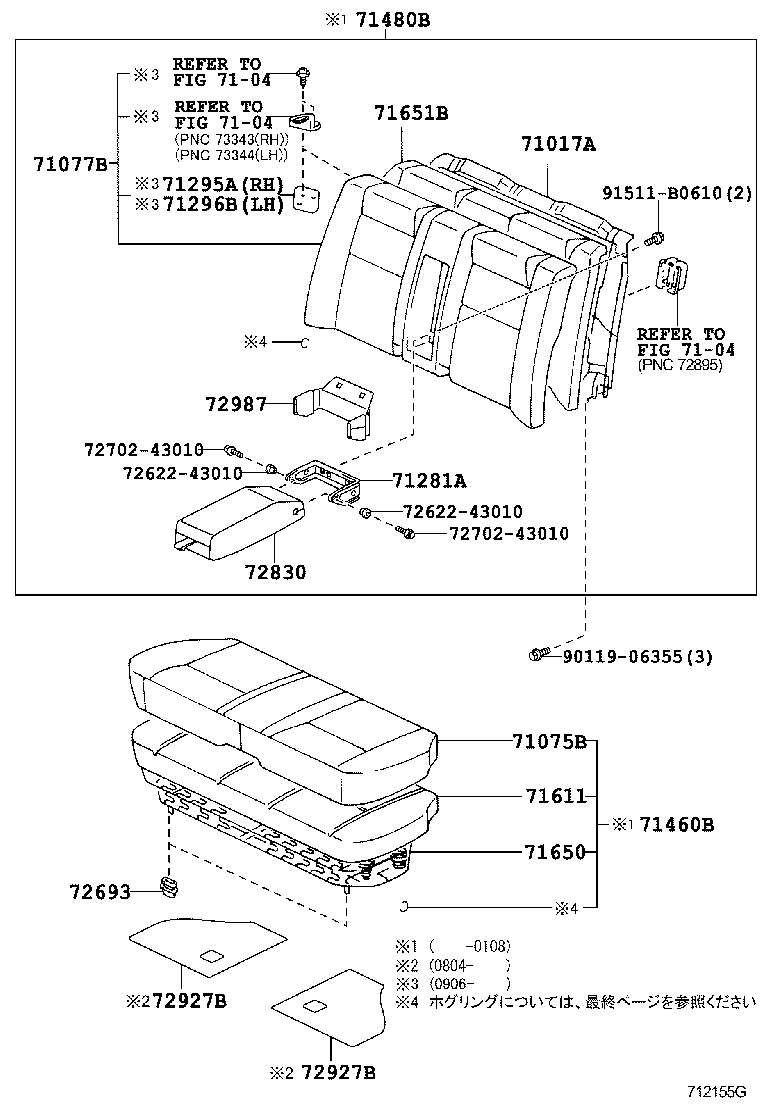

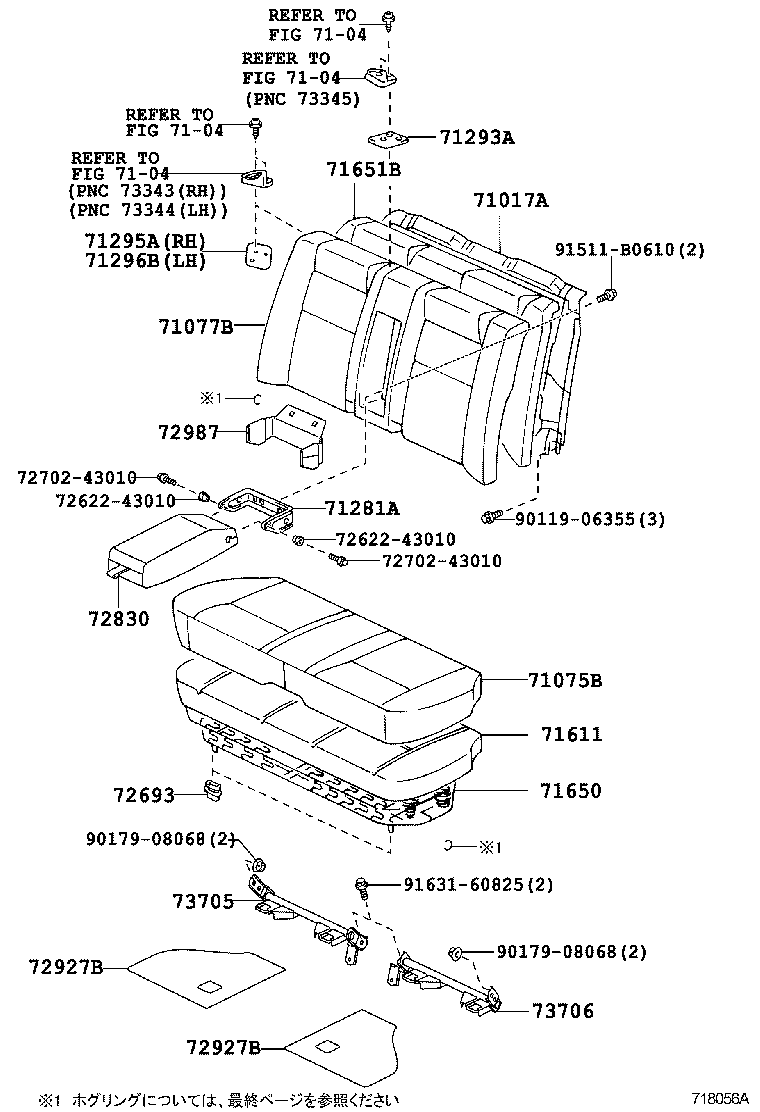

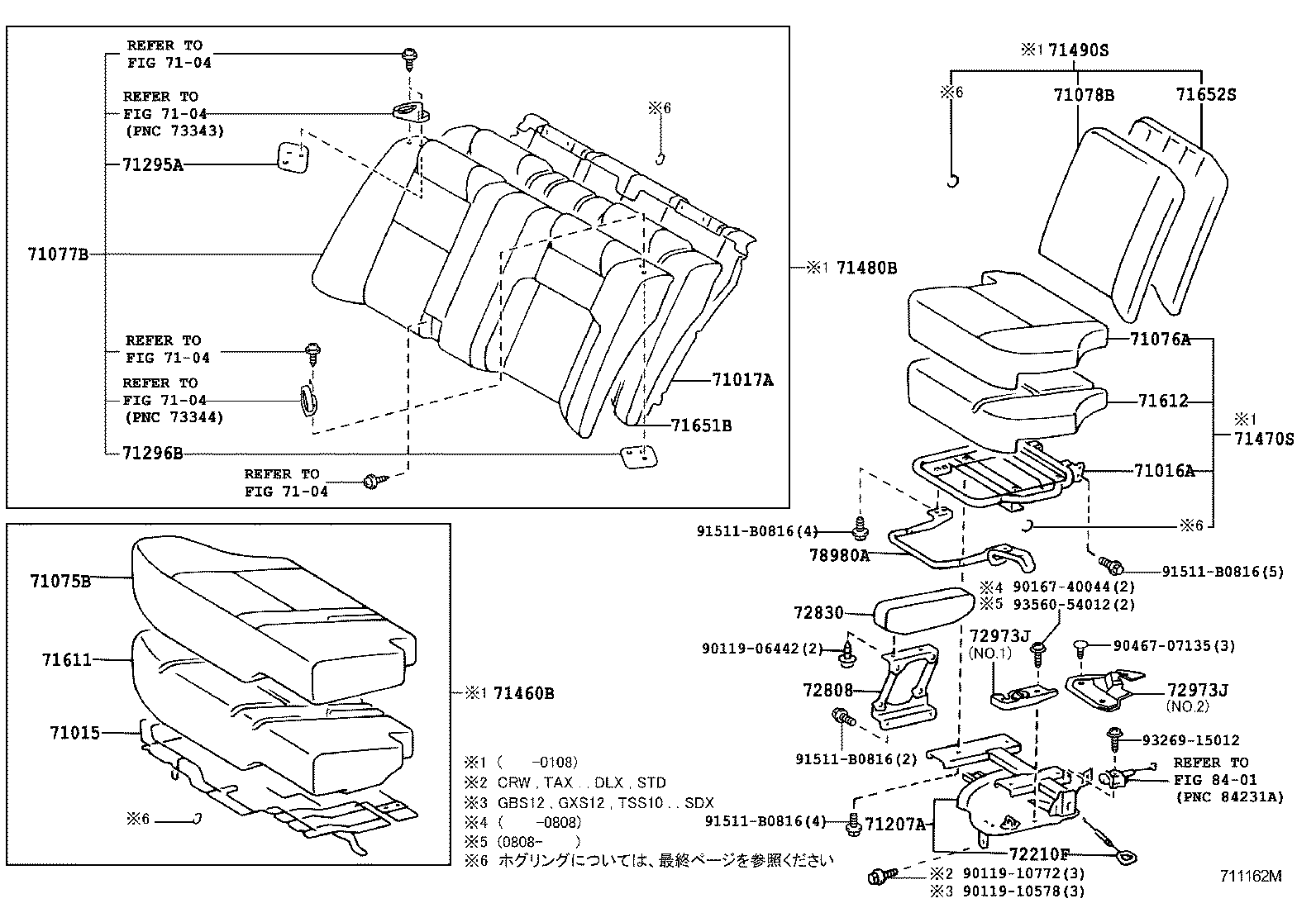

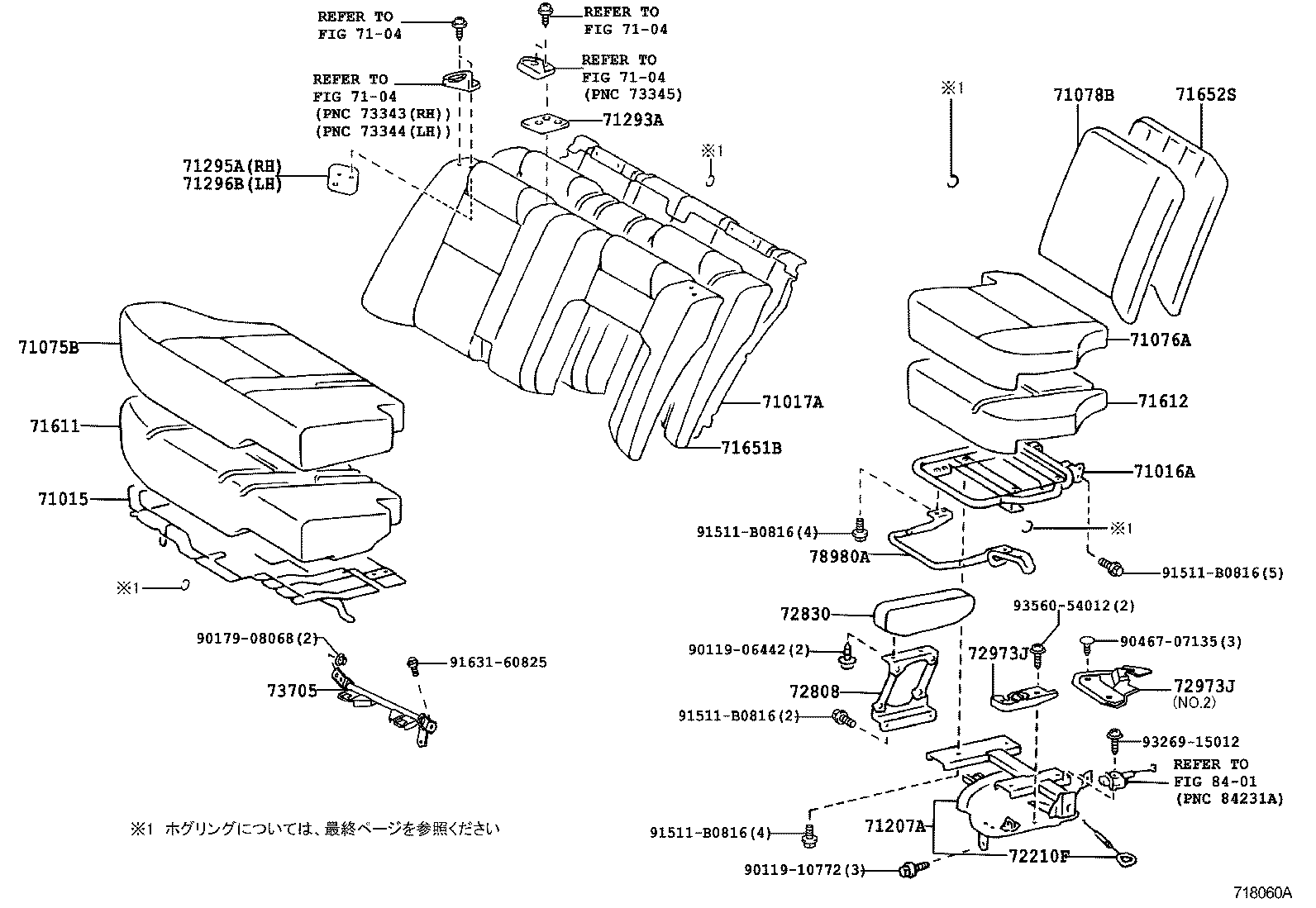

Figure 712154G 712154G 1995-12 → 2012-06 Figure 712155G 712155G 1997-01 → 2012-06 Figure 712153H 712153H 1997-01 → 2012-06 Figure 711162M 711162M 1998-01 → 2012-06 Figure 718055A 718055A 2012-06 → — Figure 718056A 718056A 2012-06 → — Figure 718058A 718058A 2012-06 → — Figure 718060A 718060A 2012-06 → — Figure 718165H 718165H 1995-12 → —

Part groups

PNCDescription
71015 Frame Sub-assy, Rear Seat Cushion
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017A Frame Sub-assy, Rear Seatback
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71076A Cover Sub-assy, Rear Seat Cushion, Front LH
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71078B Cover, 3RD Seatback(FOR BENCH TYPE)
71207A Bracket Sub-assy, Rear Seat Stopper, LH
71281A Hinge, Rear Seat Center Armrest
71293A Plate, Rear Seatback, Upper
71295A Plate, Rear Seatback, Upper RH
71296B Plate, Rear Seatback, Upper LH
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71470S Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71611 Pad, Rear Seat Cushion
71612 Pad, Rear Seat Cushion, Front LH(FOR SEPARATE TYPE)
71650 Spring Assy, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72210F Cable Assy, Seat Track Control
72693 Hook, Rear Seat Cushion Lock
72802A Hinge Sub-assy, Armrest Console
72808 Link Sub-assy, Rear Seat Center Armrest, LH
72809 Lock Sub-assy, Center Armrest
72830 Armrest Assy, Rear Seat, Center
72927B Cover, Rear Seat Cushion Under
72973J Cover, Rear Seat Turn Table
72987 Cover, Rear Seat Center Armrest
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
78980A Footrest Assy, Rear Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
