Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

145 part groups · 16 illustrations

Illustrations

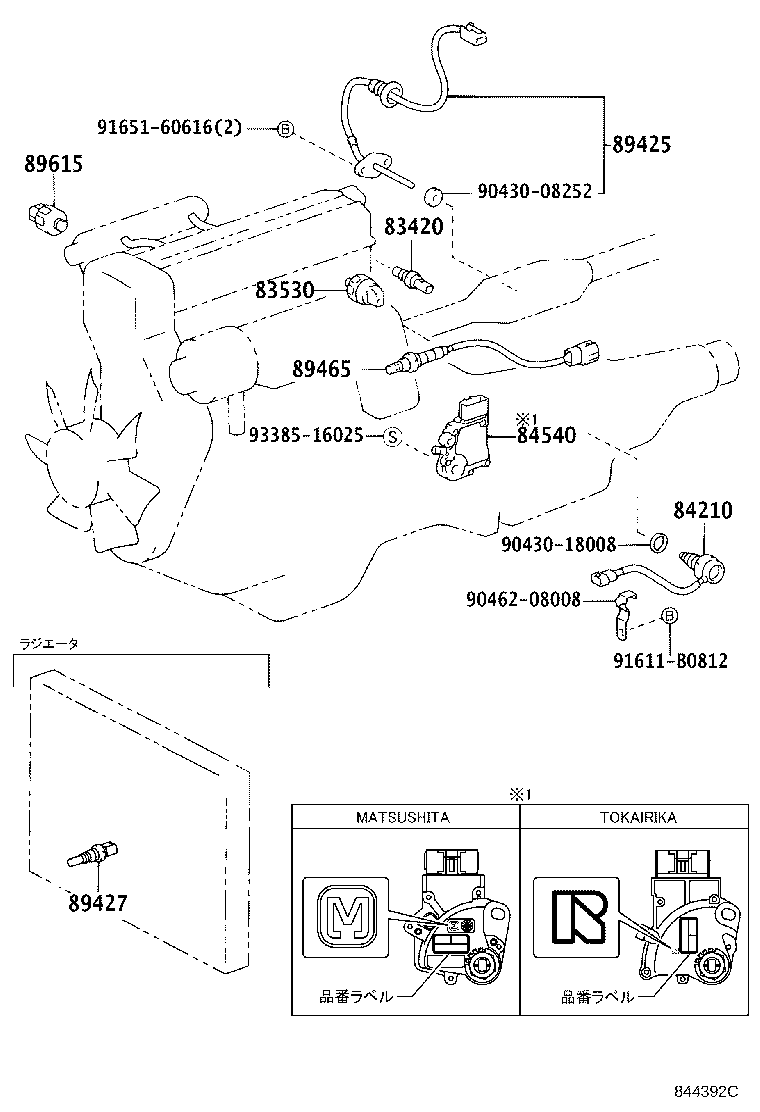

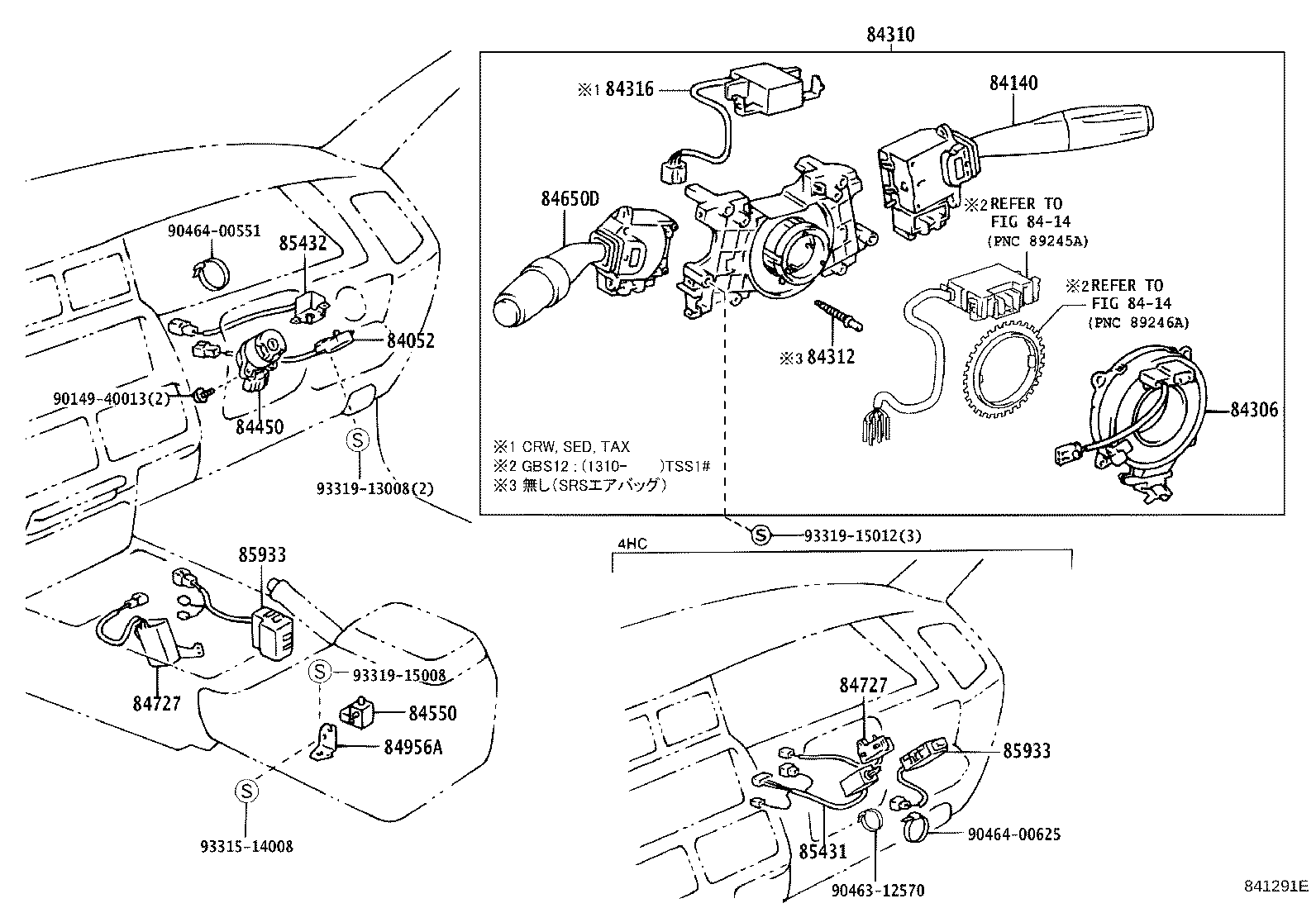

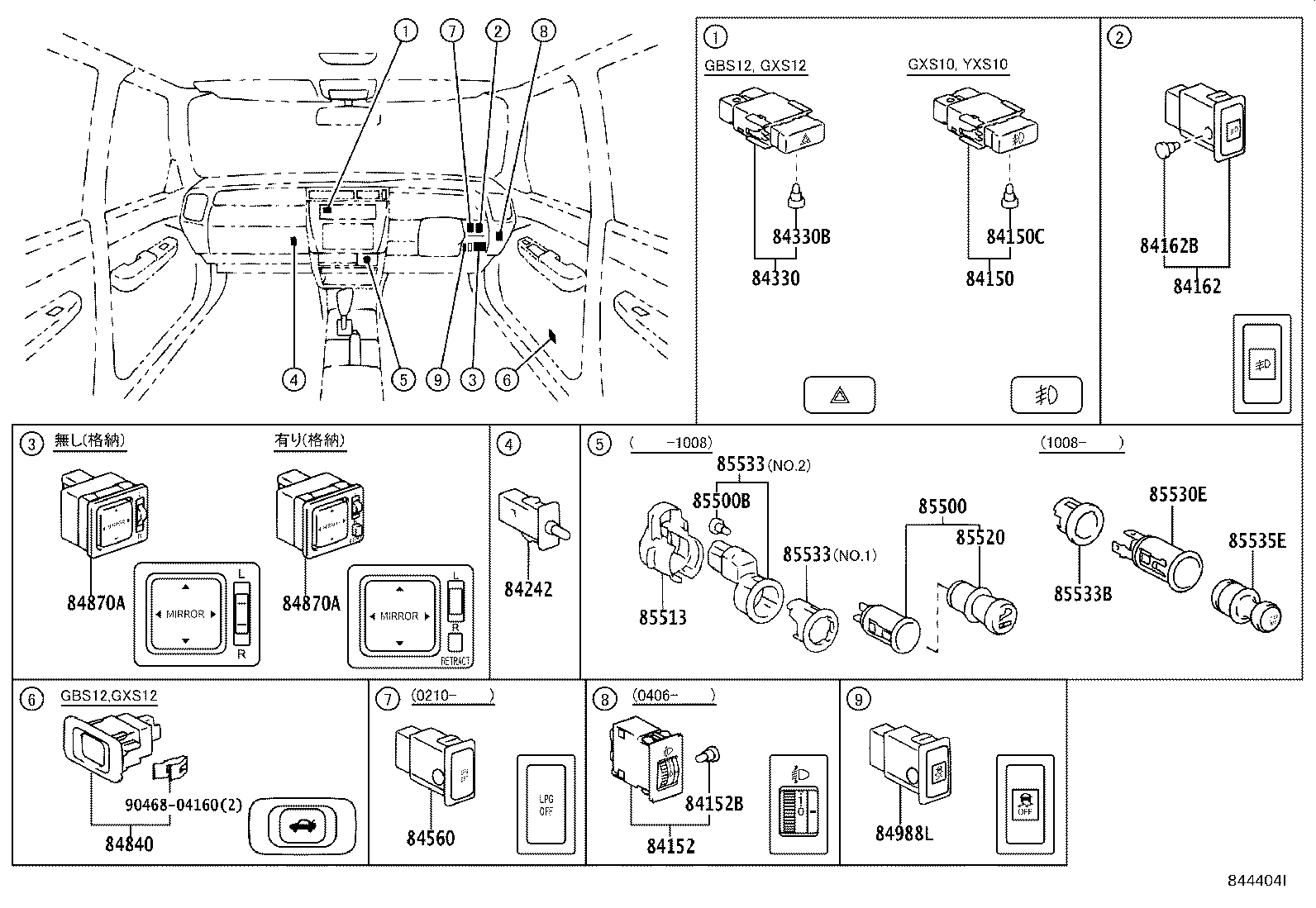

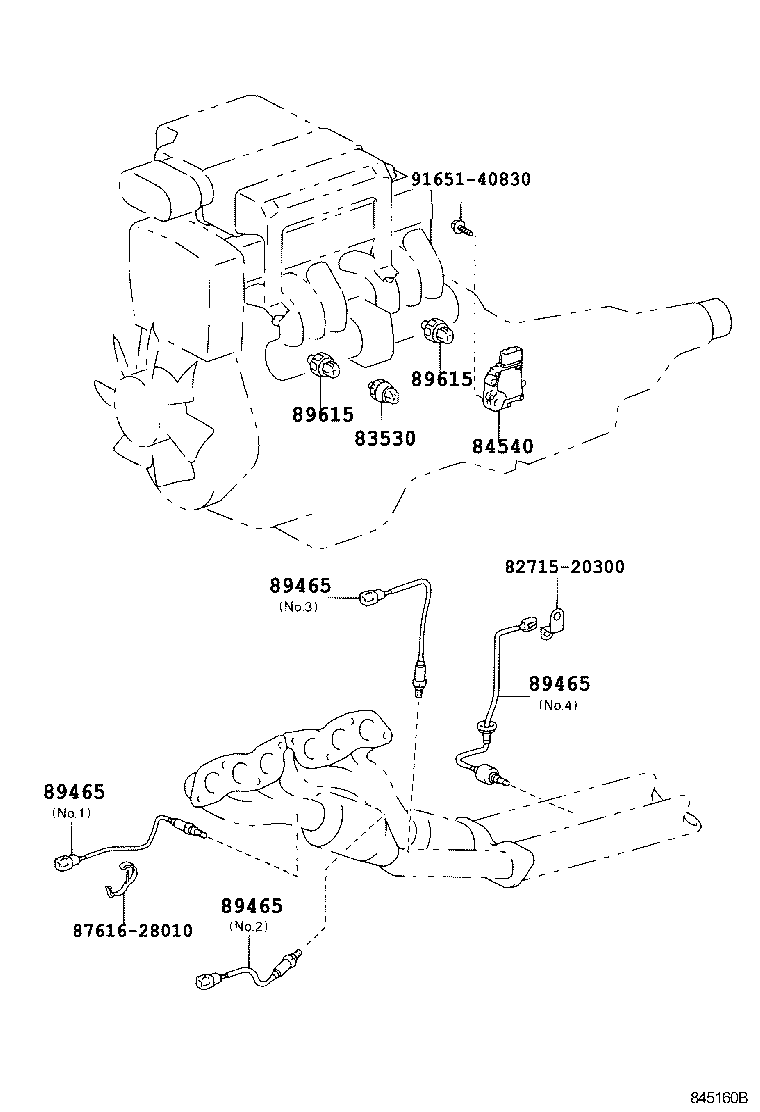

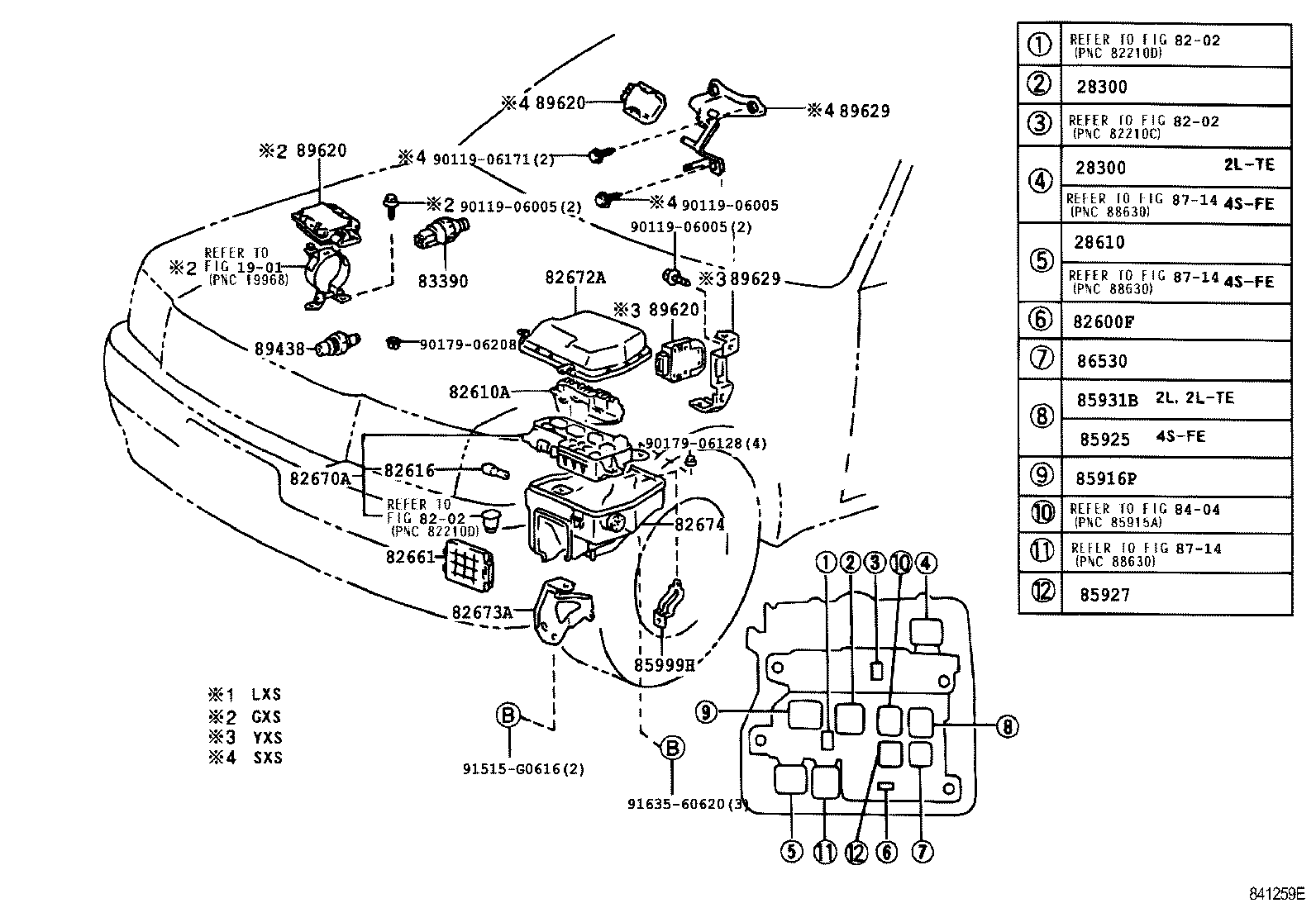

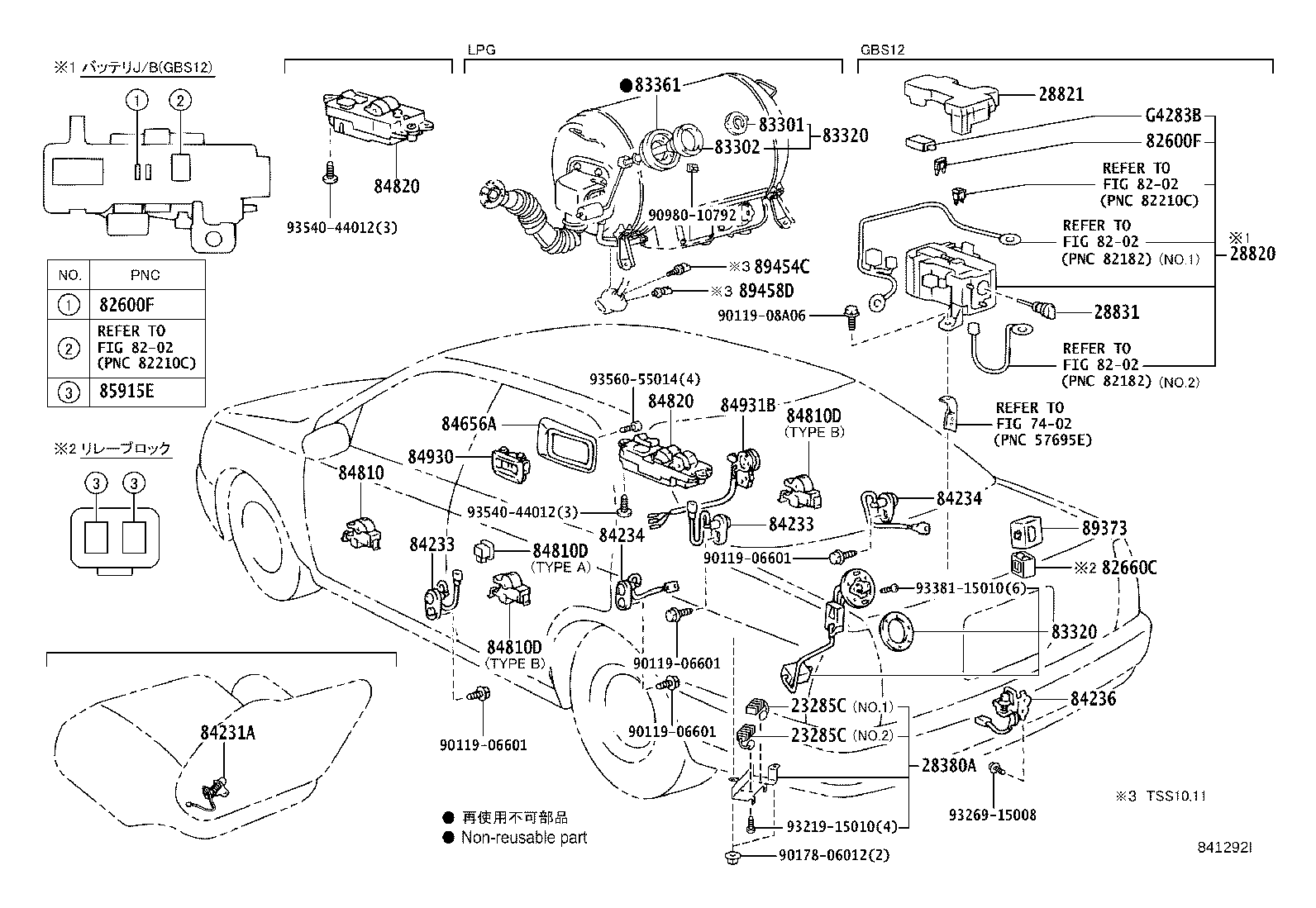

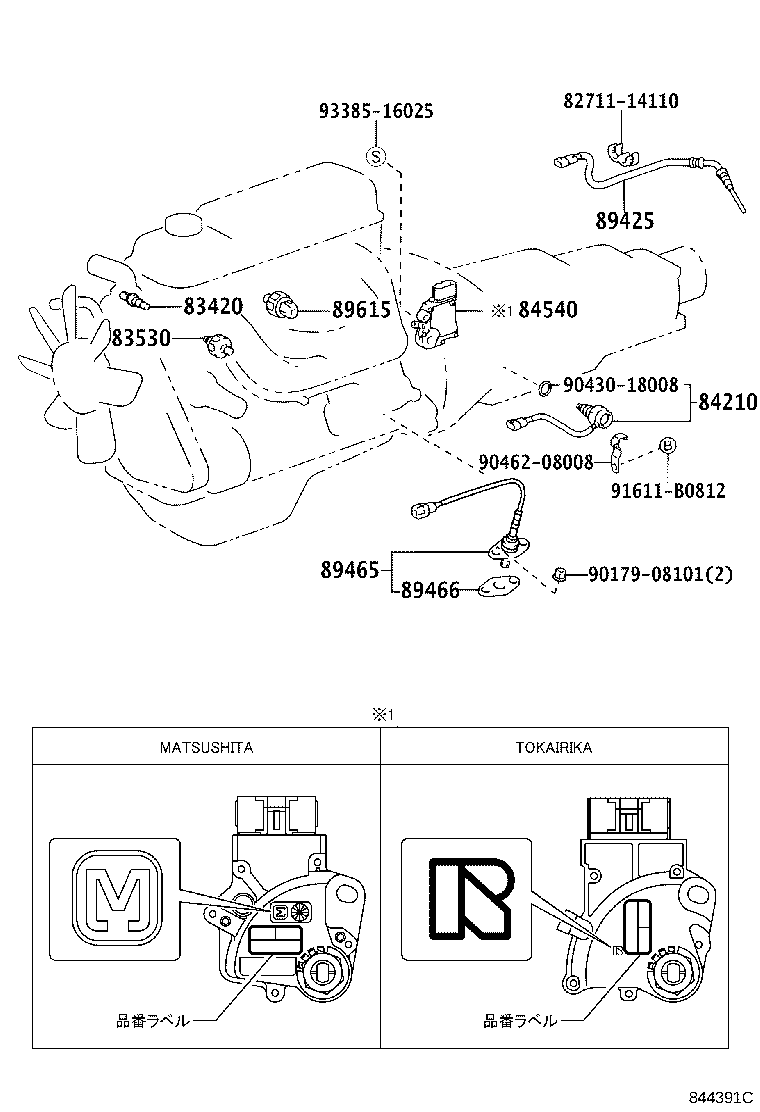

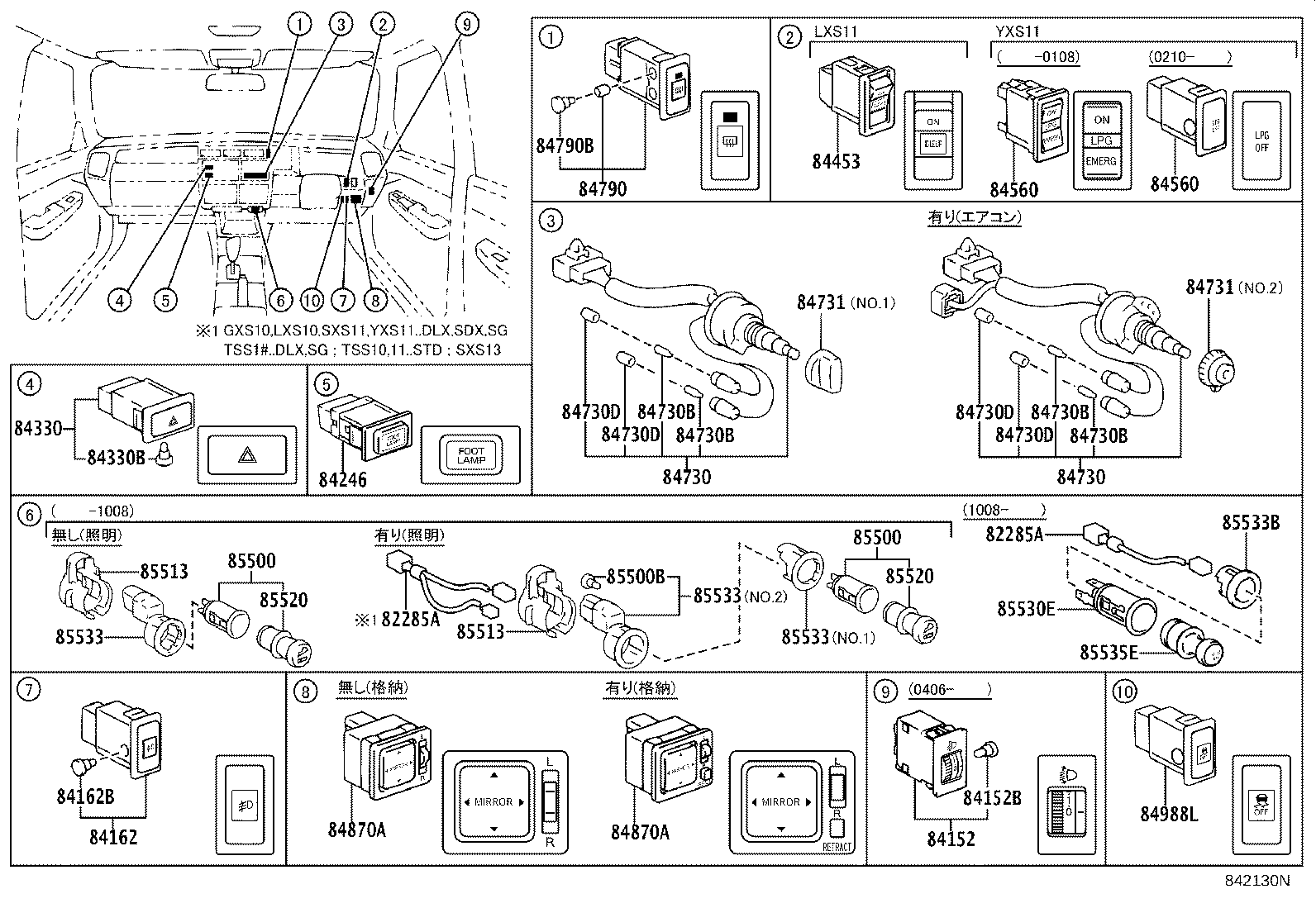

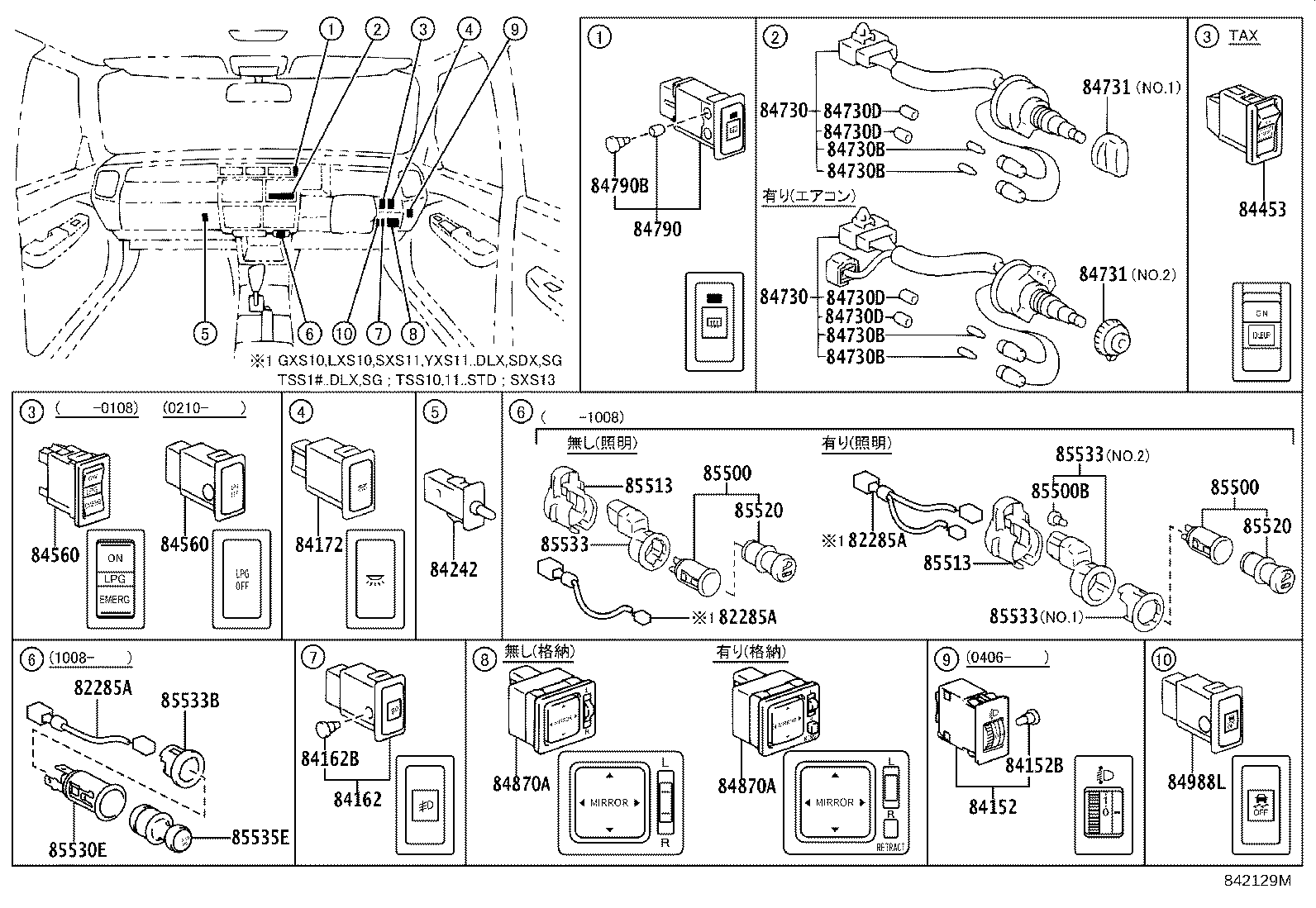

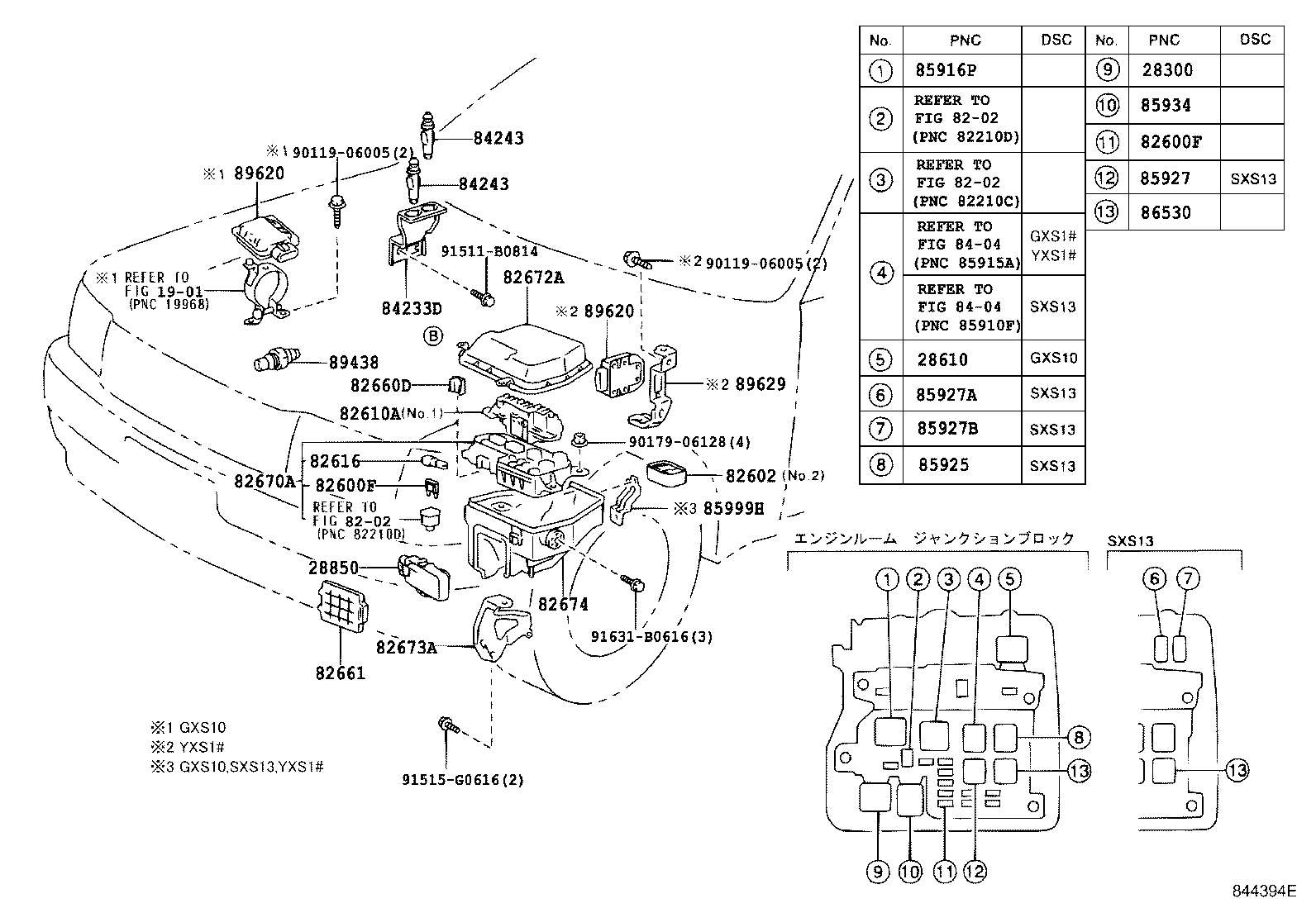

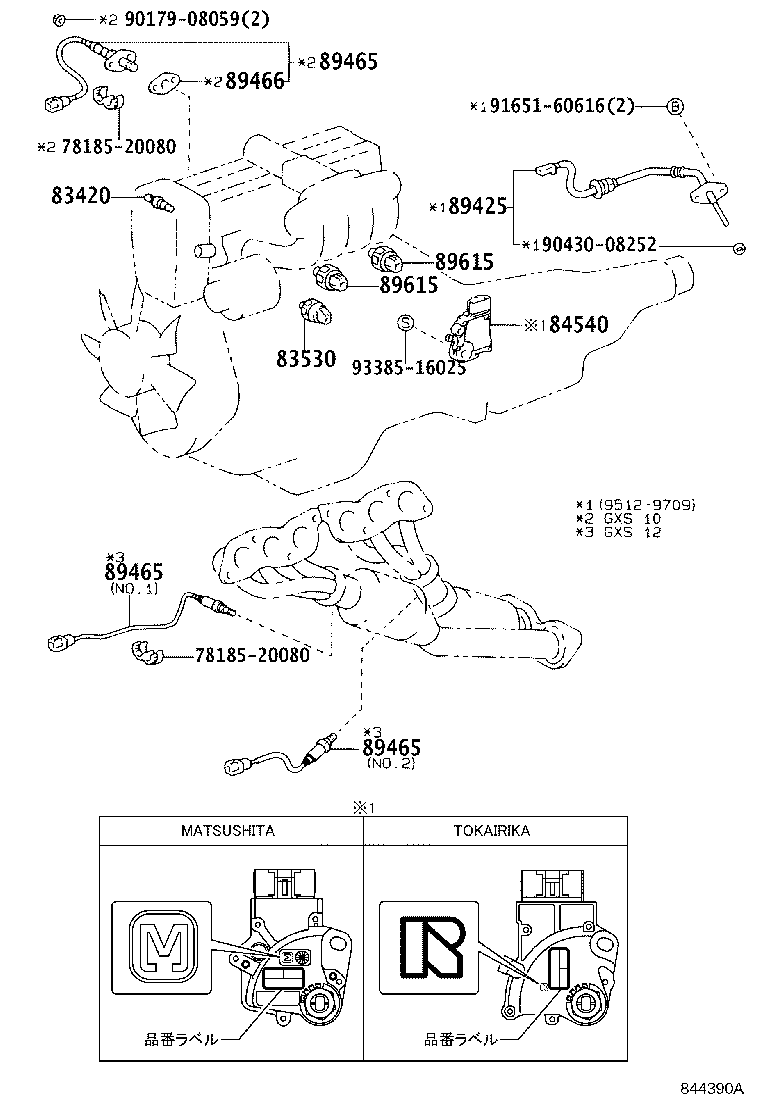

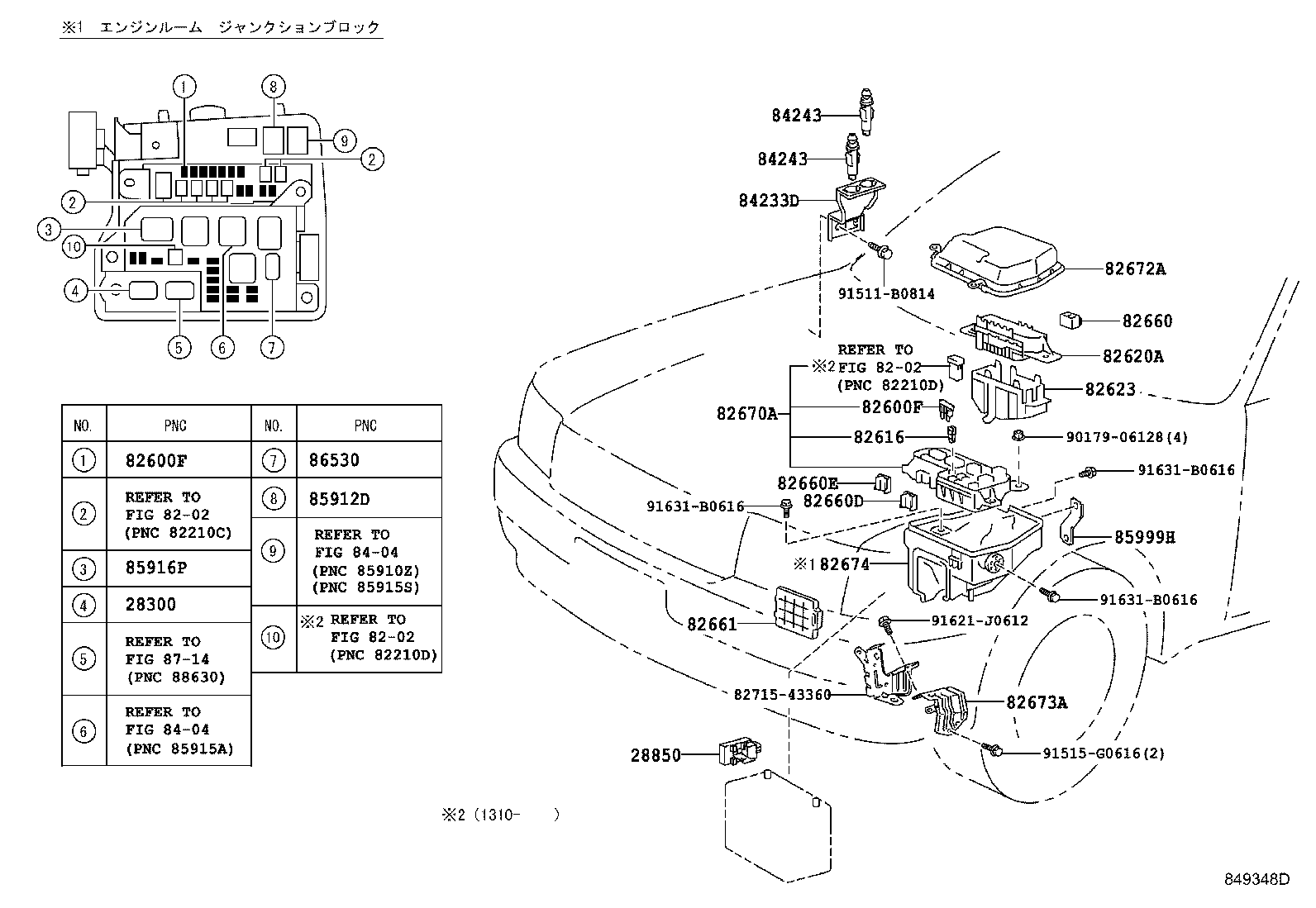

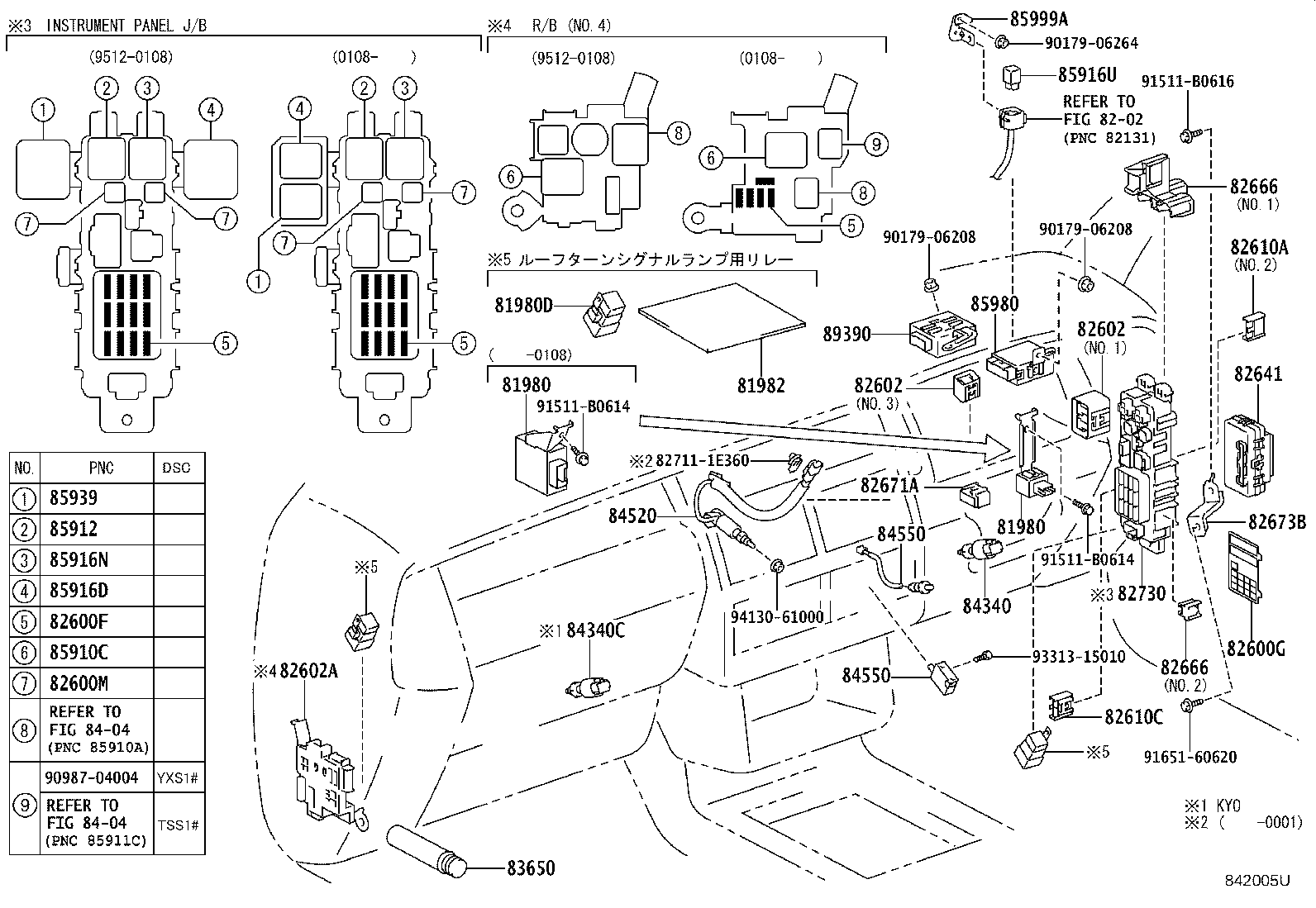

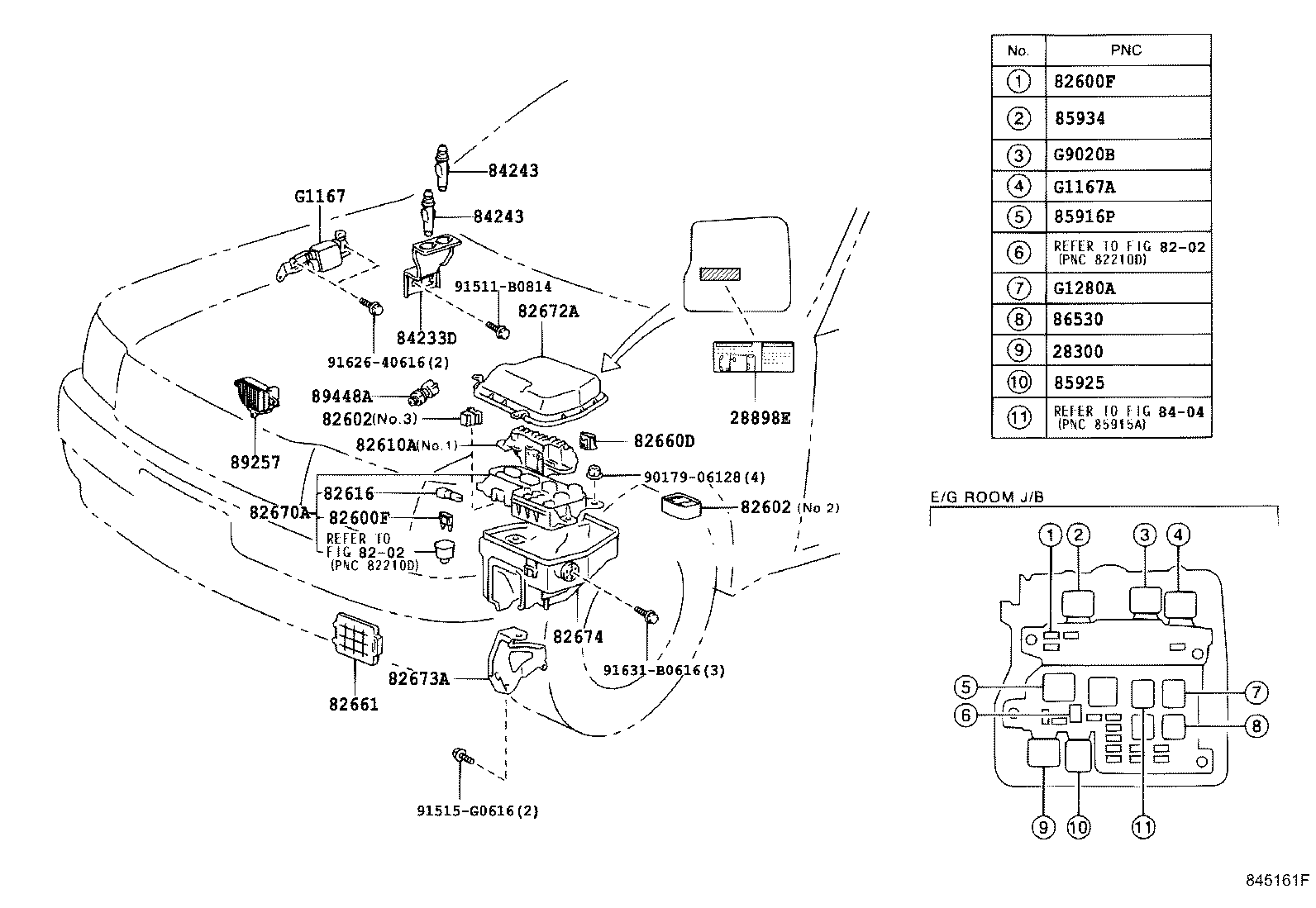

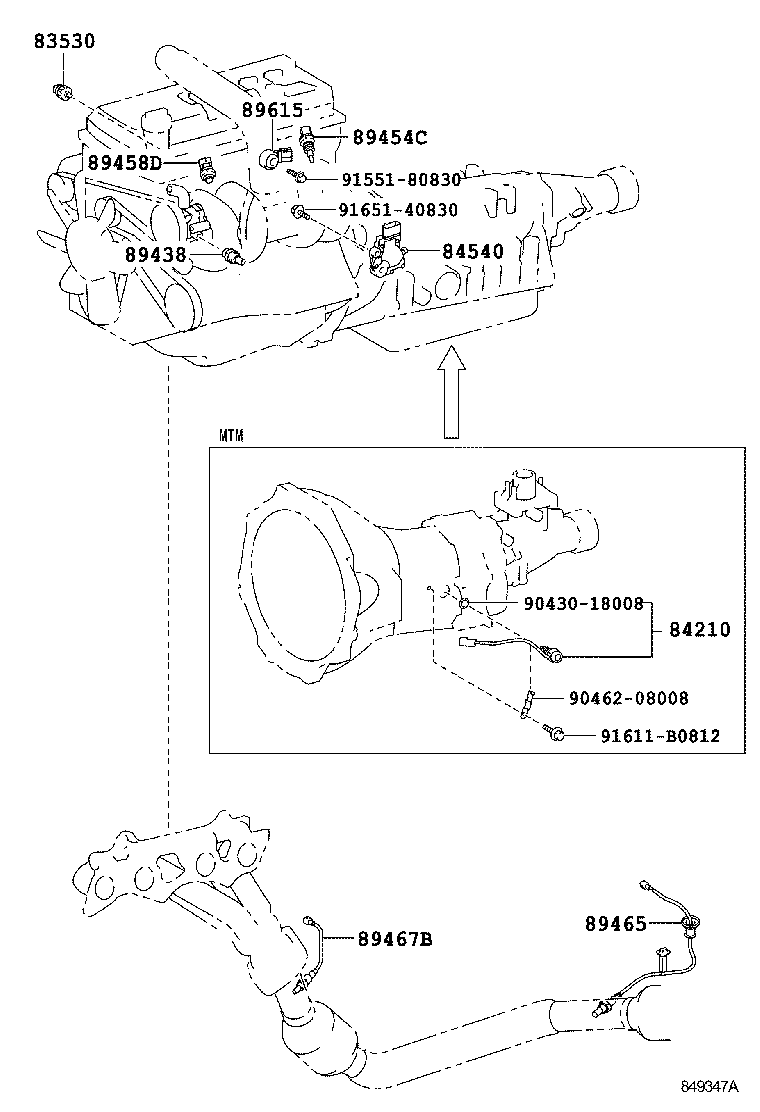

Figure 842893C 842893C 1995-12 → 1999-08 Figure 844390A 844390A 1995-12 → 2007-08 Figure 844391C 844391C 1995-12 → — Figure 844392C 844392C 1996-04 → 2007-07 Figure 845160B 845160B 2002-10 → — Figure 849347A 849347A 2007-09 → — Figure 841259E 841259E 1995-12 → 2001-08 Figure 844394E 844394E 2001-08 → — Figure 845161F 845161F 2002-10 → — Figure 849348D 849348D 2007-09 → — Figure 842005U 842005U 1995-12 → — Figure 842129M 842129M 1995-12 → — Figure 842130N 842130N 1996-04 → — Figure 844404I 844404I 2001-08 → — Figure 841291E 841291E 1995-12 → — Figure 841292I 841292I 1995-12 → —

Part groups

PNCDescription
23285C Resistor, Fuel Pump
28300 Relay Assy, Starter
28380A Resister, Fuel Pump
28610 Relay Assy, Intake Heater OR Glow Plug
28820 Box Assy, Battery Junction
28821 Cover, Battery Junction Box, Upper
28831 Plug, Battery Junction Box
28850 Sensor Assy, Battery Current
28898E Label, Battery Information
81980 Flasher Assy, Turn Signal
81980D Flasher Assy, Roof Turn Signal
81982 Pad, Turn Signal Relay
82285A Wire, Illumination
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82600M Fuse, Medium Current
82602 Block Sub-assy, Relay
82602A Block Sub-assy, Relay
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82623 Cover, Fusible Link, Lower
82641 Relay, Integration NO.1
82660 Block Assy, Relay, Engine Room
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82661 Cover, Relay Block, NO.1
82666 Holder, Connector
82670A Block Assy, Junction, NO.1
82671A Block, Junction
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82674 Cover, Junction Block Lower
82730 Block Assy, Instrument Panel Junction
83301 Gage Sub-assy, Fuel Sender (FOR LPG TANK)
83302 Body Sub-assy, Fuel Sender Gage
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84150 Switch Assy, Fog Lamp
84150C Bulb, Fog Lamp Switch
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84162 Switch, Front Fog Lamp
84162B Bulb, Fog Lamp Switch
84172 Switch, Room Lamp
84210 Switch Assy, Back-up Lamp
84231A Switch, Courtesy Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233D Bracket, Engine Hood Switch
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84236 Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
84242 Switch, Glove Box Lamp
84243 Switch, Engine Hood
84246 Switch, Foot Lamp
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84316 Unit, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84340C Switch Assy, Stop Lamp (FOR ASSISTANT)
84450 Switch Assy, Ignition OR Starter
84453 Switch, Idle UP
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84560 Switch Assy, Fuel Valve Control
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A Bezel, Switch
84727 Switch, Shift Lock Control
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84730D Cap, Heater Blower Switch Bulb
84731 Knob, Heater Blower Switch
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840 Switch Assy, Luggage Compartment Door Opening
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84931B Switch, Door Control
84956A Bracket, Hand Brake Signal Switch
84988L Switch, Vsc Off
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85530E Socket Assy, Power Outlet, NO.3
85533 Lens, Cigarette Lighter Indicator
85533B Lens, Power Outlet Socket
85535E Cover, Power Outlet Socket, NO.2
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85912D Relay
85915E Relay
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85916U Relay, Headlamp, NO.2
85925 Relay, Radiator Fan
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85931B Relay, Fuel Heater
85933 Computer, Shift Lock Control
85934 Relay, Magnet-clutch
85939 Relay, Power Window
85980 Relay Assy, Door Control
85999A Bracket, Relay, NO.2
85999H Bracket, Relay
86530 Relay Assy, Horn
89257 Computer, Cooling Fan
89373 Sensor, Lamp Failure Indicator
89390 Relay, Brake Warning
89425 Sensor, Exhaust Gas Temperature
89427 Switch, Temperature Detect
89438 Switch, Power Steering Oil Pressure
89448A Sensor, Power Steering Oil Pressure
89454C Sensor, Fuel Gas Temperature
89458D Sensor, Fuel Pressure
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89467B Sensor, Air Fuel Ratio
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
G1167 Controller, Oil Pump Motor
G1167A Relay (FOR OIL PUMP MOTOR)
G1280A Relay, Motor Generator Main
G4283B Sensor, Battery Current
G9020B Relay, C/P Clutch(MHEV)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
