Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

30 part groups · 7 illustrations

Illustrations

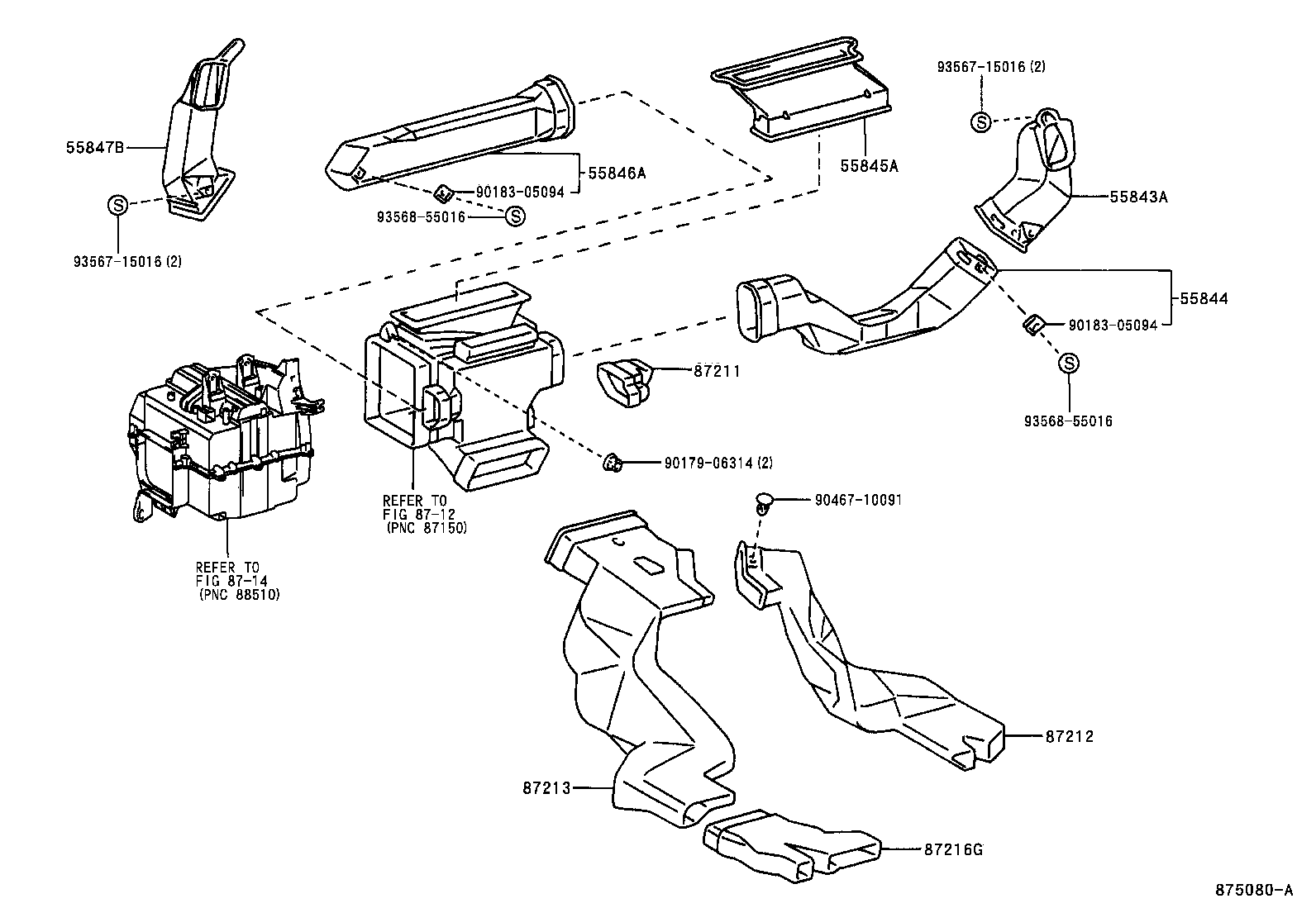

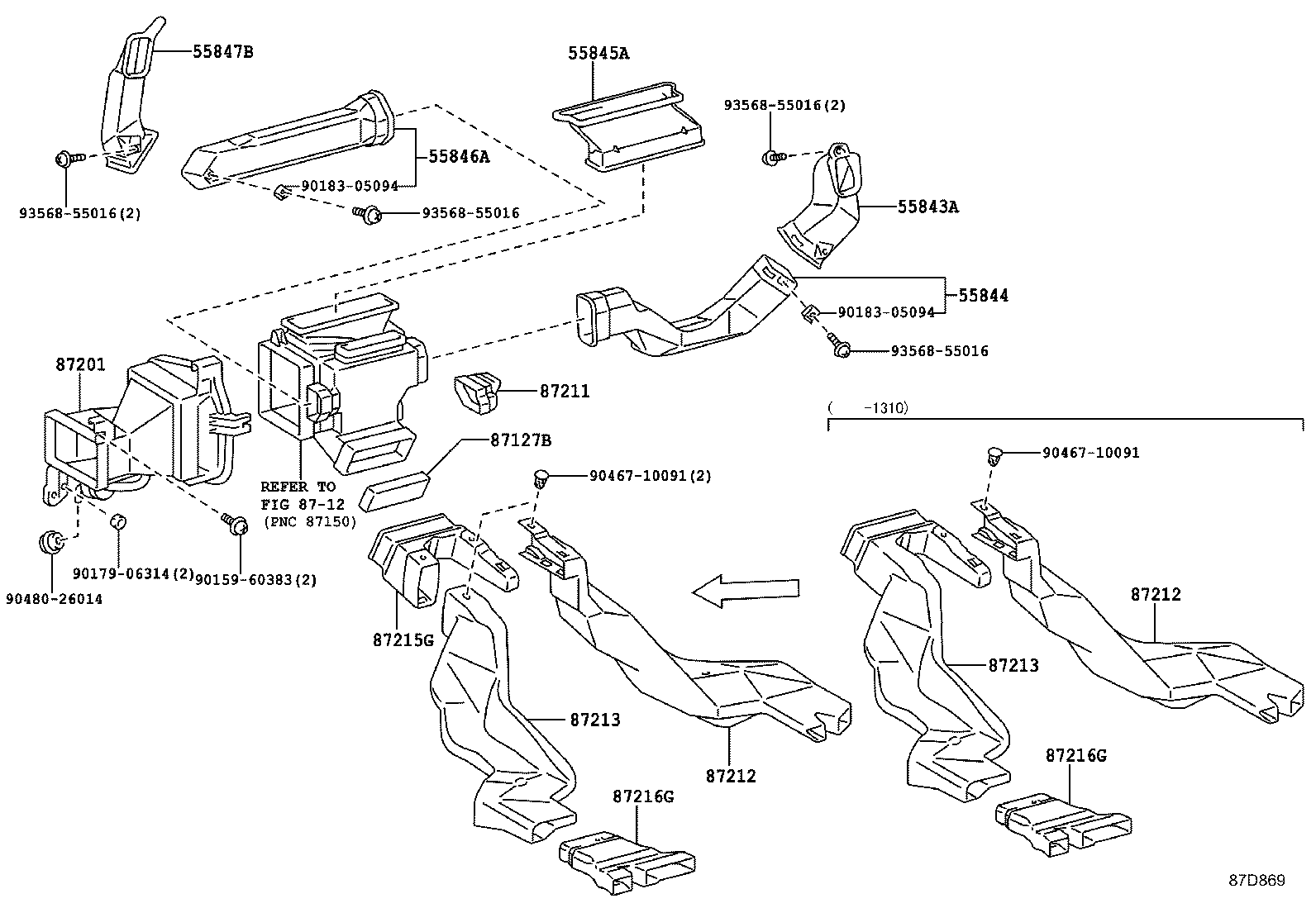

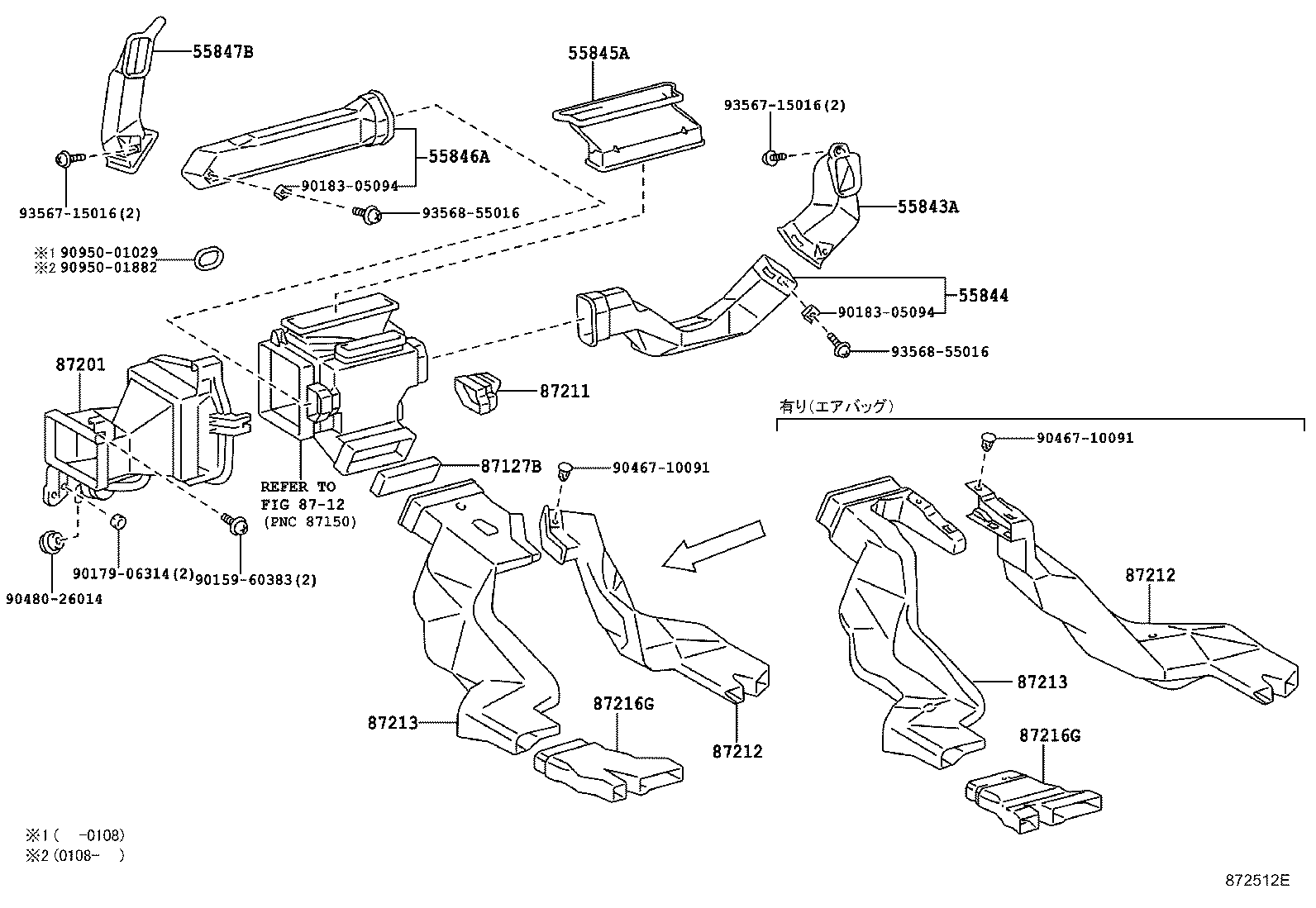

Figure 875078C 875078C 1995-12 → — Figure 875079D 875079D 2001-08 → — Figure 872512E 872512E 1995-12 → — Figure 875080A 875080A 2001-08 → 2008-08 Figure 87D869 87D869 2007-09 → — Figure 875081 875081 2001-08 → — Figure 875081 875081 2008-08 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55847B Duct, Heater TO Register, NO.5
55900B Bulb, Air Conditioner Control
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55911A Base, Heater Control
55912A Housing, Heater Control
55912B Bracket, Heater Control Base, RH
55913B Bracket, Heater Control Base, LH
55921A Retainer, Heater Control
81942A Sheet, Heater Control Name, NO.1
87127B Packing
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215G Guide, Air Duct, Rear RH
87216G Guide, Air Duct, Rear LH
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88650B Amplifier Assy, Airconditioner
88669A Hose (FOR COOLER THERMISTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
