Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

16 part groups · 9 illustrations

Illustrations

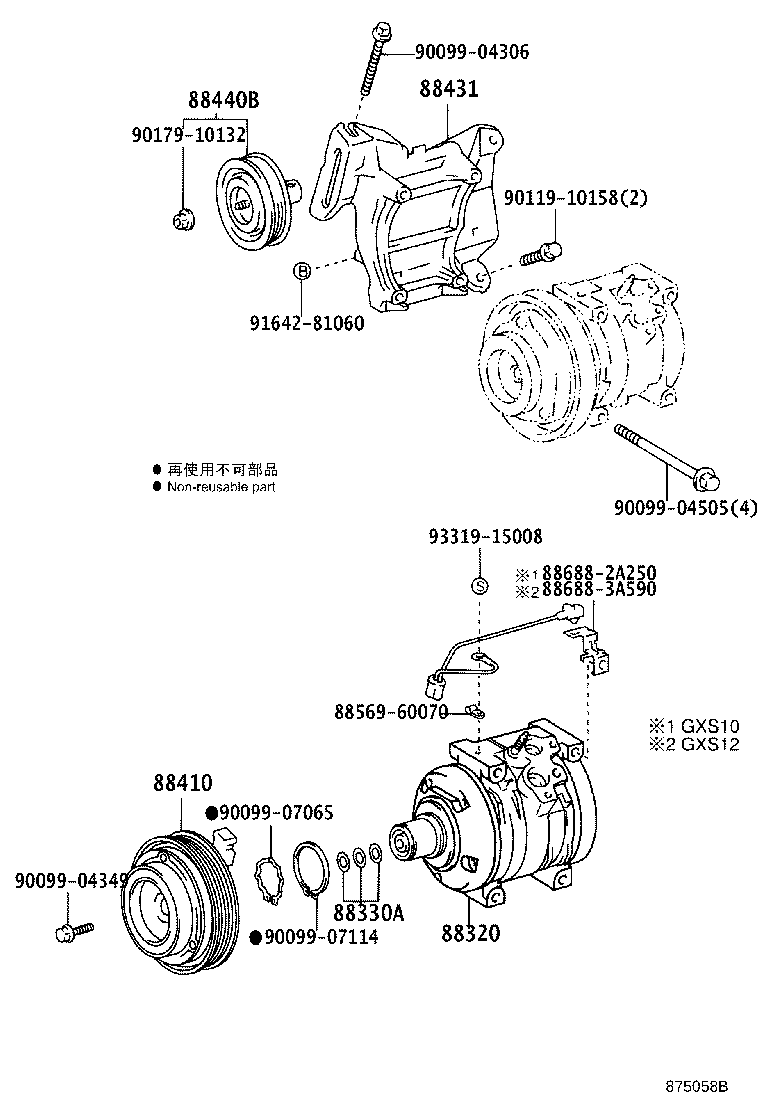

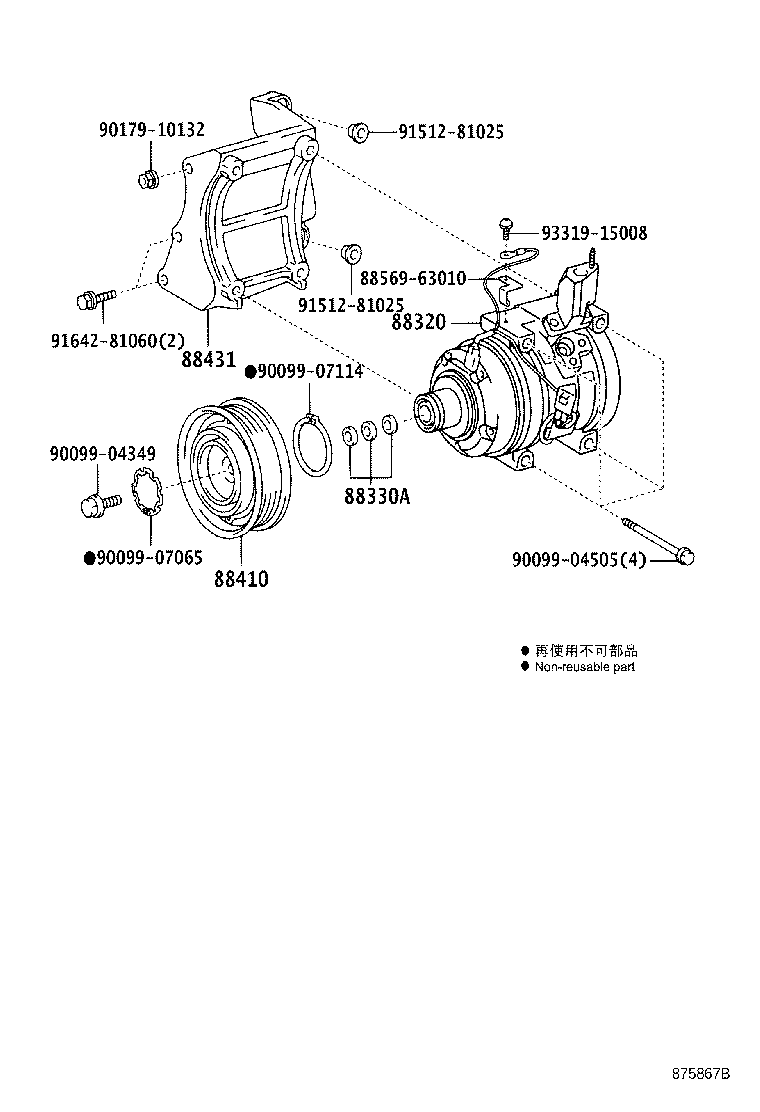

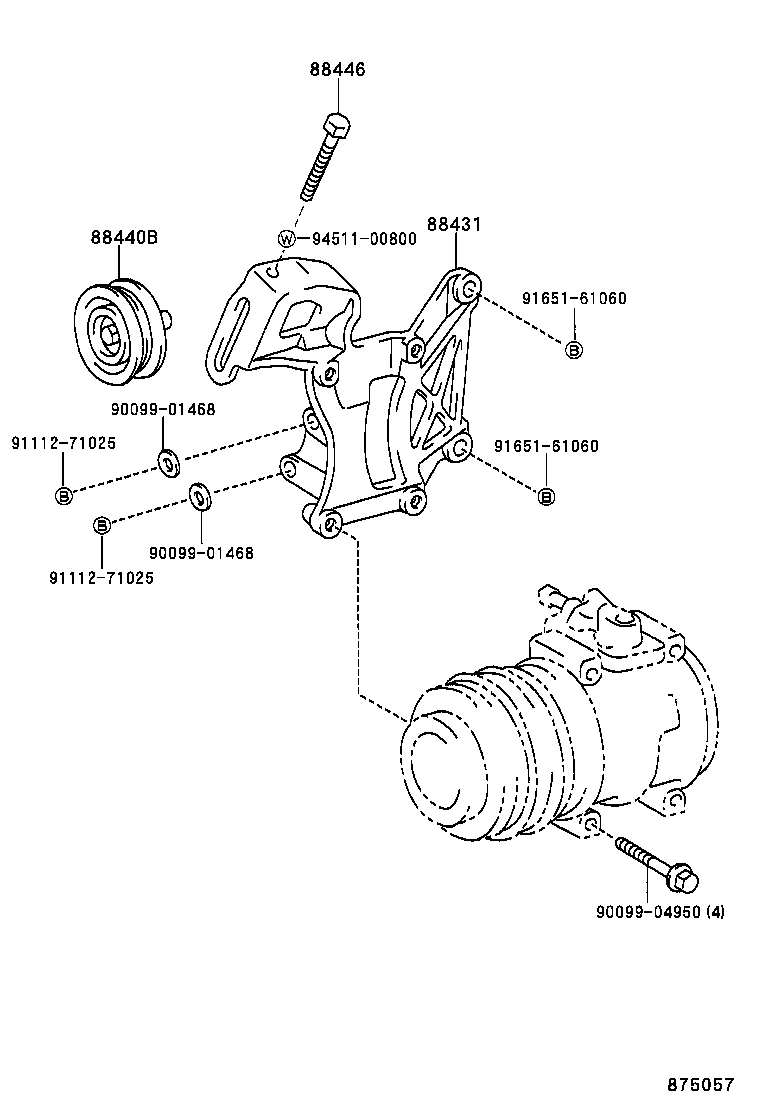

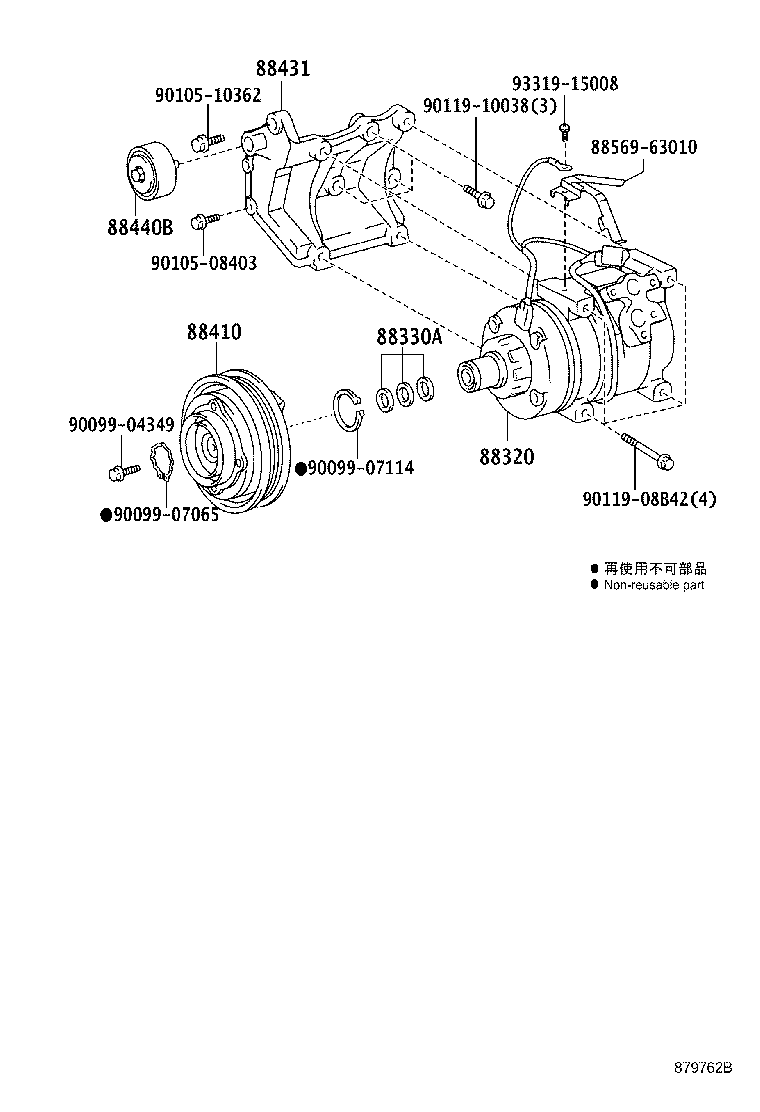

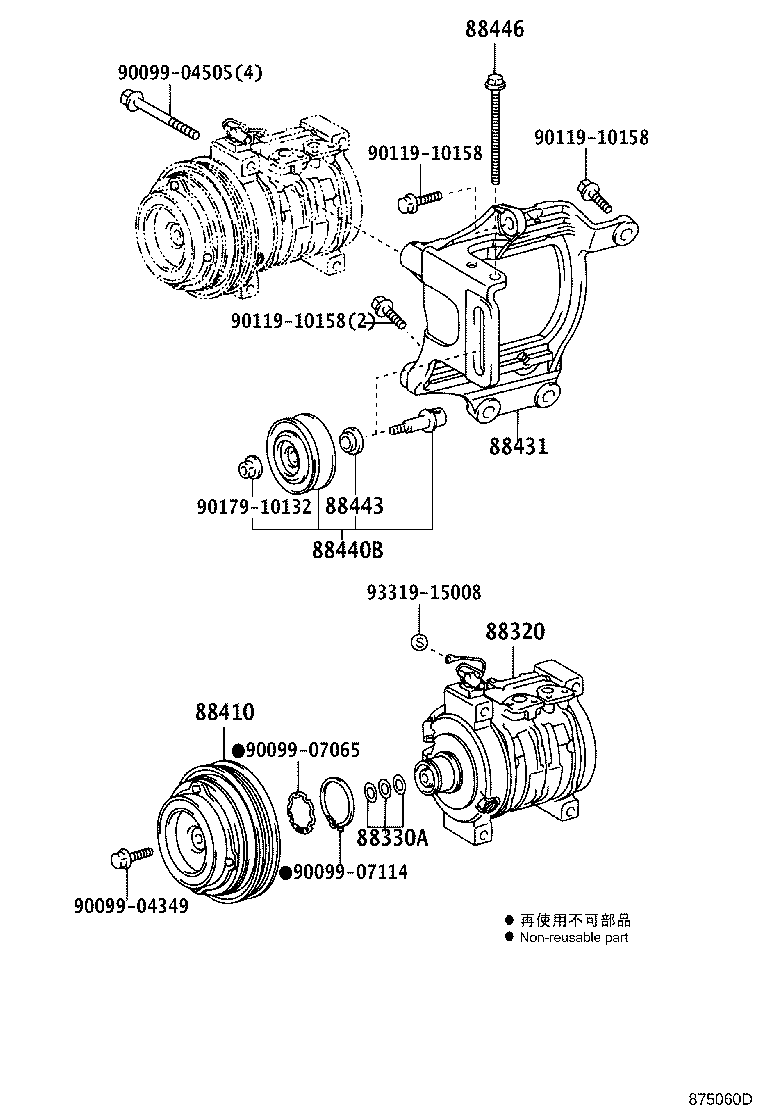

Figure 871652A 871652A 1995-12 → 1999-08 Figure 875057 875057 1995-12 → 2001-02 Figure 874950 874950 1995-12 → 2001-08 Figure 875058B 875058B 2001-08 → — Figure 875059B 875059B 2001-08 → — Figure 875060D 875060D 2001-08 → — Figure 875867B 875867B 2002-10 → — Figure 879762B 879762B 2007-09 → — Figure 871653B 871653B 1995-12 → 2001-08

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88437A Attachment, Compressor
88440B Pulley Assy, Idle
88443 Collar, Idle Pulley
88444 Bracket, Idle Pulley
88445 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88469B Collar
88545 Pulley Assy, Idle
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
