Toyota Century
1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan
Discontinued model
Data version 1997-10

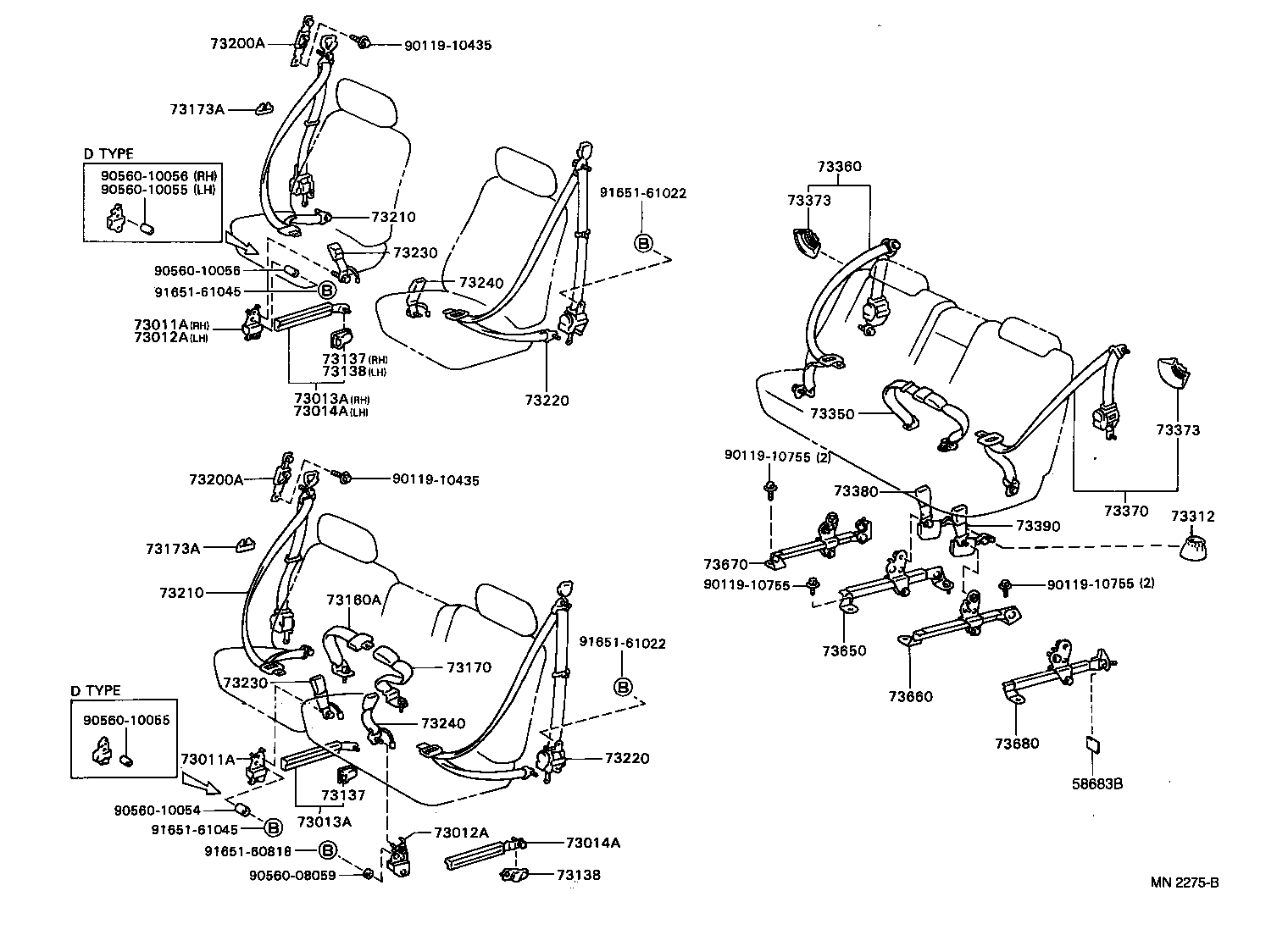

Seat Belt & Child Restraint Seat
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58683B | Sheet, Rear Wheel House Silencer |
| 73011A | Bracket Sub-assy, Rear Seat Belt Inner Anchor, RH |
| 73012A | Bracket Sub-assy, Rear Seat Belt Inner Anchor, LH |
| 73013A | Plate Sub-assy, Front Seat Belt Inner Anchor, RH |
| 73014A | Plate Sub-assy, Front Seat Belt Inner Anchor, LH |
| 73137 | Cap, Front Seat Belt Inner Anchor, RH |
| 73138 | Cap, Front Seat Belt Inner Anchor, LH |
| 73150 | Belt Assy, Front Seat Lap Type, Center |
| 73160A | Seat Belt Assy, Front Center, RH |
| 73170 | Belt Assy, Front Center, LH |
| 73173A | Cover, Front Seat Belt Hole |
| 73180 | Bracket Assy, Seat Belt Inner Anchor, RH |
| 73190 | Bracket Assy, Seat Belt Inner Anchor, LH |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73312 | Cover, Rear Seat Belt Buckle, Lower |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73373 | Cover, Rear Seat Shoulder Belt |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
| 73650 | Bracket Assy, Rear Seat Belt Inner Anchor, RH |
| 73660 | Bracket Assy, Rear Seat Belt Inner Anchor, LH |
| 73670 | Bracket Assy, Rear Seat Belt Outer Anchor, RH |
| 73680 | Bracket Assy, Rear Seat Belt Outer Anchor, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
