Toyota Mark 2 V,WG

1988-10 → 1997-04 · chassis GX70,LX76,YX7# · catalogue 351110 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

12 part groups · 2 illustrations

Illustrations

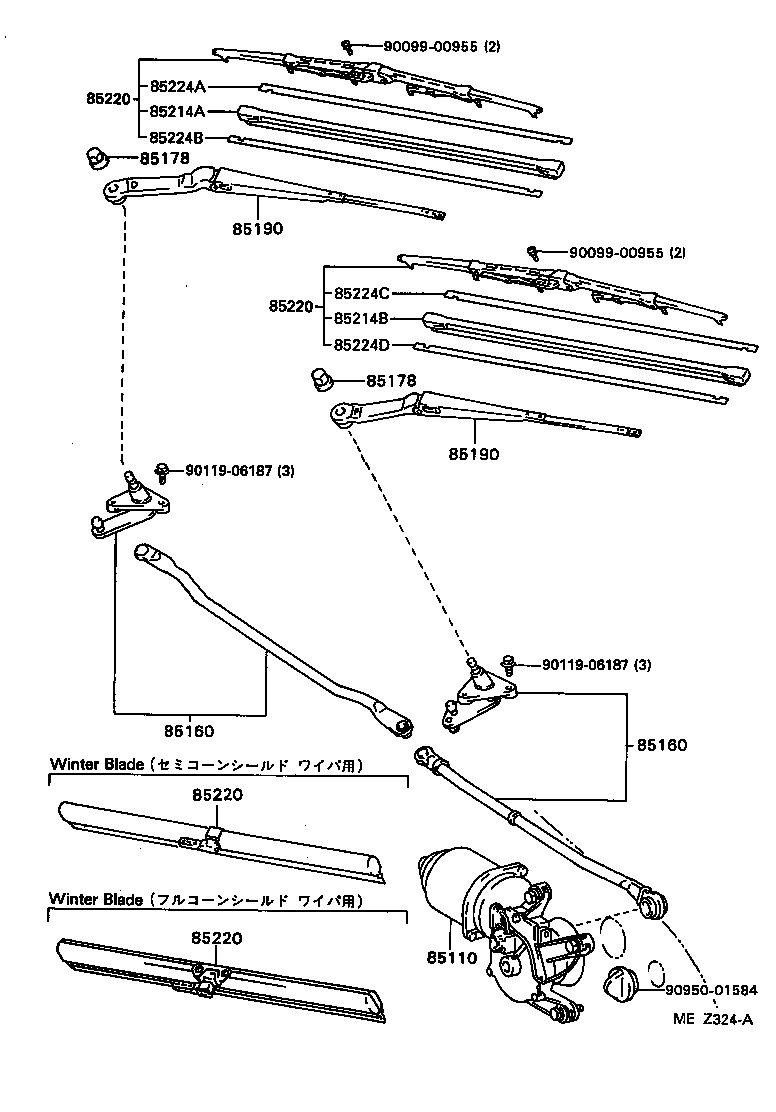

Figure MEL990A MEL990A 1988-10 → — Figure MEZ324A MEZ324A 1995-02 → —

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85178 Nut (FOR FRONT WIPER ARM SETTING)
85190 Arm Assy, Windshield Wiper
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
85224A Plate, Wiper Rubber Backing, NO.1
85224B Plate, Wiper Rubber Backing, NO.2
85224C Plate, Wiper Rubber Backing, NO.3
85224D Plate, Wiper Rubber Backing, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
