Toyota Mark X Zio
2007-09 → 2013-10 · chassis ANA1#,GGA10 · catalogue 351130 · Japan
Supported model
Data version 2015-04

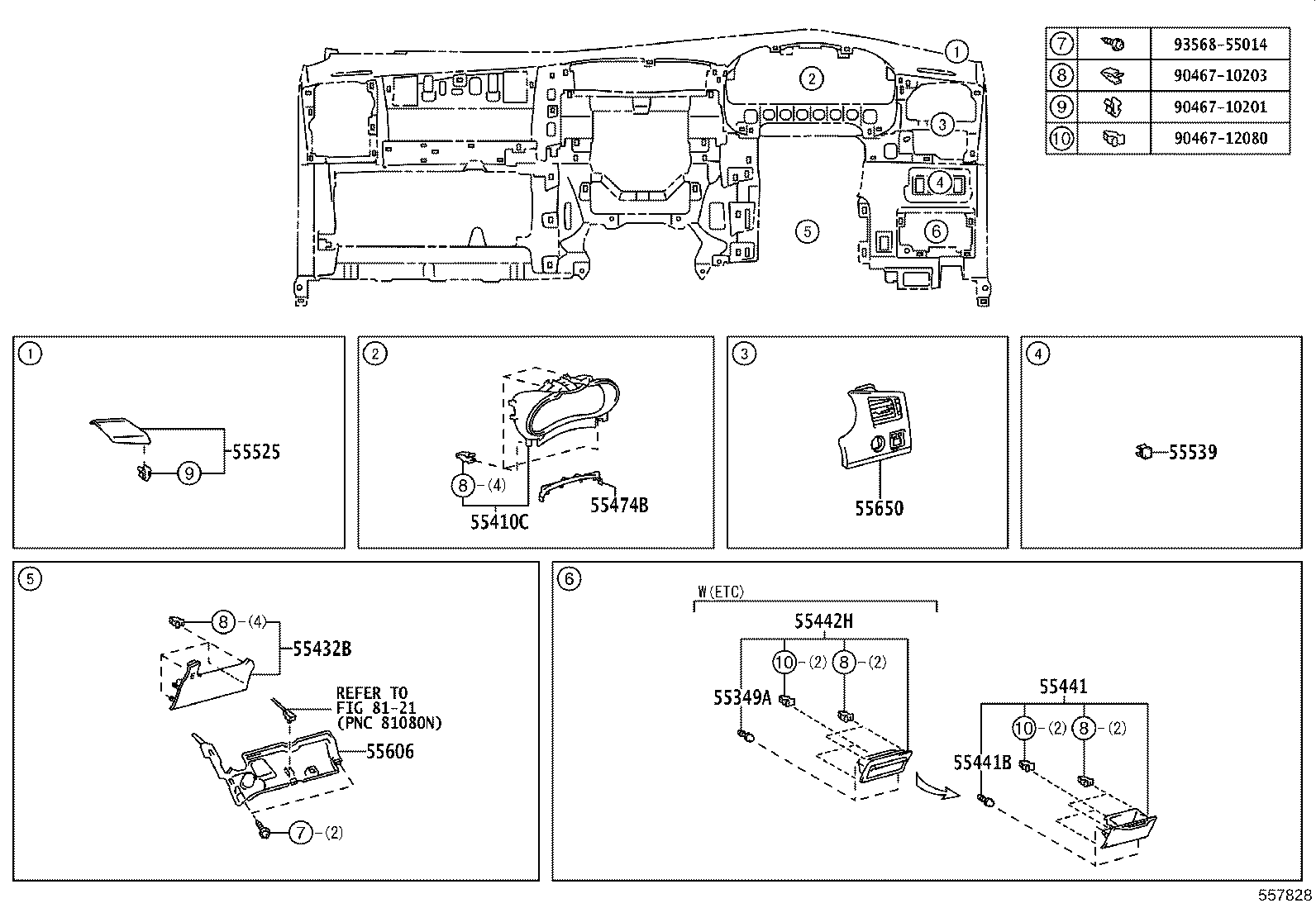

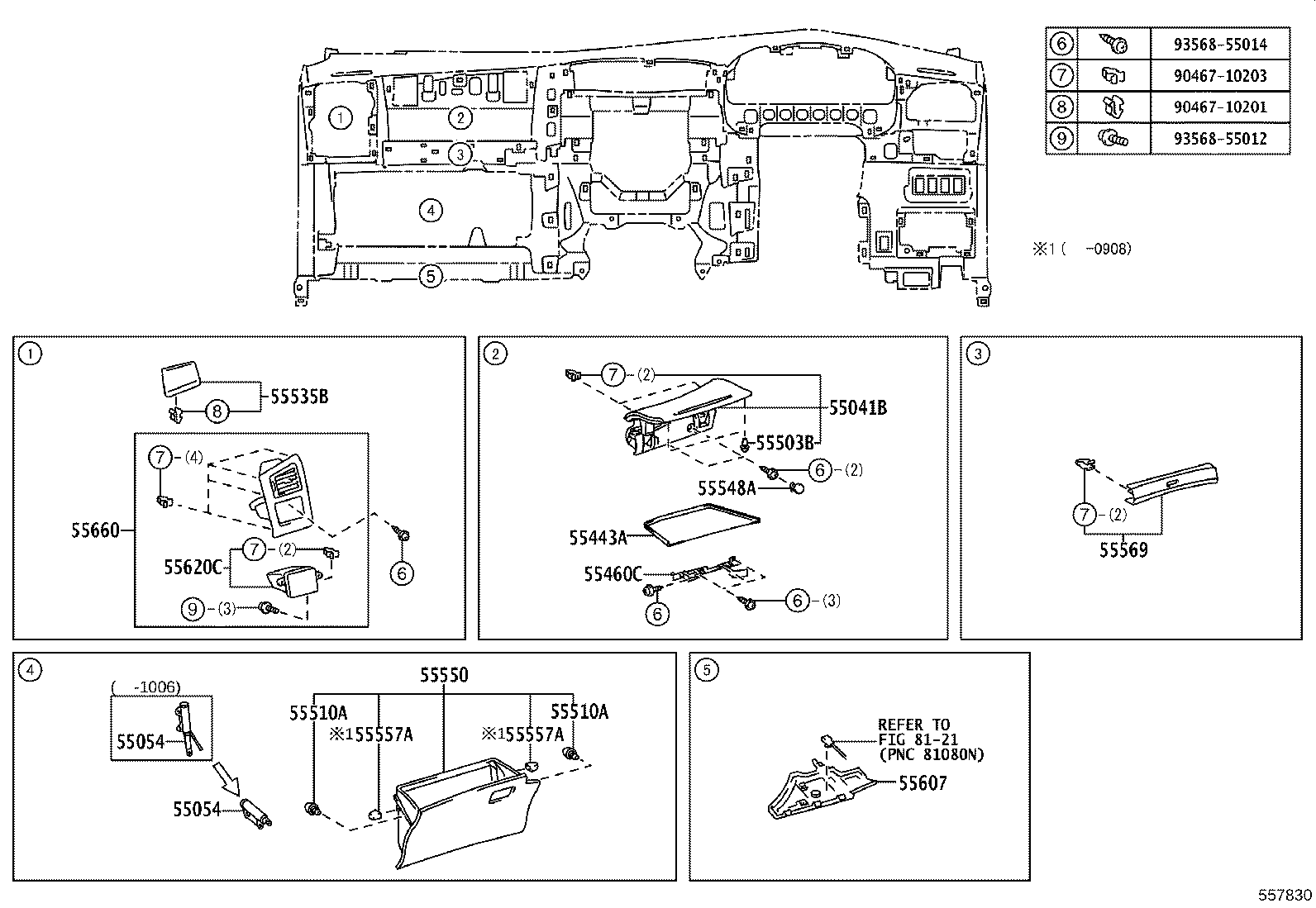

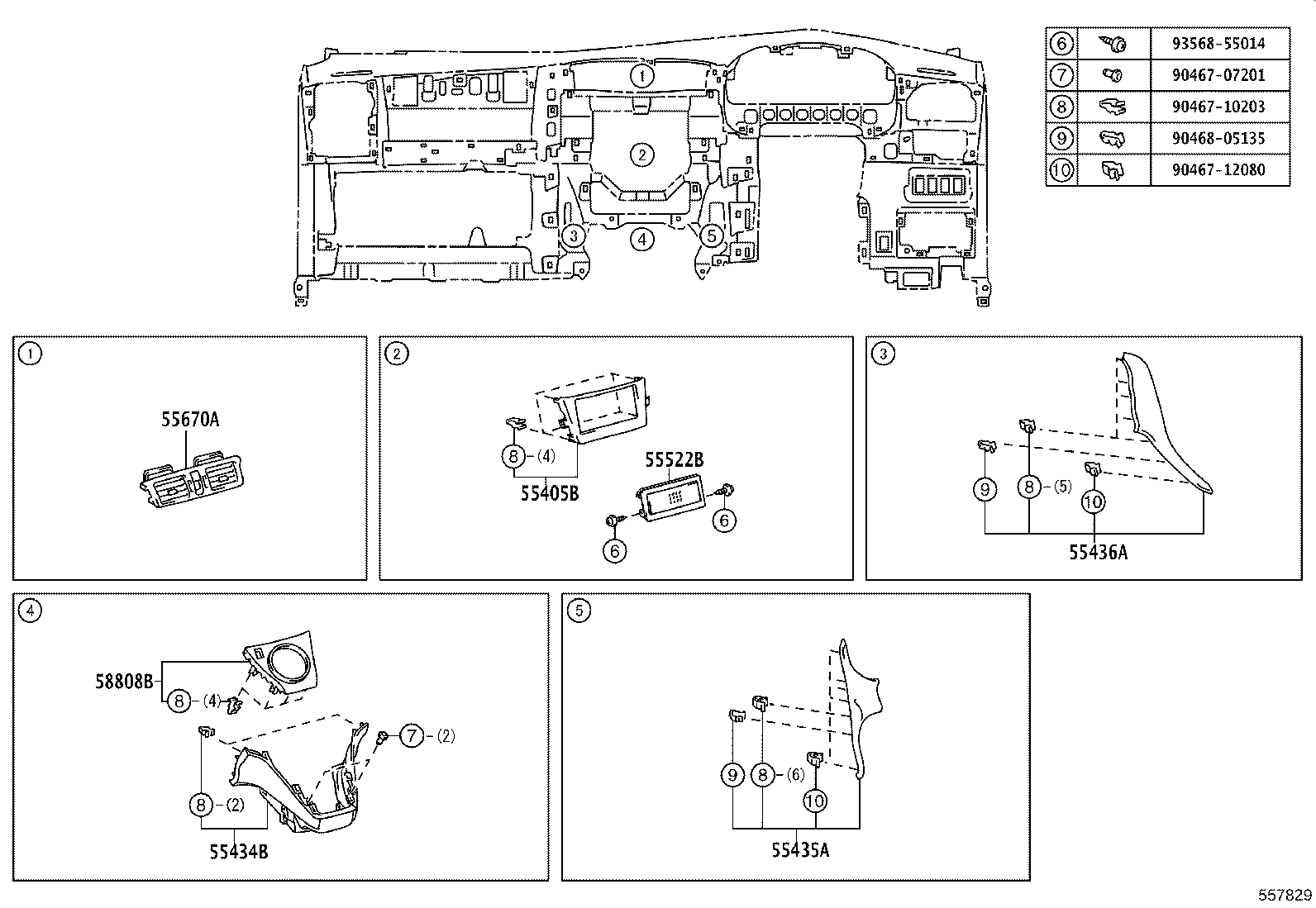

Instrument Panel & Glove Compartment
43 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55041B | Door Sub-assy, Instrument Panel Box, NO.1 |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55343B | Brace, Instrument Panel TO Cowl, Center |
| 55349A | Cushion, Instrument Panel |
| 55349E | Bracket, Instrument Panel Brace Mounting, Lower |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55435A | Panel, Instrument Panel Finish, End RH |
| 55436A | Panel, Instrument Panel Finish, End LH |
| 55441 | Box, Instrument Panel |
| 55441B | Cushion, Instrument Panel Box |
| 55442H | Door, Instrument Panel |
| 55443A | Cover, Instrument Panel Box Door |
| 55453E | Pad, Instrument, Lower RH |
| 55454C | Pad, Instrument, Lower LH |
| 55460C | Lock Assy, Instrument Panel Box |
| 55474B | Garnish, Instrument Cluster Finish Panel |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55522B | Cover, Radio Tuner Opening |
| 55525 | Cover, Speaker Hole, NO.1 |
| 55535B | Cover, Speaker Hole, NO.2 |
| 55539 | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55569 | Cover, Glove Compartment Door Lock |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55620C | Holder, Instrument Panel Cup |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 58808B | Cover, Shifting Hole |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 82140 | Wire Assy, Instrument Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
