Toyota Harrier

2003-02 → 2012-07 · chassis ACU3#,GSU3#,MCU3# · catalogue 521120 · Japan

Supported model Data version 2012-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

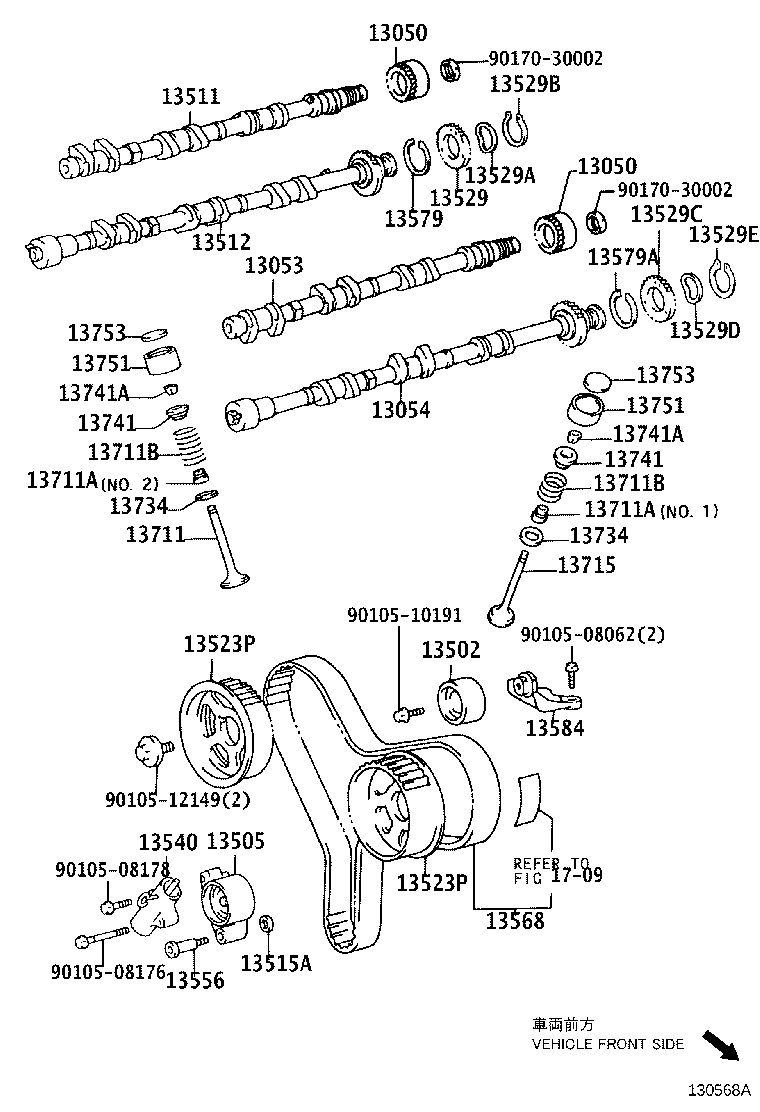

158 parts on this figure

Part number	Description	Fitment	Price
13050 — Gear Assy, Camshaft Timing
13050-20010	Gear Assy, Camshaft Timing 2003-02 → 2004-09 ended	1MZFE MCU3#	¥28,800
13050-20011	Gear Assy, Camshaft Timing 2004-09 → —	1MZFE MCU3#	¥28,600
13050-28011	Gear Assy, Camshaft Timing 2003-02 → 2006-01 ended	2AZFE ACU3#	¥23,400
13050-28012	Gear Assy, Camshaft Timing 2006-01 → —	2AZFE ACU3#	¥23,400
13050-31170	Gear Assy, Camshaft Timing 2006-01 → 2008-12 ended	2GRFE GSU3#	¥19,800
13053 — Camshaft Sub-assy, NO.3
13053-20030	Camshaft Sub-assy, NO.3 2003-02 → —	1MZFE MCU3#	¥40,200
13053-31080	Camshaft Sub-assy, NO.3 2006-01 → 2008-12 ended	2GRFE GSU3#	¥41,400
13054 — Camshaft Sub-assy, NO.4
13054-20020	Camshaft Sub-assy, NO.4 2003-02 → —	1MZFE MCU3#	¥45,100
13054-31080	Camshaft Sub-assy, NO.4 2006-01 → 2008-12 ended	2GRFE GSU3#	¥41,400
13502 — Idler Sub-assy, Timing Belt, NO.2
13503-62030	Idler Sub-assy, Timing Belt, NO.2 2003-02 → —	1MZFE MCU3#	¥2,950
13505 — Idler Sub-assy, Timing Belt, NO.1
13505-20030	Idler Sub-assy, Timing Belt, NO.1 2003-02 → 2006-01 ended	1MZFE MCU3#	¥3,300
13511 — Camshaft
13501-20040	Camshaft 2003-02 → —	1MZFE MCU3#	¥40,200
13501-28010	Camshaft 2003-02 → 2006-01 ended	2AZFE ACU3#	¥40,200
13501-28010	Camshaft 2006-01 → —	2AZFE ACU3#	¥40,200
13501-31100	Camshaft 2006-01 → 2008-12 ended	2GRFE GSU3#	¥41,400
13512 — Camshaft, NO.2
13502-0H010 note	Camshaft, NO.2 2004-11 → 2006-01 ended	2AZFE ACU3#	—
13502-20020	Camshaft, NO.2 2003-02 → —	1MZFE MCU3#	¥45,100
13502-28010 note	Camshaft, NO.2 2003-02 → 2006-01 ended	2AZFE ACU3#	¥40,200
13502-0H010 note	Camshaft, NO.2 2006-01 → 2006-08 ended	2AZFE ACU3#	—
13502-28010 note	Camshaft, NO.2 2006-01 → 2006-08 ended	2AZFE ACU3#	¥40,200
13502-28010	Camshaft, NO.2 2006-08 → —	2AZFE ACU3#	¥40,200
13502-31080	Camshaft, NO.2 2006-01 → 2008-12 ended	2GRFE GSU3#	¥41,400
13515A — Washer, Plate(FOR DISTRIBUTOR DRIVE GEAR)
90201-10098	Washer, Plate(FOR DISTRIBUTOR DRIVE GEAR) 2003-02 → —	1MZFE MCU3#	¥230
13523P — Pulley, Camshaft Timing
13523-20020	Pulley, Camshaft Timing 2003-02 → —	1MZFE MCU3#	¥4,630
13529 — Gear, Camshaft Sub
13529-20900	Gear, Camshaft Sub 2003-02 → —	1MZFE MCU3#	¥5,100
13529A — Washer, Wave(FOR CAMSHAFT SUB GEAR)
90206-42001	Washer, Wave(FOR CAMSHAFT SUB GEAR) 2003-02 → —	1MZFE MCU3#	¥230
13529B — Ring, Shaft Snap(FOR CAMSHAFT SUB GEAR)
90520-41004	Ring, Shaft Snap(FOR CAMSHAFT SUB GEAR) 2003-02 → —	1MZFE MCU3#	¥230
13529C — Gear, Camshaft Sub, NO.3
13529-20900	Gear, Camshaft Sub, NO.3 2003-02 → —	1MZFE MCU3#	¥5,100
13529D — Washer, Wave(FOR CAMSHAFT SUB GEAR, NO.3)
90206-42001	Washer, Wave(FOR CAMSHAFT SUB GEAR, NO.3) 2003-02 → —	1MZFE MCU3#	¥230
13529E — Ring, Shaft Snap(FOR CAMSHAFT SUB GEAR, NO.3)
90520-41004	Ring, Shaft Snap(FOR CAMSHAFT SUB GEAR, NO.3) 2003-02 → —	1MZFE MCU3#	¥230
13540 — Tensioner Assy, Chain, NO.1
13540-20030	Tensioner Assy, Chain, NO.1 2003-02 → —	1MZFE MCU3#	¥9,000
13540-28010	Tensioner Assy, Chain, NO.1 2003-02 → 2006-01 ended	2AZFE ACU3#	¥3,560
13540-28010	Tensioner Assy, Chain, NO.1 2006-01 → —	2AZFE ACU3#	¥3,560
13540-31021	Tensioner Assy, Chain, NO.1 2006-01 → 2008-12 ended	2GRFE GSU3#	¥10,700
13556 — Shaft, Timing Belt Idler
13556-62010	Shaft, Timing Belt Idler 2003-02 → —	1MZFE MCU3#	¥1,680
13568 — Belt, Timing
13568-29025	Belt, Timing 2003-02 → 2003-06 ended	1MZFE MCU3#	¥8,900
13568-29025	Belt, Timing 2003-06 → 2003-12 ended	1MZFE MCU3#	¥8,900
13568-29025	Belt, Timing 2003-12 → 2006-01 ended	1MZFE MCU3#	¥8,900
13579 — Washer, Camshaft Timing Gear Bolt
13579-50020	Washer, Camshaft Timing Gear Bolt 2003-02 → —	1MZFE MCU3#	¥740
13579A — Washer, Camshaft Timing Gear Bolt, NO.3
13579-50020	Washer, Camshaft Timing Gear Bolt, NO.3 2003-02 → —	1MZFE MCU3#	¥740
13584 — Bracket, Timing Belt Idler
13584-20011	Bracket, Timing Belt Idler 2003-02 → —	1MZFE MCU3#	¥4,190
13711 — Valve, Intake
13711-20020	Valve, Intake 2003-02 → —	1MZFE MCU3#	¥1,950
13711-28010	Valve, Intake 2003-02 → 2006-01 ended	2AZFE ACU3#	¥1,880
13711-28010	Valve, Intake 2006-01 → —	2AZFE ACU3#	¥1,880
13711-31100	Valve, Intake 2006-01 → 2008-12 ended	2GRFE GSU3#	¥2,260
13711A — Seal OR Ring, O(FOR VALVE STEM OIL)
90913-02101 note	Seal OR Ring, O(FOR VALVE STEM OIL) 2003-02 → —	1MZFE MCU3#	¥270
90913-02111 note	Seal OR Ring, O(FOR VALVE STEM OIL) 2003-02 → 2003-07 ended	1MZFE MCU3#	¥450
90913-02112 note	Seal OR Ring, O(FOR VALVE STEM OIL) 2003-07 → —	1MZFE MCU3#	¥270
13711B — Spring, Compression(FOR INNER)
90501-28038	Spring, Compression(FOR INNER) 2005-08 → 2006-01 ended	2AZFE ACU3#	¥240
90501-31010	Spring, Compression(FOR INNER) 2003-02 → —	1MZFE MCU3#	¥320
90905-01066	Spring, Compression(FOR INNER) 2003-02 → 2005-08 ended	2AZFE ACU3#	¥320
90501-28038	Spring, Compression(FOR INNER) 2006-01 → —	2AZFE ACU3#	¥240
90501-36007	Spring, Compression(FOR INNER) 2006-01 → 2008-12 ended	2GRFE GSU3#	¥320
13715 — Valve, Exhaust
13715-20020	Valve, Exhaust 2003-02 → —	1MZFE MCU3#	¥4,700
13715-28010	Valve, Exhaust 2003-02 → 2006-01 ended	2AZFE ACU3#	¥2,630
13715-28010	Valve, Exhaust 2006-01 → —	2AZFE ACU3#	¥2,630
13715-31120	Valve, Exhaust 2006-01 → 2008-12 ended	2GRFE GSU3#	¥2,560
13734 — Seat, Valve Spring
13734-20010	Seat, Valve Spring 2003-02 → —	1MZFE MCU3#	¥130
13734-74010	Seat, Valve Spring 2003-02 → 2006-01 ended	2AZFE ACU3#	¥50
13734-62020	Seat, Valve Spring 2006-01 → 2008-12 ended	2GRFE GSU3#	¥60
13734-74010	Seat, Valve Spring 2006-01 → —	2AZFE ACU3#	¥50
13741 — Retainer, Valve Spring
13741-20020	Retainer, Valve Spring 2003-02 → 2005-06 ended	1MZFE MCU3#	¥450
13741-20021	Retainer, Valve Spring 2005-06 → —	1MZFE MCU3#	¥220
13741-22021	Retainer, Valve Spring 2003-02 → 2006-01 ended	2AZFE ACU3#	¥220
13741-22021	Retainer, Valve Spring 2006-01 → —	2AZFE ACU3#	¥220
13741-31020	Retainer, Valve Spring 2006-01 → 2008-12 ended	2GRFE GSU3#	¥230
13741A — Lock, Valve Spring Retainer
90913-03028	Lock, Valve Spring Retainer 2003-02 → 2006-01 ended	2AZFE ACU3#	¥270
90913-03028	Lock, Valve Spring Retainer 2003-02 → —	1MZFE MCU3#	¥270
90913-03028	Lock, Valve Spring Retainer 2006-01 → 2008-12 ended	2GRFE GSU3#	¥270
90913-03028	Lock, Valve Spring Retainer 2006-01 → —	2AZFE ACU3#	¥270
13751 — Lifter, Valve
13751-46030 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46040 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46050 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46060 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46070 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46080 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46090 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46100 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46110 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46120 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46130 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46140 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46150 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46160 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46170 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46180 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46190 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46200 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46210 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46220 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46230 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46240 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46250 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46260 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46270 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46280 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46290 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46300 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46310 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46320 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46330 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46340 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46350 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46360 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46370 note	Lifter, Valve 2003-02 → 2006-01 ended	2AZFE ACU3#	¥860
13751-46740	Lifter, Valve 2003-02 → —	1MZFE MCU3#	¥1,360
13751-46030 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46040 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46050 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46060 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46070 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46080 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46090 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46100 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46110 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46120 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46130 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46140 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46150 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46160 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46170 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46180 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46190 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46200 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46210 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46220 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46230 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46240 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46250 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46260 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46270 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46280 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46290 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46300 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46310 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46320 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46330 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46340 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46350 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46360 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13751-46370 note	Lifter, Valve 2006-01 → —	2AZFE ACU3#	¥860
13753 — Shim, Valve Adjusting
13753-74010 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74030 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74050 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74070 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74090 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74110 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74130 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74150 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74170 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74190 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74210 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74230 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74250 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74270 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74290 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74310 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610
13753-74330 note	Shim, Valve Adjusting 2003-02 → —	1MZFE MCU3#	¥610

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
