Toyota Lexus NX Series

2021-10 → present · chassis AAZA2#,AAZH2#,TAZA25 · catalogue 527120 · Japan

Supported model Data version 2024-03

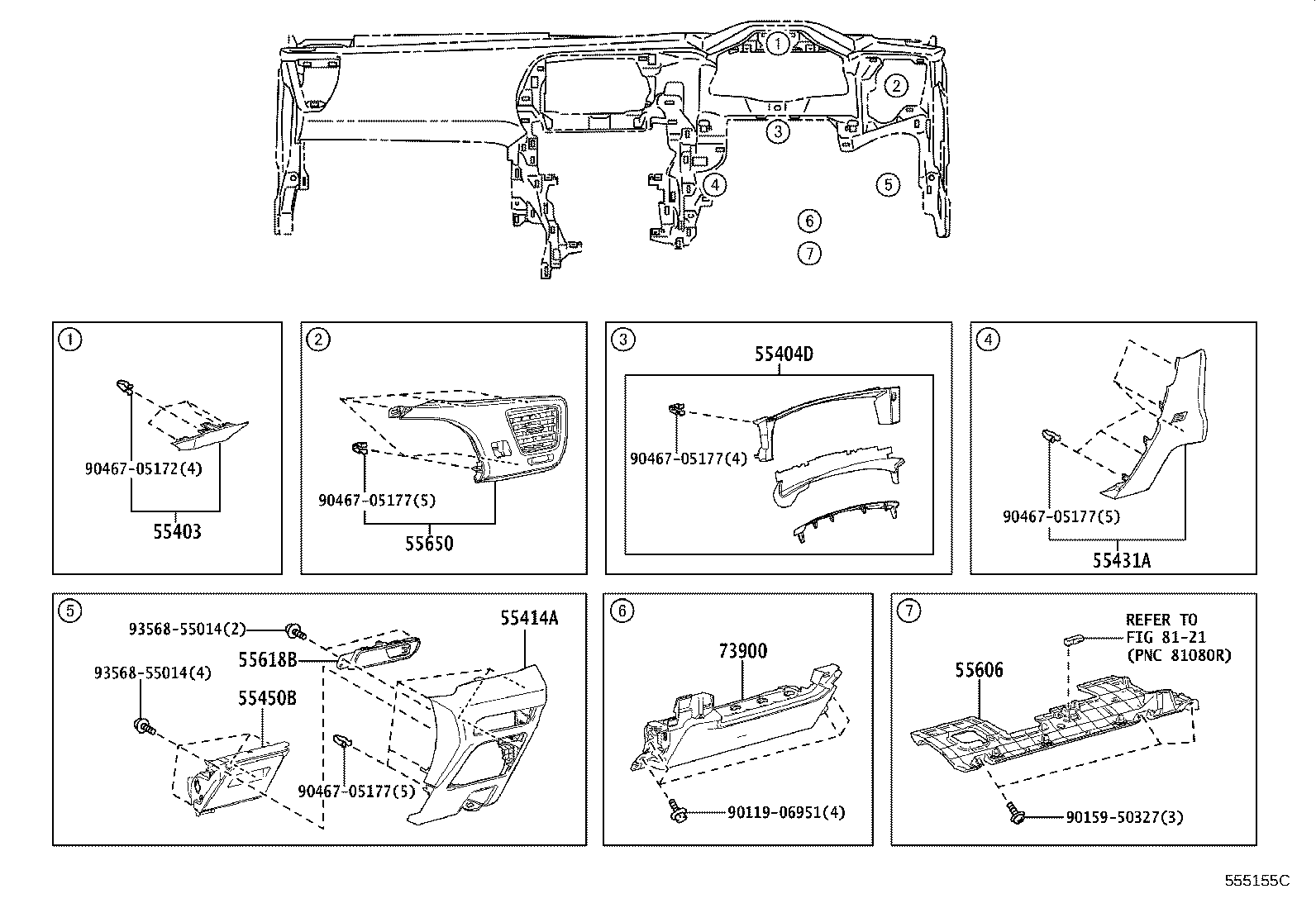

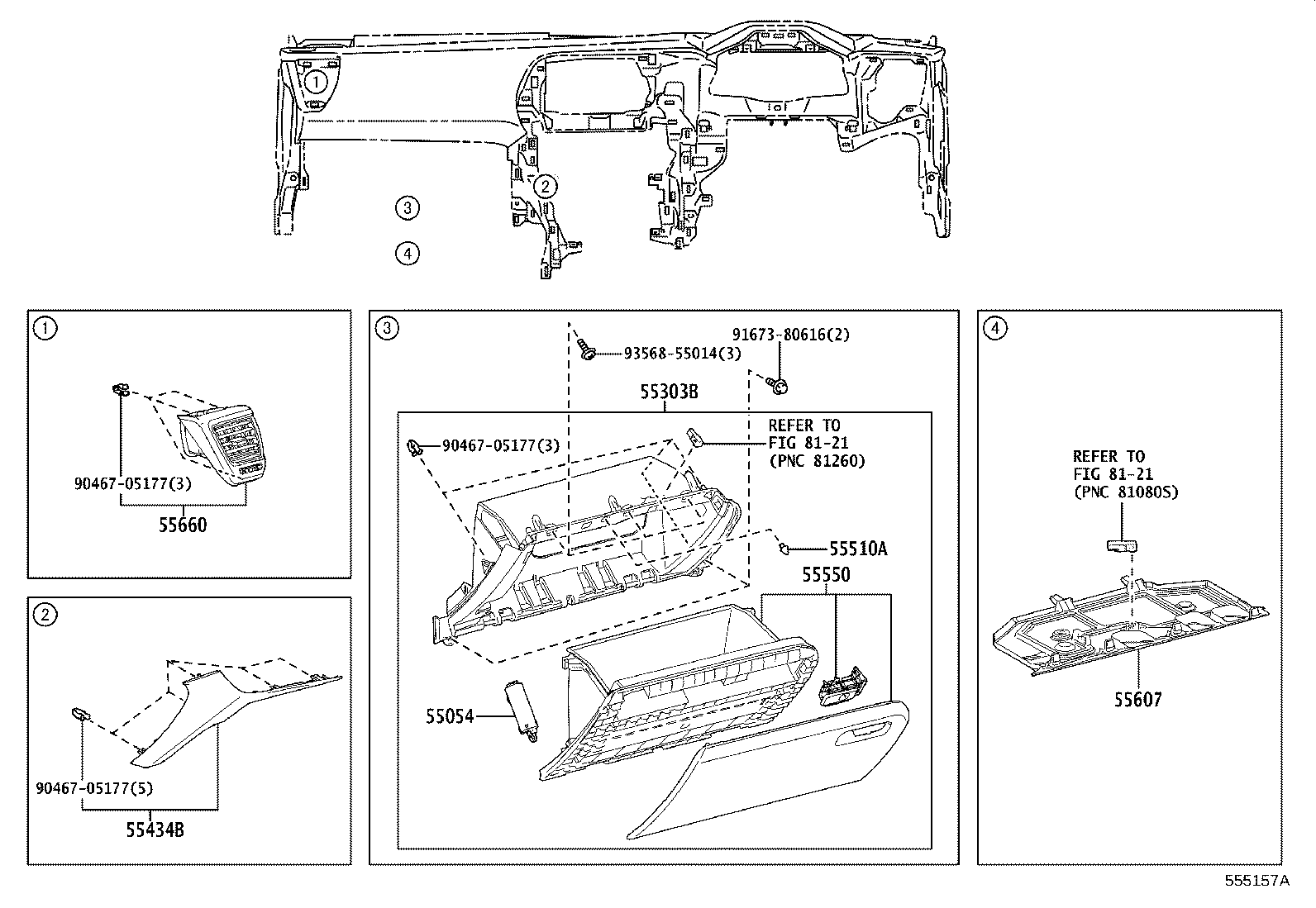

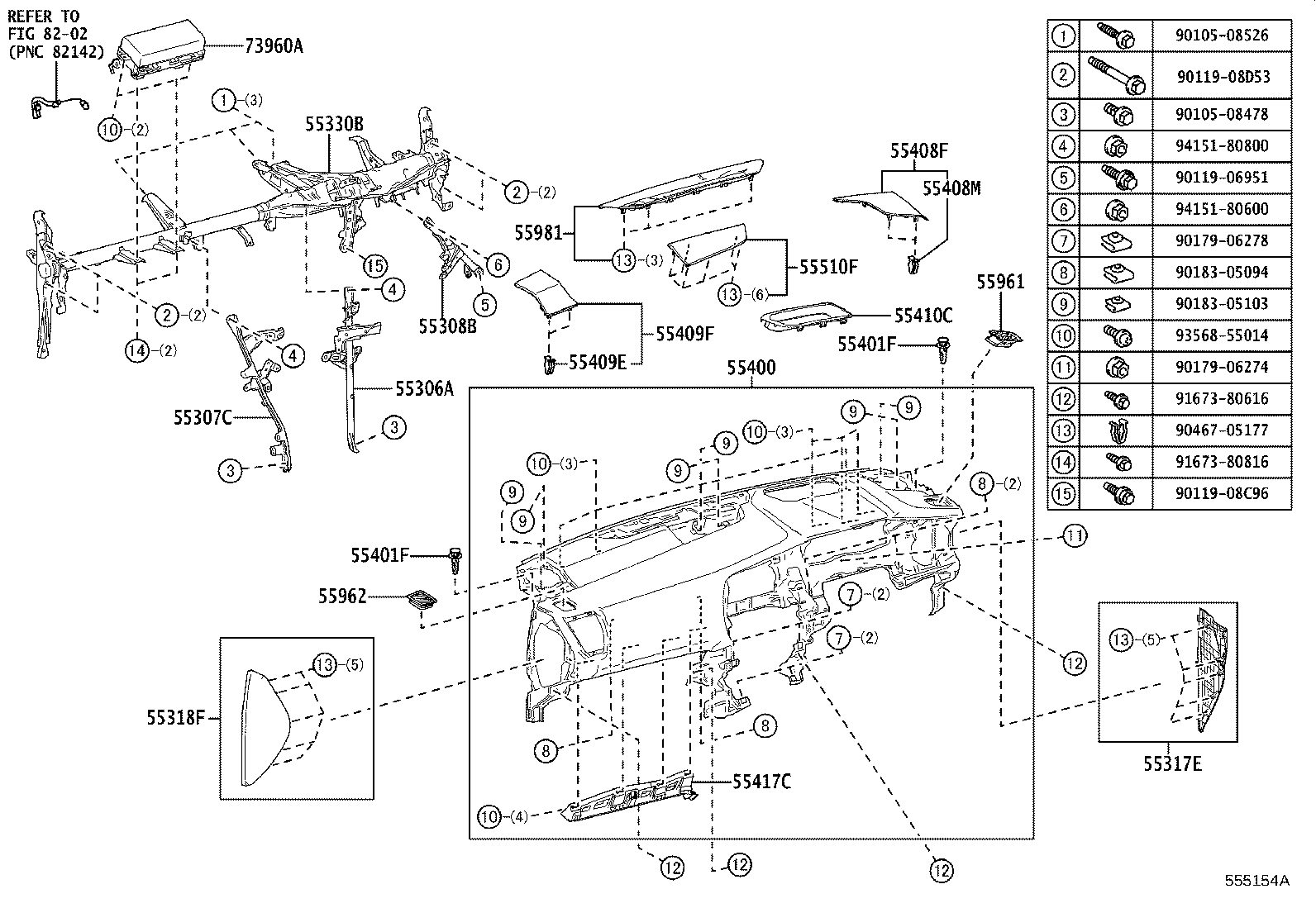

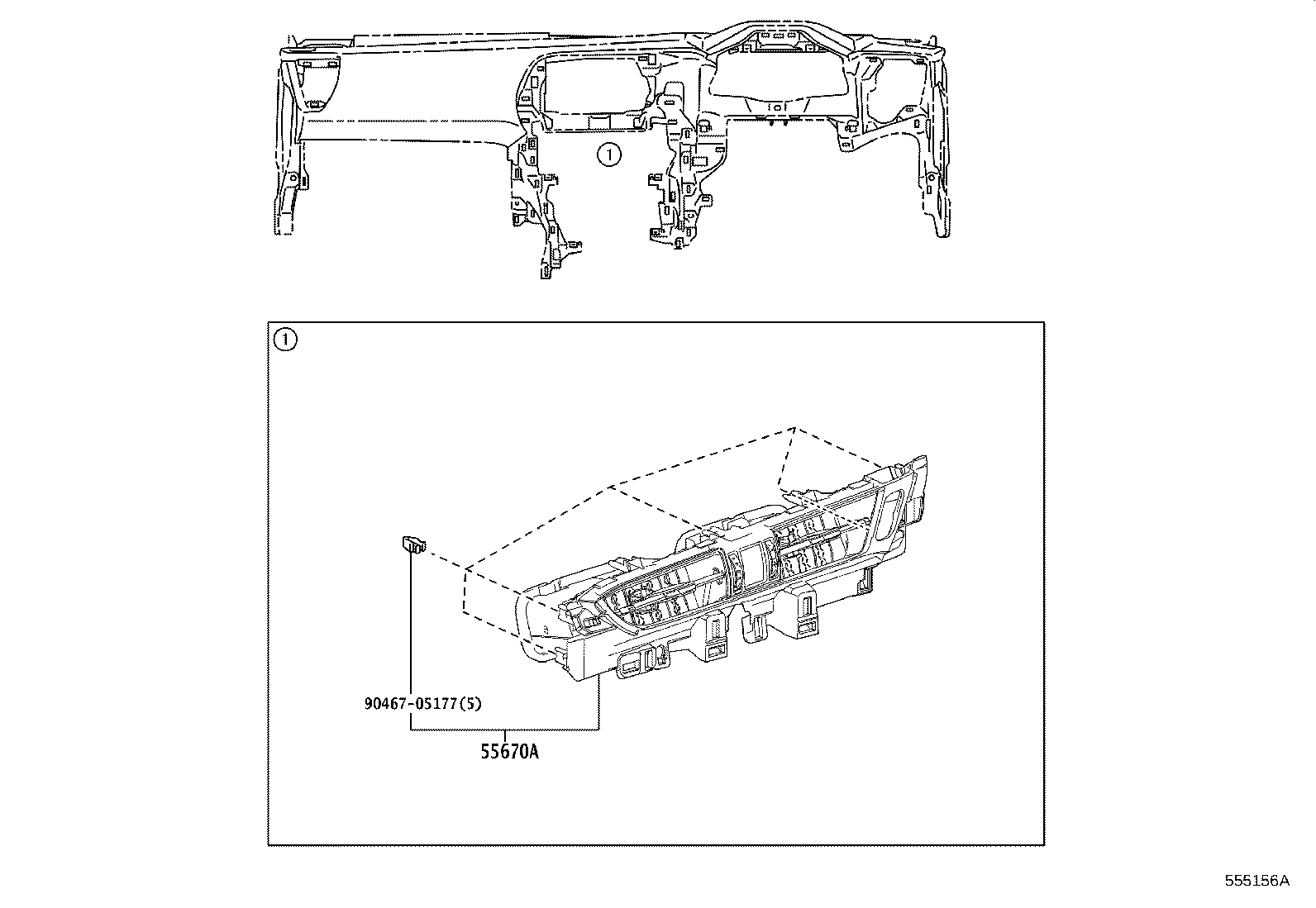

Instrument Panel & Glove Compartment

36 part groups · 5 illustrations

PNC	Description
55054	Stopper Sub-assy, Glove Compartment Door
55303B	Panel Sub-assy, Instrument, Lower
55306A	Brace Sub-assy, Instrument Panel, NO.1
55307C	Brace Sub-assy, Instrument Panel, NO.2
55308B	Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55317E	Panel, Instrument Side, NO.1
55318F	Panel, Instrument Side, NO.2
55330B	Reinforcement Assy, Instrument Panel
55400	Pad Assy, Instrument Panel Safety
55401F	Clip(FOR SAFETY PAD)
55403	Hood Sub-assy, Meter
55404D	Panel Sub-assy, Instrument Cluster Finish
55408F	Panel Sub-assy, Instrument Panel Speaker, NO.1
55408M	Clip(FOR INSTRUMENT PANEL SPEAKER PANEL)
55409E	Clip(FOR INSTRUMENT PANEL SPEAKER PANEL)
55409F	Panel Sub-assy, Instrument Panel Speaker, NO.2
55410C	Panel Assy, Instrument Cluster Finish
55414A	Panel, Instrument Cluster Finish, End
55417C	Bracket, Instrument Pad, NO.3
55431A	Panel, Instrument Panel Finish
55434B	Panel, Instrument Panel Finish, Lower Center
55450B	Box Assy, Coin
55510A	Cushion(FOR GLOVE COMPARTMENT DOOR)
55510F	Cover Assy, Speaker Opening, NO.1
55550	Door Assy, Glove Compartment
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55607	Cover Sub-assy, Instrument Panel Under, NO.2
55618B	Base, Switch Hole, NO.3
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670A	Register Assy, Instrument Panel, Center
55961	Nozzle, Side Defroster, NO.1
55962	Nozzle, Side Defroster, NO.2
55981	Garnish, Defroster Nozzle, NO.1
73900	Airbag Assy, Instrument Panel, Lower NO.1
73960A	Airbag Assy, Instrument Panel Passenger W/O Door

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
