Toyota Lexus NX Series
2021-10 → present · chassis AAZA2#,AAZH2#,TAZA25 · catalogue 527120 · Japan
Supported model
Data version 2024-03
Mirror
16 part groups · 3 illustrations

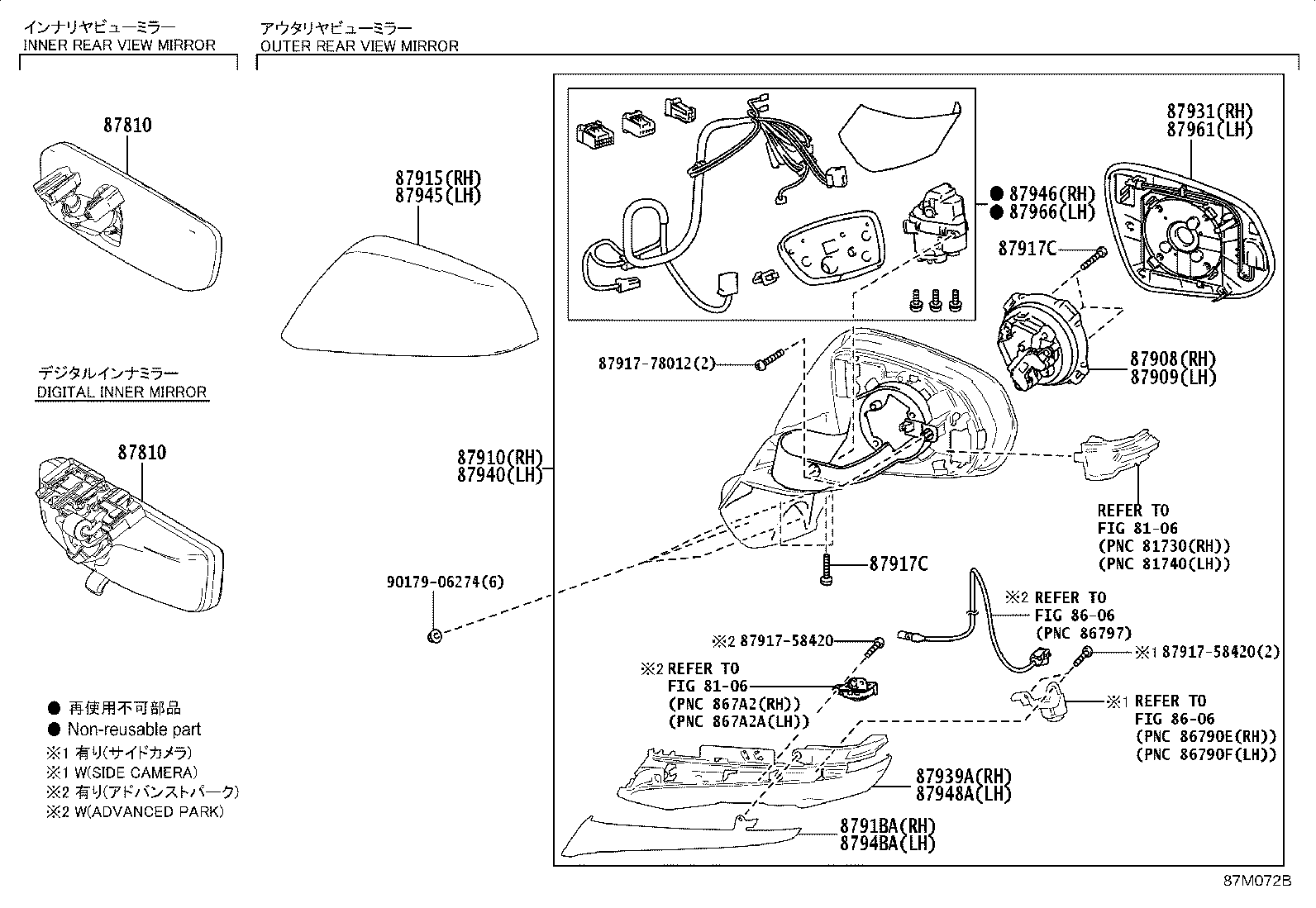

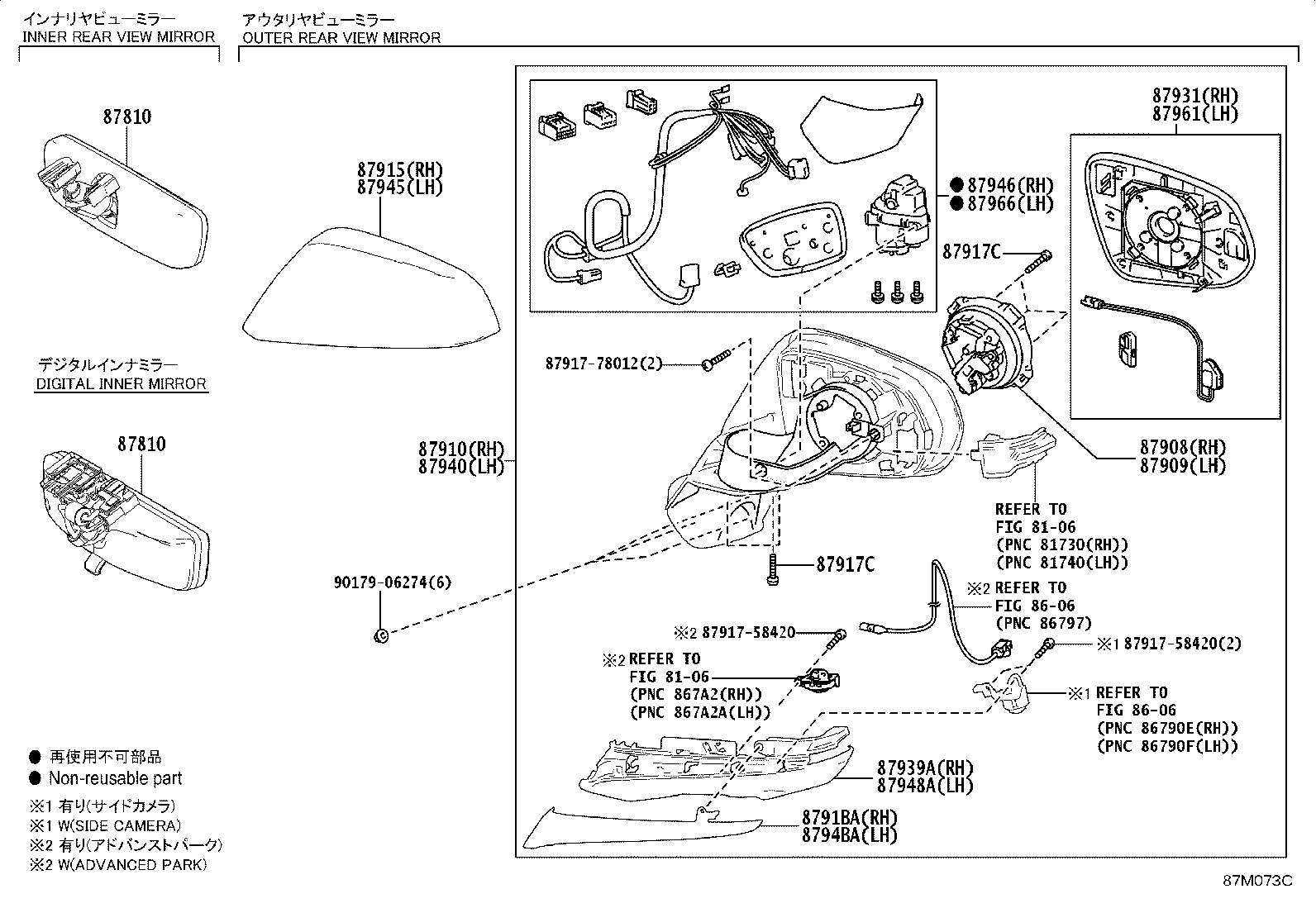

Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87908 | Actuator Assy, Outer Mirror, RH |
| 87909 | Actuator Assy, Outer Mirror, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87917C | Screw, Outer Mirror |
| 8791BA | Cover, Outer Mirror, RH NO.3 |
| 87931 | Outer Mirror, RH |
| 87939A | Cover, Outer Mirror Hole, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87946 | Retractor, Outer Mirror, RH |
| 87948A | Cover, Outer Mirror Hole, LH |
| 8794BA | Cover, Outer Mirror, LH NO.3 |
| 87961 | Mirror Outer, LH |
| 87966 | Retractor, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
