Toyota C-hr
2016-12 → present · chassis NGX10,50,ZYX1# · catalogue 529110 · Japan
Supported model
Data version 2019-10

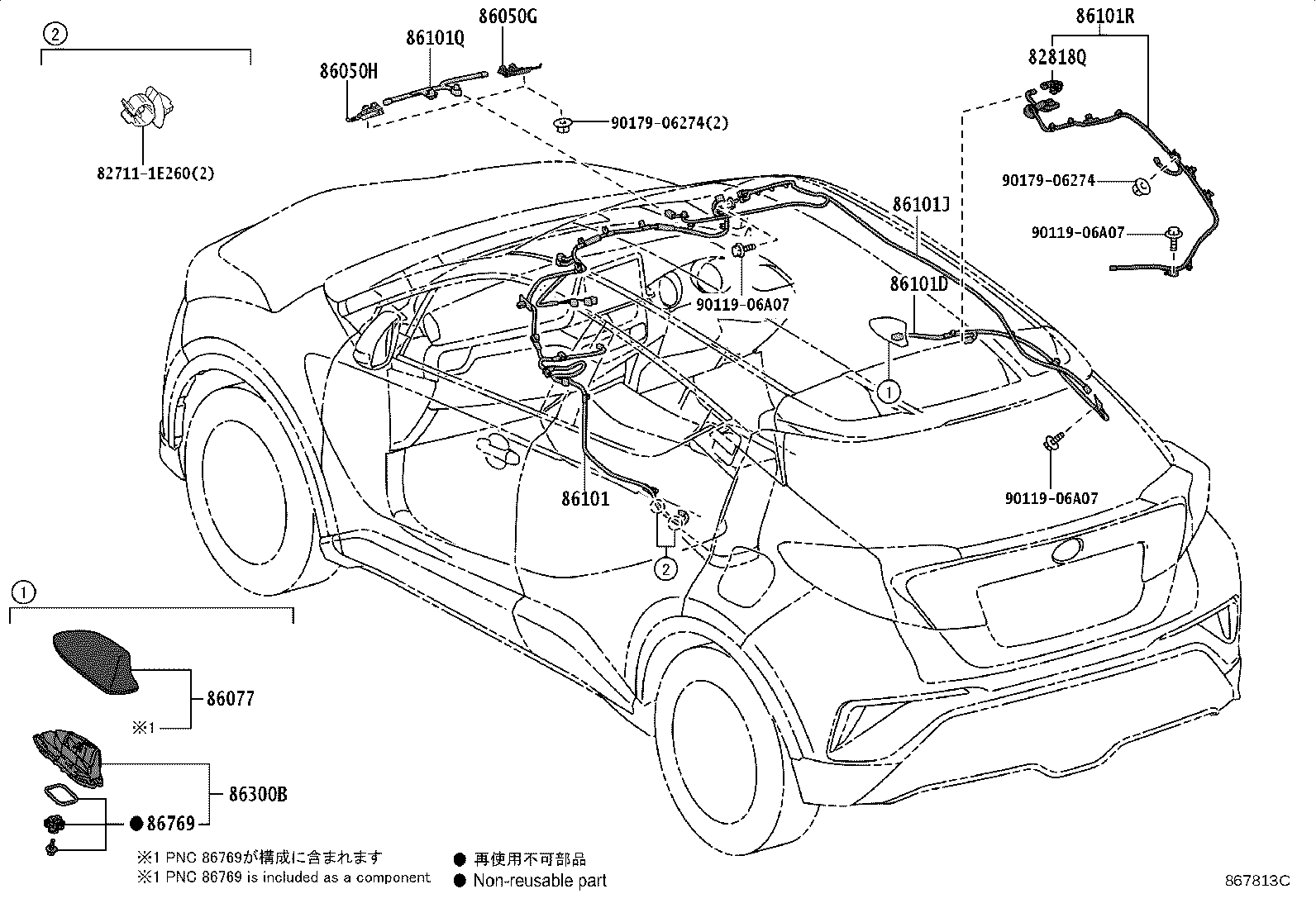

Antenna
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82818Q | Protector, Wiring Harness, NO.1 |
| 86050G | Antenna Assy, Television, NO.1 RH |
| 86050H | Antenna Assy, Television, NO.1 LH |
| 86077 | Cover Kit, Antenna |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86101Q | Cord Sub-assy, Antenna, NO.4 |
| 86101R | Cord Sub-assy, Antenna, NO.5 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86769 | Housing, Roof Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
